Continental Device India Limited
An ISO/TS16949 and ISO 9001 Certified Company

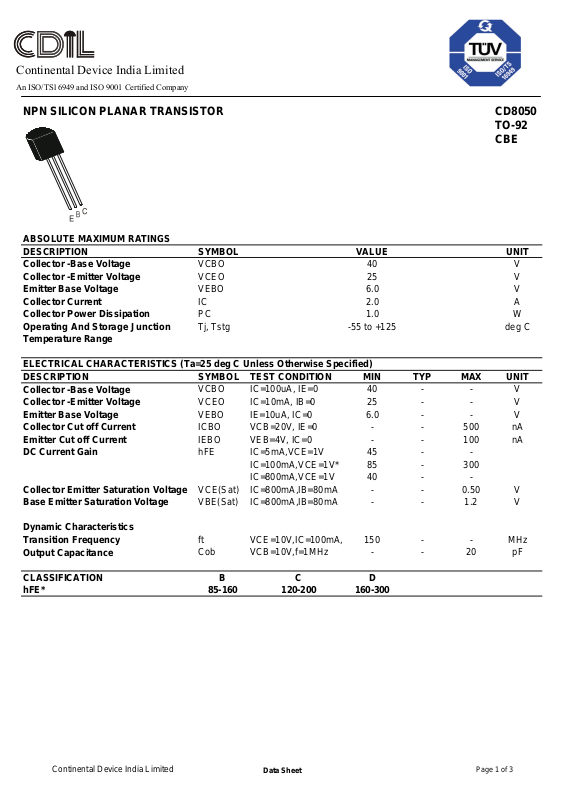

NPN SILICON PLANAR TRANSISTOR CD8050
TO-92
CBE
ABSOLUTE MAXIMUM RATINGS
DESCRIPTION SYMBOL VALUE UNIT
Collector -Base Voltage
Collector -Emitter Voltage
Emitter Base Voltage
Collector Current
Collector Power Dissipation
Operating And Storage Junction
Temperature Range
VCBO 40 V
VCEO 25 V
VEBO 6.0 V
IC 2.0 A
PC 1.0 W
Tj, Tstg -55 to +125 deg C
ELECTRICAL CHARACTERISTICS (Ta=25 deg C Unless Otherwise Specified)
DESCRIPTION SYMBOL TEST CONDITION MIN T Y P MAX UNIT
Collector -Base Voltage
Collector -Emitter Voltage
Emitter Base Voltage
Collector Cut off Current
Emitter Cut off Current
DC Current Gain
Collector Emitter Saturation Voltage
Base Emitter Saturation Voltage
Dynamic Characteristics
Transition Frequency
Output Capacitance
CLASSIFICATION B C D
hFE* 85-160 120-200 160-300
VCBO IC=100uA, IE=0 40 - - V
VCEO IC=10mA, IB=0 25 - - V
VEBO IE=10uA, IC=0 6.0 - - V
ICBO VCB=20V, IE=0 - - 500 nA
IEBO VEB=4V, IC=0 - - 100 nA
hFE IC=5mA,VCE=1V 45 - -
IC=100mA,VCE=1V* 85 - 300
IC=800mA,VCE=1V 40 - VCE(Sat) IC=800mA,IB=80mA - - 0.50 V
VBE(Sat) IC=800mA,IB=80mA - - 1.2 V
ft VCE=10V,IC=100mA, 150 - - MHz
Cob VCB=10V,f=1MHz - - 20 pF
Continental Device India Limited
Data Sheet
Page 1 of 3
Page 2
TO-92 Plastic Package
B
AK
3 2 1
D
A
A
G
3 2 1
F
H
F
PIN CONFIGURATION
1. COLLECTOR
2. BASE
3. EMITTER
D
SEC AA
C
All diminsions in mm.
1
E
2
3
DIM MIN. MAX.
A 4.32 5.33
B 4.45 5.20
C 3.18 4.19
D 0.41 0.55
E 0.35 0.50
F5 DEG
G 1.14 1 .40
H 1.14 1.53
K 12.70 —
TO-92 Transistors on Tape and Ammo Pack
MECHANICAL DATA
T
hh
A
H1
H0
L
t1
t
A1
F1 F2
F
P2
Po
P
(p)
W2
Wo
Do
Adhesive Tape on Top Side
FLAT SIDE
LABEL
W1
W
Ammo Pack Style
1
.
7
7
"
3
1
Flat Side of Transistor and
Adhesive Tape Visible
2000 pcs./Ammo Pack
All dimensions in mm unless specified otherwise
ITE M
BODY WIDTH
BODY HEIGHT
BODY THICKNESS
PITCH OF COMPONENT
FEED HOLE PITCH
FEED HOLE CENTRE TO
COMPONENT CENTRE
DISTANCE BETWEEN OUTER
LEADS
CO M PO NE N T A LIG N ME N T
TAPE WIDTH
HOLD-DOWN TAPE WIDTH
HOLE POSITION
HOLD-DOWN TAPE POSITION
LEAD WIRE CLINCH HEIGHT
COMPONENT HEIGHT
LENGTH OF SNIPPED LEADS
FEED HOLE DIAMETER
TOTAL TAPE THICKNESS
LEAD - TO - LEAD DISTANCEF1,
CLINCH HEIGHT
PULL - OUT FORCE
NOTES
1. MAXIMUM A LIGNMEN T DEVIATION BETWE EN LEADS N OT TO BE GR EATER THAN 0.2 mm .
2. MAXIMUM NON-CUMULATIVE VARIATIO N BETW EEN TAPE FEED HOLES SHALL NOT EXCEED 1 mm IN 20
PIT CH ES.
3. HOLDDOW N TAPE NO T TO EXC EED BEYO ND TH E EDGE(S) OF C ARRIER TAPE AND THERE SH ALL BE NO
EXPOSU RE O F ADHESIVE.
4. NO MOR E THAN 3 CONSE CUTIVE MISSING CO MPON ENTS ARE PERM ITTED.
5. A TAPE TRAILER, HAVING AT LEAST TH REE FE ED HOLES ARE REQ UIRED AF TER THE LAS T COM PONEN T.
6. SPLICES SHALL NO T INTERFERE W ITH THE SPR OCK ET FEED H OLES.
SYMBOL
A1
A
T
P
Po
P2
F
h
W
Wo
W1
W2
Ho
H1
L
Do
t
F2
H2
(P)
SPEC IFICATION
MIN.
NOM.
4.0
4.8
3.9
12.7
12.7
6.35
5.08
0
18
6
9
0.5
16
4
2.54
6N
MAX.
4.8
5.2
4.2
1
23.25
11. 0
1.2
3
TOL .
±1
CUMULATIVE PITCH
±0.3
ERRO R 1.0 mm/20
PITCH
±0.4
TO BE MEASURED AT
BO TT OM O F C LIN CH
+0.6
-0.2
AT TO P OF BO DY
±0.5
±0.2
+0.7
-0.5
±0.2
±0.5
±0.2
t1 0.3 - 0.6
+0.4
-0.1
"
D
E
E
F
REMARKS
8.2"
Carrier
Strip
Packing Detail
PACKAGE
Details
TO-92 Bulk
TO-92 T&A
Continental Device India Limited
1K/polybag
2K/ammo box
STANDARD PACK INNER CARTON BOX
Net Weight/Qty
200 gm/1K pcs
645 gm/2K pcs
3" x 7.5" x 7.5"
12.5" x 8" x 1.8"
Data Sheet
Qty
5.0K
2.0K
OUTER CARTON BOX
17" x 15" x 13.5"
17" x 15" x 13.5"
Qty Gr WtSize Size
80.0K
32.0K
23 kgs
12.5 kgs
Page 2 of 3
Page 3
Customer Notes
Disclaimer
The product information and the selection guides facilitate selection of the CDIL's Discrete Semiconductor Device(s) best suited
for application in your product(s) as per your requirement. It is recommended that you completely review our Data Sheet(s) so as
to confirm that the Device(s) meet functionality parameters for your application. The information furnished on the CDIL Web
Site/CD is believed to be accurate and reliable. CDIL however, does not assume responsibility for inaccuracies or incomplete
information. Furthermore, CDIL does not assume liability whatsoever, arising out of the application or use of any CDIL product;
neither does it convey any license under its patent rights nor rights of others. These products are not designed for use in life
saving/support appliances or systems. CDIL customers selling these products (either as individual Discrete Semiconductor
Devices or incorporated in their end products), in any life saving/support appliances or systems or applications do so at their own
risk and CDIL will not be responsible for any damages resulting from such sale(s).
CDIL strives for continuous improvement and reserves the right to change the specifications of its products without prior notice.
CDIL is a registered Trademark of
Continental Device India Limited
C-120 Naraina Industrial Area, New Delhi 110 028, India.
Telephone + 91-11-2579 6150, 5141 1112 Fax + 91-11-2579 5290, 5141 1119
[email protected] www.cdilsemi.com
Continental Device India Limited
Data Sheet
Page 3 of 3
