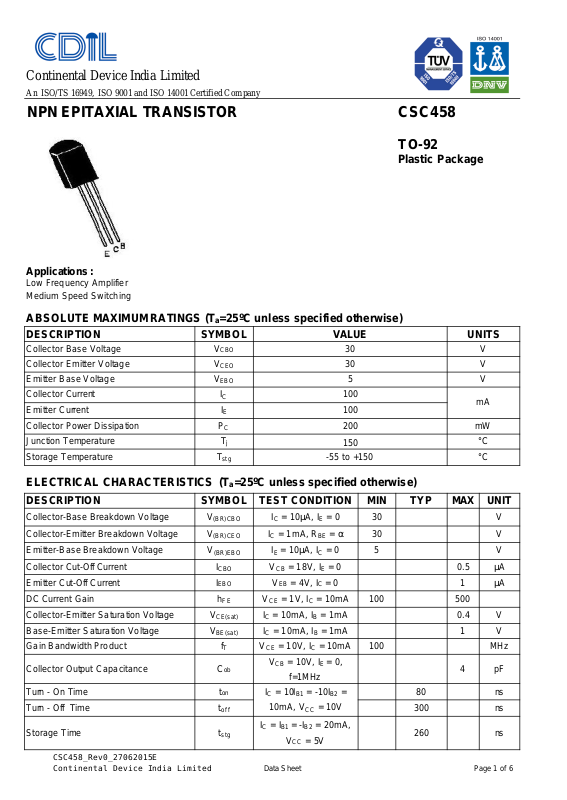

Page 1
Continental Device India Limited
An ISO/TS 16949, ISO 9001 and ISO 14001 Certified Company
NPN EPITAXIAL TRANSISTOR CSC458
TO-92
Plastic Package
Applications :
Low Frequency Amplifier
Medium Speed Switching
ABSOLUTE MAXIMUM RATINGS (Ta=25ºC unless specified otherwise)
DESCRIPTION SYMBOL VALUE UNITS
Collector Base Voltage V
Collector Emitter Voltage V
Emitter Base Voltage V
Collector Current I
Emitter Current I
Collector Power Dissipation P
Junction Temperature T
Storage Temperature T
CBO
CEO
EBO
C
E
C
j
stg
30 V
30 V
5 V
100
mA
100
200 mW
150
°C
-55 to +150 °C
ELECTRICAL CHARACTERISTICS (Ta=25ºC unless specified otherwise)
DESCRIPTION SYMBOL TEST CONDITION MIN TYP MAX UNIT
Collector-Base Breakdown Voltage V
Collector-Emitter Breakdown Voltage V
Emitter-Base Breakdown Voltage V
Collector Cut-Off Current I
Emitter Cut-Off Current I
DC Current Gain h
Collector-Emitter Saturation Voltage V
Base-Emitter Saturation Voltage V
Gain Bandwidth Product f
Collector Output Capacitance C
Turn - On Time t
Turn - Off Time t
Storage Time t
CSC458_Rev0_27062015E
Continental Device India Limited Data Sheet Page 1 of 6
(BR)CBO
(BR)CEO
(BR)EBO
CBO
EBO
FE
CE(sat)
BE(sat)
T
ob
on
off
stg
IC = 10µA, IE = 0 30 V
IC = 1mA, RBE = α 30 V
IE = 10µA, IC = 0 5 V
VCB = 18V, IE = 0 0.5 µA
VEB = 4V, IC = 0 1 µA
VCE = 1V, IC = 10mA 100 500
IC = 10mA, IB = 1mA 0.4 V
IC = 10mA, IB = 1mA 1 V
VCE = 10V, IC = 10mA 100 MHz
VCB = 10V, IE = 0,
4 pF
f=1MHz
IC = 10IB1 = -10IB2 =
10mA, VCC = 10V
IC = I
= -IB2 = 20mA,
B1
80 ns
300 ns
260 ns
VCC = 5V
Page 2
Continental Device India Limited
An ISO/TS 16949, ISO 9001 and ISO 14001 Certified Company
Small Signal h Parameters
DESCRIPTION SYMBOL
Input Impedance h
Voltage Feedback Ratio h
Current Transfer Ratio h
Output Admittance h
Classification of h
FE
Rank B C D
Range 100-200 160-320 250-500
ie
re
fe
oe
TEST CONDITION
TYP UNIT
VCE = 5V, 16.5 kΩ
IC = 0.1mA, 70 x 10
f = 270 Hz 130
11 µS
-6
CSC458_Rev0_27062015E
Continental Device India Limited Data Sheet Page 2 of 6
Page 3
Continental Device India Limited
An ISO/TS 16949, ISO 9001 and ISO 14001 Certified Company

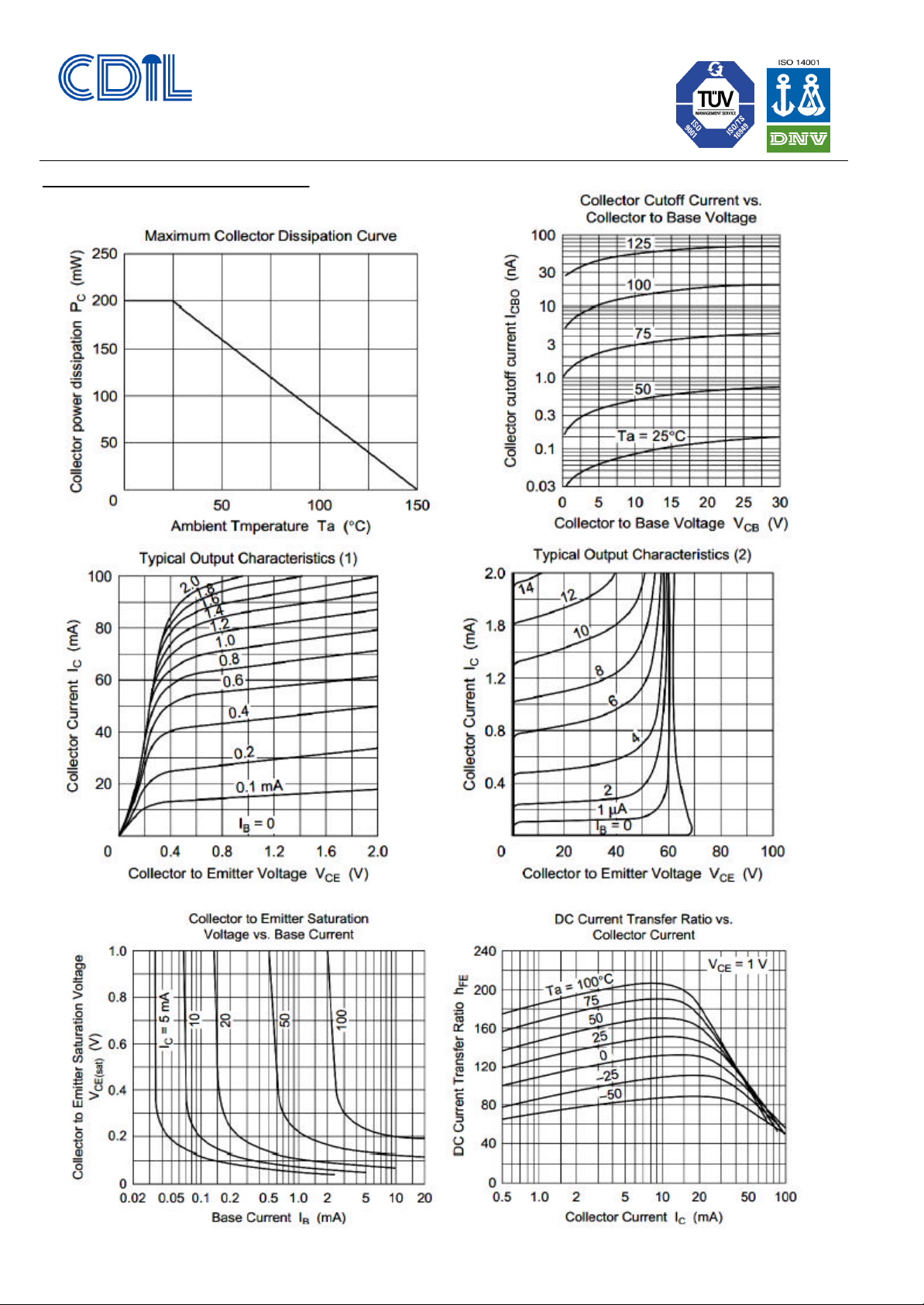

TYPICAL CHARACTERISTICS CURVES
CSC458_Rev0_27062015E
Continental Device India Limited Data Sheet Page 3 of 6

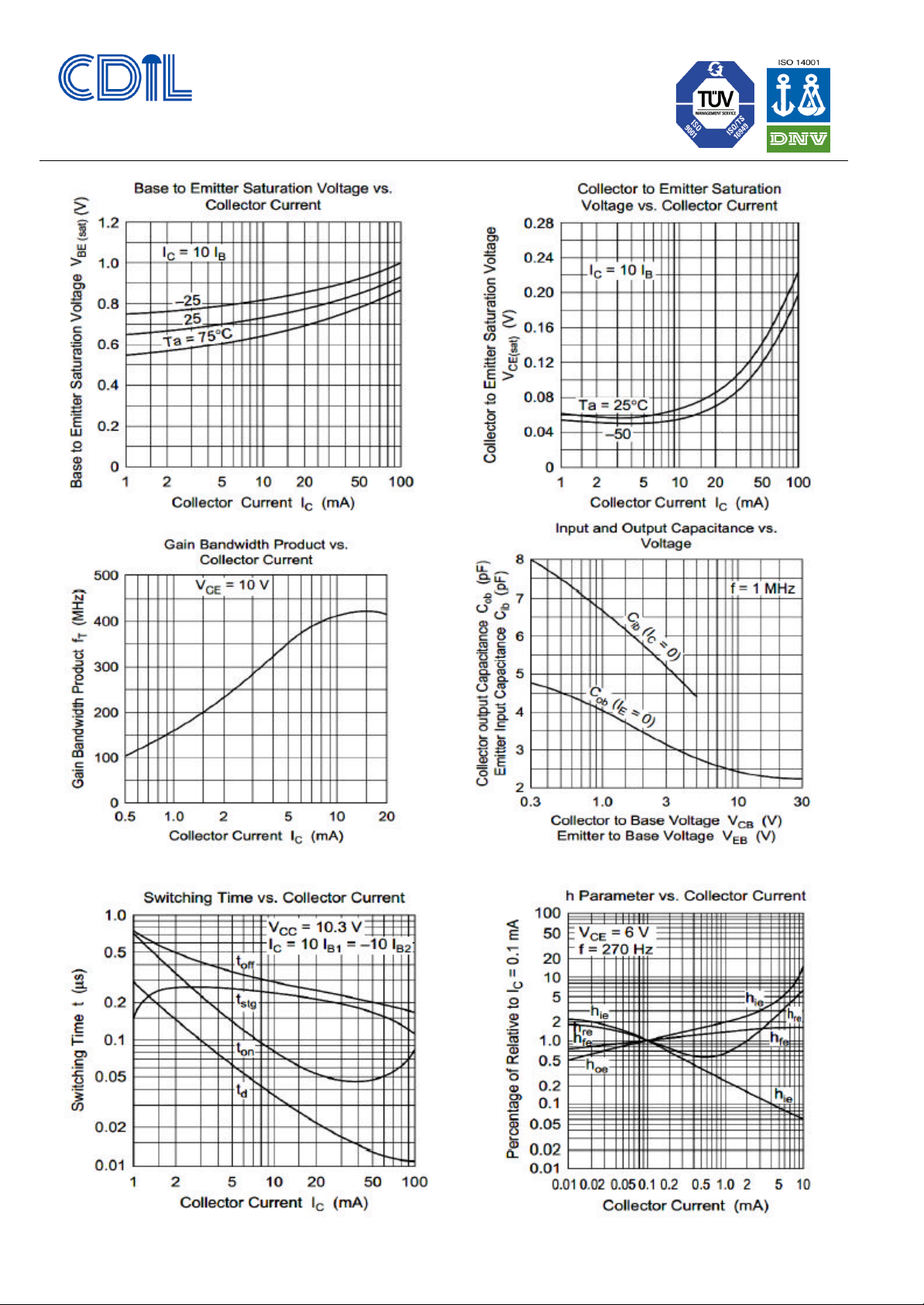

Page 4
Continental Device India Limited
An ISO/TS 16949, ISO 9001 and ISO 14001 Certified Company
CSC458_Rev0_27062015E
Continental Device India Limited Data Sheet Page 4 of 6
Page 5
Continental Device India Limited
An ISO/TS 16949, ISO 9001 and ISO 14001 Certified Company

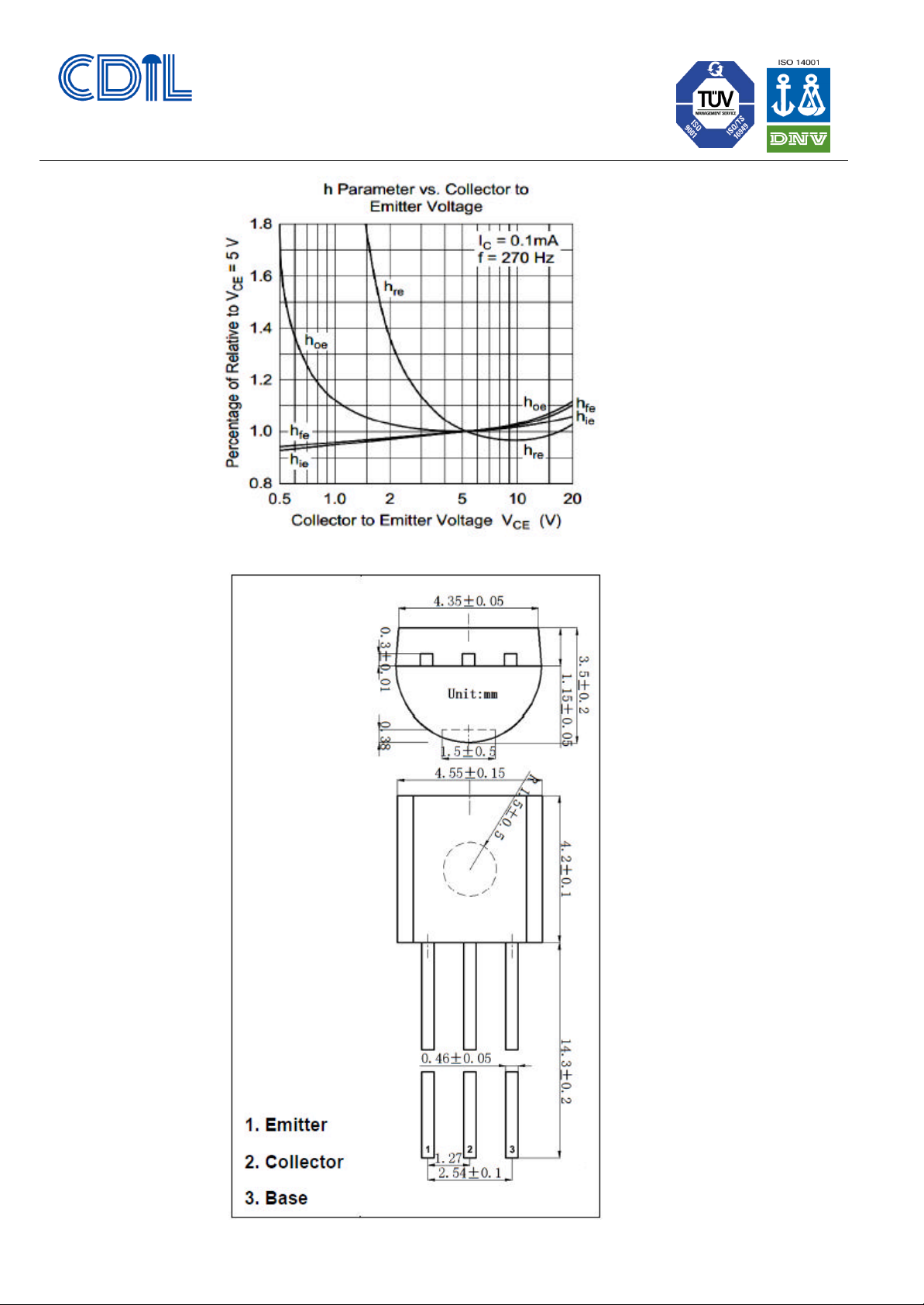

TO-92 Package Outline and Dimension
CSC458_Rev0_27062015E
Continental Device India Limited Data Sheet Page 5 of 6
Page 6
Continental Device India Limited
An ISO/TS 16949, ISO 9001 and ISO 14001 Certified Company
Disclaimer
The product information and the selection guides facilitate selection of the CDIL's Semiconductor Device(s) best
suited for application in your product(s) as per your requirement. It is recommended that you completely review our
Data Sheet(s) so as to confirm that the Device(s) meet functionality parameters for your application. The
information furnished in the Data Sheet and on the CDIL Web Site/CD is believed to be accurate and reliable. CDIL
however, does not assume responsibility for inaccuracies or incomplete information. Furthermore, CDIL does not
assume liability whatsoever, arising out of the application or use of any CDIL product; neither does it convey any
license under its patent rights nor rights of others. These products are not designed for use in life saving/support
appliances or systems. CDIL customers selling these products (either as individual Semiconductor Devices or
incorporated in their end products), in any life saving/support appliances or systems or applications do so at their
own risk and CDIL will not be responsible for any damages resulting from such sale(s).
CDIL strives for continuous improvement and reserves the right to change the specifications of its products without
CDIL is a registered Trademark of
Continental Device India Limited
C-120 Naraina Industrial Area, New Delhi 110 028, India.
Telephone + 91-11-2579 6150, 4141 1112 Fax + 91-11-2579 5290, 4141 1119
[email protected] www.cdil.com
CIN No. U32109DL1964PLC004291
CSC458_Rev0_27062015E
Continental Device India Limited Data Sheet Page 6 of 6
