Inchange Semiconductor Product Specification
Silicon NPN Power Transistors 2SC3907
DESCRIPTION
·With TO-3P(I) package
·Complement to type 2SA1516
APPLICATIONS
·Audio and general purpose power
amplifier applications
·Recommend for 80W high fidelity audio
frequency amplifier output stage
PINNING
PIN DESCRIPTION
·
1
2
3 Emitter
Base
Collector;connected to
mounting base

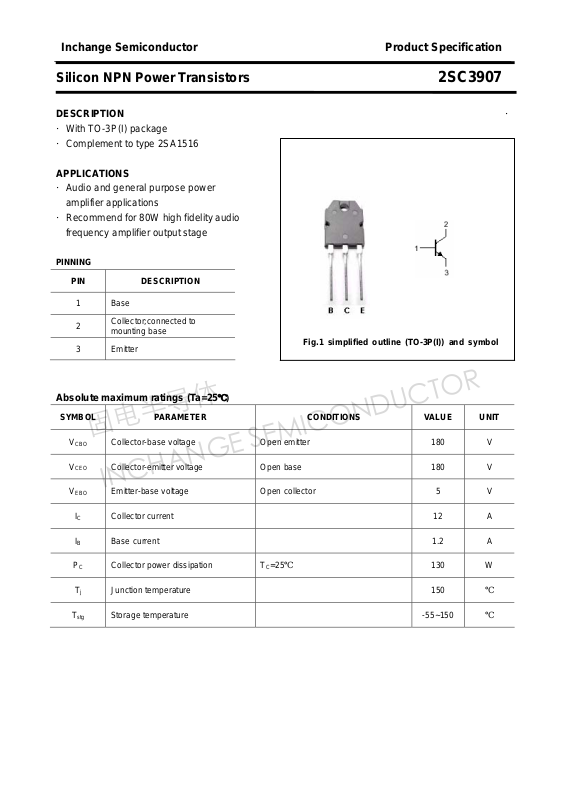

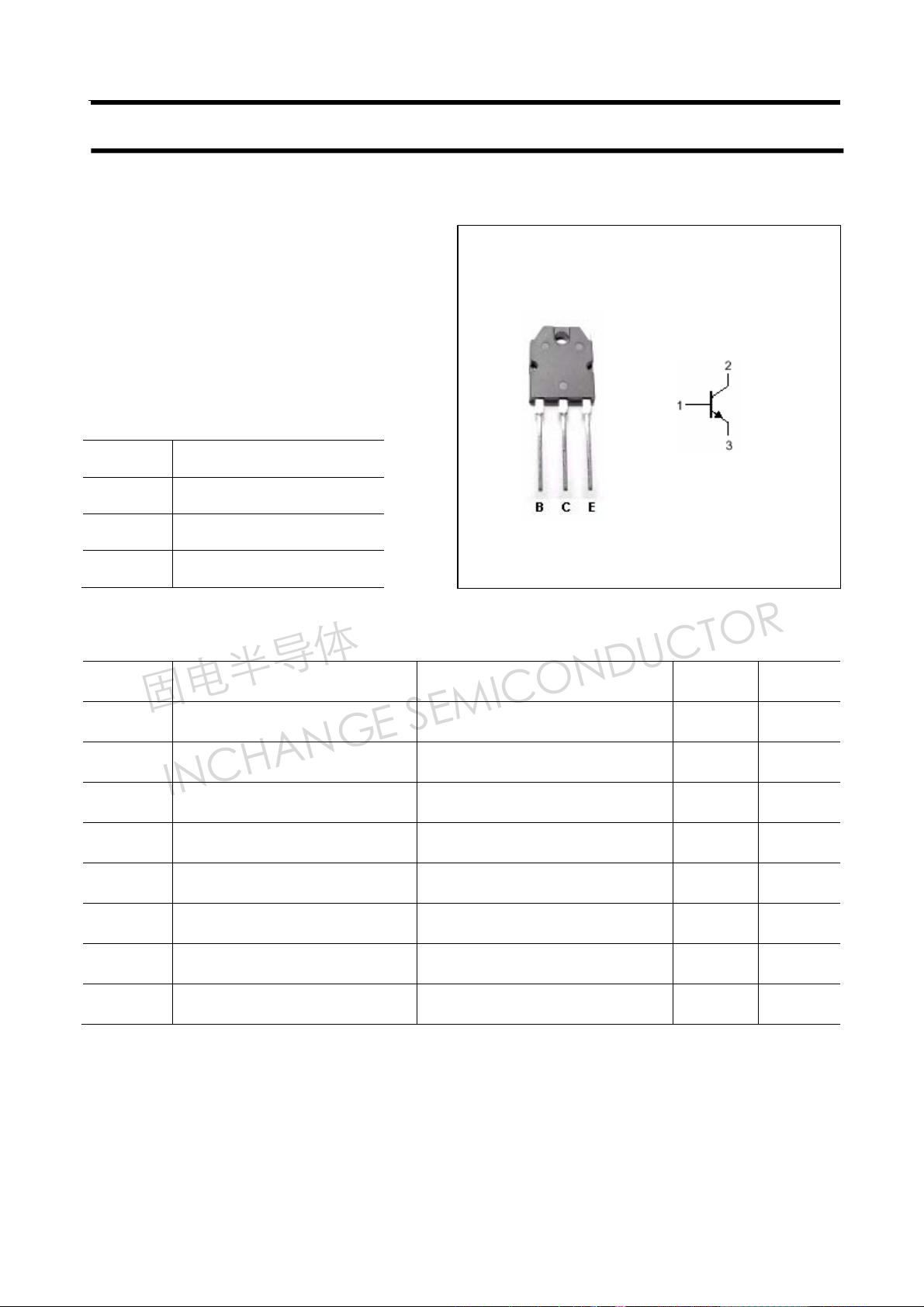

Fig.1 simplified outline (TO-3P(I)) and symbol
Absolute maximum ratings (Ta=25
SYMBOL PARAMETER CONDITIONS VALUE UNIT
V
CBO
V
CEO
V
EBO
IC Collector current 12 A
IB Base current 1.2 A
PC Collector power dissipation TC=25℃ 130 W
Collector-base voltage Open emitter 180 V
Collector-emitter voltage Open base 180 V
Emitter-base voltage Open collector 5 V
℃)
Tj Junction temperature 150 ℃
T
Storage temperature -55~150 ℃
stg
Page 2
固电半导体
INCHANGE SEMICONDUCTOR
Inchange Semiconductor Product Specification
Silicon NPN Power Transistors 2SC3907
CHARACTERISTICS
Tj=25℃ unless otherwise specified
SYMBOL PARAMETER CONDITIONS MIN TYP. MAX UNIT
V
(BR)CEO
V
CEsat
V
BE
I
CBO
I
EBO
h
FE-1
h
FE-2
fT Transition frequency IC=1A ; VCE=5V 30 MHz
COB Output capacitance IE=0; VCB=10V;f=1MHz 270 pF
Collector-emitter breakdown voltage IC=50mA; IB=0 180 V
Collector-emitter saturation voltage IC=8 A;IB=0.8 A 0.3 2.0 V
Base-emitter voltage IC=7A ; VCE=5V 1.0 1.5 V
Collector cut-off current VCB=180V; IE=0 5
Emitter cut-off current VEB=5V; IC=0 5
DC current gain IC=1A ; VCE=5V 55 180
DC current gain IC=7A ; VCE=5V 35
μA
μA
h
classifications
FE-1
R O
55-110 90-180
2
Page 3
固电半导体
INCHANGE SEMICONDUCTOR
Inchange Semiconductor Product Specification
Silicon NPN Power Transistors 2SC3907

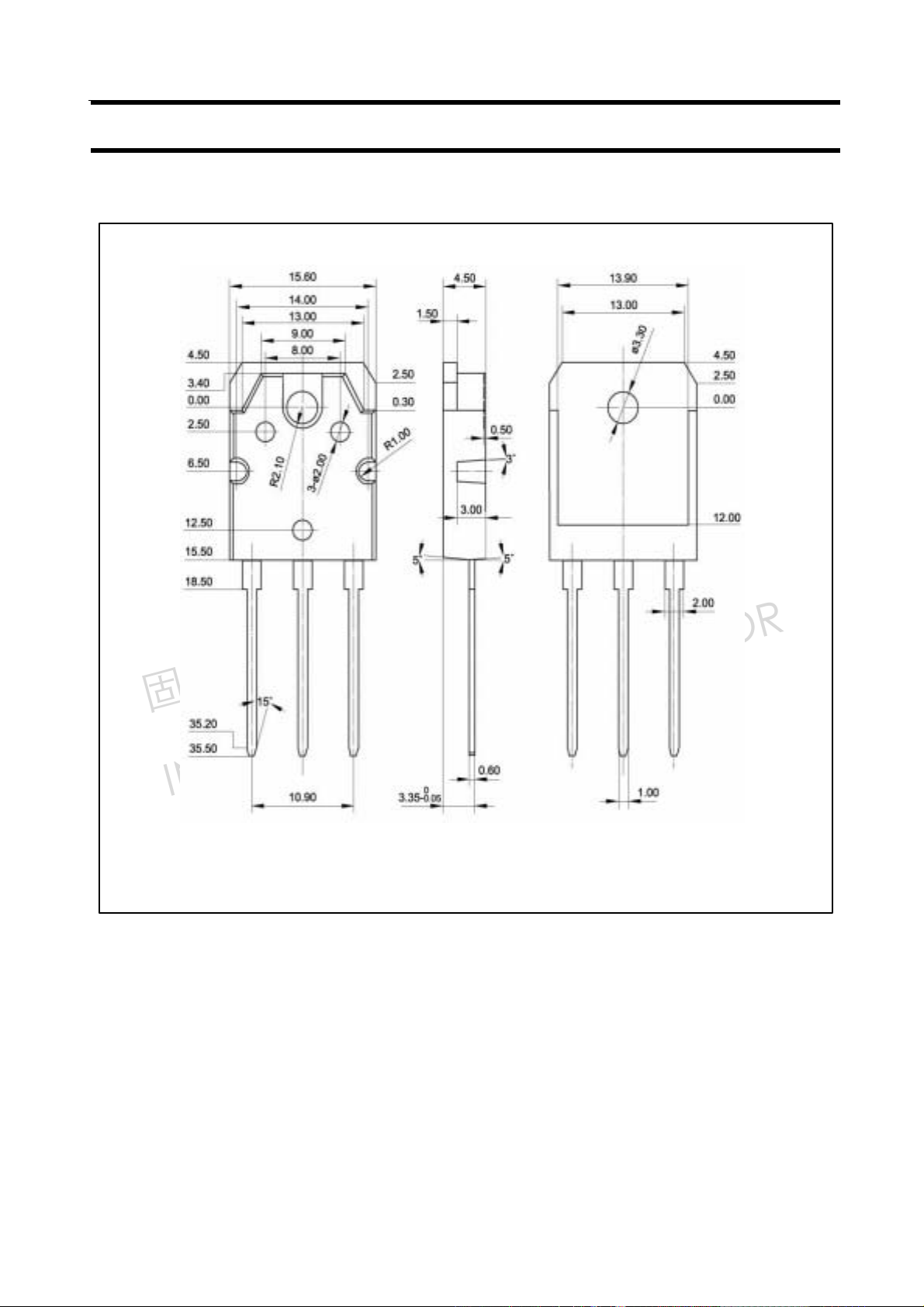

PACKAGE OUTLINE
Fig.2 Outline dimensions
3
