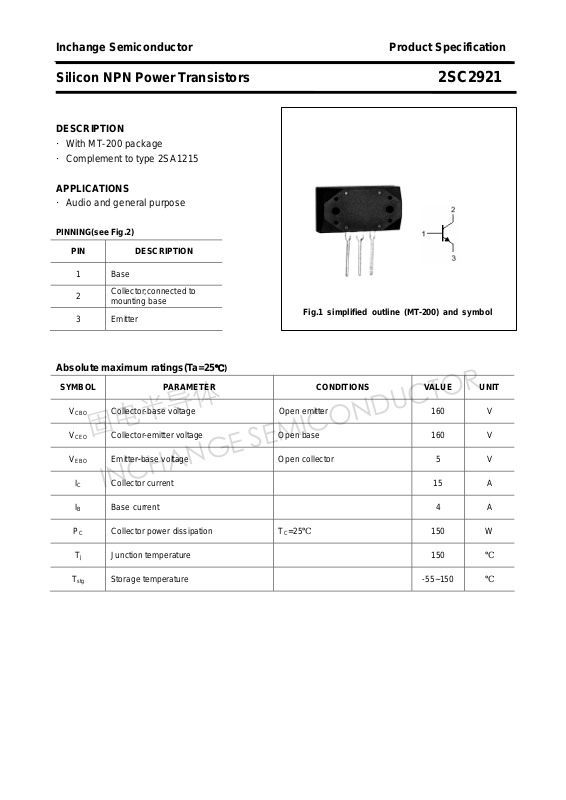

Page 1
固电半导体
INCHANGE SEMICONDUCTOR
Inchange Semiconductor Product Specification
Silicon NPN Power Transistors 2SC2921
DESCRIPTION
·With MT-200 package
·Complement to type 2SA1215
APPLICATIONS
·Audio and general purpose
PINNING(see Fig.2)
PIN DESCRIPTION
1
2
3 Emitter
Base
Collector;connected to
mounting base

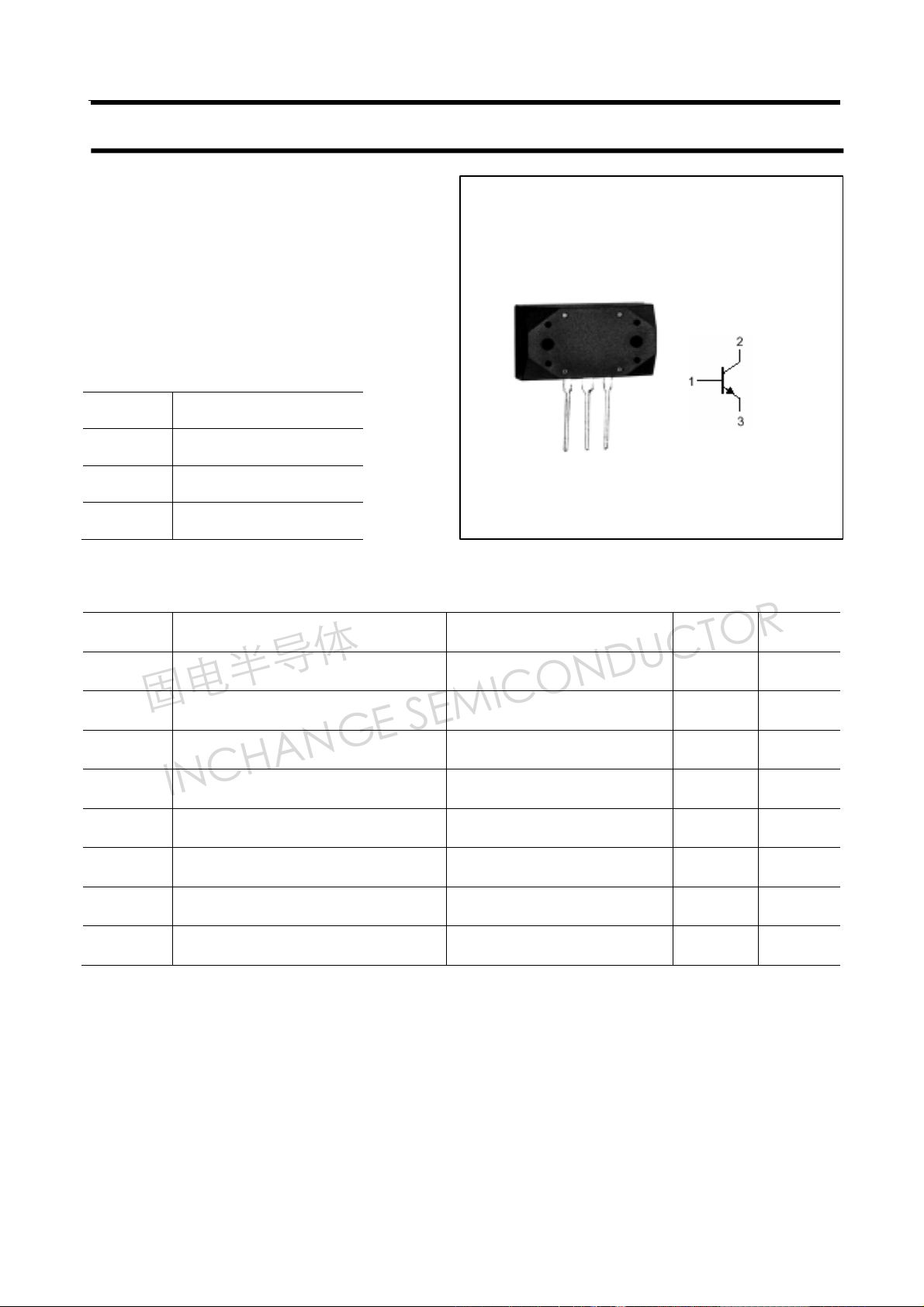

Fig.1 simplified outline (MT-200) and symbol
Absolute maximum ratings(Ta=25
SYMBOL PARAMETER CONDITIONS VALUE UNIT
V
CBO
V
CEO
V
EBO
IC Collector current 15 A
IB Base current 4 A
PC Collector power dissipation TC=25℃ 150 W
Collector-base voltage Open emitter 160 V
Collector-emitter voltage Open base 160 V
Emitter-base voltage Open collector 5 V
℃)
Tj Junction temperature 150 ℃
T
Storage temperature -55~150 ℃
stg
Page 2
固电半导体
INCHANGE SEMICONDUCTOR
Inchange Semiconductor Product Specification
Silicon NPN Power Transistors 2SC2921
CHARACTERISTICS
Tj=25℃ unless otherwise specified
SYMBOL PARAMETER CONDITIONS MIN TYP. MAX UNIT
V
Switching times
Collector-emitter breakdown voltage IC=25mA ; IB=0 160 V
(BR)CEO
V
Collector-emitter saturation voltage IC=5A ;IB=0.5A 2.0 V
CEsat
I
Collector cut-off current VCB=160V; IE=0 100
CBO
I
Emitter cut-off current VEB=5V; IC=0 100
EBO
h
DC current gain IC=5A ; VCE=4V 50
FE
Cob Output capacitance IE=0 ; VCB=10V;f=1MHz 200 pF
fT Transition frequency IE=-2A ; VCE=12V 60 MHz
ton Turn-on time 0.20
IC=5A;RL=12Ω
ts Storage time 1.50
tf Fall time
=-IB2=0.5A
I
B1
V
=60V
CC
0.35
μA
μA
μs
μs
μs
hFE classifications
O P Y
50-100 70-140 90-180
2
Page 3
固电半导体
INCHANGE SEMICONDUCTOR
Inchange Semiconductor Product Specification
Silicon NPN Power Transistors 2SC2921

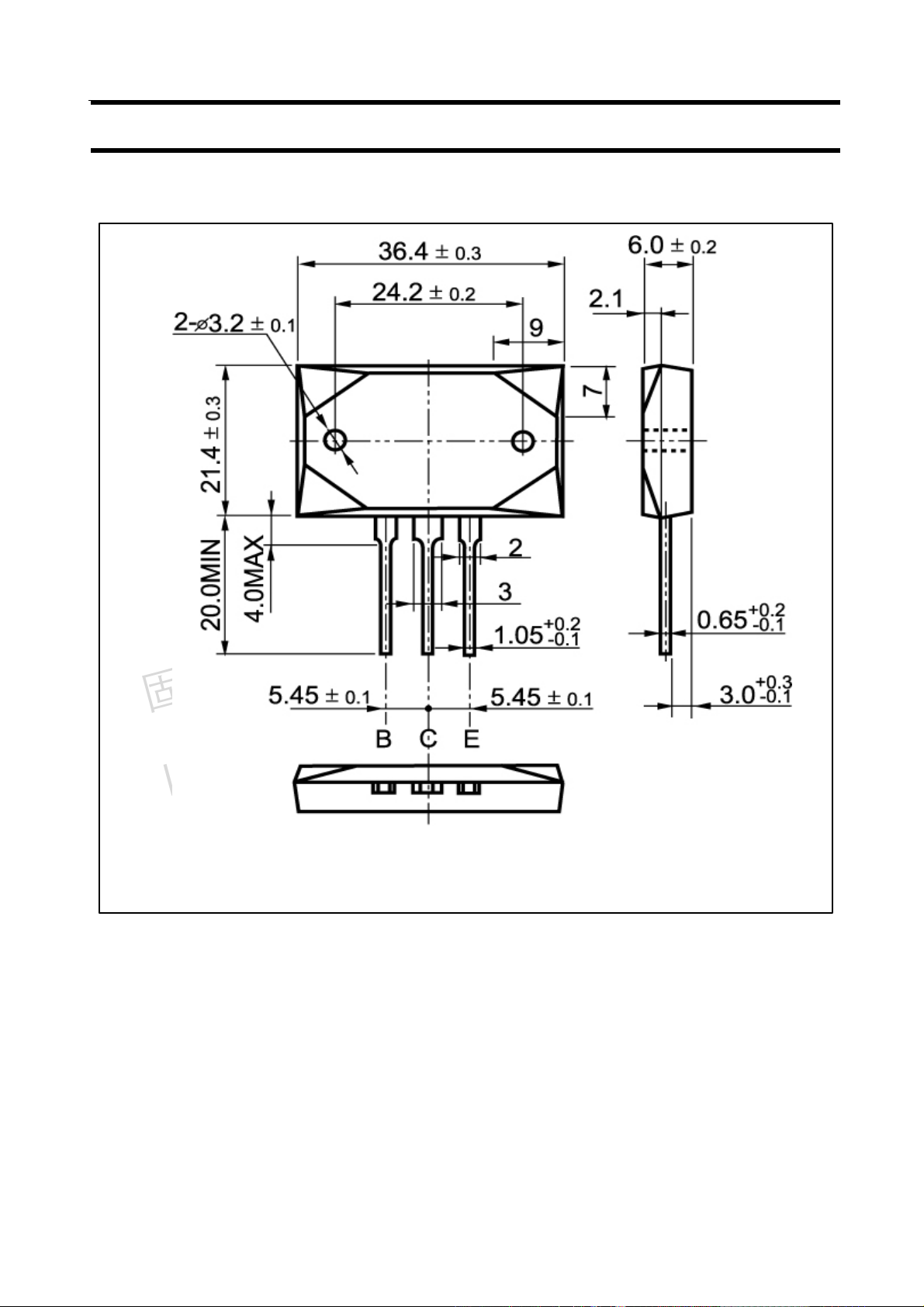

PACKAGE OUTLINE
3
Fig.2 outline dimensions

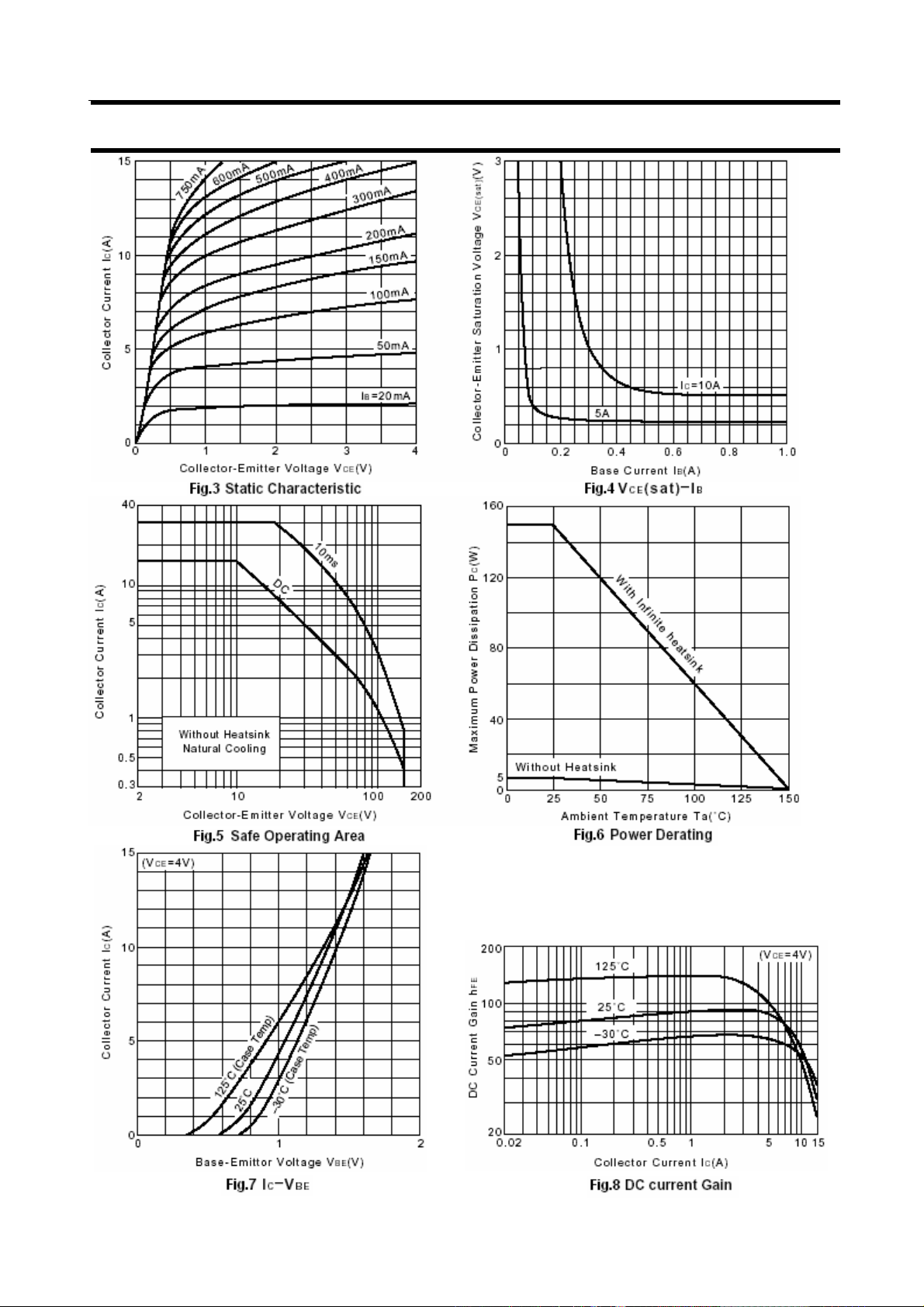

Page 4
固电半导体
INCHANGE SEMICONDUCTOR
Inchange Semiconductor Product Specification
Silicon NPN Power Transistors 2SC2921
4
