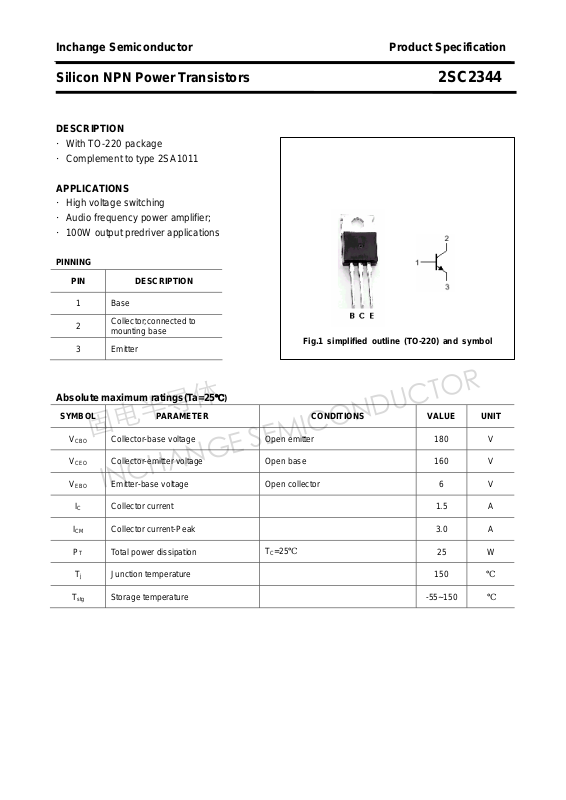

Page 1
固电半导体
INCHANGE SEMICONDUCTOR
Inchange Semiconductor Product Specification
Silicon NPN Power Transistors 2SC2344
DESCRIPTION
·With TO-220 package
·Complement to type 2SA1011
APPLICATIONS
·High voltage switching
·Audio frequency power amplifier;
·100W output predriver applications
PINNING
PIN DESCRIPTION
1
2
3 Emitter
Base
Collector;connected to
mounting base

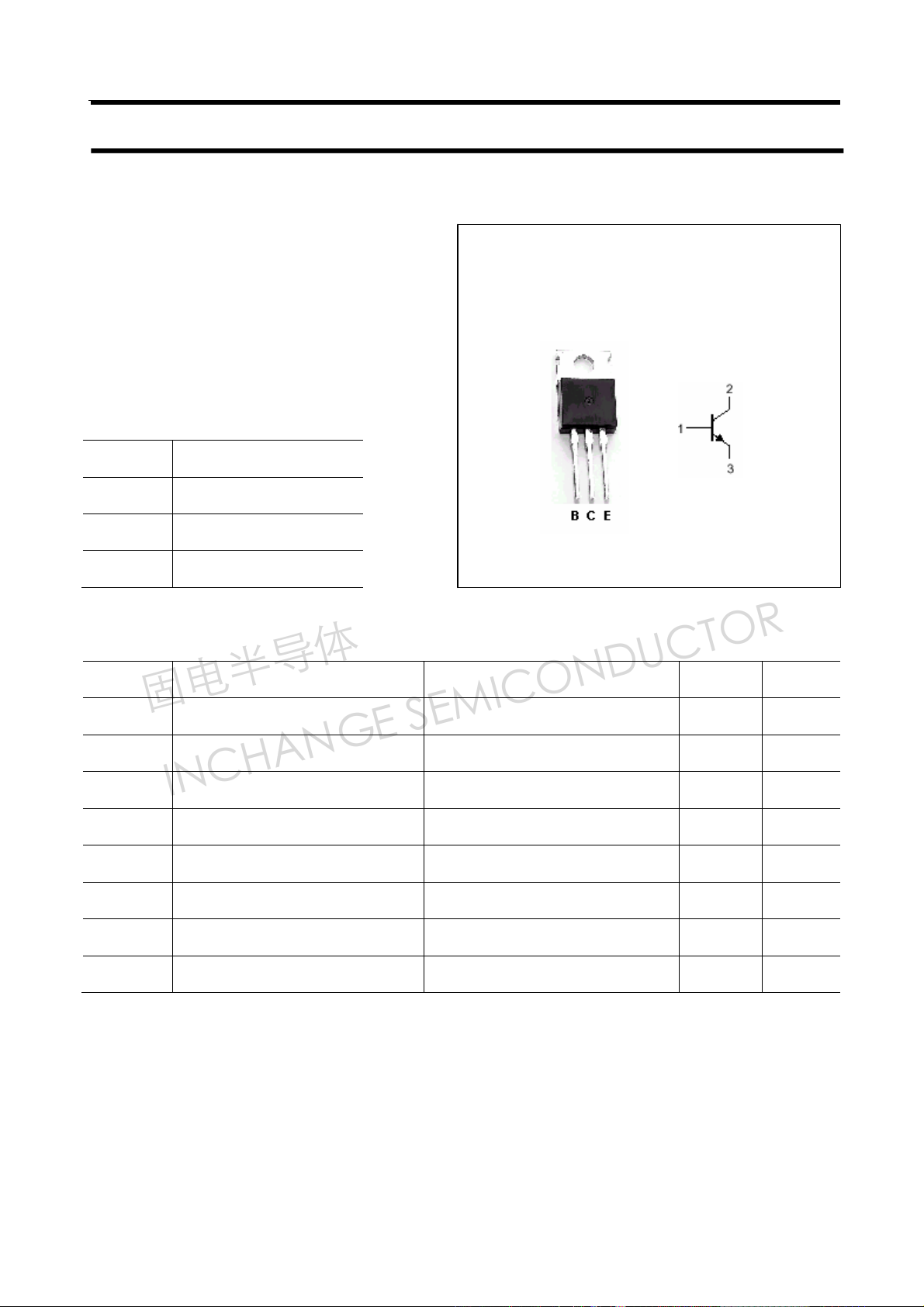

Fig.1 simplified outline (TO-220) and symbol
Absolute maximum ratings(Ta=25
SYMBOL PARAMETER CONDITIONS VALUE UNIT
V
CBO
V
CEO
V
EBO
IC Collector current 1.5 A
ICM Collector current-Peak 3.0 A
PT Total power dissipation
Tj Junction temperature 150
Collector-base voltage Open emitter 180 V
Collector-emitter voltage Open base 160 V
Emitter-base voltage Open collector 6 V
℃)
T
=25℃
C
25 W
℃
T
Storage temperature -55~150
stg
℃
Page 2
固电半导体
INCHANGE SEMICONDUCTOR
Inchange Semiconductor Product Specification
Silicon NPN Power Transistors 2SC2344
CHARACTERISTICS
Tj=25℃ unless otherwise specified
SYMBOL PARAMETER CONDITIONS MIN TYP. MAX UNIT
I
V
(BR)CEO
Base-emitter breakdown voltage
=10mA ,RBE=∞
C
160 V
V
V
Switching times resistive load
Collector-base breakdown voltage IC=1mA; IE=0 180 V
(BR)CBO
Emitter-base breakdown voltage IE=1mA; IC=0 6 V
(BR)EBO
V
Collector-emitter saturation voltage IC=0.5A; IB=50mA 0.3 V
CEsat
VBE Base-emitter voltage IC=10mA ; VCE=5V 1.5 V
I
Collector cut-off current VCB=120V; IE=0 10
CBO
I
Emitter cut-off current VEB=4V; IC=0 10
EBO
h
DC current gain IC=0.3A ; VCE=5V 60 200
FE
fT Transition frequency IC=50mA ; VCE=10V 100 MHz
Cob Output capacitance f=1MHz ; VCB=10V 23 pF
ton Turn-on time 0.15
μA
μA
μs
ts Storage time 0.81
tf Fall time
hFE Classifications
D E
60-120 100-200
2
I
=0.5A IB1=- IB2=50mA
C
0.48
μs
μs
Page 3
固电半导体
INCHANGE SEMICONDUCTOR
Inchange Semiconductor Product Specification
Silicon NPN Power Transistors 2SC2344
PACKAGE OUTLINE

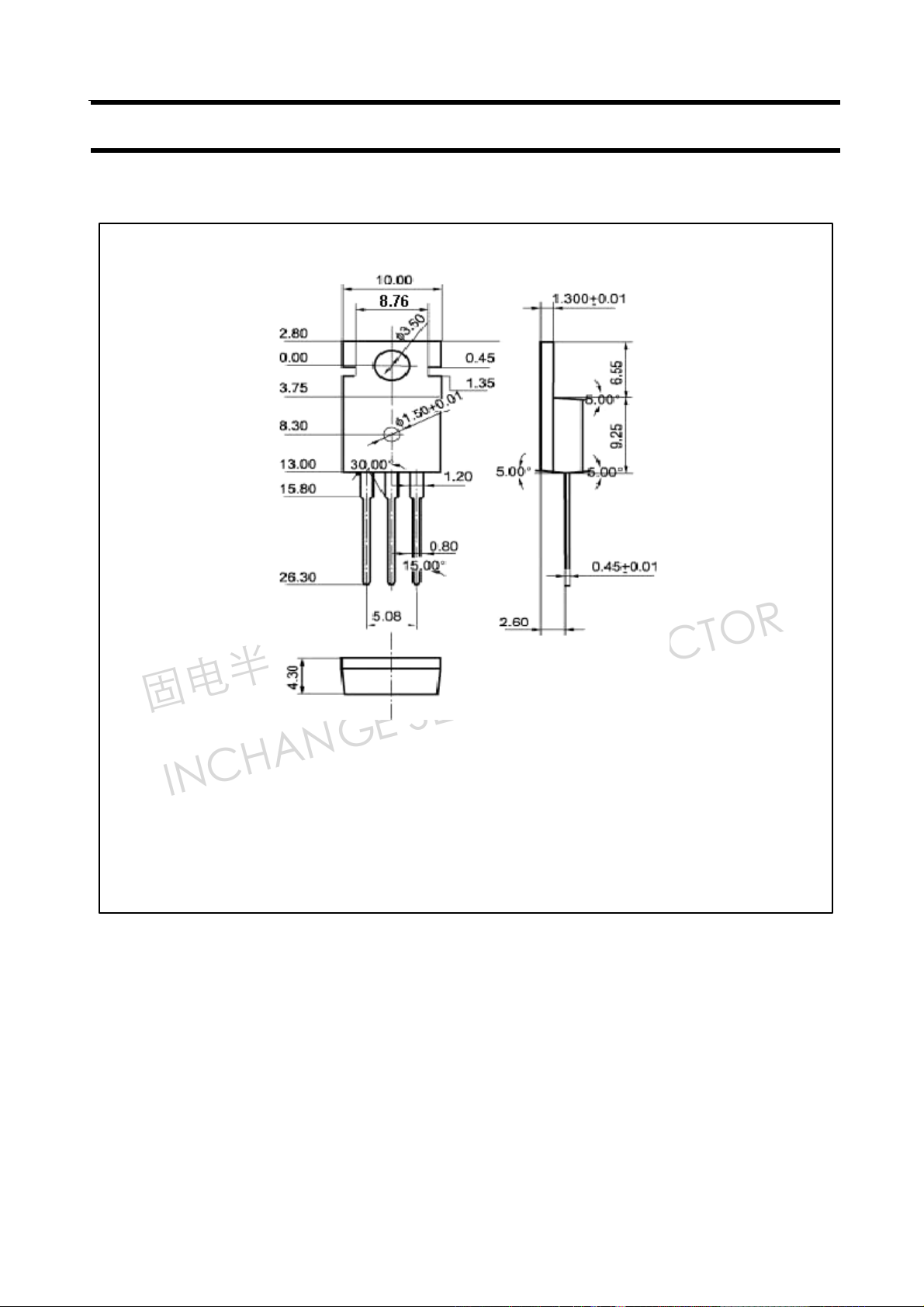

Fig.2 Outline dimensions(unindicated tolerance:±0.10 mm)
3
Page 4
固电半导体
INCHANGE SEMICONDUCTOR
Inchange Semiconductor Product Specification
Silicon NPN Power Transistors 2SC2344

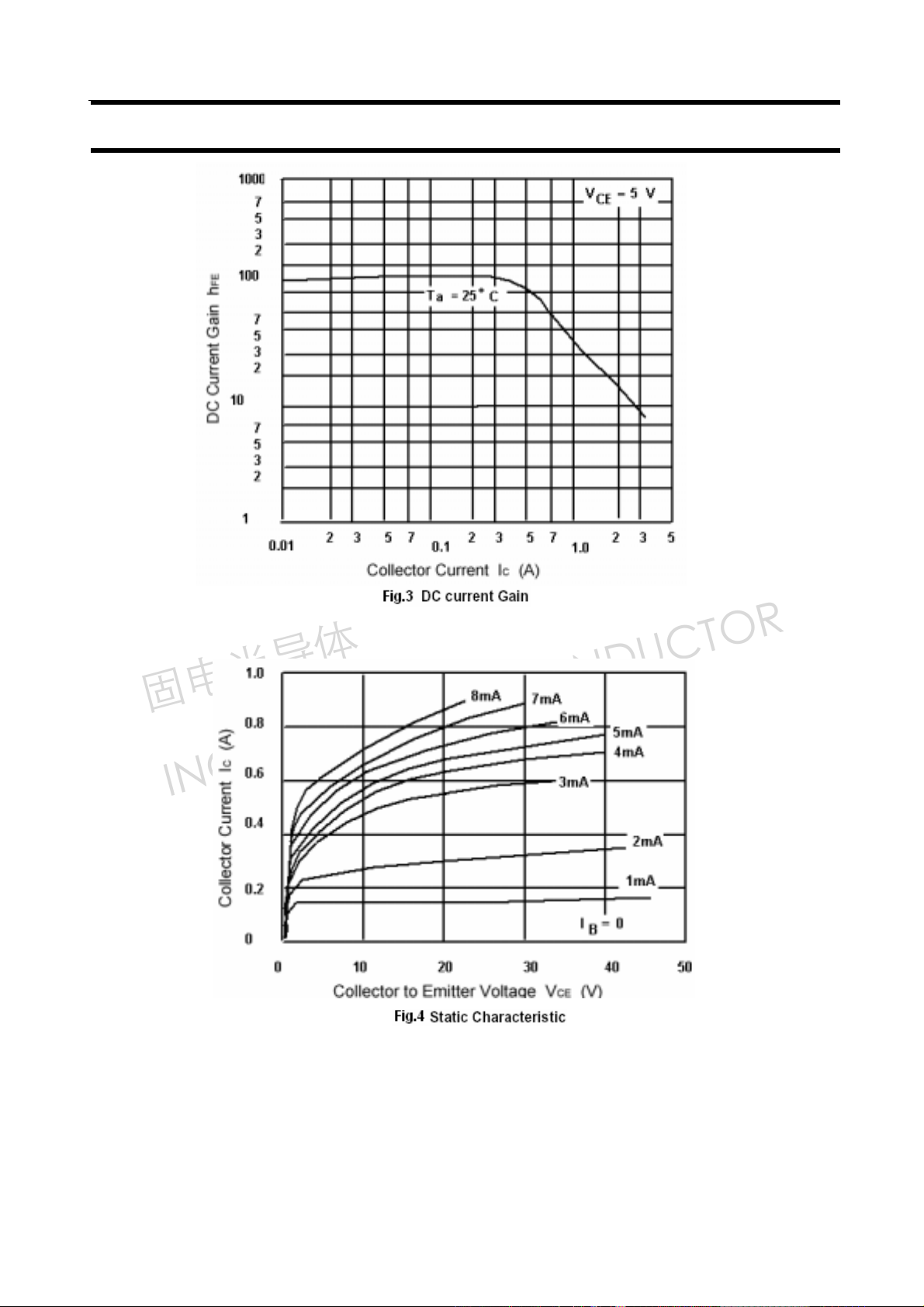

4
Page 5
固电半导体
INCHANGE SEMICONDUCTOR
Inchange Semiconductor Product Specification
Silicon NPN Power Transistors 2SC2344

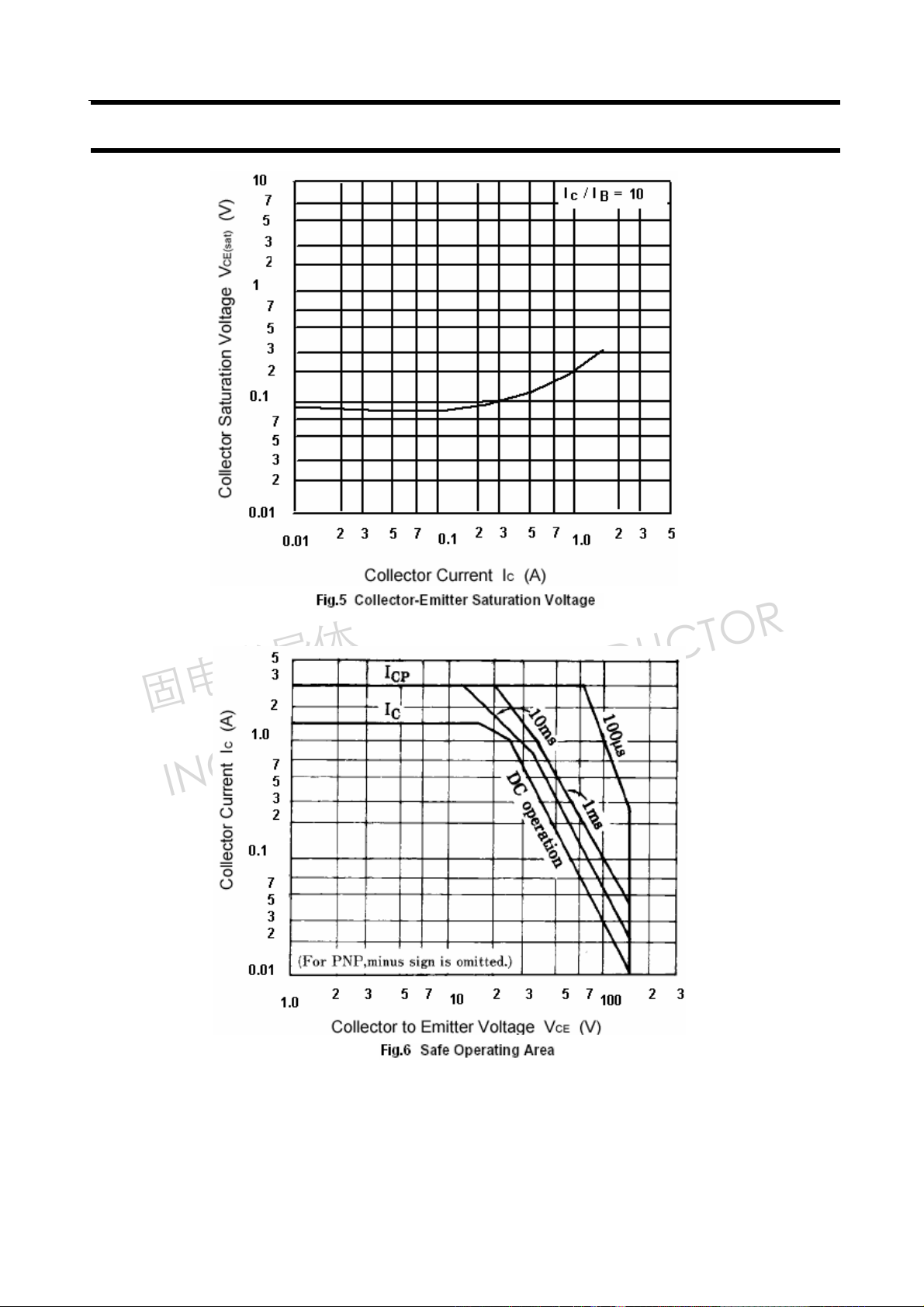

5
