Plastic Package

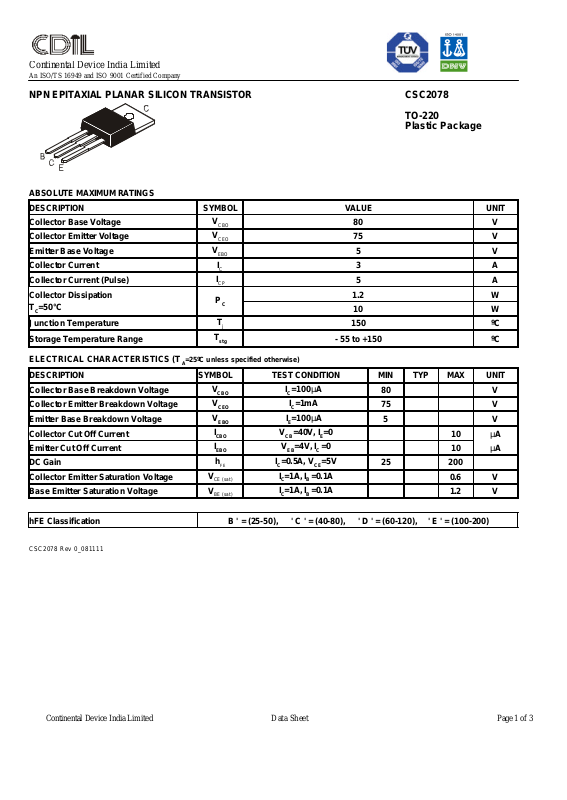

NPN EPITAXIAL PLANAR SILICON TRANSISTOR CSC2078
TO-220
ABSOLUTE MAXIMUM RATINGS
DESCRIPTION SYMBOL VALUE UNIT
Collector Base Voltage 80 V
Collector Emitter Voltage 75 V
Emitter Base Voltage 5 V
Collector Current 3 A
Collector Current (Pulse) 5 A
Collector Dissipation 1.2 W
TC=50°C
Junction Temperature 150 ºC
Storage Temperature Range - 55 to +150 ºC
V
CBO
V
CEO
V
EBO
I
C
I
CP
P
C
T
j
T
stg
10 W
ELECTRICAL CHARACTERISTICS (T
=25ºC unless specified otherwise)
A
DESCRIPTION SYMBOL TEST CONDITION MIN TYP MAX UNIT
Collector Base Breakdown Voltage 80 V
Collector Emitter Breakdown Voltage 75 V
Emitter Base Breakdown Voltage 5 V
Collector Cut Off Current 10
Emitter Cut Off Current 10
DC Gain 25 200
Collector Emitter Saturation Voltage 0.6 V
Base Emitter Saturation Voltage 1.2 V
V
V
V
V
V
CBO
CEO
EBO
I
CBO
I
EBO
h
FE
CE (sat)
BE (sat)
IC=100µA
IC=1mA
IE=100µA
VCB=40V, IE=0
VEB=4V, IC=0
IC=0.5A, VCE=5V
IC=1A, IB=0.1A
IC=1A, IB=0.1A
µA
µA
hFE Classification B ' = (25-50), ' C ' = (40-80), ' D ' = (60-120), ' E ' = (100-200)
CSC2078 Rev 0_081111
Continental Device India Limited Data Sheet Page1 of 3
Page 2
Continental Device India Limited
An ISO/TS 16949 and ISO 9001 Certified Company
TO-220
PACKAGE
All diminsions in mm.
DIM
MIN
MAX
14.42
16.51
10.67
12.70
14.73
31.24
7 DEG
6.87
13.74
End Pin
Tube Thickness
CSC2078
Plastic Package
TO-220 Plastic Package
B
F
H
A
N
L
1
2
3
K
D
G
C
E
00
A
B
C
D
E
F
G
H
J
9.63
3.56 4.83
—
1.15
0.90
1.40
3.75 3.88
2.29 2.79
2.54 3.43
—
0.56
K
L
2.80 4.07
M
J
M
N
O
2.03 2.92
—
4
Pin Configuration
1. Base
536.00
2. Collector
3. Emitter
4. Collector
±1.5
1
2
3
TO-220 Tube Packing
Label
All Dimensions in mm
Packing Detail
Details
TO-220 / FP 200 pcs/polybag
50 pcs/tube
CSC2078 Rev 0_081111
DEVICE NAME
Sr.
QTY.
50 Pcs./Tube
AMMO PACK SIZE
92.0
Label
7
5
.
0
STANDARD PACK INNER CARTON BOX
Net Weight/Qty
396 gm/200 pcs
120 gm/50 pcs
3" x 7.5" x 7.5"
3.5" x 3.7" x 21.5"
0
0
.
8
3
5
20 Tubes/Ammo Pack
1000 Pcs./Ammo Pack
Qty
1.0K
1.0K
17" x 15" x 13.5"
19" x 19" x 19"
32.85
OUTER CARTON BOX
Qty Gr WtSize Size
16.0K
10.0K
36 kgs
29 kgs
