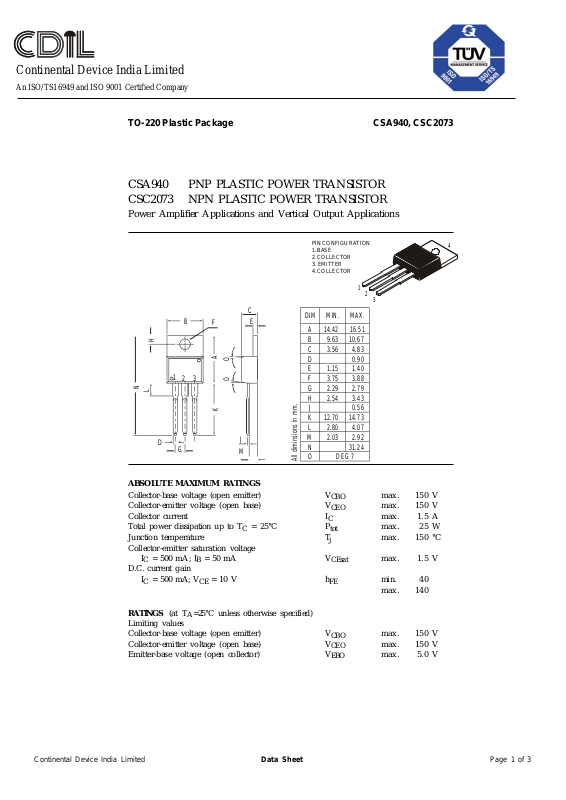

Continental Device India Limited
An ISO/TS16949 and ISO 9001 Certified Company
TO-220 Plastic Package
CSA940, CSC2073
CSA940 PNP PLASTIC POWER TRANSISTOR
CSC2073 NPN PLASTIC POWER TRANSISTOR
Power Amplifier Applications and Vertical Output Applications
PIN CONFIGURATION
1. BASE
2. COLLECTOR
3. EMITTER
4. COLLECTOR
C
B
F
H
A
1
N
L
23
K
D
G
E
OO
J
M
DIM MIN. MAX.
A 14.42 16.51
B 9.63 10.67
C 3.56 4.83
D0.90
E 1.15 1.40
F 3.75 3.88
G 2.29 2.79
H 2.54 3.43
J0.56
K 12.70 14. 73
L 2.80 4.07
M 2.03 2.92
N 31.24
ODEG 7
All diminsions in mm.
ABSOLUTE MAXIMUM RATINGS
Collector-base voltage (open emitter) V
Collector-emitter voltage (open base) V
Collector current I
Total power dissipation up to T
= 25°C P
C
Junction temperature T
CBO
CEO
C
tot
j
max. 150 V
max. 150 V
max. 1.5 A
max. 25 W
max. 150 °C
Collector-emitter saturation voltage
I
= 500 mA; IB = 50 mA V
C
CEsat
max. 1.5 V
D.C. current gain
I
= 500 mA; VCE = 10 V h
C
FE
min. 40
max. 140
RATINGS (at T
=25°C unless otherwise specified)
A
Limiting values
Collector-base voltage (open emitter) V
Collector-emitter voltage (open base) V
Emitter-base voltage (open collector) V
CBO
CEO
EBO
max. 150 V
max. 150 V
max. 5.0 V
Continental Device India Limited Data Sheet Page 1 of 3
Page 2
CSA940, CSC2073
Collector current I
Base current I
Total power dissipation up to T
Total power dissipation up to T
= 25°C P
C
= 25°C P
A
Junction temperature T
Storage temperature T
CHARACTERISTICS
= 25°C unless otherwise specified
T
amb
Collector cutoff current
= 0; VCB = 120 V I
I
E
Emitter cut-off current
= 0; VEB = 5 V I
I
C
Breakdown voltages
= 1 mA; IB = 0 V
I
C
= 1 mA; IE = 0 V
I
C
= 1 mA; IC = 0 V
I
E
Saturation voltages
= 500 mA; IB = 50 mA V
I
C
Base emitter on voltage
= 500 mA; VCE = 10 V V
I
C
D.C. current gain
= 500 mA; VCE = 10 V h
I
C
Output capacitance at f = 1 MHz
= 0; VCB = 10 V NPN C
I
E
PNP typ. 55 pF
Transition frequency
= 500 mA; VCE = 10 V f
I
C
C
B
tot
tot
j
stg
CBO
EBO
CEO
CBO
EBO
CEsat
BE(on)
FE
o
T
max. 1.5 A
max. 0.5 A
max. 25 W
max. 1.5 W
max. 150
–65 to +150
ºC
ºC
max. 10 µA
max. 10 µA
min. 150 V
min. 150 V
min. 5.0 V
max. 1.5 V
min. 0.65 V
max. 0.85 V
min. 40
max. 140
typ. 35 pF
typ. 4 MHz
Continental Device India Limited Data Sheet Page 2 of 3
Page 3
Customer Notes
Disclaimer
The product information and the selection guides facilitate selection of the CDIL's Discrete Semiconductor Device(s) best suited
for application in your product(s) as per your requirement. It is recommended that you completely review our Data Sheet(s) so as
to confirm that the Device(s) meet functionality parameters for your application. The information furnished on the CDIL Web Site/
CD are believed to be accurate and reliable. CDIL however, does not assume responsibility for inaccuracies or incomplete
information. Furthermore, CDIL does not assume liability whatsoever, arising out of the application or use of any CDIL product;
neither does it convey any license under its patent rights nor rights of others. These products are not designed for use in life
saving/support appliances or systems. CDIL customers selling these products (either as individual Discrete Semiconductor
Devices or incorporated in their end products), in any life saving/support appliances or systems or applications do so at their own
risk and CDIL will not be responsible for any damages resulting from such sale(s).
CDIL strives for continuous improvement and reserves the right to change the specifications of its products without prior notice.
CDIL is a registered Trademark of
Continental Device India Limited
C-120 Naraina Industrial Area, New Delhi 110 028, India.
Telephone + 91-11-2579 6150, 5141 1112 Fax + 91-11-2579 5290, 5141 1119
[email protected] www.cdilsemi.com
Continental Device India Limited Data Sheet Page 3 of 3
