INTEGRATED CIRCUITS
DATA SH EET
SC2000
Universal Timeslot Interchange
Preliminary specification
File under Integrated Circuits
2000 Sep 07
Page 2
Philips Semiconductors Preliminary specification
Universal Timeslot Interchange SC2000
Features
Overview
Description
Pinout
Register Description
Electrical Characteristics
Timing Information
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Block Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Package Mechanical Drawing . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
SCbus/ST-BUS Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
PEB Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
CPU Data Switching. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Internal Bus Data Switching . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Loopback Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Additional Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Logical Pin Organization . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Physical Pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Pin Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Microprocessor Interface Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Command/Status Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Internal Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Internal Register Memory Map. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Configuration Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Version/Revision Register (O4H) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Destination Routing Memory (80H-9FH) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Source Routing Memory (A0H-BFH) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Destination Parallel Access Registers (C0H-DFH) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Source Parallel Access Registers (E0H-FFH). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
CRecommended DC Operating Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
DC Electrical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Microprocessor Interface Timing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Local and Expansion Bus Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Clock and Sync Input Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
2000 Sep 07 2
Page 3
Philips Semiconductors Preliminary specification
Universal Timeslot Interchange SC2000
FEATURES
• Multi-time slot switching capability
for N x 64K channels (N = 1 to 32).
• Architecture optimized for the call
processing environment: SCSA
TM
PEB
, or MVIPTM compatible.
TM
,
• Two software selectable expansion
bus formats:
• SCbus
TM
/ST-BUS
TM
• PEB
• Two software selectable local bus
formats:
• ST-BUS
• PEB
• Enhanced input hysteresis threshold.
• 32 x 2048 channel switch
• Serial or parallel access to the SCbus.
MC Rx data
MC Tx data
Microprocessor Bus
Clock in
Clock Out
Microprocessor
Interface
SI
SO
Local
Bus
Interface
CLKFAIL&
MC bus
Configuration
registers
Parallel
Access
Registers
Routing
Memory
Switch
Matrix
Timing
Block Diagram
• Internal support for SCbus clock
fallback
• Built-in SCbus message bus
interface
• Supports both Intel® and Motorola®
processor interfaces
• 68-pin PLCC package
• 5v CMOS technology
CLKFAIL
MC
Expansion
Bus
Interface
Expansion Serial Bus
Expansion Clock Out
0.995 [25.27]
0.985 [25.02]
0.056 [1.42]
0.042 [1.07]
0.200 [5.08]
0.165 [4.19]
0.800 [20.32]
REF
0.048 [1.22]
0.042 [1.07]
0.995 [25.27]
0.985 [25.02]
0.800 [20.32] REF
PIN 1
INDEX
0.130 [3.30]
0.090 [2.29]
2000 Sep 07 3
Package Mechanical Drawing
Page 4
Philips Semiconductors Preliminary specification
Universal Timeslot Interchange SC2000
OVERVIEW
The SC2000 is a custom VLSI circuit
optimized for use in the call processing
environment. The SC2000 provides a
cost-effective means of implementing
the interface between a high speed
internal TDM bus and an external
(expansion) TDM bus. Internal buffering allows the exchange of data between
TDM buses of different speeds and
architectures.
The SC2000 supports two external bus
formats; SCbus/ST-BUS and PEB,
and two internal bus formats; SCbus/
ST-BUS and PEB. It is compatible with
SCSA, PEB, or MVIP requirements.
SCbus operation is also compatible
with the Siemens PCM Highway.
The switching function and operational
configurations of the SC2000 are fully
software programmable. The processor
bus interface is pin configured, allowing
ease of use with a wide variety of industry-standard CPUs.
DESCRIPTION
The primary function of the SC2000 is
to exchange digital data between the
time slot on the local bus and the time
slot on the expansion bus . A microprocessor interface allows the host CPU to
define the time slots and serial streams
between which the data is exchanged.
SCbus/ST-BUS Mode
In SCbus mode the serial streams of the
external bus can be programmed to
operate at 2.048 Mbps, 4.096 Mbps or
8.192 Mbps. The local bus will always
operate at 2.048 Mbps.
The local-to-external bus switch connection is defined by the contents of the
destination routing memory. There are
32 destination routing memory locations, one corresponding to each time
slot of the local bus. The data stored in
the destination routing memory selects
the time slot and serial stream of the expansion bus to which the local bus input
(SI) will be connected.
The external-to-local bus switch connection is defined by the contents of the
source routing memory. There are 32
source routing memory locations, one
corresponding to each time slot of the
local bus. The data stored in the source
routing memory selects the time slot and
serial stream to which the local bus output (SO) will be connected.
Writing data into the routing memories
is synchronized with the SCbus timing
so that routing data is only changed on
frame boundaries.
All serial data is buffered in holding registers. The entire contents of the holding
register are transferred to the output
registers on frame boundaries. This
architecture introduces a constant
one-frame delay through the switch.
This constant delay allows bundled
time slots to be switched.
PEB Mode
In PEB mode the serial streams of the
external bus and the local bus may be
selected to run at either 1.544 Mbps
or 2.048 Mbps.
When PEB mode is selected, one of four
PEB configurations may be used:
1. PEB resource mode, without
switching.
2. PEB network mode, without
switching.
3. PEB resource mode, with switching.
4. PEB network mode, with switching.
When switching is not selected the serial
data is simply buffered between the local
bus and the PEB. This maintains the
data position relative to the multi-frame
sync and allows robbed-bit or CAS
signals to propagate transparently.
When switching is selected the serial
data is transferred between the local and
PEB buses via the switching matrix. The
one-frame delay that occurs requires
that robbed-bit or CAS signals be
handled specially.
The advantages of modes with
switching are:
• Timing delays between the local and
PEB bus are decoupled by the switch
matrix
• The local bus can access all PEB data
lines (SERR, SERT, and L_SERT)
• SO can be set to high impedance
on frame boundaries, allowing a
bi-directional local bus to be
implemented
Non-switching modes are the only configurations that support an interface
to an asynchronous PEB.
CPU Data Switching
In addition to switching local bus serial
data to and from the external bus, the
SC2000 also allows the CPU to write
data directly to the external bus. The
chip provides a frame-sync generated
interrupt which enables a group of
time slots to be accessed from the
same frame.
Internal Bus Data Switching
The Source Routing Memory Local
Connect Enable selects the switching
of data from any SI time slot to any SO
time slot. This operation introduces a
constant two-frame delay, as the data
passes through the switch twice.
Loopback Mode
The SCbus Loopback Mode electrically
isolates the SC2000 from the external
bus but still allows access to the local
bus. This mode is intended for isolating
the board from the external bus while
diagnostic tests are being run. A
CLK_IN source is required for this
mode. The recommended CLK_IN
frequencies are 2.048 MHz, 4.096
MHz, 8.192 MHz, 16.384 MHz, or
32.768 MHz.
2000 Sep 07 4
Page 5
Philips Semiconductors Preliminary specification
Universal Timeslot Interchange SC2000
Additional Features
The SO output may be set to high impedance on frame boundaries by setting
the Source Routing Memory Switch
Output Enable Bit. This allows outputs
from multiple devices to be connected
to a common line. The SO signal may
also be configured as an open collector
output.
The data sample position of both local
and external buses is selectable between
50% and 75% of the bit width.
Logical and Physical Pinout Diagrams
SC2000
D_7
24
26
D_6
D_5
27
D_4
29
D_3
30
D_2
31
D_1
32
D_0
33
A_1
37
A_0
38
CS*
23
RD*(STRB*)
22
WR*(R/W*)
20
RESET
18
I*(M)
17
50
CLK_IN
52
SYNC_IN
39
SI
54
TXD
PLCC68
(MSYNCT) RSRVD
(L_FSYNCT) SD_1
(L_MSYNCT) SD_2
(R_FSYNCT) SD_12
(R_MSYNCT) SD_13
(CLKT) SCLKX2*
(FSYNCT) SCLK
(SERT) FSYNC*
(SIGT) CLKFAIL
(L_CLKT) SD_0
(L_TSX*) SD_3
(L_SERT) SD_4
(L_SIGT) SD_5
(CLKR) SD_6
(FSYNCR) SD_7
(MSYNCR) SD_8
(SERR) SD_9
(SIGR) SD_10
(R_CLKT) SD_11
(R_TSX*) SD_14
(R_SERT) SD_15
(R_SIGT) MC
SO_CLK
SI_CLK
SO_FS
SI_FS
SO_MS
SI_MS
RXD
INT
35
55
57
58
59
61
62
63
65
66
67
1
3
4
5
7
8
9
11
12
13
15
16
41
40
48
47
46
44
SO
43
53
SD_12
SD_13
SD_14
SD_15
MC
I*
RESET
WR*
RD*
CS*
D_7
D_6
Physical Pinout
SD_9
SD_10
SD_11
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
D_3
D_4
D_5
SD_6
SD_7
SD_8
SC2000
68-PIN PLCC
(TOP VIEW)
D_0
D_1
D_2
SD_5
123456789
353433323130292827
INT
SD_1
SD_0
CLKFAIL
SD_2
SD_3
SD_4
S1
S0_CLK
S1_CLK
61626364656667
60
FSYNC*
59
RSRVD
58
SCLK
57
56
SCLKX2*
55
TXD
54
RXD
53
SYNC_IN
52
51
CLK_IN
50
49
SO_FS
48
SI_FS
47
SO_MS
46
45
SI_MS
44
43424140393837
S0
68
36
A_0
A_1
Logical Pin Organization
2000 Sep 07 5
Page 6
Philips Semiconductors Preliminary specification
PIN DESCRIPTION
Universal Timeslot Interchange SC2000
Pin Name
D_0 - D_7 I/O 33, 32, 31, 30,
A_0, A_1 I 38, 37 Address bus. These inputs select the internal register used by a read or write operation. Normally connected to CPU address lines
CS* I 23 Chip Select. This active low input selects the chip for a read or write operation.
I* I 17 Bus Interface Mode Select. This input selects Intel- and Motorola-type data bus interface configurations.
RD*
or
STRB*
WR*
or
R/W*
RESET I 18 Reset.
CLK_IN I 50 Local clock input.
SYNC_IN I 52 Local sync input.
SI I 39 Serial input.
SO O 43 Serial output.
TXD I 54 Transmit data
INT O 35 Interrupt Request.
SCLKx2* or
CLKT
SCLK or
FSYNCT
RSRVD or
MSYNCT
FSYNC* or
SERT
CLKFAIL I/O 61 Register bit C_4 = 0.
SD_0 or
L_CLKT
SD_1 or
L_FSYNCT
SD_2 or
L_MSYNCT
SD_3 or
L_TSX*
Input/Output Pin Number Pin Description
29, 27, 26, 24
I
22 I* = 0. Read
I
I
20 I* = 0. Write
I
I/O
55 Register bit C_4 = 0. SCbus System clock x 2.
I
I/O
57 Register bit C_4 = 0. SCbus System clock.
I
I
58 Register bit C_4 = 0. SCbus Reserved.
I
I/O
59 Register bit C_4 = 0. SCbus Frame sync.
I
I/O
62 Register bit C_4 = 0. SCbus Serial data stream 0.
I/O
I/O
63 Register bit C_4 = 0. SCbus Serial data stream 1.
I/O
I/O
65 Register bit C_4 = 0. SCbus Serial data stream 2.
I/O
I/O
66 Register bit C_4 = 0. SCbus Serial data stream 3.
I/O
Data bus.
These bi-directional, tri-state lines are the SC2000s interface to the CPU data bus.
A0 and A1 in 8-bit CPU systems, or A1 and A2 in 16-bit CPU systems.
0 = Intel. 1 = Motorola.
This active low input enables the data bus drivers to drive the CPU data bus with the contents of the internal register selected by
A_0 and A_1.
I* = 1. Strobe
During a read operation a low on this input enables the data bus drivers to drive the CPU data bus with the contents of the internal
register selected by A_0 and A_1. During a write operation data is transferred from the CPU data bus to the register selected by
A_0 and A_1 on a low to high transition of this signal.
During a write operation data is transferred from the CPU data bus to the register selected by A_0 and A_1 on a low to high
transition of this signal.
I* = 1. Read/Write
This input selects between a write operation (R/W* = 0) and a read operation (R/W* =1).
This active high input forces all outputs to tri-state, and resets the SC2000 chip.
Local serial bus data input line.
Local serial bus data output line.
SCbus Message Bus transmit data input line.
Active high interrupt request output line.
Register bit C_4 = 1. PEB Transmit clock.
Register bit C_4 = 1. PEB Frame sync.
Register bit C_4 = 1. PEB Transmit multi-frame sync.
Register bit C_4 = 1. PEB Transmit serial data.
SCbus Clock fail signal.
Register bit C_4 = 1. PEB Local resource transmit clock.
Register bit C_4 = 1. PEB Local resource transmit frame sync.
Register bit C_4 = 1. PEB Local resource multi-frame sync.
Register bit C_4 = 1. PEB Local resource transmit time slot enable.
2000 Sep 07 6
Page 7
Philips Semiconductors Preliminary specification
PIN DESCRIPTION (continued)
Universal Timeslot Interchange SC2000
Pin Name Input/Output Pin Number Pin Description
SD_4 or
L_SERT
SD_5 I/O 1 Register bit C_4 = 0.
SD_6 or
CLKR
SD_7 or
FSYNCR
SD_8 or
MSYNCR
SD_9 or
SERR
SD_10 I/O 8 Register bit C_4 = 0.
SD_11 I/O 9 Register bit C_4 = 0.
SD_12 I/O 11 Register bit C_4 = 0.
SD_13 I/O 12 Register bit C_4 = 0.
SD_14 I/O 13 Register bit C_4 = 0.
SD_15 I/O 15 Register bit C_4 = 0.
MC I/O 16 Register bit C_4 = 0.
SO_CLK O 41 Serial Output Clock.
SI_CLK O 40 Serial Input Clock.
SO_FS O 48 Serial Output Frame Sync.
SI_FS O 47 Serial Input Frame Sync.
SO_MS O 46 Serial Output Multi-frame Sync.
SI_MS O 44 Serial Input Multi-frame Sync.
RXD O 53 Receive Data. Message channel serial data output.
VDDO1 -
VDDO5
VDDI1 -
VDDI3
VSSO1 -
VSSO7
VSSI1 -
VSSI3
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
Power 2, 10, 25, 45, 60 I/O pad VDD (+5 V).
Power 19, 34, 51 Core V
Power 6, 14, 28, 42, 56,
Power 21, 36, 49 Core VSS (GND).
67 Register bit C_4 = 0. SCbus Serial data stream 4.
3 Register bit C_4 = 0. SCbus Serial data stream 6.
4 Register bit C_4 = 0. SCbus Serial data stream 7.
5 Register bit C_4 = 0. SCbus Serial data stream 8.
7 Register bit C_4 = 0. SCbus Serial data stream 9.
64, 68
Register bit C_4 = 1. PEB Local resource transmit serial data.
SCbus Serial data stream 5.
Register bit C_4 = 1. PEB Receive clock.
Register bit C_4 = 1. PEB Receive frame sync.
Register bit C_4 = 1. PEB Receive multi-frame sync.
Register bit C_4 = 1. PEB Receive data stream.
SCbus Serial data stream 10.
SCbus Serial data stream 11.
SCbus Serial data stream 12.
SCbus Serial data stream 13.
SCbus Serial data stream 14.
SCbus Serial data stream 15.
SCbus Message Bus signal.
Clock for local serial output data.
Clock for local serial input data.
Frame sync for local serial output data.
Frame sync for local serial input data.
Multi-frame sync for local serial output data.
Multi-frame sync for local serial input data.
(+5 V).
DD
I/O pad VSS (GND).
2000 Sep 07 7
Page 8
Philips Semiconductors Preliminary specification
Universal Timeslot Interchange SC2000
REGISTER DESCRIPTION
Microprocessor Interface Registers
The four 8-bit Microprocessor Interface
Registers comprise the command and
control port for the SC2000.
Command/Status Register
Busy (CS_0): This bit is automatically
set to 1 when a command that requires
synchronization with the SC2000’s internal state machine has been initiated.
The bit is cleared to 0 when the command has been completed. The following commands require synchronization:
• Destination Routing Memory Write
• Source Routing Memory Write
• Parallel Access Destination Write
• Parallel Access Source Read
Read (CS_1): Setting this bit to 1 ini-
tiates a read of the register pointed to
by the contents of the Internal Address
Register. Once the BUSY bit is read as
cleared to 0 the contents of the selected
register will be available in the Low Byte
and High Byte Data Registers. Once the
READ operation is complete the READ
bit is cleared automatically.
Write (CS_2):
tiates a write to the register pointed to
by the contents of the Internal Address
Register. Once the busy bit has been
cleared to 0 the contents of the Low Byte
and High Byte Data Registers have been
transferred into the selected register.
Once the WRITE operation is completed the WRITE bit is cleared automatically.
Setting this bit to 1 ini-
Terminate (CS_3): Setting this bit to 1
terminates any command that requires
synchronization with the SC2000’s internal state machine. This command is
needed to complete a command when
the SC2000’s internal state machine has
stopped running due to the failure of the
system clocks. The command currently
being executed is completed asynchronously and the BUSY bit is cleared to 0.
To restore normal operation the TERMINATE bit must be explicitly cleared
to 0. This bit can be read back for verification purposes.
Command/Status Register
BIT R/W Command/Status
0 R CS_0: Busy (S)
1 W CS_1: Read (C)
2 W CS_2: Write (C)
3 R/W CS_3: Terminates (C)
4 CS_4: Reserved
5 CS_5: Reserved
6 CS_6: Reserved
7 R/W CS_7: Reset (C)
Note: (1) Bit 0 is the LSB of the byte.
(2) Initiating multiple commands in a
single access is not recommended.
CPU Interface Register Map
A_1 A_0 Register Name
0 0 Command/Status
0 1 Internal Address
1 0 Low Byte Data
1 1 High Byte Data
Low Byte Data Register
BIT R/W Function
0 R/W D_0
1 R/W D_1
2 R/W D_2
3 R/W D_3
4 R/W D_4
5 R/W D_5
6 R/W D_6
7 R/W D_7
Note: Bit 0 is the LSB of the byte.
High Byte Data Register
BIT R/W Function
0 R/W D_8
1 R/W D_9
2 R/W D_10
3 R/W D_11
4 R/W D_12
5 R/W D_13
6 R/W D_14
7 R/W D_15
Note: Bit 0 is the LSB of the byte.
2000 Sep 07 8
Page 9
Philips Semiconductors Preliminary specification
Universal Timeslot Interchange SC2000
Internal Register Memory Map
Values for
A_7 .. A_0 (H)
00
.
.
03
04 Version/Revision R/W
05
.
.
7F
80
.
.
9F
A0
.
.
BF
C0
.
.
DF
E0
.
.
FF
Function R/W
Configuration 1
.
.
Configuration 4
Reserved
.
.
Reserved
Destn Routing
.
.
Destn Routing
Source Routing
.
.
Source Routing
Destn Parallel
.
.
Destn Parallel
Source Parallel
.
.
Source Parallel
R/W
R/W
R/W
R/W
R/W
R/W
Reset (CS_7): Setting this bit to 1 forces
the SC2000 into its reset state, and
initializes all internal registers. This
command reproduces the function
of the RESET pin. Setting this bit to 0
returns the SC2000 to normal operation.
This bit can be read back for verification
purposes.
Internal Registers
The internal registers are accessed by
reads and writes to the Data Registers
using the address held in the Internal
Address Register.
Configuration Registers
Configuration Register 1(00H)
Configuration Register 1
BIT Function
0 C_0: Global Output Enable
1 C_1: Expansion Bus Timing
2
3
4 C_4: Expansion Bus
5 C_5: SCbus Loopback Mode
6
7
Note: Bit 0 is the LSB of the Low Byte
Driver Enable
C_2: Framing Mode 0
C_3:Framing Mode 1
Interface Select
C_6: PEB module Type 0
C_7:PEB Module Type 1
Data Register.
Global Output Enable (C_0): Clearing
this bit to 0 forces all outputs to the high
impedance state, with the exception of
the microprocessor interface data bus.
Setting this bit to 1 enables all outputs.
This bit is cleared on RESET.
Expansion Bus Timing Driver
Enable (C_1): When SCbus Mode is
selected (C_4 = 0), clearing this bit to
0 disables the expansion bus timing
drivers.
When PEB Resource Mode is selected
(C_6, C_4 = 01), this bit has no effect.
When PEB Network Mode is selected
(C_6, C_4 = 11), clearing this bit to 0
disables the expansion bus drivers
CLKR, L_CLKT, FSYNCR, L_FSYNCT,
MSYNCR, and L_MSYNCT. Setting this
bit to 1 enables these timing drivers.
This bit is cleared on RESET.
Framing Mode (C_3, C_2): This two-bit
field selects the number of bits per frame
(B/F), time slots per frame (TS/F) and
frames per multi-frame (F/MF) on both
the local and expansion bus.
When SCbus Mode is selected
(C_4 = 0), there is no multi-frame sync
signal available on the expansion bus.
The (00) combination of (C_3, C_2)
is invalid. In this case the internal
multi-frame sync will be free running,
and synchronous to FSYNC.
When PEB Mode is selected (C_4 = 1)
the only valid combinations of (C_3,
C_2) are (00) and (01).
These bits are cleared on RESET.
Expansion Bus
C_3, C_2 B/F TS/F F/MF
00 193 24 12
01 256 32 16
10 512 64 16
11 1024 128 16
Local Bus
C_3, C_2 B/F TS/F F/MF
00 193 24 12
01 256 32 16
10 256 32 16
11 256 32 16
Expansion Bus Interface Select (C_4):
This bit selects the expansion bus interface operating mode. Clearing this bit to
0 selects SCbus Mode. Setting this bit to
1 selects PEB Mode.
This bit is cleared on RESET.
2000 Sep 07 9
Page 10
Philips Semiconductors Preliminary specification
Universal Timeslot Interchange SC2000
SCbus Loopback Mode Select (C_5):
When SCbus Mode is selected (C_4 =
0), this bit controls the SCbus loopback.
Clearing this bit to 0 disables Loopback
Mode. Setting this bit to 1 enables Loopback Mode.
When PEB Mode is selected (C_4 = 1)
this bit has no effect.
When loopback is enabled the expansion bus timing and data bus drivers are
forced to high impedance, and the data
outputs are looped back internally to the
corresponding inputs. This mode is used
to test the SC2000 without disrupting
the operation of the SCbus.
A clock must be supplied at CLK_IN
for operation in Loopback Mode.
This bit is cleared on RESET.
PEB Module Type (C_7, C_6): When
PEB Mode is selected (C_4 = 1) this
two-bit field selects the PEB module
type.
When SCbus Mode is selected (C_4 = 0)
these bits have no effect.
These bits are cleared on RESET.
PEB Module Type
C_7, C_6 Operating Mode
00 Resource module without switching
01 Network module without switching
10 Resource module with switching
11 Network module with switching
Configuration Register 2 (01H)
Configuration Register 2
Bit Function
0
C_8: CLK_IN Divider 0
1
C_9: CLK_IN Divider 1
2
C_10: CLK_IN Divider 2
3 C_11: SYNC_IN Format
4
C_12: SYNC_IN Select 0
5
C_13: SYNC_IN Select 1
6
C_14: PEB Network
7
Note: Bit 0 is the LSB of the Low Byte
Modul Timing Select 0
C_15: PEB Network
Modul Timing Select 1
Data Register.
CLK_IN Divider (C_10, C_9, C_8):
This field selects the CLK_IN division
ratio used in the generation of the system source clock.
When “CLK_IN divide by 1” and SCbus
Mode are selected and the expansion
bus timing drivers are enabled (C_10,
C_9, C_8, C_4, C_1 = 00001), then
SCLKx2* is held high and the FSYNC*
period is equal to 1 SCLK period.
These bits are cleared on RESET.
CLK_IN Divider
C_10, C_9, C_8 CLK_IN Divided By
000 1
001 2
010 4
011 8
100 16
101 Reserved
110 Reserved
111 Reserved
SYNC_IN Format (C_11): This bit
selects the SYNC_IN format to be either
PEB conventional or ST-BUS. If this bit
is cleared to 0 then SYNC_IN is taken to
be in the PEB conventional format. If
this bit is set to 1, SYNC_IN is taken to
be in the ST-BUS format.
In ST-BUS format the CLK_IN signal is
inverted to produce the system clock
source.
This bit is cleared on RESET.
SYNC_IN Select (C_13, C_12): This
two bit field selects the function of
the SYNC_IN input.
These bits are cleared on RESET.
SYNC_IN Select
C_13, C_12 SYNC_IN Function
00 Ignored
01 Frame sync
10 Ignored
11 Multi-frame sync
PEB Network Module Timing Select
(C_15, C_14): When PEB Network
Module Mode is selected (C_6, C_4,
C_1 = 111), this two bit field selects the
module timing mode.
Otherwise these bits have no effect.
These bits are cleared on RESET.
PEB Network Module Timing Mode
C_15, C_14 Timing Mode
00 Master
01 Master, MSYNCT fi
10 Slave, MSYNCT fi
11 Slave, SYNC_IN fi
L_MSYNCT
MSYNCR
MSYNCR
Configuration Register 3 (02H)
Configuration Register 3
Bit Function
0 C_16: Expansion Bus Data
1 C_17: Local Bus Data
2 C_18: SCbus Output Driver
3 C_19: SO Output Driver
4 C_20: Local Bus Framing Format
5 C_21: Message Channel
6
7
Note: Bit 0 is the LSB of the Low Byte
Sample Position
Sample Position
TXD Select
C_22: SERT Mux 0
C_23: SERT Mux 1
Data Register.
2000 Sep 07 10
Page 11
Philips Semiconductors Preliminary specification
Universal Timeslot Interchange SC2000
Expansion Bus Data Sample
Position (C_16): When SCbus Mode is
selected (C_4 = 0) this bit determines
the location of the sampled point in the
bit cell. When this bit is cleared to 0,
sampling occurs at 50% of the bit width.
When this bit is set to 1, sampling occurs
at 75% of the bit width.
When PEB Mode is selected (C_4 = 1)
this bit has no effect, and data is always
sampled at the 50% point.
SCLKx2* must be present in order to
sample at the 75% point.
This bit is cleared on RESET.
Local Bus Data Sample Position
(C_17): When SCbus Mode is selected
(C_4 = 0) this bit determines the location of the sample point in the bit cell.
When this bit is cleared to 0 sampling
occurs at 50% of the bit width. When
this bit is set to 1, sampling occurs at
75% of the bit width.
When PEB Mode is selected (C_4 = 1)
this bit has no effect, and data is always
sampled at the 50% point.
SCLKx2* must be present in order to
sample at the 75% point.
This bit is cleared on RESET.
SCbus Output Driver (C_18): When
SCbus Mode is selected (C_4 = 0), this
bit determines the SCbus output driver
type. When this bit is cleared to 0, the
output drivers are configured as tri-state
type. When this bit is set to 1 the output
drivers are configured as open collector
type.
When PEB Mode is selected (C_4 = 1)
this bit has no effect. PEB outputs are
always driven open collector.
All SCbus outputs are affected by this bit
with the exception of CLKFAIL and MC,
which are always driven open collector.
This bit is cleared on RESET.
SO Output Driver (C_19): This bit
determines the SO output driver type.
When this bit is cleared to 0 the output
drivers are configured as tri-state. When
this bit is set to 1 the output drivers are
configured as open collector.
When PEB Mode without switching
is selected (C_7, C_4 = 01) then SO is
always enabled.
This bit is cleared on RESET.
Local Bus Framing Format (C_20):
When SCbus Mode is selected
(C_4 = 0) this bit determines the local
bus framing format. When this bit is
cleared to 0 the local bus operates with
PEB conventional framing format.
When this bit is set to 1 the local bus operates with ST-BUS framing format.
When PEB Mode is selected (C_4 = 1)
this bit has no effect.
With ST-BUS framing format selected,
SI_CLK is replaced by C4*, SI_FS by
F0*, and SI_MS by M0*. SO_CLK,
SO_FS and SO_MS are unaffected by
the status of this bit, and continue to
output PEB conventional framing.
ST-BUS Framing Format Replacements
PEB Conventional ST-BUS
SI_CLK C4*
SI_FS F0*
SI_MS M0*
SCLKx2* must be present, or SCLK
must be at least twice the local clock
(CLK_IN) frequency for ST-BUS framing format to be used.
This bit is cleared on RESET.
Message Channel TXD Select (C_21):
When SCbus Mode is selected
(C_4 = 0) this bit determines the
configuration of the TXD input. When
this bit is cleared to 0, the TXD input
is configured as a transparent buffer.
When this bit is set to 1 the TXD input
is configured as a latched buffer.
When PEB Mode is selected (C_4 = 1),
this bit has no effect. MC is not used in
PEB mode.
When a transparent buffer is selected
(C_21 = 0), the HDLC controller should
output TXD on the rising edge of
SO_CLK. When a latched buffer is
selected (C_21 = 1) the HDLC controller should output TXD on the falling
edge of SO_CLK.
This bit is cleared on RESET.
SERT Mux (C_23, C_22): When PEB
Network Mode is selected, this two bit
field selects the source of data for the local bus SO serial stream.
When SCbus Mode (C_7, C_6,
C_4 = xx0) or PEB Resource Mode
(C_7, C_6, C_4 = 001) are selected,
these bits have no effect.
PEB Data Source Stream
C_23, C_22 Data Source
00 L_SERT
01 (L_SERT* !L_TSX*)
+(SERT* L_TSX*)
Configuration Register 4 (03H)
Configuration Register 4
Bit Function
0 C_24: CLKFAIL latch
1 C_25: CFSYNC latch
2 C_26: CLKFAIL latch Clear*
3 C_27: FSYNC latch Clear*
4 C_28: CLKFAIL polarity
5 C_29: INT Mask*
6 C_30: INT polarity
7 C_31: INT ouput driver
Note: Bit 0 is the LSB of the Low Byte
Data Register.
CLKFAIL Latch (C_24): When SCbus
Mode is selected (C_4 = 0) this bit indicates the status of the CLKFAIL latch.
0 →
CLKFAIL clear
1 → CLKFAIL set
When PEB Mode is selected (C_4 = 1),
this bit is always clear.
2000 Sep 07 11
Page 12
Philips Semiconductors Preliminary specification
Universal Timeslot Interchange SC2000
FSYNC Latch (C_25): When SCbus
Mode (C_4 = 0) or PEB Mode with
switching (C_7, C_4 = 11) are selected,
these bits indicate the status of the
FSYNC latch.
0 → FSYNC clear
1 → FSYNC set
When a PEB Mode without switching
is selected (C_7, C_4 = 01) this bit is
always clear.
CLKFAIL Latch Clear* (C_26): This bit
resets the CLKFAIL latch. Clearing this
bit to 0 clears the CLKFAIL latch and
disables CLKFAIL interrupts. Setting
this bit to 1 enables CLKFAIL interrupts.
This bit is cleared on RESET.
FSYNC Latch Clear* (C_27): This bit
resets the FSYNC latch. Clearing this bit
to 0 clears the FSYNC latch and disables
FSYNC interrupts. Setting this bit to 1
enables FSYNC interrupts.
This bit is cleared on RESET.
CLKFAIL Polarity (C_28): This bit
controls the level of the CLKFAIL signal
which will set the CLKFAIL latch. When
this bit is cleared to 0, the CLKFAIL
latch is set when the CLKFAIL signal is
“lo” (0). When this bit is set to 1 the
CLKFAIL latch is set when the CLKFAIL
signal is “hi” (1).
The “CLKFAIL = 0” interrupt mode is
used by the new clock master to determine that clock fall back has been executed effectively. The “CLKFAIL = 1”
interrupt mode is used by the standby
clock board to detect clock failure.
This bit should only be changed when
the CLKFAIL interrupt is disabled
(C_26 = 0).
This bit is cleared on RESET.
INT Mask* (C_29): This bit controls the
interrupts generated by CLKFAIL and
FSYNC (INT = CLKFAIL + FSYNC).
When this bit is cleared to 0 all interrupts are masked. When this bit is set
to 1, interrupts are enabled.
The status of this bit does not affect the
CLKFAIL Latch or FSYNC Latch bits
(C_24 and C_25), and these bits can still
be used to determine the status of the
two latches.
This bit is cleared on RESET.
INT Output Polarity (C_30): This bit
controls the active level of the INT interrupt output. When this bit is cleared
to 0, then the INT output is active low.
When this bit is set to 1 then the INT
output is active high.
This bit is cleared on RESET.
INT Output Driver (C_31): This bit
controls the configuration of the INT
output driver. When this bit is cleared to
0, the INT output driver is configured as
open collector. When this bit is set to 1
the INT output driver is configured as
totem-pole.
Version/Revision Register (04H): The
Version/Revision Register is an 8-bit
read-only register used to identify the
version and revision status of a particular batch of SC2000s. It is recommended
that a test of this field be included in all
firmware interface code to ensure compatibility.
Version/Revision Register 1
BIT Function
0 Rev 0
1 Rev 1
2 Rev 2
3 Rev 3
4 Ver 0
5 Ver 1
6 Ver 2
7 Ver 3
Note: Bit 0 is the LSB of the Low Byte
Data Register.
The initial release of the SC2000 will be
Version/Revision = 00H.
Destination Routing Memory
(80H - 9FH): The Destination Routing
Memory maps time slots from the local
SI bus onto the expansion bus. Each
location in the Destination Routing
Memory corresponds to a time slot
on the local SI bus. The contents of
each location specify a time slot on
the expansion bus.
Destination Routing Memory Map
IAR Destination Map
80H Channel 0
81H Channel 1
82H Channel 2
.
.
.
.
9FH Channel 31
Note: IAR = Internal Address register contents.
Channel N is equivalent to time slot N
on the local SI bus.
The contents of all Destination Routing
Memory Locations are cleared on RESET.
When writing data into the Destination
Routing Memory the Low Byte Data
Register contains a 7-bit binary field
holding a time slot number, and the
High Data Byte Register contains a 4-bit
binary field holding a Port (stream)
number. Together these two fields
uniquely identify a time slot on the
expansion bus which will be the destination for data from the local SI bus.
2000 Sep 07 12
Page 13
Philips Semiconductors Preliminary specification
Universal Timeslot Interchange SC2000
Time Slot Select (DR_6 .. DR_0): This
7-bit field specifies a time slot number
between 0 and 127. DR_6 is the MSB of
this field.
Destination Routing Memory LSB
Bit Function
0
DR_0: Time slot Select 0
1
DR_1: Time slot Select 1
2
DR_2: Time slot Select 2
3
DR_3: Time slot Select 3
4
DR_4: Time slot Select 4
5
DR_5: Time slot Select 5
6
DR_6: Time slot Select 6
7 DR_7: Reserved
Note: Bit 0 is the LSB of the Low Byte
Data Register.
Port Select (DR_11 .. DR_8): When
SCbus mode is selected (C_4 = 0) this
4-bit field specifies an SCbus data
stream number between 0 and 15.
DR_11 is the MSB of this field.
When a PEB Mode with switching is
selected (C_6, C_4 = 11) this 4- bit field
specifies a PEB data stream. See table for
details.
Destination Routing Memory MSB
Bit Function
0
DR_8: Port Select 0
1
DR_9: Port Select 1
2
DR_10: Port Select 2
3
DR_11: Port Select 3
4 DR_12: Reserved
5 DR_13: Reserved
6 DR_14: Parallel Access Enable
7 DR_15: Switch Output Enable
Note: Bit 0 is the LSB of the High Byte
Data Register.
Destination Port Select (PEB Mode)
DR_11..DR_8 PEB Destination
0H L_SERT/L_TSX*
1H SERR
2H R_SERT/R_TSX*
3H SERT
4H
Reserved
.
.
.
.
FH
Reserved
Parallel Access Enable (DR_14): When
this bit is cleared to 0, the SC2000 uses
the local SI bus as the source of data
for the expansion bus. When this bit is
set to 1 the SC2000 uses the contents of
the corresponding Destination Parallel
Access Register as the source of expansion bus data.
Switch Output Enable (DR_15): When
this bit is cleared to 0, the SC2000 expansion bus drivers are forced to the
high impedance state during the specified time slot period. When this bit is set
to 1 the SC2000 expansion bus drivers
drive the bus during the specified time
slot period.
Source Routing Memory (A0H - BFH):
The Source Routing Memory maps time
slots from the expansion bus onto time
slots on the local SO bus. Each location
in the Source Routing Memory
corresponds to a time slot on the
local SO bus.
Source Routing Memory
IAR Source Mapping
A0H Channel 0
A1H Channel 1
A2H Channel 2
.
.
.
.
BFH Channel 31
Note: IAR = Internal Address register contents.
Channel N is equivalent to time slot N
on the local S0 bus.
The contents of all Source Routing
Memory Location are cleared on
RESET.
When writing data into the Source
Routing Memory the Low Byte Data
Register contains a 7-bit binary field
holding a time slot number, and the
High Data Byte Register contains a 4-bit
binary field holding a Port (stream)
number. Together these two fields
uniquely identify a time slot on the
expansion bus which will be used as a
source of data for a time slot on the local
SO bus.
Time slot Select (SR_6 .. SR_0): This
7-bit field specifies a time slot number
between 0 and 127. SR_6 is the MSB of
this field.
Source Routing Memory LSB
Bit Function
0
SR_0: Time Slot Select 0
1
SR_1: Time Slot Select 1
2
SR_2: Time Slot Select 2
3
SR_3: Time Slot Select 3
4
SR_4: Time Slot Select 4
5
SR_5: Time Slot Select 5
6
SR_6: Time Slot Select 6
7 SR_7: Reserved
Note: Bit 0 is the LSB of the Low Byte
Data Register.
Port Select (SR_11 .. SR_8): When
SCbus Mode is selected (C_4 = 0),
this 4-bit field specifies an SCbus data
stream number between 0 and 15.
SR_11 is the MSB of this field.
When a PEB Mode with switching is
selected (C_6, C_4 = 11) this 4-bit field
specifies a PEB data stream as follows:
2000 Sep 07 13
Page 14
Philips Semiconductors Preliminary specification
Universal Timeslot Interchange SC2000
SR_11 is the MSB of this field.
Source Routing Memory MSB
Bit Function
0
SR_8: Port Select 0
1
SR_9: Port Select 1
2
SR_10: Port Select 2
3
SR_11: Port Select 3
4 SR_12: Reserved
5 SR_13: Reserved
6 SR_14: Local Connect Enable
7 SR_15: Switch Output Enable
Note: Bit 0 is the LSB of the High Byte
SR_11..SR_8 Source PEB Stream
Data Register.
PEB Mode Source Data Stream
0H SERT Mux
1H SERR
2H R_SERT
3H SERT
4H
FH
Reserved
.
.
.
.
Reserved
Local Connect Enable (SR_14): This bit
controls the internal connection time
slots on the local bus. When this bit is
cleared to 0 Local Connect is disabled.
When this bit is set to 1 Local Connect is
enabled and a time slot on the local SI
bus will be connected internally to a
time slot on the local SO bus.
When Local Connect is enabled the
Source Routing Memory Time slot
Select bits (SR_0 .. SR_6) select the
destination time slot on the local SO
bus. The contents of the Port Select
field (SR_8 .. SR_11) are ignored.
Switch Output Enable (SR_15): When
this bit is cleared to 0 the local SO bus
drivers are forced to the high impedance
state during the specified time slot period. When this bit is set to 1 the local
SO bus drivers drive the bus during the
specified time slot period.
Destination Parallel Access Registers
(C0H .. DFH): If Parallel Access and
Switch Output are enabled, the device
CPU can write data to the expansion bus
via these SC2000 registers. The write
mapping is controlled by the Destination Routing Memory. The contents of
the selected Parallel Access Register will
replace the contents of the local SI bus
time slot that would otherwise have
been transferred to the expansion bus.
Destination Parallel Access Regs
IAR SI Destination
C0H Channel 0
C1H Channel 1
C2H Channel 2
.
.
.
.
DFH Channel 31
Note: IAR = Internal Address Register con-
tents. Channel N is equivalent to time
slot N on the local SI bus.
Source Parallel Access Registers
( E0H .. FFH): The Source Parallel
Access Registers are continually loaded
with the data being written to the corresponding local SO bus time slot, irrespective of the status of the Parallel
Access Enable or Switch Output Enable
bits. If Local Connect is enabled this
data will originate from the local SI bus.
Source Parallel Access Regs
IAR SO Destination
E0H Channel 0
E1H Channel 1
E2H Channel 2
.
.
.
.
FFH Channel 31
Note: IAR = Internal Address Register con-
tents. Channel N is equivalent to time
slot N on the local SO bus.
2000 Sep 07 14
Page 15
Philips Semiconductors Preliminary specification
Universal Timeslot Interchange SC2000
ELECTRICAL CHARACTERISTICS
Absolute Maximum Ratings
Symbol Parameter Test Conditions Minimum Maximum Unit
T
S
V
I
P
D
Note: 1. Voltages are with respect to ground (V
Recommended DC Operating Conditions
Symbol Parameter Test Conditions Minimum Maximum Unit
T
A
V
DD
Note: 1. Voltages are with respect to ground (V
Storage temperature -65 150 °C
Input voltage -0.5 7 V
Package power dissipation 1 W
) unless otherwise stated.
SS
Ambient temperature 0 70 °C
Supply voltage 4.75 5.25 V
) unless otherwise stated.
SS
DC Electrical Characteristics
Symbol Parameter Test Conditions Minimum Maximum Unit
I
DD
V
IH
V
IL
VH
YS
I
LI
C
I
V
OH1
V
OL1
V
OH2
V
OL2
I
LO
C
IO
Notes: 1. V
Supply (voltage) current 100 mA
Input high voltage 2.0 VDD+0.5 V
Input low voltage -0.5 1.0 V
Input hysteresis voltage ±0.4 V
Input leakage current VI = VDD or V
SS
±10 µA
Input capacitance 7 pF
Output high voltage (1) IOH = -24 mA 2.4 V
Output low voltage (1) IOL = 24 mA 0.4 V
Output high voltage (2) IOH = -4 mA 2.4 V
Output low voltage (2) IOL = 4 mA 0.4 V
Output leakage current VO = VDD or V
SS
±10 µA
Output or I/O capacitance 7 pF
, V
apply to Expansion Bus Interface (SCbus/PEB) signals.
OH1
OL1
2. V
, V
apply to all other signals.
OH2
OL2
3. Voltages are with respect to ground (V
) unless otherwise stated.
SS
4. Input hysteresis voltage: indicates that when the input is interpreted as high (2.0 volts), it will be interpreted "high" until the input is dropped below 1.6
volts. Likewise, a low input will be interpreted as "low" until the input goes above 1.4 volts.
2000 Sep 07 15
Page 16
Philips Semiconductors Preliminary specification
Universal Timeslot Interchange SC2000

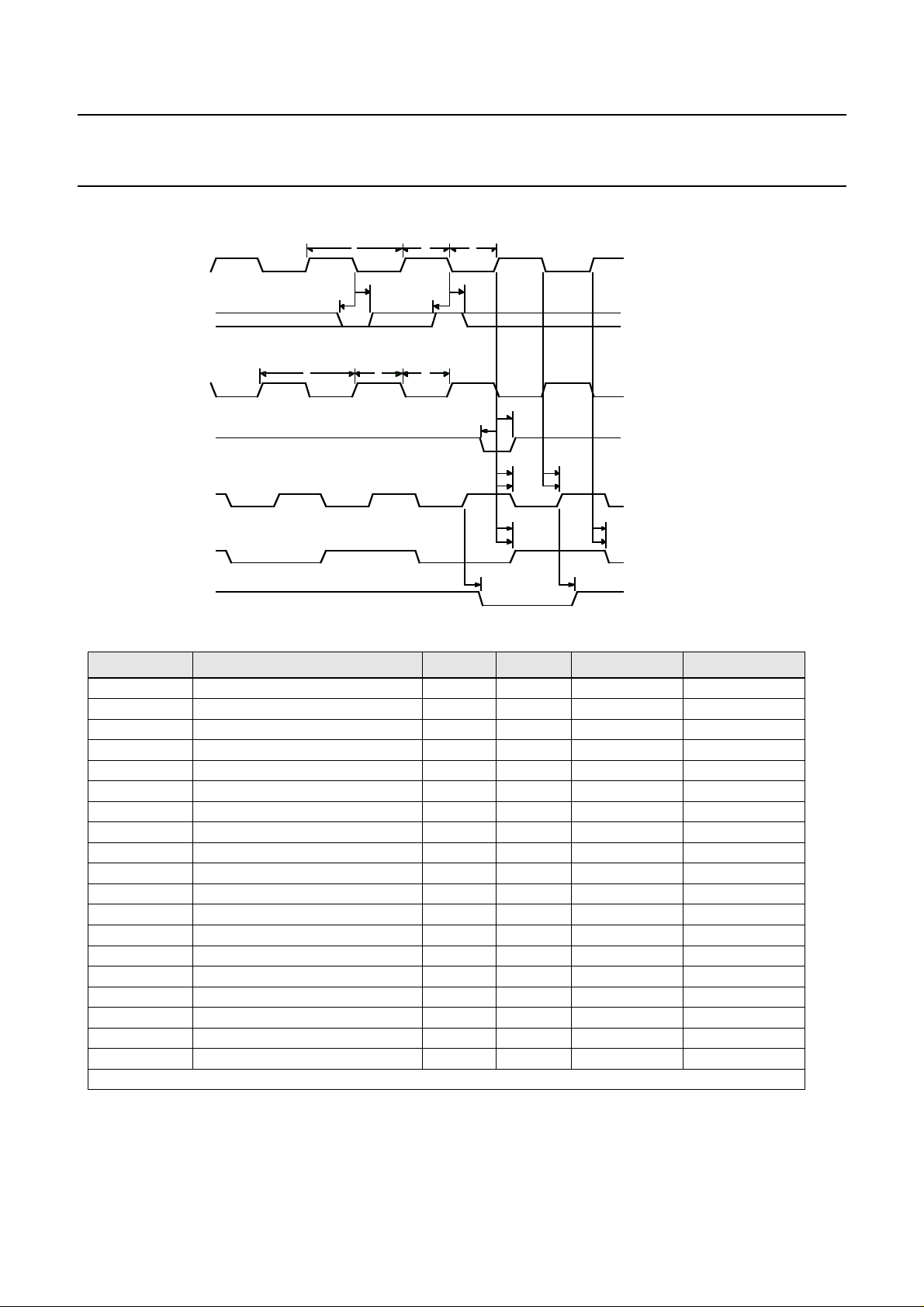

Figure 1. Microprocessor Interface Timing — Intel Bus Mode
CS*
RD*
WR*
A_[1:0]
D_[7:0]
t1 t2
t3 t4 t11
t5 t6 t12 t13
t7 t8
t16
t9 t10 t14
t15
t18
t17
Table 1. Microprocessor Interface Timing — Intel Bus Mode
Symbol Parameter Min Typ Max Unit
t1 CS* setup to WR* ↑ 30 ns
t2 CS* hold from WR* ↑ 20 ns
t3 RD* setup to CS* 10 ns
t4 RD* hold from CS* 10 ns
t5 WR* pulse width 30 ns
t6 WR* hold from CS* 10 ns
t7 A_[1:0] setup to WR* ↑ 30 ns
t8 A_[1:0] hold from WR* ↑ 20 ns
t9 D_[7:0] setup to WR* ↑ 30 ns
t10 D_[7:0] hold from WR* ↑ 20 ns
t11 RD* hold from CS* 10 ns
t12 WR* setup to CS* 10 ns
t13 WR* hold from CS* 10 ns
t14 D_[7:0] valid delay from CS* 40 ns
t15 D_[7:0] valid delay from RD* 40 ns
t16 D_[7:0] valid delay from A_[1:0] 40 ns
t17 D_[7:0] float delay from CS* 25 ns
t18 D_[7:0] float delay from RD* 25 ns
Note: 1. Timing measured with 100 pF load on D_[7:0].
2000 Sep 07 16
Page 17
Philips Semiconductors Preliminary specification
Universal Timeslot Interchange SC2000

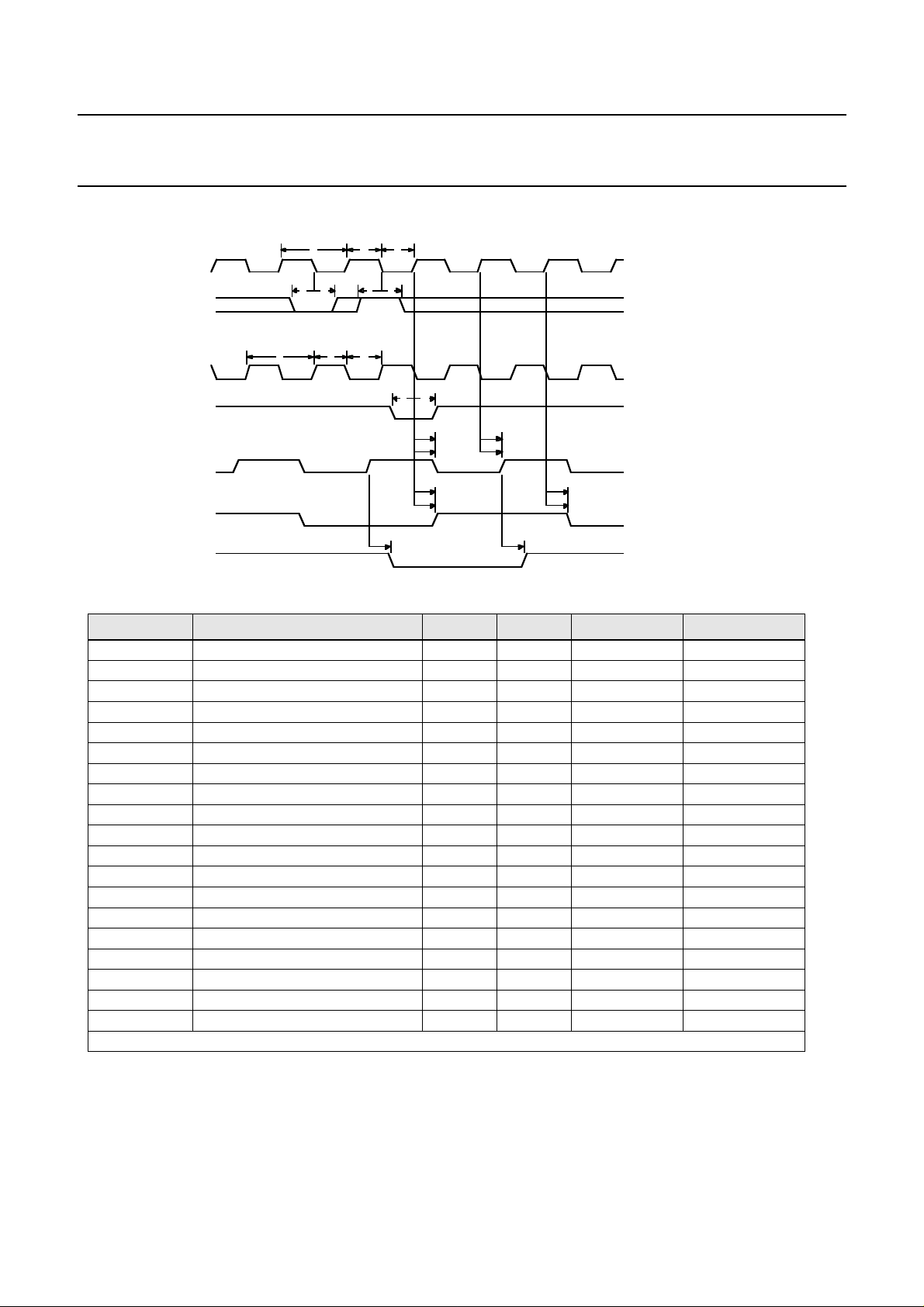

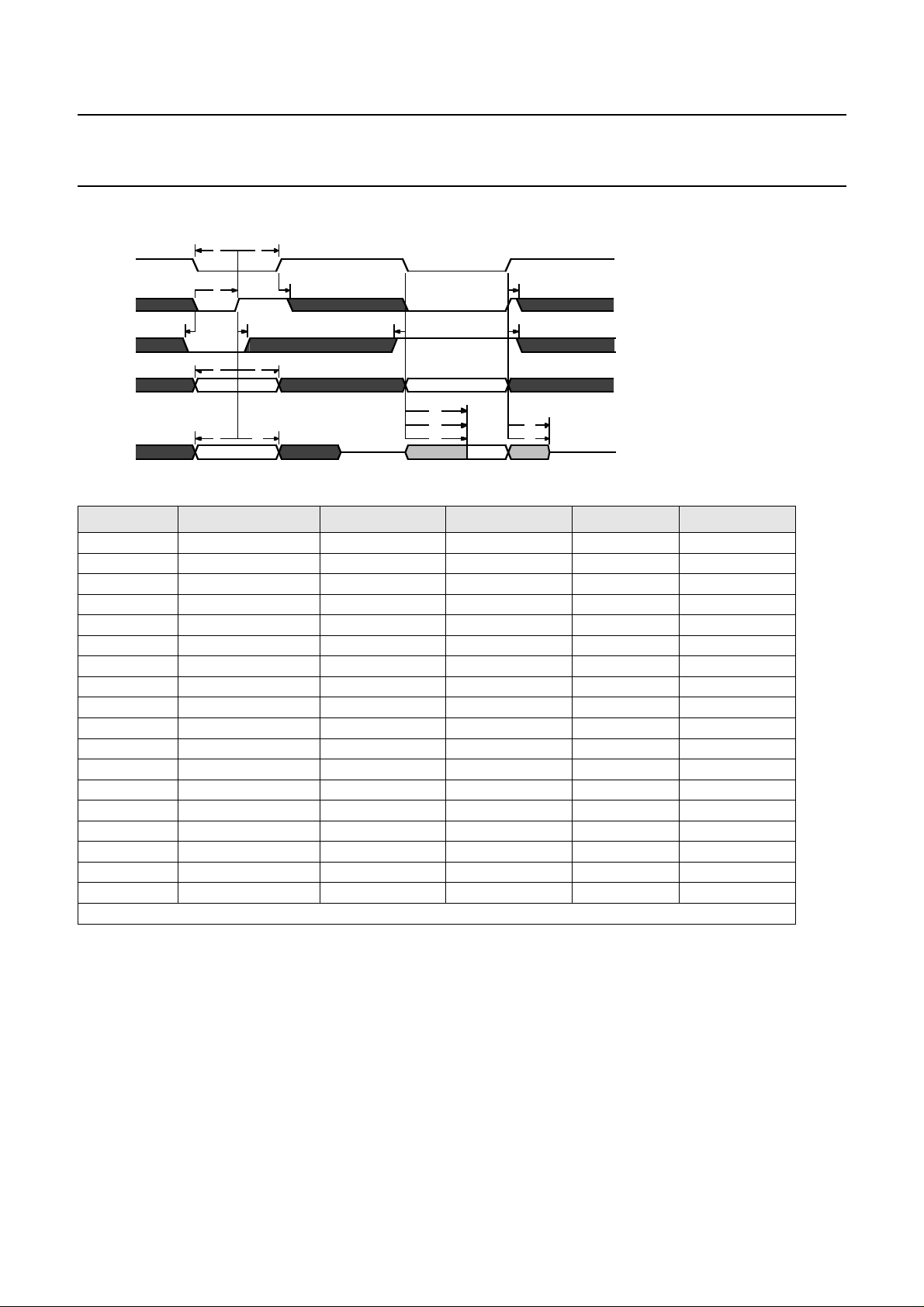

Figure 2. Microprocessor Interface Timing — Motorola Bus Mode
CS*
STRB*
R/W*
A_[1:0]
D_[7:0]
t1 t2
t3 t4 t11
t5 t6 t12 t13
t7 t8
t16
t9 t10 t14
t15
t18
t17
Table 2. Microprocessor Interface Timing — Motorola Bus Mode
Symbol Parameter Min Typ Max Unit
t1 CS* setup to STRB* ↑ 30 ns
t2 CS* hold from STRB* ↑ 20 ns
t3 STRB* pulse width 30 ns
t4 STRB* hold from CS* 10 ns
t5 R/W* setup to STRB* 10 ns
t6 R/W* hold from STRB* 10 ns
t7 A_[1:0] setup to STRB* ↑ 30 ns
t8 A_[1:0] hold from STRB* ↑ 20 ns
t9 D_[7:0] setup to STRB* ↑ 30 ns
t10 D_[7:0] hold from STRB* ↑
t11 STRB* hold from CS* 10 ns
t12 R/W*setup to STRB* 10 ns
t13 R/W*hold from STRB* 10 ns
t14 D_[7:0] valid delay from CS* 40 ns
t15 D_[7:0] valid delay from STRB* 40 ns
t16 D_[7:0] valid delay from A_[1:0] 40 ns
t17 D_[7:0] float delay from CS * 25 ns
t18 D_[7:0] float delay from STRB* 25 ns
Note: 1. Timing measured with 100 pF load on D_[7:0].
20 ns
2000 Sep 07 17
Page 18
Philips Semiconductors Preliminary specification
Universal Timeslot Interchange SC2000

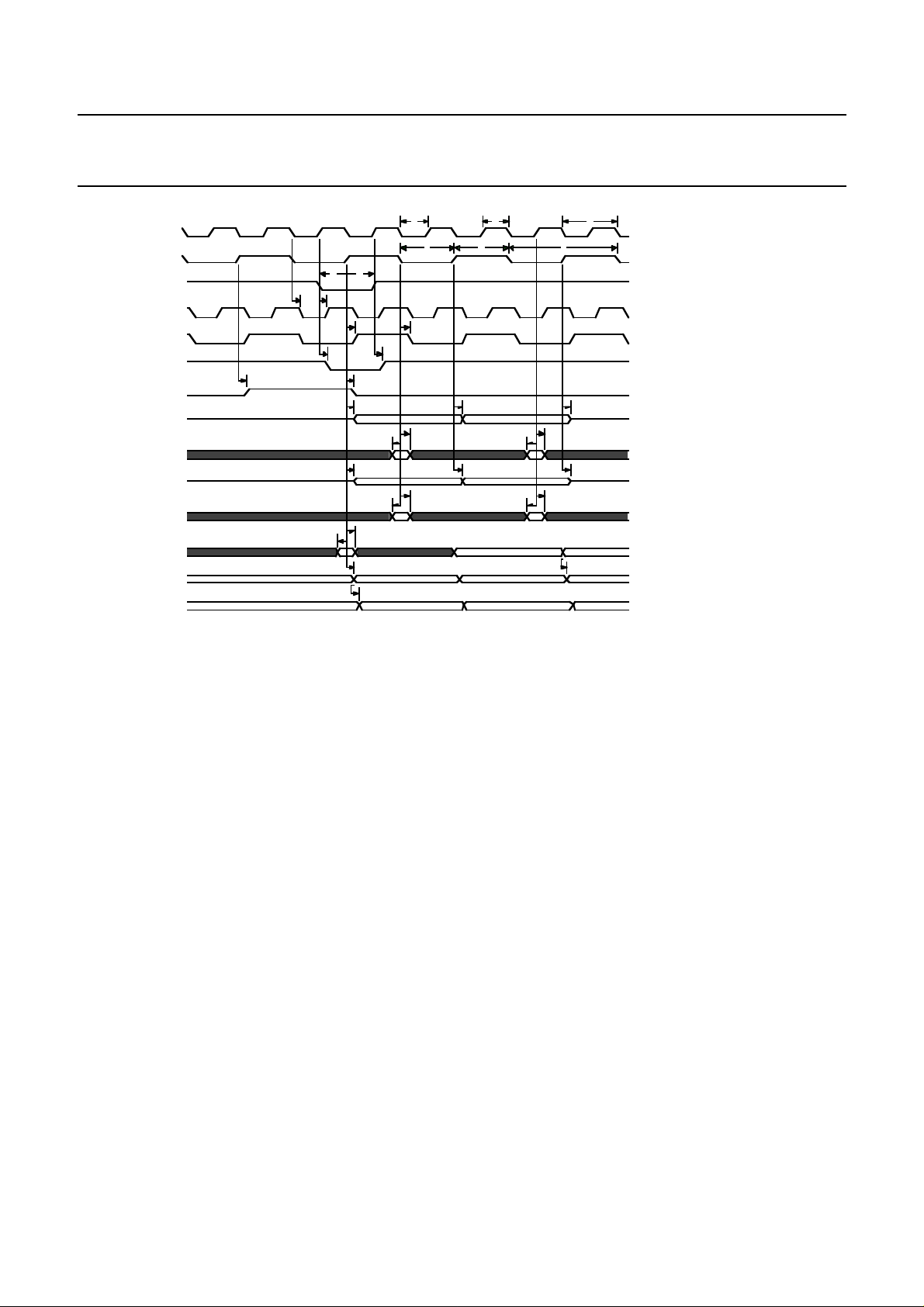

SCLKX2*
SCLK
FSYNC*
SI_CLK
SO_CLK
SI_FS,SI_MS
SO_FS,SO_MS
SO
SD_[15:0] Output
SD_[15:0] Input
TXD
MC
RXD
t1 t2 t3
t4 t5 t6
t7 t8
t9 t10
t11 t12
t13 t14
t15 t16
t17 t18 t19
t21
SI
t31
t20
t24 t25 t26
t28
t27
t32
t33 t34
t35
t22
t29
t23
t30
2000 Sep 07 18
Page 19
Philips Semiconductors Preliminary specification
Universal Timeslot Interchange SC2000
Table 3. Local Bus Interface Timing — SCbus Mode (2.048 Mbps)
Symbol Parameter Min Typ Max Unit
t1 SCLKx2* low time 122 ns
t2 SCLKx2* high time 122 ns
t3 SCLKx2* period 244 ns
t4 SCLK low time 244 ns
t5 SCLK high time 244 ns
t6 SCLK period 488 ns
t7 FSYNC* setup to SCLK ↑ 0 n s
t8 FSYNC* hold from SCLK ↑ 15 ns
t9 SI_CLK ↓ delay from SCLKx2* ↓ 40 ns
t10 SI_CLK ↑ delay from SCLKx2* ↑ 40 ns
t11 SO_CLK ↑ delay from SCLK ↑ 40 ns
t12 SO_CLK ↓ delay from SCLK ↓ 40 ns
t13 SI_FS, SI_MS ↓ delay from SCLKx2* ↑ 45 ns
t14 SI_FS, SI_MS ↑ delay from SCLKx2* ↑ 45 ns
t15 SO_FS, SO_MS ↑ delay from SCLK ↑ 45 ns
t16 SO_FS, SO_MS ↓ delay from SCLK ↑ 45 ns
t17 SO float to valid delay from SCLK ↑ 40 ns
t18 SO valid to valid delay from SCLK ↑ 40 ns
t19 SO valid to float delay from SCLK ↑ 25 ns
t20 SI setup to SCLK ↓ (50% sample position) 0 ns
t21 SI hold from SCLK ↓ (50% sample position) 25 ns
t22 SI setup to SCLKx2* ↑ (75% sample position) 0 ns
t23 SI hold from SCLKx2* ↑ (75% sample position) 25 ns
t24 SD_[15:0] float to valid delay from SCLK ↑ 35 ns
t25 SD_[15:0] valid to valid delay from SCLK ↑ 35 ns
t26 SD_[15:0] valid to float delay from SCLK ↑ 25 ns
t27 SD_[15:0] setup to SCLK ↓ (50% sample) 0 ns
t28 SD_[15:0] hold from SCLK ↓ (50% sample) 25 ns
t29 SD_[15:0] setup to SCLKx2* ↑ (75% sample) 0 ns
t30 SD_[15:0] hold from SCLKx2* ↑ (75% sample) 25 ns
t31 TXD setup to SCLK ↑ (registered MC) 0 ns
t32 TXD hold from SCLK ↑ (registered MC) 25 ns
t33 MC delay from SCLK ↑ (registered MC) 85 ns
t34 MC delay from TXD (passed through MC 80 ns
t35 RXD delay from MC 35 ns
Notes: 1. Timing measured with 100 pF load on all Local Bus outputs, 200 pF load on all SCbus outputs.
2. MC timing measured with 200 pF, 470 Ω pullup (4.7 K
3. SI_CLK, SI_FS and SI_MS shown in ST-BUS framing format. When in PEB conventional framing format SI_CLK, SI_FS and SI_MS have
identical timing to SO_CLK, SO_FS and SO_MS.
4. SO shown configured as tri-state driver.
5. SO_MS, SI_MS are free-running multi-frame synchronization signals that occur once every 16 frames.
Ω/10). Open collector low to high transitions include 61 ns delay from hi-Z to 2.4 V.
2000 Sep 07 19
Page 20
Philips Semiconductors Preliminary specification
Universal Timeslot Interchange SC2000

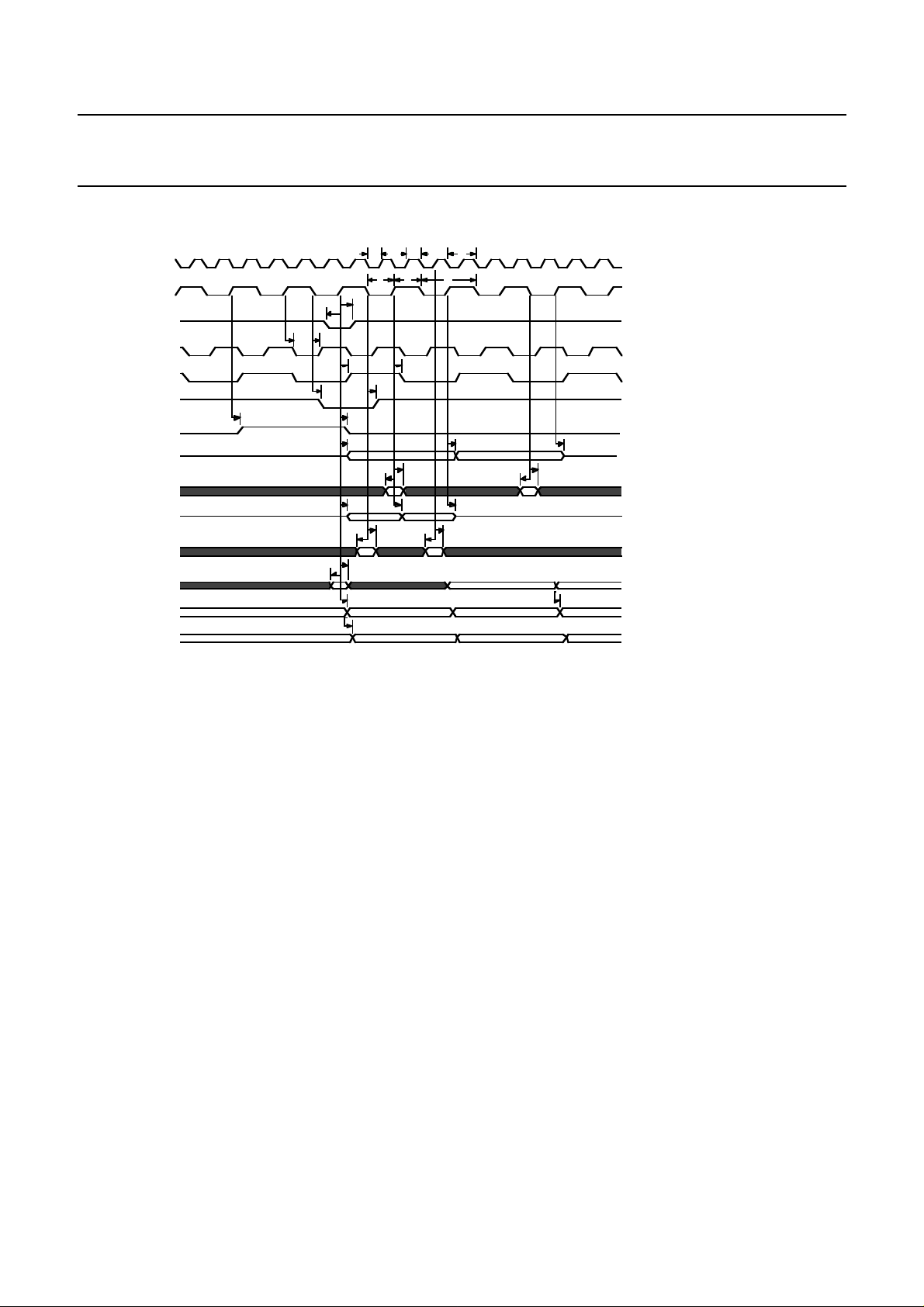

Figure 4. Local Bus Interface Timing — SCbus Mode (4.096 Mbps)
SCLKX2*
SCLK
FSYNC*
SI_CLK
SO_CLK
SI_FS,SI_MS
SO_FS,SO_MS
SO
SD_[15:0] Output
SD_[15:0] Input
TXD
MC
RXD
t1 t2 t3
t4 t5 t6
t8
t7
t9 t10
t11 t12
t13 t14
t15 t16
t17 t18 t19
t21
t27
t20
t30
t29
SI
t24 t25 t26
t28
t32
t31
t33 t34
t35
t23
t22
2000 Sep 07 20
Page 21
Philips Semiconductors Preliminary specification
Universal Timeslot Interchange SC2000
Table 4. Local Bus Interface Timing — SCbus Mode (4.096 Mbps)
Symbol Parameter Min Typ Max Unit
t1 SCLKx2* low time 61 ns
t2 SCLKx2* high time 61 ns
t3 SCLKx2* period 122 ns
t4 SCLK low time 122 ns
t5 SCLK high time 122 ns
t6 SCLK period 244 ns
t7 FSYNC* setup to SCLK ↑ 0ns
t8 FSYNC* hold from SCLK ↑ 15 ns
t9 SI_CLK ↓ delay from SCLK ↑ 40 ns
t10 SI_CLK ↑ delay from SCLK ↓ 40 ns
t11 SO_CLK ↑ delay from SCLK ↑ 40 ns
t12 SO_CLK ↓ delay from SCLK ↑ 40 ns
t13 SI_FS, SI_MS ↓ delay from SCLK ↓ 45 ns
t14 SI_FS, SI_MS ↑ delay from SCLK ↓ 45 ns
t15 SO_FS, SO_MS ↑ delay from SCLK ↑ 45 ns
t16 SO_FS, SO_MS ↓ delay from SCLK ↑ 45 ns
t17 SO float to valid delay from SCLK ↑ 40 ns
t18 SO valid to valid delay from SCLK ↑
t19 SO valid to float delay from SCLK ↑ 25 ns
t20 SI setup to SCLK ↑ (50% sample position) 0 ns
t21 SI hold from SCLK ↑ (50% sample position) 25 ns
t22 SI setup to SCLK ↓ (75% sample position) 0 ns
t23 SI hold from SCLK ↓ (75% sample position) 25 ns
t24 SD_[15:0] float to valid delay from SCLK ↑ 35 ns
t25 SD_[15:0] valid to valid delay from SCLK ↑ 35 ns
t26 SD_[15:0] valid to float delay from SCLK ↑ 25 ns
t27 SD_[15:0] setup to SCLK ↓ (50% sample) 0 ns
t28 SD_[15:0] hold from SCLK ↓ (50% sample) 25 ns
t29 SD_[15:0] setup to SCLKx2* ↑ (75% sample) 0 ns
t30 SD_[15:0] hold from SCLKx2* ↑ (75% sample) 25 ns
t31 TXD setup to SCLK ↑ (registered MC) 0 ns
t32 TXD hold from SCLK ↑ (registered MC) 25 ns
t33 MC delay from SCLK ↑ (registered MC) 85 ns
t34 MC delay from TXD (passed through MC) 80 ns
t35 RXD delay from MC 35 ns
Notes: 1. Timing measured with 100 pF load on all Local Bus outputs, 200 pF load on all SCbus outputs.
2. MC timing measured with 200 pF, 470 Ω pullup (4.7 K
3. SI_CLK, SI_FS and SI_MS shown in ST-BUS framing format. When in PEB conventional framing format SI_CLK, SI_FS and SI_MS have
identical timing to SO_CLK, SO_FS and SO_MS.
4. SO shown configured as tri-state driver.
5. SO_MS, SI_MS are free-running multi-frame synchronization signals that occur once every 16 frames.
Ω/10). Open collector low to high transitions include 61 ns delay from hi-Z to 2.4 V.
40 ns
2000 Sep 07 21
Page 22
Philips Semiconductors Preliminary specification
Universal Timeslot Interchange SC2000

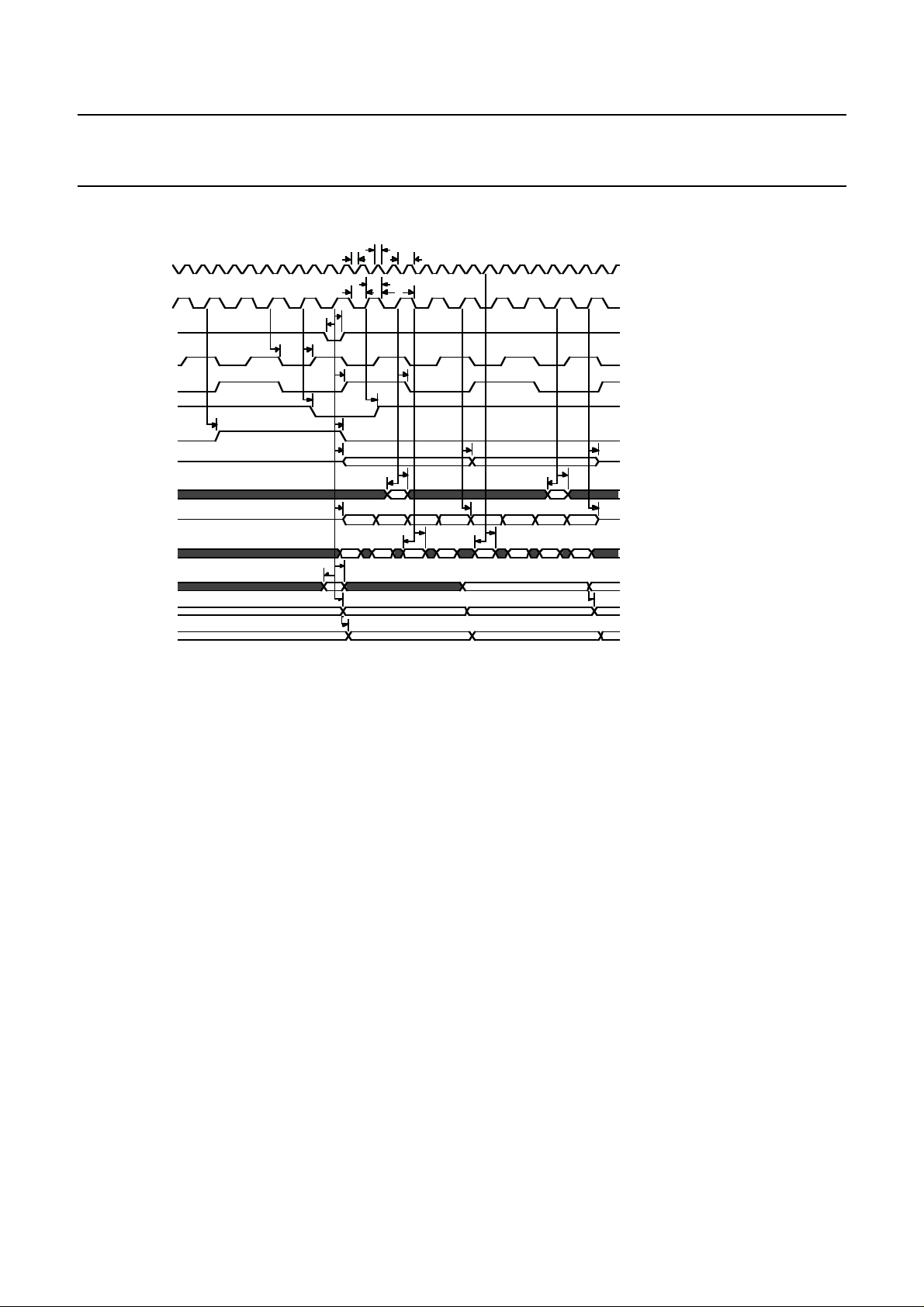

Figure 5. Local Bus Interface Timing — SCbus Mode (8.192 Mbps)
t2
t4t5t6
t21
t20
t27
t28
t25
t29
t30
t22
t23
t26
SCLKX2*
SCLK
FSYNC*
SI_CLK
SO_CLK
SI_FS,SI_MS
SO_FS,SO_MS
SO
SD_[15:0] Output
SD_[15:0] Input
TXD
MC
RXD
t15 t16
SI
t9 t10
t13 t14
t1 t3
t8
t7
t11 t12
t17 t18 t19
t24
t32
t31
t33 t34
t35
2000 Sep 07 22
Page 23
Philips Semiconductors Preliminary specification
Universal Timeslot Interchange SC2000
Table 5. Local Bus Interface Timing — SCbus Mode (8.192 Mbps)
Symbol Parameter Min Typ Max Unit
t1 SCLKx2* low time 30.5 ns
t2 SCLKx2* high time 30.5 ns
t3 SCLKx2* period 61 ns
t4 SCLK low time 61 ns
t5 SCLK high time 61 ns
t6 SCLK period 122 ns
t7 FSYNC* setup to SCLK ↑ 0 ns
t8 FSYNC* hold from SCLK ↑ 15 ns
t9 SI_CLK ↓ delay from SCLK ↑
t10 SI_CLK ↑ delay from SCLK ↑ 40 ns
t11 SO_CLK ↑ delay from SCLK ↑ 40 ns
t12 SO_CLK ↓ delay from SCLK ↑ 40 ns
t13 SI_FS, SI_MS ↓ delay from SCLK ↑ 45 ns
t14 SI_FS, SI_MS ↑ delay from SCLK ↑
t15 SO_FS, SO_MS ↑ delay from SCLK ↑
t16 SO_FS, SO_MS ↓ delay from SCLK ↑ 45 ns
t17 SO float to valid delay from SCLK ↑ 40 ns
t18 SO valid to valid delay from SCLK ↑ 40 ns
t19 SO valid to float delay from SCLK ↑ 25 ns
t20 SI setup to SCLK ↑ (50% sample position) 0 ns
t21 SI hold from SCLK ↑ (50% sample position) 25 ns
t22 SI setup to SCLK ↑ (75% sample position) 0 ns
t23 SI hold from SCLK ↑ (75% sample position) 25 ns
t24 SD_[15:0] float to valid delay from SCLK ↑ 35 ns
t25 SD_[15:0] valid to valid delay from SCLK ↑ 35 ns
t26 SD_[15:0] valid to float delay from SCLK ↑ 25 ns
t27 SD_[15:0] setup to SCLK ↓ (50% sample) 0 ns
t28 SD_[15:0] hold from SCLK ↓(50% sample) 25 ns
t29 SD_[15:0] setup to SCLKx2* ↑ (75% sample) 0 ns
t30 SD_[15:0] hold from SCLKx2* ↑ (75% sample) 25 ns
t31 TXD setup to SCLK ↑ (registered MC) 0 ns
t32 TXD hold from SCLK ↑ (registered MC) 25 ns
t33 MC delay from SCLK ↑ (registered MC) 85 ns
t34 MC delay from TXD (passed through MC) 80 ns
t35 RXD delay from MC 35 ns
Notes: 1. Timing measured with 100 pF load on all Local Bus outputs, 200 pF load on all SCbus outputs.
2. MC timing measured with 200 pF, 470 Ω pullup (4.7 KΩ/10). Open collector low to high transitions include 61 ns delay from hi-Z to 2.4 V.
3. SI_CLK, SI_FS and SI_MS shown in ST-BUS framing format. When in PEB conventional framing format SI_CLK, SI_FS and SI_MS have
identical timing to SO_CLK, SO_FS and SO_MS.
4. SO shown configured as tri-state driver.
5. SO_MS, SI_MS are free-running multi-frame synchronization signals that occur once every 16 frames.
40 ns
45 ns
45 ns
2000 Sep 07 23
Page 24
Philips Semiconductors Preliminary specification
Universal Timeslot Interchange SC2000
Figure 6. Local Bus Interface Timing — PEB Resource Module Without Switching
CLKR
SO_CLK
FSYNCR
SO_FS
MSYNCR
SO_MS
SERR
SO
L_CLKT
SI_CLK
L_FSYNCT
SI_FS
L_MSYNCT
SI_MS
L_SERT
L_TSX*
t1 t2 t3
t4 t5
t6 t7
t8 t9
t10
t1 t2 t3
t11 t12
t13 t14
t15 t16
t17 t18
SI
t19 t20 t21
t22 t23
2000 Sep 07 24
Page 25
Philips Semiconductors Preliminary specification
Universal Timeslot Interchange SC2000
Table 6. Local Bus Interface Timing — PEB Resource Module Without Switching
Symbol Parameter Min Typ Max Unit
t1a CLKR, L_CLKT high time (1.544 Mbps) 323 ns
t1b CLKR, L_CLKT high time (2.048 Mbps) 244 ns
t2a CLKR, L_CLKT low time (1.544 Mbps) 323 ns
t2b CLKR, L_CLKT low time (2.048 Mbps) 244 ns
t3a CLKR, L_CLKT period (1.544 Mbps) 647 ns
t3b CLKR, L_CLKT period (2.048 Mbps) 488 ns
t4 SO_CLK ↑ delay from CLKR ↑
t5 SO_CLK ↓ delay from CLKR ↓ 35 ns
t6 SO_FS ↑ delay from FSYNCR ↑ 35 ns
t7 SO_FS ↓ delay from FSYNCR ↓ 35 ns
t8 SO_MS ↑ delay from MSYNCR ↑ 35 ns
t9 SO_MS ↓ delay from MSYNCR ↓ 35 ns
t10 SO delay from SERR 35 ns
t11 SI_CLK ↑ delay from L_CLKT ↑ 35 ns
t12 SI_CLK ↓ delay from L_CLKT ↓ 35 ns
t13 L_FSYNCT setup to L_CLKT ↓ 5 ns
t14 L_FSYNCT hold from L_CLKT ↓ 15 ns
t15 SI_FS ↑ delay from L_FSYNCT ↑ 35 ns
t16 SI_FS ↓ delay from L_FSYNCT ↓ 35 ns
t17 SI_MS ↑ delay from L_MSYNCT ↑ 35 ns
t18 SI_MS ↓ delay from L_MSYNCT ↓ 35 ns
t19 L_SERT enable delay from L_CLKT ↑ 70 ns
t20 L_SERT delay from SI 60 ns
t21 L_SERT disable delay from L_CLKT ↑ 70 ns
t22 L_TSX* ↓ delay from L_CLKT ↑ 35 ns
t23 L_TSX* ↑ delay from L_CLKT ↑ 70 ns
Notes: 1. Timing measured with 100 pF load on all Local Bus outputs, 200 pF 220/330 Ω termination on all PEB outputs. Open collector low to high transitions
include 43 ns delay from hi-Z to 2.4 V.
2. L_TSX* occurs on time slot boundaries.
35 ns
2000 Sep 07 25
Page 26
Philips Semiconductors Preliminary specification
Universal Timeslot Interchange SC2000

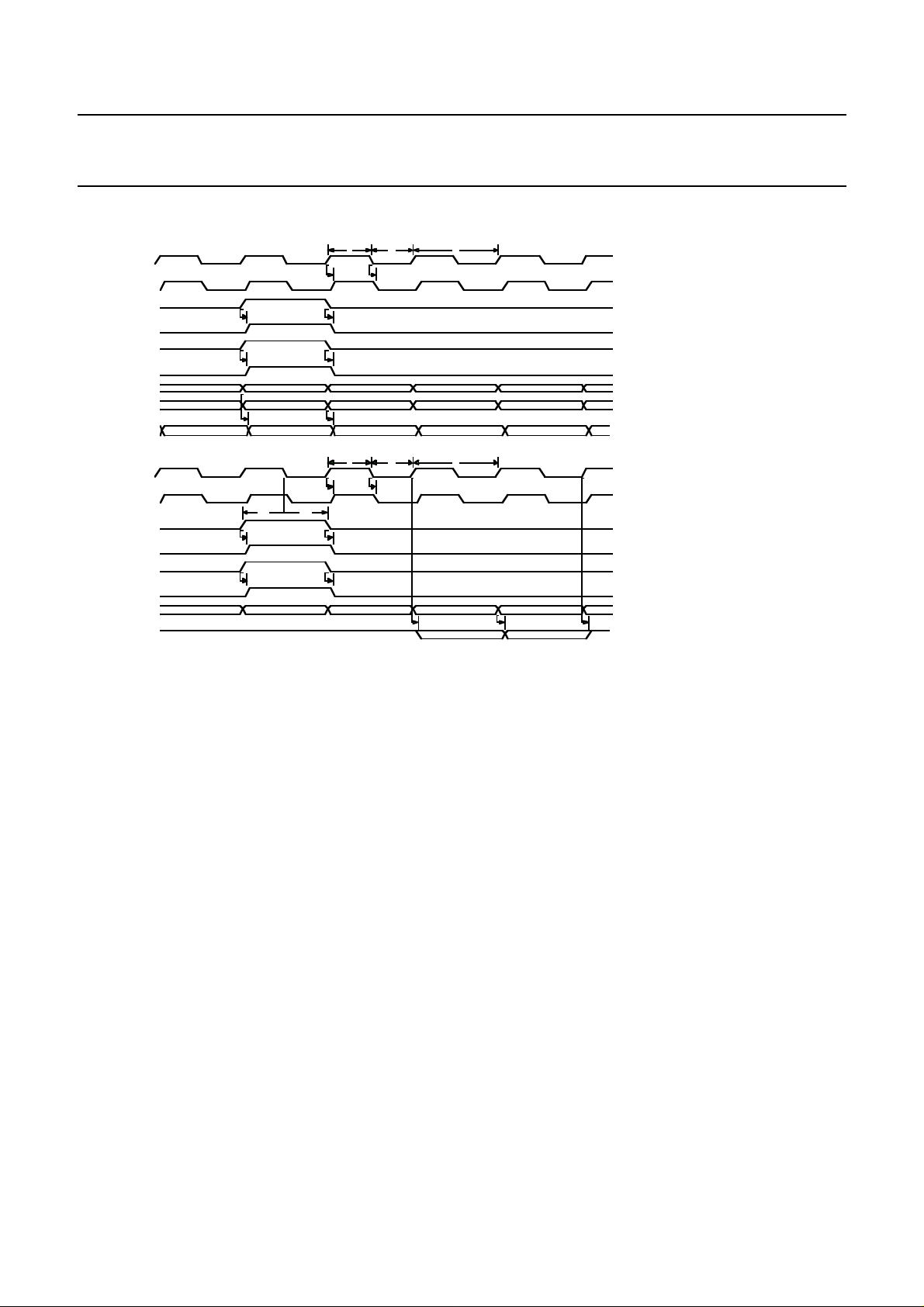

Figure 7. Local Bus Interface Timing — PEB Network Module Without Switching
L_CLKT
SO_CLK
L_FSYNCT
SO_FS
L_MSYNCT
SO_MS
SERT, L_SERT
L_TSX*
SO
CLKR
SI_CLK
FSYNCR
SI_FS
MSYNCR
SI_MS
SI
SERR
t1 t2 t3
t4 t5
t6 t7
t8 t9
t10 t11
t1 t2 t3
t12 t13
t14 t15
t16 t17
t18 t19
t20 t21 t22
2000 Sep 07 26
Page 27
Philips Semiconductors Preliminary specification
Universal Timeslot Interchange SC2000
Table 7. Local Bus Interface Timing — PEB Network Module Without Swithing
Symbol Parameter Min Typ Max Unit
t1a L_CLKT, CLKR high time (1.544 Mbps) 323 ns
t1b L_CLKT, CLKR high time (2.048 Mbps) 244 ns
t2a L_CLKT, CLKR low time (1.544 Mbps) 323 ns
t2b L_CLKT, CLKR low time (2.048 Mbps) 244 ns
t3a L_CLKT, CLKR period (1.544 Mbps) 647 ns
t3b L_CLKT, CLKR period (2.048 Mbps) 488 ns
t4 SO_CLK ↑ delay from L_CLKT ↑ 35 ns
t5 SO_CLK ↓ delay from L_CLKT ↓
t6 SO_FS ↑ delay from L_FSYNCT ↑ 35 ns
t7 SO_FS ↓ delay from L_FSYNCT ↓
t8 SO_MS ↑ delay from L_MSYNCT ↑ 35 ns
t9 SO_MS ↓ delay from L_MSYNCT ↓ 35 ns
t10 SO delay from SERT, L_SERT 35 ns
t11 SO delay from L_TSX* 35 ns
t12 SI_CLK ↑ delay from LCLKR ↑ 35 ns
t13 SI_CLK ↓ delay from L_CLKR ↓ 35 ns
t14 FSYNCR setup to CLKR ↓ 5 ns
t15 FSYNCR hold from CLKR ↓ 15 ns
t16 SI_FS ↑ delay from FSYNCR ↑ 35 ns
t17 SI_FS ↓ delay from FSYNCR ↓ 35 ns
t18 SI_MS ↑ delay from MSYNCR ↑ 35 ns
t19 SI_MS ↓ delay from MSYNCR ↓ 35 ns
t20 SERR enable delay from CLKR ↑ 70 ns
t21 SERR delay from SI 60 ns
t22 SERR disable delay from CLKR ↑ 70 ns
Note: 1. Timing measured with 100 pF load on all Local Bus outputs, 200 pF 220/330 Ω termination on all PEB outputs. Open collector low to high transitions
include 43 ns delay from hi-Z to 2.4 V.
35 ns
35 ns
2000 Sep 07 27
Page 28
Philips Semiconductors Preliminary specification
Universal Timeslot Interchange SC2000

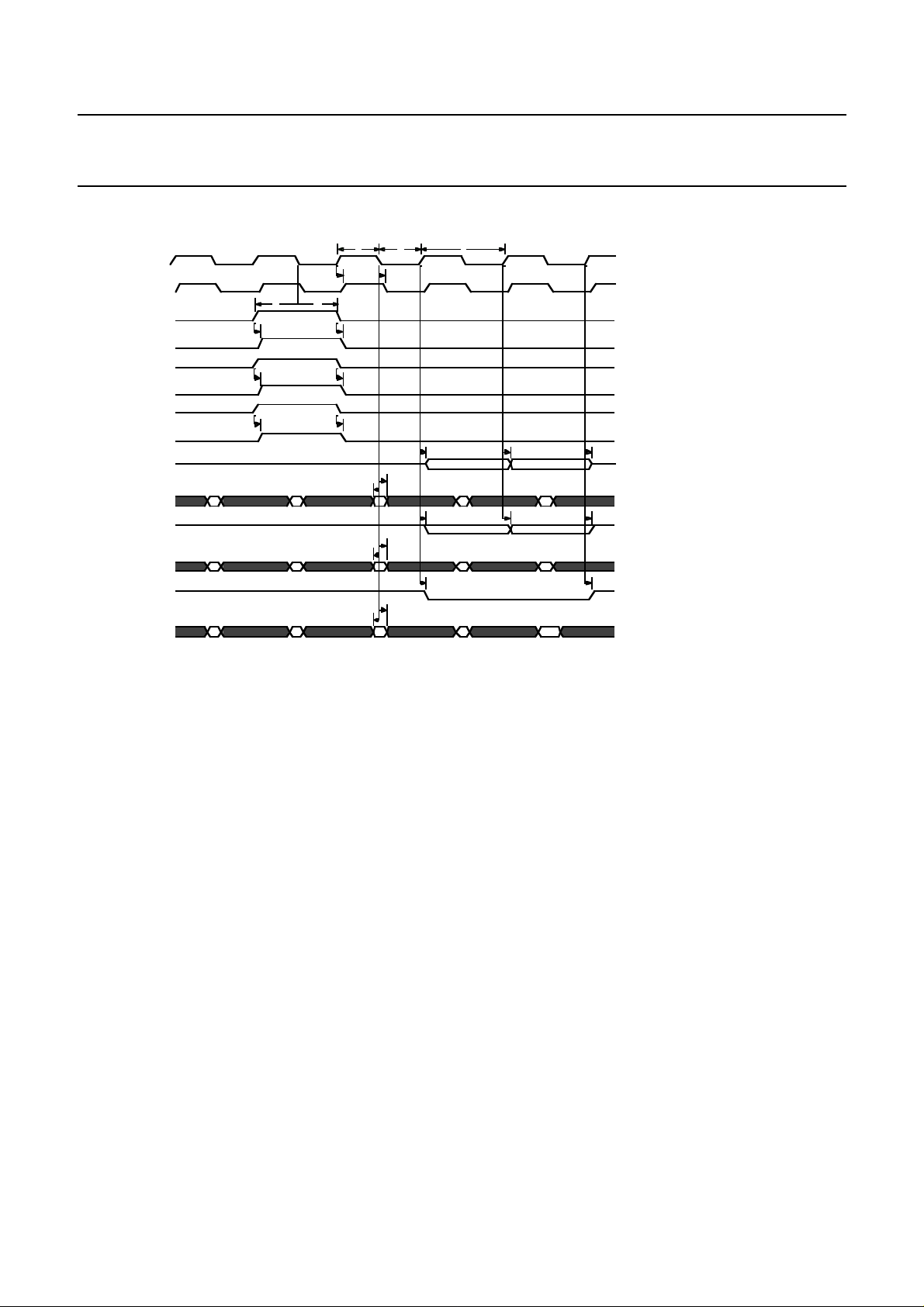

Figure 8. Local Bus Interface Timing — PEB Resource Module With Switching
CLKR
SO_CLK, SI_CLK
FSYNCR
SO_FS, SI_FS
MSYNCR
SO_MS
L_MSYNCT
SI_MS
SO
SER Output
SER Input
TSX* Output
TSX* Input
t1 t2 t3
t4 t5
t6 t7
t8 t9
t10
t12 t13
SI
t11
t17
t22
t26
t14 t15 t16
t18
t19 t20 t21
t23
t24 t25
t27
2000 Sep 07 28
Page 29
Philips Semiconductors Preliminary specification
Universal Timeslot Interchange SC2000
Table 8. Local Bus Interface Timing — PEB Resource Module With Switching
Symbol Parameter Min Typ Max Unit
t1a CLKR high time (1.544 Mbps) 323 ns
t1b CLKR high time (2.048 Mbps) 244 ns
t2a CLKR low time (1.544 Mbps) 323 ns
t2b CLKR low time (2.048 Mbps) 244 ns
t3a CLKR period (1.544 Mbps) 647 ns
t3b CLKR period (2.048 Mbps) 488 ns
t4 SO_CLK, SI_CLK ↑ delay from CLKR
t5 SO_CLK, SI_CLK ↓ delay from CLKR
t6 FSYNCR setup to CLKR
t7 FSYNCR hold from CLKR
t8 SO_FS, SI_FS ↑ delay from FSYNCR
t9 SO_FS, SI_FS ↓ delay from FSYNCR
t10 SO_MS ↑ delay from MSYNCR
t11 SO_MS ↓ delay from MSYNCR
t12 SI_MS ↑ delay from L_MSYNCT
t13 SI_MS ↓ delay from L_MSYNCT
t14 SO float to valid delay from CLKR
t15 SO valid to valid delay from CLKR
t16 SO valid to float delay from CLKR ↑ 25 ns
t17 SI setup to CLKR ↓ 0 ns
t18 SI hold from CLKR ↓ 25 ns
t19 SER enable delay from CLKR ↑ 70 ns
t20 SER valid delay from CLKR ↑ 70 ns
t21 SER disable delay from CLKR ↑ 70 ns
t22 SER setup to CLKR ↓ 0 ns
t23 SER hold from CLKR ↓ 25 ns
t24 TSX* ↓ delay from CLKR ↑ 35 ns
t25 TSX* ↑ delay from CLKR ↑ 70 ns
t26 TSX* setup to CLKR ↓ 0 ns
t27 TSX* hold from CLKR ↓ 25 ns
Notes: 1. Timing measured with 100 pF load on all Local Bus outputs, 200 pF 220/330 Ω termination on all PEB outputs. Open collector low to high transitions
include 43 ns delay from hi-Z to 2.4 V.
2. SER = L_SERT, SERR, R_SERT, SERT.
3. TSX* = L_TSX*, R_TSX*.
↓
↑
↓
5 ns
↓
↑
↓
↑
↓
15 ns
↑
↓
↑
↑
35 ns
35 ns
35 ns
35 ns
35 ns
35 ns
35 ns
35 ns
40 ns
40 ns
2000 Sep 07 29
Page 30
Philips Semiconductors Preliminary specification
Universal Timeslot Interchange SC2000

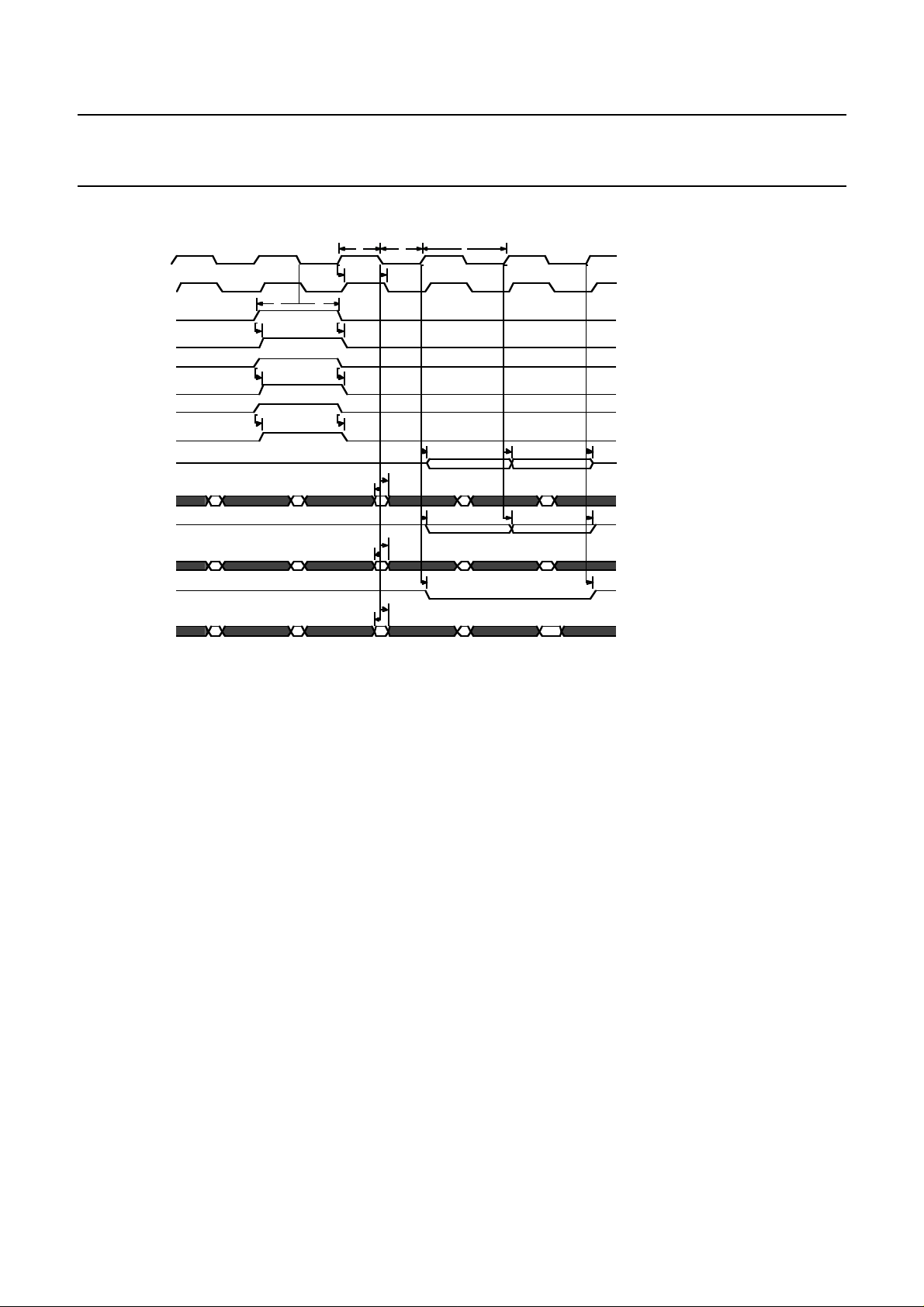

Figure 9. Local Bus Interface Timing — PEB Network Module With Switching
CLKR
SO_CLK, SI_CLK
FSYNCR
SO_FS, SI_FS
L_MSYNCT
SO_MS
MSYNCR
SI_MS
SO
SER Output
SER Input
TSX* Output
TSX* Input
t1 t2 t3
t4 t5
t6 t7
t8 t9
t10
t12
SI
t11
t13
t17
t22
t26
t14 t15 t16
t18
t19 t20 t21
t23
t24 t25
t27
2000 Sep 07 30
Page 31
Philips Semiconductors Preliminary specification
Universal Timeslot Interchange SC2000
Table 9. Local Bus Interface Timing — PEB Network Module With Switching
Symbol Parameter Min Typ Max Unit
t1a CLKR high time (1.544 Mbps) 323 ns
t1b CLKR high time (2.048 Mbps) 244 ns
t2a CLKR low time (1.544 Mbps) 323 ns
t2b CLKR low time (2.048 Mbps) 244 ns
t3a CLKR period (1.544 Mbps) 647 ns
t3b CLKR period (2.048 Mbps) 488 ns
t4 SO_CLK, SI_CLK ↑ delay from CLKR ↑ 35 ns
t5 SO_CLK, SI_CLK ↓ delay from CLKR ↓ 35 ns
t6 FSYNCR setup to CLKR ↓ 5 ns
t7 FSYNCR hold from CLKR ↓ 15 ns
t8 SO_FS, SI_FS ↑ delay from FSYNCR ↑ 35 ns
t9 SO_FS, SI_FS ↓ delay from FSYNCR ↓ 35 ns
t10 SO_MS ↑ delay from L_MSYNCT ↑ 35 ns
t11 SO_MS ↓ delay from L_MSYNCT ↓ 35 ns
t12 SI_MS ↑ delay from MSYNCR ↑ 35 ns
t13 SI_MS ↓ delay from MSYNCR ↓ 35 ns
t14 SO float to valid delay from CLKR ↑ 40 ns
t15 SO valid to valid delay from CLKR ↑ 40 ns
t16 SO valid to float delay from CLKR ↑ 25 ns
t17 SI setup to CLKR ↓ 0 ns
t18 SI hold from CLKR ↓ 25 ns
t19 SER enable delay from CLKR ↑ 70 ns
t20 SER valid delay from CLKR ↑ 70 ns
t21 SER disable delay from CLKR ↑ 70 ns
t22 SER setup to CLKR ↓ 0 ns
t23 SER hold from CLKR ↓ 25 ns
t24 TSX* ↓ delay from CLKR ↑ 35 ns
t25 TSX* ↑ delay from CLKR ↑ 70 ns
t26 TSX* setup to CLKR ↓ 0 ns
t27 TSX* hold from CLKR ↓ 25 ns
Notes: 1. Timing measured with 100 pF load on all Local Bus outputs, 200 pF 220/330 Ω termination on all PEB outputs. Open collector low to high transitions
include 43 ns delay from hi-Z to 2.4 V.
2. SER = L_SERT, SERR, R_SERT, SERT.
3. TSX* = L_TSX*, R_TSX*.
2000 Sep 07 31
Page 32
Philips Semiconductors Preliminary specification
Universal Timeslot Interchange SC2000
Figure 10. CLK_IN, SYNC_IN — SCbus Mode (CLK_IN Divider ≥4)
CLK_IN (Conventional)
SYNC_IN (Conventional)
CLK_IN (ST-BUS)
SYNC_IN (ST-BUS)
SCLKX2*
SCLK
FSYNC*
Table 10. CLK_IN, SYNC_IN — SCbus Mode (CLK_IN Divider
Symbol Parameter Min Typ Max Unit
t1 CLK_IN period 122 ns
t2 CLK_IN high time 61 ns
t3 CLK_IN low time 61 ns
t4 SYNC_IN low setup to CLK_IN ↓ (PEB conventional) 10 ns
t5 SYNC_IN low hold from CLK_IN ↓ (PEB conventional) 10 ns
t6 SYNC_IN high setup to CLK_IN ↓ (PEB conventional) 10 ns
t7 SYNC_IN high hold from CLK_IN ↓ (PEB conventional) 10 ns
t8 SYNC_IN setup to CLK_IN ↓ (ST-BUS) 10 ns
t9 SYNC_IN hold from CLK_IN ↓ (ST-BUS) 10 ns
t10a SCLKx2* ↓ delay from CLK_IN ↑ (PEB conventional) 25 ns
t10b SCLKx2* ↓ delay from CLK_IN ↓ (ST-BUS) 25 ns
t11a SCLKx2* ↑ delay from CLK_IN ↑ (PEB conventional) 25 ns
t11b SCLKx2* ↑ delay from CLK_IN ↓ (ST-BUS) 25 ns
t12a SCLK ↑ delay from CLK_IN ↑ (PEB conventional) 25 ns
t12b SCLK ↑ delay from CLK_IN ↓ (ST-BUS) 25 ns
t13a SCLK ↓ delay from CLK_IN ↑ (PEB conventional) 25 ns
t13b SCLK ↓ delay from CLK_IN ↓ (ST-BUS) 25 ns
t14 FSYNC* ↓ delay from SCLKx2* ↑ 30 ns
t15 FSYNC* ↑ delay from SCLKx2* ↑ 30 ns
Note: 1. Timing measured with 200 pF load on all SCbus outputs.
t1 t2 t3
t4 t5
t1 t2 t3
t14 t15
t6 t7
t8 t9
t10b
t10a
t12b
t12a
≥ 4)
t11b
t11a
t13b
t13a
2000 Sep 07 32
Page 33
Philips Semiconductors Preliminary specification
Universal Timeslot Interchange SC2000
Figure 11. CLK_IN, SYNC_IN — SCbus Mode (CLK_IN Divider = 2)
CLK_IN (Conventional)
SYNC_IN (Conventional)
t1 t2 t3
CLK_IN (ST-BUS)
SYNC_IN (ST-BUS)
SCLKX2*
SCLK
FSYNC*
t1 t2 t3
t5
t4
t7
t14 t15
t6
t9
t8
t10b
t12b
t10a
t12a
t11b
t11a
t13b
t13a
Table 11. CLK_IN, SYNC_IN — SCbus Mode (CLK_IN Divider = 2)
Symbol Parameter Min Typ Max Unit
t1 CLK_IN period 244 ns
t2 CLK_IN high time 122 ns
t3 CLK_IN low time 122 ns
t4 SYNC_IN low setup to CLK_IN ↓ (PEB conventional) 10 ns
t5 SYNC_IN low hold from CLK_IN ↓ (PEB conventional) 10 ns
t6 SYNC_IN high setup to CLK_IN ↓ (PEB conventional) 10 ns
t7 SYNC_IN high hold from CLK_IN ↓ (PEB conventional) 10 ns
t8 SYNC_IN setup to CLK_IN ↓ (ST-BUS) 10 ns
t9 SYNC_IN hold from CLK_IN ↓ (ST-BUS) 10 ns
t10a SCLKx2* ↓ delay from CLK_IN ↑ (PEB conventional) 25 ns
t10b SCLKx2* ↓ delay from CLK_IN ↓ (ST-BUS) 25 ns
t11a SCLKx2* ↑ delay from CLK_IN ↓ (PEB conventional) 25 ns
t11b SCLKx2* ↑ delay from CLK_IN ↑ (ST-BUS) 25 ns
t12a SCLK ↑ delay from CLK_IN ↑ (PEB conventional) 25 ns
t12b SCLK ↑ delay from CLK_IN ↓ (ST-BUS) 25 ns
t13a SCLK ↓ delay from CLK_IN ↑ (PEB conventional) 25 ns
t13b SCLK ↓ delay from CLK_IN ↓ (ST-BUS) 25 ns
t14 FSYNC* ↓ delay from SCLKx2* ↑ 30 ns
t15 FSYNC* ↑ delay from SCLKx2* ↑ 30 ns
Note: 1. Timing measured with 200 pF load on all SCbus outputs.
2000 Sep 07 33
Page 34
Philips Semiconductors Preliminary specification
Universal Timeslot Interchange SC2000

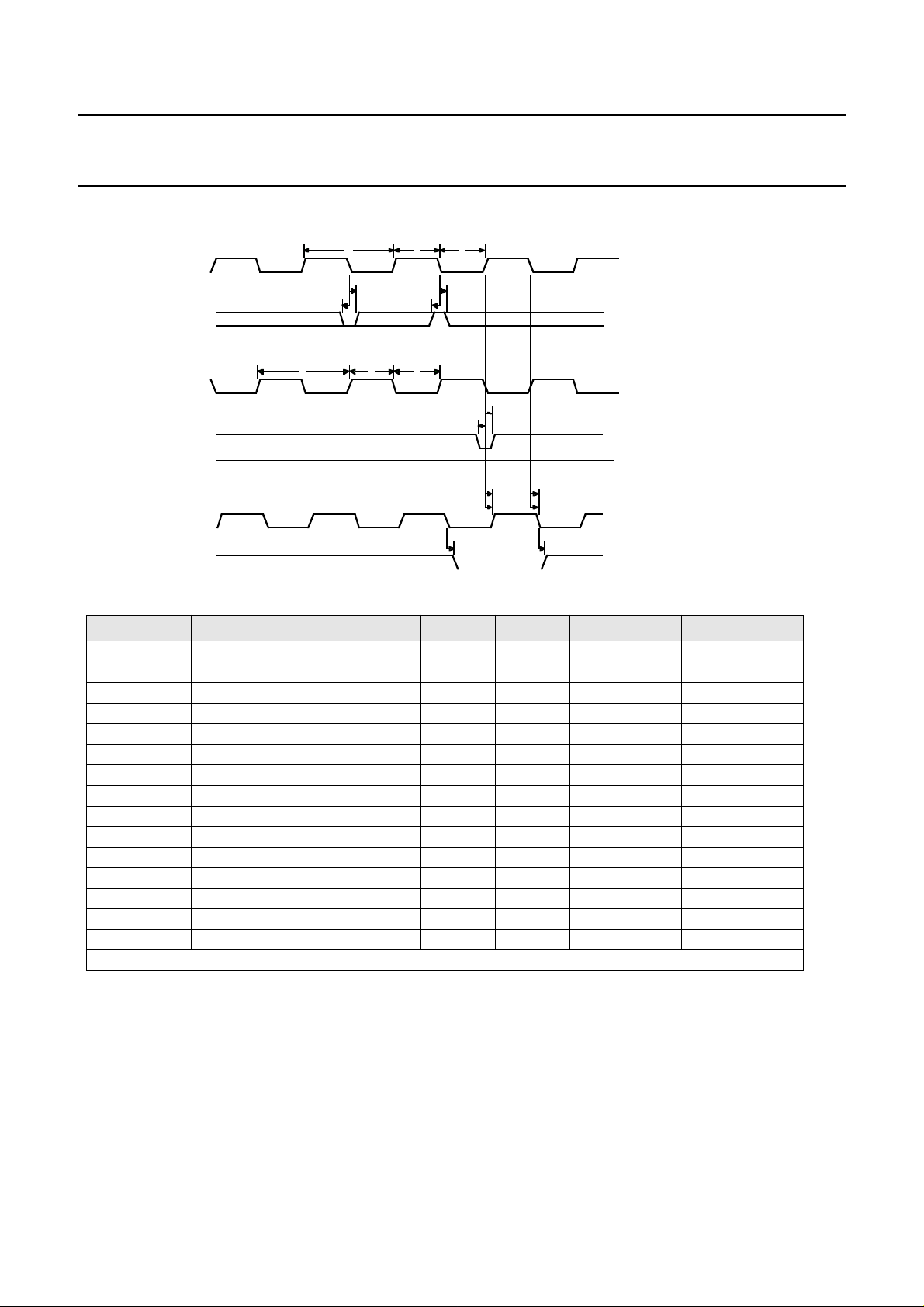

Figure 12. CLK_IN, SYNC_IN — SCbus Mode (CLK_IN Divider = 1)
CLK_IN (Conventional)
SYNC_IN (Conventional)
CLK_IN (ST-BUS)
SYNC_IN (ST-BUS)
SCLKX2*
SCLK
FSYNC*
t1 t2 t3
t5
t4
t1 t2 t3
t7
t6
t9
t8
t10b
t10a
t12 t13
t11b
t11a
Table 12. CLK_IN, SYNC_IN — SCbus Mode (CLK_IN Divider = 1)
Symbol Parameter Min Typ Max Unit
t1 CLK_IN period 488 ns
t2 CLK_IN high time 244 ns
t3 CLK_IN low time 244 ns
t4 SYNC_IN low setup to CLK_IN ↓ (PEB conventional) 10 ns
t5 SYNC_IN low hold from CLK_IN ↓ (PEB conventional) 10 ns
t6 SYNC_IN high setup to CLK_IN ↓(PEB conventional) 10 ns
t7 SYNC_IN high hold from CLK_IN ↓ (PEB conventional) 10 ns
t8 SYNC_IN setup to CLK_IN ↓ (ST-BUS) 10 ns
t9 SYNC_IN hold from CLK_IN ↓ (ST-BUS) 10 ns
t10a SCLK ↑ delay from CLK_IN ↑ (PEB conventional) 25 ns
t10b SCLK ↑ delay from CLK_IN ↓ (ST-BUS) 25 ns
t11a SCLK ↓ delay from CLK_IN ↓ (PEB conventional) 25 ns
t11b SCLK ↓ delay from CLK_IN ↑ (ST-BUS) 25 ns
t12 FSYNC*↓ delay from SCLK ↓ 30 ns
t13 FSYNC* ↑ delay from SCLK ↓ 30 ns
Note: 1. Timing measured with 200 pF load on all SCbus outputs.
2000 Sep 07 34
Page 35
Philips Semiconductors Preliminary specification
Universal Timeslot Interchange SC2000
2)

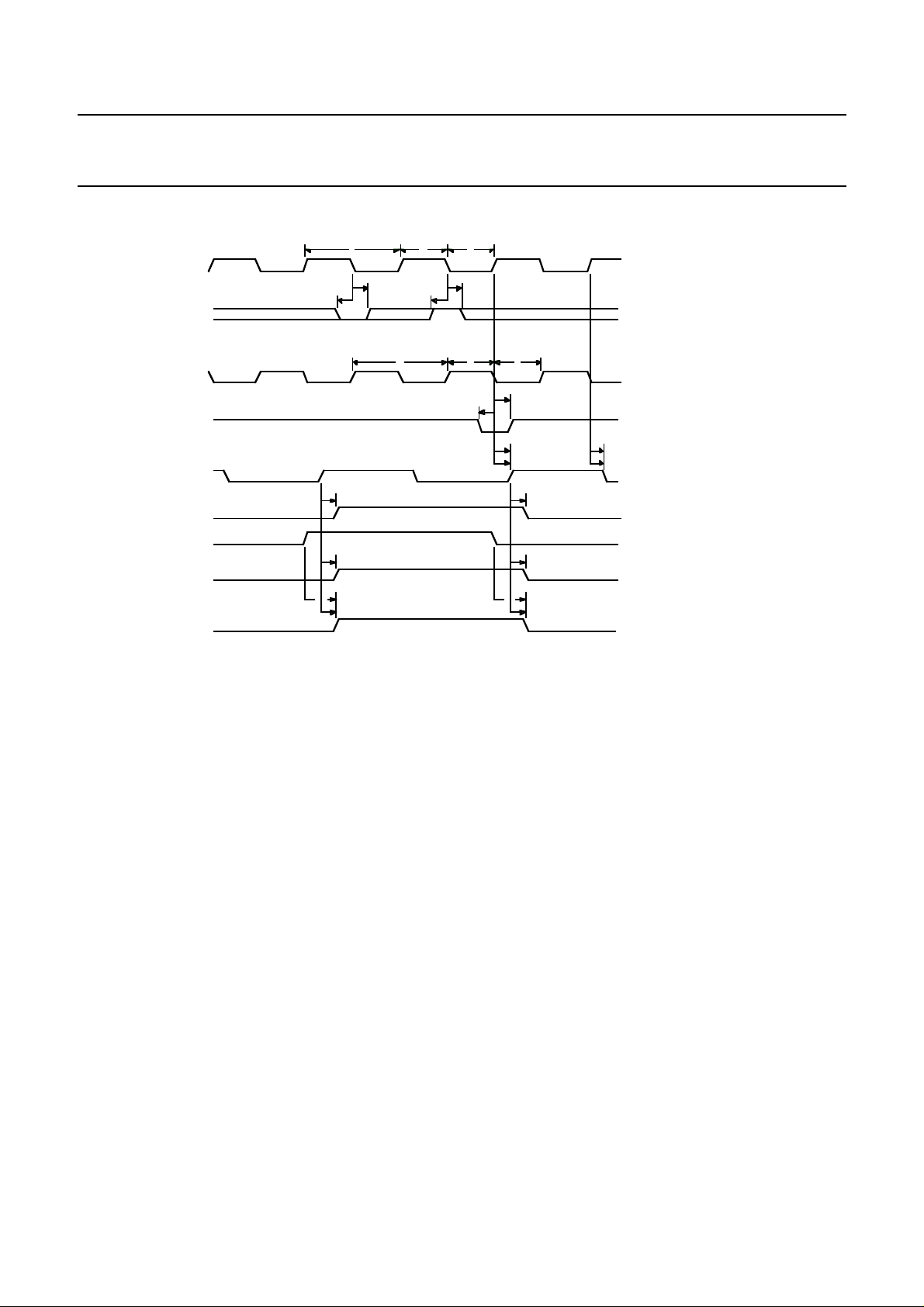

Figure 13. CLK_IN, SYNC_IN — PEB Network Master Mode (CLK_IN Divider
≥
CLK_IN (Conventional)
SYNC_IN (Conventional)
CLK_IN (ST-BUS)
SYNC_IN (ST-BUS)
CLKR, L_CLKT
FSYNCR, L_FSYNCT
MSYNCT
MSYNCR
L_MSYNCT
t1 t2 t3
t5
t4
t12 t13
t14
t18
t16
t7
t6
t1 t2 t3
t9
t10b
t10a
t17
t8
t15
t19
t11b
t11a
2000 Sep 07 35
Page 36
Philips Semiconductors Preliminary specification
Universal Timeslot Interchange SC2000
Table 13. CLK_IN, SYNC_IN — PEB Network Master Mode (CLK_IN Divider
Symbol Parameter Min Typ Max Unit
t1 CLK_IN period 244 ns
t2 CLK_IN high time 122 ns
t3 CLK_IN low time 122 ns
t4 SYNC_IN low setup to CLK_IN ↓ (PEB conventional) 10 ns
t5 SYNC_IN low hold from CLK_IN ↓ (PEB conventional) 10 ns
t6 SYNC_IN high setup to CLK_IN ↓ (PEB conventional) 10 ns
t7 SYNC_IN high hold from CLK_IN ↓ (PEB conventional) 10 ns
t8 SYNC_IN setup to CLK_IN ↓ (ST-BUS) 10 ns
t9 SYNC_IN hold from CLK_IN ↓ (ST-BUS) 10 ns
t10a CLKR, L_CLKT ↑ delay from CLK_IN ↑ (PEB conventional) 60 ns
t10b CLKR, L_CLKT ↑ delay from CLK_IN ↓ (ST-BUS) 60 ns
t11a CLKR, L_CLKT ↓ delay from CLK_IN ↑ (PEB conventional) 30 ns
t11b CLKR, L_CLKT ↓ delay from CLK_IN ↓ (ST-BUS) 30 ns
t12 FSYNCR, L_FSYNCT ↑ delay from CLKR ↑ 70 ns
t13 FSYNCR, L_FSYNCT ↓ delay from CLKR ↑ 35 ns
t14 MSYNCR ↑ delay from CLKR ↑ 70 ns
t15 MSYNCR ↓ delay from CLKR ↑ 35 ns
t16 L_MSYNCT ↑ delay from CLKR ↑ 70 ns
t17 L_MSYNCT ↓ delay from CLKR ↑ 35 ns
t18 L_MSYNCT ↑ delay from MSYNCT ↑ 60 ns
t19 L_MSYNCT ↓ delay from MSYNCT ↓ 25 ns
Note: 1. Timing measured with 200 pF 220/330 Ω termination on all PEB outputs. Open collector low to high transitions include 43 ns delay from hi-Z to 2.4 V.
≥ 2)
2000 Sep 07 36
Page 37
Philips Semiconductors Preliminary specification
Universal Timeslot Interchange SC2000

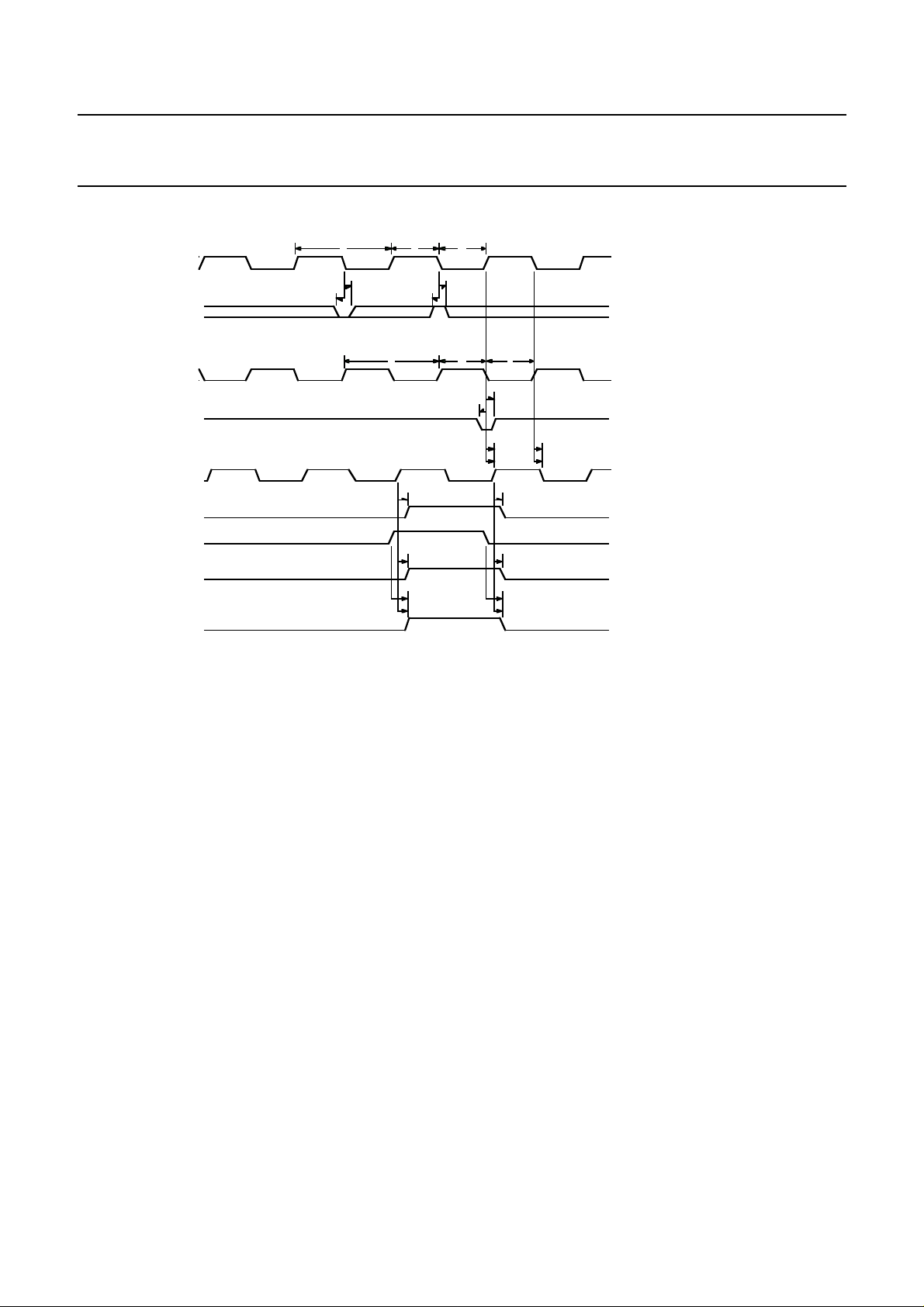

Figure 14. CLK_IN, SYNC_IN — PEB Network Master Mode (CLK_IN Divider = 1)
CLK_IN (Conventional)
SYNC_IN (Conventional)
CLK_IN (ST-BUS)
SYNC_IN (ST-BUS)
CLKR, L_CLKT
FSYNCR, L_FSYNCT
MSYNCT
MSYNCR
L_MSYNCT
t1 t2 t3
t5
t4
t6
t1 t2 t3
t12 t13
t14 t15
t18
t16
t7
t9
t8
t10b
t10a
t19
t17
t11b
t11a
2000 Sep 07 37
Page 38
Philips Semiconductors Preliminary specification
Universal Timeslot Interchange SC2000
Table 14. CLK_IN, SYNC_IN — PEB Network Master Mode (CLK_IN Divider = 1)
Symbol Parameter Min Typ Max Unit
t1 CLK_IN period 488 ns
t2 CLK_IN high time 244 ns
t3 CLK_IN low time 244 ns
t4 SYNC_IN low setup to CLK_IN ↓ (PEB conventional) 10 ns
t5 SYNC_IN low hold from CLK_IN ↓ (PEB conventional) 10 ns
t6 SYNC_IN high setup to CLK_IN ↓ (PEB conventional) 10 ns
t7 SYNC_IN high hold from CLK_IN ↓ (PEB conventional) 10 ns
t8 SYNC_IN setup to CLK_IN↓ (ST-BUS) 10 ns
t9 SYNC_IN hold from CLK_IN ↓ (ST-BUS) 10 ns
t10a CLKR, L_CLKT ↑ delay from CLK_IN ↑ (PEB conventional) 60 ns
t10b CLKR, L_CLKT ↑ delay from CLK_IN ↓ (ST-BUS) 60 ns
t11a CLKR, L_CLKT ↓ delay from CLK_IN ↓ (PEB conventional) 30 ns
t11b CLKR, L_CLKT ↓ delay from CLK_IN ↑ (ST-BUS) 30 ns
t12 FSYNCR, L_FSYNCT ↑ delay from CLKR ↑ 70 ns
t13 FSYNCR, L_FSYNCT ↓ delay from CLKR ↑ 35 ns
t14 MSYNCR ↑ delay from CLKR ↑ 70 ns
t15 MSYNCR ↓ delay from CLKR ↑ 35 ns
t16 L_MSYNCT ↑ delay from CLKR ↑ 70 ns
t17 L_MSYNCT ↓ delay from CLKR ↑ 35 ns
t18 L_MSYNCT ↑ delay from MSYNCT ↑ 60 ns
t19 L_MSYNCT ↓ delay from MSYNCT ↓ 25 ns
Note: 1. Timing measured with 200 pF 220/330 Ω termination on all PEB outputs. Open collector low to high transitions include 43 ns delay from hi-Z to 2.4 V.
2000 Sep 07 38
Page 39
Philips Semiconductors Preliminary specification
Universal Timeslot Interchange SC2000

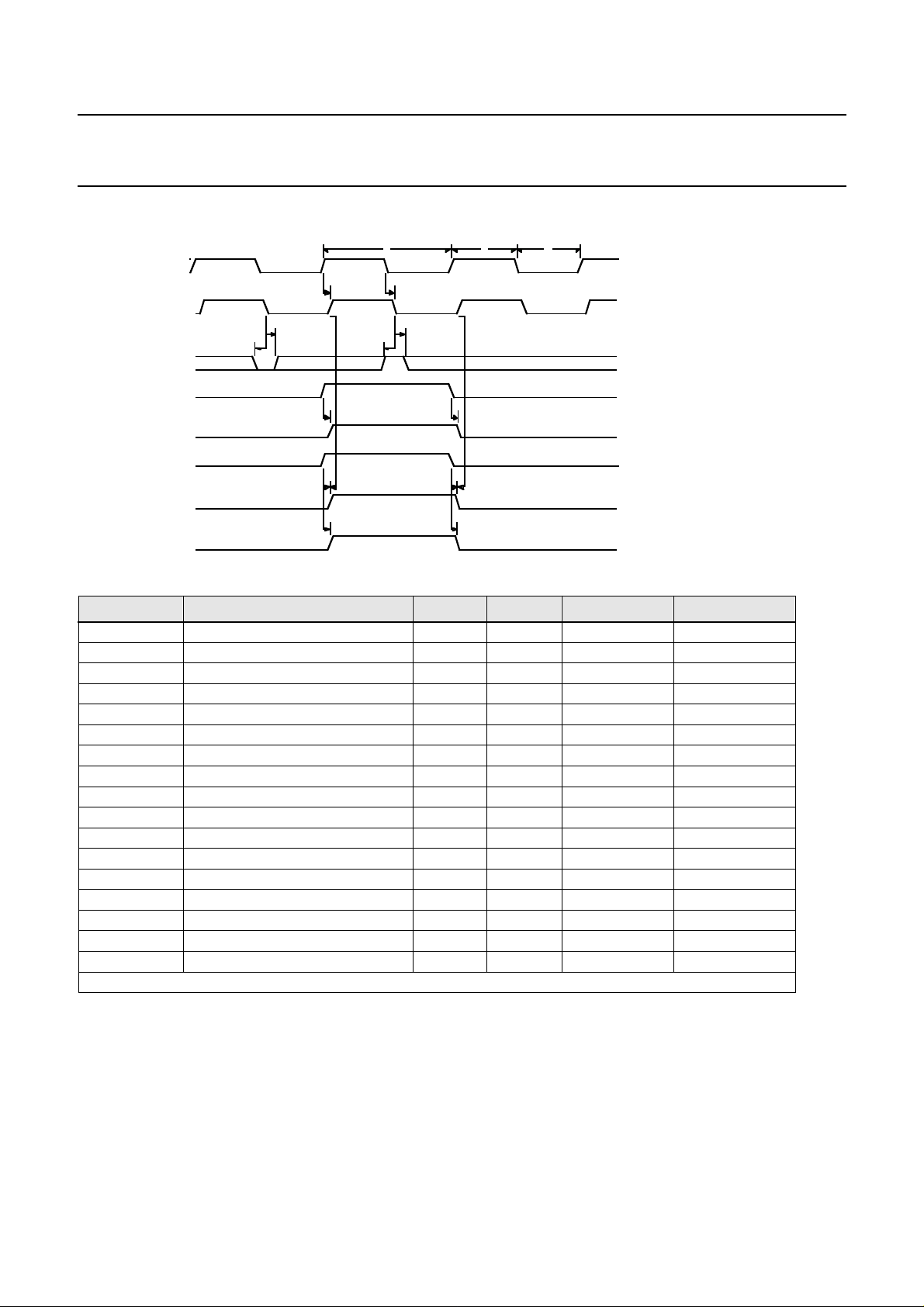

Figure 15. PEB Network Slave
CLKT
CLKR, L_CLKT
SYNC_IN
FSYNCT
FSYNCR, L_FSYNCT
MSYNCT
MSYNCR
L_MSYNCT
t4 t5
t7
t6
t10
t12 t14
t16
t1 t2 t3
t9
t8
t11
t13
t15
t17
Table 15: PEB Network Slave
Symbol Parameter Min Typ Max Unit
t1 CLKT period 488 ns
t2 CLKT high time 244 ns
t3 CLKT low time 244 ns
t4 CLKR, L_CLKT ↑ delay from CLKT ↑ 60 ns
t5 CLKR, L_CLKT ↓ delay from CLKT ↓ 25 ns
t6 SYNC_IN low setup to CLKR ↓ 0 ns
t7 SYNC_IN low hold from CLKR ↓ 20 ns
t8 SYNC_IN high setup to CLKR ↓ 0 ns
t9 SYNC_IN high hold from CLKR ↓ 20 ns
t10 FSYNCR, L_FSYNCT ↑ delay from FSYNCT ↑ 60 ns
t11 FSYNCR, L_FSYNCT ↓ delay from FSYNCT ↓ 25 ns
t12 MSYNCR ↑ delay from MSYNCT ↑ 60 ns
t13 MSYNCR ↓ delay from MSYNCT ↓ 25 ns
t14 MSYNCR ↑ delay from CLKR ↑ 70 ns
t15 MSYNCR ↓ delay from CLKR ↑ 35 ns
t16 L_MSYNCT ↑ delay from MSYNCT ↑ 60 ns
t17 L_MSYNCT ↓ delay from MSYNCT ↓ 25 ns
Note: 1. Timing measured with 200 pF 220/330 Ω termination on all PEB outputs. Open collector low to high transitions include 43 ns delay from hi-Z to 2.4 V.
2000 Sep 07 39
Page 40
Philips Semiconductors Preliminary specification
Universal Timeslot Interchange SC2000
SOLDERING
Introduction to soldering surface mount packages
Thistext gives a verybriefinsight to acomplextechnology.
A more in-depth account of soldering ICs can be found in
our
“Data Handbook IC26; Integrated Circuit Packages”
(document order number 9398 652 90011).
There is no soldering method that is ideal for all surface
mount IC packages. Wave soldering can still be used for
certainsurface mount ICs, butitis not suitable forfinepitch
SMDs. In these situations reflow soldering is
recommended.
Reflow soldering
Reflow soldering requires solder paste (a suspension of
fine solder particles, flux and binding agent) to be applied
tothe printed-circuit boardby screen printing,stencillingor
pressure-syringe dispensing before package placement.
Several methods exist for reflowing; for example,
convection or convection/infrared heating in a conveyor
type oven. Throughput times (preheating, soldering and
cooling) vary between 100 and 200 seconds depending
on heating method.
Typical reflow peak temperatures range from
215 to 250 °C. The top-surface temperature of the
packages should preferable be kept below 220 °C for
thick/large packages, and below 235 °C for small/thin
packages.
Wave soldering
Conventional single wave soldering is not recommended
forsurface mount devices (SMDs)orprinted-circuit boards
with a high component density, as solder bridging and
non-wetting can present major problems.
To overcome these problems the double-wave soldering
method was specifically developed.
If wave soldering is used the following conditions must be
observed for optimal results:
• Use a double-wave soldering method comprising a
turbulent wave with high upward pressure followed by a
smooth laminar wave.
• For packages with leads on two sides and a pitch (e):
– larger than or equal to 1.27 mm, the footprint
longitudinal axis is preferred to be parallel to the
transport direction of the printed-circuit board;
– smaller than 1.27 mm, the footprint longitudinal axis
must be parallel to the transport direction of the
printed-circuit board.
The footprint must incorporate solder thieves at the
downstream end.
• Forpackages with leads onfoursides, the footprint must
be placed at a 45° angle to the transport direction of the
printed-circuit board. The footprint must incorporate
solder thieves downstream and at the side corners.
During placement and before soldering,the packagemust
be fixed with a droplet of adhesive. The adhesive can be
applied by screen printing, pin transfer or syringe
dispensing. The package can be soldered after the
adhesive is cured.
Typical dwell time is 4 seconds at 250 °C.
A mildly-activated flux will eliminate the need for removal
of corrosive residues in most applications.
Manual soldering
Fix the component by first soldering two
diagonally-opposite end leads. Use a low voltage (24 V or
less) soldering iron applied to the flat part of the lead.
Contact time must be limited to 10 seconds at up to
300 °C.
When using a dedicated tool, all other leads can be
soldered in one operation within 2 to 5 seconds between
270 and 320 °C.
2000 Sep 07 40
Page 41
Philips Semiconductors Preliminary specification
Universal Timeslot Interchange SC2000
Suitability of surface mount IC packages for wave and reflow soldering methods
PACKAGE
WAVE REFLOW
(1)
BGA, LFBGA, SQFP, TFBGA not suitable suitable
SOLDERING METHOD
HBCC, HLQFP, HSQFP, HSOP, HTQFP, HTSSOP, SMS not suitable
(3)
PLCC
, SO, SOJ suitable suitable
LQFP, QFP, TQFP not recommended
SSOP, TSSOP, VSO not recommended
(2)
(3)(4)
(5)
suitable
suitable
suitable
Notes
1. All surface mount (SMD) packages are moisture sensitive. Depending upon the moisture content, the maximum
temperature (with respect to time) and body size of the package, there is a risk that internal or external package
cracks may occur due to vaporization of the moisture in them (the so called popcorn effect). For details, refer to the
Drypack information in the
“Data Handbook IC26; Integrated Circuit Packages; Section: Packing Methods”
.
2. Thesepackages are not suitable for wave soldering as a solder joint between the printed-circuit board and heatsink
(at bottom version) can not be achieved, and as solder may stick to the heatsink (on top version).
3. If wave soldering is considered, then the package must be placed at a 45° angle to the solder wave direction.
The package footprint must incorporate solder thieves downstream and at the side corners.
4. Wavesoldering is only suitable for LQFP, TQFP and QFP packages with a pitch (e) equal to or larger than 0.8 mm;
it is definitely not suitable for packages with a pitch (e) equal to or smaller than 0.65 mm.
5. Wavesoldering is onlysuitable for SSOP and TSSOP packages witha pitch(e) equal to or larger than 0.65 mm;it is
definitely not suitable for packages with a pitch (e) equal to or smaller than 0.5 mm.
2000 Sep 07 41
Page 42
Philips Semiconductors Preliminary specification
Universal Timeslot Interchange SC2000
DATA SHEET STATUS
DATA SHEET STATUS
Objective specification Development This data sheet contains the design target or goal specifications for
Preliminary specification Qualification This data sheet contains preliminary data, and supplementary data will be
Product specification Production This data sheet contains final specifications. Philips Semiconductors
Note
1. Please consult the most recently issued data sheet before initiating or completing a design.
DEFINITIONS
Short-form specification The data in a short-form
specification is extracted from a full data sheet with the
same type number and title. For detailed information see
the relevant data sheet or data handbook.
Limiting values definition Limiting values given arein
accordance with the Absolute Maximum Rating System
(IEC 60134). Stress above one or more of the limiting
values may cause permanent damage to the device.
These are stress ratings only and operation of the device
atthese or atanyother conditions abovethosegiven in the
Characteristics sections of the specification is not implied.
Exposure to limiting values for extended periods may
affect device reliability.
Application information Applications that are
described herein for any of these products are for
illustrative purposes only. Philips Semiconductors make
norepresentationor warranty that suchapplicationswillbe
suitable for the specified use without further testing or
modification.
PRODUCT
STATUS
DEFINITIONS
product development. Specification may change in any manner without
notice.
published at a later date. Philips Semiconductors reserves the right to
make changes at any time without notice in order to improve design and
supply the best possible product.
reserves the right to make changes at any time without notice in order to
improve design and supply the best possible product.
DISCLAIMERS
Life support applications These products are not
designed for use in life support appliances, devices, or
systems where malfunction of these products can
reasonably be expectedto result in personal injury.Philips
Semiconductorscustomersusing or selling theseproducts
for use in such applications do so at their own risk and
agree to fully indemnify Philips Semiconductors for any
damages resulting from such application.
Right to make changes Philips Semiconductors
reserves the right to make changes, without notice, in the
products, including circuits, standard cells, and/or
software, described or contained herein in order to
improve design and/or performance. Philips
Semiconductors assumes no responsibility or liability for
theuse of any oftheseproducts, conveys no licenceortitle
under any patent, copyright, or mask work right to these
products,and makes norepresentationsor warranties that
these products are free from patent, copyright, or mask
work right infringement, unless otherwise specified.
(1)
2000 Sep 07 42
Page 43
Philips Semiconductors Preliminary specification
Universal Timeslot Interchange SC2000
NOTES
2000 Sep 07 43
Page 44
Philips Semiconductors – a w orldwide compan y
Argentina: see South America
Australia: 3 Figtree Drive, HOMEBUSH, NSW 2140,
Tel. +61 2 9704 8141, Fax. +61 2 9704 8139
Austria: Computerstr. 6, A-1101 WIEN, P.O. Box 213,
Tel. +43 1 60 101 1248, Fax. +43 1 60 101 1210
Belarus: Hotel Minsk Business Center, Bld. 3, r. 1211, Volodarski Str. 6,
220050 MINSK, Tel. +375 172 20 0733, Fax. +375 172 20 0773
Belgium: see The Netherlands
Brazil: see South America
Bulgaria: Philips Bulgaria Ltd., Energoproject, 15th floor,
51 James Bourchier Blvd., 1407 SOFIA,
Tel. +359 2 68 9211, Fax. +359 2 68 9102
Canada: PHILIPS SEMICONDUCTORS/COMPONENTS,
Tel. +1 800 234 7381, Fax. +1 800 943 0087
China/Hong Kong: 501 Hong Kong Industrial Technology Centre,
72 Tat Chee Avenue, Kowloon Tong, HONG KONG,
Tel. +852 2319 7888, Fax. +852 2319 7700
Colombia: see South America
Czech Republic: see Austria
Denmark: Sydhavnsgade 23, 1780 COPENHAGEN V,
Tel. +45 33 29 3333, Fax. +45 33 29 3905
Finland: Sinikalliontie 3, FIN-02630 ESPOO,
Tel. +358 9 615 800, Fax. +358 9 6158 0920
France: 51 Rue Carnot, BP317, 92156 SURESNES Cedex,
Tel. +33 1 4099 6161, Fax. +33 1 4099 6427
Germany: Hammerbrookstraße 69, D-20097 HAMBURG,
Tel. +49 40 2353 60, Fax. +49 40 2353 6300
Hungary: see Austria
India: Philips INDIA Ltd, Band Box Building, 2nd floor,
254-D, Dr. Annie Besant Road, Worli, MUMBAI 400 025,
Tel. +91 22 493 8541, Fax. +91 22 493 0966
Indonesia: PT Philips Development Corporation,Semiconductors Division,
Gedung Philips, Jl. Buncit Raya Kav.99-100, JAKARTA 12510,
Tel. +62 21 794 0040 ext. 2501, Fax. +62 21 794 0080
Ireland: Newstead, Clonskeagh, DUBLIN 14,
Tel. +353 1 7640 000, Fax. +353 1 7640 200
Israel: RAPAC Electronics, 7 Kehilat Saloniki St, PO Box 18053,
TEL AVIV 61180, Tel. +972 3 645 0444, Fax. +972 3 649 1007
Italy: PHILIPS SEMICONDUCTORS, Via Casati, 23 - 20052 MONZA (MI),
Tel. +39 039 203 6838, Fax +39 039 203 6800
Japan: Philips Bldg 13-37, Kohnan 2-chome, Minato-ku,
TOKYO 108-8507, Tel. +81 3 3740 5130, Fax. +81 3 3740 5057
Korea: Philips House, 260-199 Itaewon-dong, Yongsan-ku, SEOUL,
Tel. +82 2 709 1412, Fax. +82 2 709 1415
Malaysia: No. 76 Jalan Universiti, 46200 PETALING JAYA, SELANGOR,
Tel. +60 3 750 5214, Fax. +60 3 757 4880
Mexico: 5900 Gateway East, Suite 200, EL PASO, TEXAS 79905,
Tel. +9-5 800 234 7381, Fax +9-5 800 943 0087
Middle East: see Italy
Netherlands: Postbus 90050, 5600 PB EINDHOVEN, Bldg. VB,
Tel. +31 40 27 82785, Fax. +31 40 27 88399
New Zealand: 2 Wagener Place, C.P.O. Box 1041, AUCKLAND,
Tel. +64 9 849 4160, Fax. +64 9 849 7811
Norway: Box 1, Manglerud 0612, OSLO,
Tel. +47 22 74 8000, Fax. +47 22 74 8341
Pakistan: see Singapore
Philippines: Philips Semiconductors Philippines Inc.,
106 Valero St. Salcedo Village, P.O. Box 2108 MCC, MAKATI,
Metro MANILA, Tel. +63 2 816 6380, Fax. +63 2 817 3474
Poland: Al.Jerozolimskie 195 B, 02-222 WARSAW,
Tel. +48 22 5710 000, Fax. +48 22 5710 001
Portugal: see Spain
Romania: see Italy
Russia: Philips Russia, Ul. Usatcheva 35A, 119048 MOSCOW,
Tel. +7 095 755 6918, Fax. +7 095 755 6919
Singapore: Lorong 1, Toa Payoh, SINGAPORE 319762,
Tel. +65 350 2538, Fax. +65 251 6500
Slovakia: see Austria
Slovenia: see Italy
South Africa: S.A. PHILIPS Pty Ltd., 195-215 Main Road Martindale,
2092 JOHANNESBURG, P.O. Box 58088 Newville 2114,
Tel. +27 11 471 5401, Fax. +27 11 471 5398
South America: Al. Vicente Pinzon, 173, 6th floor,
04547-130 SÃO PAULO, SP, Brazil,
Tel. +55 11 821 2333, Fax. +55 11 821 2382
Spain: Balmes 22, 08007 BARCELONA,
Tel. +34 93 301 6312, Fax. +34 93 301 4107
Sweden: Kottbygatan 7, Akalla, S-16485 STOCKHOLM,
Tel. +46 8 5985 2000, Fax. +46 8 5985 2745
Switzerland: Allmendstrasse 140, CH-8027 ZÜRICH,
Tel. +41 1 488 2741 Fax. +41 1 488 3263
Taiwan: Philips Semiconductors, 5F, No. 96, Chien Kuo N. Rd., Sec. 1,
TAIPEI, Taiwan Tel. +886 2 2134 2451, Fax. +886 2 2134 2874
Thailand: PHILIPS ELECTRONICS (THAILAND) Ltd.,
60/14 MOO 11, Bangna Trad Road KM. 3, Bagna, BANGKOK 10260,
Tel. +66 2 361 7910, Fax. +66 2 398 3447
Turkey: Yukari Dudullu, Org. San. Blg., 2.Cad. Nr. 28 81260 Umraniye,
ISTANBUL, Tel. +90 216 522 1500, Fax. +90 216 522 1813
Ukraine: PHILIPS UKRAINE, 4 Patrice Lumumba str., Building B, Floor 7,
252042 KIEV, Tel. +380 44 264 2776, Fax. +380 44 268 0461
United Kingdom: Philips Semiconductors Ltd., 276 Bath Road, Hayes,
MIDDLESEX UB3 5BX, Tel. +44 208 730 5000, Fax. +44 208 754 8421
United States: 811 East Arques Avenue, SUNNYVALE, CA 94088-3409,
Tel. +1 800 234 7381, Fax. +1 800 943 0087
Uruguay: see South America
Vietnam: see Singapore
Yugoslavia: PHILIPS, Trg N. Pasica 5/v, 11000 BEOGRAD,
Tel. +381 11 3341 299, Fax.+381 11 3342 553
For all other countries apply to: Philips Semiconductors,
Marketing Communications, Building BE-p, P.O. Box 218, 5600 MD EINDHOVEN,
The Netherlands, Fax. +31 40 27 24825
© Philips Electronics N.V. SCA
All rights are reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner.
The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed
without notice. No liability will be accepted by the publisher for any consequence of its use. Publication thereof does not convey nor imply any license
under patent- or other industrial or intellectual property rights.
2000
Internet: http://www.semiconductors.philips.com
70
Printed in The Netherlands 02/pp44 Date of release: 2000 Sep 07 Document order number: 9397 750 07433
Loading...
