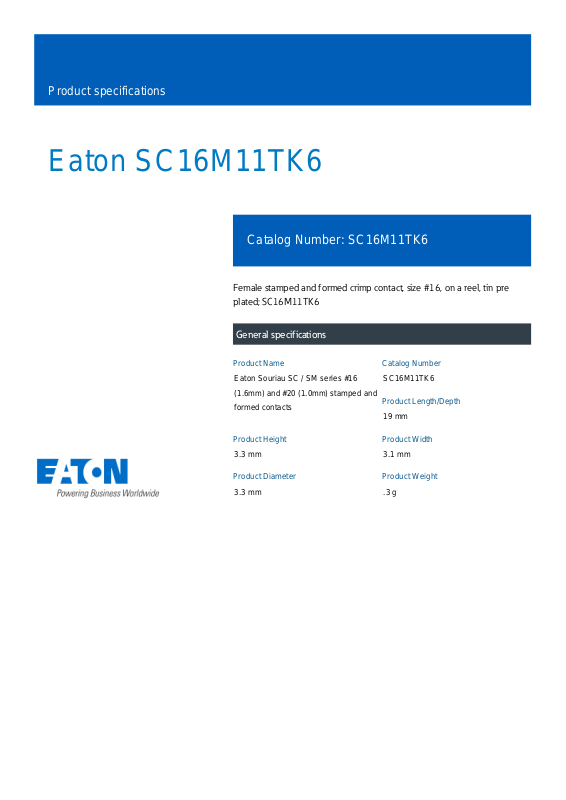

Page 1
Product specifications
Eaton SC16M11TK6
Catalog Number: SC16M11TK6
Female stamped and formed crimp contact, size #16, on a reel, tin pre
plated; SC16M11TK6
General specifications
Product Name Catalog Number
Eaton Souriau SC / SM series #16
(1.6mm) and #20 (1.0mm) stamped and
formed contacts
SC16M11TK6
Product Length/Depth
19 mm
Product Height Product Width
3.3 mm 3.1 mm
Product Diameter Product Weight
3.3 mm .3 g
Page 2
Product specifications
Resources
Contact plating
Tin pre plated
Packaging type
Reeled
Fitted with:
Insulation grip
Environmental conditions
REACH
RoHS
Contact size
16 AWG
Contact gender
Socket (Female)
Manufacturing process
Stamped and formed
Drawings
BSC200178002A.pdf
Wire size (AWG) - min
18 AWG
Contact type
Crimp
Wire size (AWG) - max
16 AWG
