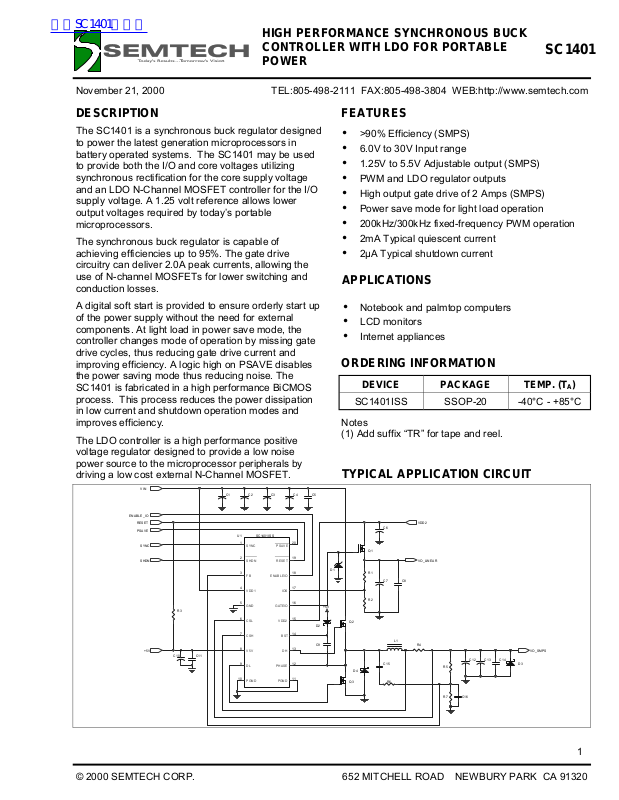

HIGH PERFORMANCE SYNCHRONOUS BUCK
CONTROLLER WITH LDO FOR PORTABLE
POWER

SC1401

November 21, 2000

TEL:[phone] FAX:[phone] WEB:http://www.semtech.com

DESCRIPTION

The SC1401 is a synchronous buck regulator designed
to power the latest generation microprocessors in
battery operated systems. The SC1401 may be used
to provide both the I/O and core voltages utilizing
synchronous rectification for the core supply voltage
and an LDO N-Channel MOSFET controller for the I/O
supply voltage. A 1.25 volt reference allows lower
output voltages required by today’s portable
microprocessors.

The synchronous buck regulator is capable of
achieving efficiencies up to 95%. The gate drive
circuitry can deliver 2.0A peak currents, allowing the
use of N-channel MOSFETs for lower switching and
conduction losses.

A digital soft start is provided to ensure orderly start up
of the power supply without the need for external
components. At light load in power save mode, the
controller changes mode of operation by missing gate
drive cycles, thus reducing gate drive current and
improving efficiency. A logic high on PSAVE disables
the power saving mode thus reducing noise. The
SC1401 is fabricated in a high performance BiCMOS
process. This process reduces the power dissipation
in low current and shutdown operation modes and
improves efficiency.

The LDO controller is a high performance positive
voltage regulator designed to provide a low noise
power source to the microprocessor peripherals by
driving a low cost external N-Channel MOSFET.

VIN

C1

C3

C5

C4C2

FEATURES

•

>90% Efficiency (SMPS)

•

6.0V to 30V Input range

•

1.25V to 5.5V Adjustable output (SMPS)

•

PWM and LDO regulator outputs

•

High output gate drive of 2 Amps (SMPS)

•

Power save mode for light load operation

•

200kHz/300kHz fixed-frequency PWM operation

•

2mA Typical quiescent current

•

2µA Typical shutdown current

APPLICATIONS

•

Notebook and palmtop computers

•

LCD monitors

•

Internet appliances

ORDERING INFORMATION

DEVICE PACKAGE TEMP. (TA)

SC1401ISS SSOP-20 -40°C - +85°C

Notes
(1) Add suffix “TR” for tape and reel.

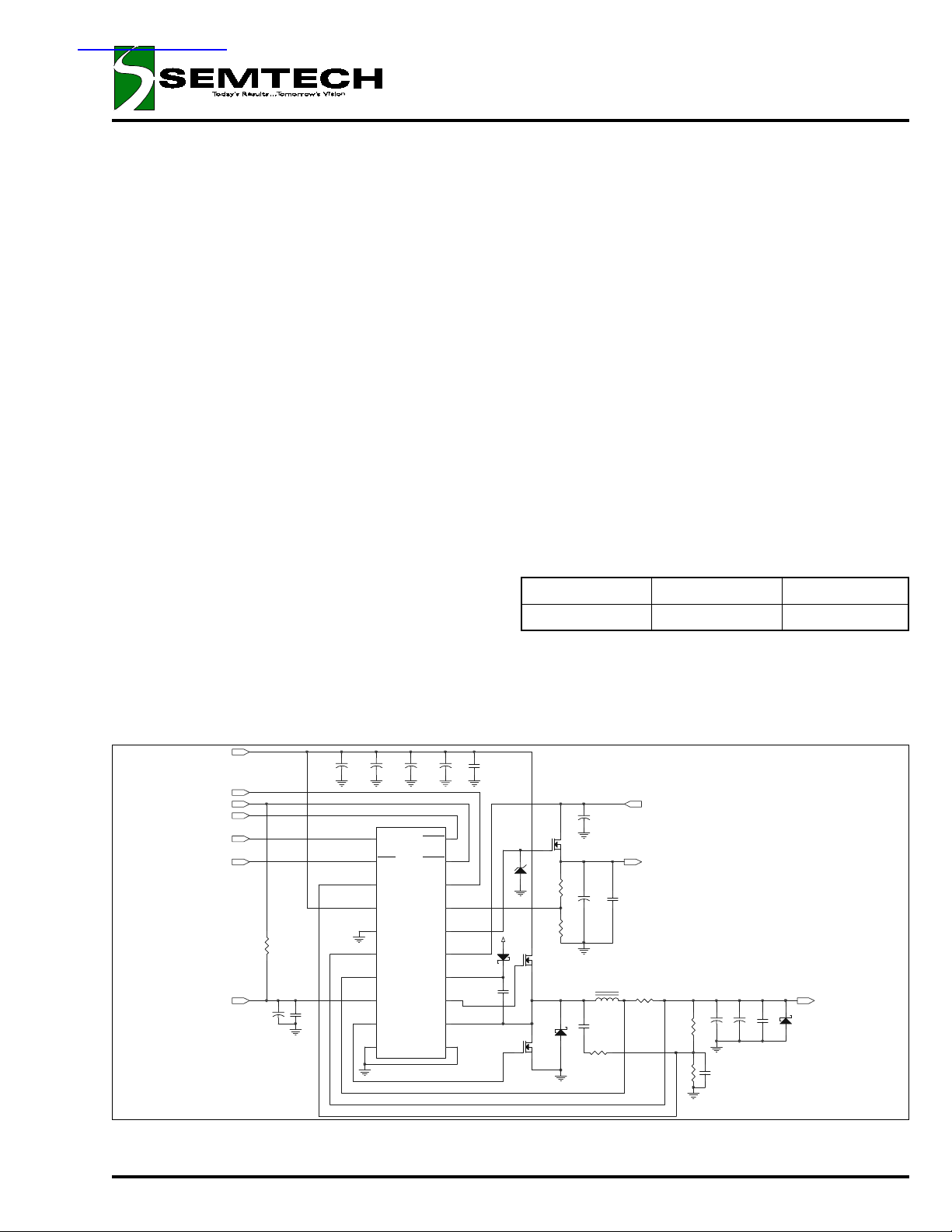

TYPICAL APPLICATION CIRCUIT

ENABLE_IO

RESET

PSAVE

SYNC

SHDN

R3

+5V

C10

© 2000 SEMTECH CORP.

U1 SC1401ISS

1

SYNC

2

SHDN

3

FB

4

VDD1

5

GND

6

CSL

7

CSH

8

C11

V5V

9

DL

10

PGND

PSAVE

RESET

ENABLEIO

GATEIO

VDD2

PHASE

PGND

20

19

18

17

IOS

16

15

14

BST

13

DH

12

11

D1

+5V

D2

C9

Q2

Q3

C6

Q1

R1

C7

R2

D4

R6

VDD2

VO_LINEAR

C8

L1

R4

C12 C13

R5

C16

R7

C14

VO_SMPS

D3C15

1

652 MITCHELL ROAD NEWBURY PARK CA 91320

HIGH PERFORMANCE SYNCHRONOUS BUCK









CONTROLLER WITH LDO FOR PORTABLE
POWER

November 21, 2000

PIN DESCRIPTION

Pin # Pin Name Pin Function

1 SYNC Oscillator control/synchronization input. Connect to V5V for 300kHz. Connect to

GND for 200kHz. For external clock synchronization in the 240kHz to 350kHz
range. A high-to-low transition causes a new cycle start.

SC1401

2

SHDN Logic Low shuts down the switching regulator.

3 FB Feedback input for the SMPS. FB selects fixed 1.25V output voltage setting

when tied to V
Refer to page 9.

O

. Connect FB to a resistor divider for adjustable output mode.

OUT

8

R






+•=

11.25(SMPS)V



9

R

4 VDD1 Supply input from battery (6V to 30V).

5 GND Low noise analog ground and feedback reference point.

6 CSL Inverting input to current sense amplifier. Also serves as the feedback input in

fixed output mode.

7 CSH Non-Inverting input to current sense amplifier. Current limit level is 120mV

referenced to CSL.

8 V5V 5 volt external supply used to power the gate drives, internal control and

reference of the SC1401.

9 DL Gate drive output for low side synchronous rectifier MOSFET.

10 PGND Device power ground.

11 PGND Device power ground.

12 PHASE Inductor switching node connected to the source of high side MOSFET

and drain of low side MOSFET.

13 DH Gate drive output for high side N-Channel MOSFET. DH is a floating driver

output driven from the floating voltage across BST to PHASE.

14 BST Boost capacitor connection for the high side driver.

15 VDD2 Supply voltage input for the linear FET controller.

16 GATEIO Gate drive output for the linear FET controller.

17

IOS Sense input voltage for the adjustable voltage linear FET controller.

Refer to page 9.

O

5

R






+•=

11.25(Linear)V



6

R

18 ENABLEIO Logic low shuts down the linear FET controller.

19 RESET Active-Low reset output.

20 PSAVE A logic low enables power saving mode.

Note: All logic level inputs and outputs are open collector TTL compatible.

© 2000 SEMTECH CORP.

652 MITCHELL ROAD NEWBURY PARK CA 91320

2

HIGH PERFORMANCE SYNCHRONOUS BUCK
CONTROLLER WITH LDO FOR PORTABLE

SC1401

POWER

November 21, 2000

ABSOLUTE MAXIMUM RATINGS

PARAMETER MAXIMUM UNITS

VDD1 to GND -0.3 to +36 V

PGND to GND - 0.3 to 0.3 V

V5V, FB, CSH, CSL, IOS to GND -0.3 to +6 V

SYNC, SHDN, PSAVE, ENABLEIO to GND -0.3 to +6 V

BST to GND -0.3 to +36 V

BST to PHASE -0.3 to 6 V

VDD2 to GND -0.3 to +36 V

GATEIO to GND 9 V

Junction operating temperature (T

Thermal resistance junction to ambient (θ

Storage temperature -65 to +150 °C

Lead soldering temperature +300, 10 seconds °C

) -40 to +125 °C

J

)

JA

50 °C/W

ELECTRICAL CHARACTERISTICS

Unless specified: VDD1 = 12V, VDD2 = 12V V5V = 5V, SHDN = PSAVE = 5V, TA = -40 °C to +85 °C . Typical values are at TA = +25°C.

PARAMETER CONDITIONS MIN TYP MAX UNITS
SMPS CONTROLLER

VDD1 Input Voltage Range 6.0

VOUT SMPS VREF 5.5 V

Internal BandGap Voltage, VREF Measured at the Feedback pin 1.225 1.250 1.275 V

Load Regulation 0mV < CSH - CSL < 100mV 2 %

Line Regulation 6V < VDD1 < 30V 0.03 %/V

Overcurrent-Limit Threshold CSH - CSL 100 130 160 mV

PSAVE Mode Threshold CSH - CSL, PSAVE = 0 V 30 mV

Soft-Start Ramp Time From enable to 95% full current limit with

respect to f

Oscillator Frequency SYNC = V5V

SYNC = 0V

OSC

512 clks

265
165

300
200

30.0 V

335
235

kHz

Maximum Duty Factor 85

SYNC = 0V

Note 1: This device is ESD sensitive. Use of standard ESD handling precautions is required.

© 2000 SEMTECH CORP.

652 MITCHELL ROAD NEWBURY PARK CA 91320

90

87
93

% SYNC = V5V

3

November 21, 2000

HIGH PERFORMANCE SYNCHRONOUS BUCK
CONTROLLER WITH LDO FOR PORTABLE
POWER

SC1401

ELECTRICAL CHARACTERISTICS (continued)

Unless specified: VDD1 = 12V, V5V = 5V, VDD2 = 12V SHDN = PSAVE = 5V, TA = -40 °C to +85 °C. Typical values are at TA = +25°C.

LINE PARAMETER CONDITIONS MIN TYP MAX UNITS

Gate Driver Sink/Source DL, DH, forced to 2V 2.0 A

Gate Driver On-Resistance High or low 1.0

SYNC Input High Pulse

SYNC Input Low Pulse Width

SYNC Rise/Fall Time

SYNC Input Frequency Range 240 350 kHz

Current-Sense Input Leakage CSL = CSH = 5.5V 20 µA

FB Input Leakage Current FB = 1.25V 1 µA

LINEAR REGULATOR

VDD2 Input Voltage Range 5.0 30.0 V

VOUT Linear VREF 5.5 V

GATEIO Source current VDD2=12V, GATEIO=0V 2.6 mA

1

1

1

200

200 ns

200

Ω

IOS Input Leakage Current IOS = 1.25V 1 µA

Line Regulation ILOAD=0.5A 0.03 %/V

Load Regulation Vin=12V, ILOAD = 0.1A to 1A 0.85 %

SUPPLY CURRENTS

VDD1 Operating Supply 5 50 µA

Shutdown Supply Current VDD1 = 6V to 30V, V5V = 5V, SHDN = 0V 15 25 µA

V5V Operating Supply Current V5V = 5V, no load on DH/DL, PSAVE = 0V 1.5 4 mA

VDD2 Supply Current VDD2 = 12V 5 mA

Note 1: Not tested.

© 2000 SEMTECH CORP.

4

652 MITCHELL ROAD NEWBURY PARK CA 91320

November 21, 2000

HIGH PERFORMANCE SYNCHRONOUS BUCK
CONTROLLER WITH LDO FOR PORTABLE
POWER

SC1401

ELECTRICAL CHARACTERISTICS (continued)

Unless specified: VDD1 = 12V, VDD2 = 12V V5V = 5V, SHDN = PSAVE = 5V, TA = -40 °C to +85 °C. Typical values are at TA = +25°C.

PARAMETER CONDITIONS MIN TYP MAX UNITS

FAULT DETECTION

Thermal Shutdown Threshold Typical hysteresis = +10°V 150 °C

VDD1 Undervoltage Reset
Threshold

V5V Undervoltage Reset
Threshold

FB Overvoltage Reset
Threshold

FB Undervoltage Reset
Threshold

RESET Propagation Delay FB Over/Under Voltage condition

IOS Undervoltage Reset
Threshold

RESET Delay Time With respect to f

LOGICAL INPUTS AND OUTPUTS

Logic Input High SHDN,ENABLEIO 1.8

Falling edge of VDD1, hysteresis = 1% 4.2 4.5 4.8 V

Falling edge of V5V, hysteresis = 1% 3.75 4.0 4.25 V

With respect to unloaded output voltage, typ.

Hysteresis = 1%

With respect to unloaded output voltage, typ.

Hysteresis = 1%

With respect to unloaded linear output voltage -10 %

OSC

10 %

-10 %

1.5 µs

27,000 32,000 37,000 clks

Logic Input Low PSAVE,SYNC 1.6 V

Input Leakage Current SHDN,ENABLEIO, PSAVE, SYNC -1.0 1.0 µA

Logic Output Low Voltage RESET, ISINK = 4mA 0.4 V

© 2000 SEMTECH CORP.

5

652 MITCHELL ROAD NEWBURY PARK CA 91320

November 21, 2000

HIGH PERFORMANCE SYNCHRONOUS BUCK
CONTROLLER WITH LDO FOR PORTABLE
POWER

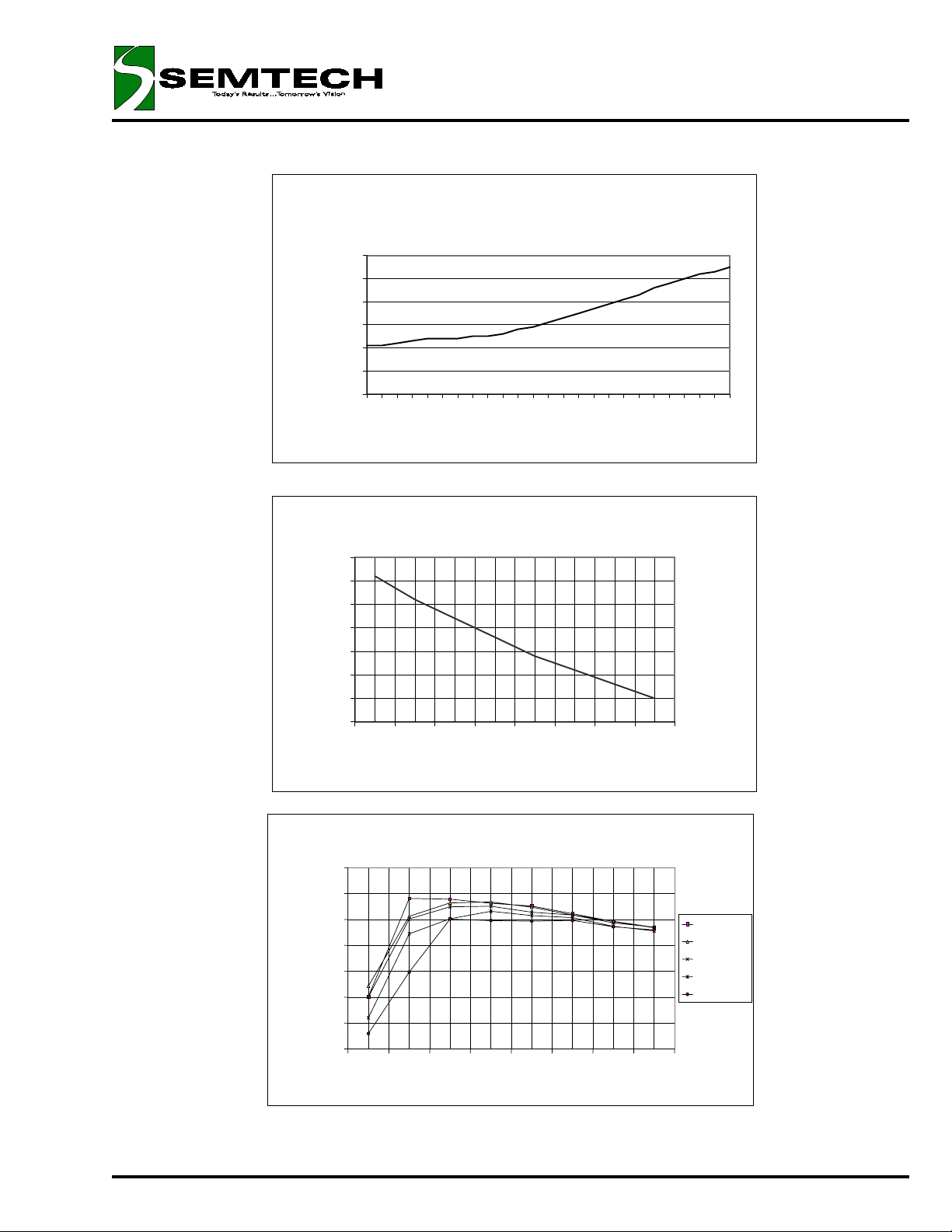

LINE REGULATION (SMPS)

2.27

2.26

2.25

2.24

(V)

2.23

2.22

OUTPUT VOLTAGE

2.21

6.0 9.0 12.0 15.0 18.0 21.0 24.0 27.0 30.0

SC1401

Io = 7.0A, Vo = 2.2V

INPUT VOLTAGE (V)

LOAD REGULATION, Vo = 2.2V (SMPS), Vin = 12V

2.250

2.245

2.240

2.235

2.230

2.225

2.220

OUTPUT VOLTAGE (V)

2.215

0.5 1.0 2.0 3.0 4.0 5.0 6.0 7.0

LOAD CURRENT (A)

EFFICIENCY vs LOAD CURRENT

100.00%

95.00%

90.00%

85.00%

80.00%

75.00%

EFFICIENCY (%)

70.00%

65.00%

0.1 1.0 2.0 3.0 4.0 5.0 6.0 7.0

LOAD CURRENT (A)

VIN = 6V
VIN = 10V
VIN = 14V
VIN = 18V
VIN = 22V

© 2000 SEMTECH CORP.

6

652 MITCHELL ROAD NEWBURY PARK CA 91320

November 21, 2000

HIGH PERFORMANCE SYNCHRONOUS BUCK
CONTROLLER WITH LDO FOR PORTABLE
POWER

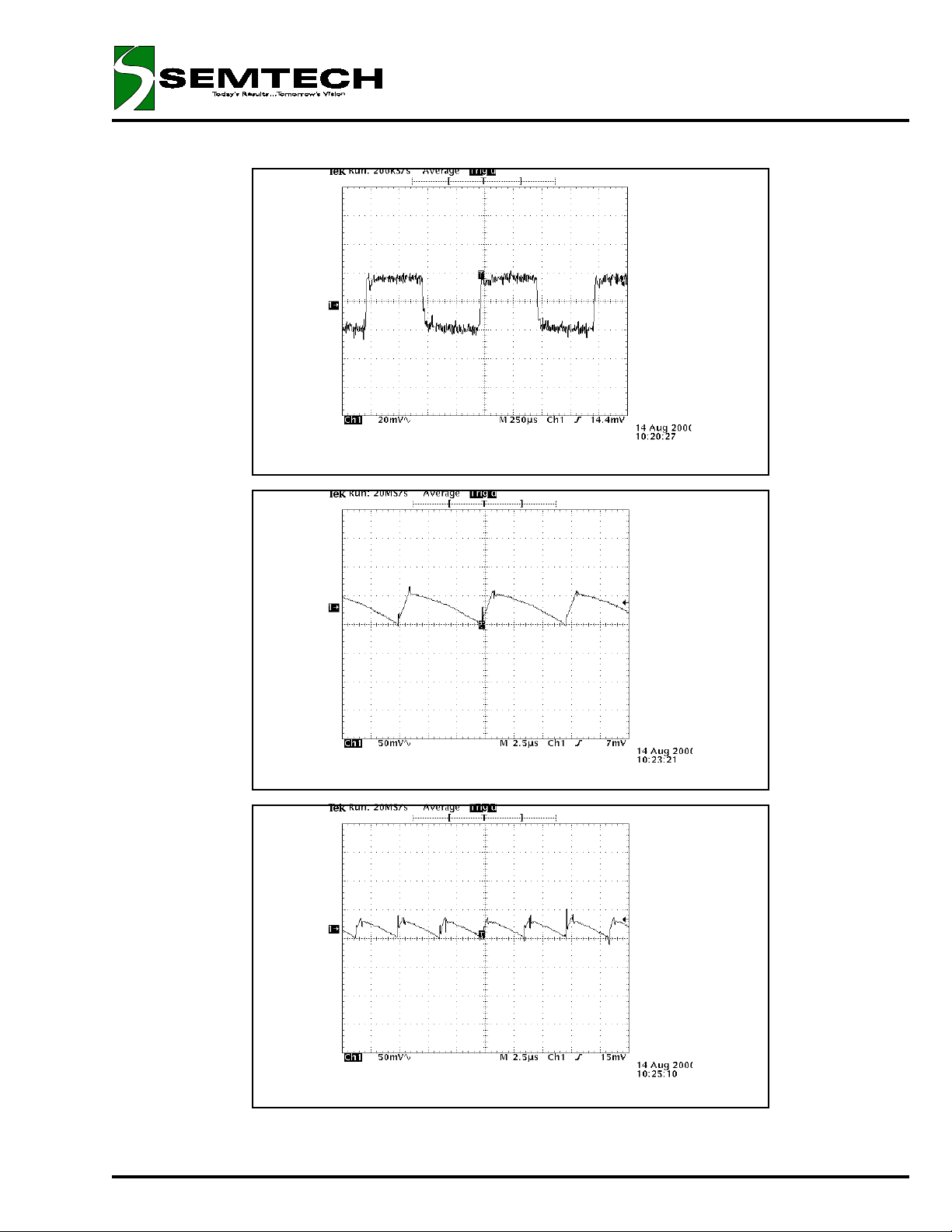

LOAD TRANSIENT: Vin = 16V, Vo = 2.0V, I = 1A to 7A

SC1401

© 2000 SEMTECH CORP.

RIPPLE VOLTAGE: 200KHZ

RIPPLE VOLTAGE: 300KHZ

7

652 MITCHELL ROAD NEWBURY PARK CA 91320

November 21, 2000









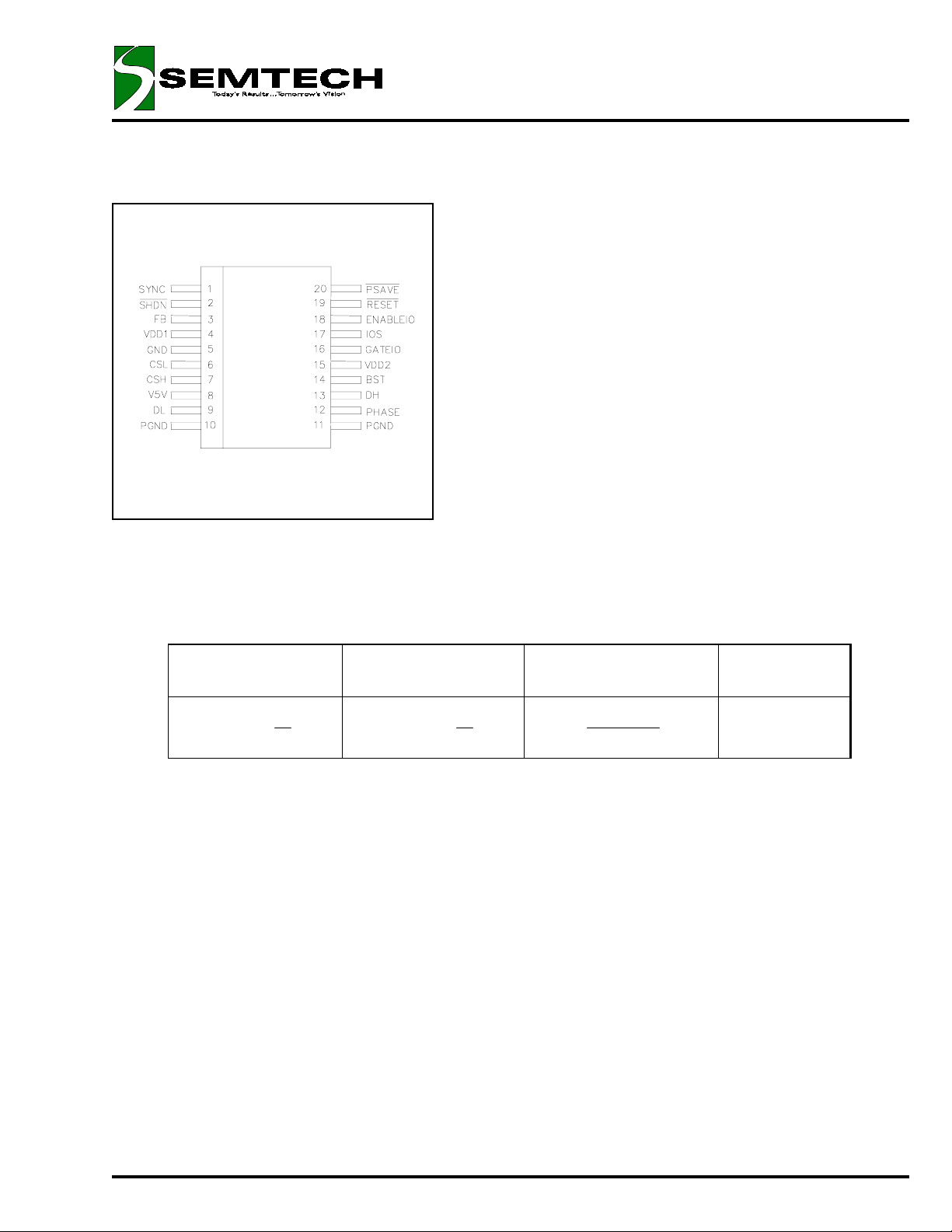

PIN CONFIGURATION

(Top View)

(20-Pin SSOP)

HIGH PERFORMANCE SYNCHRONOUS BUCK
CONTROLLER WITH LDO FOR PORTABLE
POWER

SC1401

VO (SMPS) VO (Linear) R7

(current sense resistor)

8

R





O

+•=

11.25V





9

R

O

5

R





+•=

11.25V





6

R

7

R =

Table 1

120mV

MAX

I

R10

5 Ω

© 2000 SEMTECH CORP.

8

652 MITCHELL ROAD NEWBURY PARK CA 91320

November 21, 2000

HIGH PERFORMANCE SYNCHRONOUS BUCK
CONTROLLER WITH LDO FOR PORTABLE
POWER

SC1401

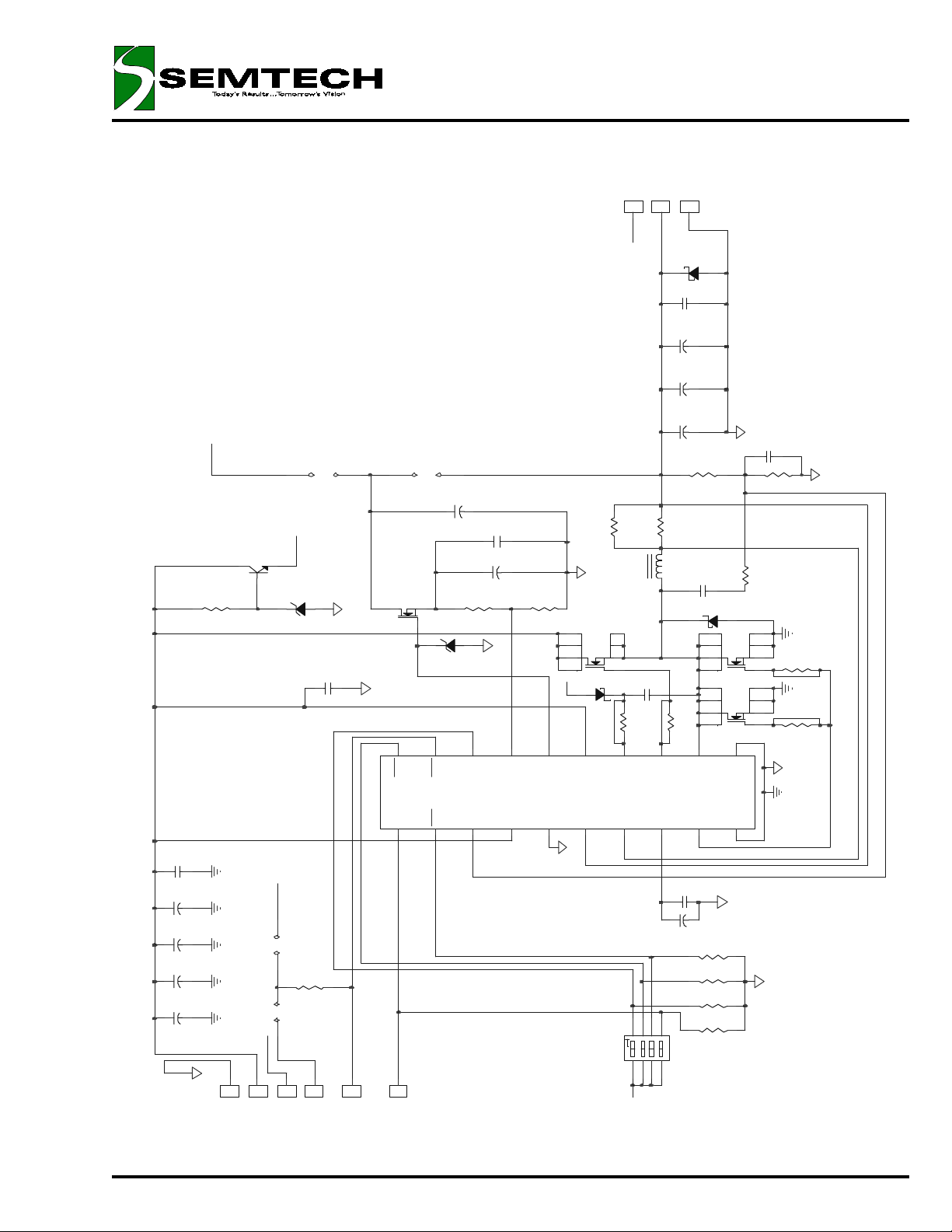

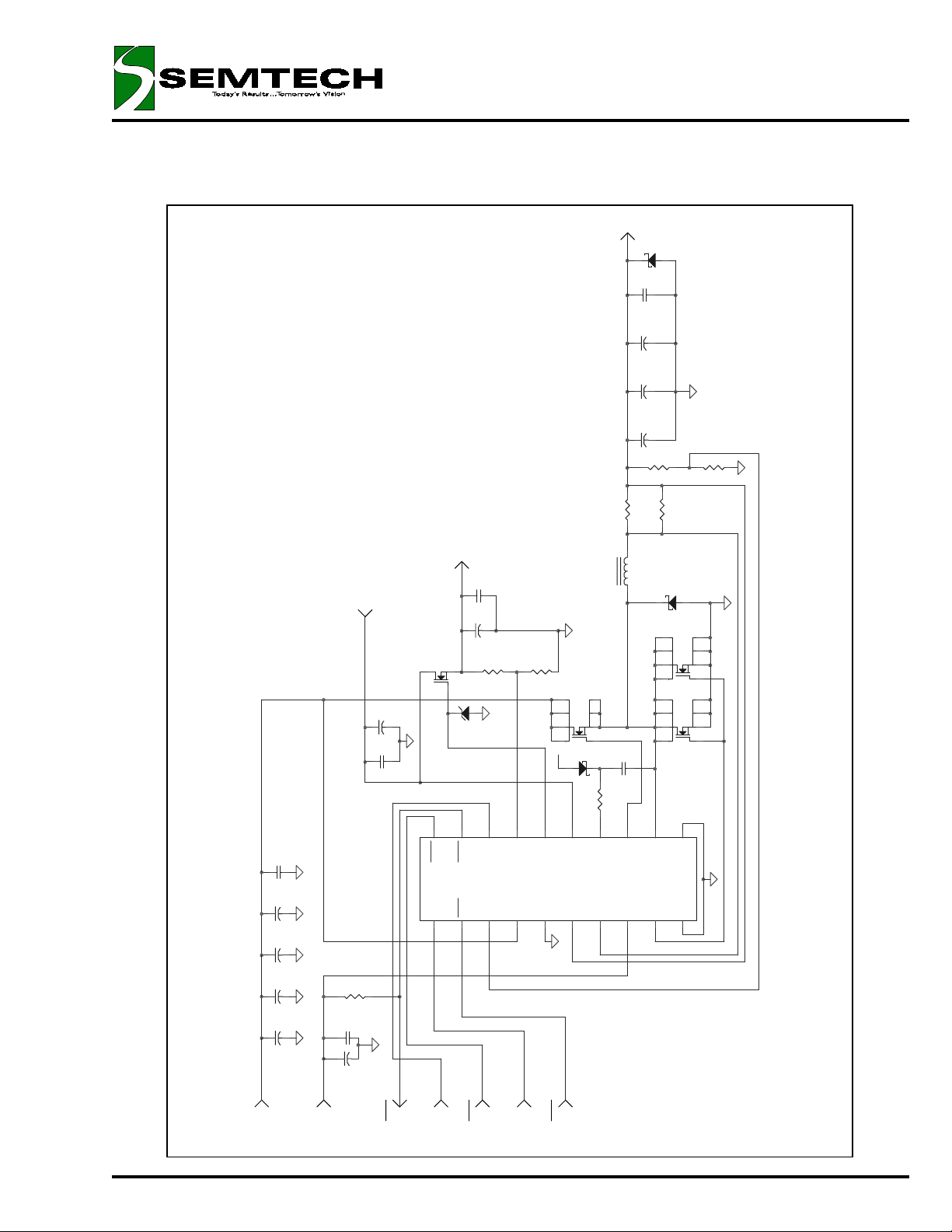

TYPICAL NOTEBOOK CPU APPLICATION CIRCUIT FOR V

To uP core

3.3V, 1.0A

To uP I/O

L1

C10

Vo(lin)

MTD20N03HDL

D4

0.1uF

C9

10uF

R5

41.2K

MTZ9.1B, 9.1V 500mW

R6

24.9K

1

8

2

7

U2

IRF7805

3

6

4 5

BAT42W

V5V

D1

R10

5.6

VDD2

VDD2

Q1

C8

47uF

C7

0.1uF

CORE

D3

C16

C15

2.2V, 8.5A

Vo(smps)

C14

C13

R7A

0.02, 1W

3.9uH

0.1uF

C11

= 2.2V & V

MBRS340T3

0.1uF

330uF, 6.3V

330uF,6.3V

330uF,6.3V

R8

19.1K

R9

24.9K

R7B

0.02, 1W

D2

MBRS340T3

1

8

2

7

U4

IRF7805

3

6

4 5

1

8

2

7

U3

IRF7805

3

6

4 5

= 3.3V

I/O

C12

0.22uF

C4

22uF,35V

C3

22uF,35V

C2

22uF,35V

C1

22uF,35V

VDD1 = 6.0V to 30.0V

© 2000 SEMTECH CORP.

+5V

18

17

IOS

VDD1

SYNC

16

GATEIO

GND

19

20

RESET

PSAVE

SC1401CSS

U1

SYNC

4.7K

R1

C6

0.1uF

C5

10uF

V5V

RESET

ENABLEIO

SHDN

PSAVE

ENABLEIO

FB

35241

SHDN

14

15

VDD2

CSL

6

13

DH

BST

V5V

CSH

8

7

12

9

PHASE

DL

11

PGND

PGND

10

9

652 MITCHELL ROAD NEWBURY PARK CA 91320

HIGH PERFORMANCE SYNCHRONOUS BUCK
CONTROLLER WITH LDO FOR PORTABLE
POWER

November 21, 2000

EVALUATION BOARD SCHEMATIC

JP2

MA8062

C7

Vlinear_Ext

1 2

0.22uF

Q1

MTD20N03HDL

20

PSAVE

SC1401CSS_RTP1

U1

SYNC

1

C12

0.1uF

Vlinear_Ext

R15

6.2K

3

Q2

MMBT2222

1

V5V_onboard

2

D4

VDD2 = 30V max

JP1

Vlinear_onboard

VO(lin)

19

RESET

SHDN

2

1 2

C8

D5

47uF

R5

MA8062

18

3

C10

C9

2K

ENABLEIO

FB

0.1uF

10uF

17

4

IOS

VDD1

SC1401

B5

B6

B7

1

1

1

VO(lin)

D3

VO(smps)

R7B

R7A

0.02, 1W

L1

R6

10K

15

6

Q3

VDD2

CSL

IRF7805

D1

R10

BAT42W

14

BST

CSH

7

1

2

3

4 5

0.1uF

C11

R14

SEL

13

DH

V5V

8

16

5

V5V

GATEIO

GND

8

7

6

C16

C15

C14

C13

0.02, 1W

3.9uH

D2

SEL

MBRS340T3

0.1uF

330uF, 6.3V

330uF,6.3V

330uF,6.3V

R8

6.04K

C18

0.1uF

MBRS340T3

8

7

6

8

7

6

12

PHASE

DL

9

R16

Q4

Q5

11

PGND

PGND

10

IRF7805

IRF7805

C17

R9

301K

1

2

3

4 5

1

2

3

4 5

100pF

10K

R13

R11

SEL

SEL

C4

22uF, 35V

C3

22uF,35V

C2

22uF,35V

C1

22uF,35V

VDD1 = 6.0V to 30.0V

GND

B1

V5V_onboard

12

JP4

V5V

12

JP3

V5V_Ext

Vlinear_ext

1

1

1

B2

B3

© 2000 SEMTECH CORP.

4.7K

B4

C6

0.1uF

V5V

C5

10uF

1M

R4

1M

R3

1M

SW DIP-4

R2

R12

1M

R1

876

5

S1

123

4

1

J1

1

1

J2

V5V

10

652 MITCHELL ROAD NEWBURY PARK CA 91320

November 21, 2000

HIGH PERFORMANCE SYNCHRONOUS BUCK
CONTROLLER WITH LDO FOR PORTABLE
POWER

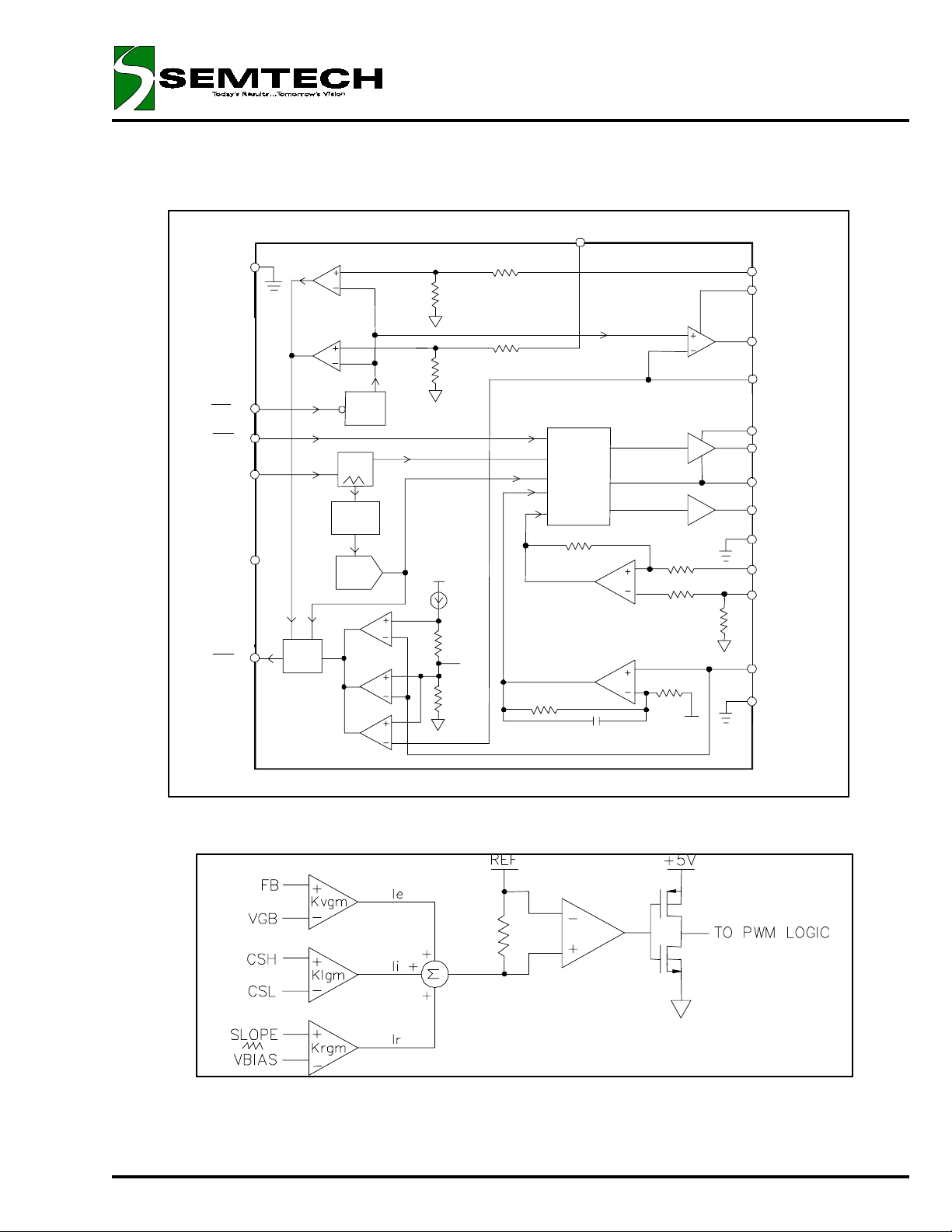

Figure 1: SC1401 Block Diagram

V5V

SC1401

GND

SHDN

PSAVE

SYNC

ENABLEI O

RESET

UV LO

VBG

POWER

GOOD

REF

OCS

COUN T ER

DA C

V DD1

V DD2

GATEIO

IOS

BG

BST

DH

PHASE

DL

PGND

CS H

CSL

FB

PGND

BG
REF

DIGITAL

CONT ROL L ER

VGB

© 2000 SEMTECH CORP.

Figure 2: Main PWM Modulator Control Block

11

652 MITCHELL ROAD NEWBURY PARK CA 91320

HIGH PERFORMANCE SYNCHRONOUS BUCK
CONTROLLER WITH LDO FOR PORTABLE
POWER

SC1401

November 21, 2000

TEL:[phone] FAX:[phone] WEB:http://www.semtech.com

Detailed Description

The SC1401 is a high performance, high efficiency,
PWM synchronous buck controller, designed to
power the latest generation microprocessors in
battery operated systems. Two high-current gate
drive outputs are supplied to control both MOSFETs
in the synchronous rectified buck converter. This
power supply can be programmed to operate at
either fixed (1.25V) or adjustable output voltages.
The power save feature enables high efficiency over
a wide range of load current. The control and fault
monitoring circuitry associated with the PWM
controller includes digital softstart, turn-on
sequencing, frequency compensation, power save,
overcurrent and over and under voltage fault
protection. An LDO NMOS linear regulator is also
generated by the SC1401. A block diagram of the
SC1401 is shown in Figure 1.

PWM Control Block

The SC1401 employs peak-current-mode control with
slope compensation to provide fast output response
to load and line transients. The PWM control block
consists of an analog PWM modulator followed by
PWM logic control. The analog modulator combines
the current output, slope compensation signal and
error voltage to generate a PWM pulse train. The
PWM logic uses the pulse train from the modulator
and other control signals to generate the output
states for the high and low side gate driver outputs.
A block diagram of the PWM control block is shown
in Figure 2.

An error amplifier generates the difference signal
between the reference voltage and the feedback
voltage to generate the control voltage for the peak
current mode comparator. A nominal gain of 8 is
used in the error amplifier to further increase the
system loop-gain and reduce the load regulation
error typically seen with low loop-gain current mode
controllers. The increased gain in the voltage loop is
compensated by pole-zero-pole response of the
voltage error amplifier. The current feedback signal
is summed with the slope compensation signal and
compared to the control voltage by the PWM
comparator.

When the power supply is operating in continuous
conduction mode with current > 25% of its peak
value, the high side MOSFET is turned on at the
beginning of each switching cycle. The high-side
MOSFET is turned off when the desired duty cycle is

reached. Active shoot-through protection delays the
turn-on of the low-side power device until the
PHASE node drops below 1.25V. The low-side
devices remains on until the beginning of the next
switching cycle. Again, active shoot-through
protection ensures that the gate to the low-side
power device is low before the high-side device is
turned on.

When PSAVE is enabled (low) and the output
current drops below 25% of its peak level, the PWM
logic will automatically enter PSAVE mode to
improve efficiency. When the controller enters
power save, it increases the regulation point by

0.8%, typically issuing one more high side pulse as
the converter enters PSAVE. The PWM control
then disables switching cycles until the FB falls
below the reference. At light loads the effective
switching frequency will drop dramatically and
efficiency will increase because of the reduced gate
charge current required to switch the power stage.
Boosting the regulation point when entering PSAVE
gives the output improved dynamic regulation
because the output voltage is not allowed to droop
below the nominal regulation point. Load current
steps, that cause the converter to come out of
PSAVE, will not cause as large a negative dip in the
output voltage.

The PSAVE threshold is a function of the load and
peak-to-peak inductor current. It can be calculated
by the following equations:




=






()

=

L

∆I

L

!I

= peak-to-peak inductor current

L

I

= Load Current

O

V

= Input Voltage

IN

V

= Output Voltage

O



L

∆I



R

-IV

OTHPSAVE

OIN

V-V

S

•






2

•

D

f

D = Duty Cycle

f = Frequency

L = Inductance

© 2000 SEMTECH CORP.

12

652 MITCHELL ROAD NEWBURY PARK CA 91320

November 21, 2000

HIGH PERFORMANCE SYNCHRONOUS BUCK
CONTROLLER WITH LDO FOR PORTABLE
POWER

SC1401

Gate Drive and Control

The gate drivers on the SC1401 are designed to
switch large MOSFETs at up to 350kHz. The high­side gate drivers are required to drive the gates of the
high-side MOSFETs above the V5V input. The supply
for these gate drivers is generated by charging a
bootstrap capacitor from a supply when the low side
driver is on. Monitoring circuits ensure that the
bootstrap capacitor is charged when coming out of
shutdown or fault conditions where the bootstrap
capacitor may be depleted.

In continuous conduction mode, the low side driver
outputs that control the synchronous rectifier in the
power stage is on when the high side driver is off.
Under light load conditions the ripple current will
approach the point where it reverses polarity. This is
detected by the low side driver control and the
synchronous rectifier is turned off before the current
reverses, preventing energy drain from the output.

Current Sense (CSH,CSL)

The output current of the power supply is sensed as
the voltage drop across an external resistor between
the CSH and CSL pins. Over current is detected when
V(CSH,CSL) exceeds +/-130mV. An over current will
turn off the high side driver on a cycle by cycle basis.
CSH and CSL are also used for peak current feed
back in the main PWM loop and to determine the
current level for entering power save mode and the
turn-off time for the synchronous rectifier.

Oscillator

The SC1401 oscillator frequency is trimmed to +/­10%. When the SYNC pin is high the oscillator runs at
300kHz; when sync is low the frequency is 200kHz.
The oscillator can also be synchronized to the falling
edge of a clock on the SYNC pin with a frequency
between 240kHz and 350kHz. The 200kHz operation
state is used for highest efficiency, and 300kHz for
minimum output ripple and/or smaller inductor and
output capacitor values.

Fault Protection

In addition to cycle-by-cycle current limit, the SC1401
monitors over temperature, power supply output over
and under-voltage and input supply under-voltage
conditions. The over temperature detect will shut the
part down if the die temperature exceeds 150°C with
10°C of hysteresis.

If the SMPS output is greater than 10% of its nominal

value, the SMPS is latched off and synchronous
NMOS FET is turned on. To prevent the output from
ringing below ground a signal level Schottky diode
should be placed across the output with its anode at
ground. The same results apply if VDD1 or V5V fall
below their respective under-voltage thresholds.

If the SMPS or LDO outputs fall 10% below its
nominal, the RESET output is pulled low.

Shutdown Mode

Holding the SHDN pin low disables the SC1401,
reducing the total supply input current to <10uA. A
shutdown condition tri-states the SMPS and pulls the
RESET output low. Holding the ENABLEIO pin low
disables the LDO.

Output Voltage Selection

If FB is connected to CSL, the SMPS will regulate to
the internal bandgap voltage, 1.25V. If external
resistors are used, the output is regulated based on a
resistor divider and 1.25V at the FB pin.

LDO Regulation Operation

The n-channel LDO regulator is capable of supplying
1A over a 1.25V to 5.5V output range. The input
voltage to the LDO is the VDD2 supply with a
maximum input voltage of 30V. To set the output
voltage, an external resistor divider is used based on

1.25V at the IOS pin.

Power-up and Soft-Start

The SMPS contains its own counter and DAC to
gradually increase the current limit at startup to
prevent input surge currents. The current limit is
increased from 0, 25%, 50%, 75%, to 100% linearly
over the course of 512 switching cycles.

A RESET output is also generated at startup. The
RESET pin is held low for 32K switching cycles.
Another timer is used to enable the undervoltage
protection. The undervoltage protection circuitry is
enabled after 5000 switching cycles at which time the
SMPS should be in regulation.

Evaluation Board

The evaluation board schematic shown on page 10 is
configured to output 2.0V at 7.0A on the main switcher
and 1.5V at 1A on the linear regulator. In addition, the
main switcher has a compensation circuit consisting of
C18, R16 and C17. This circuit aids in the stability of
the supply for variability in output filter components

© 2000 SEMTECH CORP.

13

652 MITCHELL ROAD NEWBURY PARK CA 91320

November 21, 2000

HIGH PERFORMANCE SYNCHRONOUS BUCK
CONTROLLER WITH LDO FOR PORTABLE
POWER

SC1401

and output voltage and current ranges. This
compensation circuit is necessary for proper
operation of the SC1401. This will eliminate any
uncertainties in stability with respect to various output
configurations that may be implemented using the
part.

Having JP1 in place will enable the linear regulator to
derive power from the main switching supply. The
switcher must have a higher output voltage than the
linear to allow this option to work properly. Further
information of the evaluation board and it operation is
described in the SC1401 Evaluation Board Manual.

LDO

The evaluation board schematic shows that the LDO
regulator is set up to derive its power from the output
of the SMPS. The GATEIO, pin 16 is the gate drive
for an N-Channel MOSFET, Q1. This output has a
breakdown voltage of 12V so it is imperative the gate
does not exceed 12V and Q5, a nine volt zener diode
is added to prevent this from happening. In addition,
IOS, pin 17 is the input from the resistive divider
formed by R5 and R6. The LDO MOSFET should be
chosen to carry the load current and dissipate the
power required by the conditions of the load current
and voltage drop across the MOSFET. Capacitors
C9 and C10 were added for filtering purposes.

Gate Drive Power

JP4 enables the gate drive power to operate off of
the onboard zener follower which supplies 5 volts,
formed by components Q2, R15 and D4. This takes
the input voltage and produces 5V for the bootstrap
diode D1 that supplies the gate drive power for the
upper MOSFET of the Q3 SMPS. Alternatively, you
could also bring in an external voltage for the gate
drive voltage by moving the jumper from JP4 to JP3.
Consult the SC1401 Evaluation Board Manual for
further details of the evaluation board operation.

APPLICATIONS INFORMATION

Introduction

The SC1401 is a versatile switching regulator provid­ing an adjustable output from 1.25V to 5.5V. In
addition, there is one on-chip adjustable linear
regulator capable of supplying 1 amp of output
current. The SC1401 is designed for notebook
applications but has applications anywhere high

efficiency, small size and low cost are required.

The Semtech SC1401 EVAL board consists of a

2.0V, 7A switcher and a 1.5V, 1A linear regulator.

Design Guidelines

The schematic for the EVAL board is shown on page

10. The EVAL board is configured as follows:

Switching Regulator 1 Vout1 = 2.0V, 7A

Linear Regulator 1 Vout2 = 1.5V, 1A

Designing the Output Filter

Before calculating the output filter inductance and
output capacitor, an acceptable amount of output
ripple current is to be determined. The ESR of the
output capacitor multiplied by the ripple current sets
the maximum allowable ripple voltage. So once the
ripple voltage specification is selected, the capacitor
ESR is chosen usually based on capacitor cost and
size constraints. This then sets the maximum output
ripple current through the capacitor and inductor.

For the EVAL board 2.0V switcher, we selected a
maximum ripple voltage of 50mV. Choosing three
330uF, 6.3V tantalum capacitors C13,C14 and C15
each having an ESR of 100 milliohms, their
combined ESR equaling 33 milliohms, sets the
maximum ripple current as follows:

∆V

=

ESR

O

∆I

∆I

OINMAX

O

∆I

O

Be sure that the three output capacitors can handle
this ripple current. Ripple current specifications are
found in the capacitor data sheet for high quality
capacitors intended for use in switching power
supplies.

The inductance can now be found:

L1

=

The inductance and duty cycle equation excludes

0.05

O

0.033

tD)V(V

••−

1.5Amp

==

© 2000 SEMTECH CORP.

14

652 MITCHELL ROAD NEWBURY PARK CA 91320

November 21, 2000

HIGH PERFORMANCE SYNCHRONOUS BUCK
CONTROLLER WITH LDO FOR PORTABLE
POWER

SC1401

any resistive drops due to winding resistance and
MOSFET on resistance.

Where:

D

V

O

V

IN

2.0)(28

L1

=

L1 = 4µH

From this calculation we choose L1 to be 3.9uH.

For a lower operating frequency, f = 200kHz, L1
calculates to be 6uH.

Choosing Inductor & FET Current Rating

The current carrying capability of the inductor and
MOSFETs should be sized to handle the maximum
current of the supply set by the current sense
resistor. For the SC1401 EVAL board Rsense equals
the parallel combination of R7A & R7B. Here we use
the minimum current threshold value:

SENSE

Where I

I

PEAK

I

PEAK

Here we chose a sense resistor of 13.5 milliohms.
Now we can determine FET and inductor current
carrying capability by using the maximum current
limit threshold:

I

PEAK

From this value choose an inductor with Isat > 10.4
Amps, and for the FET choose a continuous
conduction current rating Ic > 10.4 Amps.

I

PEAK

II

+=

OPEAK

= 7 + 0.75

= 7.75 Amps

0.14

0.0135

100mV

=

equals:

∆I

O

2

==

t ,

2.0
28

1.5

1

300kHzf and ,

===

f

6

−

103.33

•••−

Amps4.10

Input Capacitor Selection

Input capacitor is selected based upon the input
ripple current demands of the converter. First
determine the input ripple current expected and then
choose a capacitor to meet that demand.

The input RMS ripple current can be calculated as
follows:

I

I

RMS

I

RMS

I

RMS

The worse case input RMS ripple current occurs at
50% duty cycle (D = 0.5 or Vin = 2 Vout) and
therefore under this condition the IRMS ripple current
can be approximated by:

I

RMS

However, this condition will not occur because the
duty cycle is set by Vo/Vin, 2/6 = 0.33. If the output
voltage is changed where D approaches 50% the
input capacitor ripple current may need to be
recalculated and capacitors added.

Therefore, for a maximum load current of 7 amps,
the input capacitors should be able to safely handle

3.3 amps of ripple current.

For the EVAL board, we chose four 22uF, 35V
Tantantalum capacitors. Each capacitor has a ripple
current capability of 0.908 amps at 100kHz, 25°C.
Four of these capacitors in parallel will meet the
requirements.

MOSFET Switches

After selecting the voltage and current requirements
of each MOSFET device for the upper and lower
switches, the next step is to determine their power
handling capability. For the EVAL board the
IRF7805 meet the voltage and current requirements.
However, the lower FET is a combination of two
IRF7805 devices in parallel for improved efficiency

O

V

IN

7
6

= 3.3 Amps

I

O

=

2

•=

−

2) - (62

••=

)V(VV

OINO

© 2000 SEMTECH CORP.

15

652 MITCHELL ROAD NEWBURY PARK CA 91320

November 21, 2000

HIGH PERFORMANCE SYNCHRONOUS BUCK
CONTROLLER WITH LDO FOR PORTABLE
POWER

SC1401

and to handle any possible short circuit condition.
These are 30V, 9A FET’s. Based on 85°C ambient
temperature, 150°C junction temperature and
thermal resistance, their power handling is calculated
as follows:

Power Limit for Upper & Lower FET:

T

= 150oC TA = 85oC !

J

= 50oC/W

JA

TT

−

P

=

T

AJ

θ

=

JA

50

85150

−

1.3W

=

Each FET must not exceed 1.3W of power
dissipation.
The conduction losses for the upper & lower FET can
be determined. For the calculations below, a
nominal input voltage of 12V, for Vout = 2.0V, Iout =
7A and f = 300kHz. The Rdson value for the upper &
lower FET is 11milliohms. We will calculate the
conduction losses and switching losses for each
FET. From the calculations below we are well within
the 1.3 watt dissipation limit as calculated above.

Conduction Losses Upper FET:

2

IDRP

••=

2

12

2

7

••=

CU

DSCU

0.011P

P

= 0.090W

CU

Conduction Losses Lower FET:

2

I)1(RP

D

DSCU

CL

•−•=

10.0055P

2

)(

12

2

7

•−•=

P

= 0.225W

CL

Switching Losses Upper FET:

Note: switching losses exist on the upper FET only
because the clamp diode across the lower FET will
turn on prior to the lower FET turning on.

2

•••

IFVC

=

P

SU

INRSS

I

G

O

=

−

212

•••

3000001210 215

1

PSU = 0.065W

Crss is the reverse transfer capacitance of the FET;
in this case it equals 215pF for the IRF7805.

Where Ig is the gate driver current. This is equal to
2A for the SC1401.

So the total FET losses equate to:

P

= 0.09 + 0.225 + 0.065 = 0.38W.

FETS

Note that as Vin increases, the power dissipation
from switching losses will also increase. This is
especially important if the input to the supply is from
an AC adapter. Therefore, it is necessary to check
the calculations with your maximum input voltage
specification. In addition, the distribution of power in
the upper and lower FET will change as input voltage
increases.

Other losses to consider are gate charge losses,
inductor switching and copper losses, and losses in
the input and output capacitors. All these items will
decrease efficiency and need to be carefully
analyzed to obtain the highest efficiency possible,
especially if running off battery power.

•

7

© 2000 SEMTECH CORP.

16

652 MITCHELL ROAD NEWBURY PARK CA 91320

November 21, 2000

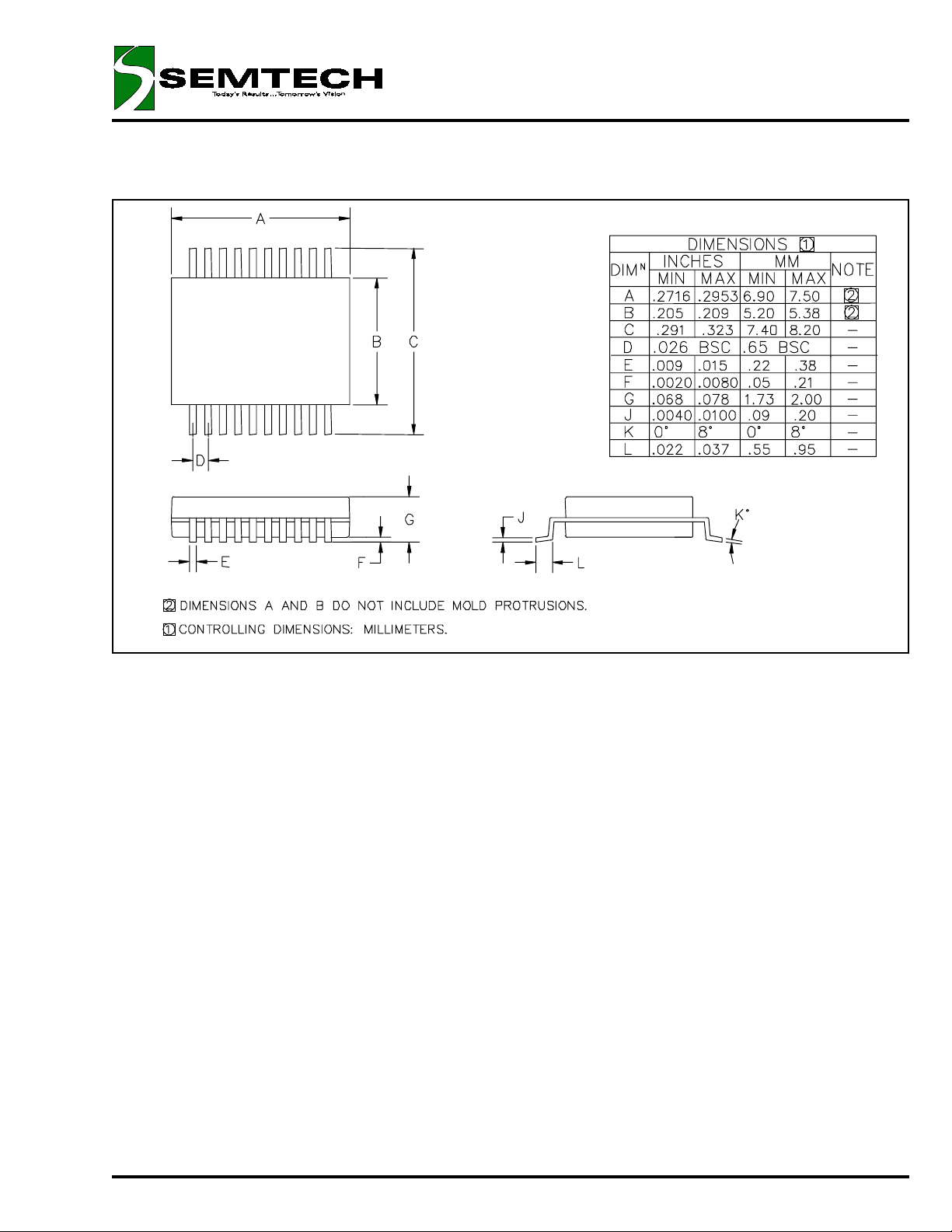

OUTLINE DRAWING - SSOP-20

HIGH PERFORMANCE SYNCHRONOUS BUCK
CONTROLLER WITH LDO FOR PORTABLE
POWER

SC1401

Jedec MO-150AE

© 2000 SEMTECH CORP.

17

652 MITCHELL ROAD NEWBURY PARK CA 91320
