Continental Device India Limited
An ISO/TS16949 and ISO 9001 Certified Company

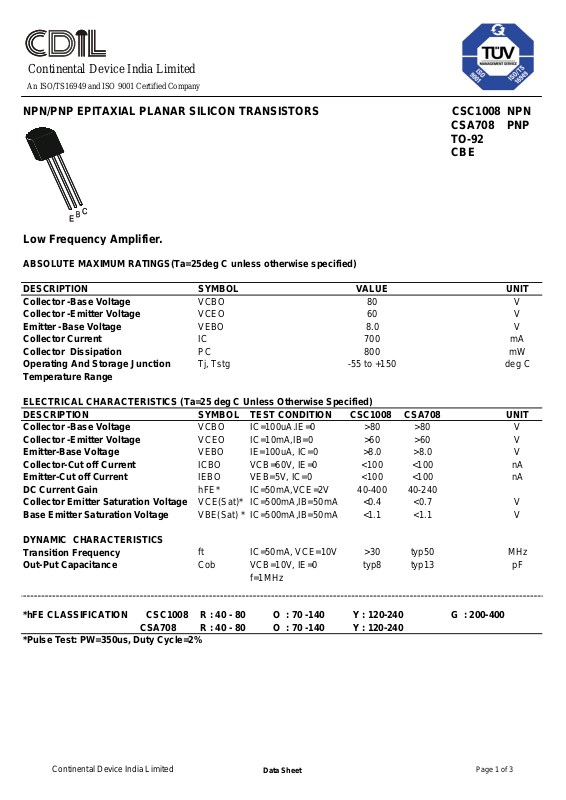

NPN/PNP EPITAXIAL PLANAR SILICON TRANSISTORS CSC1008 NPN
CSA708 PNP TO-92 CBE
Low Frequency Amplifier.
ABSOLUTE MAXIMUM RATINGS(Ta=25deg C unless otherwise specified)
DESCRIPTION SYMBOL VALUE UNIT Collector -Base Voltage Collector -Emitter Voltage Emitter -Base Voltage Collector Current Collector Dissipation Operating And Storage Junction Temperature Range
VCBO 80 V VCEO 60 V VEBO 8.0 V IC 700 mA PC 800 mW Tj, Tstg -55 to +150 deg C
ELECTRICAL CHARACTERISTICS (Ta=25 deg C Unless Otherwise Specified) DESCRIPTION SYMBOL TEST CONDITION CSC1008 CSA708 UNIT Collector -Base Voltage Collector -Emitter Voltage Emitter-Base Voltage Collector-Cut off Current Emitter-Cut off Current DC Current Gain Collector Emitter Saturation Voltage Base Emitter Saturation Voltage
DYNAMIC CHARACTERISTICS Transition Frequency Out-Put Capacitance
*hFE CLASSIFICATION CSC1008 R : 40 - 80 O : 70 -140 Y : 120-240 G : 200-400 CSA708 R : 40 - 80 O : 70 -140 Y : 120-240 *Pulse Test: PW=350us, Duty Cycle=2%
VCBO IC=100uA.IE=0 >80 >80 V VCEO IC=10mA,IB=0 >60 >60 V VEBO IE=100uA, IC=0 >8.0 >8.0 V ICBO VCB=60V, IE=0 <100 <100 nA IEBO VEB=5V, IC=0 <100 <100 nA hFE* IC=50mA,VCE=2V 40-400 40-240 VCE(Sat)* IC=500mA,IB=50mA <0.4 <0.7 V VBE(Sat) * IC=500mA,IB=50mA <1.1 <1.1 V
ft IC=50mA, VCE=10V >30 typ50 MHz Cob VCB=10V, IE=0 typ8 typ13 pF
f=1MHz
Continental Device India Limited
Data Sheet
Page 1 of 3
Page 2
TO-92 Plastic Package
Packi
il
B
AK
3 2 1
D
A
A
G
3 2 1
F
H
F
PIN CONFIGURATION
1. COLLECTOR
2. BASE
3. EMITTER
D
SEC AA
C
All diminsions in mm.
1
E
2
3
DIM MIN. MAX.
A 4.32 5.33
B 4.45 5.20
C 3 .18 4.19
D 0 .41 0.55
E 0.35 0.50
F5 DEG
G 1.14 1.4 0
H 1 .14 1.53
K 12.70 —
TO-92 Transistors on Tape and Ammo Pack
MECHANICAL DATA
T
hh
A
H1
H0
L
t1
t
A1
F1 F2
F
P2
Po
P
(p)
W2
Wo
Do
Adhesive Tape on Top Side
FLAT SIDE
LABEL
W1
W
Ammo Pack Style
1
.
7
7
"
3
1
Flat Side of Transistor and Adhesive Tape Visible 2000 pcs./Ammo Pack
All dimensions in mm unless specified otherwise
ITE M
BODY WIDTH BODY HEIGHT BODY THICKNESS PITCH OF COMPONENT FEED HOLE PITCH
FEED HOLE CENTRE TO COMPONENT CENTRE
DISTANCE BETWEEN OUTER LEADS CO M PO NE N T A LIG N M EN T TAPE WIDTH
HOLD-DOWN TAPE WIDTH
HOLE POSITION
HOLD-DOWN TAPE POSITION LEAD WIRE CLINCH HEIGHT COMPONENT HEIGHT LENGTH OF SNIPPED LEADS FEED HOLE DIAMETER TOTAL TAPE THICKNESS
LEAD - TO - LEAD DISTANCEF1,
CLINCH HEIGHT PULL - OUT FORCE
NOTES
1. MAXIMUM A LIGNMEN T DEVIATION BETWE EN LEAD S NOT TO BE GR EATER THAN 0.2 mm .
2. MAXIMUM NON-CUMULATIVE VARIATION BETWEEN TAPE FEED HOLES SHALL NOT EXCEED 1 mm IN 20 PIT CH ES.
3. HOLDDOW N TAPE NOT TO EXC EED BEYO ND TH E EDGE(S) OF C ARRIER TAPE AND THERE SHALL BE NO EXPOSU RE O F ADHESIVE.
4. NO MOR E THAN 3 CONSE CUTIVE MISSING CO MPON ENTS ARE PERM ITTED.
5. A TAPE TRAILER, HAVING AT LEAST TH REE FE ED HOLES ARE R EQUIRED AF TER THE LAS T COM PONEN T.
6. SPLICES SHALL NO T INTERFERE W ITH THE SPR OCK ET FEED H OLES.
SYMBOL
A1
A T P
Po
P2
F h
W Wo W1
W2
Ho
H1
L
Do
t
F2
H2 (P)
SPEC IFICATION
MIN.
NOM.
4.0
4.8
3.9
12.7
12.7
6.35
5.08 0
18
6 9
0.5 16
4
2.54
6N
MAX.
4.8
5.2
4.2
1
23.25
11. 0
1.2
3
TOL .
±1
CUMULATIVE PITCH
±0.3
ERRO R 1.0 mm/20 PITCH
±0.4
TO BE MEASURED AT BO TT OM O F C LIN C H
+0.6
-0.2 AT TO P OF BO DY
±0.5 ±0.2 +0.7
-0.5
±0.2 ±0.5
±0.2
t1 0.3 - 0.6
+0.4
-0.1
"
D
E
E
F
REMARKS
8.2"
Carrier Strip
ng Deta
PACKAGE
Details
TO-92 Bulk TO-92 T&A
1K/polybag 2K/ammo box
Continental Device India Limited
STANDARD PACK INNER CARTON BOX
Net Weight/Qty
200 gm/1K pcs 645 gm/2K pcs
3" x 7.5" x 7.5"
12.5" x 8" x 1.8"
Data Sheet
5.0K
2.0K
Qty
OUTER CARTON BOX
17" x 15" x 13.5" 17" x 15" x 13.5"
Qty Gr WtSize Size
80.0K
32.0K
23 kgs
12.5 kgs
Page 2 of 3
Page 3
