(with BiasTees)
-40.0
-30.0
-20.0
-10.0
0.0
10.0
20.0
30.0
0.0 1.0 2.0 3.0 4.0 5.0 6.0
Frequency (G Hz)
Gain and R eturn Loss (dB)
25C
25C
25C

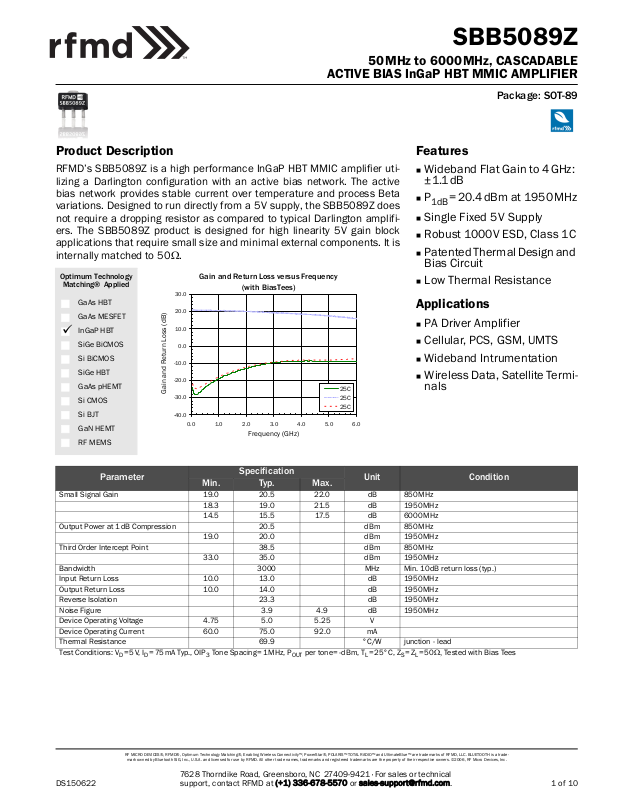

SBB5089Z
SBB5089Z
50MHz to 6000MHz, CASCADABLE
ACTIVE BIAS InGaP HBT MMIC AMPLIFIER
Package: SOT-89
Product Description
RFMD’s SBB5089Z is a high performance InGaP HBT MMIC amplifier utilizing a Darlington configuration with an active bias network. The active
bias network provides stable current over temperature and process Beta
variations. Designed to run directly from a 5V supply, the SBB5089Z does
not require a dropping resistor as compared to typical Darlington amplifiers. The SBB5089Z product is designed for high linearity 5V gain block
applications that require small size and minimal external components. It is
internally matched to 50.
Optimum Technology
Matching® Applied
GaAs HBT
GaAs MESFET
InGaP HBT
SiGe BiCMOS
Si BiCMOS
SiGe HBT
GaAs pHEMT
Si CMOS
Si BJT
GaN HEMT
RF MEMS
Parameter
Small Signal Gain 19.0 20.5 22.0 dB 850MHz
Output Power at 1dB Compression 20.5 dBm 850MHz
Third Order Intercept Point 38.5 dBm 850MHz
Bandwidth 3000 MHz Min. 10dB return loss (typ.)
Input Return Loss 10.0 13.0 dB 1950MHz
Output Return Loss 10.0 14.0 dB 1950MHz
Reverse Isolation 23.3 dB 1950MHz
Noise Figure 3.9 4.9 dB 1950MHz
Device Operating Voltage 4.75 5.0 5.25 V
Device Operating Current 60.0 75.0 92.0 mA
Thermal Resistance 69.9 °C/W junction - lead
Test Conditions: V
DS150622
=5V, ID=75 mA Typ., OIP3 Tone Spacing= 1MHz, P
D
RF MICRO DEVICES®, RFMD®, Optimum Technology Matching®, Enabling Wireless Connectivity™, PowerStar®, POLARIS™ TOTAL RADIO™ and UltimateBlue™ are trademarks of RF MD, LLC. BLUETOOTH is a trade-
mark owned by Bluetooth SIG, Inc., U.S.A. and licensed for use by RFMD. All other trade names, trademarks and reg istered trademarks are the property of their respective owners. ©2006, RF Micro Devices, Inc.
Features
Wideband Flat Gain to 4GHz:
±1.1dB
P
1dB
Single Fixed 5V Supply
Robust 1000V ESD, Class 1C
Patented Thermal Design and
Bias Circuit

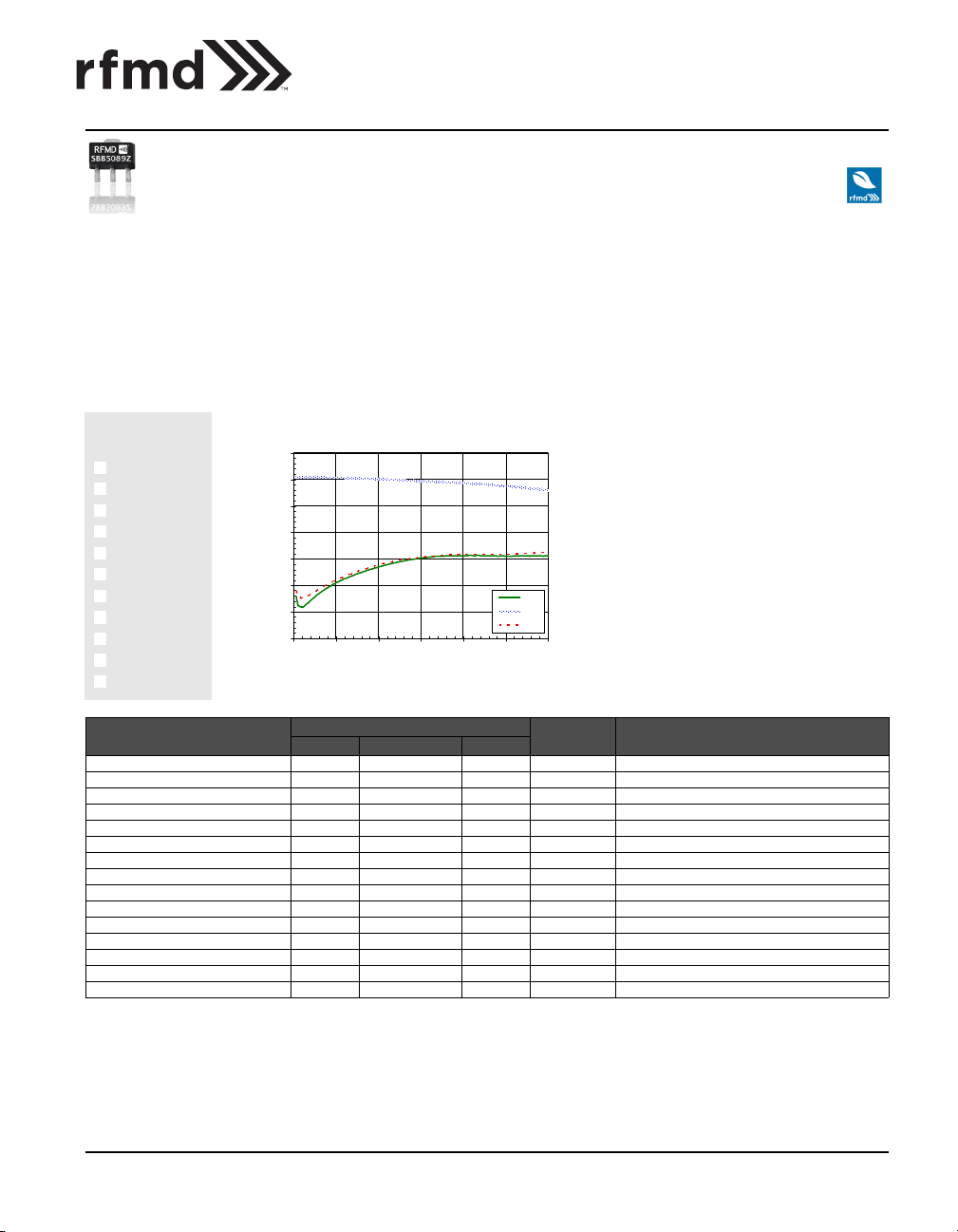

Gain and Return Loss versus Frequency
Low Thermal Resistance
Applications
PA Driver Amplifier
Cellular, PCS, GSM, UMTS
Wideband Intrumentation
Wireless Data, Satellite Termi-
nals
Specification
Min. Typ . Max.
18.3 19.0 21.5 dB 1950MHz
14.5 15.5 17.5 dB 6000MHz
19.0 20.0 dBm 1950MHz
33.0 35.0 dBm 1950MHz
per tone= -dBm, TL=25°C, ZS=ZL=50Tested with Bias Tees
OUT
7628 Thorndike Road, Greensboro, NC 27409-9421 · For sales or technical
support, contact RFMD at (+1) 336-678-5570 or
[email protected].
Unit Condition
=20.4dBm at 1950MHz
1 of 10

SBB5089Z
Caution! ESD sensitive device.
Exceeding any one or a combination of the Absolute Maximum Rating conditions may
cause permanent damage to the device. Extended application of Absolute Maximum
Rating conditions to the device may reduce device reliability. Specified typical performance or functional operation of the device under Absolute Maximum Rating conditions is not implied.
RoHS status based on EUDirective2002/95/EC (at time of this document revision).
The information in this publication is believed to be accurate and reliable. However, no
responsibility is assumed by RF Mic ro Devices, Inc. ("RFMD") for its use, nor for any
infringement of patents, or other rights of third parties, resulting from its use. No
license is granted by implication or otherwise under any patent or patent rights of
RFMD. RFMD reserves the right to change component circuitry, recommended application circuitry and specifications at any time without prior notice.
Absolute Maximum Ratings
Parameter Rating Unit
Device Current (ID)100mA
Max Device Voltage (V
Max RF Input Power 24 dBm
Max Operating Dissipated Power 0.55 W
Junction Temp (T
Operating Temp Range (T
Storage Temp Range -40 to +150 °C
ESD Rating - Human Body Model (HBM) Class 1C
Moisture Sensitivity Level MSL2
Operation of this device beyond any one of these limits may cause permanent damage. For reliable continuous operation, the device voltage and current must not
exceed the maximum operating values specified in the table on page one.
Bias Conditions should also satisfy the following expression:
<(TJ-TL)/RTH, j-l and TL=T
I
DVD
Typical Performance at Key Operating Frequencies (0.5GHz to 3.5GHz Application Circuit)
Parameter
Small Signal Gain 21.1 dB 50MHz
Output Third Order Intercept Point 36 dBm 50MHz
Output Power at 1dB Compression 19.4 dBm 50 MHz
) 5.5 V
D
)+150°C
J
) -40 to +105 °C
L
LEAD
Min. Typ . Max.
Specification
20.9 dB 100MHz
20.8 dB 200MHz
20.8 dB 500MHz
20.8 dB 850MHz
20.1 dB 1950MHz
19.8 dB 2500MHz
18.7 dB 3500MHz
17.8 dB 4000 MHz
37.8 dBm 100MHz
37.5 dBm 200 MHz
38.6 dBm 500MHz
39.2 dBm 850MHz
34.9 dBm 1950MHz
32.8 dBm 2500MHz
29.4 dBm 3500MHz
26.8 dBm 4000MHz
19.7 dBm 100MHz
20 dBm 200 MHz
20.5 dBm 500MHz
20.4 dBm 850MHz
20.4 dBm 1950MHz
19.4 dBm 2500MHz
16.9 dBm 3500 MHz
14.7 dBm 4000 MHz
Unit Condition
2 of 10 DS150622
7628 Thorndike Road, Greensboro, NC 27409-9421 · For sales or technical
support, contact RFMD at (+1) 336-678-5570 or
[email protected].

SBB5089Z
Parameter
Input Return Loss 11.3 dB 50MHz
Output Return Loss 15.9 dB 50MHz
Reverse Isolation 17.4 dB 50MHz
Noise Figure 4.4 dB 50MHz
Test Conditions: V
=5V, ID=75 mA Typ., OIP3 Tone Spacing=1 MHz, P
CC
Min. Typ . Max.
Specification
17.4 dB 1 00 MH z
24. 3 dB 2 00 MHz
27.2 dB 500 MH z
22.7 dB 850MHz
14.6 dB 1950MHz
12.9 dB 2500MHz
10.6 dB 3500MHz
11.6 dB 4000MHz
21.7 dB 100 MHz
30.4 dB 200MHz
31.8 dB 500 MHz
21.5 dB 850 MHz
13.5 dB 1950MHz
12.0 dB 2500MHz
13.5 dB 3500MHz
27.5 dB 4000 MHz
17.5 dB 1 00 MH z
17.5 dB 2 00 MH z
22.7 dB 500MHz
22.8 dB 850MHz
23.4 dB 1950MHz
23.7 dB 2500MHz
24.7 dB 3500MHz
25.7 dB 4000MHz
4.4 dB 100MHz
4.3 dB 200MHz
3.8 dB 500MHz
3.8 dB 850MHz
4.1 dB 1950MHz
4.1 dB 2500MHz
4.3 dB 3500MHz
4.6 dB 4000MHz
per tone= 0dBm, TL=25°C, ZS=ZL=50
OUT
Unit Condition
7628 Thorndike Road, Greensboro, NC 27409-9421 · For sales or technical
support, contact RFMD at (+1) 336-678-5570 or
[email protected].
3 of 10DS150622

SBB5089Z

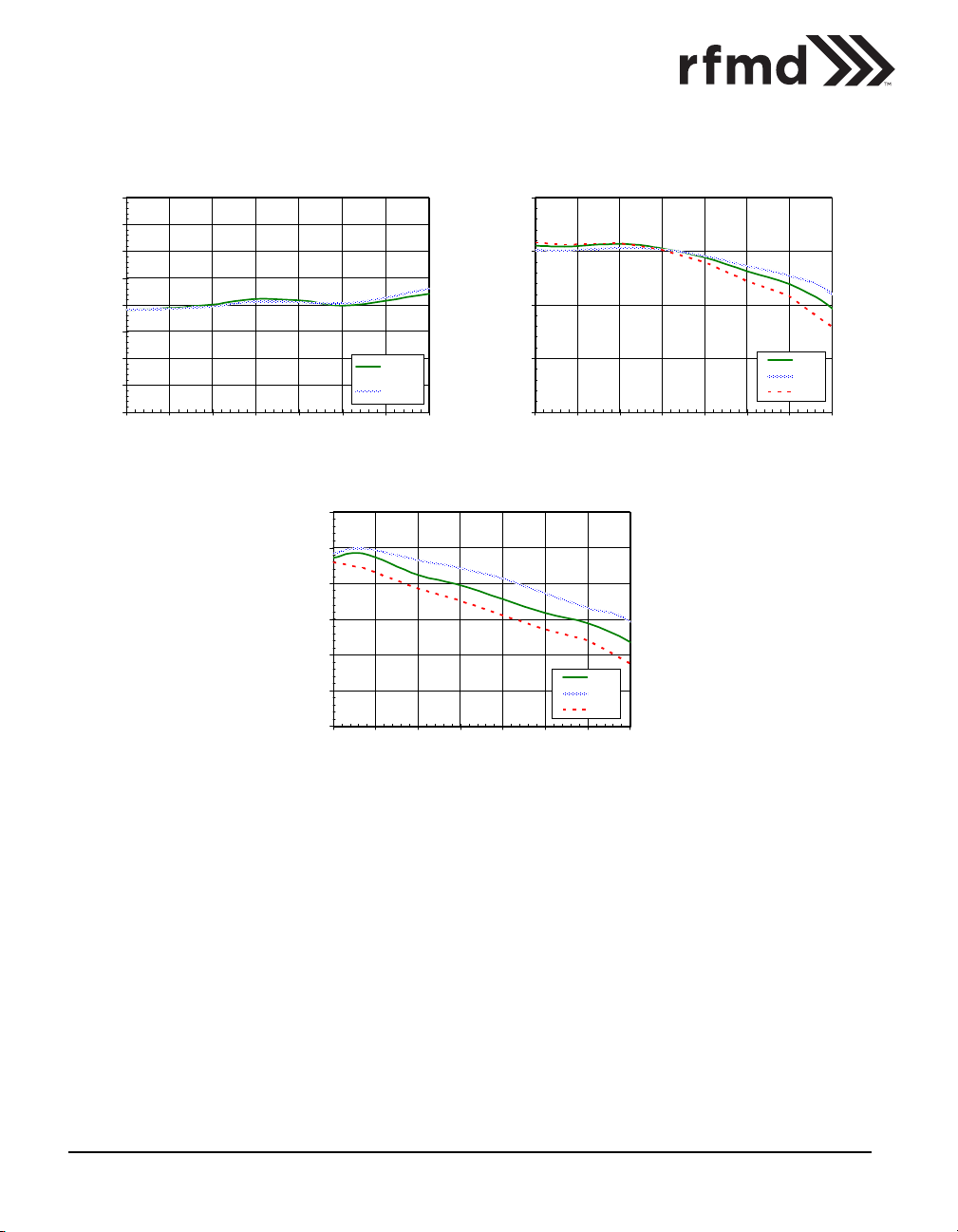

Noise Figure at 25°C
0.0
1.0
2.0
3.0
4.0
5.0
6.0
7.0
8.0
0.5 1.0 1.5 2. 0 2.5 3.0 3.5 4.0
Frequency (GHz)
Noise Figure (dB)
BiasTee
AppCkt
With Application Circuit
5.0
10.0
15.0
20.0
25.0
0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0
Frequency (GHz)
P1dB (dBm)
25C
-40C
85C
With Application Circuit
15.0
20.0
25.0
30.0
35.0
40.0
45.0
0.5 1.0 1.5 2.0 2.5 3.0 3.5 4. 0
Frequency (GHz)
OIP3 dBm
25C
-40C
85C
500MHz to 3.5GHz Application Circuit
P1dB versus Frequency
OIP3 versus Frequency
4 of 10 DS150622
7628 Thorndike Road, Greensboro, NC 27409-9421 · For sales or technical
support, contact RFMD at (+1) 336-678-5570 or
[email protected].

SBB5089Z

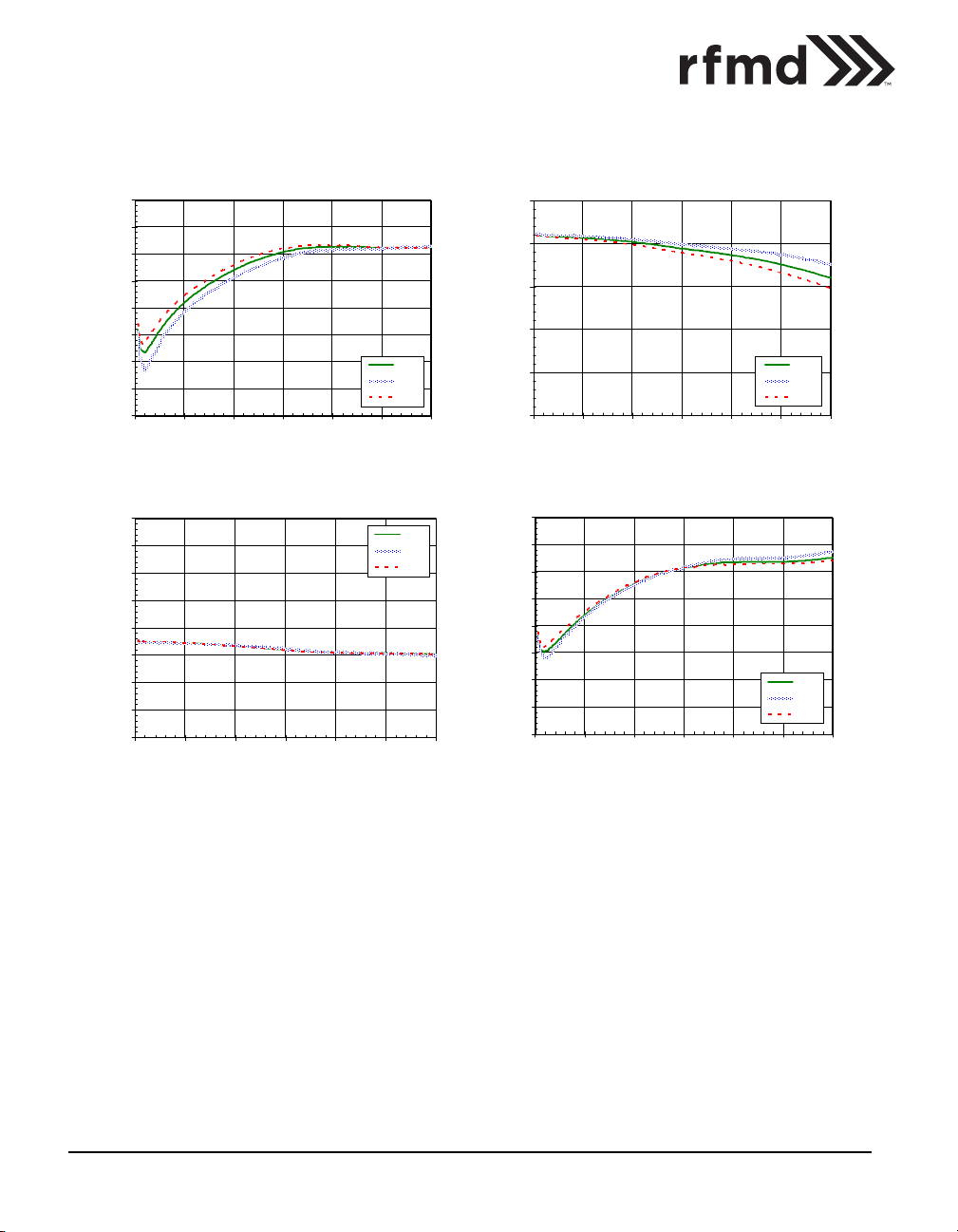

S11 versus Frequency
-40.0
-35.0
-30.0
-25.0
-20.0
-15.0
-10.0
-5.0
0.0
0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4. 0
Frequency (GHz)
S11 (dB)
25C
-40C
85C
S21 versus Frequency
0.0
5.0
10.0
15.0
20.0
25.0
0.0 0.5 1.0 1. 5 2.0 2.5 3.0 3.5 4.0
Frequency (GHz)
S21 (dB)
25C
-40C
85C
S12 versus Frequency
-40.0
-35.0
-30.0
-25.0
-20.0
-15.0
-10.0
-5.0
0.0
0.00.51.01.52.02.53.03.54.0
Frequency (GHz)
S12 (dB)
25C
-40C
85C
S22 versus Frequency
-40.0
-35.0
-30.0
-25.0
-20.0
-15.0
-10.0
-5.0
0.0
0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0
Frequency (GHz)
S22 (dB)
25C
-40C
85C
(Application Circuit)
55.0
65.0
75.0
85.0
95.0
105.0
4.54.64.7 4.84.95.05.15.25.35.45.5
Voltage (V)
Current (mA)
25C
-40C
85C
Id vs. Temperature (App. Ckt.)
78.0
80.0
82.0
84.0
-40.0 - 20.0 0.0 20.0 40.0 60.0 80.0
Temperature
Current (mA)

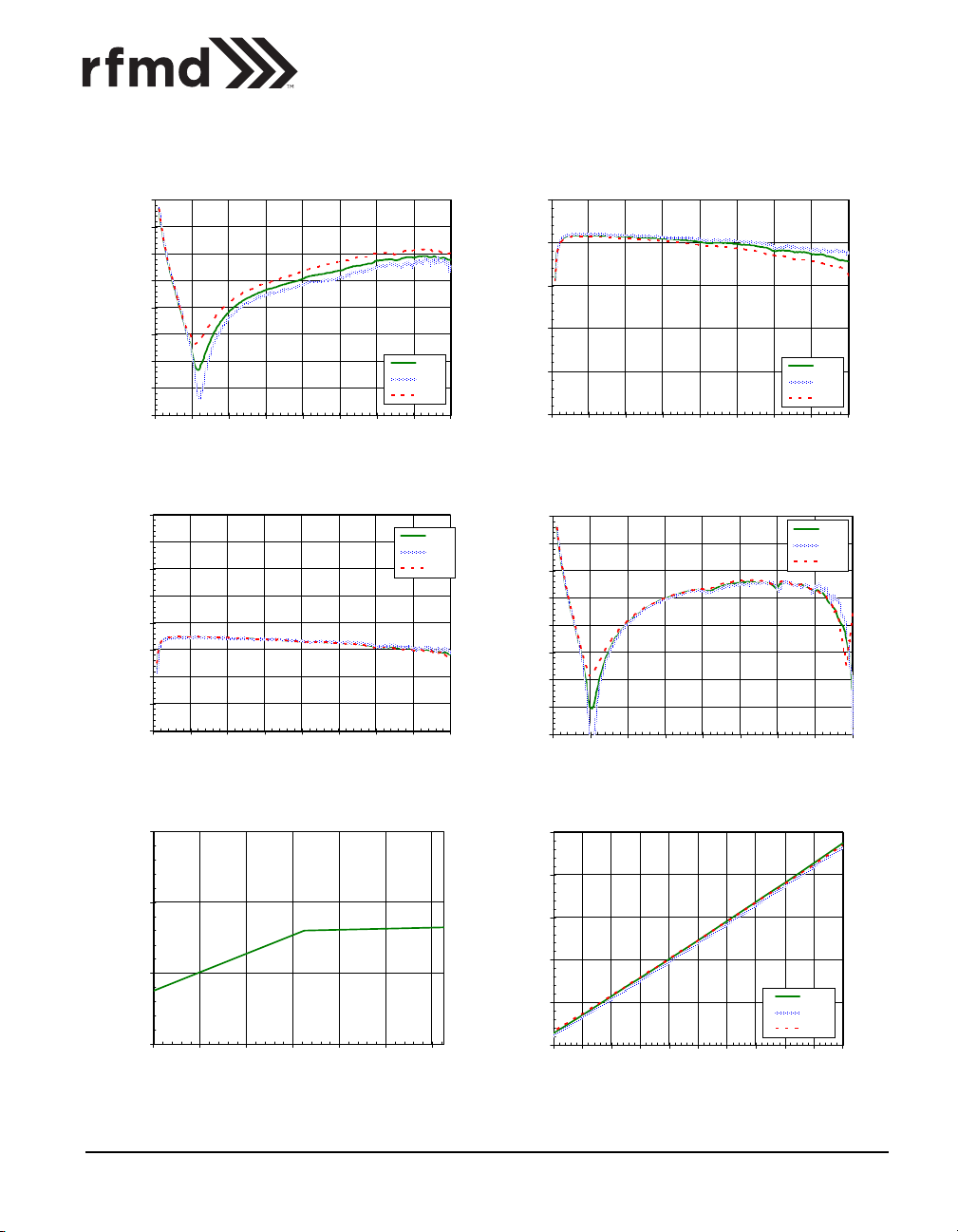

0.5GHz to 3.5GHz Application Circuit S-Parameters Over Temperature
7628 Thorndike Road, Greensboro, NC 27409-9421 · For sales or technical
support, contact RFMD at (+1) 336-678-5570 or
[email protected].
Current versus Voltage Over Temperature
5 of 10DS150622

SBB5089Z
S11 versus Frequency
-40.0
-35.0
-30.0
-25.0
-20.0
-15.0
-10.0
-5.0
0.0
0.0 1.0 2.0 3.0 4.0 5. 0 6.0
Frequency (GHz)
S11 (dB)
25C
-40C
85C
S21 versus Frequency
0.0
5.0
10.0
15.0
20.0
25.0
0.0 1.0 2.0 3.0 4.0 5.0 6.0
Frequency (GHz)
S21 (dB)
25C
-40C
85C
S12 versus Frequency
-40.0
-35.0
-30.0
-25.0
-20.0
-15.0
-10.0
-5.0
0.0
0.0 1.0 2.0 3.0 4.0 5.0 6.0
Frequency (GHz)
S12 (dB)
25C
-40C
85C
S22 versus Frequency
-40.0
-35.0
-30.0
-25.0
-20.0
-15.0
-10.0
-5.0
0.0
0.0 1.0 2.0 3.0 4.0 5.0 6.0
Frequency (GHz)
S22 (dB)
25C
-40C
85C
S-Parameters Over Temperature (Bias Tee)
6 of 10 DS150622
7628 Thorndike Road, Greensboro, NC 27409-9421 · For sales or technical
support, contact RFMD at (+1) 336-678-5570 or
[email protected].

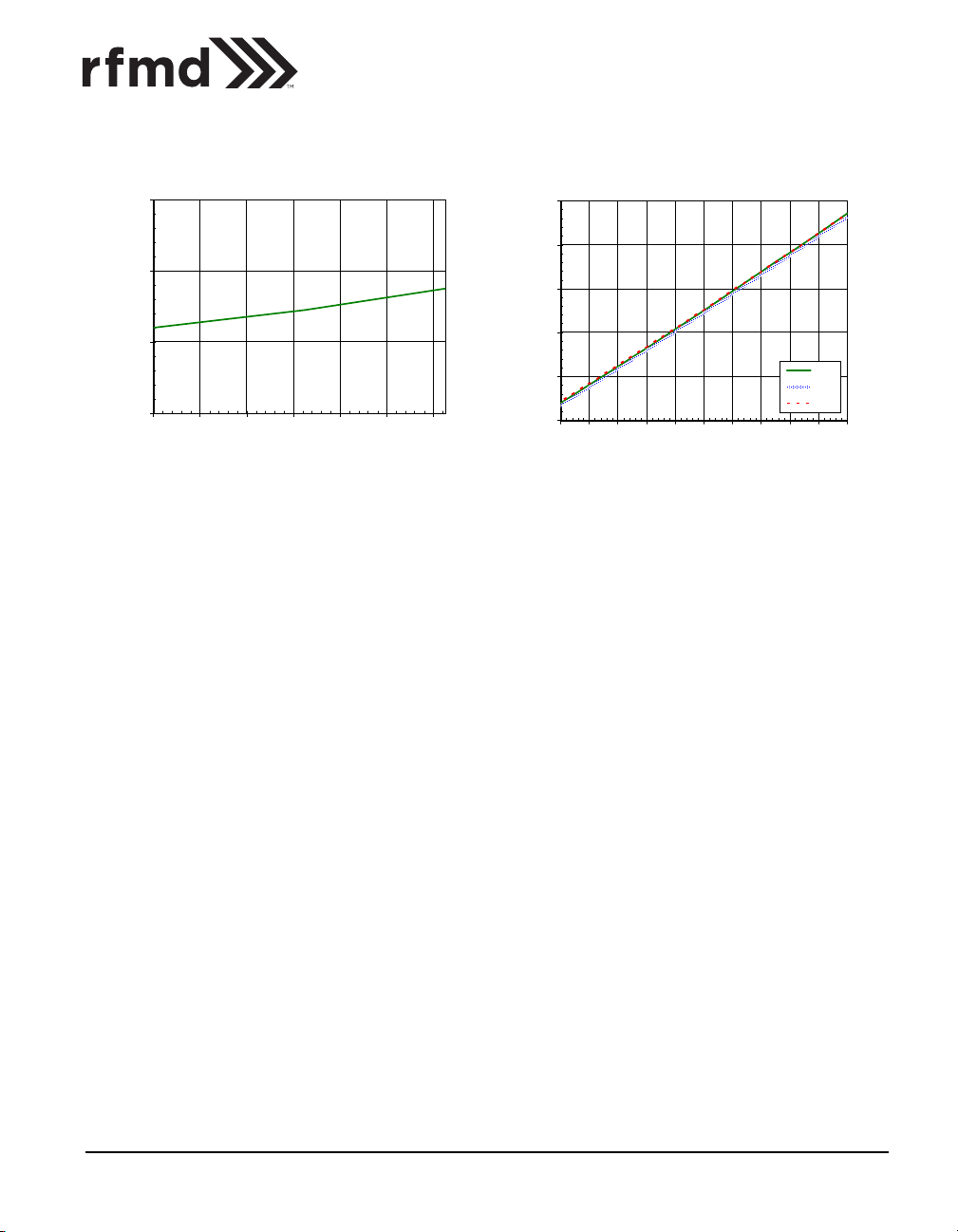

Device Current Over Temperature (Bias Tee)
(Bias Tees)
55.0
65.0
75.0
85.0
95.0
105.0
4.5 4.6 4.7 4.8 4.9 5.0 5.1 5.2 5.3 5.4 5.5
Voltage (V)
Current (mA)
25C
-40C
85C
Id vs. Temperature (Bias Tees)
79.0
81.0
83.0
85.0
-40.0 -20.0 0.0 20.0 40.0 60.0 80.0
Temperature
Current (mA)
Current versus Voltage Over Temperature
SBB5089Z
7628 Thorndike Road, Greensboro, NC 27409-9421 · For sales or technical
support, contact RFMD at (+1) 336-678-5570 or
[email protected].
7 of 10DS150622

SBB5089Z
Pin Function Description
1RF IN
2, 4 GND
3RF OUT/
BIAS
RF input pin. This pin requires the use of an external DC blocking capacitor chosen for the frequency of operation.
Connection to ground. Use via holes for best performance to reduce lead inductance as close to ground leads as possible
RF output and bias pin. DC voltage is present on this pin, therefore a DC blocking capacitor is necessary for proper operation.

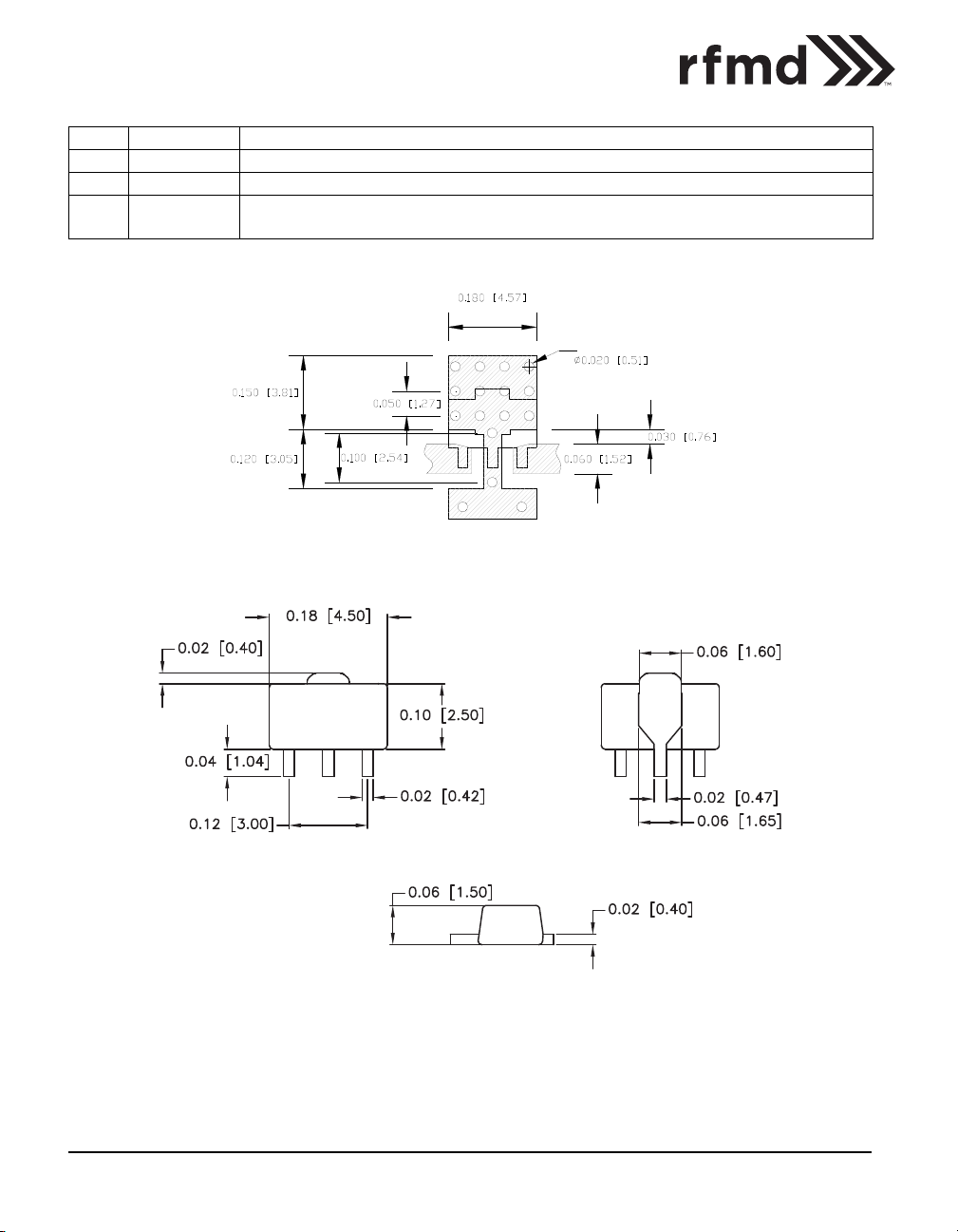

Suggested PCB Pad Layout
Nominal Package Dimensions
Dimensions in inches (millimeters)
7628 Thorndike Road, Greensboro, NC 27409-9421 · For sales or technical
8 of 10 DS150622

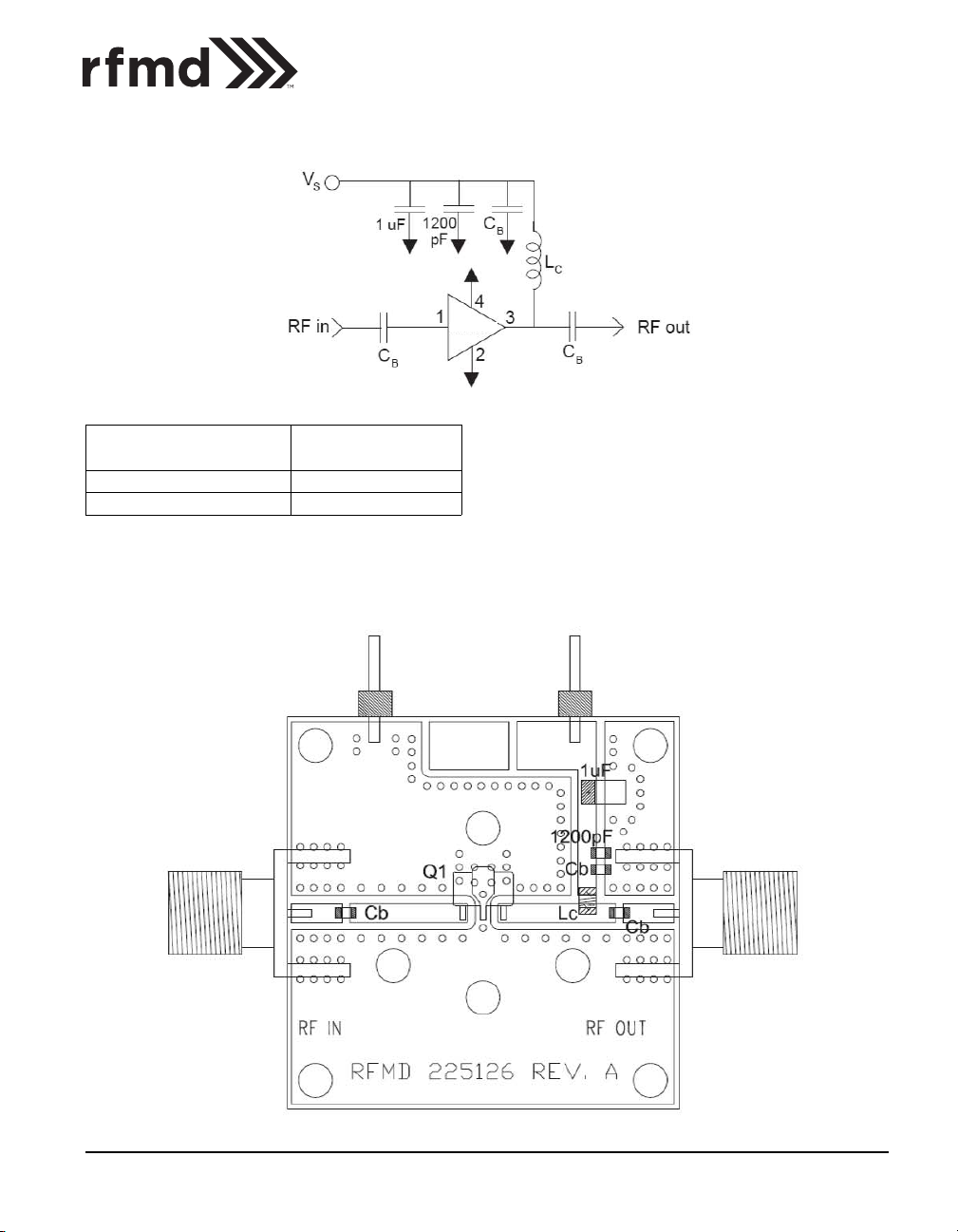

Application Schematic
Reference Designator Frequency (MHz)
500 to 3500
C
B
L
C
Note: For frequencies under 500MHz, make the following changes:
C
B=.1uF
L
C=330nH
68pF
82nH 0805CS
Evaluation Board Layout
SBB5089Z
7628 Thorndike Road, Greensboro, NC 27409-9421 · For sales or technical
support, contact RFMD at (+1) 336-678-5570 or
[email protected].
9 of 10DS150622

SBB5089Z

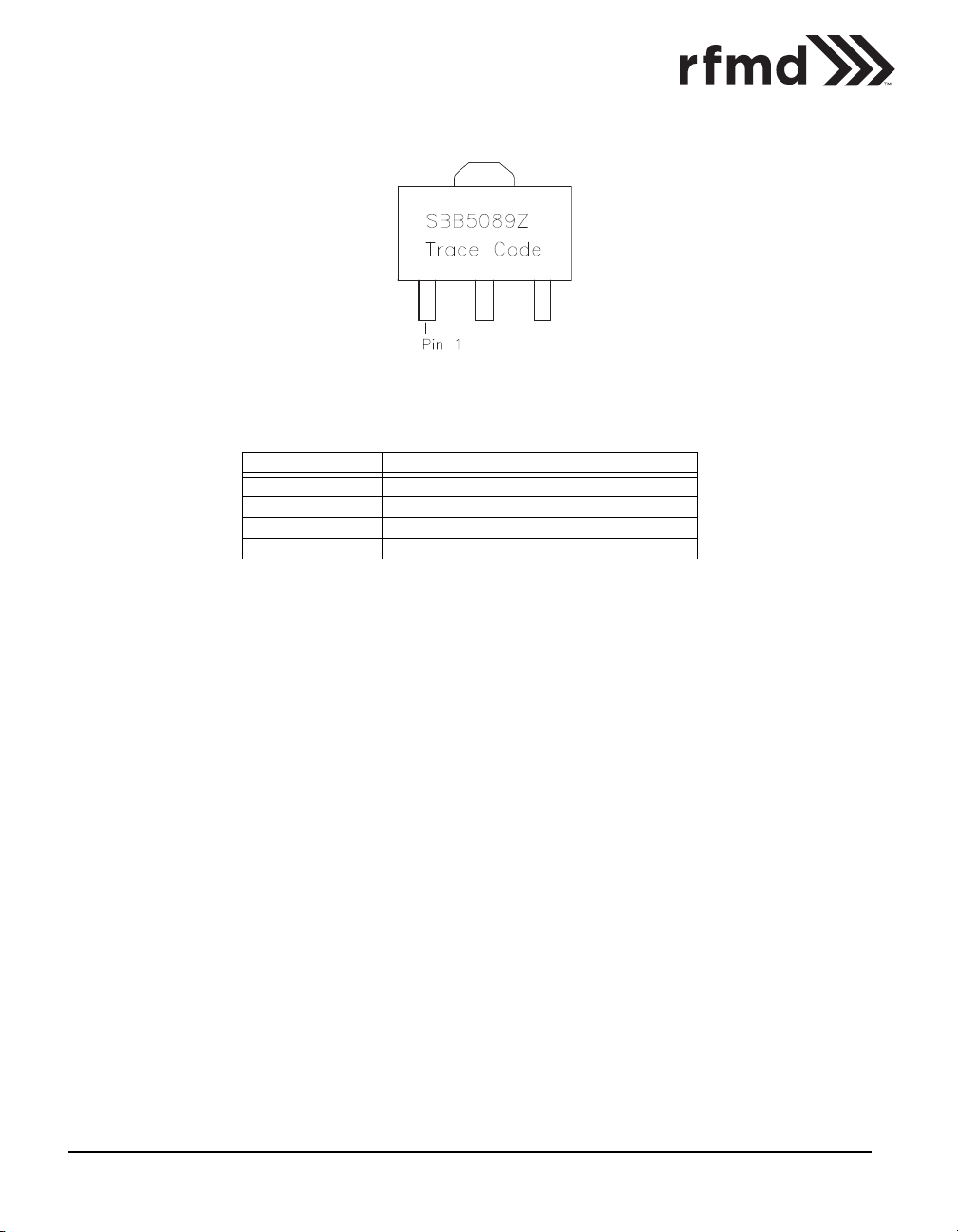

Package Marking
Ordering Information
Ordering Code Description
SBB5089Z 7” Reel with 1000 pieces
SBB5089ZSQ Sample Bag with 25 pieces
SBB5089ZSR 7” Reel with 100 pieces
SBB5089ZPCK1 500MHz to 3500MHz PCBA with 5-piece sample bag
