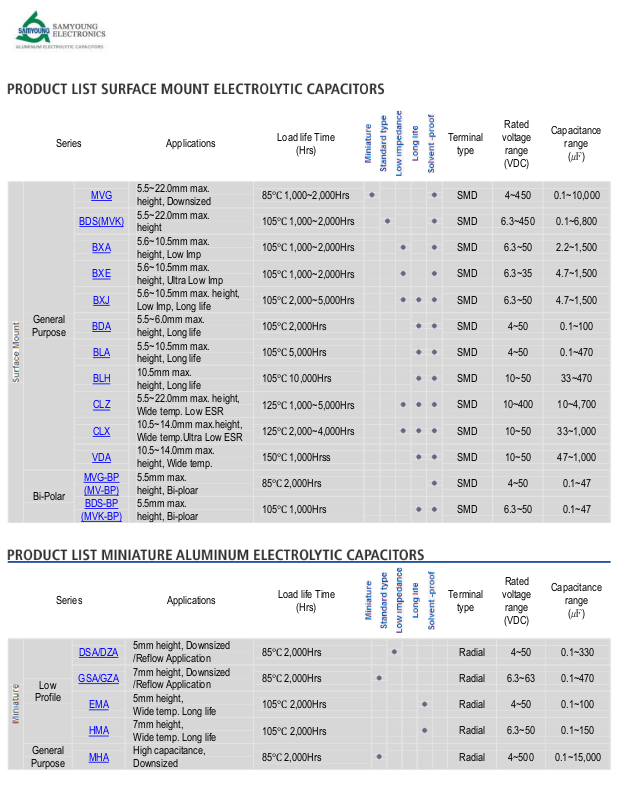

Page 1
Series
Load life Time
(Hrs)
Terminal
type
Rated
voltage
range (VDC)
Capacitance
range
(㎌)
General
Purpose
MVG
5.5~22.0mm max. height, Downsized
85℃ 1,000~2,000Hrs
SMD
4~450
0.1~10,000
BDS(MVK)
5.5~22.0mm max. height
105℃ 1,000~2,000Hrs
SMD
6.3~450
0.1~6,800
BXA
5.6~10.5mm max. height, Low Imp
105℃ 1,000~2,000Hrs
SMD
6.3~50
2.2~1,500
BXE
5.6~10.5mm max. height, Ultra Low Imp
105℃ 1,000~2,000Hrs
SMD
6.3~35
4.7~1,500
BXJ
5.6~10.5mm max. height, Low Imp, Long life
105℃ 2,000~5,000Hrs
SMD
6.3~50
4.7~1,500
BDA
5.5~6.0mm max. height, Long life
105℃ 2,000Hrs
SMD
4~50
0.1~100
BLA
5.5~10.5mm max. height, Long life
105℃ 5,000Hrs
SMD
4~50
0.1~470
BLH
10.5mm max. height, Long life
105℃ 10,000Hrs
SMD
10~50
33~470
CLZ
5.5~22.0mm max. height, Wide temp. Low ESR
125℃ 1,000~5,000Hrs
SMD
10~400
10~4,700
CLX
10.5~14.0mm max.height, Wide temp.Ultra Low ESR
125℃ 2,000~4,000Hrs
SMD
10~50
33~1,000
VDA
10.5~14.0mm max. height, Wide temp.
150℃ 1,000Hrss
SMD
10~50
47~1,000
Bi-Polar
MVG-BP
(MV-BP)
5.5mm max. height, Bi-ploar
85℃ 2,000Hrs
SMD
4~50
0.1~47
BDS-BP
(MVK-BP)
5.5mm max. height, Bi-ploar
105℃ 1,000Hrs
SMD
6.3~50
0.1~47
Series
Load life Time
(Hrs)
Terminal
type
Rated
voltage
range
(VDC)
Capacitance
range
(㎌)
Low
Profile
DSA/DZA
5mm height, Downsized /Reflow Application
85℃ 2,000Hrs
Radial
4~50
0.1~330
GSA/GZA
7mm height, Downsized /Reflow Application
85℃ 2,000Hrs
Radial
6.3~63
0.1~470
EMA
5mm height, Wide temp. Long life
105℃ 2,000Hrs
Radial
4~50
0.1~100
HMA
7mm height, Wide temp. Long life
105℃ 2,000Hrs
Radial
6.3~50
0.1~150
General Purpose
MHA
High capacitance, Downsized
85℃ 2,000Hrs
Radial
4~500
0.1~15,000
Page 2
KMG
High capacitance, Downsized
105℃ 1,000~2,000Hrs
Radial
6.3~450
0.1~22,000
NHA
High capacitance, Downsized
105℃ 1,000~2,000Hrs
Radial
6.3~500
0.1~15,000
Low
Leakage
GSA(SRA)
-LL/LL
Height 7mm / General
85℃ 2,000Hrs
Radial
6.3~100
0.1~4,700
Bi-polar
DSA(SRE)
-BP
5mm height
85℃ 1,000Hrs
Radial
4~50
0.1~47
GSA-BP
7mm height
85℃ 2,000Hrs
Radial
6.3~50
0.1~47
MHA-BP
General
85℃ 2,000Hrs
Radial
6.3~250
3.3~6,800
NHA-BP
General, Wide temp.
105℃ 1,000Hrs
Radial
6.3~250
3.3~6,800
SSP
Speaker Network
85℃ 2,000Hrs
Radial
25~63
1~100
KSA
Horizontal deflection, Wide temp.
105℃ 1,000Hrs
Radial
25, 50
2.2~10
Low
E.S.R
Low
Imp.
EXB
Height 5mm Ultra Low Imp.
105℃ 2,000Hrs
Radial
6.3~35
1~100
HXB
Height 7mm Ultra Low Imp.
105℃ 2,000Hrs
Radial
6.3~50
10~330
HXL
Height 7mm Ultra Low Imp., Long life
105℃ 3,000Hrs
Radial
6.3~50
10~330
NXL(LXV)
Low Imp., Long life,
105℃ 2,000~5,000Hrs
Radial
6.3~100
0.47~15,000
NXP(LXZ)
Low Imp., Long life, Downsized
105℃ 2,000~5,000Hrs
Radial
6.3~50
33~18,000
NXA
Low Imp.,Long life
105℃ 4,000~10,000Hrs
Radial
6.3~100
6.8~18,000
NXB
Low Imp.,Long life
105℃ 2,000~5,000Hrs
Radial
6.3~100
3.3~8,200
NXH
Low Imp.,Long life
105℃ 6,000~10,000Hrs
Radial
6.3~50
27~8,200
NXJ
Low Imp.,High ripple
105℃ 5,000Hrs
Radial
16~63
10~680
NXQ
Low Imp.,Long life High ripple
105℃ 6,000~10,000Hrs
Radial
6.3~100
8.2~8,200
NXK
Low Imp.,Long life High ripple
105℃ 4,000~5,000Hrs
Radial
10~50
100~2,700
NXF
Ultra Low ESR
105℃ 2,000Hrs
Radial
6.3~16
470~3,300
NXE
Ultra Low ESR, Long life
105℃ 3,000~4,000Hrs
Radial
6.3~35
150~3,300
High
Reliability
NFD(KMF)
High ripple
105℃ 2,000Hrs
Radial
160~450
3.3~330
NZE
High ripple, Downsized
105℃ 2,000Hrs
Radial
160~500
8.2~390
NFC
Long life, High ripple
105℃ 2,000~5,000Hrs
Radial
160~500
1~470
NFK
Long life, High ripple
105℃ 5,000Hrs
Radial
160~500
4.7~330
NFS
Long life, High ripple
105℃ 5,000Hrs
Radial
200~400
22~68
NFA
Long life, High ripple
105℃ 8,000~10,000Hrs
Radial
160~500
3.3~330
NFL
Long life, High ripple
105℃ 10,000~12,000Hrs
Radial
160~500
3.3~470
NLA
Long life
105℃ 4,000~10,000Hrs
Radial
6.3~50
10~18,000
NLC
Long life
105℃ 10,000Hrs
Radial
6.3~50
10~680
Page 3
PXB
Wide Temp., Imp. Long life
125℃2,000~5,000Hrs
Radial
10~450
4.7~4,700
PXD
Wide Temp., Ultra Low Imp. Long life
125℃ 2,000~4,000Hrs
Radial
10~50
10~4,700
PHA
150℃ 1,000Hrs
Radial
10~50
100~3,300
Special
Application
AHS
Audio grade, Downsized
85℃ 2,000Hrs
Radial
10~100
0.1~10,000
PHL
For photo flash
5~35℃ 5,000Times
Radial
300~330
5~160
NZD
Air bag
105℃ 5,000Hrs
Radial
16~35
820~5,600
Series
Load life Time
(Hrs)
Terminal
type
Rated
voltage
range
(VDC)
Capacitance
range
(㎌)
General
Purpose
RDC
More Downsized
85℃ 2,000Hrs
Pin
16~500
68~56,000
TDA
Miniature
105℃ 2,000Hrs
Pin
16~500
47~47,000
TDC
More Downsized
105℃ 2,000Hrs
Pin
160~450
68~1,200
TEA
15mm height
105℃ 2,000Hrs
Pin
160~400
39~390
High
Reliability
RLS
Miniature, Long life
85℃ 3,000Hrs
Pin
160~450
47~1,200
TLA
Downsized, Long life, Wide temp.
105℃ 3,000Hrs
Pin
160~500
56~2,200
TLS
Downsized, Long life, Wide temp., High ripple
105℃ 3,000Hrs
Pin
160~450
100~3,300
UDA
125℃ 1,000Hrs
Pin
16~250
100~10,000
TLC(LXG)
Miniature, Long life
105℃ 5,000Hrs
Pin
10~500
56~47,000
TLB
Miniature, Long life
105℃ 7,000Hrs
Pin
160~450
47~2,200
Special
Application
RVA
No spark with DC overvoltage
85℃ 2,000Hrs
Pin
200~450
68~2,200
TVA
No spark with DC overvoltage
105℃ 2,000Hrs
Pin
200~450
68~2,200
DL
General Audio
85℃ 2,000Hrs
Pin
50~100
3,300~22,000
AHS
Hi-Fi Audio Miniature
85℃ 2,000Hrs
Pin
50~100
3,300~22,000
General
Purpose
TGA
(KMH)
General, Wide temp.
105℃ 2,000Hrs
Screw
10~400
180~680,000
For
Inverter
RFC
(RWF)
High ripple, Long life
85℃ 5,000Hrs
Screw
350~450
2,700~15,000
RGA
High ripple, High voltage
85℃ 2,000Hrs
Screw
500~600
100~3,900
RFA
High ripple, Long life
85℃ 2,000Hrs
Screw
500~500
2,200~12,000
TFA
High ripple, Long life
105℃ 5,000Hrs
Screw
350~450
2,200~10,000
Special
Application
PH
For Photo Flash
5~35℃ 5,000Times
Pin/Screw
330
165~2,000
DH
40℃ 1,000,000Times
315, 475
100~330
RP
Customized Product
85℃ 2,000~20,000Hrs
Screw
10~450
1,000~20,000
Page 4
TP
Customized Product
105℃5,000Hrs
Screw
350~450
1,300~8,200
Series
Load life Time
(Hrs)
Terminal
type
Rated
voltage
range
(VDC)
Capacitance
range
(㎌)
Surface
mount
APV
Vertical type, 125℃,
Low ESR
125℃ 2,000Hrs
SMD
10~35
8.2~82
ARV
Vertical type, Stable Leakage Current at SV
105℃ 2,000Hrs
SMD
16~20
22~330
AXV
Vertical type, 105℃,
Super Low ESR
105℃ 2,000Hrs
SMD
2.5~16
68~2,700
ASV
Vertical type, 105℃,
Low ESR
105℃ 2,000Hrs
SMD
2.5~25
6.8~1,500
Radial
AXA
Radial type, 105℃,
Super Low ESR
105℃ 2,000Hrs
Radial
2.5~16
68~2,700
ASA
Radial type, 105℃,
Low ESR
105℃ 2,000Hrs
Radial
2.5~35
6.8~1,50
