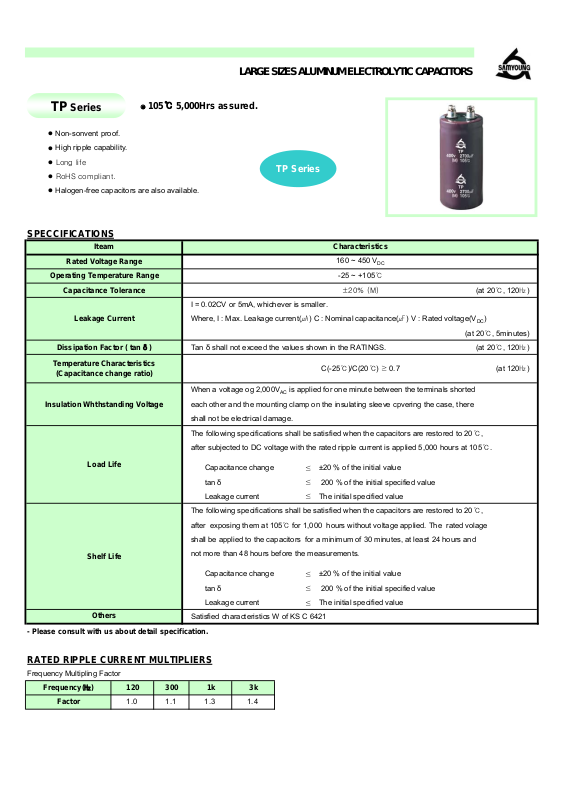

LARGE SIZES ALUMINUM ELECTROLYTIC CAPACITORS
TP Series
●
Non-sonvent proof.
●
High ripple capability.
●
Long life
●
RoHS compliant.
●
Halogen-free capacitors are also available.
SPECCIFICATIONS
Iteam Characteristics
Rated Voltage Range
Operating Temperature Range
Capacitance Tolerance
Leakage Current
Dissipation Factor ( tan δ )
Temperature Characteristics
(Capacitance change ratio)
● 105℃ 5,000Hrs assured.
I = 0.02CV or 5mA, whichever is smaller.
Where, I : Max. Leakage current(㎂) C : Nominal capacitance(㎌) V : Rated voltage(V
Tan δ shall not exceed the values shown in the RATINGS.
TP Series
160 ~ 450 V
DC
-25 ~ +105℃
±20% (M)
(at 20℃, 120㎐)
)
DC
(at 20℃, 5minutes)
(at 20℃, 120㎐)
C(-25℃)/C(20℃) ≥ 0.7 (at 120㎐)
When a voltage og 2,000V
Insulation Whthstanding Voltage
each other and the mounting clamp on the insulating sleeve cpvering the case, there
shall not be electrical damage.
The following specifications shall be satisfied when the capacitors are restored to 20℃,
after subjected to DC voltage with the rated ripple current is applied 5,000 hours at 105℃.
Load Life
The following specifications shall be satisfied when the capacitors are restored to 20℃,
after exposing them at 105℃ for 1,000 hours without voltage applied. The rated volage
shall be applied to the capacitors for a minimum of 30 minutes, at least 24 hours and
Shelf Life
Others
not more than 48 hours before the measurements.
Satisfied characteristics W of KS C 6421
- Please consult with us about detail specification.
RATED RIPPLE CURRENT MULTIPLIERS
Frequency Multipling Factor
Frequency(㎐)
Factor
1.0 1.1
Capacitance change
tan δ
Leakage current
Capacitance change
tan δ
Leakage current
3k120 300 1k
1.3 1.4
is applied for one minute between the terminals shorted
AC
±20 % of the initial value
≤
200 % of the initial specified value
≤
The initial specified value
≤
±20 % of the initial value
≤
200 % of the initial specified value
≤
The initial specified value
≤
Page 2
LARGE SIZES ALUMINUM ELECTROLYTIC CAPACITORS
DIMENSIONS OF TP Series
Marking : BROWN SLEEVE, SLIVER INK.
<Screw specifications>
ØD = Ø63.5 ~ Ø89
● Plus hexagon-heades screw :
M5 × 0.8 × 12
● Maximum screw tightening
torque : 3.23N·m(33kg·cm)
RATINGS OF TP Series
WV(V
350
)
DC
Cap.(㎌)
3,300
1,300
Capacitance
Tolerance
M
M
B type mounting clamp
BWHF
AØD
90 80
104.5 90
93.576.5
C type mounting clamp
ØD E K
63.5 38.1 43.5 14 28.0
76.5 44.5 50.0
89 50.8 56.5 16 31.5
Case size
76.5 × 120
63.5 × 95
14J31.5
4.5 28.07563.5
4.5 31.5
F
tan δ
0.15
0.15
Unit(㎜)
Rated ripple current
(Arms/105℃, 120㎐)ØD × L(㎜)
16.0
7.7
400
450
2,700
3,800
4,700
8,200
M
M
M
M
76.5 × 115
76.5 × 155
76.5 × 130 0.15
89 × 155
0.15
0.15
0.15
14.1
17.2
22.0
27.8
