Samxon Series Table
Datasheet
3 pgs1.15 Mb0

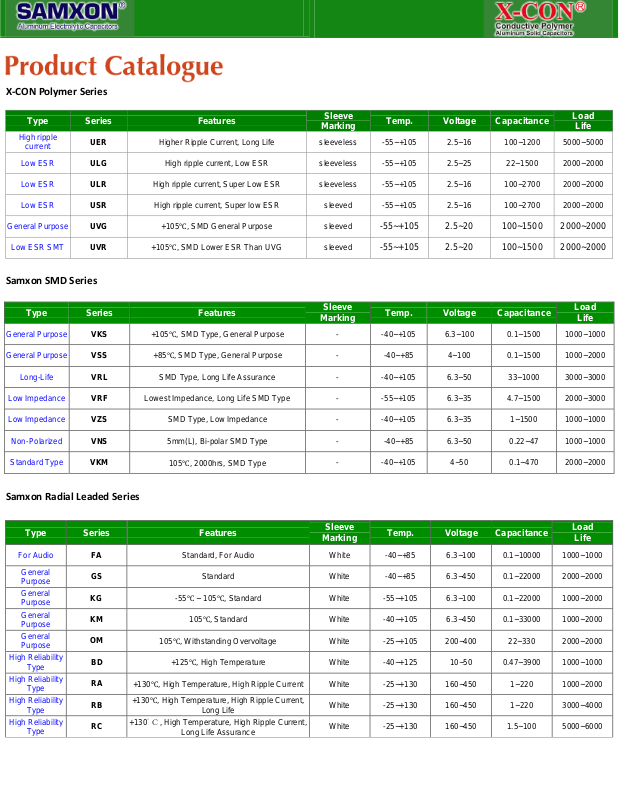

Datasheet Samxon Series Table Datasheet

Download
Page 1
Type
Series
Sleeve
Marking
Temp.
Voltage
Capacitance
Load
Life
High ripple
current
UER
sleeveless
-55~+105
2.5~16
100~1200
5000~5000
Low ESR
ULG
sleeveless
-55~+105
2.5~25
22~1500
2000~2000
Low ESR
ULR
sleeveless
-55~+105
2.5~16
100~2700
2000~2000
Low ESR
USR
sleeved
-55~+105
2.5~16
100~2700
2000~2000
General Purpose
UVG
sleeved
-55~+105
2.5~20
100~1500
2000~2000
Low ESR SMT
UVR
sleeved
-55~+105
2.5~20
100~1500
2000~2000
Type
Series
Features
Sleeve
Marking
Temp.
Voltage
Capacitance
Load
Life
For Audio
FA
Standard, For Audio
White
-40~+85
6.3~100
0.1~10000
1000~1000
General
Purpose
GS
Standard
White
-40~+85
6.3~450
0.1~22000
2000~2000
General
Purpose
KG
-55℃ ~ 105℃, Standard
White
-55~+105
6.3~100
0.1~22000
1000~2000
General
Purpose
KM
105℃, Standard
White
-40~+105
6.3~450
0.1~33000
1000~2000
General
Purpose
OM
105℃, Withstanding Overvoltage
White
-25~+105
200~400
22~330
2000~2000
High Reliability
Type
BD
+125℃, High Temperature
White
-40~+125
10~50
0.47~3900
1000~1000
High Reliability
Type
RA
+130℃, High Temperature, High Ripple Current
White
-25~+130
160~450
1~220
1000~2000
High Reliability
Type
RB
+130℃, High Temperature, High Ripple Current,
Long Life
White
-25~+130
160~450
1~220
3000~4000
High Reliability
Type
RC
+130ﾟＣ, High Temperature, High Ripple Current,
Long Life Assurance
White
-25~+130
160~450
1.5~100
5000~6000
Type
Series
Features
Sleeve
Marking
Temp.
Voltage
Capacitance
Load
Life
General Purpose
VKS
+105℃, SMD Type, General Purpose
-
-40~+105
6.3~100
0.1~1500
1000~1000
General Purpose
VSS
+85℃, SMD Type, General Purpose
-
-40~+85
4~100
0.1~1500
1000~2000
Long-Life
VRL
SMD Type, Long Life Assurance
-
-40~+105
6.3~50
33~1000
3000~3000
Low Impedance
VRF
Lowest Impedance, Long Life SMD Type
-
-55~+105
6.3~35
4.7~1500
2000~3000
Low Impedance
VZS
SMD Type, Low Impedance
-
-40~+105
6.3~35
1~1500
1000~1000
Non-Polarized
VNS
5mm(L), Bi-polar SMD Type
-
-40~+85
6.3~50
0.22~47
1000~1000
Standard Type
VKM
105℃, 2000hrs, SMD Type
-
-40~+105
4~50
0.1~470
2000~2000
X-CON Polymer Series
Samxon SMD Series
Samxon Radial Leaded Series
Page 2
Type
Series
Features
Sleeve
Marking
Temp.
Voltage
Capacitance
Load
Life
High Reliability
Type
RD
Long Life Assurance, High Ripple Current
White
-25~+105
160~450
10~330
8000~10000
High Reliability
Type
RE
Long Life Assurance
White
-25~+105
160~450
6.8~220
8000~10000
High Reliability
Type
RH
+105℃, High Ripple Current, Long Life
White
-40~+105
160~450
6.8~220
10000~12000
High Reliability
Type
RL
Long Life Assurance, High Ripple Current
White
-40~+105
6.3~450
0.1~22000
3000~8000
High Reliability
Type
RR
Long Life Assurance, High Ripple Current
White
-25~+105
160~450
4.7~220
3000~3000
High Reliability
Type
RT
Long Life Assurance, High Ripple Current
White
-25~+105
160~450
4.7~220
5000~5000
Low Impedance
Type
GF
+105℃, High Ripple Current, Low Impedance
White
-40~+105
6.3~450
2.2~4700
2000~4000
Low Impedance
Type
GK
+105℃, High Ripple Current, Lowest Impedance
White
-40~+105
6.3~25
100~3900
2000~5000
Low Impedance
Type
GT
+105℃, High Ripple Current, Long Life, Low
Impedance
White
-40~+105
6.3~100
15~3900
4000~10000
Low Impedance
Type
GY
+105℃, Low Impedance, Long Life
White
-40~+105
6.3~100
0.47~3300
4000~10000
Low Impedance
Type
RF
-55℃ ~ 105℃, Wide Temperature, High Ripply
Current
White
-55~+105
6.3~100
22~4700
1000~4000
Low Impedance
Type
RS
+105℃, High Ripple Current, Long Life Assurance,
L
White
-40~+105
6.3~100
2.2~4700
3000~7000
Low Impedance
Type
SF
+105℃, High Ripple Current, Low Impedance,
Long Life
White
-40~+105
6.3~100
15~3900
3000~6000
Low Impedance
Type
ZM
5mm(L), 105 ℃, Low Impedance
White
-40~+105
6.3~35
1~100
1000~1000
Low Impedance
Type
ZS
7mm(L), +105 ℃, Low Impedance
Brown
-40~+105
6.3~35
6.8~220
1000~1000
Miniature Type
KF
5mm(L), 105 ℃
White
-40~+105
4~50
0.1~330
1000~1000
Miniature Type
KS
7mm(L), -40 ℃ ~ +105 ℃
White
-40~+105
6.3~50
0.1~220
1000~1000
Miniature Type
SM
5mm(L), Standard
White
-40~+85
4~50
0.1~330
2000~2000
Miniature Type
SS
7(9)mm, High C/V
White
-40~+85
6.3~50
0.1~470
2000~2000
Non-Polarized
Type
NH
+105℃, Nonpolar
White
-40~+105
6.3~100
0.47~1000
1000~1000
Non-Polarized
Type
NP
Nonpolar
Black
-40~+85
6.3~100
0.47~6800
1000~1000
Pen Cap
KM
+105ﾟＣ, Pen Cap
White
-25~+105
200~450
22~270
2000~2000
Pen Cap
RW
+105ﾟＣ, Pen Cap, Long Life Assurance
White
-25~+105
200~450
22~220
5000~5000
Pen Cap
RY
+105ﾟＣ, Pen Cap, Long Life Assurance
-25~+105
200~450
22~220
10000~10000
Page 3
Type
Series
Features
Sleeve
Marking
Temp.
Voltage
Capacitance
Load
Life
High Reliability
EP
Lug/Snap-in Terminal Type, Long Life
White
-40~+105
10~450
82~47000
5000~5000
High Reliability
FP
Lug/Snap-in Terminal Type, Long Life, Low
Impedance
White
-40~+105
10~450
100~33000
5000~5000
High Reliability
GP
Lug/Snap-in Terminal Type, Ultra Small Size
White
-40~+105
160~450
100~3300
2000~2000
High Reliability
HP
Lug/Snap-in Terminal Type, Wide Temperature
White
-40~+105
10~500
47~56000
2000~2000
High Reliability
KP
Lug/Snap-in Terminal Type, Long Life
White
-40~+105
10~450
47~56000
3000~3000
High Reliability
SP
Lug/Snap-in Terminal Type, Long Life
White
-40~+105
160~450
39~2200
7000~7000
High Reliability
UP
Lug/Snap- in Terminal Type, Overvoltage
Resistant Design
White
-25~+105
200~450
56~1200
2000~2000
High Reliability
VP
Lug/Snap-in Terminal Type, Withstanding
Vibration
White
-40~+105
10~500
39~56000
2000~2000
Special Type
WB
Screw Terminal Type, High Temperature
Golden
-25~+125
160~400
330~15000
3000~3000
Special Type
WF
Screw Terminal Type, Long Life Assurance
Golden
-40~+105
10~450
330~390000
5000~5000
Special Type
WH
Screw Terminal Type, Long Life Assurance
Golden
-25~+85
350~500
470~22000
10000~10000
Special Type
WI
Screw Terminal Type, High Ripple Current
Black
-25~+85
300~450
390~22000
2000~2000
Special Type
WL
Screw Terminal Type, Ultra Long Life Assurance
Golden
-25~+85
350~450
2200~12000
20000~20000
Special Type
WR
Screw Terminal Type, Standard
Golden
-40~+85
10~630
100~680000
2000~2000
Special Type
WS
Screw Terminal Type, Long Life Assurance
Golden
-40~+105
350~450
90~15000
10000~10000
Special Type
WT
Screw Terminal Type, Standard
Golden
-40~+105
10~500
180~680000
2000~2000
Special Type
WU
Screw Terminal Type, High Capacitance
Golden
-40~+85
250~450
220~22000
2000~2000
Special Type
WX
Screw Terminal Type, Long Life Assurance
Golden
-40~+85
10~550
1000~1.5e+006
5000~5000
Standard Type
AP
Lug/Snap-in Terminal Type, For Audio
White
-40~+85
16~100
680~10000
1000~1000
Standard Type
DP
Lug/Snap-in Terminal Type, Long Life, Low ESR
White
-40~+85
160~450
47~2200
5000~5000
Standard Type
LP
Lug/Snap-in Terminal Type, Standard
White
-40~+85
10~500
56~82000
2000~2000
Standard Type
QP
Lug/Snap-in Terminal Type, Withstanding
Vibration
White
-40~+85
10~500
56~82000
2000~2000
Standard Type
TP
Lug/Snap-in Terminal Type, Ultra Long Life
White
-25~+85
200~450
56~2200
10000~10000
Samxon Large Can Series
