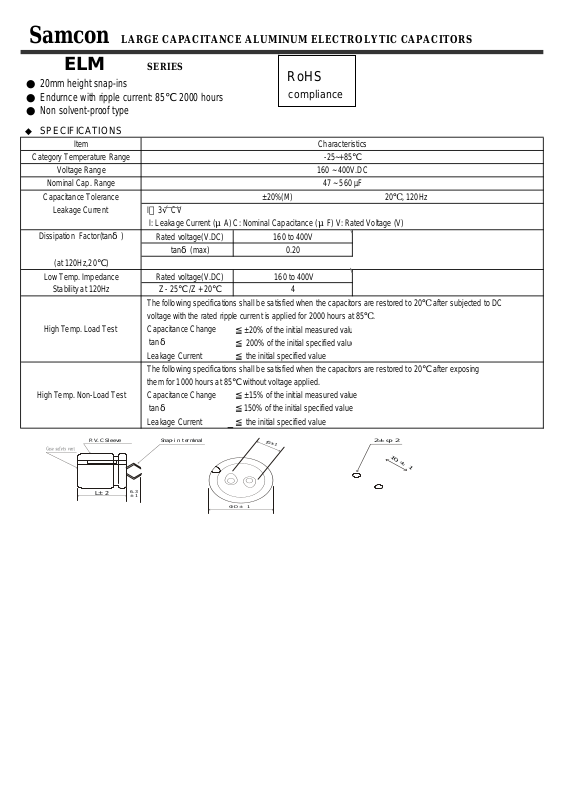

Page 1
Samcon LARGE CAPACITANCE ALUMINUM ELECTROLYTIC CAPACITORS
u
e
S
ELM
● 20mm height snap-ins
● Endurnce with ripple current: 85℃ 2000 hours
SERIES
RoHS
compliance
● Non solvent-proof type
◆ SPECIFICATIONS
Item
Category Temperature Range
Voltage Range
Nominal Cap. Range 47 ~ 560 µF
Capacitance Tolerance
Leakage Current
I≦3√CV
I: Leakage Current (μA) C: Nominal Capacitance (μF) V: Rated Voltage (V)
Dissipation Factor(tanδ)
Rated voltage(V.DC)
tanδ(max)
(at 120Hz,20℃)
Low Temp. Impedance 160 to 400V
Rated voltage(V.DC)
Stability at 120Hz Z - 25℃ /Z + 20℃
The following specifications shall be satisfied when the capacitors are restored to 20℃ after subjected to DC
voltage with the rated ripple current is applied for 2000 hours at 85℃.
High Temp. Load Test
Capacitance Change
tanδ
Leakage Current
The following specifications shall be satisfied when the capacitors are restored to 20℃ after exposing
them for 1000 hours at 85℃ without voltage applied.
High Temp. Non-Load Test
Capacitance Change
tanδ ≦150% of the initial specified value
Leakage Current
±20%(M) 20℃, 120Hz
160 to 400V
0.20
4
≦±20% of the initial measured val
≦ 200% of the initial specified valu
≦ the initial specified value
≦±15% of the initial measured value
≦ the initial specified value
Characteristics
-25~+85℃
160 ~ 400V.DC
P. V. C Sleeve
L± 2
6. 3
±1
nap- i n t er minal
ΦD ± 1
1
0
±
1
2±φ2
1
0
±
1
Page 2
Samcon LARGE CAPACITANCE ALUMINUM ELECTROLYTIC CAPACITORS
e
)
C
ELM
WV(Vdc)
Capacitanc
ΦDxL (mm) (μF) (105℃ 120Hz
22X20
25X20
30X20
35X20
180 0.99 150 0.90 150 0.90 100 0.73 47 0.50
270 1.29 220 1.16 220 1.16 150 0.96 68 0.65
390 1.47 330 1.35 270 1.22 220 1.10 100 0.74
560 1.74 470 1.60 390 1.46 330 1.34 120 0.81
SERIES
Ripple Current CapacitanceRipple Current CapacitanceRipple CurrentCapacitanceRipple Current CapacitanceRipple Current
(μF) (105℃ 120Hz)(μF)(105℃ 120Hz)(μF) (105℃ 120Hz)(μF) (105℃ 120Hz)
●PERMISSIBLE RIPPLE CURRENT MULTIPLIERS
⊙Frequency Multipliers
Freq.(Hz) (60)50 120 300 1K 10K 50K
160~250VD
0.81 1.00 1.17 1.32 1.45 1.5
250 400160 180 200
400VDC 0.77 1.00 1.16 1.30 1.41 1.43
Temperature Coefficient
Temp.(℃)
Coefficient
40 60 70 85
2.2 1.8 1.65 1.0
