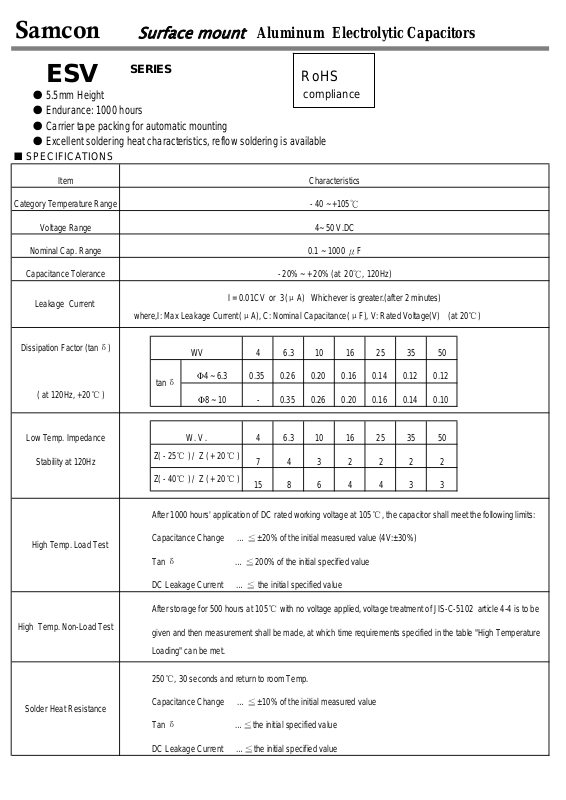

Page 1
Samcon
Surface mount
Aluminum Electrolytic Capacitors
SERIES
ESV
● 5.5mm Height
RoHS
compliance
● Endurance: 1000 hours
● Carrier tape packing for automatic mounting
● Excellent soldering heat characteristics, reflow soldering is available
■ SPECIFICATIONS
Item
Category Temperature Range
Voltage Range 4~ 50 V.DC
Nominal Cap. Range
Capacitance Tolerance
Leakage Current
I = 0.01CV or 3(μA) Whichever is greater.(after 2 minutes)
where,I: Max Leakage Current(μA), C: Nominal Capacitance(μF), V: Rated Voltage(V) (at 20℃)
- 20% ~ + 20% (at 20℃, 120Hz)
Characteristics
- 40 ~ +105℃
0.1 ~ 1000 μF
Dissipation Factor (tanδ)
( at 120Hz, +20℃ )
Low Temp. Impedance
Stability at 120Hz
High Temp. Load Test
WV
tanδ
Z( - 25℃ ℃
Z( - 40℃ ℃
After 1000 hours' application of DC rated working voltage at 105℃, the capacitor shall meet the following limits:
Capacitance Change … ≦±20% of the initial measured value (4V:±30%)
Tan δ … ≦200% of the initial specified value
DC Leakage Current … ≦ the initial specified value
After storage for 500 hours at 105℃ with no voltage applied, voltage treatment of JIS-C-5102 article 4-4 is to be
Φ
Φ
W. V . 4 6.3 10 16 25 35 50
) / Z ( + 20 )
) / Z ( + 20 )
4 6.3 10 16 25 35 50
0.354 ~ 6.3 0.26 0.20 0.16 0.14 0.12 0.12
-8 ~ 10 0.35 0.26 0.20 0.16 0.14 0.10
7
15
432222
864433
High Temp. Non-Load Test
Solder Heat Resistance
given and then measurement shall be made, at which time requirements specified in the table "High Temperature
Loading" can be met.
250℃, 30 seconds and return to room Temp.
Capacitance Change … ≦±10% of the initial measured value
Tan δ …≦the initial specified value
DC Leakage Current …≦the initial specified value
Page 2
e
Samcon
pp
(mm)
t
(mm)
t
(mm)
t
(mm)
t
(mm)
t
(mm)
t
(mm)
t
e
)
(
)
(
)
(
)
(
)
(
)
(
)
(
)
ESV Series
●DRAWING
Surface mount
Aluminum Electrolytic Capacitors
■Standard Ratings
WV(Vdc)
P
P
a
a
r
r
a
a
m
m
Cap.(μF
0.1
0.22 4X5.4 2
0.33 4X5.4 3
0.47 4X5.4 5
1 4X5.4 10
2.2 4X5.4 15 4X5.4 16
3.3 4X5.4 18 5X5.4 16
4.7 4X5.4 20 4X5.4 22 4X5.4 22 6.3X5.4 23
10 4X5.4 24 4X5.4 28 5X5.4 28 5X5.4 30 6.3X5.4 35
22 4X5.4 20 4X5.4 29 4X5.4 26 5X5.4 39 6.3X5.4 55 6.3X5.4 60 8X6.2 70
33 4X5.4 26 5X5.4 43 5X5.4 45 6.3X5.4 65 6.3X5.4 65 8X6.2 84 8X10.2 91
47 4X5.4 34 5X5.4 46 6.3X5.4 70 6.3X5.4 70 8X6.2 91 8X6.2 98 10X10.2 100
100 5X5.4 61 6.3X5.4 71 8X6.2 110 8X6.2 130 8X10.2 140 10X10.2 130 10X10.2 145
220 6.3X5.4 82 8X6.2 130 8X10.2 160 10X10.2 210 10X10.2 220 10X10.2 240
330 8X10.2 230 8X10.2 230 10X10.2 230
470 10X10.2 260 10X10.2 270 10X10.2 275
1000 10X10.2 380 10X10.2 290
4 6.3 10 16 25 35 50
ΦDxL
Ri
Curren
mArms
Case Size: ΦDxL(mm)
le
ΦDxL
Rated Ripple Current (mArms) at 105℃ 120Hz
Ripple
Curren
mArms
ΦDxL
Ripple
Curren
mArms
ΦDxL
Ripple
Curren
mArms
ΦDxL
Ripple
Curren
mArms
ΦDxL
Ripple
Curren
mArms
ΦDxL
4X5.4 1
Ripple
Curren
mArms
