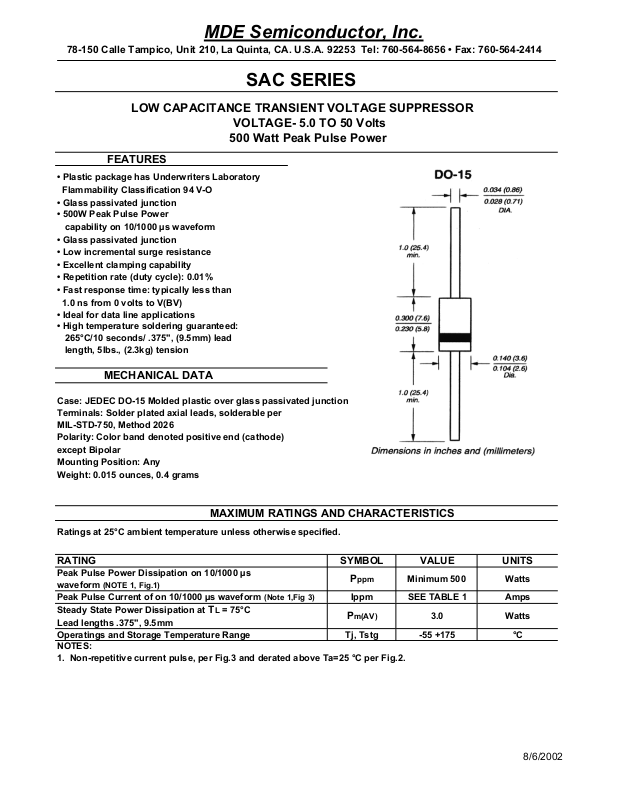

Page 1
MDE Semiconductor, Inc.
V
78-150 Calle Tampico, Unit 210, La Quinta, CA. U.S.A. 92253 Tel: 760-564-8656 • Fax: 760-564-2414
SAC SERIES
LOW CAPACITANCE TRANSIENT VOLTAGE SUPPRESSOR
VOLTAGE- 5.0 TO 50 Volts
500 Watt Peak Pulse Power
FEATURES
• Plastic package has Underwriters Laboratory
Flammability Classification 94 V-O
• Glass passivated junction
• 500W Peak Pulse Power
capability on 10/1000 µs waveform
• Glass passivated junction
• Low incremental surge resistance
• Excellent clamping capability
• Repetition rate (duty cycle): 0.01%
• Fast response time: typically less than
1.0 ns from 0 volts to V(BV)
• Ideal for data line applications
• High temperature soldering guaranteed:
265°C/10 seconds/ .375", (9.5mm) lead
length, 5lbs., (2.3kg) tension
MECHANICAL DATA

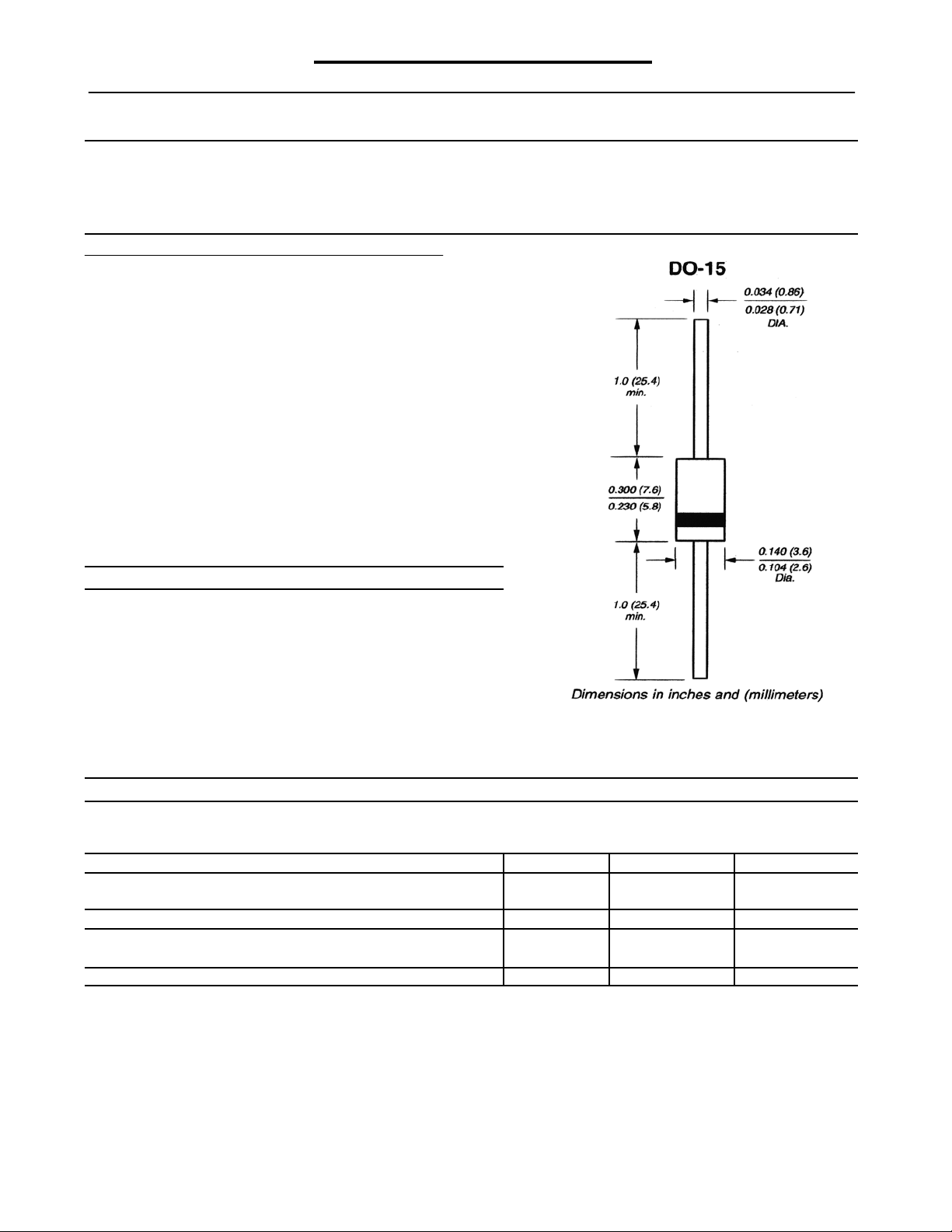

Case: JEDEC DO-15 Molded plastic over glass passivated junction
Terminals: Solder plated axial leads, solderable per
MIL-STD-750, Method 2026
Polarity: Color band denoted positive end (cathode)
except Bipolar
Mounting Position: Any
Weight: 0.015 ounces, 0.4 grams
MAXIMUM RATINGS AND CHARACTERISTICS
Ratings at 25°C ambient temperature unless otherwise specified.
RATING SYMBOL
Peak Pulse Power Dissipation on 10/1000 µs
waveform
Peak Pulse Current of on 10/1000 µs waveform (Note 1,Fig 3)
Steady State Power Dissipation at TL = 75°C
Lead lengths .375", 9.5mm
Operatings and Storage Temperature Range Tj, Tstg -55 +175 °C
NOTES:
1. Non-repetitive current pulse, per Fig.3 and derated above Ta=25 °C per Fig.2.
(NOTE 1, Fig.1)
Pppm
Ippm SEE TABLE 1 Amps
Pm(AV)
ALUE UNITS
Minimum 500 Watts
3.0 Watts
8/6/2002

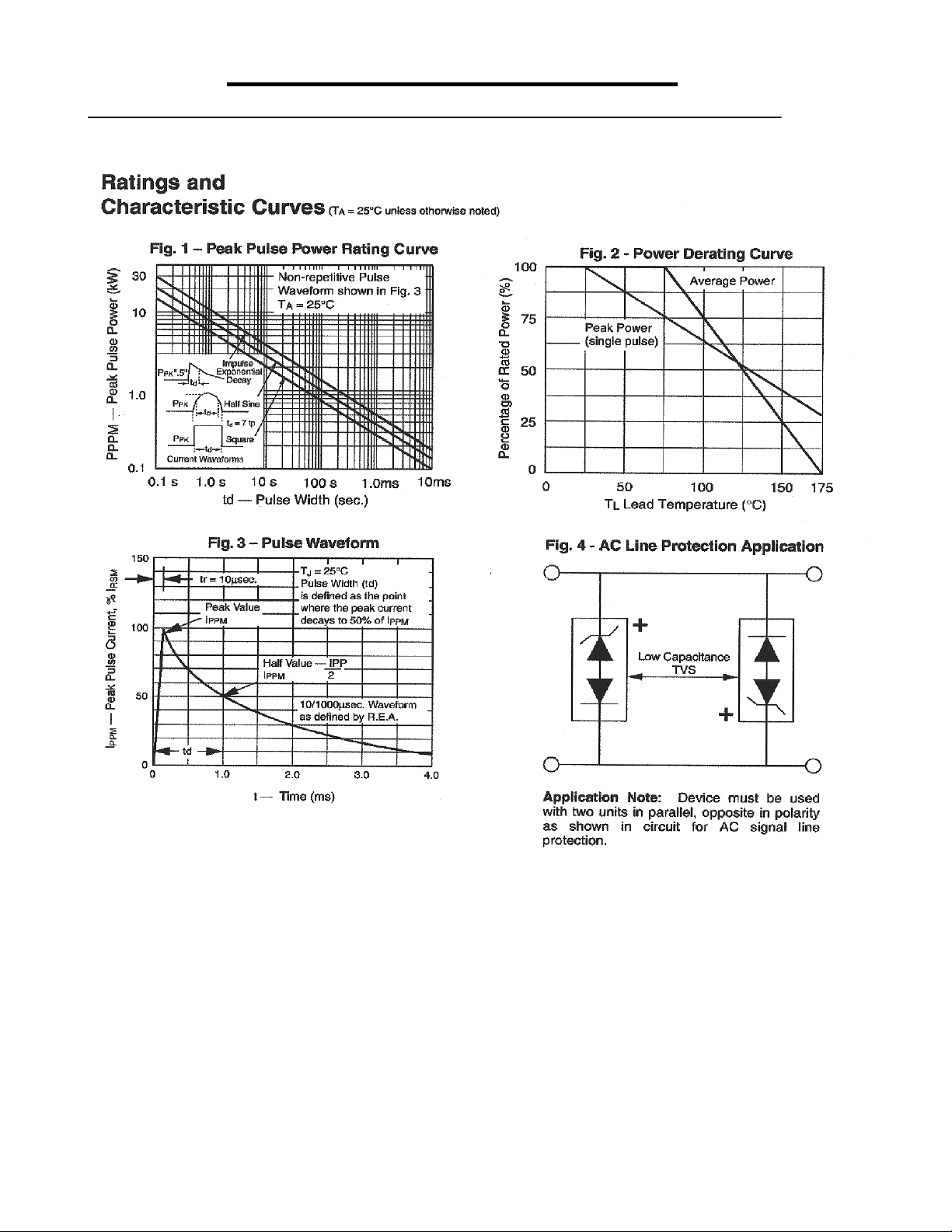

Page 2
MDE Semiconductor, Inc.
78-150 Calle Tampico, Unit 210, La Quinta, CA., USA 92253 Tel: 760-564-8656 • Fax: 760-564-2414
8/6/2002
Page 3
MDE Semiconductor, Inc.
V
78-150 Calle Tampico, Unit 210, La Quinta, CA., USA 92253 Tel: 760-564-8656 • Fax: 760-564-2414
500 Watt Low Capacitance TVS
WORKING
REVERSE
PART
NUMBER
SAC5.0
SAC6.0 6.00 7.90 50 75 11.2 41.0 300 1
SAC7.0 7.00 8.33 50 75 12.6 38.0 300 1
SAC8.0 8.00 8.89 50 75 13.4 36.0 100 1
SAC8.5 8.50 9.44 50 75 14.0 34.0 50 1
SAC10 10.00 11.10 50 75 16.3 29.0 5 1
SAC12 12.00 13.30 50 75 19.0 25.0 5 1
SAC15 15.00 16.70 50 75 23.6 20.0 5 1
SAC18 18.00 20.00 50 75 28.8 15.0 5 1
SAC22 22.00 24.40 50 75 35.4 14.0 5 1
SAC26 26.00 28.90 50 75 42.3 11.1 5 1
SAC30 30.00 33.30 50 75 48.6 10.0 5 1
SAC36 36.00 40.00 50 75 60.0 8.6 5 1
SAC45 45.00 50.00 50 150 77.0 6.8 5 1
SAC50 51.00 55.50 50 150 88.0 5.8 5 1
STANDOFF
VOLTAGE
VRWM (V)
5.00 7.60 50 75 10.0 44.0
BREAKDOWN
VOLTAGE
BR (V)
MIN. @ IT
MAXIMUM
JUNCTION
CAPACITANCE
@ 0 VOLTS
(pF)
INVERSE
BLOCKING
VOLTAGE
VWIB
(VOLTS)
MAXIMUM
CLAMPING
VOLTAGE
@Ipp=5.0A
Vc (V)
PEAK
PULSE
CURRENT
Ipp (A)
REVERSE
LEAKAGE
@ VRWM
IR (µA)
300 1
INVERSE
BLOCKING
LEAKAGE
CURRENT
@ VWIB IIB
(Ma)
8/6/2002
