Datasheet SAA7111AHZ, SAA7111AH Datasheet (Philips)

INTEGRATED CIRCUITS

DATA SH EET

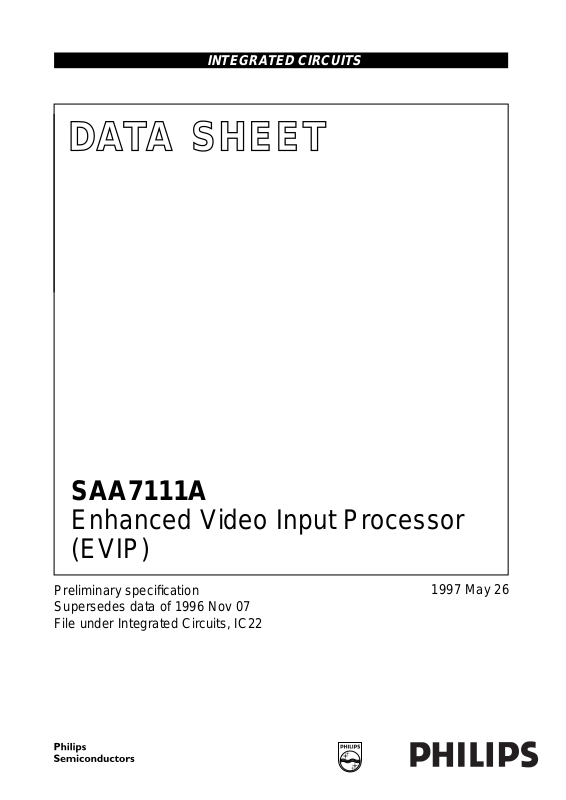

SAA7111A

Enhanced Video Input Processor
(EVIP)

Preliminary specification
Supersedes data of 1996 Nov 07
File under Integrated Circuits, IC22

1997 May 26

Philips Semiconductors Preliminary specification

Enhanced Video Input Processor (EVIP) SAA7111A

CONTENTS

1 FEATURES
2 APPLICATIONS
3 GENERAL DESCRIPTION
4 QUICK REFERENCE DATA
5 ORDERING INFORMATION
6 BLOCK DIAGRAM
7 PINNING
8 FUNCTIONAL DESCRIPTION

8.1 Analog input processing

8.2 Analog control circuits

8.2.1 Clamping

8.2.2 Gain control

8.3 Chrominance processing

8.4 Luminance processing

8.5 RGB matrix

8.6 VBI-data bypass

8.7 VPO-bus (digital outputs)

8.8 Reference signals HREF, VREF and CREF

8.9 Synchronization

8.10 Clock generation circuit

8.11 Power-on reset and CE input

8.12 RTCO output

8.13 The Line-21 text slicer

8.13.1 Suggestions for I2C-bus interface of the display
software reading line-21 data

9 BOUNDARY-SCAN TEST

9.1 Initialization of boundary-scan circuit

9.2 Device identification codes

10 GAIN CHARTS
11 LIMITING VALUES
12 CHARACTERISTICS
13 TIMING DIAGRAMS
14 CLOCK SYSTEM

14.1 Clock generation circuit

14.2 Power-on control

15 OUTPUT FORMATS
16 APPLICATION INFORMATION
17 I2C-BUS DESCRIPTION

17.1 I2C-bus format

17.2 I2C-bus detail

17.2.1 Subaddress 00

17.2.2 Subaddress 02

17.2.3 Subaddress 03

17.2.4 Subaddress 04

17.2.5 Subaddress 05

17.2.6 Subaddress 06

17.2.7 Subaddress 07

17.2.8 Subaddress 08

17.2.9 Subaddress 09

17.2.10 Subaddress 0A

17.2.11 Subaddress 0B

17.2.12 Subaddress 0C

17.2.13 Subaddress 0D

17.2.14 Subaddress 0E

17.2.15 Subaddress 10

17.2.16 Subaddress 11

17.2.17 Subaddress 12

17.2.18 Subaddress 13

17.2.19 Subaddress 15

17.2.20 Subaddress 16

17.2.21 Subaddress 17

17.2.22 Subaddress 1A (read-only register)

17.2.23 Subaddress 1B (read-only register)

17.2.24 Subaddress 1C (read-only register)

17.2.25 Subaddress 1F (read-only register)
18 FILTER CURVES

18.1 Anti-alias filter curve

18.2 TUF-block filter curve

18.3 Luminance filter curves

18.4 Chrominance filter curves
19 I2C-BUS START SET-UP
20 PACKAGE OUTLINES
21 SOLDERING

21.1 Introduction

21.2 Reflow soldering

21.3 Wave soldering

21.3.1 PLCC

21.3.2 QFP

21.3.3 Method (PLCC and QFP)

21.4 Repairing soldered joints
22 DEFINITIONS
23 LIFE SUPPORT APPLICATIONS
24 PURCHASE OF PHILIPS I2C COMPONENTS

1997 May 26 2

Philips Semiconductors Preliminary specification

Enhanced Video Input Processor (EVIP) SAA7111A

1 FEATURES

• Four analog inputs, internal analog source selectors,

e.g. 4 × CVBS or 2 × Y/C or (1 × Y/C and 2 × CVBS)

• Two analog preprocessing channels

• Fully programmable static gain for the main channels or

automatic gain control for the selected CVBS or Y/C
channel

• Switchable white peak control

• Two built-in analog anti-aliasing filters

• Two 8-bit video CMOS analog-to-digital converters

• On-chip clock generator

• Line-locked system clock frequencies

• Digital PLL for horizontal-sync processing and clock

generation

• Requires only one crystal (24.576 MHz) for all standards

• Horizontal and vertical sync detection

• Automatic detection of 50 and 60 Hz field frequency,

and automatic switching between PAL and NTSC
standards

• Luminance and chrominance signal processing for

PAL BGHI, PAL N, PAL M, NTSC M, NTSC N,
NTSC 4.43, NTSC-Japan and SECAM

• User programmable luminance peaking or aperture

correction

• Cross-colour reduction for NTSC by chrominance comb

filtering

• PAL delay line for correcting PAL phase errors

• Real time status information output (RTCO)

• Brightness Contrast Saturation (BCS) control on-chip

• The YUV (CCIR-601) bus supports a data rate of:

– 864 × f
– 858 × fH= 13.5 MHz for 525 line sources

• Data output streams for 16, 12 or 8-bit width with the

following formats:
– YUV4:1:1 (12-bit)
– YUV4:2:2 (16-bit)
– YUV4:2:2 (CCIR-656) (8-bit)
– RGB (5, 6, 5) (16-bit) with dither
– RGB (8, 8, 8) (24-bit) with special application

• Odd/even field identification by a non interlace CVBS

input signal

• Fix level for RGB output format during horizontal

blanking

= 13.5 MHz for 625 line sources

H

• 720 active samples per line on the YUV bus

• One user programmable general purpose switch on an

output pin

• Built-in line-21 text slicer

• A 27 MHz Vertical Blanking Interval (VBI) data bypass

programmable by I

• Power-on control

• Two via I2C-bus switchable outputs for the digitized

CVBS or Y/C input signals AD1 (7 to 0) and AD2 (7 to 0)

• Chip enable function (reset for the clock generator)

• Compatible with memory-based features (line-locked

clock)

• Boundary scan test circuit complies with the

IEEE Std. 1149.1−1990

• I2C-bus controlled (full read-back ability by an external
controller)

• Low power (<0.5 W), low voltage (3.3 V), small package
(LQFP64)

• 5 V tolerant digital I/O ports.

2 APPLICATIONS

• Desktop/Notebook (PCMCIA) video

• Multimedia

• Digital television

• Image processing

• Video phone

• Intercast.

2

C-bus for INTERCAST applications

(ID-Code = 0 F111 02 B)

1997 May 26 3

Philips Semiconductors Preliminary specification

Enhanced Video Input Processor (EVIP) SAA7111A

3 GENERAL DESCRIPTION

The Enhanced Video Input Processor (EVIP) is a
combination of a two-channel analog preprocessing circuit
including source selection, anti-aliasing filter and ADC, an
automatic clamp and gain control, a Clock Generation
Circuit (CGC), a digital multi-standard decoder
(PAL BGHI, PAL M, PAL N, NTSC M, NTSC-Japan
NTSC N and SECAM),
a brightness/contrast/saturation control circuit, a colour
space matrix (see Fig.1) and a 27 MHz VBI-data bypass.

The pure 3.3 V CMOS circuit SAA7111A, analog front-end
and digital video decoder, is a highly integrated circuit for
desktop video applications. The decoder is based on the
principle of line-locked clock decoding and is able to
decode the colour of PAL, SECAM and NTSC signals into
CCIR-601 compatible colour component values. The
SAA7111A accepts as analog inputs CVBS or S-video
(Y/C) from TV or VTR sources. The circuit is I

2

C-bus
controlled.
The SAA7111A then supports several text features as
Line 21 data slicing and a high-speed VBI data bypass for
Intercast.

4 QUICK REFERENCE DATA

SYMBOL PARAMETER MIN. TYP. MAX. UNIT

V
V
T
P

DDD
DDA
amb
A+D

digital supply voltage 3.0 3.3 3.6 V
analog supply voltage 3.1 3.3 3.5 V
operating ambient temperature 0 25 70 °C
analog and digital power − 0.5 − W

5 ORDERING INFORMATION

TYPE

NUMBER

NAME DESCRIPTION VERSION

PACKAGE

SAA7111AHZ LQFP64 plastic low profile quad flat package; 64 leads; body 10 × 10 × 1.4 mm SOT314-2
SAA7111AH QFP64 plastic quad flat package; 64 leads (lead length 1.6 mm); body

SOT393-1

14 × 14 × 2.7 mm

SAA7111AWP PLCC68 plastic leaded chip carrier; 68 leads; body 24 × 24 × 4.5 mm SOT188-2

1997 May 26 4

Philips Semiconductors Preliminary specification

Enhanced Video Input Processor (EVIP) SAA7111A

6 BLOCK DIAGRAM

handbook, full pagewidth

VBI DATA BYPASS

UPSAMPLING FILTER

BYPASS

AI11
AI12

AI21
AI22

n.c.

SSS

n.c.

n.c.

TDI

TCK

TMS

TDO

23 (14)

21 (12)
19 (10)

17 (8)
15 (6)

7,8,9 (64)

22 (13)

36,
37

1 (10)

18,14 (9,5)
20,16 (11,7)

12 (3)
2 (59)
13 (4)
1 (58)

11 (2)

ANALOG

PROCESSING

AND

ANALOG-TO-

DIGITAL

CONVERSION

AD2 AD1

ANALOG

PROCESSING

CONTROL

TEST

CONTROL

BLOCK

FOR
BOUNDARY
SCAN TEST

AND
SCAN TEST

CON

CHROMINANCE

C/CVBS

Y/CVBS

BRIGHTNESS
SATURATION

Y

SYNCHRONIZATION

CIRCUIT

AND

CONTRAST

CONTROL

LUMINANCE

CIRCUIT

CIRCUIT

Y

SAA7111A

LFCO

UV

45 to 50

YUV-to-RGB

CONVERSION

AND

OUTPUT

FORMATTER

Y

2

I

C-BUS

CONTROL

2

I

C-BUS

INTERFACE

CLOCKS

CLOCK

GENERATION

CIRCUIT

POWER-ON

CONTROL

53 to 62

(34 to 39)
(42 to 51)

(52) 63
(31) 42

(53) 64

(61) 4
(62) 5
(63) 6

(54) 65
(55) 66

(21) 30
(22) 31
(20) 29

(23) 32

VPO
(0 : 15)

FEI
HREF

GPSW

IICSA
SDA

SCL

XTAL
XTALI

LLC2
CREF
LLC
RES

AOUT

V

V

SSA1-2

V

DDA1-2

TRST

(57,41,33,25,18)
68,52,44,34,27

V

DDD1-5

The pin numbers given in parenthesis refer to the 64-pin package.

(56,40,32,26,19)
67,51,43,35,28

V

SSD1-5

(30)41(27)38(17)26(29)40(28)39(60)

VREF

RTS0

HSVS

Fig.1 Block diagram.

1997 May 26 5

RTS1

RTCO

3

(15)24(16)25(24)

DDA0

V

SSA0

V

33

MGG061

CE

Philips Semiconductors Preliminary specification

Enhanced Video Input Processor (EVIP) SAA7111A

7 PINNING

SYMBOL

I/O/P DESCRIPTION

(L)QFP64 PLCC68

n.c. 1 10 − do not connect
TDO 2 11 O test data output for boundary scan test; note 3
TDI 3 12 I test data input for boundary scan test; note 3
TMS 4 13 I test mode select input for boundary scan test or scan test; note 3

PINS

V

SSA2

5 14 P ground for analog supply voltage channel 2
AI22 6 15 I analog input 22
V

DDA2

7 16 P positive supply voltage for analog channel 2 (+3.3 V)
AI21 8 17 I analog input 21
V

SSA1

9 18 P ground for analog supply voltage channel 1
AI12 10 19 I analog input 12
V

DDA1

11 20 P positive supply voltage for analog channel 1 (+3.3 V)
AI11 12 21 I analog input 11
V

SSS

13 22 P substrate ground connection
AOUT 14 23 O analog test output; for testing the analog input channels
V

DDA0

15 24 P positive supply voltage for internal Clock Generator Circuit (CGC)

(+3.3 V)

V

SSA0

VREF 17 26 O vertical reference output signal (I

16 25 P ground for internal CGC

2

C-bit COMPO = 0) or inverse
composite blanking signal (I2C-bit COMPO = 1) (enabled via I2C-bus
bit OEHV)

V
V

DDD5
SSD5

18 27 P digital supply voltage 5 (+3.3 V)

19 28 P ground for digital supply voltage 5
LLC 20 29 O line-locked system clock output (27 MHz)
LLC2 21 30 O line-locked clock

1

⁄2output (13.5 MHz)

CREF 22 31 O clock reference output: this is a clock qualifier signal distributed by the

internal CGC for a data rate of LLC2. Using CREF all interfaces on the
VPO bus are able to generate a bus timing with identical phase. If
CCIR 656 format is selected (OFTS0 = 1 and OFTS1 = 1) an inverse
composite blanking signal (pixel qualifier) is provided on this pin.

RES 23 32 O reset output (active LOW); sets the device into a defined state. All data

outputs are in high impedance state. The I2C-bus is reset (waiting for

start condition).
CE 24 33 I chip enable; connection to ground forces a reset
V
V

DDD4
SSD4

25 34 P digital supply voltage input 4 (+3.3 V)
26 35 P ground for digital supply voltage input 4

HS 27 38 O horizontal sync output signal (programmable); the positions of the

positive and negative slopes are programmable in 8 LLC increments over

2

a complete line (= 64 µs) via I

C-bus bytes HSB and HSS. Fine position
adjustment in 2 LLC increments can be performed via I2C-bus bits
HDEL1 and HDEL0.

1997 May 26 6

Philips Semiconductors Preliminary specification

Enhanced Video Input Processor (EVIP) SAA7111A

SYMBOL

I/O/P DESCRIPTION

(L)QFP64 PLCC68

RTS1 28 39 O two functions output; controlled by I2C-bus bit RTSE1.

RTSE1 = 0: PAL line identifier (LOW = PAL line); indicates the inverted
and non-inverted R−Y component for PAL signals. RTSE1 = 1: H-PLL
locked indicator; a high state indicates that the internal horizontal PLL
has locked.

PINS

2

RTS0 29 40 O two functions output; controlled by I

C-bus bit RTSE0.
RTSE0 = 0: odd/even field identification (HIGH = odd field). RTSE0 = 1:
vertical locked indicator; a HIGH state indicates that the internal Vertical
Noise Limiter (VNL) has locked.

VS 30 41 O vertical sync signal (enabled via I

2

C-bus bit OEHV); this signal indicates
the vertical sync with respect to the YUV output. The HIGH period of this
signal is approximately six lines if the VNL function is active. The positive
slope contains the phase information for a deflection controller.

HREF 31 42 O horizontal reference output signal (enabled via I

2

C-bus bit OEHV); this
signal is used to indicate data on the digital YUV bus. The positive slope
marks the beginning of a new active line. The HIGH period of HREF is
720 Y samples long. HREF can be used to synchronize data
multiplexer/demultiplexer. HREF is also present during the vertical
blanking interval.

V

SSD3

V

DDD3

VPO
(15 to 10)

32 43 P ground for digital supply voltage input 3
33 44 P digital supply voltage 3 (+3.3 V)

34 to 39 45 to 50 O digital VPO-bus (Video Port Out) signal; higher bits of the 16-bit VPO-bus

or the 16-bit RGB-bus output signal. The output data rate, the format and
multiplexing scheme of the VPO-bus are controlled via I

2

C-bus bits
OFTS0 and OFTS1. If I2C-bus bit VIPB = 1 the six MSBs of the digitized
input signal are connected to these outputs, configured by the I2C-bus
‘MODE’ bits (see Figs 34 to 41):
LUMA -> VPO15 to VPO8, CHROMA -> VPO7 to VPO0.

V

SSD2

V

DDD2

VPO
(9 to 0)

40 51 P ground for digital supply voltage input 2
41 52 P digital supply voltage 2 (+3.3 V)

42 to 51 53 to 62 O digital VPO-bus output signal; lower bits of the 16-bit YUV-bus or the

16-bit RGB-bus output signal. The output data rate, the format and
multiplexing schema of the VPO-bus are controlled via I

2

C-bus bits
OFTS0 and OFTS1. If I2C-bus bit VIPB = 1 the digitized input signal are
connected to these outputs, configured by the I2C-bus ‘MODE’ bits (see
Figs 34 to 41): LUMA -> VPO15 to VPO8, CHROMA -> VPO7 to VPO0.

FEI 52 63 I fast enable input signal (active LOW); this signal is used to control fast

switching on the digital YUV-bus. A HIGH at this input forces the IC to set
its Y and UV outputs to the high impedance state.

GPSW 53 64 O general purpose switch output; the state of this signal is set via I

2

C-bus

control and the levels are TTL compatible

XT AL 54 65 O second terminal of crystal oscillator; not connected if external clock signal

is used

XTALI 55 66 I input terminal for 24.576MHz crystal oscillator or connection of external

oscillator with CMOS compatible square wave clock signal

V

SSD1

56 67 P ground for digital supply voltage input 1

1997 May 26 7

Philips Semiconductors Preliminary specification

Enhanced Video Input Processor (EVIP) SAA7111A

SYMBOL

I/O/P DESCRIPTION

(L)QFP64 PLCC68

PINS

V

DDD1

57 68 P digital supply voltage input 1 (+3.3 V)
TRST 58 1 I test reset input not (active LOW), for boundary scan test; notes 1, 2 and 3
TCK 59 2 I test clock for boundary scan test; note 3
RTCO 60 3 O real time control output: contains information about actual system clock

frequency, subcarrier frequency and phase and PAL sequence

IICSA 61 4 I I

2

C-bus slave address select;
0 = 48H for write, 49H for read
1 = 4AH for write, 4BH for read

SDA 62 5 I/O serial data input/output (I
SCL 63 6 I/O serial clock input/output (I
n.c. 64 7, 8, 9,

− do not connect

2

C-bus)

2

C-bus)

36 and 37

Notes

1. For board design without boundary scan implementation (pin compatibility with the SAA7110) connect theTRST pin
to ground.

2. This pin provides easy initialization of BST circuit. TRST can be used to force the TAP (Test Access Port) controller
to the Test-Logic-Reset state (normal operation) at once.

3. In accordance with the

IEEE1149.1

standard the pads TCK, TDI, TMS and TRST are input pads with an internal

pull-up transistor and TDO a 3-state output pad.

1997 May 26 8

Philips Semiconductors Preliminary specification

Enhanced Video Input Processor (EVIP) SAA7111A

handbook, full pagewidth

DDD1VSSD1

TDO

TMS

V

SSA2

V

DDA2

V

SSA1

V

DDA1

V

AOUT

V

DDA0

V

SSA0
VREF

n.c.

TDI

AI22

AI21

AI12

AI11

SSS

n.c.
9

8

10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26

SCL

7

6

n.c.

n.c.

SDA
5

IICSA
4

3

2

SAA7111A

1

68

67

V

TRST

TCK

RTCO

66 XTALI

XTAL
65

GPSW
64

FEI
63

VPO0
62

VPO1
61

60
59
58
57
56
55
54
53
52
51
50
49
48
47
46
45
44

VPO3
VPO3
VPO4
VPO5
VPO6
VPO7
VPO8
VPO9

V

DDD2

V

SSD2

VPO10
VPO11
VPO12
VPO13
VPO14
VPO15

V

DDD3

27

28

29LLC

30

31

32

33

34

CE

DDD5

V

SSD5

V

LLC2

CREF

RES

DDD4

V

Fig.2 Pin configuration (PLCC68).

1997 May 26 9

35

SSD4

V

36
n.c.

37
n.c.

38
HS

39

RTS1

40

RTS0

41
VS

42

HREF

43

SSD3

V

MGG059

Philips Semiconductors Preliminary specification

Enhanced Video Input Processor (EVIP) SAA7111A

handbook, full pagewidth

SSD1

DDD1

TRST

V

58

57

SAA7111A

23

24
CE

RES

V

56

25

DDD4

V

XTALI
55

26

SSD4

V

XTAL
54

27
HS

GPSW
53

28

RTS1

FEI
52

29

RTS0

VPO0
51

30
VS

VPO1

50

31

HREF

VPO2
49

32

SSD3

V

48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33

VPO3
VPO4
VPO5

VPO6
VPO7
VPO8
VPO9
V

DDD2

V

SSD2

VPO10
VPO11
VPO12
VPO13
VPO14
VPO15

V

DDD3

MGG060

V

SSA2

V

DDA2

V

SSA1

V

DDA1

V

AOUT

V

DDA0

V

SSA0

n.c.

TDO

TDI

TMS

AI22

AI21

AI12

AI11

SSS

RTCO
60

21

LLC2

TCK
59

22

CREF

IICSA

SDA

SCL

n.c.

64

63

62

61
1
2
3
4
5
6
7
8
9

10
11
12
13
14
15
16

17

18

19

20

LLC

DDD5

V

SSD5

V

VREF

Fig.3 Pin configuration (LQFP64/QFP64).

1997 May 26 10

Philips Semiconductors Preliminary specification

Enhanced Video Input Processor (EVIP) SAA7111A

8 FUNCTIONAL DESCRIPTION

8.1 Analog input processing

The SAA7111A offers four analog signal inputs, two
analog main channels with source switch, clamp circuit,
analog amplifier, anti-alias filter and video CMOS ADC
(see Fig.6).

8.2 Analog control circuits

The anti-alias filters are adapted to the line-locked clock
frequency via a filter control circuit. During the vertical
blanking time, gain and clamping control are frozen.

8.2.1 C

LAMPING

The clamp control circuit controls the correct clamping of
the analog input signals. The coupling capacitor is also
used to store and filter the clamping voltage. An internal
digital clamp comparator generates the information with
respect to clamp-up or clamp-down. The clamping levels
for the two ADC channels are fixed for luminance (60) and
chrominance (128). Clamping time in normal use is set
with the HCL pulse at the back porch of the video signal.

HSY

TV line

HCL

MGL065

handbook, halfpage

255

60

1

analog line blanking

GAIN CLAMP

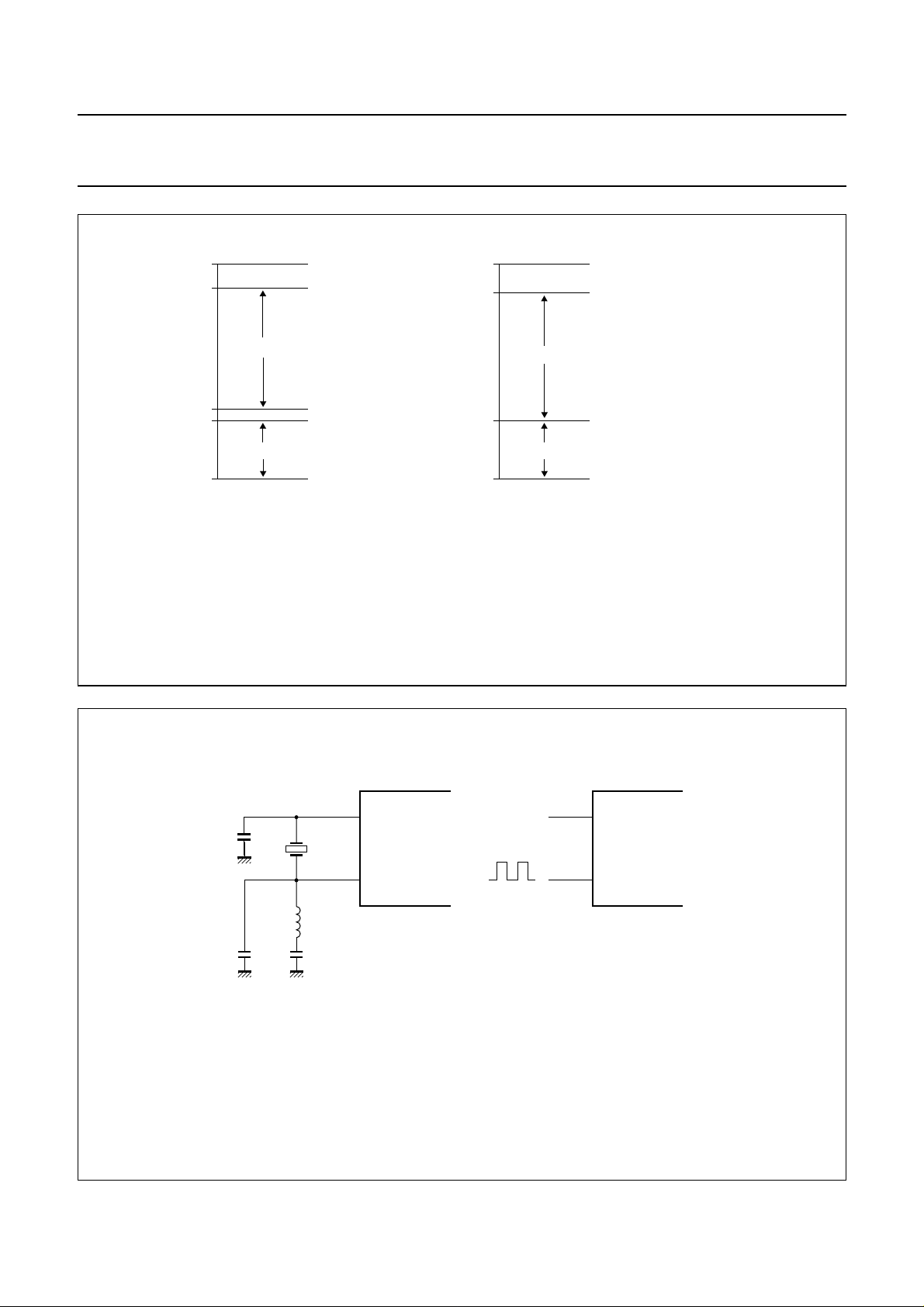

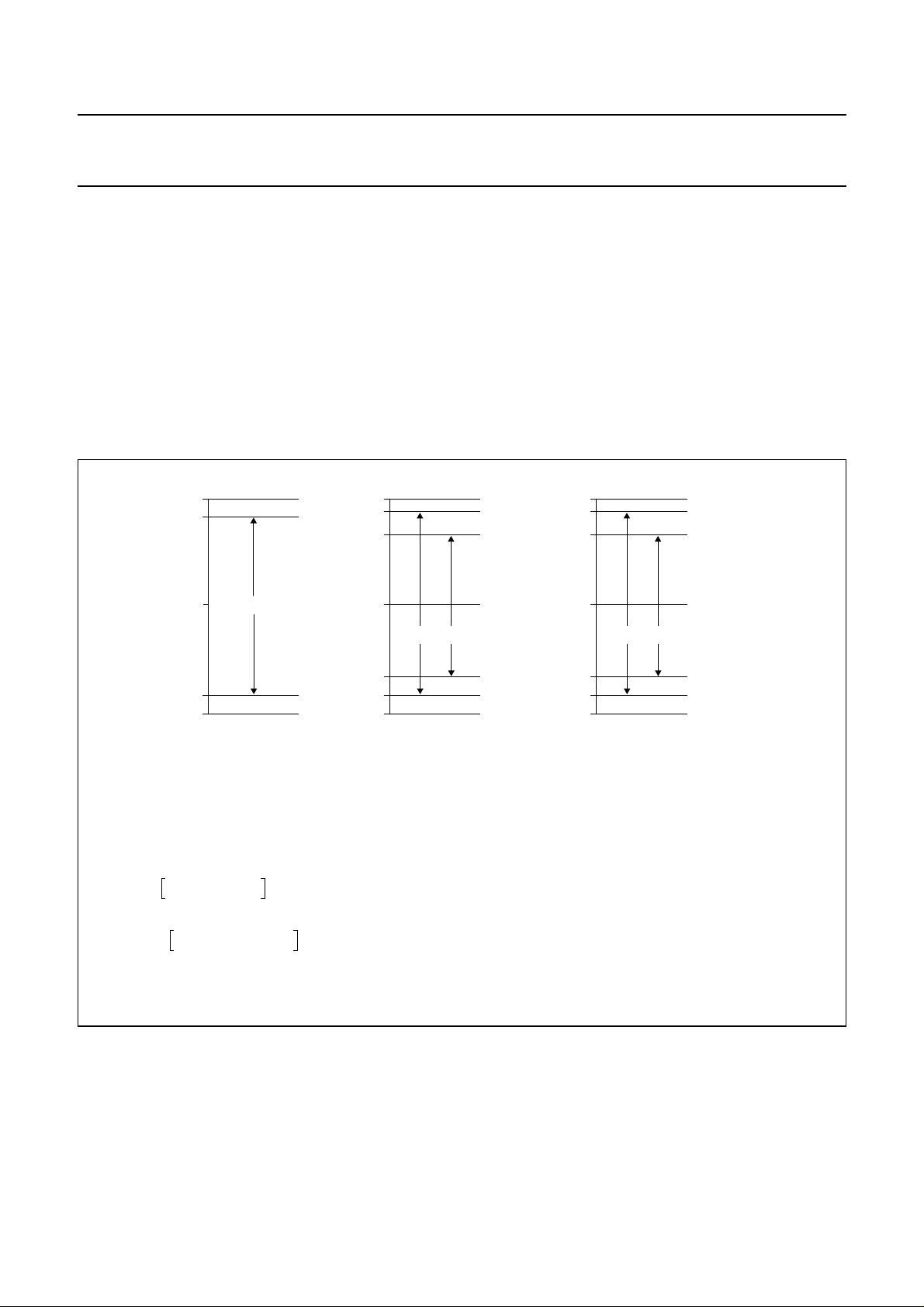

Fig.4 Analog line with clamp (HCL) and gain

range (HSY).

8.2.2 G

AIN CONTROL

Signal (white) peak control limits the gain at signal

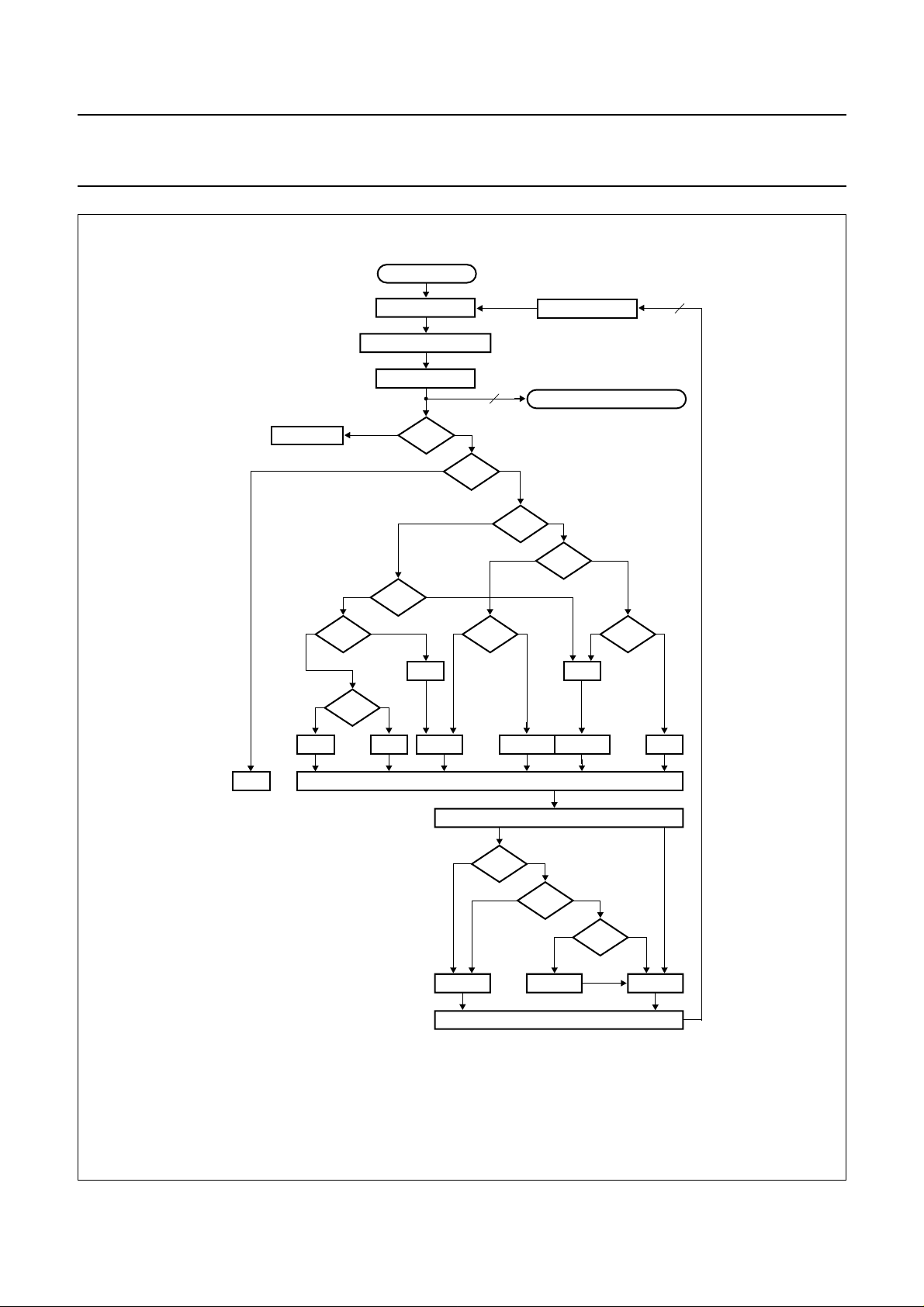

overshoots. The flow charts (see Figs 14 and 15) show
more details of the AGC. The influence of supply voltage
variation within the specified range is automatically
eliminated by clamp and automatic gain control.

The AGC (automatic gain control for luminance) is used to
amplify a CVBS or Y signal to the required signal
amplitude, matched to the ADCs input voltage range.
The AGC active time is the sync bottom of the video signal.

handbook, halfpage

(1 V(p-p) 27/47 Ω)

analog input level

+4.5 dB

−7.5 dB

maximum

minimum

range tbf0 dB

controlled

ADC input level

0 dB

MGG063

Fig.5 Automatic gain range.

8.3 Chrominance processing

The 8-bit chrominance signal is fed to the multiplication
inputs of a quadrature demodulator, where two subcarrier
signals from the local oscillator DTO1 are applied
(0 and 90° phase relationship to the demodulator axis).
The frequency is dependent on the present colour
standard. The output signals of the multipliers are
low-pass filtered (four programmable characteristics) to
achieve the desired bandwidth for the colour difference
signals (PAL, NTSC) or the 0 and 90° FM-signals
(SECAM).

The colour difference signals are fed to the
Brightness/Contrast/Saturation block (BCS), which
includes the following five functions:

• AGC (Automatic Gain Control for chrominance PAL and
NTSC)

• Chrominance amplitude matching (different gain factors
for R−Y and B−Y to achieve CCIR-601 levels Cr and Cb
for all standards)

• Chrominance saturation control

• Luminance contrast and brightness.

• Limiting YUV to the values 1 (min.) and 254 (max.) to

fulfil CCIR-601 requirements.

The gain control circuit receives (via the I2C-bus) the static
gain levels for the two analog amplifiers or controls one of
these amplifiers automatically via a built-in automatic gain
control (AGC) as part of the Analog Input Control (AICO).

1997 May 26 11

Philips Semiconductors Preliminary specification

Enhanced Video Input Processor (EVIP) SAA7111A

The SECAM-processing contains the following blocks:

• Baseband ‘bell’ filters to reconstruct the amplitude and
phase equalized 0 and 90° FM-signals

• Phase demodulator and differentiator
(FM-demodulation)

• De-emphasis filter to compensate the pre-emphasised
input signal, including frequency offset compensation
(DB or DR white carrier values are subtracted from the
signal, controlled by the SECAM-switch signal).

The burst processing block provides the feedback loop of
the chroma PLL and contains;

• Burst gate accumulator

• Colour identification and killer

• Comparison nominal/actual burst amplitude (PAL/NTSC

standards only)

• Loop filter chrominance gain control (PAL/NTSC
standards only)

• Loop filter chrominance PLL (only active for PAL/NTSC
standards)

• PAL/SECAM sequence detection, H/2-switch
generation

• Increment generation for DTO1 with divider to generate
stable subcarrier for non-standard signals.

The chrominance comb filter block eliminates crosstalk
between the chrominance channels in accordance with the
PAL standard requirements. For NTSC colour standards
the chrominance comb filter can be used to eliminate
crosstalk from luminance to chrominance (cross-colour)
for vertical structures. The comb filter can be switched off
if desired. The embedded line delay is also used for
SECAM recombination (cross-over switches).

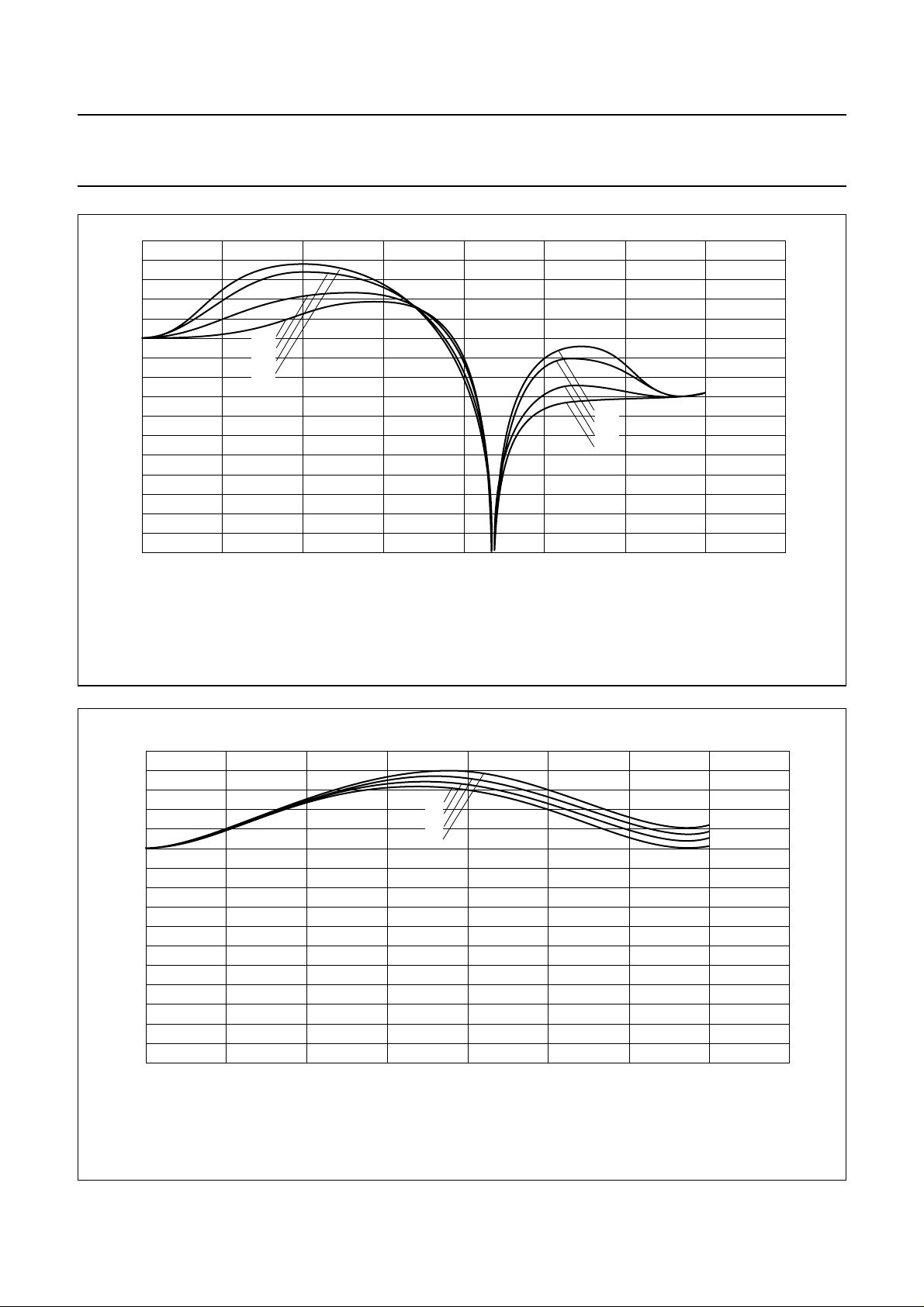

The high frequency components of the luminance signal
can be peaked (control for sharpness improvement via

2

C-bus) in two band-pass filters with selectable transfer

I
characteristic. This signal is then added to the original
(unpeaked) signal. A switchable amplifier achieves
common DC amplification, because the DC gains are
different in both chrominance trap modes. The improved
luminance signal is fed to the BCS control located in the
chrominance processing block (see Fig.8).

8.5 RGB matrix

Y, Cr and Cb data are converted after interpolation into
RGB data in accordance with CCIR-601
recommendations. The realized matrix equations consider
the digital quantization:

R = Y + 1.371 Cr
G=Y−0.336 Cb − 0.698 Cr
B = Y + 1.732 Cb

After dithering (noise shaping) the RGB data is fed to the
output interface within the VPO-bus output formatter.

8.6 VBI-data bypass

For a 27 MHz VBI-data bypass the offset binary CVBS
signal is upsampled behind the ADCs. Upsampling of the
CVBS signal from 13.5 to 27 MHz is possible, because the
ADCs deliver high performance at 13.5 MHz sample clock.
Suppressing of the back folded CVBS frequency
components after upsampling is achieved by an
interpolation filter (see Fig.43).

The TUF block on the digital top level performs the
upsampling and interpolation for the bypassed CVBS
signal (see Fig.7).

The resulting signals are fed to the variable Y-delay
compensation, RGB matrix, dithering circuit and output
interface, which contains the VPO output formatter and the
output control logic (see Fig.7).

8.4 Luminance processing

The 8-bit luminance signal, a digital CVBS format or a
luminance format (S-VHS, HI8), is fed through a
switchable prefilter. High frequency components are
emphasized to compensate for loss. The following
chrominance trap filter (f
frequency selectable) eliminates most of the colour carrier
signal, therefore, it must be bypassed for S-video
(S-VHS, HI8) signals.

1997 May 26 12

= 4.43 or 3.58 MHz centre

0

For bypass details see Figs 9 to 11.

8.7 VPO-bus (digital outputs)

The 16-bit VPO-bus transfers digital data from the output
interfaces to a feature box or a field memory, a digital
colour space converter (SAA7192 DCSC), a video
enhancement and digital-to-analog processor
(SAA7165 VEDA2) or a colour graphics board
(Targa-format) as a graphical user interface.

Philips Semiconductors Preliminary specification

Enhanced Video Input Processor (EVIP) SAA7111A

The output data formats are controlled via the I2C-bus bits
OFTS0, OFTS1 and RGB888. Timing for the data stream
formats, YUV (4,: 1 : 1) (12-bit), YUV (4,: 2 : 2) (16-bit),
RGB (5, 6, 5) (16-bit) and RGB (8, 8, 8) (24-bit) with an
LLC2 data rate, is achieved by marking each second
positive rising edge of the clock LLC in conjunction with
CREF (clock reference) (except RGB (8, 8, 8), see special
application in Fig.33).
The higher output signals VPO15 to VPO8 in the YUV
format perform the digital luminance signal. The lower
output signals VPO7 to VPO0 in the YUV format are the
bits of the multiplexed colour difference signals (B−Y) and
(R−Y). The arrangement of the RGB (5, 6, 5) and
RGB (8, 8, 8) data stream bits on the VPO-bus is given in
Table 6.

The data stream format YUV 4:2:2 (the 8 higher output
signals VPO15 to VPO8) in LLC data rate fulfils the
CCIR-656 standard with its own timing reference code at
the start and end of each video data block.

A pixel in the format tables is the time required to transfer
a full set of samples. If 16-bit 4 : 2 : 2 format is selected
two luminance samples are transmitted in comparison to
one (B−Y) and one (R−Y) sample within a pixel.The time
frames are controlled by the HREF signal.

Fast enable is achieved by setting input FEI to LOW.
The signal is used to control fast switching on the digital
VPO-bus. HIGH on this pin forces the VPO outputs to a
high-impedance state (see Figs 19 and 20). The I2C-bus
bit OEYC has to be set HIGH to use this function.

The digitized PAL, SECAM or NTSC signals AD1 (7 to 0)
and AD2 (7 to 0) are connected directly to the VPO-bus
via I2C-bus bit VIPB = 1 and MODE = 4, 5, 6 or 7.

AD1 (7 to 0) -> VPO (15 to 8) and
AD2 (7 to 0) -> VPO (7 to 0)

• VREF: The VREF output delivers a vertical reference
signal or an inverse composite blank signal controlled
via the I2C-bus [subaddress 11, inverse composite
blank (COMPO)]. Furthermore four different modes of
vertical reference signals are selectable via the I2C-bus
[subaddress 13, vertical reference output control
(VCTR1 and VCTR0)]. The description of VREF timing
and position is illustrated in Figs 16, 17, 25 and 26.

• CREF: The CREF output delivers a clock/pixel qualifier
signal for external interfaces to synchronize to the
VPO-bus data stream.

Four different modes for the clock qualifier signal are
selectable via the I2C-bus [subaddress 13, clock
reference output control (CCTR1 and CCTR0].
The description of CREF timing and position is
illustrated in Figs 17, 19, 21 and 22.

8.9 Synchronization

The prefiltered luminance signal is fed to the
synchronization stage. Its bandwidth is reduced to 1 MHz
in a low-pass filter. The sync pulses are sliced and fed to
the phase detectors where they are compared with the
sub-divided clock frequency. The resulting output signal is
applied to the loop filter to accumulate all phase
deviations. Internal signals (e. g. HCL and HSY) are
generated in accordance with analog front-end
requirements. The output signals HS, VS, and PLIN are
locked to the timing reference, guaranteed between the
input signal and the HREF signal, as further improvements
to the circuit may change the total processing delay. It is
therefore not recommended to use them for applications
which require absolute timing accuracy on the input
signals. The loop filter signal drives an oscillator to
generate the line frequency control signal LFCO
(see Fig.8).

The selection of the analog input channels is controlled via
I2C-bus subaddress 02 MODE select.

The upsampled 8-bit offset binary CVBS signal (VBI-data
bypass) is multiplexed under control of the I2C-bus to the
digital VPO-bus (see Fig.9).

8.8 Reference signals HREF, VREF and CREF

• HREF: The positive slope of the HREF output signal
indicates the beginning of a new active video line.
The high period is 720 luminance samples long and is
also present during the vertical blanking.
The description of timing and position from HREF is
illustrated in Figs 16, 17, 22 and 24.

1997 May 26 13

8.10 Clock generation circuit

The internal CGC generates all clock signals required for
the video input processor. The internal signal LFCO is a
digital-to-analog converted signal provided by the
horizontal PLL. It is the multiple of the line frequency
(6.75 MHz = 429/432 × f
multiplied by a factor of 2 or 4 in the PLL circuit (including
phase detector, loop filtering, VCO and frequency divider)
to obtain the LLC and LLC2 output clock signals.
The rectangular output clocks have a 50% duty factor
(see Fig.27).

). Internally the LFCO signal is

H

Philips Semiconductors Preliminary specification

Enhanced Video Input Processor (EVIP) SAA7111A

8.11 Power-on reset and CE input

A missing clock, insufficient digital or analog V

DDA0

supply
voltages (below 2.7 V) will initiate the reset sequence; all
outputs are forced to 3-state. The indicator output RES is
LOW for approximately 128LLC after the internal reset and
can be applied to reset other circuits of the digital TV
system.

It is possible to force a reset by pulling the chip enable
(CE) to ground. After the rising edge of CE and sufficient
power supply voltage, the outputs LLC, LLC2, CREF,
RTCO, RTS0, RTS1, GPSW and SDA return from 3-state
to active, while HREF, VREF, HS and VS remain in 3-state

2

and have to be activated via I

C-bus programming (see

Table 5).

8.12 RTCO output

The real time control and status output signal contains
serial information about the actual system clock
(increment of the HPLL), subcarrier frequency [increment
and phase (via reset) of the FSC-PLL] and PAL sequence
bit. The signal can be used for various applications in
external circuits, e.g. in a digital encoder to achieve clean
encoding (see Fig.21).

8.13.1 S

UGGESTIONS FOR I

DISPLAY SOFTWARE READING LINE

2

C-BUS INTERFACE OF THE

-21 DATA

There are two methods by which the software can acquire
the data:

1. Synchronous reading once per frame (or once per
field); It can use either the rising edge (Line-21 Field 1)
or both edges (Line-21 Field 1 or 2) of the ODD signal
(pin RTSO) to initiate an I2C-bus read transfer of the
three registers 1A, 1B and 1C.

2. Asynchronous reading; It can poll either the F1RDY bit
(Line-21 Field 1) or both F1RDY/F2RDY bits (Line-21
Field 1 or 2). After valid data has been read the
corresponding F*RDY bit is set to LOW until new data
has arrived. The polling frequency has to be slightly
higher than the frame or field frequency, respectively.

8.13 The Line-21 text slicer

The text slicer block detects and acquires Line-21 Closed
Captioning data from a 525-line CVBS signal. Extended
data services on Line-21 Field 2 are also supported.
If valid data is detected the two data bytes are stored in two
I2C-bus registers. A parity check is also performed and the
result is stored in the MSB of the corresponding byte.
A third I2C-bus register is provided for data valid and data
ready flags. The two bits F1VAL and F2VAL indicate that
the input signal carries valid Closed Captioning data in the
corresponding fields. The data ready bits F1RDY and
F2RDY have to be evaluated if asynchronous I2C-bus
reading is used.

1997 May 26 14

Philips Semiconductors Preliminary specification

Enhanced Video Input Processor (EVIP) SAA7111A

AOUT

(14) 23

AND

TEST

SELECTOR

BUFFER

ADC2

AOSL (1 : 0)

SWITCH

BYPASS

FILTER

ANTI-ALIAS

DAC9

ANALOG

AMPLIFIER

FUSE (1 : 0)

ANALOG

ADC1

SWITCH

BYPASS

FILTER

ANTI-ALIAS

DAC9

AMPLIFIER

VERTICAL

FUSE (1 : 0)

CONTROL

BLANKING

CONTROL

ANTI-ALIAS

GAIN

CONTROL

VBLNK

SVREF

VBSL 8 8

HOLDG

GAFIX

HSY

GLIMB

GLIMT

WPOFF

GAI20-GAI28

GAI10-GAI18

GUDL0-GUDL2

HLNRS

WIPA

SLTCA

AD1BYPAD2BYP

handbook, full pagewidth

CROSS MULTIPLEXER

UPTCV

Fig.6 Analog input processing.

987 (64)

n.c.

n.c.

n.c.

18 (9)

SSA1

V

14 (5)

SSA2

V

CLAMP

CIRCUIT

SWITCH

SOURCE

15 (6)

17 (8)

AI22

AI21

20 (11)

DDA1

V

16 (7)

DDA2

V

CLAMP

CIRCUIT

SWITCH

SOURCE

19 (10)

21 (12)

AI12

AI11

1997 May 26 15

CLAMP

CONTROL

MODE

CONTROL

HCL

MODE 0

MODE 1

MODE 2

ANALOG

CONTROL

22 (13)

SSS

V

CHRLUM

MGC655

The pin numbers given in parenthesis refer to the 64-pin package.

Philips Semiconductors Preliminary specification

Enhanced Video Input Processor (EVIP) SAA7111A

k, full pagewidth

AD1BYPAD2BYP

sequential

SECAM

PROCESSING

UV signals

LEVEL

LOW-PASS

FEI

(52) 63

53 to 62

(42 to 51),

OUTPUT

RGB

RGB MATRIX

Y

AND

CONTRAST,

BRIGHTNESS,

ADJUSTMENT,

VPO

(9 : 0)

VPO

45 to 50

(34 to 39),

AND

INTERFACE

FORMATTER

dithering

interpolation

CONTROL

SATURATION

PHASE

DETECTOR

AMPLITUDE

DEMODULATOR

HREF

(15 : 10)

(31) 42

COMB

FILTERS

DIT CBR

UV

GAIN

CONTROL

AND Y-DELAY

COMPENSATION

BURST GATE

LOOP FILTER

ACCUMULATOR

GPSW

RTSE1

OFTS0

OFTS1

SECAM

DCCF

RECOMBINATION

BRIG

CONT

CODE

FCTCCSTD 1

RTSE0

VIPB

VLOF

RGB888

OEYC

OEHV

/2 switch signal

H

f

SATN

COLO

COMPO

FECO

VRLN

RTCO

(60) 3

VSTA (8 : 0)

VSTO (8 : 0)

MGG062

Y

Fig.7 Chrominance circuit.

CHBW0

CHRLUM

10 (1)

n.c.

CHBW1

QUADRATURE

DEMODULATOR

TEST

CONTROL

2 (59)

1 (58)

13 (4)

12 (3)

TDI

TCK

TRST

BLOCK

11 (2)

TDO

TMS

SUBCARRIER

AND

INCREMENT

SUBCARRIER

GENERATION

HUEC

GENERATION

POWER-ON

(57,41,33,

25,18)

68,52,44,

34,27

DDD1-5

V

1997 May 26 16

DIVIDER

CONTROL

32 (23)

RES

INCS

CSTD 0

CLOCKS
CE

(56,40,32,26,19)

TUF

VBI DATA BYPASS

67,51,43,35,28

SSD1-5

V

LUM

The pin numbers given in parenthesis refer to the 64-pin package.

Philips Semiconductors Preliminary specification

Enhanced Video Input Processor (EVIP) SAA7111A

DDA0VSSA0

CREF

LLC

LLC2

CE

V

XTALI

XTAL

(22) 31

CLOCKS

(21)30

(20) 29

CLOCK

GENERATOR

LINE-LOCKED

(24)33

(16) 25

(15) 24

CLOCK

CIRCUIT

GENERATION

(54) 65

(55) 66

CLOCK

CRYSTAL

GENERATOR

MGC654

CLOCK CIRCUIT

DAC6

INCS

APER0

APER1

Y

AND

ADDING

STAGE

WEIGHTING

VBLB

AMPLIFIER

MATCHING

VBLB

PHASE

FINE

PHASE

DETECTOR

COARSE

DETECTOR

AUFD

HSB

HPLL

HSS

VTRC

VTRC

EXFIL

STTC

HLCK

FSEL

VTRC

TIME

DISCRETE

OSCILLATOR 2

2

LOOP FILTER

(28)

(27)

COUNTER

39

RTS1

38

HS

handbook, full pagewidth

BPSS0

BPSS1

FILTER

VARIABLE

BAND-PASS

PREF

SYNC SLICER

LUMINANCE CIRCUIT

TRAP

CHROMINANCE

LUM

PREFILTER

BYPS

VBLB

PREF

SYNC

PREFILTER

TEXT

LINE 21

1997 May 26 17

FIDT

VNOI0

VNOI1

VTRC

SYNCHRONIZATION CIRCUIT

BYTE1

SLICER

BYTE2

STATUS

2

I C BUS CONTROL

VERTICAL

PROCESSOR

2

I C-BUS

INTERFACE

64 (53)

GPSW

(17)
(29)

(30)

(62)

(63)

(61)

26

VREF

40

RTS0

41

VS

5

SDASCLIICSA

6

4

Fig.8 Luminance and sync processing.

The pin numbers given in parenthesis refer to the 68-pin package.

Philips Semiconductors Preliminary specification

Enhanced Video Input Processor (EVIP) SAA7111A

handbook, full pagewidth

TBP7 to 0

(CVBS)

Y or YUV

BCHI1 to 0

2

I

C-bus

VBP0

VBP4

0

MUX

CVBS

1

UP

(LUMA see Fig. 37)

SWHI

BCHI1 BCHI0 SWHI

0
0
1
1

AD1BYP

0
1
0
1

1

0
VBP0
VBP4

0

1

MUX
BYP

UP

REGISTER

VPO15 to 8

VPIB

2

I

C-bus

UV or YUV

BCLO1 to 0

2

I

C-bus

V_GATE

(programmable)

HREFINT

VBP0

VBP4

0

MUX

CVBS

1

UP

(CHROMA see Fig. 37)

SWLO

BCLO1 BCLO0 SWLO

0
0
1
1

EN

AD2BYP

0
1
0
1

REG

CLOCK 0

1

0
VBP0
VBP4

0

MUX
BYP

UP

1

4 × REG

CLOCK 0

REGISTER

VPO7 to 0

VBP4

VBP0

MGG064

HREFINT = internal horizontal reference.
TBP = upsampled CVBS input data (27 MHz).
AD1BYP/AD2BYP = digitized CVBS input data and Y/C input data (13.5 MHz).
VBP0 = programmable vertical reference signal.
VBP4 = delayed programmable vertical reference signal (4LLC clocks delay).

Fig.9 Multiplexing of the CVBS signal to the VPO-bus.

1997 May 26 18

Philips Semiconductors Preliminary specification

Enhanced Video Input Processor (EVIP) SAA7111A

handbook, full pagewidth

VREF CCIR 656

HREFINT

VBP0
VBP4

VREFINT

HREFINT

VREF_CCIR 656 = vertical reference signal referring to the field interval definitions of CCIR656.
HREFINT = internal horizontal reference signal.
VREFINT = internal vertical reference signal.
VBP0 = programmable vertical reference signal.
VBP4 = delayed programmable vertical reference signal (4LLC clocks delay).

REG

EN

REG

EN

CLOCK 0

CLOCK 0

V

V

C

C

T

T

R

R

0

1

0

0

VREFINT

0

1

VREF CCIR 656

1

0

VBP0

1

1

VBP4

VCTR1 to 0

VREFOUT

Fig.10 VREF output signal generation.

0

MUX

1

COMPO

REG

VREF

CLOCK 0

MGG065

handbook, full pagewidth

C

C

C

CREFINT

selected

VREF

CCTR1 to 0

CREFINT = internal clock qualifier signal.

C

T

T

R

R

0

1

0

0

0

1

1

0

1

1

CREFOUT

CREFINT
0 if VREF = 0
1 if VREF = 0
1 (always HIGH)

Fig.11 CREF output signal generation.

1997 May 26 19

REG

CREF

CLOCK 0

MGG066

Philips Semiconductors Preliminary specification

Enhanced Video Input Processor (EVIP) SAA7111A

9 BOUNDARY-SCAN TEST

The SAA7111A has built in logic and 5 dedicated pins to
support boundary-scan testing which allows board testing
without special hardware (nails). The SAA7146 follows the

“IEEE Std. 1149.1 - Standard Test Access Port and
Boundary-Scan Architecture

Group (JTAG) chaired by Philips.
The 5 special pins are Test Mode Select (TMS), Test

Clock (TCK), Test Reset (TRST), Test Data Input (TDI)
and Test Data Output (TDO).

The BST functions BYPASS, EXTEST, INTEST,
SAMPLE, CLAMP and IDCODE are all supported
(see Table 1). Details about the JTAG BST-TEST can be
found in the specification “
containing the detailed Boundary-Scan Description
Language (BSDL) description of the SAA7111A is
available on request.

9.1 Initialization of boundary-scan circuit

The TAP controller of an IC should be in the reset state
(TEST_LOGIC_RESET) when the IC is in functional
mode. This reset state also forces the instruction register
into a functional instruction such as IDCODE or BTPASS.

” set by the Joint Test Action

EEE Std. 1149.1”

. A file

9.2 Device identification codes

A Device Identification Register (DIR) is specified in

“IEEE
Std. 1149.1-1990 - IEEE Standard Test Access Port and
Boundary-Scan Architecture

is a 32-bit register which contains fields for the
specification of the IC manufacturer, the IC part number
and the IC version number. Its biggest advantage is the
possibility to check for the correct ICs mounted after
production and determination of the version number of ICs
during field service.

When the IDCODE instruction is loaded into the BST
instruction register, the identification register will be
connected between TDI and TDO of the IC.
The identification register will load a component specific
code during the CAPTURE_DATA_REGISTER state of
the TAP controller and this code can subsequently be
shifted out. At board level this code can be used to verify
component manufacturer, type and version number.
The device identification register contains 32-bits,
numbered 31 to 0, where bit 31 is the Most Significant Bit
(MSB) (nearest to TDI) and bit 0 is the Least Significant Bit
(LSB) (nearest to TDO); see Fig.12.

” (IEEE Std. 1149.1b-1994). It

To solve the power-up reset, the standard specifies that
the TAP controller will be forced asynchronously to the
TEST_LOGIC_RESET state by setting the TRST pin
LOW.

Table 1 BST instructions supported by the SAA7111A

INSTRUCTION DESCRIPTION

BYPASS this mandatory instruction provides a minimum length serial path (1 bit) between TDI and TDO

when no test operation of the component is required

EXTEST this mandatory instruction allows testing of off-chip circuitry and board level interconnections

SAMPLE This mandatory instruction can be used to take a sample of the inputs during normal operation of

the component. It can also be used to preload data values into the latched outputs of the
boundary-scan register.

CLAMP This optional instruction is useful for testing when not all ICs have BST. This instruction addresses

the bypass register while the boundary-scan register is in external test mode.

IDCODE this optional instruction will provide information on the components manufacturer, part number and

version number

INTEST this optional instruction allows testing of the internal logic (no support for customers available)

USER1 this private instruction allows testing by the manufacturer (no support for customers available)

1997 May 26 20

Philips Semiconductors Preliminary specification

Enhanced Video Input Processor (EVIP) SAA7111A

handbook, full pagewidth

MSB LSB
31

28 27 12 11 1 0

TDI TDO

4-bit

version

code

16-bit part number 11-bit manufacturer

0000001010111110001000100010010

indentification

1

MGL111

Fig.12 32 bits of identification code.

1997 May 26 21

Philips Semiconductors Preliminary specification

Enhanced Video Input Processor (EVIP) SAA7111A

10 GAIN CHARTS

handbook, full pagewidth

handbook, halfpage

7.5

factor

dB

5.5

3.5

bit [8] = 1

1.5

−0.5

−2.5

−4.5

0

= 20 x log10 gain =

dB

i > 256

= 20 x log10 gain =

factor

dB

(

bit [8] = 0

256 512

gain value (i)

Fig.13 Amplifier curve.

ANALOG INPUT

512

768 − i

(

i < 256

(

MGC648

257 + i

512

(

ADC

NO BLANKING ACTIVE

10 10

10

CLL

+ CLAMP − CLAMP

WIPE = white peak level (254); SBOT = sync bottom level (1); CLL = clamp level [60 Y (128 C)];
HSY = horizontal sync pulse; HCL = horizontal clamp pulse.

10

VBLK

GAIN -><- CLAMP

HCL HSY

01 10

SBOT

NO CLAMP

+ GAIN − GAIN

Fig.14 Clamp and gain flow.

fast − GAIN

WIPE

slow + GAIN

MGC647

1997 May 26 22

Philips Semiconductors Preliminary specification

Enhanced Video Input Processor (EVIP) SAA7111A

handbook, full pagewidth

NO ACTION

0

1

ANTI-ALIAS FILTER

0

1

<4

>248

ANALOG INPUT

AMPLIFIER

ADC

1

VBLK

1

1

>254

X = 0

0

0

HOLDG

1

<1

gain

8

0

1

X

1

0

DAC

LUMA/CHROMA DECODER

0

0

HSY

1

>254

X = 1

9

0

+1/F

STOP

X = system variable; Y = IAGV − FGVI > GUDL; VBLK = vertical blanking pulse;
HSY = horizontal sync pulse; AGV = actual gain value; FGV = frozen gain value.

−

1/LLC2

+1/L

GAIN ACCUMULATOR (18 BITS)

ACTUAL GAIN VALUE 9-BIT (AGV) [−6/+6 dB]

1

AGV

Fig.15 Gain flow chart.

+1/LLC2 −1/LLC2

0

X

1

HSY

1

UPDATE

GAIN VALUE 9-BIT

+/− 0

0

0

Y

FGV

MGC652

1997 May 26 23

Philips Semiconductors Preliminary specification

Enhanced Video Input Processor (EVIP) SAA7111A

11 LIMITING VALUES

In accordance with the Absolute Maximum Rating System (IEC 134); all ground pins connected together and all supply
pins connected together.

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT

V

DDD

V

DDA

V

i

V

o

∆V

SS

T

stg

T

amb

T

amb(bias)

V

esd

digital supply voltage −0.5 +4.6 V
analog supply voltage −0.5 +4.6 V
input voltage −0.5 VDD+ 0.5

V

(4.6 max)

output voltage −0.5 VDD+ 0.5

V

(4.6 max)

voltage difference between V

SSAall

and V

SSall

− 100 mV
storage temperature −65 +150 °C
operating ambient temperature 0 70 °C
operating ambient temperature under bias −10 +80 °C
electrostatic discharge all pins note 1 −2000 +2000 V

Note

1. Human body model: equivalent to discharging a 100 pF capacitor through a 1.5 kΩ resistor.

12 CHARACTERISTICS

V

= 3.0 to 3.6 V; V

DDD

= 3.1 to 3.5 V; T

DDA

=25°C; unless otherwise specified.

amb

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Supplies

V
I

DDD

P
V
I

DDA

P
P

DDD

D
DDA

A
A+D

digital supply voltage 3.0 3.3 3.6 V
digital supply current − 63 70 mA
digital power − 0.21 − W
analog supply voltage 3.1 3.3 3.5 V
analog supply current − 63 − mA
analog power − 0.21 − W
analog and digital power − 0.42 − W

Analog part

I

clamp

V

i(p-p)

clamping current VI=0.9VDC −±3.5 −µA
input voltage

(peak-to-peak value)

for normal video levels
[1 V (p-p)]; −3dB

0.3 0.7 1.2 V

termination 27/47 Ω and
AC coupling required;
coupling capacitor = 22 nF

| input impedance clamping current off 200 −− kΩ

|Z

i

C

i

α

cs

input capacitance −−10 pF
channel crosstalk fi= 5 MHz −−−50 dB

1997 May 26 24

Philips Semiconductors Preliminary specification

Enhanced Video Input Processor (EVIP) SAA7111A

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Analog-to-digital converters

B bandwidth at −3dB − 15 − MHz
φ

diff

G

diff

f

clkADC

DLE DC differential linearity

ILE DC integral linearity error − 1 − LSB

Digital inputs

V

IL(SCL,SDA)

V

IH

V

IL(xtal)

V

IH(xtal)

V

ILn

V

IHn

I

LI

C

i

C

i(n)

differential phase

− 2 − deg
(amplifier plus anti-alias
filter = bypass)

differential gain

− 2 − %
(amplifier plus anti-alias
filter = bypass)

ADC clock frequency 12.8 − 14.3 MHz

− 0.7 − LSB
error

LOW level input voltage

−0.5 − +0.3V

DDD

V

pins SDA and SCL
HIGH level input voltage

0.7V

DDD

− V

DDD

+ 0.5 V

pins SDA and SCL
LOW level CMOS input

−0.3 − +0.8 V
voltage pin XTALI

HIGH level CMOS input

2.0 − V

DDD

+ 0.3 V

voltage pin XTALI
LOW level input voltage all

−0.3 − +0.8 V
other inputs

HIGH level input voltage

2.0 − 5.5 V
all other inputs

input leakage current −−1 µA
input capacitance inputs and outputs at

−−8pF

high-impedance

input capacitance all other

−−5pF
inputs

Digital outputs

V

OL(SCL,SDA)

V

OL

V

OH

V

OL(clk)

LOW level output voltage
pins SDA and SCL

LOW level output voltage V
HIGH level output voltage V
LOW level output voltage

SDA/SCL at 3 mA (6 mA)
sink current

= min, IOL= 2 mA 0 − 0.4 V

DDD

= min, IOH= −2 mA 2.4 − V

DDD

for clocks

V

OH(clk)

HIGH level output voltage
for clocks

FEI input timing

t

SU;DAT

t

HD;DAT

input data set-up time 13 −− ns
input data hold time 3 −− ns

1997 May 26 25

−−0.4 (0.6) V

+ 0.5 V

DDD

−0.5 − +0.6 V

2.4 − V

DDD

+ 0.5 V

Philips Semiconductors Preliminary specification

Enhanced Video Input Processor (EVIP) SAA7111A

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Data and control output timing; note 1

C

L

t

OHD;DAT

t

PD

t

PDZ

Clock output timing (LLC and LLC2); note 2
C

L(LLC)

T

cy

δ

LLC

t

r

t

f

t

d

output load capacitance 15 − 40 pF
output hold time CL=15pF 4 −− ns
propagation delay CL=25pF −−20 ns
propagation delay to

−−20 ns
3-state

output load capacitance 15 − 40 pF
cycle time LLC 35 − 39 ns

LLC2 70 − 78 ns

duty factors for t
and t

LLC2H/tLLC2

LLCH/tLLC

CL=25pF 40 − 60 %

rise time LLC, LLC2 −−5ns
fall time LLC, LLC2 −−5ns
delay time LLC output to

LLC2 output

at 1.5 V;
LLC/LLC2 = 25 pF

−4 − +8 ns

Data qualifier output timing (CREF)

t

OHD;CREF

t

PD;CREF

output hold time CL=15pF 4 −− ns
propagation delay from

positive edge of LLC

Clock input timing (XTALI)

δ

XTALI

duty factor for t

XTALIH/tXTALI

Horizontal PLL

f

∆f

Hn

H/fHn

nominal line frequency 50 Hz field − 15625 − Hz

permissible static deviation −−5.7 %

Subcarrier PLL

f

SCn

nominal subcarrier
frequency

∆f

SC

lock-in range ±400 −− Hz

CL=25pF −−20 ns

nominal frequency 40 − 60 %

60 Hz field − 15734 − Hz

PAL BGHI − 4433619 − Hz
NTSC M; NTSC-Japan − 3579545 − Hz
PAL M − 3575612 − Hz
PAL N − 3582056 − Hz

1997 May 26 26

Philips Semiconductors Preliminary specification

Enhanced Video Input Processor (EVIP) SAA7111A

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Crystal oscillator

f

n

∆f/f

n

∆Tf/f

n

CRYSTAL SPECIFICATION (X1)
T

amb(X1)

C

L

R

s

C

1

C

0

Notes

1. The levels must be measured with load circuits; 1.2 kΩ at 3 V (TTL load); CL= 50 pF.

2. The effects of rise and fall times are included in the calculation of t
drawings and conditions illustrated in Figs 16 and 17.

3. Order number: Philips 4322 143 05291.

nominal frequency 3rd harmonic; note 3 − 24.576 − MHz
permissible nominal

−−±50 10

−6

frequency deviation
permissible nominal

−−±20 10

−6

frequency deviation with
temperature

operating ambient

0 − 70 °C

temperature
load capacitance 8 −− pF
series resonance resistor − 40 80 Ω
motional capacitance − 1.5 ±20% − fF
parallel capacitance − 3.5 ±20% − pF

OHD;DAT

, tPD and t

. Timings and levels refer to

PDZ

Table 2 Processing delay

FUNCTION

TYPICAL ANALOG DELAY

AI22 −> ADCIN (AOUT) (ns)

Without amplifier or anti-alias filter 15

With amplifier and anti-alias filter 75

DIGITAL DELAY

ADCIN −> VPO (LLC CLOCKS)

[YDEL(2 to 0) = 000]

179With amplifier, without anti-alias filter 25

1997 May 26 27

Philips Semiconductors Preliminary specification

Enhanced Video Input Processor (EVIP) SAA7111A

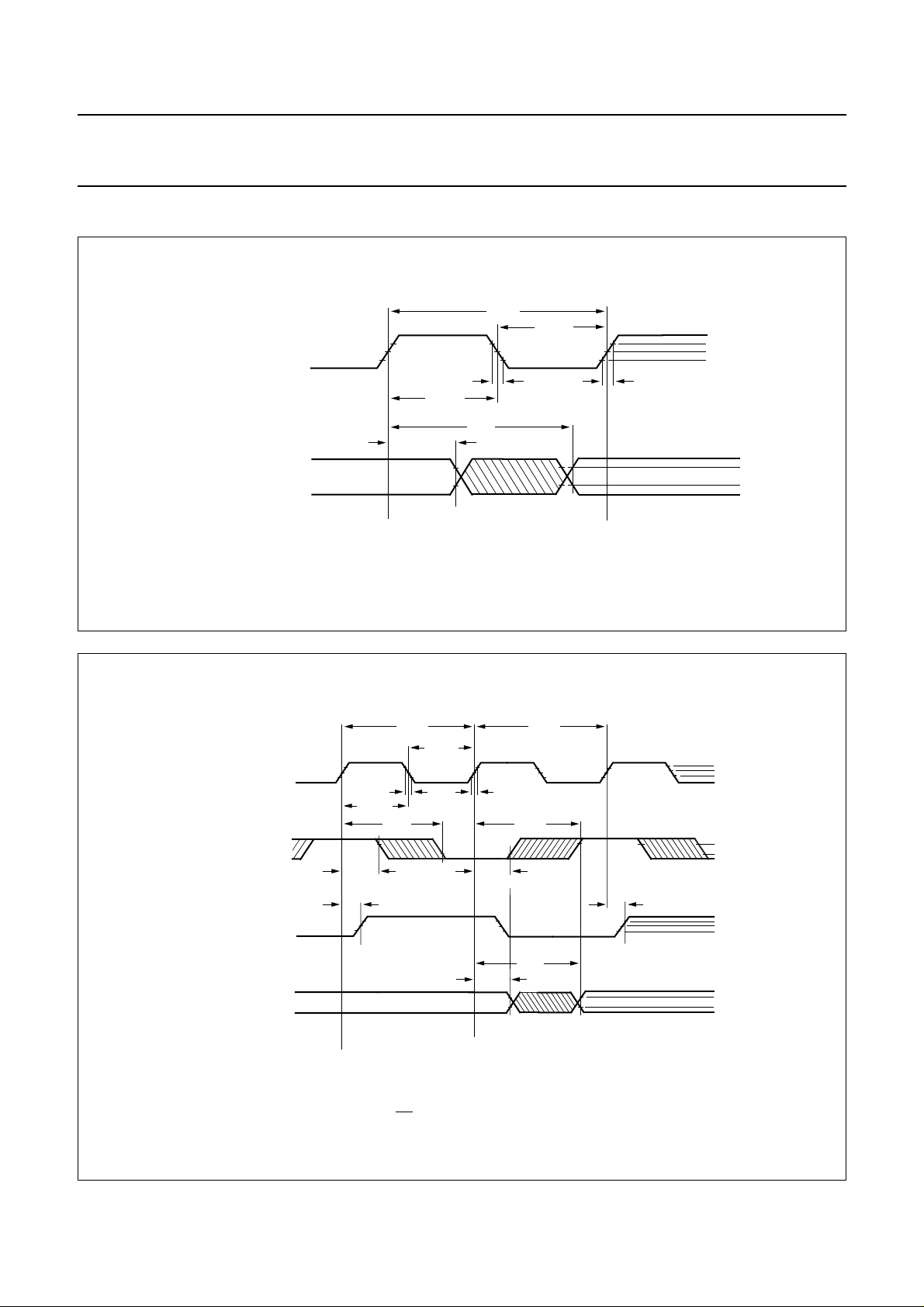

13 TIMING DIAGRAMS

t

handbook, full pagewidth

CLOCK OUTPUT LLC

OUTPUTS VPO, HREF,
VREF, VS, HS

t

t

OHD;DAT

LLCH

LLC

t

LLCL

t

f

t

PD

t

r

2.6 V

1.5 V

0.6 V

MGC658

2.4 V

0.6 V

An explanation of the output formats is given in Table 6.

Fig.16 Clock/data timing (8-bit CCIR-656 format of the VPO-bus).

handbook, full pagewidth

CLOCK OUTPUT LLC

OUTPUT CREF

CLOCK OUTPUT LLC2

OUTPUTS VPO, HREF,
VREF, VS, HS

t

LLCH

t

OHD;CREF

t

dLLC2

t

LLC

t

PD

t

OHD;DAT

t

LLCL

t

f

t

r

t

OHD;CREF

t

t

PD

PD

t

LLC

t

dLLC2

MGC659

2.6 V

1.5 V

0.6 V

2.4 V

0.6 V

2.6 V

1.5 V

0.6 V

2.4 V

0.6 V

An explanation of the output formats is given in Table 6. The FEI timing of the VPO-bus is illustrated in Figs 19 and 20.

Fig.17 Clock/data timing (12 and 16-bit CCIR-601 format of the VPO-bus).

1997 May 26 28

Philips Semiconductors Preliminary specification

Enhanced Video Input Processor (EVIP) SAA7111A

handbook, full pagewidth

CLOCK OUTPUT LLC

t

LLCH

t

PD;CREF

OUTPUT CREF

t

OHD;CREF

RGB (8, 8, 8) data

VPO15 to VPO8

RGB (8, 8, 8) data

VPO7 to VPO0

An explanation of the output formats is given in Table 6.

t

LLC

t

LLCL

t

f

R(2 : 0)
G(1 : 0)
B(2 : 0)

t

r

R(7 : 3)
G(7 : 5)

t

PD

t

OHD;CREF

t

PD;CREF

t

OHD;DAT

t

LLC

G(4 : 2)
B(7 : 3)

t

OHD;CREF

t

OHD;DAT

2.4 V

1.5 V

0.6 V

2.4 V

1.5 V

0.6 V

2.4 V

1.5 V

0.6 V

2.4 V

1.5 V

0.6 V

MBH227

handbook, full pagewidth

I2C-bus bit FECO = 1.

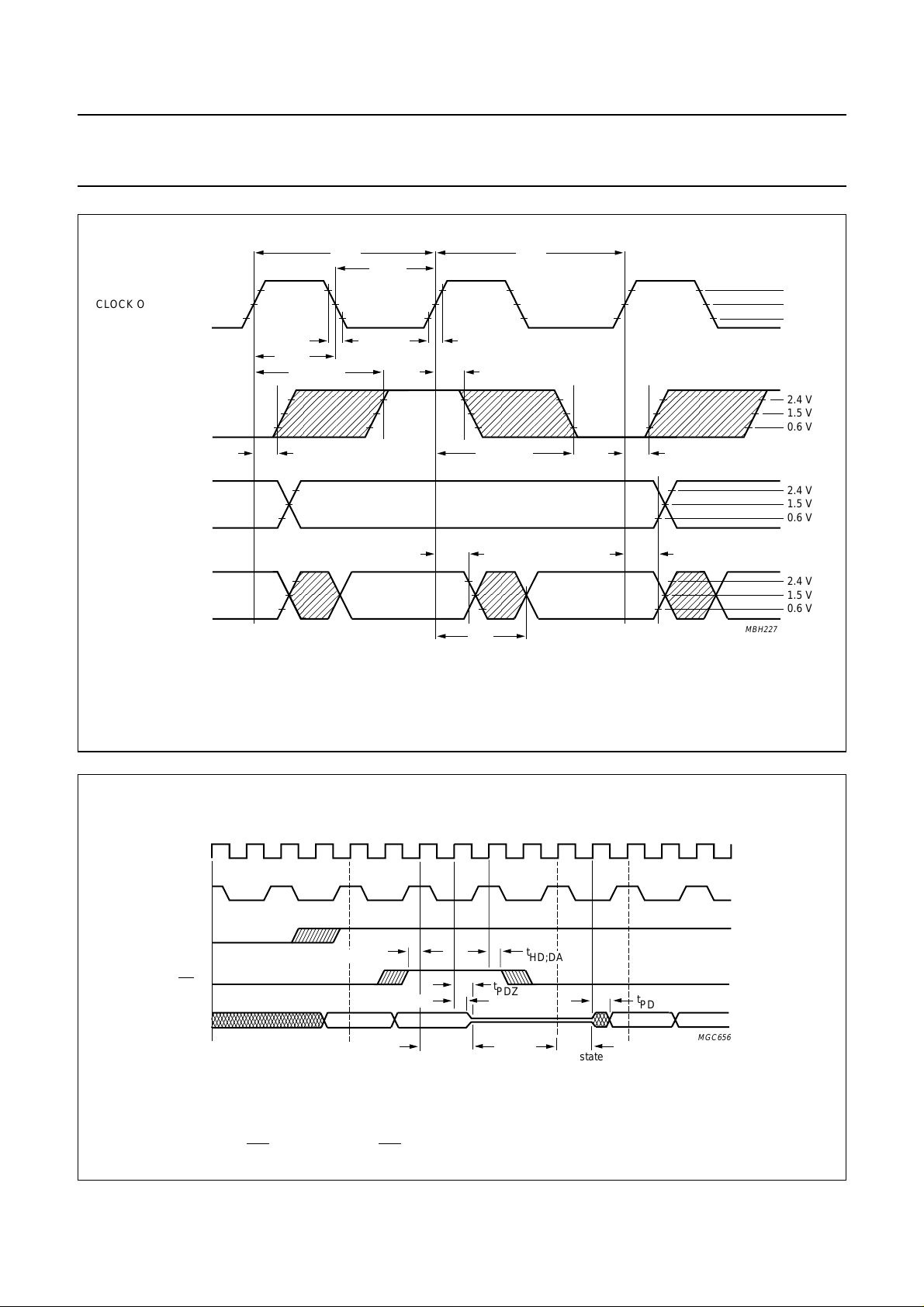

Fig.18 Clock/data timing for RGB (8, 8, 8) output format.

LLC

CREF

HREF

FEI

VPO

t

SU;DAT

t

OHD;DAT

to 3-state

t

PDZ

t

HD;DAT

from 3-state

t

PD

Fig.19 FEI timing diagram (FEI sampling at CREF = HIGH) for OFTS = 0, 1 or 2).

MGC656

1997 May 26 29

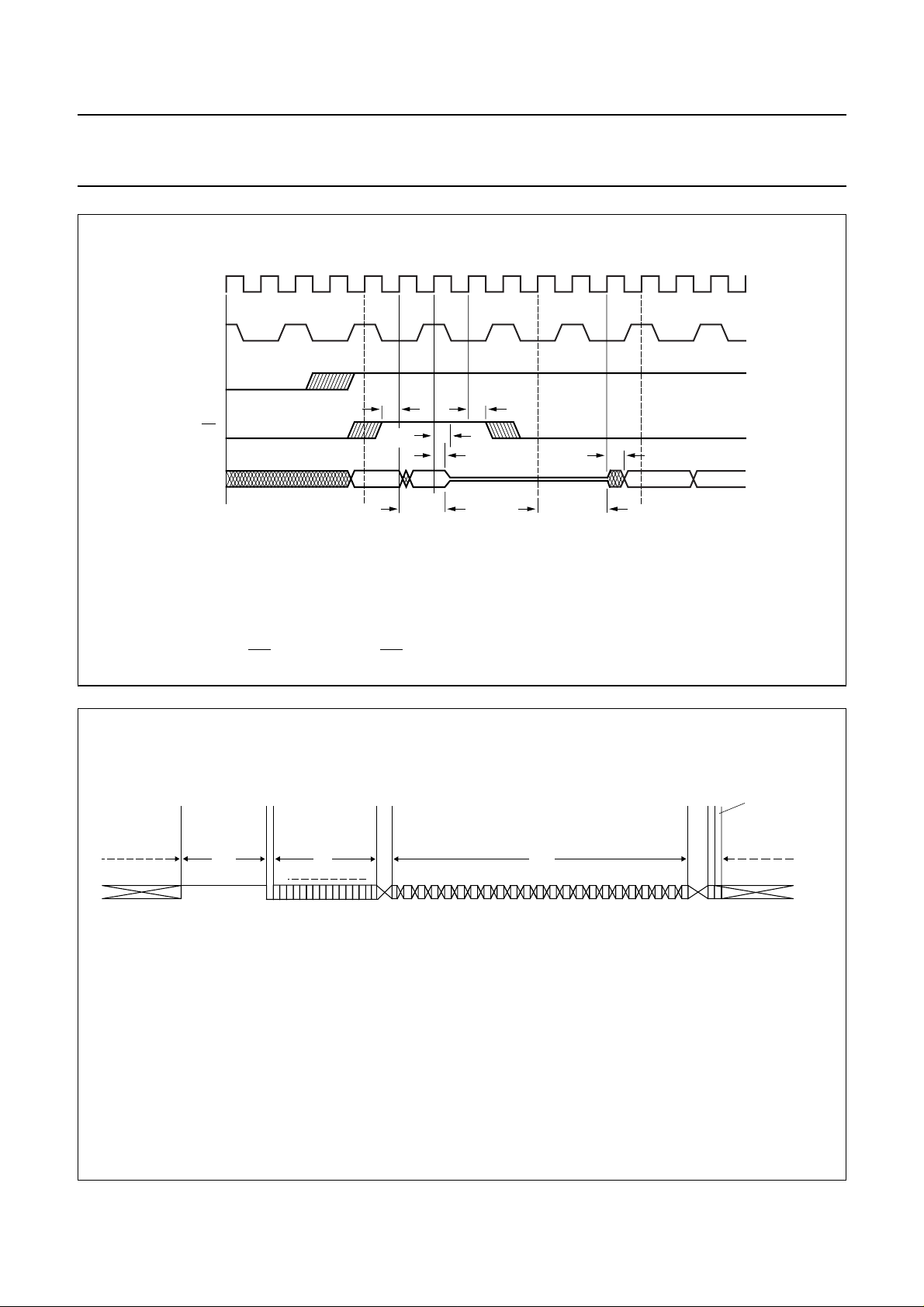

Philips Semiconductors Preliminary specification

Enhanced Video Input Processor (EVIP) SAA7111A

handbook, full pagewidth

LLC

CREF

HREF

t

SU;DAT

FEI

VPO

Timing is compatible with SAA7110; I2C-bus bit FECO = 0.

Fig.20 FEI timing diagram (FEI sampling at CREF = LOW) for OFTS = 0, 1 or 2).

t

PDZ

to 3-state

t

OHD;DAT

t

HD;DAT

from 3-state

t

PD

MGC657

handbook, full pagewidth

transmitted once per line

SEQUENCE

LOW

HIGH

128

BIT NO.:

TIME SLOT:

INCR

HPLL

INCR

FSCPLL

RESERVED

16

15

1

0 67

2

0

21

22

19

16

1617

1920

15

18

45

9

13

14

11 1012

6

8

7

3

452

3

0

1

63

50 Hz fields: 235

RESERVED

60 Hz fields: 232

1

68

(1) Set to zero for one transmission, if a phase reset of the fsc- DTO is applied via I2C-bus bit CDTO. RTCO sequence is generated in LLC/4.
The HPLL increment represents the actual LFCO frequency (f

INCR

=

f

------------------------------------------------ -

LFCO

Where: f
The f

2

XTAL

increment represents the actual subcarrier frequency (related to the actual clock); 23 LSB from 24, MSB is 0b.

sc

INCR

f

-------------------------------------------------------

sc

×

HPLLfXTAL

word lengthDTO2

= 24.576 MHz, word length DTO2 = 20 bits.

FSCPLLfXTAL

word lengthDTO1

2

×

INCR

×=

---------------------------­2

HPLL

19

LFCO

× 4=f

); 16 LSB from 20, upper four bits are fixed to 0100b

LLC

Where: word length DTO1 = 24 bits.

Fig.21 Real time control output.

1997 May 26 30

DTO RESET

RESERVED

MGC649

(1)

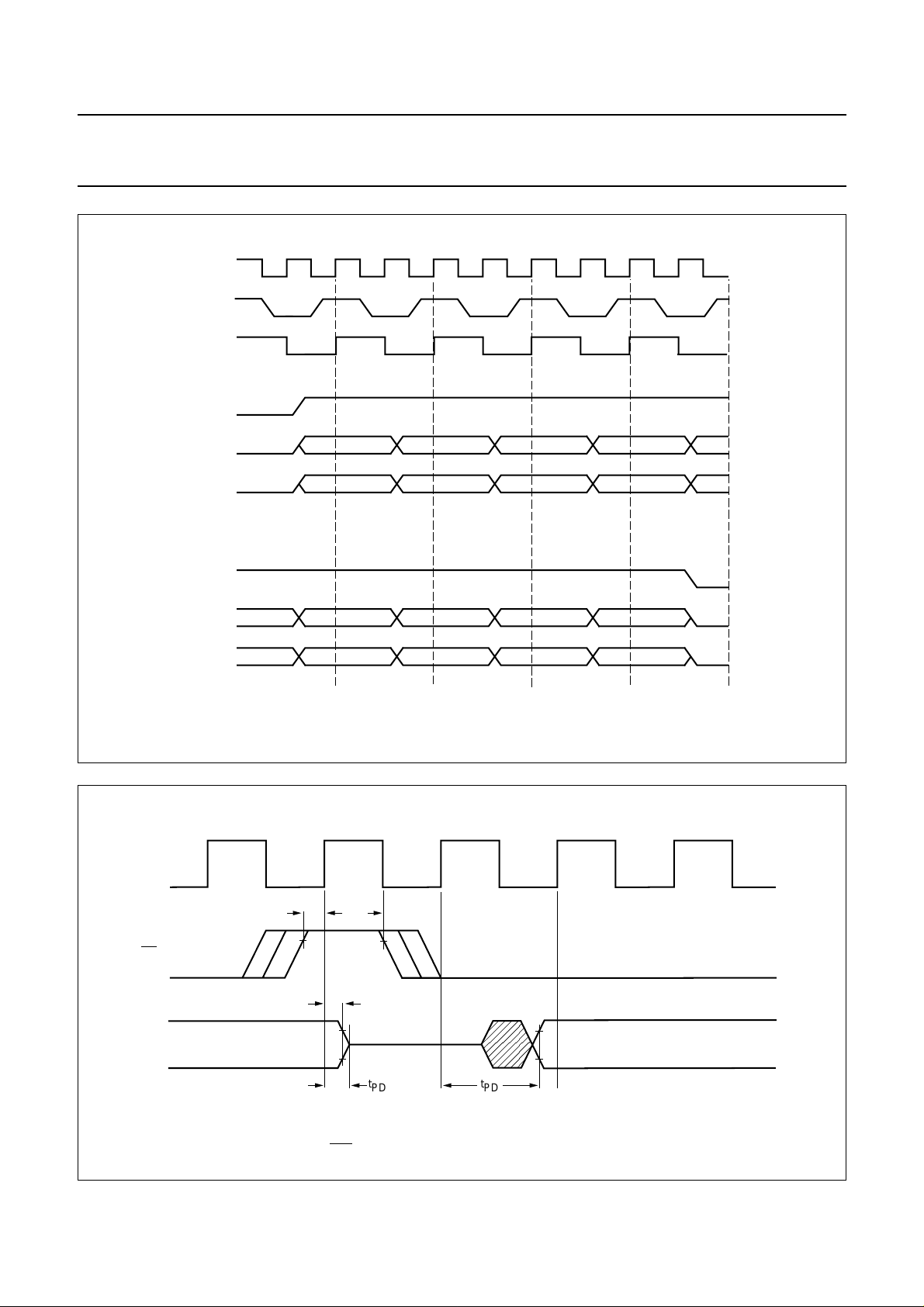

Philips Semiconductors Preliminary specification

Enhanced Video Input Processor (EVIP) SAA7111A

handbook, full pagewidth

LLC

CREF

LLC2

HREF

Yn

UVn

HREF

Yn

UVn

START OF ACTIVE LINE

0

U0 V0 U2 V2 U4

1234

END OF ACTIVE LINE

719718717716715

V716U716V714

U718 V718

MGC646

handbook, full pagewidth

LLC

FEI

VPO

Fig.22 HREF timing diagram.

t

SU

t

HD

t

OHD

t

PDZ

t

PD

Fig.23 FEI timing in CCIR 656 mode [OFTS (1 : 0) = 3].

MBH766

1997 May 26 31

Philips Semiconductors Preliminary specification

Enhanced Video Input Processor (EVIP) SAA7111A

handbook, full pagewidth

CVBS

VBI

Y - output

HREF (50 Hz)

RTS1 (PLIN)

HS

HS (50 Hz)

programming range

(step size: 8/LLC)

HREF (60 Hz)

HS (60 Hz)

(1)

108

720 × 2/LLC

179 × 1/LLC

720 × 2/LLC

27 × 2/LLC

23 × 2/LLC

26 × 1/LLC

0

0

burst

burst

processing delay CVBS->VPO

sync clipped

12 × 2/LLC

144 × 2/LLC

43 × 2/LLC

4/LLC

16 × 2/LLC

138 × 2/LLC

(2)

−107

HS (60 Hz)

programming range

(step size: 8/LLC)

(1) PLIN is switched to output RTS1 via I2C-bus bit RTSE1 = 0.
(2) See Table 2.
(3) HDEL (1 : 0) = 0 0, YDEL (2 : 0) = 0 0 0.

107

0

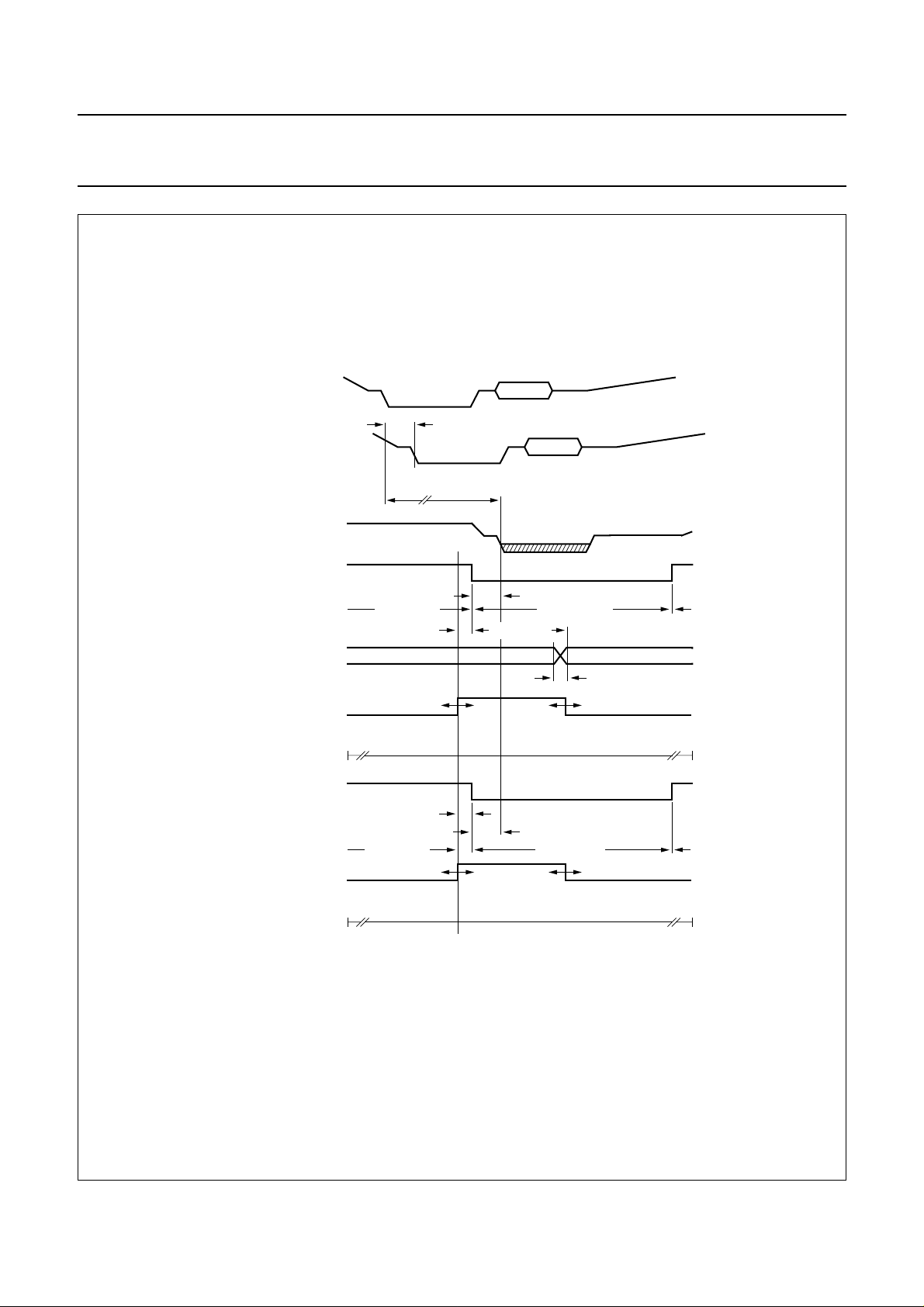

Fig.24 Horizontal timing diagram.

1997 May 26 32

−106

MGD701

Philips Semiconductors Preliminary specification

Enhanced Video Input Processor (EVIP) SAA7111A

handbook, full pagewidth

input CVBS

HREF

VREF
VREF

VS

RTS0 (ODD)

input CVBS

HREF

VREF

VREF

VS

622

VRLN = 1
VRLN = 0

(1)

VRLN = 1

VRLN = 0

310

623

624

(2)

(2)

312

311

(2)

(2)

1234567822625

313 314

(a) 1st field

315 316

317

318

319

320

535 x 2/LLC

335 336

77 x 2/LLC

23

337

RTS0 (ODD)

(1) ODD is switched to output RTS0 via I2C-bus bit RTSE0 = 0.
(2) Additional VREF positions can be achieved via I2C-bits VCTR1 and VCTR0 (see Fig.10).
The luminance peaking and the chrominance trap are bypassed during VREF = 0 if I2C-bus bit VBLB is set to logic 1.
The chrominance delay line (chrominance-comb filter for NTSC, phase error correcting for PAL) is disabled during VREF = 0.

(1)

(b) 2nd field

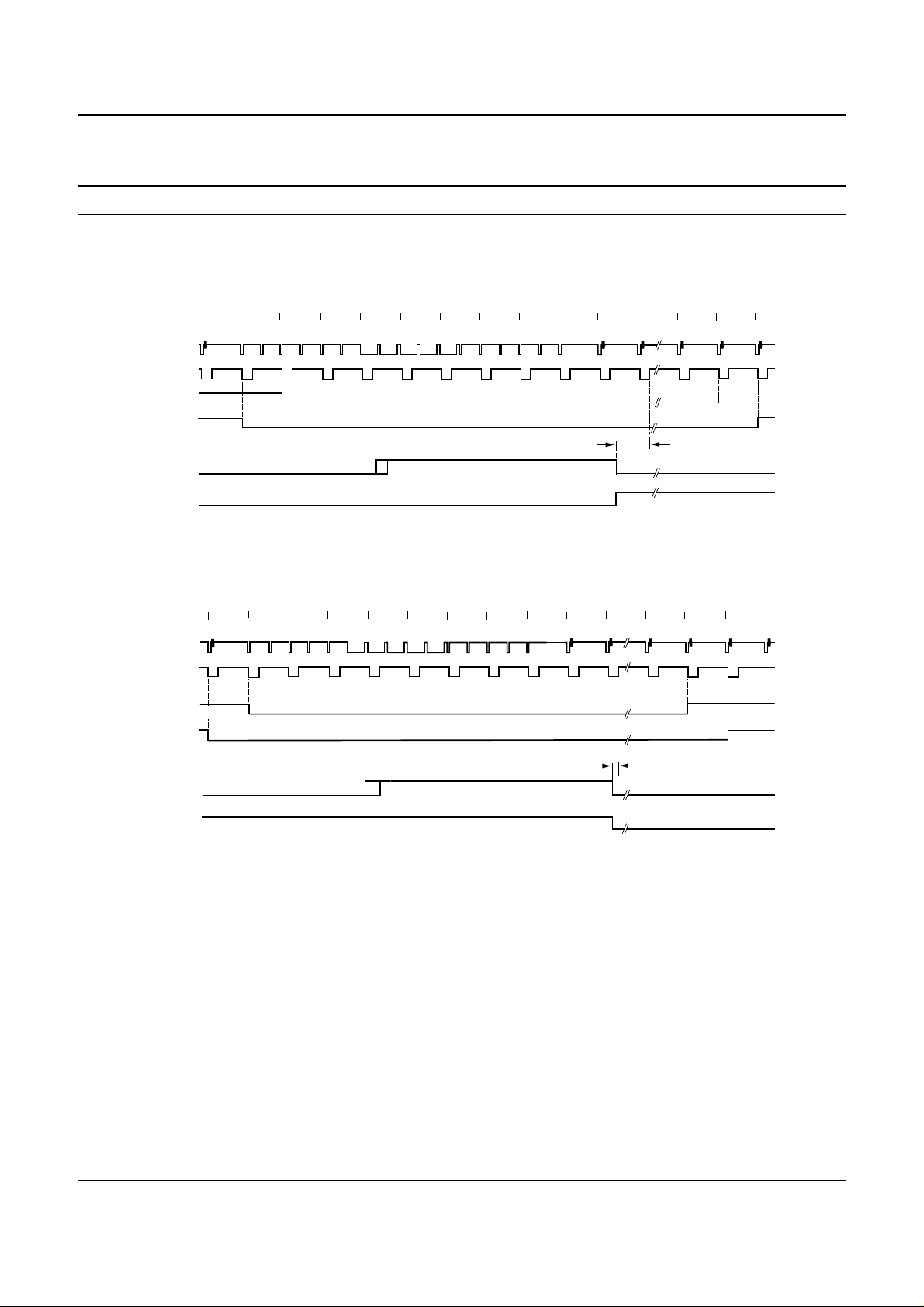

Fig.25 Vertical timing diagram for 50 Hz [nominal input signal VNL in normal mode (VNOI = 00b)].

1997 May 26 33

MGG069

Philips Semiconductors Preliminary specification

Enhanced Video Input Processor (EVIP) SAA7111A

1234567

handbook, full pagewidth

input CVBS

HREF

VREF

VREF

VS

522

(525)

VRLN = 1

VRLN = 0

523

(3)

(3)

(3)

(2)(1)

(4) (5) (6) (7) (8) (9)

(10)

525

524

8

(11)

520 x 2/LLC

17

(20)

18 19

(21)

(22)

(2)

RTS0 (ODD)

input CVBS

HREF

VREF

VREF

RTS0 (ODD)

(1)

VS

(1)

259

(262)

VRLN = 1

VRLN = 0

(263)

(3)

(3)

260

261

(264)

(a) 1st field

263 264 265 266 267 268 269 270 271

262

(266) (267) (268) (269) (270) (271) (272) (273) (274)

(265)

(b) 2nd field

81 x 2/LLC

280

(283)

281

(284)

MGG070

282

(285)

(2)

(1) ODD is switched to output RTS0 via I2C-bus bit RTSE0 = 0.
(2) Line numbers in parenthesis refer to CCIR line counting.
(3) Additional VREF positions can be achieved via I2C-bus bits VCTR1 and VCTR0 (see Fig.10).
The luminance peaking and the chrominance trap are bypassed during VREF = 0 if I2C-bus bit VBLB is set to logic 1.
The chrominance delay line (chrominance-comb filter for NTSC, phase error correcting for PAL) is disabled during VREF = 0.

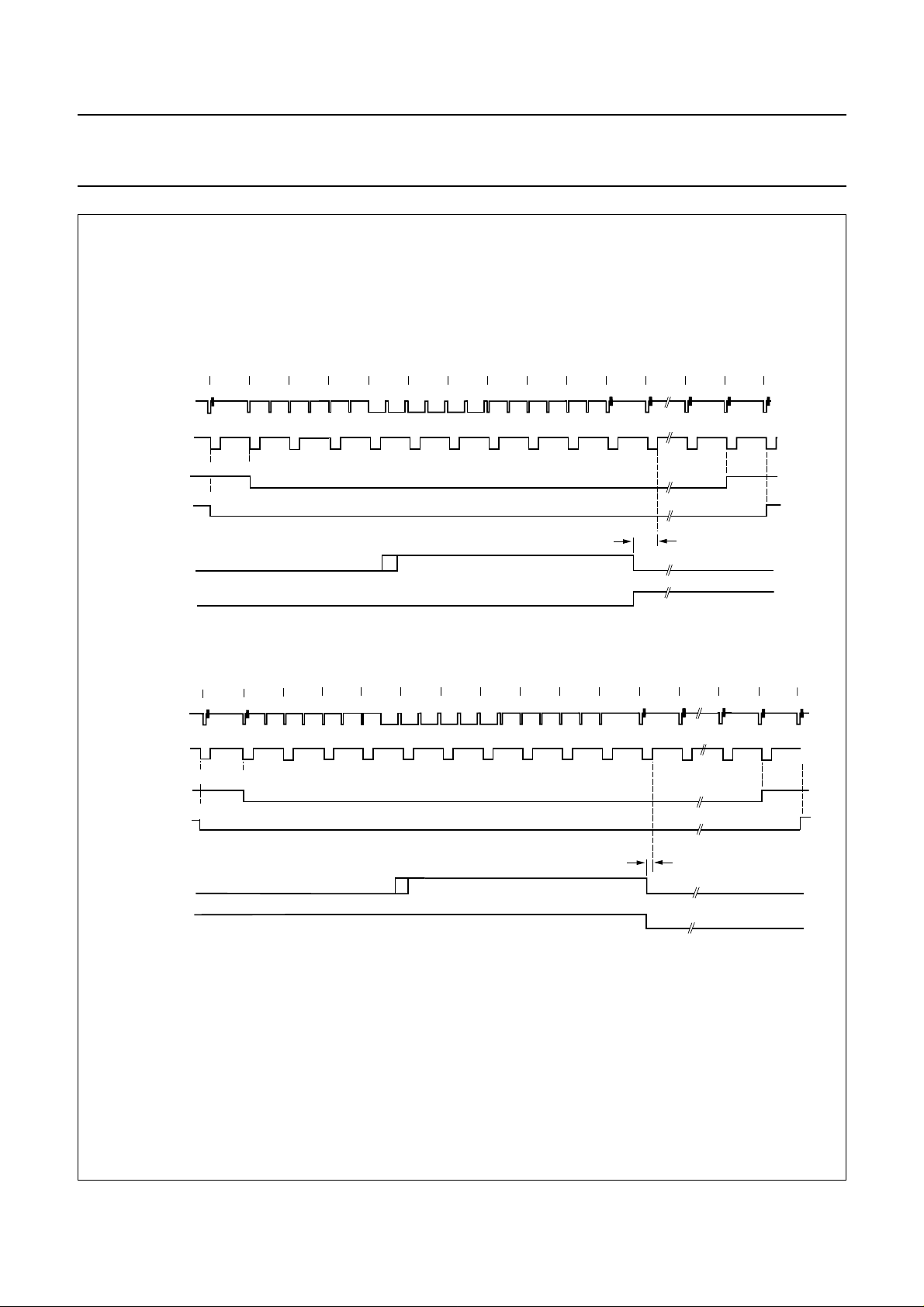

Fig.26 Vertical timing diagram for 60 Hz [nominal input signal VNL in normal mode (VNOI = 00b)].

1997 May 26 34

Philips Semiconductors Preliminary specification

Enhanced Video Input Processor (EVIP) SAA7111A

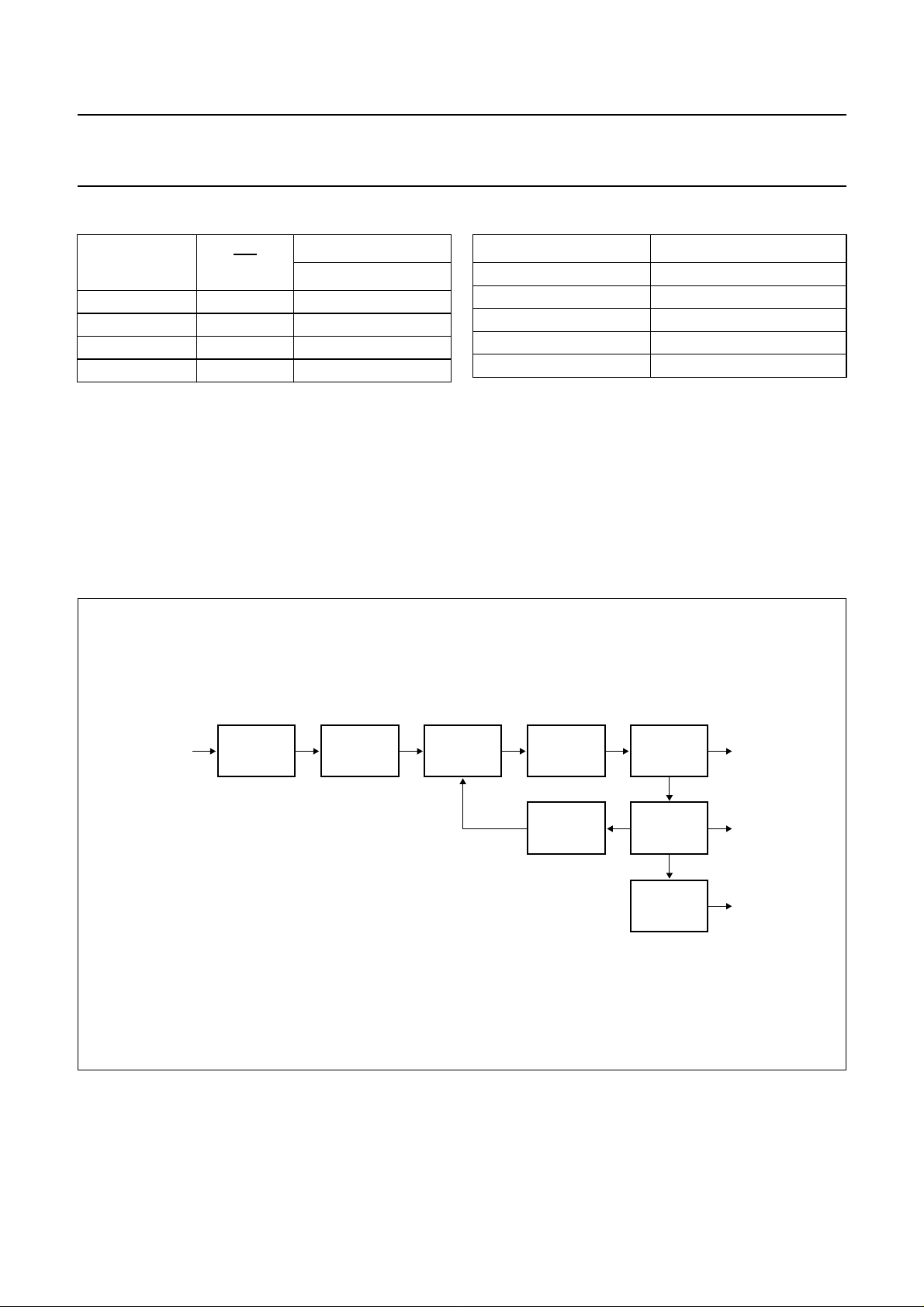

Table 3 Digital output control

VPO

OEYC FEI

15 to 0

00 Z
1 0 active
01 Z
11 Z

14 CLOCK SYSTEM

14.1 Clock generation circuit

The internal CGC generates the system clocks LLC, LLC2
and the clock reference signal CREF. The internally
generated LFCO (triangular waveform) is multiplied by
2 or 4 via the analog PLL (including phase detector, loop
filter, VCO and frequency divider). The rectangular output
signals have a 50% duty factor.

Table 4 Clock frequencies

CLOCK FREQUENCY (MHz)

XTAL 24.576

LLC 27
LLC2 13.5
LLC4 6.75
LLC8 3.375

handbook, full pagewidth

LFCO

BAND PASS

FC = LLC/4

ZERO

CROSS

DETECTION

PHASE

DETECTION

LOOP

FILTER

DIVIDER

1/2

Fig.27 Block diagram of clock generation circuit.

OSCILLATOR

DIVIDER

1/2

DELAY CREF

MGC632

LLC

LLC2

1997 May 26 35

Philips Semiconductors Preliminary specification

Enhanced Video Input Processor (EVIP) SAA7111A

14.2 Power-on control

Power-on reset is activated at power-on, chip enable, PLL clock generation failure and if the supply voltage falls below

2.7 V. The RES signal can be applied to reset other circuits of the digital picture processing system.

handbook, full pagewidth

CE

XTAL

LLCINT

RESINT

CE

CLOCK

PLL

LLC

POC V

ANALOG

POC

LOGIC

DDA

POC V

DIGITAL

POC

DELAY

CLK0

DDD

RES

LLC

RES

some ms

CE = chip enable input; XTAL = crystal oscillator output; LLCINT = internal system clock;
RESINT = internal reset; LLC = line-locked clock output;

20 to 200 µs

PLL-delay

<

1 ms

RES = reset output (active LOW).

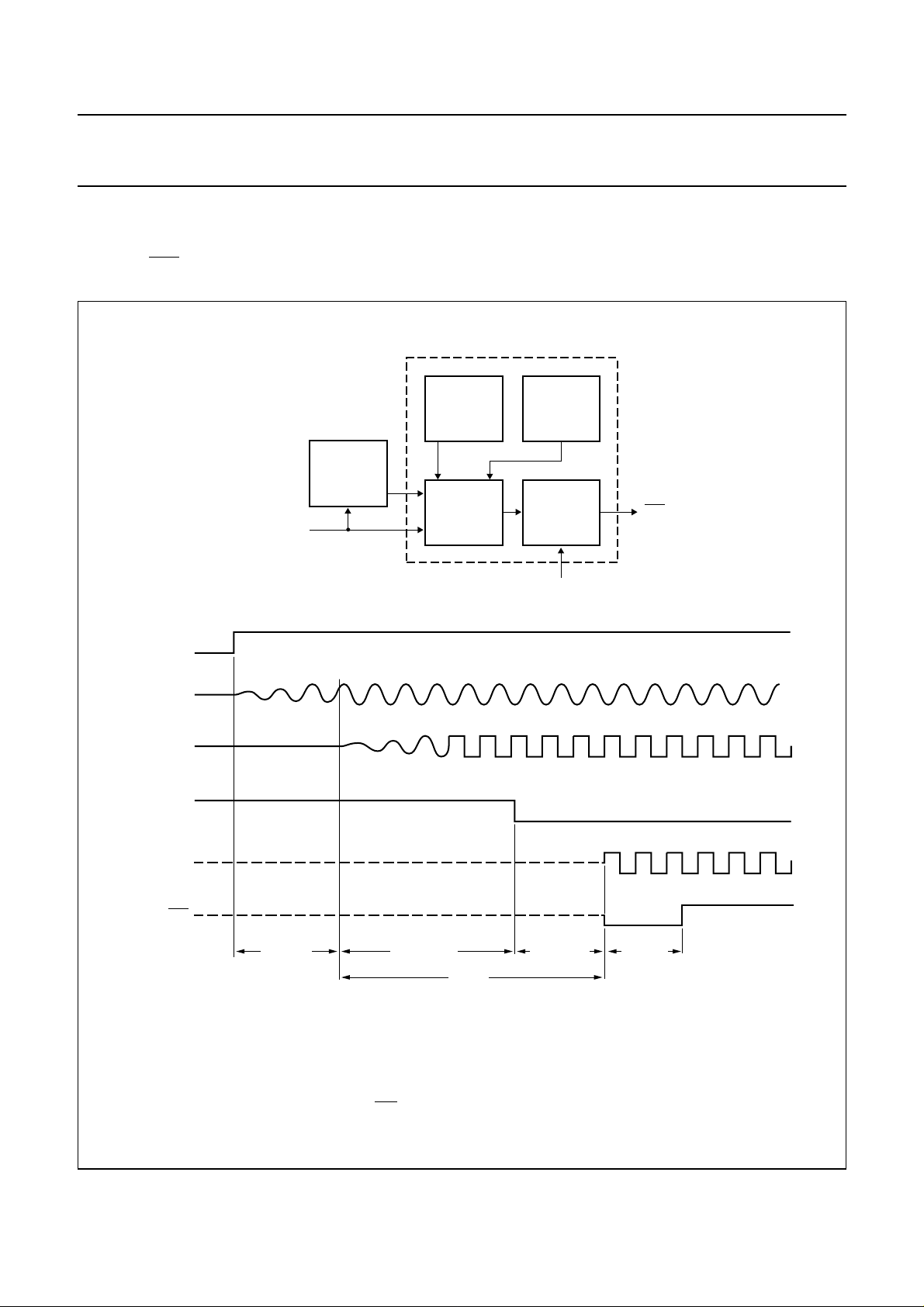

Fig.28 Power-on control circuit.

1997 May 26 36

896 LCC

digital delay

128 LCC

MGC633

Philips Semiconductors Preliminary specification

Enhanced Video Input Processor (EVIP) SAA7111A

Table 5 Power-on control sequence

INTERNAL POWER-ON

CONTROL SEQUENCE

Directly after power-on
asynchronous reset

VPO15 to VPO0, RTCO, RTS0, RTS1,
GPSW, HREF, VREF, HS, VS, LLC, LLC2

PIN OUTPUT STATUS FUNCTION

and CREF are in high-impedance state

Synchronous reset
sequence

LLC, LLC2, CREF, RTCO, RTS0, RTS1,
GPSW and SDA become active;
VPO15 to VPO0, HREF, VREF, HS and VS
are held in high-impedance state

Status after power-on
control sequence

VPO15 to VPO0, HREF, VREF, HS and VS
are held in high-impedance state

15 OUTPUT FORMATS
Table 6 Output formats of the VPO bus (note 1)

BUS

SIGNAL

VPO15 Y07Y17Y27Y
VPO14 Y
VPO13 Y
VPO12 Y
VPO11 Y
VPO10 Y
VPO9 Y
VPO8 Y
VPO7 U
VPO6 U
VPO5 V
VPO4 V
VPO3 X X X X U
VPO2 X X X X U
VPO1 X X X X U
VPO0 X X X X U
Pixel

411 (12-BIT) 422 (16-BIT)

Y

37
06Y16Y26Y36
05Y15Y25Y35
04Y14Y24Y34
03Y13Y23Y33
02Y12Y22Y32
01Y11Y21Y31
00Y10Y20Y30

07U05U03U01

06U04U02U00
07V05V03V01
06V04V02V00

07

Y

06

Y

05

Y

04

Y

03

Y

02

Y

01

Y

00

U

07

U

06

U

05

U

04
03
02
01
00

0123 0 1 0 1 − note 6 note 5

order Y
Pixel

000−−

order UV
Data

LLC2 LLC2 LLC LLC2 −

rates

2

C-bus

I
control
signals

OFTS0 = 0 OFTS0 = 1 OFTS0 = 1 OFTS0 = 0 OFTS0 = 0
OFTS1 = 1 OFTS1 = 0 OFTS1 = 1 OFTS1 = 0 OFTS1 = 0

RGB888 = X RGB888 = X RGB888 = X RGB888 = 0 RGB888 = 1

direct switching to high impedance for
20 to 200 ms

internal reset sequence

after power-on (reset sequence) a complete

2

C-bus transmission is required

I

(2)

CCIR-656 (8-BIT)

Y
Y
Y
Y
Y
Y
Y
Y
V
V
V
V
V
V
V
V

U07Y07V07Y

17

U06Y06V06Y

16

U05Y05V05Y

15

U04Y04V04Y

14

U03Y03V03Y

13

U02Y02V02Y

12

U01Y01V01Y

11

U00Y00V00Y

10
07
06
05
04
03
02
01
00

XXXX G2 G4 R2
XXXX G1 G3 R1
XXXX G0 G2 R0
XXXX B4 B7 G1
XXXX B3 B6 G0
XXXX B2 B5 B2
XXXX B1 B4 B1
XXXX B0 B3 B0

(3)

RGB (16-BIT)

17
16
15
14
13
12
11
10

(4)

RGB (24-BIT)

R4 R7 R7
R3 R6 R6
R2 R5 R5
R1 R4 R4
R0 R3 R3
G5 G7 G7
G4 G6 G6
G3 G5 G5

(4)

1997 May 26 37

Philips Semiconductors Preliminary specification

Enhanced Video Input Processor (EVIP) SAA7111A

Notes to Table 5

1. VPO bus allows connection to 5 V video data bus systems.

2. Values in accordance with CCIR 601.

3. Before and after the video data, video timing codes are inserted in accordance with CCIR 656.
a) VPO15 to VPO8 = VPO7 to VPO0 = CCIR 656 data if I2C-bus bit TCLO = 0
b) VPO15 to VPO8 = CCIR 656 data, VPO7 to VPO0 = 3-state if I2C-bus bit TCLO = 1.

4. During HREF = LOW RGB levels are set to 16 (10 hex). RGB 16-bit is achieved by dropping the LSBs of the 8-bit
signals (after dithering if desired).

5. CREF = 1 (see Fig.18).

6. CREF = 0 (see Fig.18).

handbook, full pagewidth

CCIR Rec. 602 digital levels.

Equations for modification to the YUV levels via BCS control I2C-bus bytes BRIG, CONT and SATN.
Luminance:

Y

OUT

Chrominance:

UV

OUT

It should be noted that the resulting levels are limited to 1 to 254 in accordance with CCIR-601/656 standard.

+255
+235

LUMINANCE 100%

+128

+16

0

(a) Y output range. (b) U output range (Cb). (c) V output range (Cr).

CONT

Int

----------------- -

Int

71

SATN

---------------- ­64

Y128–()× BRIG+=

Cr Cb, 128–()× 128+=

white

black

+255
+240

+212 +212

+128

U-COMPONENT

+44
+16

0

blue 100%
blue 75%

colourless

yellow 75%
yellow 100%

+255
+240

+128

+44
+16

V-COMPONENT

0

red 100%
red 75%

colourless

cyan 75%
cyan 100%

MGC634

Fig.29 VPO output signal range with default BCS settings.

1997 May 26 38

Philips Semiconductors Preliminary specification

Enhanced Video Input Processor (EVIP) SAA7111A

handbook, full pagewidth

VBI data levels are not dependent on BCS settings.

+255
+209

LUMINANCE

+71
+60

SYNC

1

(a) For sources containing 7.5 IRE black level offset
(e.g. NTSC−M).

+255

white

black
black shoulder

sync bottom

+199

LUMINANCE

+60

1

(b) For sources not containing black level offset.

Fig.30 VBI data bypass output range.

white

black shoulder = black

SYNC

sync bottom

MGD700

handbook, full pagewidth

The pin numbers given in parenthesis refer to the 64-pin package.
Order number: Philips 4322 143 05291.

quartz (3rd harmonic)

24.576 MHz

C =
10 pF

C =
10 pF

(a) With quartz crystal. (b) With external clock.

XTAL

65 (54)

XTALI

66 (55)

L = 10 µH ±20%

C =
1 nF

SAA7111A SAA7111A

Fig.31 Oscillator application.

1997 May 26 39

XTAL

XTALI

65 (54)

66 (55)

MGG072

Philips Semiconductors Preliminary specification

Enhanced Video Input Processor (EVIP) SAA7111A

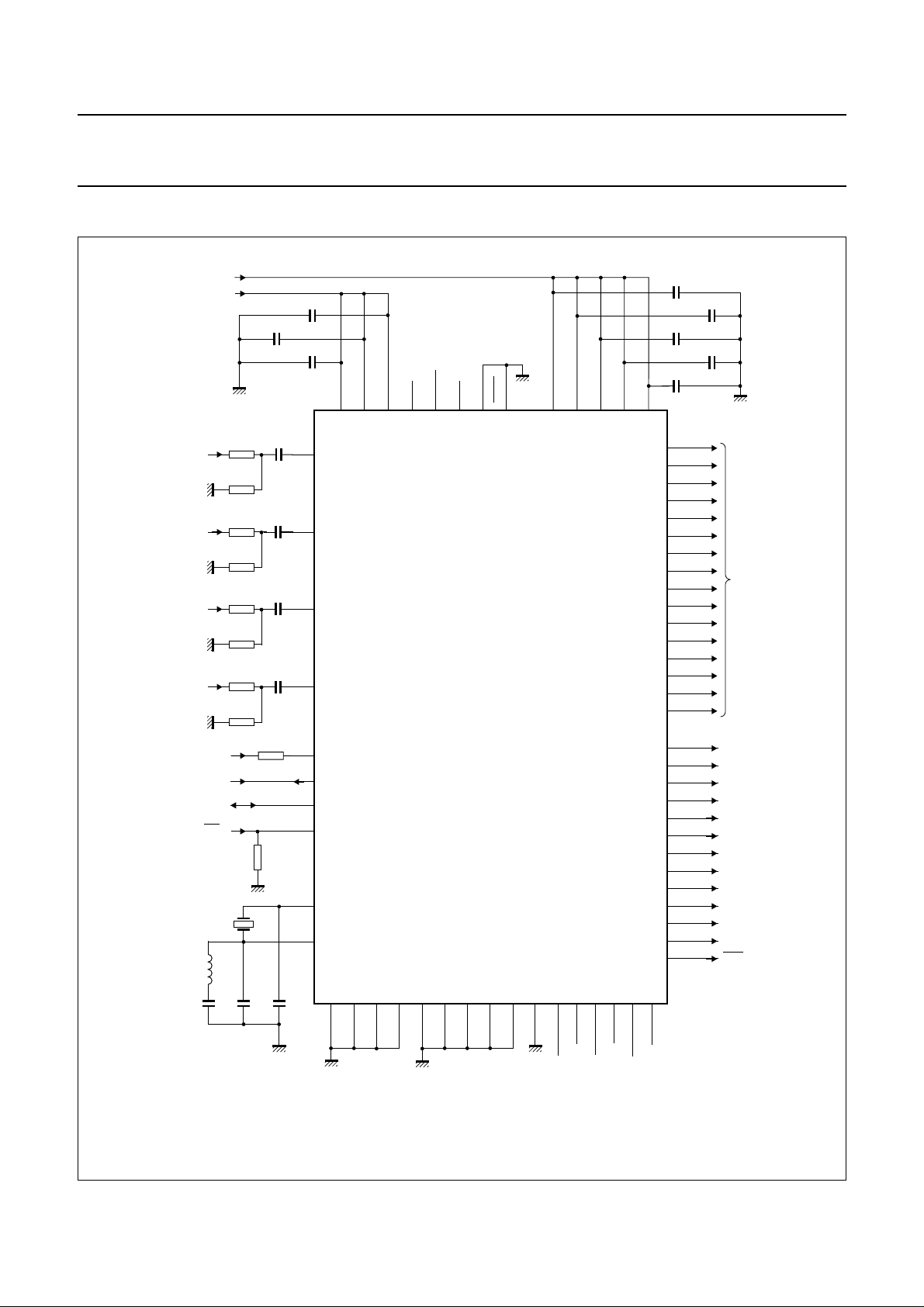

16 APPLICATION INFORMATION

handbook, full pagewidth

Q1(24.576 MHz)

AI22

V

AI21

V

AI12

V

AI11

V

L1

V

V

SSA

SSA

SSA

SSA

V

DDD
SCL

SDA

FEI

V
DDA

SSA

C16

1 nF

DD

10
µH

R10

27 Ω

R4

47 Ω

R9

27 Ω

R3

47 Ω

R8

27 Ω

R2

47 Ω

R7

27 Ω

R1

47 Ω

R6

100 nF

1 kΩ

C17
10 pF

C8

C4

22 nF

C3

22 nF

C2

22 nF

C1

22 nF

R5

1 kΩ

V

SS

100 nF

100 nF

XTAL

XTALI

C18
10 pF

V

SS

C9

C7

15 (6)

17 (8)

19 (10)

21 (12)

33 (24)

6 (63)
5 (62)

63 (52)

65 (54)

66 (55)

(16)

25

SSA0

V

DDA0VDDA1VDDA2

V

20

24

(11)

(15)

(9)

(5)

18

14

SSA1

SSA2

V

V

V

SSA

n.c.

n.c.

TMS

TDI

13

16
(7)

12

(4)

(3)

(40)

(13)

(56)

51

22

67

SS1VSS2VSS3VSS4VSS5

SSS

V

V

V

SS

BST

n.c.

TDO

TCK

2

11

(59)

(58)

(2)

SAA7111A

(26)

(32)

35

43

V

SS

DD1VDD2VDD3VDD4VDD5

TRST

V

1

68

(57)

(61)

(19)

(64)

4

V

IICSA

SS

7

n.c.

28

52

44

(41)

(33)

8

9

n.c. n.c.

n.c.

(1)
10

34

(25)

(18)
(34) 45
(35) 46
(36) 47
(37) 48
(38) 49
(39) 50
(42) 53
(43) 54
(44) 55
(45) 56
(46) 57
(47) 58
(48) 59
(49) 60
(50) 61
(51) 62

(31) 42
(17) 26
(27) 38
(30) 41

(60) 3
(28) 39
(29) 40
(53) 64
(14) 23

(20) 29
(21) 30
(22) 31
(23) 32

36

n.c.

27

n.c.

37

C15

100 nF

C13

100 nF

C11

100 nF

15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0

C14

100 nF

C12

100 nF

MGG071

VPO(15 : 0)

HREF
VREF

HS
VS
RTCO
RTS1
RTS0
GPSW
AOUT
LLC
LLC2

CREF
RES

V

SS

The pin numbers given in parenthesis refer to the 64-pin package.

Fig.32 Application diagram.

1997 May 26 40

Philips Semiconductors Preliminary specification

Enhanced Video Input Processor (EVIP) SAA7111A

handbook, full pagewidth

VPO

(15 : 8)

VPO

(7 : 0)

SAA7111A

(34) 45
(35) 46
(36) 47
(37) 48
(38) 49
(39) 50
(42) 53
(43) 54

(44) 55
(45) 56
(46) 57
(47) 58
(48) 59
(49) 60
(50) 61
(51) 62

(31) 42
(17) 26
(27) 38

(30) 41

(60) 3
(28) 39
(29) 40
(53) 64
(14) 23
(20) 29
(21) 30
(32) 31
(23) 32

15
14
13
12
11
10
9
8

7
6
5
4
3
2
1
0

VPO (15 : 11) R (7 : 3)

3

VPO (10 : 8)

3

VPO (7 : 5)

3

V

V

HREF
VREF
HS
VS
RTCO
RTS1
RTS0
GPSW
AOUT
LLC

CREF
RES

SS

SS

OEN
D7
D6
D5
D4
D3
D2
D1
D0
V

LLC2

SS

74HCT574

e.g.

V

CLK

5

DDVDD

O7
O6
O5
O4
O3
O2
O1

00

G (7 : 5)

G (4 : 2)

R (2 : 0)

3

G (1 : 0)

2

B (2 : 0)

3

B (7 : 3)VPO (4 : 0)

e.g. 74HCT240

R (7 : 0)

8

G (7 : 0)

8

B (7 : 0)

8

LLC2N

MGG073

The pin numbers given in parenthesis refer to the QFP64 package.
I2C-bus control bits:
OFTS(1 : 0) = 00 (subaddress 10H, bits D7 and D6).
RGB888 = 1 (subaddress 12H, bit D3).

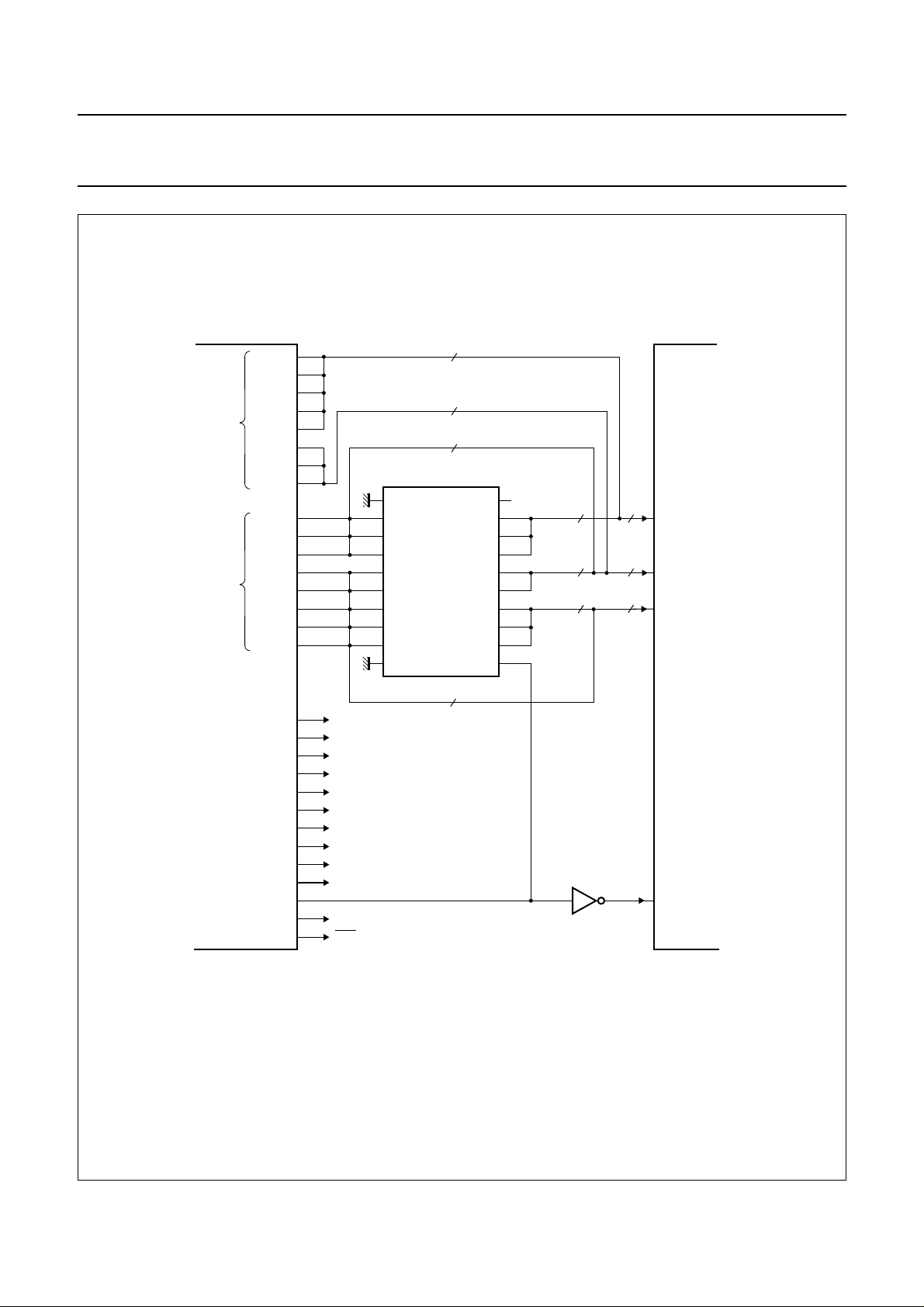

Fig.33 Application diagram for RGB 24-bit output format.

1997 May 26 41

Philips Semiconductors Preliminary specification

Enhanced Video Input Processor (EVIP) SAA7111A

17 I2C-BUS DESCRIPTION

2

17.1 I
Table 7 Write procedure

Table 8 Read procedure (combined format)

C-bus format

S SLAVE ADDRESS W ACK s SUBADDRESS ACK s DATA (NBYTES) ACK s P

S SLAVE ADDRESS W ACK s SUBADDRESS ACK s

Sr SLAVE ADDRESS R ACK s DATA (N BYTES) ACK m P

Table 9 Description of I

2

C-bus format

CODE DESCRIPTION

S START condition
Sr repeated START condition
Slave address W 0100 1000b (IICSA = LOW) or 0100 1010b (IICSA = HIGH)
Slave address R 0100 1001b (IICSA = LOW) or 0100 1011b (IICSA = HIGH)
ACK s acknowledge generated by the slave
ACK m acknowledge generated by the master
Subaddress subaddress byte, see Table 10
Data data byte, see Table 10; note 1
P STOP condition
X = LSB slave

address

read/write control bit; X = 0, order to write (the circuit is slave receiver); X = 1, order to read
(the circuit is slave transmitter)

Slave address read = 49h or 4Bh; note 2

write = 48h or 4Ah
IICSA = 0 or 1

Subaddresses 00h chip version read and write; note 3

01h reserved −
02h to 05h front-end part read and write
06h to 13h decoder part read and write
14h reserved −
15h to 17h decoder part read and write
18h to 19h reserved −
1Ah to 1Ch Line-21 text slicer part read only
1Dh to 1Eh reserved −
1Fh status byte read only

Notes

1. If more than one byte DATA is transmitted then the auto-increment of the subaddress is performed.

2. During slave transmitter mode the SCL-LOW period may be extended by pulling SCL to LOW (in accordance with

2

the I

C-bus specification).

3. The I2C-bus subaddress 00 has to be initialized with 0 before being read.

1997 May 26 42

Philips Semiconductors Preliminary specification

Enhanced Video Input Processor (EVIP) SAA7111A

Table 10 I2C-bus receiver/transmitter overview

READ WRITE IICSA

SLAVE ADDRESS

49H

4BH

48H
4AH

0
1

REGISTER

FUNCTION

SUB-

ADDR

D7 D6 D5 D4 D3 D2 D1 D0

Chip version 00 ID07 ID06 ID05 ID04 ID03 ID02 ID01 ID00
Reserved 01

(1) (1) (1) (1) (1) (1) (1) (1)

Analog input contr 1 02 FUSE1 FUSE0 GUDL2 GUDL1 GUDL0 MODE2 MODE1 MODE0

(1)

Analog input contr 2 03

HLNRS VBSL WPOFF HOLDG GAFIX GAI28 GAI18
Analog input contr 3 04 GAI17 GAI16 GAI15 GAI14 GAI13 GAI12 GAI11 GAI10
Analog input contr 4 05 GAI27 GAI26 GAI25 GAI24 GAI23 GAI22 GAI21 GAI20
Horizontal sync start 06 HSB7 HSB6 HSB5 HSB4 HSB3 HSB2 HSB1 HSB0
Horizontal sync stop 07 HSS7 HSS6 HSS5 HSS4 HSS3 HSS2 HSS1 HSS0
Sync control 08 AUFD FSEL EXFIL

(1)

VTRC HPLL VNOI1 VNOI0
Luminance control 09 BYPS PREF BPSS1 BPSS0 VBLB UPTCV APER1 APER0
Luminance

0A BRIG7 BRIG6 BRIG5 BRIG4 BRIG3 BRIG2 BRIG1 BRIG0

brightness
Luminance contrast 0B CONT7 CONT6 CONT5 CONT4 CONT3 CONT2 CONT1 CONT0
Chroma saturation 0C SATN7 SATN6 SATN5 SATN4 SATN3 SATN2 SATN1 SATN0
Chroma Hue control 0D HUEC7 HUEC6 HUEC5 HUEC4 HUEC3 HUEC2 HUEC1 HUEC0
Chroma control 0E CDTO CSTD2 CSTD1 CSTD0 DCCF FCTC CHBW1 CHBW0
Reserved 0F

(1) (1) (1) (1) (1) (1) (1) (1)

Format/delay control 10 OFTS1 OFTS0 HDEL1 HDEL0 VRLN YDEL2 YDEL1 YDEL0
Output control 1 11 GPSW CM99 FECO COMPO OEYC OEHV VIPB COLO
Output control 2 12 RTSE1 RTSE0 TCLO CBR RGB888 DIT AOSL1 AOSL0
Output control 3 13 VCTR1 VCTR0 CCTR1 CCTR0 BCHI1 BCHI0 BCLO1 BCLO0
Reserved 14

(1) (1) (1) (1) (1) (1) (1) (1)

V_GATE1_START 15 VSTA7 VSTA6 VSTA5 VSTA4 VSTA3 VSTA2 VSTA1 VSTA0
V_GATE1_STOP 16 VSTO7 VSTO6 VSTO5 VSTO4 VSTO3 VSTO2 VSTO1 VSTO0
V_GATE1_MSB 17
Reserved 18-19
Text slicer status 1A

Decoded bytes of
the text slicer

1B P1 BYTE16 BYTE15 BYTE14 BYTE13 BYTE12 BYTE11 BYTE10

1C P2 BYTE26 BYTE25 BYTE24 BYTE23 BYTE22 BYTE21 BYTE20

Reserved 1D-1E

(1) (1) (1) (1) (1) (1)
(1) (1) (1) (1) (1) (1) (1) (1)
(1) (1) (1) (1)

(1) (1) (1) (1) (1) (1) (1) (1)

F2VAL F2RDY F1VAL F1RDY

VSTO8 VSTA8

Status byte 1F STTC HLCK FIDT GLIMT GLIMB WIPA SLTCA CODE

Note

1. All unused control bits must be programmed with logic 0.

1997 May 26 43

Philips Semiconductors Preliminary specification

Enhanced Video Input Processor (EVIP) SAA7111A

17.2 I2C-bus detail

The I2C-bus receiver slave address is 48H/49H. Subaddresses 0F, 14, 18, 19, 1D and 1E are reserved; subaddress 01
is reserved for chip version.

17.2.1 S

UBADDRESS 00

Table 11 Chip version SA00

LOGIC LEVELS

FUNCTION

ID07 ID06 ID05 ID04 ID03 ID02 ID01 ID00

Chip version

V1 0001XXXX
V2 0010XXXX

Note

1. X = reserved.

17.2.2 S

UBADDRESS 02

Table 12 Analog control 1 SA02

FUNCTION

(1)

CONTROL BITS D2 TO D0

MODE 2 MODE 1 MODE 0

Mode 0: CVBS (automatic gain) 0 0 0
Mode 1: CVBS (automatic gain) 0 0 1
Mode 2: CVBS (automatic gain) 0 1 0
Mode 3: CVBS (automatic gain) 0 1 1
Mode 4: Y (automatic gain) + C (gain channel 2 fixed to GAI2 level) 1 0 0
Mode 5: Y (automatic gain) + C (gain channel 2 fixed to GAI2 level) 1 0 1
Mode 6: Y (automatic gain) + C (gain channel 2 adapted to Y gain) 1 1 0
Mode 7: Y (automatic gain) + C (gain channel 2 adapted to Y gain) 1 1 1

Note

1. Mode select (see Figures 34 to 41).

Table 13 Analog control 1 SA 02, D5 to D3 (see Fig.15)

CONTROL BITS D5 TO D3

DECIMAL VALUE UPDATE HYSTERESIS FOR 9-BIT GAIN

GUDL 2 GUDL 1 GUDL 0

0.... off 0 0 0

....7 ±7 LSB 1 1 1

Table 14 Analog control

CONTROL BITS D7 AND D6

ANALOG FUNCTION SELECT FUSE

FUSE 1 FUSE 0

Amplifier plus anti-alias filter bypassed 0 0

01
Amplifier active 1 0
Amplifier plus anti-alias filter active 1 1

1997 May 26 44

Philips Semiconductors Preliminary specification

Enhanced Video Input Processor (EVIP) SAA7111A

AI22

handbook, halfpage

AI21

AD2

CHROMA

AI22

handbook, halfpage

AI21

AD2

CHROMA

AI21
AI11

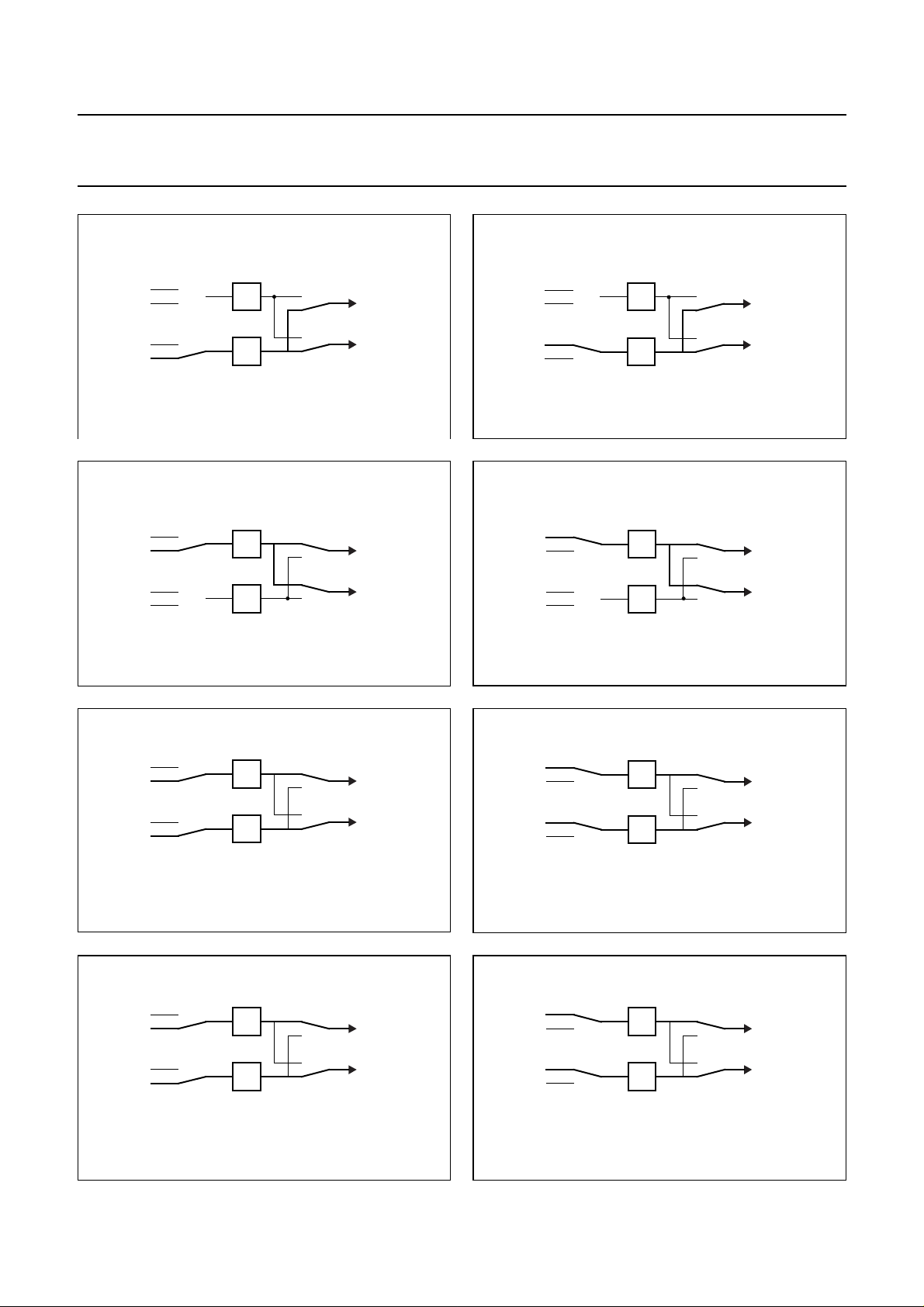

Fig.34 Mode 0; CVBS (automatic gain).

AI22

handbook, halfpage

AI21

AI12
AI11

Fig.36 Mode 2; CVBS (automatic gain).

AI22

handbook, halfpage

AI21

AD1

AD2

AD1

AD2

LUMA

MGC637

CHROMA

LUMA

MGC639

CHROMA

AI21
AI11

Fig.35 Mode 1; CVBS (automatic gain).

AI22

handbook, halfpage

AI21

AI12
AI11

Fig.37 Mode 3; CVBS (automatic gain).

AI22

handbook, halfpage

AI21

AD1

AD2

AD1

AD2

LUMA

MGC638

CHROMA

LUMA

MGC640

CHROMA

AI12
AI11

AD1

LUMA

MGC641

Fig.38 Mode 4 Y (automatic gain) + C

(gain channel 2 fixed to GAI2 level).

AI22

handbook, halfpage

AI21

AI12
AI11

AD2

AD1

CHROMA

LUMA

MGC643

Fig.40 Mode 6 Y (automatic gain) + C

(gain channel 2 adapted to Y gain).

1997 May 26 45

AI12
AI11

AD1

Fig.39 Mode 5 Y (automatic gain) + C

(gain channel 2 fixed to GAI2 level).

AI22

handbook, halfpage

AI21

AI12
AI11

AD2

AD1

Fig.41 Mode 7 Y (automatic gain) + C

(gain channel 2 adapted to Y gain).

LUMA

MGC642

CHROMA

LUMA

MGC644

Philips Semiconductors Preliminary specification

Enhanced Video Input Processor (EVIP) SAA7111A

17.2.3 SUBADDRESS 03

Table 15 Analog control 2 (AICO2) SA03

FUNCTION LOGIC LEVEL DATA BIT

Static gain control channel 1 (GAI18) (see SA04)

Sign bit of gain control see Table 16 D0

Static gain control channel 2 (GAI28) (see SA05)

Sign bit of gain control see Table 17 D1

Gain control fix (GAFIX)

Automatic gain controlled by MODE 1 and MODE 0 0 D2
Gain control is user programmable via GAI1 + GAI2 1 D2

Automatic gain control integration (HOLDG)

AGC active 0 D3
AGC integration hold (freeze) 1 D3

White peak off (WPOFF)

White peak control active 0 D4
White peak off 1 D4

Vertical blanking select (VBSL)

Long vertical blanking 0 D5
Short vertical blanking 1 D5

HL not reference select (HLNRS)

Normal clamping by HL not 0 D6
Reference select by HL not 1 D6

17.2.4 S

Table 16 Gain control analog (AIC03); static gain control channel 1 GAI1 SA 04, D7 to D0

DECIMAL

UBADDRESS 04

GAIN

VALUE

0.... −5.98 0 0 0 000000

....255 0 0 1 1 111111

256.... 0 1 0 0 000000

....511 5.98 1 1 1 111111

(dB)

SIGN

BIT

GAI18 GAI17 GAI16 GAI15 GAI14 GAI13 GAI12 GAI11 GAI10

CONTROL BITS D7 TO D0

1997 May 26 46

Philips Semiconductors Preliminary specification

Enhanced Video Input Processor (EVIP) SAA7111A

17.2.5 SUBADDRESS 05

Table 17 Gain control analog (AIC04); static gain control channel 2 GAI2 SA 05, D7 to D0

DECIMAL

VALUE

0.... −5.98 0 00000000

....255 0 0 11111111

256.... 0 1 00000000

....511 5.98 1 11111111

17.2.6 S

Table 18 Horizontal sync begin SA 06, D7 to D0

DELAY TIME

(STEP SIZE = 8/LLC)

17.2.7 S

Table 19 Horizontal sync stop SA 07, D7 to D0

GAIN

(dB)

UBADDRESS 06

−128...−108 forbidden (outside available central counter range)

−107... 1 0 0 1 0 1 0 1

...108 0 1 1 0 1 1 0 0

109...127 forbidden (outside available central counter range)

UBADDRESS 07

SIGN BIT

(SA 03, D1)

GAI28 GAI27 GAI26 GAI25 GAI24 GAI23 GAI22 GAI21 GAI20

HSB7 HSB6 HSB5 HSB4 HSB3 HSB2 HSB1 HSB0

CONTROL BITS D7 to D0

CONTROL BITS D7 to D0

DELAY TIME

(STEP SIZE = 8/LLC)

−128...−108 forbidden (outside available central counter range)

−107... 1 0 0 1 0 1 0 1

...108 0 1 1 0 1 1 0 0

109...127 forbidden (outside available central counter range)

HSS7 HSS6 HSS5 HSS4 HSS3 HSS2 HSS1 HSS0

CONTROL BITS D7 to D0

1997 May 26 47

Philips Semiconductors Preliminary specification

Enhanced Video Input Processor (EVIP) SAA7111A

17.2.8 SUBADDRESS 08

Table 20 Sync control SA 08, D7 to D5, D3 to D0

FUNCTION VNOI BITS LOGIC LEVELS DATA BITS

Vertical noise reduction (VNOI)

Normal mode VNOI1 0 D1

VNOI0 0 D0

Searching mode VNOI1 0 D1

VNOI0 1 D0

Free running mode VNOI1 1 D1

VNOI0 0 D0

Vertical noise reduction bypassed VNOI1 1 D1

VNOI0 1 D0

Horizontal PLL (HPLL)

PLL closed HPLL 0 D2
PLL open, horizontal frequency fixed HPLL 1 D2

TV/VTR mode select (VTRC)

TV mode
(recommended for poor quality TV signals only)

VTR mode (recommended as default setting) VTRC 1 D3

Extended loop filter (EXFIL)

Word width of the loop filter (LF2) amplification = 16-bit EXFIL 0 D5
Word width of the loop filter (LF2) amplification = 14-bit EXFIL 1 D5

Field selection (FSEL)

50 Hz, 625 lines FSEL 0 D6
60 Hz, 525 lines FSEL 1 D6

Automatic field detection (AUFD)

Field state directly controlled via FSEL AUFD 0 D7
Automatic field detection AUFD 1 D7

VTRC 0 D3

1997 May 26 48

Philips Semiconductors Preliminary specification

Enhanced Video Input Processor (EVIP) SAA7111A

17.2.9 SUBADDRESS 09

Table 21 Luminance control SA 09, D7 to D0

FUNCTION

Aperture factor (APER)

Aperture factor = 0 APER1 0 D1

Aperture factor = 0.25 APER1 0 D1

Aperture factor = 0.5 APER1 1 D1

Aperture factor = 1.0 APER1 1 D1

Update time interval for AGC value (UPTCV)

Horizontal update (once per line) UPTCV 0 D2
Vertical update (once per field) UPTCV 1 D2

Vertical blanking luminance bypass (VBLB)

Active luminance processing VBLB 0 D3
Luminance bypass during vertical blanking VBLB 1 D3

Aperture band pass (centre frequency) (BPSS)

Centre frequency = 4.1 MHz BPSS1 0 D5

Centre frequency = 3.8 MHz; note 1 BPSS1 0 D5

Centre frequency = 2.6 MHz; note 1 BPSS1 1 D5

Centre frequency = 2.9 MHz; note 1 BPSS1 1 D5

APER/BPSS

BITS

APER0 0 D0

APER0 1 D0

APER0 0 D0

APER0 1 D0

BPSS0 0 D4

BPSS0 1 D4

BPSS0 0 D4

BPSS0 1 D4

LOGIC LEVELS DATA BITS

Prefilter active (PREF)

Bypassed PREF 0 D6
Active PREF 1 D6

Chrominance trap bypass (BYPS)

Chrominance trap active; default for CVBS mode BYPS 0 D7
Chrominance trap bypassed; default for S-Video mode BYPS 1 D7

Note

1. Not to be used with bypassed chrominance trap.

1997 May 26 49

Philips Semiconductors Preliminary specification

Enhanced Video Input Processor (EVIP) SAA7111A

17.2.10 SUBADDRESS 0A

Table 22 Luminance brightness control BRIG7 to BRIG0 SA 0A

OFFSET

CONTROL BITS D7 to D0

BRIG7 BRIG6 BRIG5 BRIG4 BRIG3 BRIG2 BRIG1 BRIG0

255 (bright) 1 1 1 1 1 1 1 1

128 (CCIR level) 1 0 0 0 0 0 0 0

0 (dark) 0 0 0 0 0 0 0 0

17.2.11 S

UBADDRESS 0B

Table 23 Luminance contrast control CONT7 to CONT0 SA 0B

CONTROL BITS D7 to D0

GAIN

CONT7 CONT6 CONT5 CONT4 CONT3 CONT2 CONT1 CONT0

1.999 (maximum) 0 1 1 1 1 1 1 1

1.109 (CCIR level) 0 1 0 0 0 1 1 1

1.0 01000000

0 (luminance off) 0 0 0 0 0 0 0 0

−1 (inverse luminance) 1 1 0 0 0 0 0 0

−2 (inverse luminance) 1 0 0 0 0 0 0 0

17.2.12 S

UBADDRESS 0C

Table 24 Chrominance saturation control SATN7 to SATN0 SA 0C

GAIN

CONTROL BITS D7 to D0

SATN7 SATN6 SATN5 SATN4 SATN3 SATN2 SATN1 SATN0

1.999 (maximum) 0 1 1 1 1 1 1 1

1.0 (CCIR level) 0 1 0 0 0 0 0 0
0 (colour off) 0 0 0 0 0 0 0 0

−1 (inverse chrominance) 1 1 0 0 0 0 0 0

−2 (inverse chrominance) 1 0 0 0 0 0 0 0

17.2.13 S

UBADDRESS 0D

Table 25 Chrominance hue control HUEC7 to HUEC0 SA 0D

CONTROL BITS D7 to D0

HUE PHASE (DEG)

HUEC7 HUEC6 HUEC5 HUEC4 HUEC3 HUEC2 HUEC1 HUEC0

+178.6.... 0 1 1 1 1 1 1 1

....0.... 0 0 0 0 0 0 0 0

....−180 10000000

1997 May 26 50

Philips Semiconductors Preliminary specification

Enhanced Video Input Processor (EVIP) SAA7111A

17.2.14 SUBADDRESS 0E

Table 26 Chrominance control SA 0E

FUNCTION

Chroma bandwidth (CHBW0 and CHBW1)

Small bandwidth (≈ 620 kHz) CHBW1 0 D1

Nominal bandwidth (≈ 800 kHz) CHBW1 0 D1

Medium bandwidth (≈ 920 kHz) CHBW1 1 D1

Wide bandwidth (≈ 1000 kHz) CHBW1 1 D1

Fast colour time constant (FCTC)

Nominal time constant FCTC 0 D2
Fast time constant FCTC 1 D2

Disable chrominance comb filter (DCCF)

Chrominance comb filter on (during VREF = 1) (see Figs 25 and 26) DCCF 0 D3
Chrominance comb filter off DCCF 1 D3

Colour standard (CSTD0 to CSTD2); logic levels 100, 110 and 111 are reserved, do not use

Colour standard control automatic switching between PAL BGHI and
NTSC M (NTSC-Japan with special level adjustment; luminance brightness
subaddress 0A = 95H, luminance contrast subaddress 0BH = 48H)

Colour standard control automatic switching between NTSC 4.43 (50 Hz)
and PAL 4.43 (60 Hz)

Colour standard control automatic switching between PAL N and
NTSC 4.43 (60 Hz)

Colour standard control automatic switching between NTSC N and PAL M CSTD2 0 D6

Colour standard control automatic switching between SECAM and
PAL 4.43 (60 Hz)

CHBW/CSTD

BITS

CHBW0 0 D0

CHBW0 1 D0

CHBW0 0 D0

CHBW0 1 D0

CSTD2 0 D6
CSTD1 0 D5
CSTD0 0 D4
CSTD2 0 D6
CSTD1 0 D5
CSTD0 1 D4
CSTD2 0 D6
CSTD1 1 D5
CSTD0 0 D4

CSTD1 1 D5
CSTD0 1 D4
CSTD2 1 D6
CSTD1 0 D5
CSTD0 1 D4

LOGIC

LEVELS

DATA

BITS

Clear DTO (CDTO)

Disabled CDTO 0 D7
Every time CDTO is set, the internal subcarrier DTO phase is reset to 0°

and the RTCO output generates a logic 0 at time slot 68 (see RTCO
description Fig.21). So an identical subcarrier phase can be generated by
an external device (e.g. an encoder).

1997 May 26 51

CDTO 1 D7

Philips Semiconductors Preliminary specification

Enhanced Video Input Processor (EVIP) SAA7111A

17.2.15 SUBADDRESS 10

Table 27 Format/delay control SA 10

LUMINANCE DELAY COMPENSATION

(STEPS IN 2/LLC)

YDEL2 YDEL1 YDEL0

CONTROL BITS D2 to D0

−4... 1 0 0

...0... 0 0 0

...3 0 1 1

Table 28 VREF pulse position and length VRLN SA 10 (D3)

VREF at 60 Hz 525 LINES

(2)

VREF at 50 Hz 625 LINES

(2)

VRLN

0101

Length 240 242 286 288
Line number first last first last first last first last

(1)

Field 1
Field 2

(1)

19 (22) 258 (261) 18 (21) 259 (262) 24 309 23 310

282 (285) 521 (524) 281 (284) 522 (525) 337 622 336 623

Notes

1. The numbers given in parenthesis refer to CCIR line counting.

2. Additional VREF positions can be achieved via I

2

C-bus bits VCTR1 and VCTR0 (see Fig.10).

Table 29 Fine position of HS HDEL0 and HDEL1 SA 10

FINE POSITION OF HS WITH A STEP SIZE

OF 2/LLC

HDEL1 HDEL0

CONTROL BITS D5 and D4

000
101
210
311

Table 30 Output format selection OFTS0 and OFTS1 SA 10

CONTROL BITS D7 and D6

FORMATS

OFTS1 OFTS0

RGB (5, 6, 5), RGB (8, 8, 8) (dependent on

00

control bit RGB888) see Table 32
YUV 422 16 bits 0 1
YUV 411 12 bits 1 0
YUV CCIR-656 8 bits 1 1

1997 May 26 52

Philips Semiconductors Preliminary specification

Enhanced Video Input Processor (EVIP) SAA7111A

17.2.16 SUBADDRESS 11

Table 31 Output control 1 SA 11

FUNCTION BITS LOGIC LEVELS DATA BIT

Colour on (COLO)

Automatic colour killer COLO 0 D0
Colour forced on COLO 1 D0

Decoder VIP bypassed (VIPB)

DMSD data to YUV output VIPB 0 D1
ADC data to YUV output; dependent on mode

settings

Output enable horizontal/vertical sync (OEHV)

HS, HREF, VREF and VS high-impedance inputs OEHV 0 D2
Outputs HS, HREF, VREF and VS active OEHV 1 D2

VIPB 1 D1

Output enable YUV data (OEYC)

VPO-bus high-impedance inputs OEYC 0 D3
Output VPO-bus active OEYC 1 D3

Inverse composite blank (COMPO)

VREF is vertical reference COMPO 0 D4
VREF is inverse composite blank COMPO 1 D4

FEI control (FECO)

FEI sampling at CREF = LOW
(SAA7110 compatible; (see Fig.20)

FEI sampling at CREF = HIGH FECO 1 D5

CM99 compatibility to SAA7199 (CM99)

Default value CM99 0 D6
To be set if SAA7199 (digital encoder) is used for

re-encoding in conjunction with RTCO

General purpose switch (GPSW)

Switches directly pin 64 GPSW GPSW 0 D7

FECO 0 D5

CM99 1 D6

GPSW 1 D7

1997 May 26 53

Philips Semiconductors Preliminary specification

Enhanced Video Input Processor (EVIP) SAA7111A

17.2.17 SUBADDRESS 12

Table 32 Output control 2 SA 12, D7 to D6, D4 to D0

FUNCTION AOSL BITS LOGIC LEVELS DATA BITS

Analog test select (AOSL)

AOUT connected to internal test point 1 AOSL1 0 D1

AOSL0 0 D0

AOUT connected to input AD1 AOSL1 0 D1

AOSL0 1 D0

AOUT connected to input AD2 AOSL1 1 D1

AOSL0 0 D0

AOUT connected to internal test point 2 AOSL1 1 D1

AOSL0 1 D0

Dithering (noise shaping) control (DIT)

Dithering off DIT 0 D2
Dithering on DIT 1 D2

RGB output format selection (RGB888)

RGB (5, 6, 5) RGB888 0 D3
RGB (8, 8, 8) RGB888 1 D3

Chrominance interpolation filter function (CBR)

Cubic interpolation (default) CBR 0 D4
Linear interpolation (lower bandwidth) CBR 1 D4

3-state control VPO7 to VPO0 (TCLO)

VPO7 to VPO0 depends on OEYC,
(default)

VPO7 to VPO0 in 3-state
[and OFTS (1 : 0) = 3]

Real time outputs mode select (RTSE0)

ODD switched to output pin 40 RTSE0 0 D6
VL switched to output pin 40 RTSE0 1 D6

Real time outputs mode select (RTSE1)

PLIN switched to output pin 39 RTSE1 0 D7
HL switched to output pin 39 RTSE1 1 D7

FEI only

TCLO 0 D5

TCLO 1 D5

1997 May 26 54

Philips Semiconductors Preliminary specification

Enhanced Video Input Processor (EVIP) SAA7111A

17.2.18 SUBADDRESS 13

Table 33 Output control 3 SA 13

FUNCTION BITS LOGIC LEVELS DATA BITS

Bypass control LOW for VPO7 to VPO0

No bypass BCLO1 0 D1

BCLO0 0 D0

Permanent bypass BCLO1 0 D1

BCLO0 1 D0

Bypass controlled by V_GATE BCLO1 1 D1

BCLO0 0 D0

Bypass controlled by delayed V_GATE BCLO1 1 D1

BCLO0 1 D0

Bypass control HIGH for VPO15 to VPO8

No bypass BCHI1 0 D3

BCHI0 0 D2

Permanent bypass BCHI1 0 D3

BCHI0 1 D2

Bypass controlled by V_GATE BCHI1 1 D3

BCHI0 0 D2

Bypass controlled by delayed V_GATE BCHI1 1 D3

BCHI0 1 D2

Clock Reference Output Control

CREF is independent of VREF CCTR1 0 D5

CCTR0 0 D4

CREF is LOW if VREF = 0 CCTR1 0 D5

CCTR0 1 D4

CREF is HIGH if VREF = 0 CCTR1 1 D5

CCTR0 0 D4

CREF always = 1 CCTR1 1 D5

CCTR0 1 D4

Vertical Reference Output Control (VREF)

Internal VREF VCTR1 0 D7

VCTR0 0 D6

VREF_CCIR VCTR1 0 D7

VCTR0 1 D6

Programmable V_GATE VCTR1 1 D7

VCTR0 0 D6

Delayed programmable V_GATE VCTR1 1 D7

VCTR0 1 D6

1997 May 26 55

Philips Semiconductors Preliminary specification

Enhanced Video Input Processor (EVIP) SAA7111A

17.2.19 SUBADDRESS 15

Table 34 Start of decoded data on VPO-port SA 15; note 1

Frame

line

FIELD

50 Hz 1st 1 312 1 0 0 1 1 1 0 0 0

60 Hz 1st 1 (4) 262 1 0 0 0 0 0 1 1 0

Notes

1. Start of decoded data on VPO-port (end of bypassed region; start of VREF if selected by VCTR1 and VCTR0;
see Figs 9 and 11).

2. Line numbers in brackets refer to CCIR line counting.

counting

2nd 314

1st 2 0.... 0 0 0 0 0 0 0 0 0

2nd 315

1st 312 ....310 1 0 0 1 1 0 1 1 1

2nd 625

2nd 264 (267)

1st 2 (5) 0.... 0 0 0 0 0 0 0 0 0

2nd 265 (268)

1st 262 (265) ....260 1 0 0 0 0 0 1 0 1

2nd 525 (3)

(2)

Decimal

value

MSB

(SA 17, D0)

VSTA8

CONTROL BITS D7 to D0

VSTA7VSTA6VSTA5VSTA4VSTA3VSTA2VSTA1VSTA

0

1997 May 26 56

Philips Semiconductors Preliminary specification

Enhanced Video Input Processor (EVIP) SAA7111A

17.2.20 SUBADDRESS 16

Table 35 Stop of decoded data on VPO-port SA 16; note 1

Frame

line

FIELD

50Hz1st1 312 1 00111000

60Hz1st1(4)262 1 00000110

Notes

1. Stop of decoded data on VPO-port (begin of bypassed region; stop of VREF if selected by VCTR1 and VCTR0;
see Figs 9 and 11).

2. Line numbers in brackets refer to CCIR line counting.

counting

2nd 314

1st 2 0.... 0 0 0 0 00000

2nd 315

1st 312 ....310 1 0 0 1 10111

2nd 625

2nd 264 (267)

1st 2 (5) 0.... 0 0 0 0 00000

2nd 265 (268)

1st 262 (265) ....260 1 0 0 0 00101

2nd 525 (3)

(2)

Decimal

value

MSB

(SA 17, D0)

VSTO8

CONTROL BITS D7 to D0

VSTO7VSTO6VSTO5VSTO4VSTO3VSTO2VSTO1VSTO

0

17.2.21 S

Table 36 Sign bits of the VBI-data stream control

VBI-data stream start (VSTA8); see SA 15

Sign bit VBI-data stream start see Table 34 D0

VBI-data stream stop (VSTA8); see SA 16

Sign bit VBI-data stream stop see Table 35 D1

1997 May 26 57

UBADDRESS 17

FUNCTION LOGIC LEVELS CONTROL BITS

Philips Semiconductors Preliminary specification

Enhanced Video Input Processor (EVIP) SAA7111A

17.2.22 SUBADDRESS 1A (READ-ONLY REGISTER)

Table 37 Line-21 text slicer status SA 1A, D3 to D0

2

C-BUS

I

CONTROL BITS

F1RDY new data on field 1 has been acquired (for asynchronous reading); active HIGH D0

F1VAL Line-21 of field 1 carries valid data; active HIGH D1

F2RDY new data on field 2 has been acquired (for asynchronous reading); active HIGH D2

F2VAL Line-21 of field 2 carries valid data; active HIGH D3

FUNCTION DATA BIT

17.2.23 S

UBADDRESS 1B (READ-ONLY REGISTER)

Table 38 First decoded data byte of the text slicer SA 1B

I2C-BUS

CONTROL BITS

FUNCTION DATA BIT

BYTE1 (6 to 0) data bit 6 to 0 of first data byte D6 to D0

P1 parity error flag bit; bit goes HIGH when a parity error has occurred D7

17.2.24 S

UBADDRESS 1C (READ-ONLY REGISTER)

Table 39 Second decoded data byte of the text slicer SA 1C

I2C-BUS

CONTROL BITS

FUNCTION DATA BIT

BYTE2 (6 to 0) data bit 6 to 0 of second data byte D6 to D0

P2 parity error flag bit; bit goes HIGH when a parity error has occurred D7

17.2.25 S

UBADDRESS 1F (READ-ONLY REGISTER)

Table 40 Status byte SA 1F

I2C-BUS

CONTROL BITS

FUNCTION DATA BIT

CODE colour signal in accordance with selected standard has been detected; active HIGH D0

SLTCA slow time constant active in WIPA-mode; active HIGH D1

WIPA white peak loop is activated; active HIGH D2

GLIMB gain value for active luminance channel is limited [min (bottom)]; active HIGH D3

GLIMT gain value for active luminance channel is limited [max (top)]; active HIGH D4

FIDT identification bit for detected field frequency; LOW = 50 Hz, HIGH = 60 Hz D5

HLCK status bit for locked horizontal frequency; LOW = locked, HIGH = unlocked D6

STTC status bit for horizontal phase loop; LOW = TV time-constant,

HIGH = VTR time-constant

D7

1997 May 26 58

Philips Semiconductors Preliminary specification

Enhanced Video Input Processor (EVIP) SAA7111A

18 FILTER CURVES

18.1 Anti-alias filter curve

handbook, full pagewidth

6

V

(dB)

0

−6

−12

−18

−24

−30

−36

−42

024 68101214

18.2 TUF-block filter curve

MGD138

f (MHz)

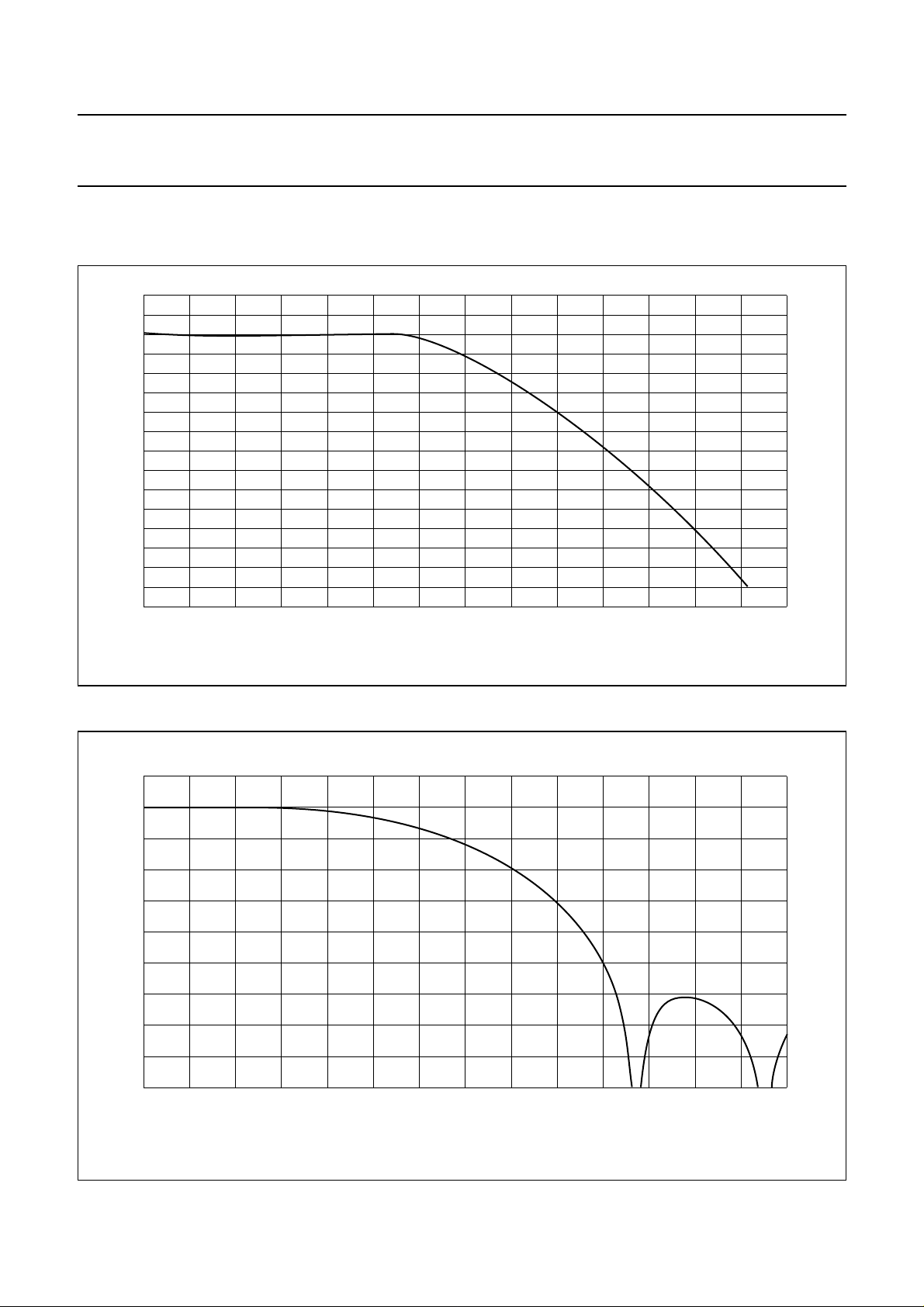

Fig.42 Anti-alias filter.

6

V

handbook, full pagewidth

(dB)

0

−6

−12

−18

−24

−30

−36

−42

−48

−54

024 68101214

Fig.43 Interpolation filter for the upsampled CVBS-signal.

1997 May 26 59

MGG067

f (MHz)

Philips Semiconductors Preliminary specification

Enhanced Video Input Processor (EVIP) SAA7111A

18.3 Luminance filter curves

18

handbook, full pagewidth

V

Y

(dB)

6

−6

−18

−30

024 86

(1) = 43H; (2) = 53H; (3) = 63H; (4) = 73H.

(1)
(2)
(4)
(3)

(1)
(2)
(4)
(3)

f

Y (MHz)

MGD139

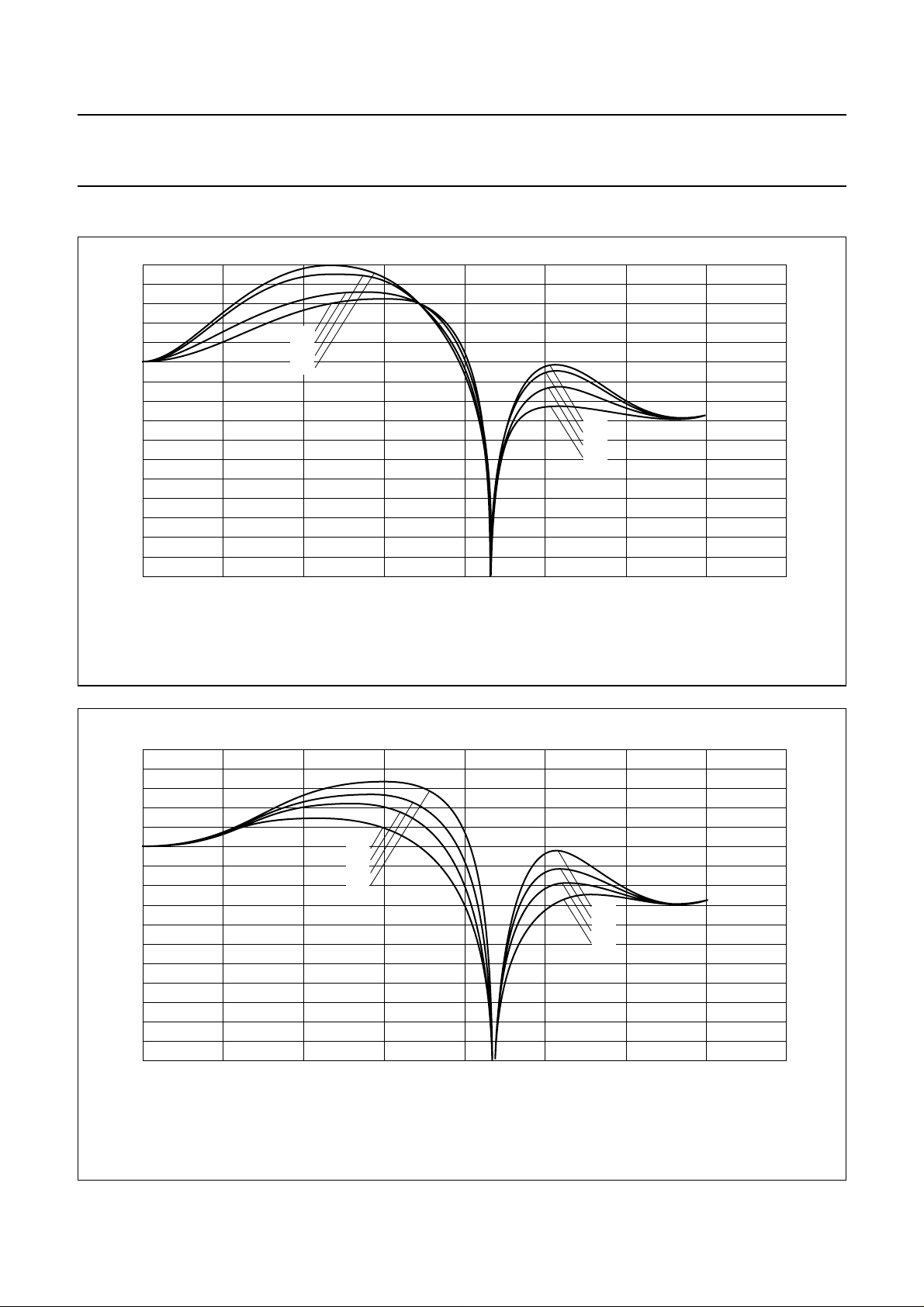

Fig.44 Luminance control SA 09H, 4.43 MHz Trap/CVBS mode, prefilter on, different aperture bandpass centre

frequencies.

18

handbook, full pagewidth

V

Y

(dB)

6

−6

−18

−30

024 86

(1) = 40H; (2) = 41H; (3) = 42H; (4) = 43H.

Fig.45 Luminance control SA 09H, 4.43 MHz Trap/CVBS mode, prefilter on, different aperture factors.

(1)
(2)
(3)
(4)

(4)
(3)
(2)
(1)

f

Y (MHz)

MGD140

1997 May 26 60

Philips Semiconductors Preliminary specification

Enhanced Video Input Processor (EVIP) SAA7111A

18

handbook, full pagewidth

V

Y

(dB)

6

(1)
(2)
(4)
(3)

−6

−18

−30

024 86

(1) = 03H; (2) = 13H; (3) = 23H; (4) = 33H.

(1)
(2)
(4)
(3)

f

Y (MHz)

MGD141

Fig.46 Luminance control SA 09H, 4.43 MHz Trap/CVBS mode, prefilter off, different aperture band-pass centre

frequencies.

18

handbook, full pagewidth

V

Y

(dB)

6

−6

−18

−30

024 86

(1) = C0H; (2) = C1H; (3) = C2H; (4) = C3H.

Fig.47 Luminance control SA 09H, Y/C mode, prefilter on, different aperture factors.

(1)
(2)
(3)
(4)

f

Y (MHz)

MGD142

1997 May 26 61

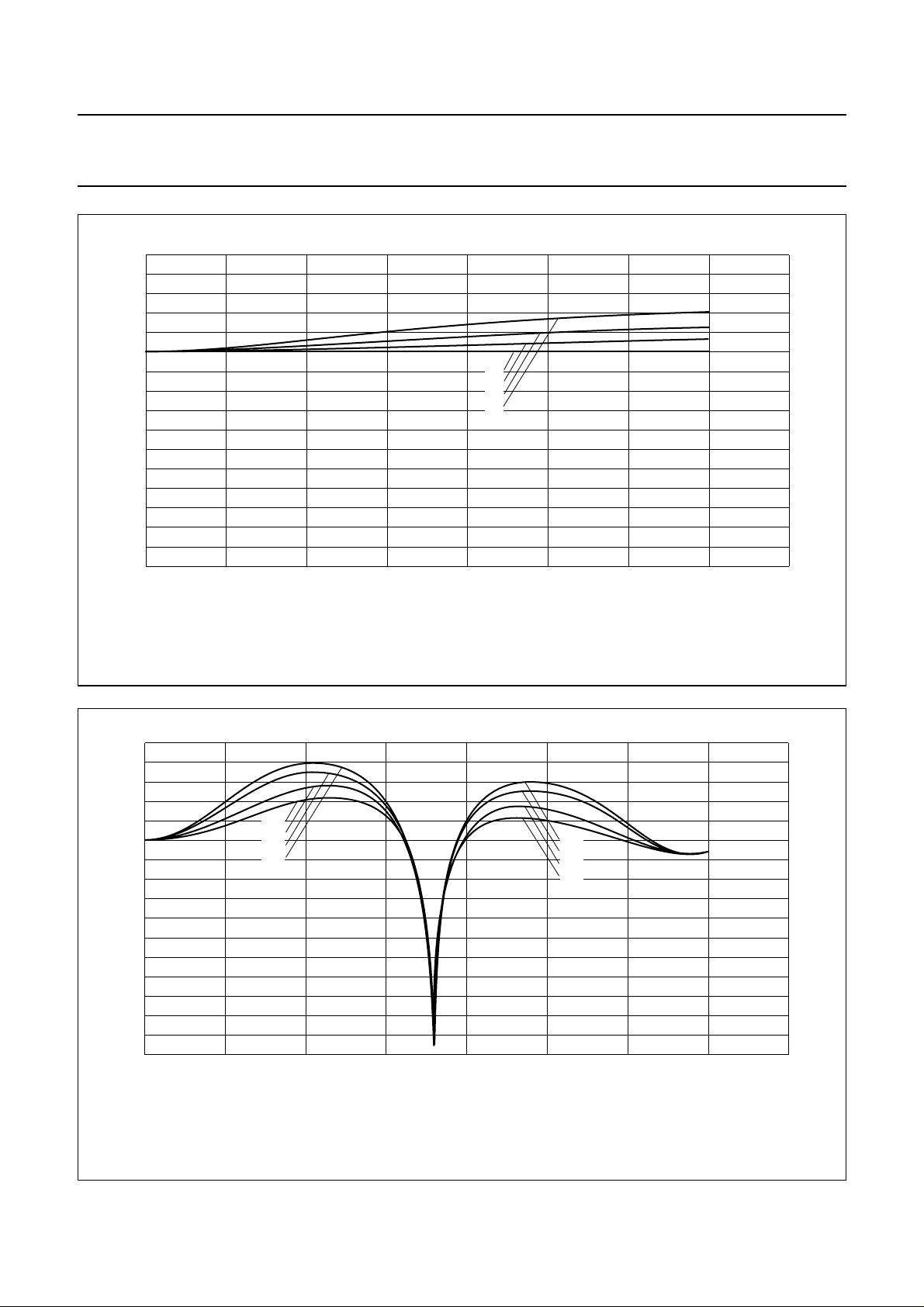

Philips Semiconductors Preliminary specification

Enhanced Video Input Processor (EVIP) SAA7111A

18

handbook, full pagewidth

V

Y

(dB)

6

−6

−18

−30

024 86

(1) = 80H; (2) = 81H; (3) = 82H; (4) = 83H.

Fig.48 Luminance control SA 09H, Y/C mode, prefilter off, different aperture factors.

(1)
(2)
(3)
(4)

f

Y (MHz)

MGD143

18

handbook, full pagewidth

V

Y

(dB)

6

−6

−18

−30

024 86

(1) = 43H; (2) = 53H; (3) = 63H; (4) = 73H.

(1)
(2)
(4)
(3)

(1)
(2)
(4)
(3)

f

Y (MHz)

MGD144

Fig.49 Luminance control SA 09H, 3.58 MHz Trap/CVBS mode, prefilter on, different aperture band-pass centre

frequencies.

1997 May 26 62

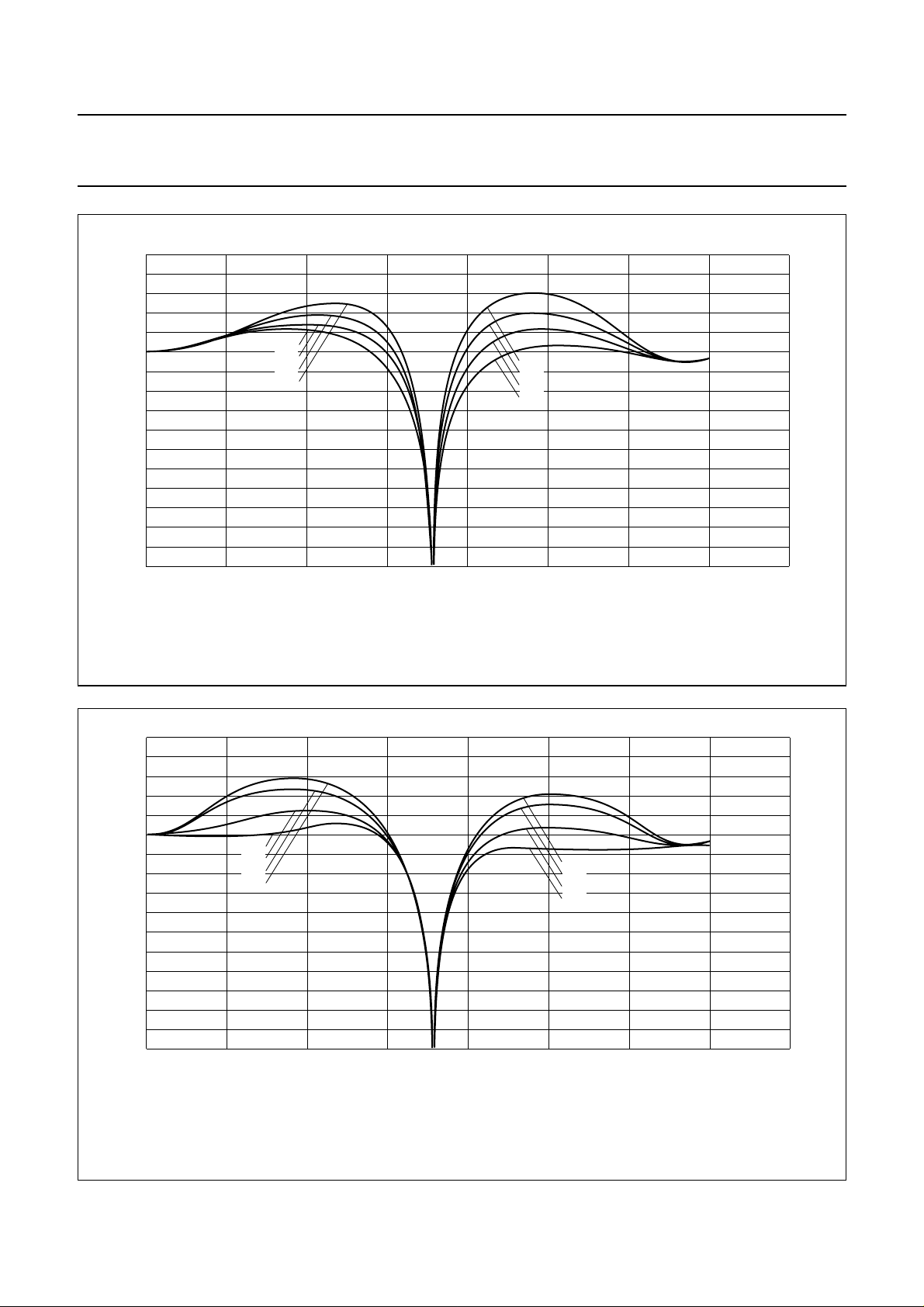

Philips Semiconductors Preliminary specification

Enhanced Video Input Processor (EVIP) SAA7111A

18

handbook, full pagewidth

V

Y

(dB)

6

−6

−18

−30

024 86

(1) = 40H; (2) = 41H; (3) = 42H; (4) = 43H.

Fig.50 Luminance control SA 09H, 3.58 MHz Trap/CVBS mode, prefilter on, different aperture factors.

(1)
(2)
(3)
(4)

(4)
(3)
(2)
(1)

f

Y (MHz)

MGD145

18

handbook, full pagewidth

V

Y

(dB)

6

(1)
(2)
(4)

−6

−18

−30

024 86

(1) = 03H; (2) = 13H; (3) = 23H; (4) = 33H.

(3)

(1)
(2)
(4)
(3)

f

Y (MHz)

MGD146

Fig.51 Luminance control SA 09H, 3.58 MHz Trap/CVBS mode, prefilter off, different aperture band-pass centre

frequencies.

1997 May 26 63

Philips Semiconductors Preliminary specification

Enhanced Video Input Processor (EVIP) SAA7111A

18.4 Chrominance filter curves

handbook, full pagewidth

6

V

(dB)

0

−6
(1)

−12

−18

−24

−30

−36

−42

−48

−54

0 0.54 1.08 1.62 2,16

Transfer characteristics of the chrominance low-pass dependent on CHBW[1 : 0] settings.
(1) CHBW [1 : 0] = 00; (2) CHBW [1 : 0] = 01; (3) CHBW [1 : 0] = 10; (4) CHBW [1 : 0] = 11.

(2)
(3)
(4)

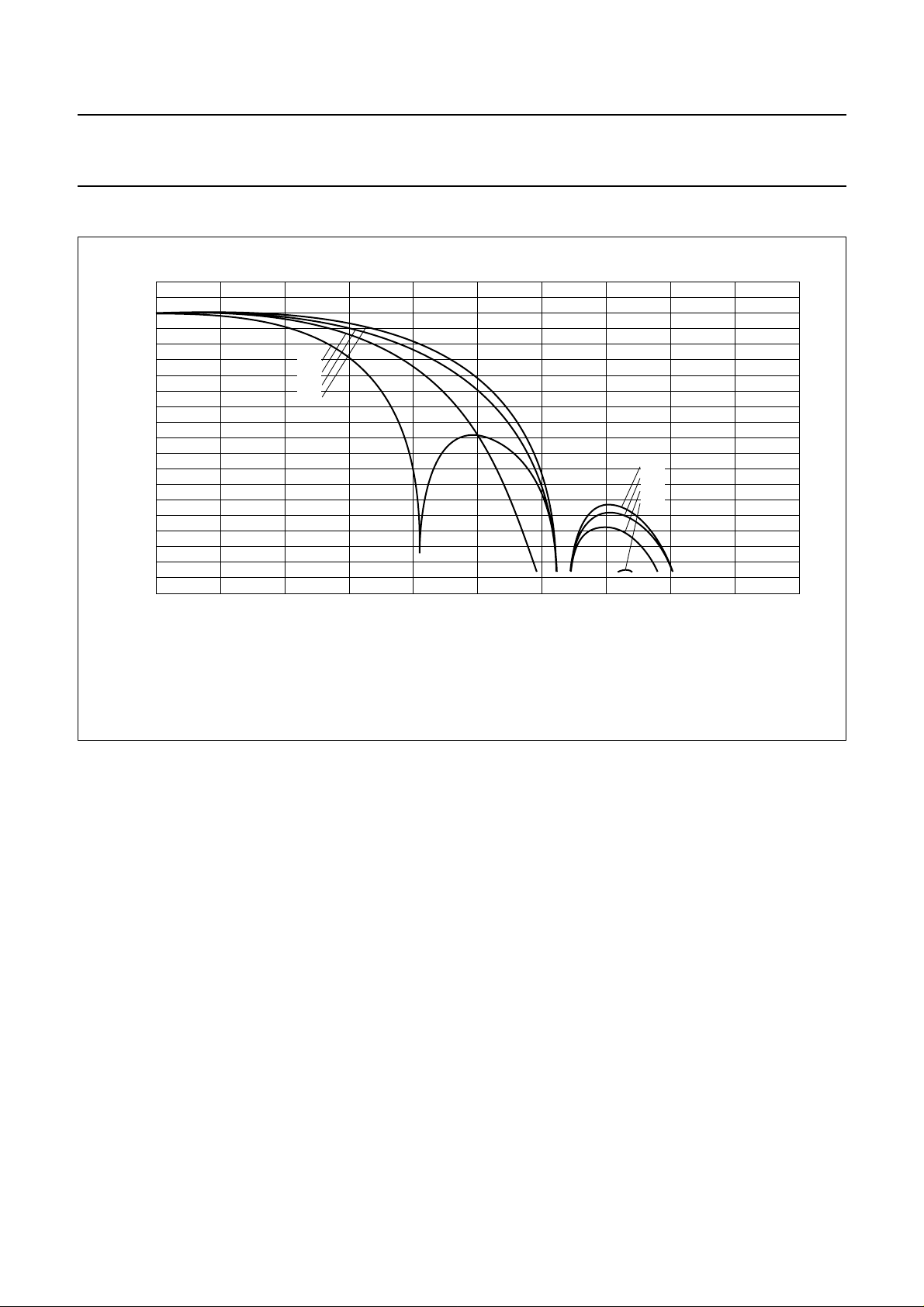

Fig.52 Chrominance filter.

(4)
(1)
(3)
(2)

f

(MHz)

MGD147

2.7

2

C-BUS START SET-UP

19 I

• The given values force the following behaviour of the SAA7111A:
– the analog input AI11 expects a signal in CVBS format; analog anti-alias filter active
– automatic field detection
– YUV 4:2:2 16-bit output format enabled
– outputs HS, HREF, VREF and VS active
– contrast, brightness and saturation control in accordance with CCIR standards
– chrominance processing with nominal bandwidth (800 kHz).

1997 May 26 64

Philips Semiconductors Preliminary specification

Enhanced Video Input Processor (EVIP) SAA7111A

Table 41 I2C-bus start set-up values

SUB

(HEX)

00 chip version ID07 to ID00; see Table 9 read only
01 reserved 0 0000000 00
02 analog input control 1 FUSE1 and FUSE0, GUDL2 to GUDL0,

03 analog input control 2 X, HLNRS, VBSL, WPOFF, HOLDG,

04 analog input control 3 GAI17 to GAI10 0 0000000 00
05 analog input control 4 GAI27 to GAI20 0 0000000 00
06 horizontal sync start HSB7 to HSB0 1 1101011 EB
07 horizontal sync stop HSS7 to HSS0 1 1100000 E0
08 sync control AUFD, FSEL, EXFIL, X, VTRC, HPLL,

09 luminance control BYPS, PREF, BPSS1 and BPSS0, VBLB,

0A luminance brightness BRIG7 to BRIG0 1 0000000 80
0B luminance contrast CONT7 to CONT0 0 1000111 47
0C chrominance saturation SATN7 to SATN0 0 1000000 40
0D chroma hue control HUEC7 to HUEC0 0 0000000 00
0E chrominance control CDTO, CSTD2 to CSTD0, DCCF, FCTC,

0F reserved 0 0000000 00

10 format/delay control OFTS1 and OFTS0, YDEL2 to YDEL0

11 output control 1 GPSW, CM99, FECO, COMPO, OEYC,

12 output control 2 RTSE1 and RTSE0, TCLO, CBR,

13 output control 3 CCTR1 and CCTR0, BCHI1 and BCHI0,

14 reserved 0 0000000 00
15 VBI-data stream start VSTA7 to VSTA0 0 0000000 00
16 VBI-data stream stop VSTO7 to VSTO0 0 0000000 00
17 MSBs for VBI control X, X, X, X, X, X, VSTO8, VSTA8 0 0000000 00

18-19 reserved 0 0000000 00

1A text slicer status 0, 0, 0, 0, F2VAL, F2RDY, F1V AL, F1RDY read only register
1B decoded bytes of the
1C P2, BYTE2(6 to 0)

1D-1E reserved 0 0000000 00

1F status byte STTC, HLCK, FIDT, GLIMT, GLIMB,

FUNCTION NAME

MODE2 to MODE0

GAFIX, GAI28, GAI18

VNOI1 and VNOI0

UPTCV, APER1 and APER0

CHBW1 and CHBW0

HDEL1 and HDEL0, VRLN

OEHV, VIPB, COLO

RGB888 DIT, AOSL1 and AOSL0

BCLO1 and BCLO0, VCTR1 and VCTR0

P1, BYTE1(6 to 0)

text slicer

WIPA, SLTCA, CODE

(1)

VALUES (BIN) (HEX)

76543210START

11000000 C0

00100011 23

10001000 88

00000001 01

00000001 01

01000000 40

00011100 1C

00000001 01

00000000 00

read only register

Note

1. All X values must be set to LOW.

1997 May 26 65

Philips Semiconductors Preliminary specification

Enhanced Video Input Processor (EVIP) SAA7111A

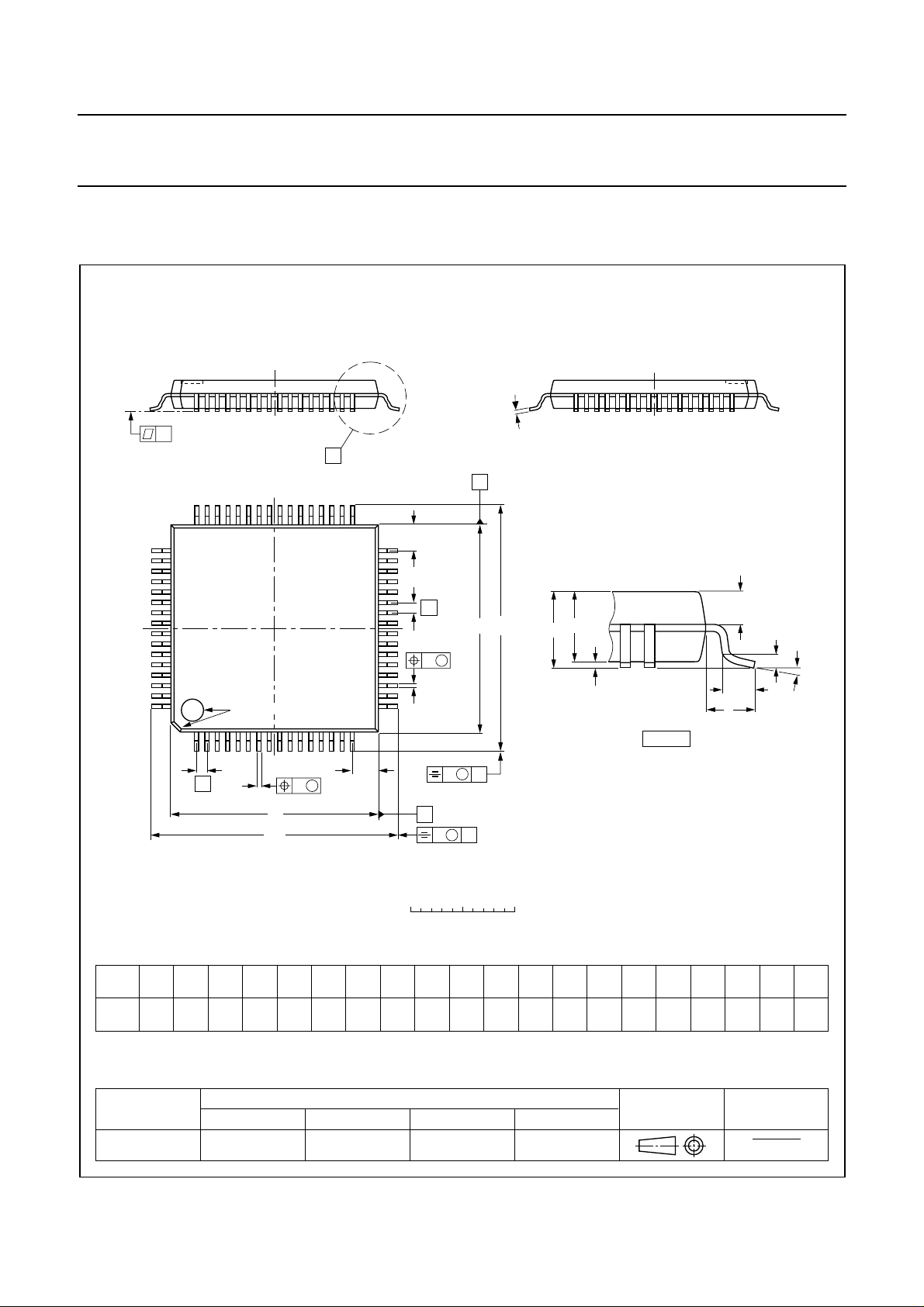

20 PACKAGE OUTLINES

LQFP64: plastic low profile quad flat package; 64 leads; body 10 x 10 x 1.4 mm

c

y

X

A

48 33

49

64

pin 1 index

1

16

Z

32

E

e

H

E

E

w M

b

p

17

A

2

A

A

1

detail X

SOT314-2

Q

(A )

3

θ

L

p

L

Z

e

DIMENSIONS (mm are the original dimensions)

mm

OUTLINE
VERSION

SOT314-2

A

A1A2A3b

max.

0.20

1.60

0.05

1.45

0.25

1.35

IEC JEDEC EIAJ

UNIT

Note

1. Plastic or metal protrusions of 0.25 mm maximum per side are not included.

w M

b

p

D

H

D

p

0.27

0.18

0.17

0.12

D

(1)

(1) (1)(1)

cE

D

10.1

10.1

9.9

9.9

REFERENCES

v M

B

v M

0 2.5 5 mm

scale

eH

12.15

0.5

11.85

1997 May 26 66

A

B

H

D

LLpQZywv θ

E

12.15

11.85

0.75

0.45

0.69

0.59

0.12 0.11.0 0.2

EUROPEAN

PROJECTION

Z

D

1.45

1.45

1.05

1.05

ISSUE DATE

94-01-07
95-12-19

E

o

7

o

0

Philips Semiconductors Preliminary specification

Enhanced Video Input Processor (EVIP) SAA7111A

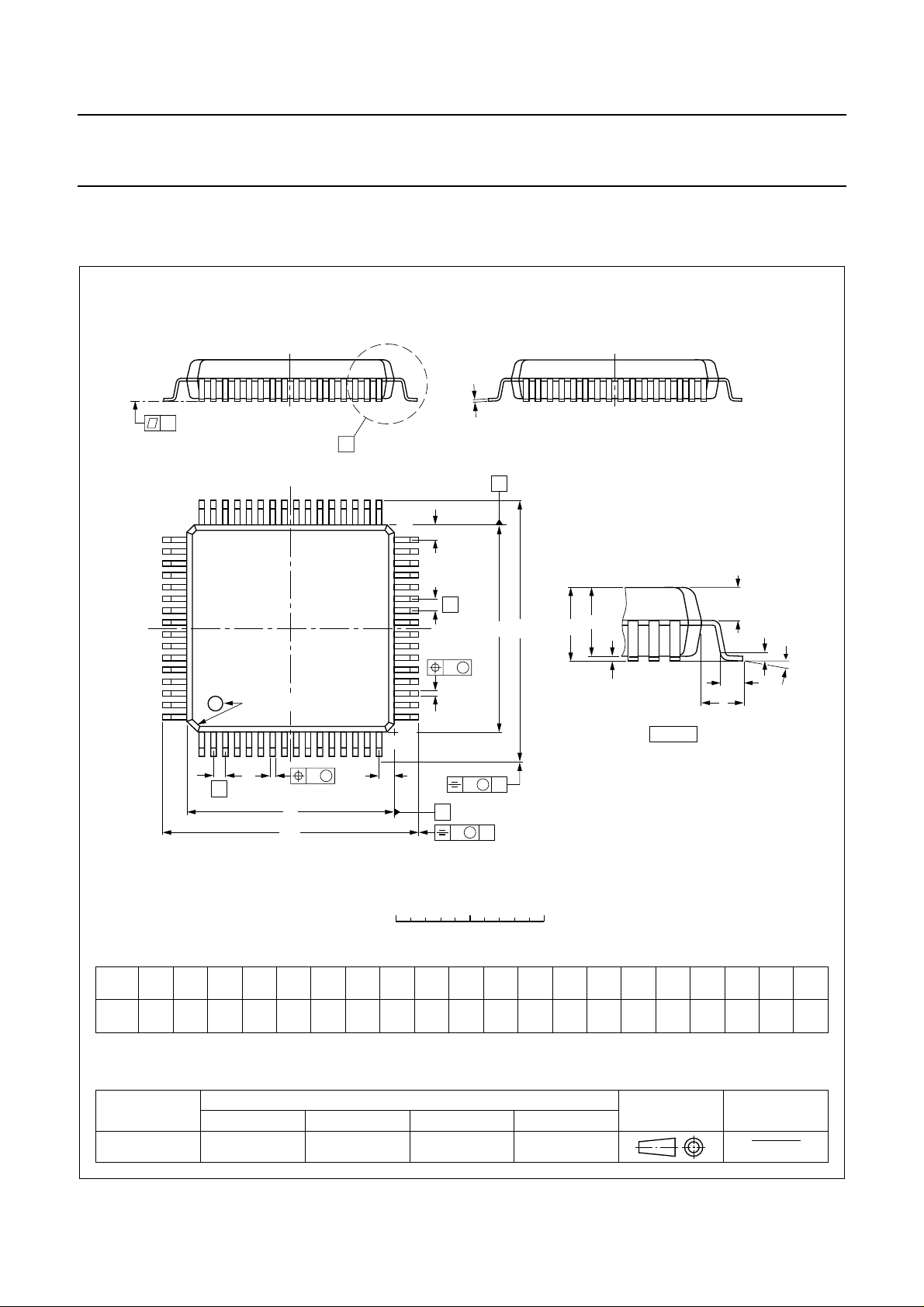

QFP64: plastic quad flat package; 64 leads (lead length 1.6 mm); body 14 x 14 x 2.7 mm

c

y

X

A

48 33

49

pin 1 index

64

1

32

Z

E

e

A

H

E

E

2

A

A

1

w M

b

p

17

16

detail X

SOT393-1

Q

(A )

3

θ

L

p

L

w M

b

e

p

D

H

D

Z

D

B

v M

0 5 10 mm

scale

DIMENSIONS (mm are the original dimensions)

mm

A

max.

3.00

0.25

0.10

2.75

2.55

0.25

UNIT A1A2A3b

cE

p

0.45

0.23

0.30

0.13

(1)

(1) (1)(1)

D

14.1

13.9

eH

H

14.1

13.9

0.8

17.45

16.95

Note

1. Plastic or metal protrusions of 0.25 mm maximum per side are not included.

OUTLINE
VERSION

IEC JEDEC EIAJ

REFERENCES

SOT393-1 MS-022

1997 May 26 67

v M

D

A

B

E

17.45

16.95

LLpQZywv θ

1.4

1.03

0.73

1.1

0.16 0.100.161.60

EUROPEAN

PROJECTION

Z

D

1.2

1.2

0.8

0.8

ISSUE DATE

E

o

7

o

0

94-06-22
96-05-21

Philips Semiconductors Preliminary specification

Enhanced Video Input Processor (EVIP) SAA7111A

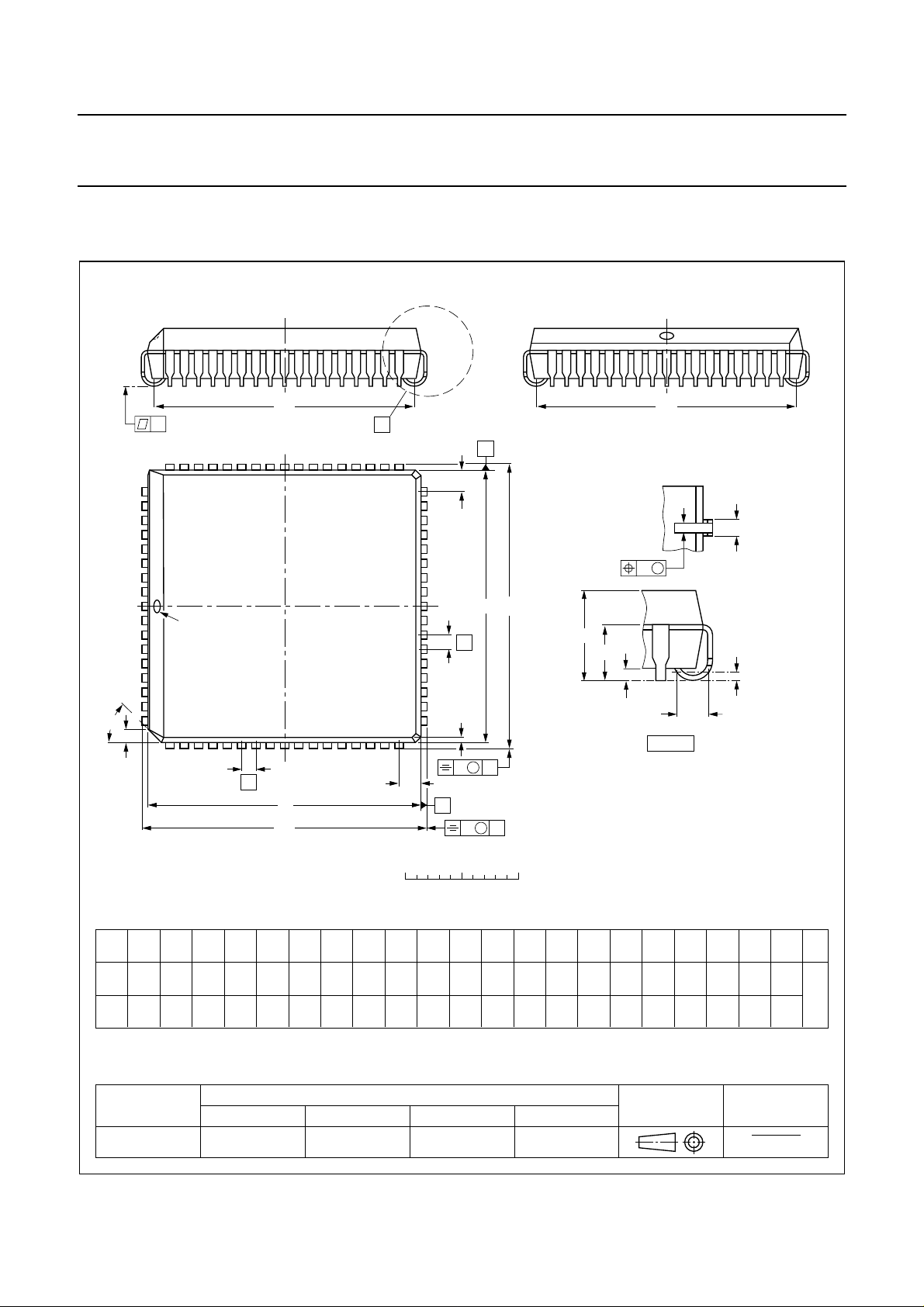

PLCC68: plastic leaded chip carrier; 68 leads

e

y

61

68

1

pin 1 index

D

X

SOT188-2

e

E

4460

43

A

Z

E

b

p

b

1

w M

H

E

E

e

A

A

1

A

4

(A )

3

k

9

β

1

27

k

10 26

e

Z

D

H

D

D

v M

A

B

v M

B

0 5 10 mm

scale

DIMENSIONS (millimetre dimensions are derived from the original inch dimensions)

UNIT A

mm

0.180

inches

0.165

A

1

min. max. max. max. max.

4.57

0.51

4.19

0.020

A

0.25

0.01

A

4

3

3.30

0.13

b

0.53

0.33

0.021

0.013

b

p

1

0.81

0.66

0.032

0.026

D

24.33

24.13

0.958

0.950

(1)

(1)

E

eH

e

D

1.27

0.05

23.62

22.61

0.930

0.890

24.33

24.13

0.958

0.950

e

23.62

22.61

0.930

0.890

H

D

E

25.27

25.27

25.02

25.02

0.995

0.995

0.985

0.985

Note

1. Plastic or metal protrusions of 0.01 inches maximum per side are not included.

OUTLINE
VERSION

SOT188-2

IEC JEDEC EIAJ

112E10 MO-047AC

REFERENCES

k

1

k

E

1.22

1.07

0.048

0.042

0.51

0.020

L

1.44

1.02

0.057

0.040

detail X

p

0.007 0.0040.007

EUROPEAN

PROJECTION

L

p

(1) (1)

Z

Z

E

D

ywv β

0.18 0.100.18

2.16

0.085

2.16

0.085

o

45

ISSUE DATE

92-11-17
95-03-11

1997 May 26 68

Philips Semiconductors Preliminary specification

Enhanced Video Input Processor (EVIP) SAA7111A

21 SOLDERING

21.1 Introduction

There is no soldering method that is ideal for all IC
packages. Wave soldering is often preferred when
through-hole and surface mounted components are mixed
on one printed-circuit board. However, wave soldering is
not always suitable for surface mounted ICs, or for
printed-circuits with high population densities. In these
situations reflow soldering is often used.

This text gives a very brief insight to a complex technology.
A more in-depth account of soldering ICs can be found in
our

“IC Package Databook”

21.2 Reflow soldering

Reflow soldering techniques are suitable for all PLCC and
QFP packages.

The choice of heating method may be influenced by larger
PLCC or QFP packages (44 leads, or more). If infrared or
vapour phase heating is used and the large packages are
not absolutely dry (less than 0.1% moisture content by
weight), vaporization of the small amount of moisture in
them can cause cracking of the plastic body. For more
information, refer to the Drypack chapter in our

Reference Handbook”

Reflow soldering requires solder paste (a suspension of
fine solder particles, flux and binding agent) to be applied
to the printed-circuit board by screen printing, stencilling or
pressure-syringe dispensing before package placement.

Several techniques exist for reflowing; for example,
thermal conduction by heated belt. Dwell times vary
between 50 and 300 seconds depending on heating
method. Typical reflow temperatures range from
215 to 250 °C.

(order code 9398 652 90011).

“Quality

(order code 9397 750 00192).

• The package footprint must incorporate solder thieves at
the downstream corners.

21.3.2 QFP

Wave soldering is not recommended for QFP packages.
This is because of the likelihood of solder bridging due to
closely-spaced leads and the possibility of incomplete
solder penetration in multi-lead devices.

If wave soldering cannot be avoided, the following
conditions must be observed:

• A double-wave (a turbulent wave with high upward
pressure followed by a smooth laminar wave)
soldering technique should be used.

• The footprint must be at an angle of 45° to the board
direction and must incorporate solder thieves
downstream and at the side corners.

Even with these conditions, do not consider wave
soldering the following packages: QFP52 (SOT379-1),
QFP100 (SOT317-1), QFP100 (SOT317-2),
QFP100 (SOT382-1) or QFP160 (SOT322-1).

21.3.3 M

During placement and before soldering, the package must
be fixed with a droplet of adhesive. The adhesive can be
applied by screen printing, pin transfer or syringe
dispensing. The package can be soldered after the
adhesive is cured.

Maximum permissible solder temperature is 260 °C, and
maximum duration of package immersion in solder is
10 seconds, if cooled to less than 150 °C within
6 seconds. Typical dwell time is 4 seconds at 250 °C.

A mildly-activated flux will eliminate the need for removal
of corrosive residues in most applications.

ETHOD (PLCC AND QFP)

Preheating is necessary to dry the paste and evaporate
the binding agent. Preheating duration: 45 minutes at
45 °C.

21.3 Wave soldering

21.3.1 PLCC
Wave soldering techniques can be used for all PLCC

packages if the following conditions are observed:

• A double-wave (a turbulent wave with high upward
pressure followed by a smooth laminar wave) soldering
technique should be used.

• The longitudinal axis of the package footprint must be
parallel to the solder flow.

1997 May 26 69

21.4 Repairing soldered joints

Fix the component by first soldering two diagonally­opposite end leads. Use only a low voltage soldering iron
(less than 24 V) applied to the flat part of the lead. Contact
time must be limited to 10 seconds at up to 300 °C. When
using a dedicated tool, all other leads can be soldered in
one operation within 2 to 5 seconds between
270 and 320 °C.

Philips Semiconductors Preliminary specification

Enhanced Video Input Processor (EVIP) SAA7111A

22 DEFINITIONS

Data sheet status

Objective specification This data sheet contains target or goal specifications for product development.
Preliminary specification This data sheet contains preliminary data; supplementary data may be published later.
Product specification This data sheet contains final product specifications.

Limiting values

Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one or
more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation
of the device at these or at any other conditions above those given in the Characteristics sections of the specification
is not implied. Exposure to limiting values for extended periods may affect device reliability.

Application information

Where application information is given, it is advisory and does not form part of the specification.

23 LIFE SUPPORT APPLICATIONS

These products are not designed for use in life support appliances, devices, or systems where malfunction of these
products can reasonably be expected to result in personal injury. Philips customers using or selling these products for
use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such
improper use or sale.

24 PURCHASE OF PHILIPS I

Purchase of Philips I
components in the I2C system provided the system conforms to the I2C specification defined by
Philips. This specification can be ordered using the code 9398 393 40011.

2

C COMPONENTS

2

C components conveys a license under the Philips’ I2C patent to use the

1997 May 26 70

Philips Semiconductors Preliminary specification

Enhanced Video Input Processor (EVIP) SAA7111A

NOTES

1997 May 26 71

Philips Semiconductors – a worldwide company

Argentina: see South America
Australia: 34 Waterloo Road, NORTH RYDE, NSW 2113,

Tel. [phone], Fax. [phone]
Austria: Computerstr. 6, A-1101 WIEN, P.O. Box 213,

Tel. [phone], Fax. [phone]
Belarus: Hotel Minsk Business Center, Bld. 3, r. 1211, Volodarski Str. 6,

220050 MINSK, Tel. [phone], Fax. [phone]

Belgium: see The Netherlands
Brazil: see South America
Bulgaria: Philips Bulgaria Ltd., Energoproject, 15th floor,

51 James Bourchier Blvd., 1407 SOFIA,
Tel. [phone], Fax. [phone]

Canada: PHILIPS SEMICONDUCTORS/COMPONENTS,
Tel. [phone]

China/Hong Kong: 501 Hong Kong Industrial Technology Centre,
72 Tat Chee Avenue, Kowloon Tong, HONG KONG,
Tel. [phone], Fax. [phone]

Colombia: see South America
Czech Republic: see Austria
Denmark: Prags Boulevard 80, PB 1919, DK-2300 COPENHAGEN S,

Tel. [phone], Fax. [phone]
Finland: Sinikalliontie 3, FIN-02630 ESPOO,

Tel. [phone], Fax. [phone]
France: 4 Rue du Port-aux-Vins, BP317, 92156 SURESNES Cedex,

Tel. [phone], Fax. [phone]
Germany: Hammerbrookstraße 69, D-20097 HAMBURG,

Tel. [phone], Fax. [phone]
Greece: No. 15, 25th March Street, GR 17778 TAVROS/ATHENS,

Tel. [phone], Fax. [phone]

Hungary: see Austria
India: Philips INDIA Ltd, Shivsagar Estate, A Block, Dr. Annie Besant Rd.

Worli, MUMBAI 400 018, Tel. [phone], Fax. [phone]

Indonesia: see Singapore
Ireland: Newstead, Clonskeagh, DUBLIN 14,

Tel. [phone], Fax. [phone]
Israel: RAPAC Electronics, 7 Kehilat Saloniki St, PO Box 18053,

TEL AVIV 61180, Tel. [phone], Fax. [phone]
Italy: PHILIPS SEMICONDUCTORS, Piazza IV Novembre 3,

20124 MILANO, Tel. [phone], Fax. [phone]
Japan: Philips Bldg 13-37, Kohnan 2-chome, Minato-ku, TOKYO 108,

Tel. [phone], Fax. [phone]
Korea: Philips House, 260-199 Itaewon-dong, Yongsan-ku, SEOUL,

Tel. [phone], Fax. [phone]
Malaysia: No. 76 Jalan Universiti, 46200 PETALING JAYA, SELANGOR,

Tel. [phone], Fax. [phone]
Mexico: 5900 Gateway East, Suite 200, EL PASO, TEXAS 79905,

Tel. [phone]

Middle East: see Italy

Netherlands: Postbus 90050, 5600 PB EINDHOVEN, Bldg. VB,

Tel. [phone], Fax. [phone]
New Zealand: 2 Wagener Place, C.P.O. Box 1041, AUCKLAND,

Tel. [phone], Fax. [phone]
Norway: Box 1, Manglerud 0612, OSLO,

Tel. [phone], Fax. [phone]
Philippines: Philips Semiconductors Philippines Inc.,

106 Valero St. Salcedo Village, P.O. Box 2108 MCC, MAKATI,
Metro MANILA, Tel. [phone], Fax. [phone]

Poland: Ul. Lukiska 10, PL 04-123 WARSZAWA,
Tel. [phone], Fax. [phone]

Portugal: see Spain
Romania: see Italy
Russia: Philips Russia, Ul. Usatcheva 35A, 119048 MOSCOW,

Tel. [phone], Fax. [phone]
Singapore: Lorong 1, Toa Payoh, SINGAPORE 1231,

Tel. [phone], Fax. [phone]

Slovakia: see Austria
Slovenia: see Italy
South Africa: S.A. PHILIPS Pty Ltd., 195-215 Main Road Martindale,

2092 JOHANNESBURG, P.O. Box 7430 Johannesburg 2000,
Tel. [phone], Fax. [phone]

South America: Rua do Rocio 220, 5th floor, Suite 51,
04552-903 São Paulo, SÃO PAULO - SP, Brazil,
Tel. [phone], Fax. [phone]

Spain: Balmes 22, 08007 BARCELONA,
Tel. [phone], Fax. [phone]

Sweden: Kottbygatan 7, Akalla, S-16485 STOCKHOLM,
Tel. [phone], Fax. [phone]

Switzerland: Allmendstrasse 140, CH-8027 ZÜRICH,
Tel. [phone], Fax. [phone]

Taiwan: Philips Semiconductors, 6F, No. 96, Chien Kuo N. Rd., Sec. 1,
TAIPEI, Taiwan Tel. [phone], Fax. [phone]

Thailand: PHILIPS ELECTRONICS (THAILAND) Ltd.,
209/2 Sanpavuth-Bangna Road Prakanong, BANGKOK 10260,
Tel. [phone], Fax. [phone]

Turkey: Talatpasa Cad. No. 5, 80640 GÜLTEPE/ISTANBUL,
Tel. [phone], Fax. [phone]

Ukraine: PHILIPS UKRAINE, 4 Patrice Lumumba str., Building B, Floor 7,
252042 KIEV, Tel. [phone], Fax. [phone]

United Kingdom: Philips Semiconductors Ltd., 276 Bath Road, Hayes,
MIDDLESEX UB3 5BX, Tel. [phone], Fax. [phone]

United States: 811 East Arques Avenue, SUNNYVALE, CA 94088-3409,
Tel. [phone]

Uruguay: see South America
Vietnam: see Singapore
Yugoslavia: PHILIPS, Trg N. Pasica 5/v, 11000 BEOGRAD,

Tel. [phone], Fax.[phone]

For all other countries apply to: Philips Semiconductors, Marketing & Sales Communications,
Building BE-p, P.O. Box 218, 5600 MD EINDHOVEN, The Netherlands, Fax. [phone]

© Philips Electronics N.V. 1997 SCA54
All rights are reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner.

The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed
without notice. No liability will be accepted by the publisher for any consequence of its use. Publication thereof does not convey nor imply any license
under patent- or other industrial or intellectual property rights.

Internet: http://www.semiconductors.philips.com

Printed in The Netherlands 657027/1200/03/pp72 Date of release: 1997 May 26 Document order number: 9397 750 01593
