Datasheet SAA7110WP-01 Datasheet (Philips)

DATA SH EET

Product specification
File under Integrated Circuits, IC22

1995 Oct 18

INTEGRATED CIRCUITS

SAA7110; SAA7110A

One Chip Front-end 1 (OCF1)

1995 Oct 18 2

Philips Semiconductors Product specification

One Chip Front-end 1 (OCF1) SAA7110; SAA7110A

CONTENTS

1 FEATURES
2 APPLICATIONS
3 GENERAL DESCRIPTION
4 QUICK REFERENCE DATA
5 ORDERING INFORMATION
6 SYSTEM VIEW
7 BLOCK DIAGRAM
8 PINNING
9 FUNCTIONAL DESCRIPTION

9.1 Analog input processing (see Fig.5)

9.2 Analog control circuits

9.3 Chrominance processing (see Fig.6)

9.4 Luminance processing (see Fig.7)

9.5 YUV-bus (digital outputs)

9.6 Synchronization (see Fig.7)

9.7 Clock generation circuit

9.8 Power-on reset

9.9 RTCO output
10 GAIN CHARTS
11 LIMITING VALUES
12 CHARACTERISTICS
13 TIMING
14 OUTPUT FORMATS
15 CLOCK SYSTEM

15.1 Clock generation circuit

15.2 Power-on control
16 I2C-BUS DESCRIPTION

16.1 I2C-bus format

16.2 I2C-bus receiver/transmitter tables

16.3 I2C-bus detail

16.4 I2C-bus detail (continued)
17 SOURCE SELECTION MANAGEMENT
18 ANTI-ALIAS FILTER GRAPHS
19 CORING FUNCTION

19.1 Coring function adjustment by subaddress 06H
to affect band filter output adjustment

20 LUMINANCE FILTER GRAPHS
21 I2C-BUS START SET-UP

21.1 Remarks to Table 66

22 APPLICATION INFORMATION
23 START-UP, SOURCE SELECT AND

STANDARD DETECTION FLOW EXAMPLE

23.1 CODE 0 STARTUP and STANDARD
Procedure

23.2 MODE 0 Source Select Procedure

23.3 MODE 1 Source Select Procedure

23.4 MODE 2 Source Select Procedure

23.5 MODE 3 Source Select Procedure

23.6 MODE 4 Source Select Procedure

23.7 MODE 5 Source Select Procedure

23.8 MODE 6 Source Select Procedure

23.9 MODE 7 Source Select Procedure

23.10 MODE 8 Source Select Procedure

24 PACKAGE OUTLINE
25 SOLDERING

25.1 Introduction

25.2 Reflow soldering

25.3 Wave soldering

25.4 Repairing soldered joints

26 DEFINITIONS
27 LIFE SUPPORT APPLICATIONS
28 PURCHASE OF PHILIPS I2C COMPONENTS

1995 Oct 18 3

Philips Semiconductors Product specification

One Chip Front-end 1 (OCF1) SAA7110; SAA7110A

1 FEATURES

• Six analog inputs (6 × CVBS or 3 × Y/C or
combinations)

• Three analog processing channels

• Three built-in analog anti-aliasing filters

• Analog signal adding of two channels

• Two 8-bit video CMOS analog-to-digital converters

• Fully programmable static gain for the main channels or

automatic gain control for the selected CVBS/Y channel

• Selectable white peak control signal

• Luminance and chrominance signal processing for

PAL B/G, NTSC M and SECAM

• Full range HUE control

• Automatic detection of 50/60 Hz field frequency, and

automatic switching between standards PAL and NTSC,
SECAM forceable

• Horizontal and vertical sync detection for all standards

• Cross-colour reduction by chrominance comb filtering

for NTSC or special cross-colour cancellation for
SECAM

• UV signal delay lines for PAL to correct chrominance
phase errors

• The YUV-bus supports a data rate of:
– 780 × f

h

= 12.2727 MHz for 60 Hz (NTSC)

– 944 × fh= 14.75 MHz for 50 Hz (PAL/SECAM)

• Square pixel format with 768/640 active samples per
line on the YUV-bus

• CCIR 601 level compatible

• 4:2:2 and 4:1:1 YUV output formats in 8-bit

resolution

• User programmable luminance peaking for aperture
correction

• Compatible with memory-based features
(line-locked clock, square pixel)

• Requires only one crystal (26.8 MHz) for all standards

• Real time status information output (RTCO)

• Brightness Contrast Saturation (BCS) control for the

YUV-bus

• Negation of picture possible

• One user programmable general purpose switch on an

output pin

• Switchable between on-chip Clock Generation Circuit
(CGC) and external CGC (SAA7197)

• Power-on control

• I

2

C-bus controlled.

2 APPLICATIONS

• Desktop video

• Multimedia

• Digital television

• Image processing

• Video phone

• Video picture grabbing.

3 GENERAL DESCRIPTION

The one chip front-end SAA7110; SAA7110A is a digital
multistandard colour decoder (OCF1) on the basis of the
DIG-TV2 system with two integrated Analog-to-Digital
Converters (ADCs), a Clock Generation Circuit (CGC) and
Brightness Contrast Saturation (BCS) control.

The CMOS circuit SAA7110; SAA7110A, analog front-end
and digital video decoder, is a highly integrated circuit for
desktop video applications. The decoder is based on the
principle of line-locked clock decoding. It operates
square-pixel frequencies to achieve correct aspect ratio.
Monitor controls are provided to ensure best display. The
circuit is I

2

C-bus controlled.

4 QUICK REFERENCE DATA

SYMBOL PARAMETER MIN. MAX. UNIT

V

DDA

analog supply voltage 4.75 5.25 V

V

DDD

digital supply voltage 4.5 5.5 V

T

amb

operating ambient temperature 0 70 °C

1995 Oct 18 4

Philips Semiconductors Product specification

One Chip Front-end 1 (OCF1) SAA7110; SAA7110A

5 ORDERING INFORMATION

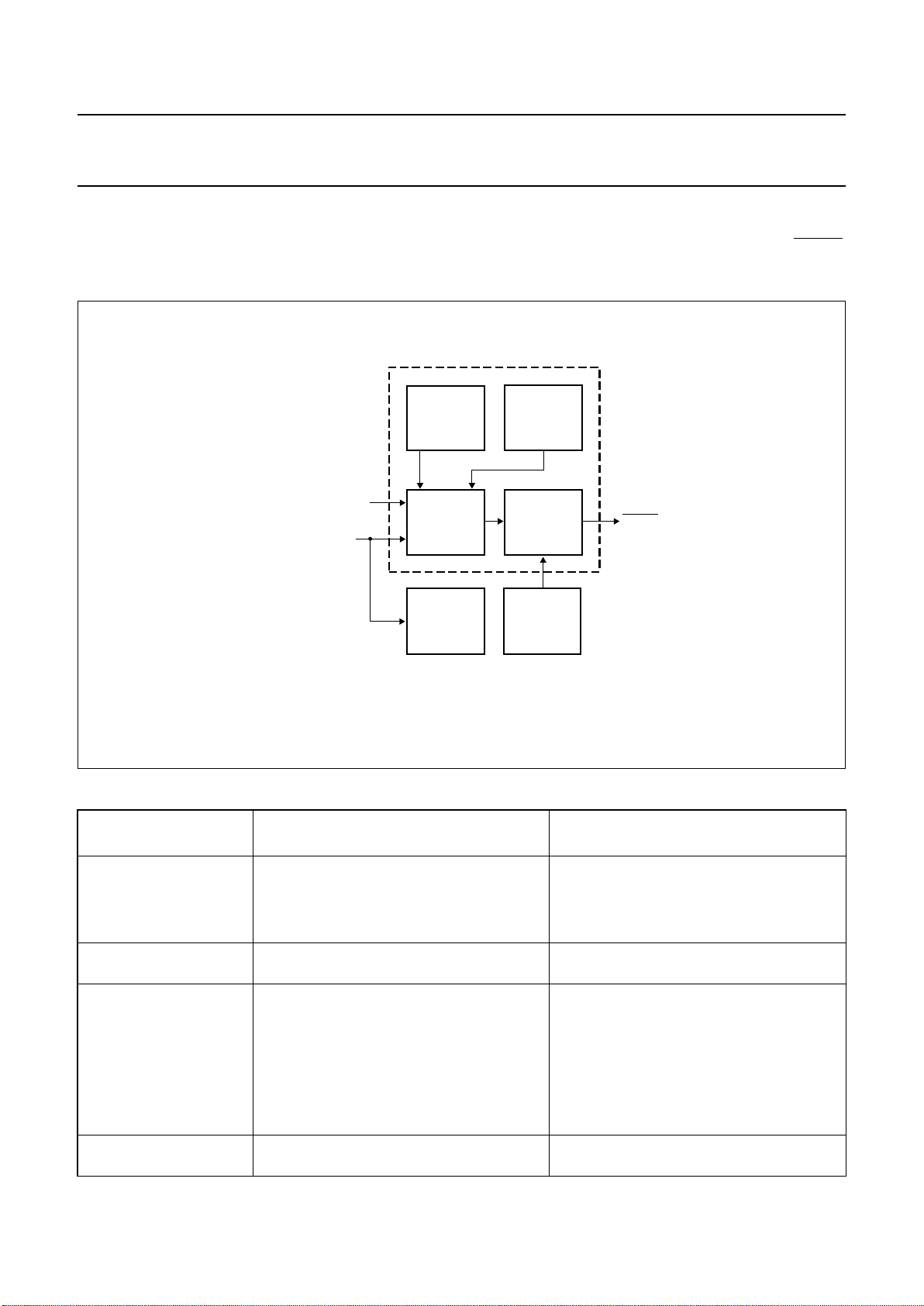

6 SYSTEM VIEW

TYPE NUMBER

PACKAGE

NAME DESCRIPTION VERSION

SAA7110 PLCC68 plastic leaded chip carrier; 68 leads SOT188-2

SAA7110A PLCC68 plastic leaded chip carrier; 68 leads SOT188-2

Fig.1 System diagram.

handbook, full pagewidth

VIDEO

MEMORY

CONTROLLER

VMC

ONE

CHIP

FRONT-END

OCF1

VIDEO

FRAME

MEMORY

six

video inputs

PC ISA - BUS

YUV - BUS

I

2

C

clock

MGC821

1995 Oct 18 5

Philips Semiconductors Product specification

One Chip Front-end 1 (OCF1) SAA7110; SAA7110A

This text is here in white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here in

_white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here inThis text is here in

white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader. white to force landscape pages to be ...

7 BLOCK DIAGRAM

handbook, full pagewidth

FEIN
(MUXC)

XTALO
XTALI

RESET

Y7 to Y0

SCL

SDA

SA

GPSW
(VBLK)

AP

SP

HS

RTCO

HSY HCLVS

SAA7110
SAA7110A

Y

Y

AD2 AD3

ANALOG

CONTROL

TEST

CONTROL

BLOCK

ANALOG

PROCESSING

CON

BYPASS

41 38

37

36

30

66

65

42

63

64

8

6

5

4

31
29
32

LLC2
CREF

UV7
to
UV0

i.c.

7, 8, 9

AI42
AI41
AI32
AI31
AI22
AI21

11
13
15
17
19
21

39

MGC820

40

ODD (VL)

PLIN (HL)

CGCE

LFCO

LLC

V

SSA0

V

DDA0

2524

68, 52, 44,
34, 27

67, 51, 43,
35, 28

V

SSA2

to V

SSA4

V

DDA2

to V

DDA4

V

SS

V

DD

V

SS(S)

18, 14, 10
20, 16, 12
22

Y/CVBS

C/CVBS

1

2

3 26

33

AOUT

23

HREF

CHROMINANCE

CIRCUIT

LUMINANCE

CIRCUIT

SYNCHRONIZATION

CIRCUIT

CLOCK

GENERATION

CIRCUIT

BRIGHTNESS

CONTRAST

SATURATION

CONTROL

AND

OUTPUT

FORMATTER

POWER-ON

CONTROL

UV

Y

55 to 62

45 to 50,

53, 54

I

2

C-BUS

INTERFACE

I

2

C-BUS

CONTROL

CLOCKS

Fig.2 Block diagram.

1995 Oct 18 6

Philips Semiconductors Product specification

One Chip Front-end 1 (OCF1) SAA7110; SAA7110A

8 PINNING

SYMBOL PIN DESCRIPTION

SP 1 test pin input; (shift pin) connect to ground for normal operation
AP 2 test pin input; (action pin) connect to ground for normal operation
RTCO 3 Real Time Control Output. This pin is used to fit serially the increments of the HPLL and

FSC-PLL and information of the PAL or SECAM sequence.

SA 4 I

2

C-bus slave address select input. LOW: slave address = 9CH for write, 9DH for read;

HIGH = 9DH for write, 9FH for read.

SDA 5 I

2

C-bus serial data input/output

SCL 6 I

2

C-bus serial clock input
i.c. 7 reserved pin; do not connect
i.c. 8 reserved pin; do not connect
i.c. 9 reserved pin; do not connect
V

SSA4

10 ground for analog input 4
AI42 11 analog input 42
V

DDA4

12 supply voltage (+5 V) for analog input 4
AI41 13 analog input 41
V

SSA3

14 ground for analog input 3
AI32 15 analog input 32
V

DDA3

16 supply voltage (+5 V) for analog input 3
AI31 17 analog input 31
V

SSA2

18 ground for analog input 2
AI22 19 analog input 22
V

DDA2

20 supply voltage (+5 V) for analog input 2
AI21 21 analog input 21
V

SS(S)

22 substrate ground
AOUT 23 analog test output; do not connect
V

DDA0

24 supply voltage (+5 V) for internal CGC (Clock Generation Circuit)
V

SSA0

25 ground for internal CGC
LFCO 26 Line Frequency Control output; this is the analog clock control signal driving the external

CGC. The frequency is a multiple of the actual line frequency (nominally 7.375/6.13636 MHz).
The signal has a triangular form with 4-bit accuracy.

V

DD

27 supply voltage (+5 V)
V

SS

28 ground
LLC 29 Line-Locked Clock input/output (CGCE = 1, output; CGCE = 0, input). This is the system

clock, its frequency is 1888 × f

h

for 50 Hz/625 lines per field systems and 1560 × fh for

60 Hz/525 lines per field systems; or variable input clock up to 32 MHz in input mode.

LLC2 30 Line-Locked Clock

1

⁄2output; f

LLC2

= 0.5 × f

LLC

(CGCE = 1, output; CGCE = 0, high

impedance).

CREF 31 Clock reference input/output (CGCE = 1, output; CGCE = 0, input). This is a clock qualifier

signal distributed by the internal or an external clock generator circuit (CGC). Using CREF all
interfaces on the YUV-bus are able to generate a bus timing with identical phase.

1995 Oct 18 7

Philips Semiconductors Product specification

One Chip Front-end 1 (OCF1) SAA7110; SAA7110A

RESET 32 Reset active LOW input/output (CGCE = 1, output; CGCE = 0, input); sets the device into a

defined state. All data outputs are in high impedance state. The I2C-bus is reset (waiting for
START condition). Using the external CGC, the LOW period must be maintained for at least
30 LLC clock cycles.

CGCE 33 CGC Enable active HIGH input (CGCE = 1, on-chip CGC active; CGCE = 0, external CGC

mode, use SAA7197).

V

DD

34 supply voltage (+5 V)
V

SS

35 ground
HCL 36 Horizontal Clamping input/output pulse (programmable via I

2

C-bus bit PULIO: PULIO = 1,
output; PULIO = 0, input). This signal is used to indicate the black level clamping period for
the analog input interface. The beginning and end of its HIGH period (only in the output mode)
can be programmed via the I2C-bus registers 03H, 04H in 50 Hz mode and registers 16H,
17H in 60 Hz mode, active HIGH.

HSY 37 Horizontal Synchronization input/output indicator (programmable via I

2

C-bus bit PULIO:
PULIO = 1, output; PULIO = 0, input). This signal is fed to the analog interface. The beginning
and end of its HIGH period (only in the output mode) can be programmed via the I2C-bus
registers 01H, 02H in 50 Hz mode and registers 14H, 15H in 60 Hz mode, active HIGH.

HS 38 Horizontal Synchronization output (programmable; the HIGH period is 128 LLC clock cycles).

The position of the positive slope is programmable in 8 LLC increments over a complete line
(64 µs) via the I

2

C-bus register 05H in 50 Hz mode or register 18H in 60 Hz mode.

PLIN (HL) 39 PAL Identifier Not output; marks for demodulated PAL signals the inverted line (PLIN = LOW)

and a non-inverted line (PLIN = HIGH) and for demodulated SECAM the DR line
(PLIN = LOW) and the DB line (PLIN = HIGH). Select PLIN function via I

2

C-bus bit RTSE = 0.
(H-PLL locked output; a HIGH state indicates that the internal PLL has locked. Select HL
function via I2C-bus bit RTSE = 1).

ODD (VL) 40 ODD/EVEN field identification output; a HIGH state indicates the odd field. Select ODD

function via I

2

C-bus bit RTSE = 0.
(Vertical Locked output; a HIGH state indicates that the internal Vertical Noise Limiter (VNL)
is in a locked state. Select VL function via I2C-bus bit RTSE = 1).

VS 41 Vertical Synchronization input/output (programmable via I

2

C-bus bit OEHV: OEHV = 1,
output; OEHV = 0, input). This signal indicates the vertical synchronization with respect to the
YUV output. The high period of this signal is approximately six lines if the VNL function is
active. The positive slope contains the phase information for a deflection controller, for
example the TDA9150. In input mode this signal is used to synchronize the vertical gain and
clamp blanking stage, active HIGH.

HREF 42 Horizontal Reference output; this signal is used to indicate data on the digital YUV-bus. The

positive slope marks the beginning of a new active line. The HIGH period of HREF is either
768 Y samples or 640 Y samples long depending on the detected field frequency
(50/60 Hz mode). HREF is used to synchronize data multiplexer/demultiplexers. HREF is also
present during the vertical blanking interval.

V

SS

43 ground

V

DD

44 supply voltage (+5 V)

SYMBOL PIN DESCRIPTION

1995 Oct 18 8

Philips Semiconductors Product specification

One Chip Front-end 1 (OCF1) SAA7110; SAA7110A

Y7 45

Upper 6 bits of the 8-bit luminance (Y) digital output. As part of the digital YUV-bus
(data rate LLC/2), or A/D2(3) output (data rate LLC/2) selectable via I

2

C-bus bit SQPB = 1.

Y6 46
Y5 47
Y4 48
Y3 49
Y2 50
V

SS

51 ground

V

DD

52 supply voltage (+5 V)

Y1 53

Lower 2 bits of the 8-bit luminance (Y) digital output. As part of the digital YUV-bus
(data rate LLC/2), or A/D2(3) output (data rate LLC/2) selectable via I

2

C-bus bit SQPB = 1.

Y0 54
UV7 55

8-bit digital UV (colour difference) output; multiplexed colour difference signal for U and V
component of demodulated CVBS or chrominance signal. The format and multiplexing
scheme can be selected via I

2

C-bus control. These signals are part of the digital YUV-bus

(data rate LLC/2), or A/D3(2) output (data rate LLC/2) selectable via I2C-bus bit SQPB = 1.

UV6 56
UV5 57
UV4 58
UV3 59
UV2 60
UV1 61
UV0 62
FEIN

(MUXC)

63 Fast Enable input (active LOW); this signal is used to control fast switching on the digital

YUV-bus. A high at this input forces the IC to set its Y and UV outputs to the high impedance
state. To use this function set I2C-bus bits MS24 and MS34 and MUYC to LOW.
(Multiplex Components input; control signal for the analog multiplexers for fast switching
between locked Y/C signals or locked CVBS signals. FEIN automatically fixed to LOW (digital
YUV-bus enabled), if one of the three MUXC functions are selected (MS24 or MS34 or
MUYC = HIGH).

GPSW
(VBLK)

64 General Purpose Switch output; the state of this signal is programmable via I

2

C-bus register
0Dh, bit 1. Select GPSW function via I2C-bus bit VBLKA = 0. (Vertical Blank test output; select
VBLK via I2C-bus bit VBLKA = 1).

XTALO 65 Crystal oscillator output (to 26.8 MHz crystal); not used if TTL clock is used.
XTALI 66 Crystal oscillator input (from 26.8 MHz crystal) or connection of external oscillator with TTL

compatible square wave clock signal.

V

SS

67 ground

V

DD

68 supply voltage (+5 V)

SYMBOL PIN DESCRIPTION

1995 Oct 18 9

Philips Semiconductors Product specification

One Chip Front-end 1 (OCF1) SAA7110; SAA7110A

Fig.3 Pin configuration.

handbook, full pagewidth

SAA7110

SAA7110A

MGC822

10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26

60
59
58
57
56
55
54
53
52
51
50
49
48
47
46
45

Y7

Y6

Y5

Y4

Y3

Y2

Y1

Y0

UV7

UV6

UV5

UV4

UV3

UV2

44

27

28

29LLC

LLC2

CREF

RESET

CGCE

HS

VS

PLIN (HL)

ODD (VL)

HREF

HCL

HSY

30

31

32

33

34

35

36

37

38

39

40

41

42

43

9

8

7

6

5

4

3

2

1

68

67

66 XTALI

XTALO

SP

AP

RTCO

SA

i.c.

i.c.

i.c.

SDA

SCL

GPSW (VBLK)

FEIN (MUXC)

UV0

UV1

65

64

63

62

61

V

SSA4

AI42

V

DDA4

AI41

AI32

AI31

AI22

AI21

AOUT

V

SSA3

VDDV

SS

V

DDA3

V

SSA2

V

DDA2

V

SS(S)

V

DDA0

V

DD

V

SS

V

DD

V

SS

V

SS

V

DD

V

SS

V

DD

V

SSA0
LFCO

1995 Oct 18 10

Philips Semiconductors Product specification

One Chip Front-end 1 (OCF1) SAA7110; SAA7110A

9 FUNCTIONAL DESCRIPTION

9.1 Analog input processing (see Fig.5)

The SAA7110; SAA7110A offers six analog signal inputs,
two analog main channels with clamping circuit, analog
amplifier, anti-alias filter and video CMOS ADC. A third
analog channel also with clamping circuit, analog amplifier
and anti-alias filter can be added or switched to both main
channels directly before the ADCs.

9.2 Analog control circuits

The clamping control circuit controls the correct clamping
of the analog input signals. The coupling capacitor is also
used to store and filter the clamping voltage. The normal
digital clamping level for luminance or CVBS signals is 64
and for chrominance signals is128.

The gain control circuits generate via I

2

C-bus the static
gain levels for the three analog amplifiers or controls one
of these amplifiers automatically via a built-in Automatic
Gain Control (AGC). The AGC is used to amplify a
CVBS or Y signal to the required signal amplitude,
matched to the ADCs input voltage range.

The anti-alias filters are adapted to the clock frequency.
The vertical blanking control circuit generates an I2C-bus
programmable vertical blanking pulse. During the vertical
blanking time gain and clamping control are frozen.

The fast switch control circuit is used for special
applications.

9.2.1 C

LAMPING

The coupling capacitor is used as clamp capacitance for
each input. An internal digital clamp comparator generates
the information concerning clamp-up or clamp-down. The
clamping levels for the two ADC channels are adjustable
over the 8-bit range (1 to 254). Clamping time in normal
use is set with the HCL pulse at the back porch of the video
signal. The clamping pulse HCL is user adjustable.

9.2.2 G

AIN CONTROL (see Fig.4)

The luminance AGC can be used for every channel were
luminance or CVBS is being received. AGC active time is
the sync tip of the video signal. The sync tip pulse HSY is
user adjustable. The AGC can be switched off and the gain
for the three main input channels can be adjusted
independently. Signal (white) peak control limits the gain
at signal overshoots. The flow charts (see Figs 8 and 9)
show more details of the AGC. The influence of supply
voltage variation within the specified range is automatically
eliminated by clamp and automatic gain control.

9.3 Chrominance processing (see Fig.6)
The 8-bit chrominance signal passes the input interface,

the chrominance bandpass filter to eliminate DC
components, and is finally fed to the multiplication inputs
of a quadrature demodulator, where two subcarrier signals
from the local oscillator DTO1 with 90 degrees phase shift
are applied. The frequency is dependent on the present
colour standard.

The multiplier operates as a quadrature demodulator for all
PAL and NTSC signals; it operates as a frequency down
mixer for SECAM signals.

The two multiplier output signals are converted to a serial
UV data stream and applied to two low-pass filter stages,
then to a gain controlled amplifier. A final multiplexed
low-pass filter achieves, together with the preceding
stages, the required bandwidth performance.

The PAL and NTSC originated signals are applied to a
comb filter.

The signal originated from SECAM is fed through a Cloche
filter (0 Hz centre frequency), a phase demodulator and a
differentiator to obtain frequency demodulated colour
difference signals. The SECAM signal is fed after
de-emphasis to a cross-over switch, to provide both the
serial transmitted colour difference signals. These signals
are fed to the BCS control and finally to the output fomatter
stage and to the output interface.

Fig.4 Automatic gain control range.

handbook, halfpage

analog input level

controlled

ADC input level

maximum

minimum

range 8.8 dB

0 dB

0 dB

MGC823

+2.8 dB

−6 dB

1995 Oct 18 11

Philips Semiconductors Product specification

One Chip Front-end 1 (OCF1) SAA7110; SAA7110A

9.4 Luminance processing (see Fig.7)
The 8-bit luminance signal, a digital CVBS format or a

luminance format (S-VHS, HI8), is fed through a
switchable prefilter. High frequency components are
emphasized to compensate for loss. The following
chrominance trap filter (fc= 4.43 or 3.58 MHz centre
frequency selectable) eliminates most of the colour carrier
signal, therefore, it must be bypassed for S-Video (S-VHS,
HI8) signals.

The high frequency components of the luminance signal
can be peaked (control for sharpness improvement via
I

2

C-bus) in two bandpass filters with selectable transfer

characteristics.
A coring circuit with selectable characteristics improves

the signal once more. This signal is then added to the
original (unpeaked) signal. A switchable amplifier achieves
common DC amplification, because the DC gains are
different in both chrominance trap modes.

The improved luminance signal is fed via the variable
delay to the BCS control and the output interface.

9.5 YUV-bus (digital outputs)

The 16-bit YUV-bus transfers digital data from the output
interfaces to a feature box, or a field memory, a digital
colour space converter (SAA 7192 DCSC) or a video
enhancement and digital-to-analog processor (SAA7165
VEDA2). The outputs are controlled by an output enable
chain (

FEIN on pin 63).

The YUV data rate equals LLC2. Timing is achieved by
marking each second positive rising edge of the clock LLC
in conjunction with CREF (clock reference).

The output signals Y7 to Y0 are the bits of the digital
luminance signal. The output signals UV7 to UV0 are the
bits of multiplexed colour difference signals (B−Y) and
(R−Y). The frame in the format tables is the time, required
to transfer a full set of samples. In the event of 4 :2:2
format two luminance samples are transmitted in
comparison to one U and one V sample within the frame.
The time frames are controlled by the HREF signal.

Fast enable is achieved by setting inputFEIN to LOW. The
signal is used to control fast switching on the digital
YUV-bus. HIGH on this pin forces the Y and UV outputs to
a high-impedance state.

9.6 Synchronization (see Fig.7)
The pre-filtered luminance signal is fed to the

synchronization stage. It's bandwidth is reduced to 1 MHz
in a low-pass filter.

The synchronization pulses are sliced and fed to the phase
detectors where they are compared with the sub-divided
clock frequency. The resulting output signal is applied to
the loop filter to accumulate all phase deviations.
Adjustable output signals HCL and HSY are generated in
accordance with analog front end requirements. The
output signals HS, VS, and PLIN are locked to the timing
reference, guaranteed between the input signal and the
HREF signal, as further improvements to the circuit may
change the total processing delay. It is therefore not
recommended to use them for applications which require
absolute timing accuracy to the input signals. The loop
filter signal drives an oscillator to generate the line
frequency control signal LFCO.

9.7 Clock generation circuit

The internal CGC generates all clock signals required for
the one chip front-end. The output signal LFCO is a
digital-to-analog converted signal provided by the
horizontal PLL. It is the multiple of the line frequency
(7.38 MHz = 472 × f

h

in 50 Hz systems and

6.14 MHz = 360 × fh in 60 Hz systems). Internally the
LFCO signal is multiplied by a factor of 2 or 4 in the PLL
circuit (including phase detector, loop filtering, VCO and
frequency divider) to obtain the LLC and LLC2 output clock
signals. The rectangular output clocks have a 50% duty
factor.

It is also possible to operate the OCF1 with an external
CGC (SAA7197) providing the signals LLC and CREF.
The selection of the internal/external CGC will be
controlled by the CGCE input signal.

9.8 Power-on reset

Power-on reset is activated at power-on (using only
internal CGC), when the supply voltage decreases below

3.5 V. The indicator output

RESET is LOW for a time. The
RESET signal can be applied to reset other circuits of the
digital TV system.

9.9 RTCO output

The real time control and status output signal contains
serial information about actual system clock, subcarrier
frequency and PAL/SECAM sequence. The signal can be
used for various applications in external circuits, for
example, in a digital encoder to achieve clean encoding.

1995 Oct 18 12

Philips Semiconductors Product specification

One Chip Front-end 1 (OCF1) SAA7110; SAA7110A

This text is here in white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here in

_white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here inThis text is here in

white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader. white to force landscape pages to be ...

handbook, full pagewidth

ANALOG
CONTROL

MGC824

SOURCE

SWITCH

CLAMP

CIRCUIT

ANALOG

AMPLIFIER

ANALOG

AMPLIFIER

ANALOG

AMPLIFIER

GAIN

CONTROL

CLAMP

CONTROL

CROSS

MULTIPLEXER

ANTI-ALIAS

FILTER

BYPASS
SWITCH

SOURCE

SWITCH

CLAMP

CIRCUIT

ANTI-ALIAS

FILTER

BYPASS
SWITCH

FAST

SWITCH

ADDER

FAST

SWITCH

ADDER

FAST

SWITCH

CONTROL

VERTICAL
BLANKING
CONTROL

SOURCE

SWITCH

CLAMP

CIRCUIT

ANTI-ALIAS

FILTER

ANTI-ALIAS

CONTROL

BYPASS
SWITCH

TEST

SELECTOR

FUSE

FUSE

FUSE

REFS4AINS4

AIND4

REFS3

REFS2

AINS3
AIND3

AINS2
AIND2

CLTS
CLS2
CLS3
CLS4

AOSL

ADC

ADC

YSEL
CSEL

TWO2
TWO3

V

DDA2

to V

DDA4

V

SSA2

to V

SSA4

AI42
AI41

AI32
AI31

AI22
AI21

i.c.
i.c.
i.c.

V

SS(S)

11

20, 16, 12

18, 14, 10

13

15
17

19
21

9
8
7

22

CLL2n
CLL3n

WIPA
GLIM

HOLD
WIPE
SBOT
GASL

GACO

GAI2
GAI3
GAI4

IWIP
IGAI

VBPS
VBPR

VBCO

MUYC

MS24
MS34

MX24
MX34
MUD1
MUD2

WISL

IVAL
WVAL
GUDL
WIRS

GAS2
GAS3
GAD2
GAD3
WRSE

23

AOUT

Fig.5 Analog input processing and analog control part.

1995 Oct 18 13

Philips Semiconductors Product specification

One Chip Front-end 1 (OCF1) SAA7110; SAA7110A

This text is here in white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here in

_white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here inThis text is here in

white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader. white to force landscape pages to be ...

handbook, full pagewidth

INPUT

INTERFACE

CHROMINANCE

BANDPASS

OUTPUT

FORMATTER

AND INTERFACE

QUADRATURE

DEMODULATOR

LOW-PASS LOW-PASS

GAIN

CONTROL

CLOCH FILTER

LOOPFILTER

PI2

LOOP FILTER

PI1

SEQUENCE

PROCESSOR

PHASE

DEMODULATOR

AMPLITUDE
DETECTOR

BRIGHTNESS

CONTRAST

SATURATION

CONTROL

COMB FILTERS

AND SECAM

RECOMBINATION

BURST GATE

ACCUMULATOR

DISCRETE TIME

OSCILLATOR

(DTO1)

AND DIVIDER

STANDARD

CONTROL

BRIG
CONT
SATN

DIFFERENTIATOR

DE-EMPHASIS

SXCRCODE

BYPS
CHRS

COLO

SECS

CHCV
CKTQ

CKTS

LFIS

SEQA

SESE
PLSE

ALTD

V

DD

V

SS

CHROMINANCE CIRCUIT

68, 52, 44,

34, 27

67, 51, 43,

35, 28

63

42

OFTS
CHSB
OEYC
OEHV

SQPB
HRMV

HRFS

SEQA

HUEC

FEIN

(MUXC)

HREF

UV7 to UV0
Y7 to Y0

45 to 50,

53, 54

MGC825

55 to

62

Fig.6 Multi-standard decoder part.

1995 Oct 18 14

Philips Semiconductors Product specification

One Chip Front-end 1 (OCF1) SAA7110; SAA7110A

This text is here in white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here in

_white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here inThis text is here in

white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader. white to force landscape pages to be ...

handbook, full pagewidth

PREFILTER

PREFILTER

SYNC

I2C-BUS

INTERFACE

I

2

C-BUS

CONTROL

SYNC

SLICER

TEST

CONTROL

BLOCK

CHROMINANCE

TRAP

PHASE

DETECTOR

FINE

PHASE

DETECTOR

COARSE

LOOP FILTER

2

DELAY

ADJUSTMENT

LINE-LOCKED

CLOCK

GENERATOR

DISCRETE TIME

OSCILLATOR

(DTO2)

CRYSTAL

CLOCK

GENERATOR

VARIABLE

BANDPASS

FILTER

CORING

WEIGHTING

AND

ADDING STAGE

VARIABLE

DELAY

POWER-ON

CONTROL

PREF BYPS CORI APER YDEL

CLOCK(3 to 0)

BFBY
PREF
BPSS

MATCHING
AMPLIFIER

DAC6

CLOCK

GENERATION

CIRCUIT

DAC4

COUNTER

VERTICAL

PROCESSOR

FIDT

HLCK
STTC

VBLKA

SSTB

GPSW

VNOI
FSEI
AUFD

HS6B
HS6S
HC6B
HC6S
PULIO
OEHV
SCEN

IDEL
HSYB
HSYS
HCLB
HCLS
HPHI
HP6I

SYNCHRONIZATION CIRCUIT

LUMINANCE CIRCUIT

HLCK
VTRC

HPLL
HLCK

AP
SP

SA SCL SDA

36

64

456

4137 38 39 40 25 24 333

HCL HS VS

CGCEODD (VL)

V

SSA0

V

DDA0

RTCO

HSY

PLIN (HL)

26

65

66

30

29

31

32

RESET

CREF
LLC
LLC2

XTALI
XTALO

LFCO

GPSW
(VBLK)

2
1

MGC826

Fig.7 Luminance and synchronization part.

1995 Oct 18 15

Philips Semiconductors Product specification

One Chip Front-end 1 (OCF1) SAA7110; SAA7110A

10 GAIN CHARTS

Fig.8 Clamp and gain flow chart.

CLAU = clamp up.
VBLK = vertical blanking pulse.
WIPE = white peak level (adjustable).
SBOT = sync bottom level (adjustable).
CLL = clamp level (adjustable).
CLAA = clamp active.
HSY = horizontal sync pulse.
HCL = horizontal clamp pulse.

handbook, full pagewidth

ADC

ANALOG IN

VBLK

NO BLANKING ACTIVE

CLAA = 1

HCL

<

CCL

HSY

>

SBOT

> WIPE

CLAA = 0

CLAU = 1 CLAU = 0

10 10

MGC827

+ CLAMP − CLAMP + GAIN − GAIN − GAIN SLOW + GAINNO CLAMP

10

10

10

10

<− CLAMP GAIN −>

1995 Oct 18 16

Philips Semiconductors Product specification

One Chip Front-end 1 (OCF1) SAA7110; SAA7110A

handbook, full pagewidth

analog input

amplifier

anti-alias amplifier

ADC8

decoder input

X

HSY

WRSE

>WIPE

>WIPE

<SBOT<SBOT

WIRS

X = 1X = 0

−

IVAL

+IVAL −WVAL

+/− 0

+4/F

+4/L

gain accumulator (20 bits)

actual gain value 8-bit (AGV) [−3/+6 dB]

X

STOP

HSY

Y

update

FGV

MGC828

AGV

gain value 8-bit

1

0

1

0

1

0

1

0

1

0

1

0

1

0

0

1

1

0

1

0

1

0

VBLK

1

0

no action

MSB

6

LSB

2

*IWIP *IGAI *IWIP

Fig.9 Luminance AGC flow chart.

X = system variable (start with logic 0).
Y = IAGV-FGVI > GUDL.
VBLK = vertical blanking pulse.
HSY = horizontal sync pulse.
SBOT = sync bottom level (adjustable).
WIPE = white peak level (adjustable).
IVAL = integration value gain (adjustable).
WVAL = integration value WIPE (adjustable).
IGAI = integration factor gain (adjustable).
IWIP = integration factor WIPE (adjustable).
AGV = actual gain value.
FGV = frozen gain value.
GUDL = gain update level (adjustable).
WRSE = white peak reset enable.
WIRS = white peak reset select.
L = line.
F = field.

1995 Oct 18 17

Philips Semiconductors Product specification

One Chip Front-end 1 (OCF1) SAA7110; SAA7110A

11 LIMITING VALUES

In accordance with the Absolute Maximum Rating System (IEC 134); all ground pins and all supply pins connected
together.

Note

1. Compare with typical total power consumption in Chapter “Characteristics”.

2. Equivalent to discharging a 100 pF capacitor through a 1.5 kΩ series resistor.

12 CHARACTERISTICS

V

DDD

=5V; V

DDA

=5V; T

amb

=25°C; unless otherwise specified.

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT

V

DDA

analog supply voltage −0.5 +7.0 V

V

DDD

digital supply voltage −0.5 +7.0 V

V

I(A)

analog input voltage −0.5 +7.0 V

V

I(D)

digital input voltage −0.5 +7.0 V

V

diff

voltage difference between V

SSAall

and V

SSall

− 100 mV

T

stg

storage temperature −65 +150 °C

T

amb

operating ambient temperature 0 70 °C

T

amb(bias)

operating ambient temperature under bias −10 +80 °C

P

tot

total power dissipation V

DDA=VDDD

= 7 V; note 1 − 2.5 W

V

esd

electrostatic discharge all pins note 2 −2000 +2000 V

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Supplies

V

DDA

analog supply voltage 4.75 5.0 5.25 V

V

DDD

digital supply voltage 4.5 5.0 5.5 V

I

DDA(tot)

total analog supply current −−150 mA

I

DDD(tot)

total digital supply current −−250 mA

P

tot

total power dissipation − 1.2 1.7 W

Analog part

I

clamp

clamping current VI= 1.25 V DC −2 − +2 µA

V

i(p-p)

input voltage (peak-to-peak
value), AC coupling required

C

couple

= 10 nF 0.5 1.0 1.38 V

Z

i

 input impedance clamping current off 200 −− kΩ

C

i

input capacitance −−10 pF

α

ct

channel crosstalk fi< 5 MHz −−50 − dB

Analog-to-digital converters

B analog bandwidth at −3dB − 15 − MHz
φ

diff

differential phase amplifier + AAF = bypass − 2 − deg

G

diff

differential gain amplifier + AAF = bypass − 2 − %

f

LLC

ADC clock rate 11 − 16 MHz

DLE DC differential linearity error −

1

⁄

2

− LSB

ILE DC integral linearity error − 1 − LSB

1995 Oct 18 18

Philips Semiconductors Product specification

One Chip Front-end 1 (OCF1) SAA7110; SAA7110A

Digital inputs

V

IL

LOW level input voltage
SDA and SCL

−0.5 − +1.5 V

V

IH

HIGH level input voltage
SDA and SCL

3.0 − VDD+ 0.5 V

V

IL(clk)

LOW level input voltage for
clocks

−0.5 − +0.6 V

V

IH(clk)

HIGH level input voltage for
clocks

2.4 − VDD+ 0.5 V

V

IH(XTALI)

HIGH level input voltage XTALI 3.0 − VDD+ 0.5 V

V

IL(n)

LOW level input voltage all other
inputs

−0.5 − +0.8 V

V

IH(n)

HIGH level input voltage all other
inputs

2.0 − VDD+ 0.5 V

I

LI

input leakage current −−10 µA

C

i(clk)

input capacitance for clocks −−10 pF

C

i(I/O)

input capacitance I/Os at high impedance −−8pF

C

i(n)

input capacitance all other inputs −−8pF

Digital outputs

V

LFCO

LFCO output voltage
(peak-to-peak value)

note 1 1.4 − 2.6 V

V

OL

LOW level output voltage note 2 0 − 0.6 V

V

OH

HIGH level output voltage note 2 2.4 − V

DD

V

V

OL(clk)

LOW level output voltage for
clocks

−0.5 − +0.6 V

V

OH(clk)

HIGH level output voltage for
clocks

2.6 − VDD+ 0.5 V

Clock input timing (LLC)

T

cy

cycle time 31 − 45 ns

δ duty factor for t

LLCH/Tcy

40 − 60 %

t

r

rise time Vi= 0.6 to 2.4 V −−5ns

t

f

fall time Vi= 2.4 to 0.6 V −−5ns
Control and CREF input timing (note 3)
t

SU;DAT

input data set-up time 11 −− ns
t

HD;DAT

input data hold time 3 −− ns
t

HD;FEIN

input data hold time for FEIN 3 −− ns
t

HD;OTHER

input data hold time all other

inputs

note 3 6 −− ns

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

1995 Oct 18 19

Philips Semiconductors Product specification

One Chip Front-end 1 (OCF1) SAA7110; SAA7110A

Data and control output timing (note 4)
C

L(data)

output load capacitance

(data, HREF and VS)

15 − 50 pF

C

L(control)

output load capacitance (control) 7.5 − 25 pF
t

HD;DAT

output data hold time CL=15pF 13 −− ns
t

PD(data)

propagation delay from negative

edge of LLC (data, HREF and

VS)

CL=50pF −−29 ns

t

PD(control)

propagation delay from negative

edge of LLC (control)

CL=25pF −−29 ns

t

PD(Z))

propagation delay from negative

edge of LLC (to 3-state)

note 5 −−15 ns

Clock output timing (LLC and LLC2)

C

L(LLC)

output load capacitance 15 − 40 pF
T

cy

cycle time LLC 31.5 − 45 ns

LLC2 63 − 90 ns

δ duty factors for t

LLCH/tLLC

and

t

LLC2H/tLLC2

40 − 60 %

t

r

rise time 0.6 to 2.6 V −−5ns
t

f

fall time 2.6 to 0.6 V −−5ns
t

d

delay time LLC output to LLC2

output

Vi= 1.5 V;
C

LLC/LLC2

= 40 pF; note 6

−−8ns

Data qualifier output timing (CREF)

t

HD;CREF

output hold time CL=15pF 4 −− ns
t

PD;CREF

propagation delay from positive

edge of LLC

CL=40pF −−20 ns

Horizontal PLL

f

Hnom

nominal line frequency 50 Hz field − 15625 − Hz

60 Hz field − 15734 − Hz

∆fH/f

Hnom

permissible static deviation 50 Hz field −−5.6 %

60 Hz field −−6.7 %

Subcarrier PLL

f

Hnom

nominal subcarrier frequency PAL − 4433618 − Hz

NTSC − 3579545 − Hz

∆f

H/fHnom

lock-in range 400 −− Hz

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

1995 Oct 18 20

Philips Semiconductors Product specification

One Chip Front-end 1 (OCF1) SAA7110; SAA7110A

Notes

1. The LFCO output level must be measured with a load circuit of 10 kΩ in parallel with 15 pF.

2. The levels must be measured with load circuits, the loads depend on the type of output stage. Control outputs (except
HREF and VS); 1.2 kΩ at 3 V (TTL load); CL= 25 pF: data outputs (plus HREF and VS); 1.2 kΩ at 3 V (TTL load);
CL=50pF.

3. Other control input signals are CGCE, VS, SA, HCL and HSY.

4. Data output signals are YUV (15 to 0). Control output signals are HREF, VS, HS, HSY, HCL, RTCO, PLIN (HL),
ODD (VL) and GPSW0 (VBLK). The effects of rise and fall times are included in the calculation of t

HD;DAT

, tPD and

t

PDZ

. Timings and levels refer to drawings and conditions illustrated in Fig.10.

5. The minimum propagation delay from 3-state to data active related to falling edge of LLC is 0 ns.

6. LLC2 is not active while CGCE = 0.

7. Philips catalogue number 9922 520 30004.

Table 1 Processing delay

Crystal oscillator

f

n

nominal frequency 3rd harmonic − 26.8 − MHz

∆f/f

n

permissible frequency deviation −50 × 10−6− +50 × 10

−6

∆T/f

n

permissible frequency deviation
with temperature

−20 × 10−6− +20 × 10

−6

CRYSTAL SPECIFICATION (X1); note 7
T

amb

operating ambient temperature 0 − 70 °C

C

L

load capacitance 8 −− pF

R

s

series resonance resistance − 50 80 Ω
C1 motional capacitance − 1.1 ±20% − fF
C0 parallel capacitance − 3.5 ±20% − pF

FUNCTION

TYPICAL ANALOG DELAY

AI21 TO ADCIN (AOUT) (ns)

DIGITAL DELAY

ADCIN (AOUT) TO YUVOUT

(1/LLC)

(YDEL = 0; CAD2/3 = 1)

Without amplifier or anti-alias filter 10

248

With amplifier, without anti-alias filter 30
With amplifier plus anti-alias filter (50 Hz) 30 + 40
With amplifier plus anti-alias filter (60 Hz) 30 + 50

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

1995 Oct 18 21

Philips Semiconductors Product specification

One Chip Front-end 1 (OCF1) SAA7110; SAA7110A

13 TIMING

Fig.10 Clock/data timing.

handbook, full pagewidth

T

cy

T

cy

t

f

t

SU;DAT

t

r

t

LLCH

t

SU;DAT

t

HD;DAT

t

HD;DAT

t

HD;DAT

t

OHD

t

OHD

t

PD

t

PDZ

t

PD

t

OHD

t

OHD

t

LLCL

t

LLCH

t

f

t

dLLC2

t

r

CLOCK INPUT LLC

INPUTS CONTROL

INPUT CREF

OUTPUTS YUV, HREF, VS AND HS

OUTPUTS YUV (to 3-state)

CLOCK OUTPUT LLC

OUTPUT CREF

CLOCK OUTPUT LLC2

2.4 V

1.5 V

0.6 V

2.6 V

1.5 V

0.6 V

2.6 V

1.5 V

0.6 V

2.0 V

0.8 V

2.0 V

0.8 V

2.4 V

0.6 V

2.4 V

0.6 V

MGC829

1995 Oct 18 22

Philips Semiconductors Product specification

One Chip Front-end 1 (OCF1) SAA7110; SAA7110A

Fig.11 Horizontal timing.

(1) See Table 1.
HRMV = 1 and HRFS = 0.

handbook, full pagewidth

0

+117

−118

+97

−97

MGC830

CVBS

HSY

HCL

62 × 2/LLC

30 × 2/LLC

Y output

HREF (50 Hz)

18 × 2/LLC

768 × 2/LLC

176 × 2/LLC

18 × 2/LLC

140 × 2/LLC

640 × 2/LLC

64 × 2/LLC

burst

PLIN (50 Hz)

processing delay CVBS−>YUV

0

+191

−64

0

4/LLC

HREF (60 Hz)

HS (60 Hz)

HS (50 Hz)

programming range

(step size: 8/LLC)

+127

−128

HCL

programming range

(step size: 2/LLC)

HSY

programming range

(step size: 2/LLC)

HS (60 Hz)

programming range

(step size: 8/LLC)

HS (50 Hz)

94 × 2/LLC

64 × 2/LLC

(1)

1995 Oct 18 23

Philips Semiconductors Product specification

One Chip Front-end 1 (OCF1) SAA7110; SAA7110A

Fig.12 HREF timing.

handbook, full pagewidth

01234

U0 V0 U1 V1 U2

END OF ACTIVE LINE

START OF ACTIVE LINE

767766765764763

U766 V766V764U764V762

639638637636635

U638 V638

MGC831

V636U636V634

ONE BUS CYCLE

LL27

CREF

HREF

Yn

Yn
(50 Hz)
UVn

Yn
(60 Hz)
UVn

UVn

HREF

INTERNAL
BUS CLOCK

1995 Oct 18 24

Philips Semiconductors Product specification

One Chip Front-end 1 (OCF1) SAA7110; SAA7110A

Fig.13 Vertical timing.

(1) Nominal input signal 50 Hz.
(2) Nominal input signal 60 Hz.
HRMV = 1 and HRFS = 0.

handbook, full pagewidth

123456789625

input CVBS

HREF

a: 1st field

(1)

2 × 2/LLC

533 × 2/LLC

ODD

VS

314 315 316 317 318 319 320 321313

input CVBS

HREF

b: 2nd field

(1)

2 × 2/LLC

61 × 2/LLC

ODD

VS

123456789525

input CVBS

HREF

a: 1st field

(2)

2 × 2/LLC

441 × 2/LLC

ODD

VS

264 265 266 267 268 269 270 271263

input CVBS

HREF

b: 2nd field

(2)

2 × 2/LLC

51 × 2/LLC

ODD

VS

MGC832

1995 Oct 18 25

Philips Semiconductors Product specification

One Chip Front-end 1 (OCF1) SAA7110; SAA7110A

Fig.14 FEIN timing.

handbook, full pagewidth

LLC

CREF

HREF

FEIN

YUV

t

SU;DAT

t

HD;DAT

MGC833

t

OHD

t

PD

from 3-stateto 3-state

Table 2 Digital output control

OEYC FEIN YUV (15 : 0)

00 Z
1 0 active
X1 Z

Fig.15 Real time control output timing.

RTCO sequence is generated in LLC/4.
For transmission LLC/2 timing is required.

handbook, full pagewidth

TIME SLOT:

BIT NO.:

transmitted once per line

22

1

21

1920

15

1617

18

7

8

9

11 1012

13

14

SEQUENCE

19

0 67

4

3

6

452

3

0

14

45

RESERVED

14

FSCPLL-INCR.

MGC834

276

63

0

1

RESERVED

128

HIGH

LOW

13

HPLL-INCR.

RESERVED

1

(50 Hz SYSTEMS)

188

(60 Hz SYSTEMS)

1995 Oct 18 26

Philips Semiconductors Product specification

One Chip Front-end 1 (OCF1) SAA7110; SAA7110A

14 OUTPUT FORMATS
Table 3 Output formats

BUS

SIGNAL

PIXEL BYTE SEQUENCE 4:1:1 FORMAT PIXEL BYTE SEQUENCE 4:2:2 FORMAT

Y7 Y7 Y7 Y7 Y7 Y7 Y7 Y7 Y7 Y7 Y7 Y7 Y7 Y7 Y7
Y6 Y6 Y7 Y6 Y6 Y6 Y6 Y6 Y6 Y6 Y6 Y6 Y6 Y6 Y6
Y5 Y5 Y5 Y5 Y5 Y5 Y5 Y5 Y5 Y5 Y5 Y5 Y5 Y5 Y5
Y4 Y4 Y4 Y4 Y4 Y4 Y4 Y4 Y4 Y4 Y4 Y4 Y4 Y4 Y4
Y3 Y3 Y3 Y3 Y3 Y3 Y3 Y3 Y3 Y3 Y3 Y3 Y3 Y3 Y3
Y2 Y2 Y2 Y2 Y2 Y2 Y2 Y2 Y2 Y2 Y2 Y2 Y2 Y2 Y2
Y1 Y1 Y1 Y1 Y1 Y1 Y1 Y1 Y1 Y1 Y1 Y1 Y1 Y1 Y1
Y0 Y0 Y0 Y0 Y0 Y0 Y0 Y0 Y0 Y0 Y0 Y0 Y0 Y0 Y0
UV7 U7 U5 U3 U1 U7 U5 U3 U1 U7 V7 U7 V7 U7 V7
UV6 U6 U4 U2 U0 U6 U4 U2 U0 U6 V6 U6 V6 U6 V6
UV5 V7 V5 V3 V1 V7 V5 V3 V1 U5 V5 U5 V5 U5 V5
UV4 V6 V4 V2 V0 V6 V4 V2 V0 U4 V4 U4 V4 U4 V4
UV3 00000000U3V3U3V3U3V3
UV2 00000000U2V2U2V2U2V2
UV1 00000000U1V1U1V1U1V1
UV0 00000000U0V0U0V0U0V0
Y frame 01234567 0 1 2345
UV frame 0 4 0 2 4

data rate sample frequency data rate sample frequency

Y

LLC2

LLC2

LLC2

LLC2
U LLC4 LLC8
V LLC4 LLC8

1995 Oct 18 27

Philips Semiconductors Product specification

One Chip Front-end 1 (OCF1) SAA7110; SAA7110A

Fig.16 YUV output signal range.

CCIR 601 digital levels.

handbook, full pagewidth

LUMINANCE 100%

+255
+235

+128

+16

0

U-COMPONENT

+255
+240

+212 +212

+128

+16

+44

0

blue 100%
blue 75%

yellow 75%
yellow 100%

V-COMPONENT

+255
+240

+128

+16

+44

0

red 100%
red 75%

cyan 75%

cyan 100%

MGC835

a. Y output range. b. U output range (B−Y). c. Y output range (R−Y).

Fig.17 Oscillator application.

handbook, full pagewidth

XTALO

XTALI

65

66

MGC836

XTALO

L = 10 µH +/-20%

C =
10 pF

C =
10 pF

C =
1 nF

quartz (3rd harmonic)

26.8 MHz

XTALI

65

66

SAA7110

SAA7110A

SAA7110

SAA7110A

a. with quartz crystal. b. with external clock.

1995 Oct 18 28

Philips Semiconductors Product specification

One Chip Front-end 1 (OCF1) SAA7110; SAA7110A

15 CLOCK SYSTEM

15.1 Clock generation circuit

The internal CGC generates the system clocks LLC, LLC2
and the clock reference signal CREF. The internally
generated LFCO (triangular waveform) is multiplied by
four via the analog PLL (including phase detector, loop
filter, VCO and frequency divider). The rectangular output
signals have a 50% duty factor.

Table 4 System clock frequencies

CLOCK

FREQUENCY (MHz)

50 Hz 60 Hz

XTAL 26.8 26.8

LLC 29.5 24.545454
LLC2 14.75 12.272727
LLC4 7.375 6.136136
LLC8 3.6875 3.068181

Fig.18 Clock generation circuit.

handbook, full pagewidth

BAND PASS

FC = LLC/4

ZERO

CROSS

DETECTION

PHASE

DETECTION

LOOP

FILTER

DIVIDER

1/2

DIVIDER

1/2

OSCILLATOR

DELAY CREF

MGC837

LLC2

LLC

LFCO

1995 Oct 18 29

Philips Semiconductors Product specification

One Chip Front-end 1 (OCF1) SAA7110; SAA7110A

15.2 Power-on control

Power-on reset is activated at power-on (using only internal CGC) and if the supply voltage falls below 3.5 V. TheRESET
signal can be applied to reset other circuits of the digital TV system.

Table 5 Power-on control sequence

INTERNAL POWER-ON
CONTROL SEQUENCE

PIN OUTPUT STATUS FUNCTION

Directly after power-on
asynchronous reset

Y7 to Y0, UV7 to UV0, RTCO, PLIN, ODD,
GPSW, SDA, HREF, HS, VS, HCL and HSY
in high impedance state

LLC, LLC2 and CREF in HIGH state

direct switching to high impedance (outputs)
or input mode (I/Os) for 20 to 200 ms

Start synchronous
I

2

C-bus reset sequence

LLC, LLC2 and CREF active starting I2C-bus reset sequence

Status after I

2

C-bus reset Y7 to Y0, UV7 to UV0, HREF and HS held

in high impedance state
VS, HCL and HSY held in input function

mode

SA0DH = 7DH (VTRC = 0, RTSE = 1,
HRMV = 1, SSTB = 0, SECS = 1)

SA0EH = 00H (HPLL = 0, OEHV = 0,
OEYC = 0, CHRS = 0, GPSW = 0)

SA31H = 00H (AOSL1:0=00, WIRS = 0,
WRSE = 0, SQPB = 0, VBLKA = 0,
PULIO = 0)

Status after power-on
control sequence

RTCO, PLIN, ODD, GPSW and SDA active after power-on (reset sequence) a complete

I

2

C-bus transmission is required

Fig.19 Power-on control circuit.

handbook, full pagewidth

POC V

DD

POC

LOGIC

ANALOG

POC V

DD

DIGITAL

MGC838

DELAY

CONTROL

CLOCK I/O

CONTROL

CLOCK

OUTPUT

ACTIVE

CONTROL

CGCE

LLC

RESET

1995 Oct 18 30

Philips Semiconductors Product specification

One Chip Front-end 1 (OCF1) SAA7110; SAA7110A

16 I2C-BUS DESCRIPTION

16.1 I

2

C-bus format

Table 6 Description of I

2

C-bus format

Note

1. If more than one byte DATA is transmitted then the auto-increment of the subaddress is performed.

S SLAVE ADDRESS ACK SUBADDRESS ACK DATA (n bytes) ACK P

CODE DESCRIPTION

S START condition
Slave address 1001 110Xb (SA = LOW) or 1001 111Xb (SA = HIGH)
ACK acknowledge generated by the slave
Subaddress subaddress byte, see Table 7
Data data byte, see Table 7; note 1
P STOP condition
X read/write control bit:

X = 0, order to write (the circuit is slave receiver)
X = 1, order to read (the circuit is slave transmitter)

Slave address 9CH for write, 9DH for read (SA = 0)

9EH for write, 9FH for read (SA = 1

Subaddress 00H to 19H decoder part

1AH to 1FH reserved
20H to 34H front-end part

1995 Oct 18 31

Philips Semiconductors Product specification

One Chip Front-end 1 (OCF1) SAA7110; SAA7110A

16.2 I2C-bus receiver/transmitter tables
Table 7 OCF1

RECEIVER

Slave address 10011100b, 9CH (SA = 0) and 10011110b, 9EH (SA = 1)

REGISTER FUNCTION

SUB

ADD

(1)

DATA BYTE

(2)

D7 D6 D5 D4 D3 D2 D1 D0

DMSD-SQP + BSC slave receiver (SU 00H to 19H)

Increment delay 00 007

IDEL7

006

IDEL6

005

IDEL5

004

IDEL4

003

IDEL3

002

IDEL2

001

IDEL1

000

IDEL0

HSY begin 50 Hz 01 015

HSYB7

014

HSYB6

013

HSYB5

012

HSYB4

011

HSYB3

010

HSYB2

009

HSYB1

008

HSYB0

HSY stop 50 Hz 02 023

HSYS7

022

HSYS6

021

HSYS5

020

HSYS4

019

HSYS3

018

HSYS2

017

HSYS1

016

HSYS0

HCL begin 50 Hz 03 031

HCLB7

030

HCLB6

029

HCLB5

028

HCLB4

027

HCLB3

026

HCLB2

025

HCLB1

024

HCLB0

HCL stop 50 Hz 04 039

HCLS7

038

HCLS6

037

HCLS5

036

HCLS4

035

HCLS3

034

HCLS2

033

HCLS1

032

HCLS0

HSY after PHI1 50 Hz 05 047

HPHI7

046

HPHI6

045

HPHI5

044

HPHI4

043

HPHI3

042

HPHI2

041

HPHI1

040

HPHI0

Luminance control 06 055

BYPS

054

PREF

053

BPSS1

052

BPSS0

051

CORI1

050

CORI0

049

APER1

048

APER0

Hue control 07 063

HUEC7

062

HUEC6

061

HUEC5

060

HUEC4

059

HUEC3

058

HUEC2

057

HUEC1

056

HUEC0

Colour killer threshold
QUAM (PAL/NTSC)

08 071

CKTQ4

070

CKTQ3

069

CKTQ2

068

CKTQ1

067

CKTQ0

066

XXX

065

XXX

064

XXX

Colour killer threshold
SECAM

09 079

CKTS4

078

CKTS3

077

CKTS2

076

CKTS1

075

CKTS0

074

XXX

073

XXX

072

XXX

PAL switch sensitivity 0A 087

PLSE7

086

PLSE6

085

PLSE5

084

PLSE4

083

PLSE3

082

PLSE2

081

PLSE1

080

PLSE0

SECAM switch sensitivity 0B 095

SESE7

094

SESE6

093

SESE5

092

SESE4

091

SESE3

090

SESE2

089

SESE1

088

SESE0

Gain control chrominance 0C 103

COLO

102

LFIS1

101

LFIS0

100

XXX

099

XXX

098

XXX

097

XXX

096

XXX

Standard/mode control 0D 111

VTRC

110

XXX

109

XXX

108

XXX

107

RTSE

106

HRMV

105

SSTB

104

SECS

I/O and clock control 0E 119

HPLL

118

XXX

117

XXX

116

OEHV

115

OEYC

114

CHRS

113

XXX

112

GPSW

Control #1 0F 127

AUFD

126

FSEL

125

SXCR

124

SCEN

123

XXX

122

YDEL2

121

YDEL1

120

YDEL0

Control #2 10 135

XXX

134

XXX

133

XXX

132

XXX

131

XXX

130

HRFS

129

VNOI1

128

VNOI0

Chrominance gain reference 11 143

CHCV7

142

CHCV6

141

CHCV5

140

CHCV4

139

CHCV3

138

CHCV2

137

CHCV1

136

CHCV0

Chrominance saturation 12 151

SATN7

150

SATN6

149

SATN5

148

SATN4

147

SATN3

146

SATN2

145

SATN1

144

SATN0

1995 Oct 18 32

Philips Semiconductors Product specification

One Chip Front-end 1 (OCF1) SAA7110; SAA7110A

Luminance contrast 13 159

CONT7

158

CONT6

157

CONT5

156

CONT4

155

CONT3

154

CONT2

153

CONT1

152

CONT0

HSY begin 60 Hz 14 167

HS6B7

166

HS6B6

165

HS6B5

164

HS6B4

163

HS6B3

162

HS6B2

161

HS6B1

160

HS6B0

HSY stop 60 Hz 15 175

HS6S7

174

HS6S6

173

HS6S5

172

HS6S4

171

HS6B3

170

HS6S2

169

HS6S1

168

HS6S0

HCL begin 60 Hz 16 183

HC6B7

182

HC6B6

181

HC6B5

180

HCLB4

179

HC6B3

178

HC6B2

177

HC6B1

176

HC6B0

HCL stop 60 Hz 17 191

HC6S7

190

HC6S6

189

HC6S5

188

HC6S4

187

HC6S3

186

HC6S2

185

HC6S1

184

HC6S0

HSY after PHI1 60 Hz 18 199

HP6I7

198

HP6I6

197

HP6I5

196

HP6I4

195

HP6I3

194

HP6I2

193

HP6I1

192

HP6I0

Luminance brightness 19 207

BRIG7

206

BRIG6

205

BRIG5

204

BRIG4

203

BRIG3

202

BRIG2

201

BRIG1

200

BRIG0

DUAD slave receiver (SU 20H to 32H)

Analog control #1 20 007

AIND4

006

AIND3

005

AIND2

004

FUSE1

003

FUSE0

002

AINS4

001

AINS3

000

AINS2

Analog control #2 21 015

VBCO

014

MS34

013

MX241

012

MX240

011

MS24

010

REFS4

009

REFS3

008

REFS2

Mixer control #1 22 023

GACO1

022

GACO0

021

CSEL

020

YSEL

019

MUYC

018

CLTS

017

MX341

016

MX340

Clamping level control 21 23 031

CLL217

030

CLL216

029

CLL215

028

CLL214

027

CLL213

026

CLL212

025

CLL211

024

CLL210

Clamping level control 22 24 039

CLL227

038

CLL226

037

CLL225

036

CLL224

035

CLL223

034

CLL222

033

CLL221

032

CLL220

Clamping level control 31 25 047

CLL317

046

CLL316

045

CLL315

044

CLL314

043

CLL313

042

CLL312

041

CLL311

040

CLL310

Clamping level control 32 26 055

CLL327

054

CLL326

053

CLL325

052

CLL324

051

CLL323

050

CLL322

049

CLL321

048

CLL320

Gain control analog #1 27 063

HOLD

062

GASL

061

GAI25

060

GAI24

059

GAI23

058

GAI22

057

GAI21

056

GAI20

White peak control 28 071

WIPE7

070

WIPE6

069

WIPE5

068

WIPE4

067

WIPE3

066

WIPE2

065

WIPE1

064

WIPE0

Sync bottom control 29 079

SBOT7

078

SBOT6

077

SBOT5

076

SBOT4

075

SBOT3

074

SBOT2

073

SBOT1

072

SBOT0

Gain control analog #2 2A 087

IWIP1

086

IWIP0

085

GAI35

084

GAI34

083

GAI33

082

GAI32

081

GAI31

080

GAI30

Gain control analog #3 2B 095

IGAI1

094

IGAI0

093

GAI45

092

GAI44

091

GAI43

090

GAI42

089

GAI41

088

GAI40

Mixer control #2 2C 103

CLS4

102

XXX

101

CLS3

100

CLS2

099

XXX

098

XXX

097

TWO3

096

TWO2

Integration value gain 2D 111

IVAL7

110

IVAL6

109

IVAL5

108

IVAL4

107

IVAL3

106

IVAL2

105

IVAL1

104

IVAL0

REGISTER FUNCTION

SUB

ADD

(1)

DATA BYTE

(2)

D7 D6 D5 D4 D3 D2 D1 D0

1995 Oct 18 33

Philips Semiconductors Product specification

One Chip Front-end 1 (OCF1) SAA7110; SAA7110A

Notes

1. Subaddresses to be reset: 0D to 7DH, 0E and 31 to 00H after RESET = 0 (CGCE = 0) or power-on (CGCE = 1).

2. All reserved XXX-bits must be set to LOW, XX-bit is don’t care.

3. AFCCS bit does not exist in SAA7110A due to advanced anti-alias filter characteristic, don’t care (XX).

Table 8 OCF1

TRANSMITTER: Byte number 0 (transmitted if SSTB = 0 or after RESET has been 0)

Slave address 10011101b, 9DH (SA = 0) and 10011111b, 9FH (SA = 1

Note

1. ID7 to ID0 indicates the version number of the IC, for example SAA7110A V1 = 01H.

Table 9 OCF1 TRANSMITTER: Byte number 1 (transmitted if SSTB = 1)
Slave address 10011101b, 9DH (SA = 0) and 10011111b, 9FH (SA = 1)

Vertical blanking pulse set 2E 119

VBPS7

118

VBPS6

117

VBPS5

116

VBPS4

115

VBPS3

114

VBPS2

113

VBPS1

112

VBPS0

Vertical blanking pulse reset 2F 127

VBPR7

126

VBPR6

125

VBPR5

124

VBPR4

123

VBPR3

122

VBPR2

121

VBPR1

120

VBPR0

ADCs gain control 30 135

XXX

134

WISL

133

GAS3

132

GAD31

131

GAD30

130

GAS2

129

GAD21

128

GAD20

Mixer control #3 31 143

AOSL1

142

AOSL0

141

WIRS

140

WRSE

139

SQPB

138

(3)

AFCCS

137

VBLKA

136

PULIO

Integration value white peak 32 151

WVAL7

150

WVAL6

149

WVAL5

148

WVAL4

147

WVAL3

146

WVAL2

145

WVAL1

144

WVAL0

Mixer control #4 33 159

OFTS

158

XXX

157

CHSB

156

XXX

155

CAD3

154

CAD2

153

XXX

152

XXX

Gain update level 34 167

MUD2

166

MUD1

165

GUDL5

164

GUDL4

163

GUDL3

162

GUDL2

161

GUDL1

160

GUDL0

VERSION STATUS BYTE D7 D6 D5 D4 D3 D2 D1 D0

ID7 to ID0; note 1 ID7 ID6 ID5 ID4 ID3 ID2 ID1 ID0

STATUS BYTE FUNCTION D7 D6 D5 D4 D3 D2 D1 D0

See Table 10 for explanation of bits STTC HLCK FIDT GLIM XXX WIPA ALTD CODE

REGISTER FUNCTION

SUB

ADD

(1)

DATA BYTE

(2)

D7 D6 D5 D4 D3 D2 D1 D0

1995 Oct 18 34

Philips Semiconductors Product specification

One Chip Front-end 1 (OCF1) SAA7110; SAA7110A

Table 10 Explanation of bits shown in Table 9

16.3 I

2

C-bus detail

The I2C-bus receiver slave address is 9CH/9EH.
DMSD-SQP slave receiver (SU 00H to 19H).

16.3.1 S

UBADDRESS 00 (DATA BYTE 007 to 000)

Table 11 Increment delay IDEL

Notes

1. A sign bit, designated A08 and internally set to HIGH, indicates values are always negative.

2. The horizontal PLL does not operate in this condition. The system clock frequency is set to a value fixed by the last
update and is within ±7.1% of the nominal frequency.

BIT DESCRIPTION

STTC Status bit for horizontal time constant: LOW = TV time constant; HIGH = VCR time constant.
HLCK Status bit for locked horizontal frequency: LOW = locked; HIGH = unlocked.
FIDT Identification bit for detected field frequency: LOW = 50 Hz; HIGH = 60 Hz.
GLIM Gain value for active luminance is limited (maximum or minimum), active HIGH.
XXX reserved
WIPA White peak loop is activated, active HIGH.
ALTD Status HIGH: line alternating colour burst has been detected (PAL or SECAM).
CODE Status HIGH: any colour signal has been detected.

DECIMAL

MULTIPLIER

DELAY TIME

(STEP SIZE = 4/LLC)

CONTROL BITS

(1)

IDEL7 IDEL6 IDEL5 IDEL4 IDEL3 IDEL2 IDEL1 IDEL0

−1 −4 11111111
↓ ↓ ↓↓↓↓↓↓↓↓

−195 −780

max. value for 60 Hz

00111101

↓ ↓ ↓↓↓↓↓↓↓↓

−236 −944

max. value for 50 Hz

00010100

↓ ↓ ↓↓↓↓↓↓↓↓

−256 −1024

outside central counter

(2)

00000000

1995 Oct 18 35

Philips Semiconductors Product specification

One Chip Front-end 1 (OCF1) SAA7110; SAA7110A

16.3.2 SUBADDRESS 01 (DATA BYTE 015 to 008)
Table 12 Horizontal synchronization begin 50 Hz (HSYB)

16.3.3 S

UBADDRESS 02 (DATA BYTE 023 to 016)

Table 13 Horizontal synchronization stop 50 Hz (HSYS)

16.3.4 S

UBADDRESS 03 (DATA BYTE 031 to 024)

Table 14 Horizontal clamping begin 50 Hz (HCLB)

16.3.5 S

UBADDRESS 04 (DATA BYTE 039 to 032)

Table 15 Horizontal clamping stop 50 Hz (HCLS)

DECIMAL

MULTIPLIER

DELAY TIME

(STEP SIZE = 2/LLC)

CONTROL BITS

HSYB7 HSYB6 HSYB5 HSYB4 HSYB3 HSYB2 HSYB1 HSYB0

+191 −382 10111111

↓ ↓ ↓↓↓↓↓↓↓↓

−64 [phone]

DECIMAL

MULTIPLIER

DELAY TIME

(STEP SIZE = 2/LLC)

CONTROL BITS

HSYS7 HSYS6 HSYS5 HSYS4 HSYS3 HSYS2 HSYS1 HSYS0

+191 −382 10111111

↓ ↓ ↓↓↓↓↓↓↓↓

−64 [phone]

DECIMAL

MULTIPLIER

DELAY TIME

(STEP SIZE = 2/LLC)

CONTROL BITS

HCLB7 HCLB6 HCLB5 HCLB4 HCLB3 HCLB2 HCLB1 HCLB0

+127 −254 01111111

↓ ↓ ↓↓↓↓↓↓↓↓

−128 [phone]

DECIMAL

MULTIPLIER

DELAY TIME

(STEP SIZE = 2/LLC)

CONTROL BITS

HCLS7 HCLS6 HCLS5 HCLS4 HCLS3 HCLS2 HCLS1 HCLS0

+127 −254 01111111

↓ ↓ ↓↓↓↓↓↓↓↓

−128 [phone]

1995 Oct 18 36

Philips Semiconductors Product specification

One Chip Front-end 1 (OCF1) SAA7110; SAA7110A

16.3.6 SUBADDRESS 05 (DATA BYTE 047 to 040)

Table 16 Horizontal synchronization start after PHI1 50 Hz (HPHI)

DECIMAL

MULTIPLIER

DELAY TIME

(STEP SIZE = 8/LLC)

CONTROL BITS

HPHI7 HPHI6 HPHI5 HPHI4 HPHI3 HPHI2 HPHI1 HPHI0

+127 forbidden;

outside available central
counter range

01111111

↓ ↓↓↓↓↓↓↓↓

[phone]
+117 −32 µs

(max. negative value)

01110101

−118 +31.7 µs
(max. positive value)

10001010

−119 forbidden;
outside available central
counter range

10001001

↓ ↓↓↓↓↓↓↓↓

−128 10000000

1995 Oct 18 37

Philips Semiconductors Product specification

One Chip Front-end 1 (OCF1) SAA7110; SAA7110A

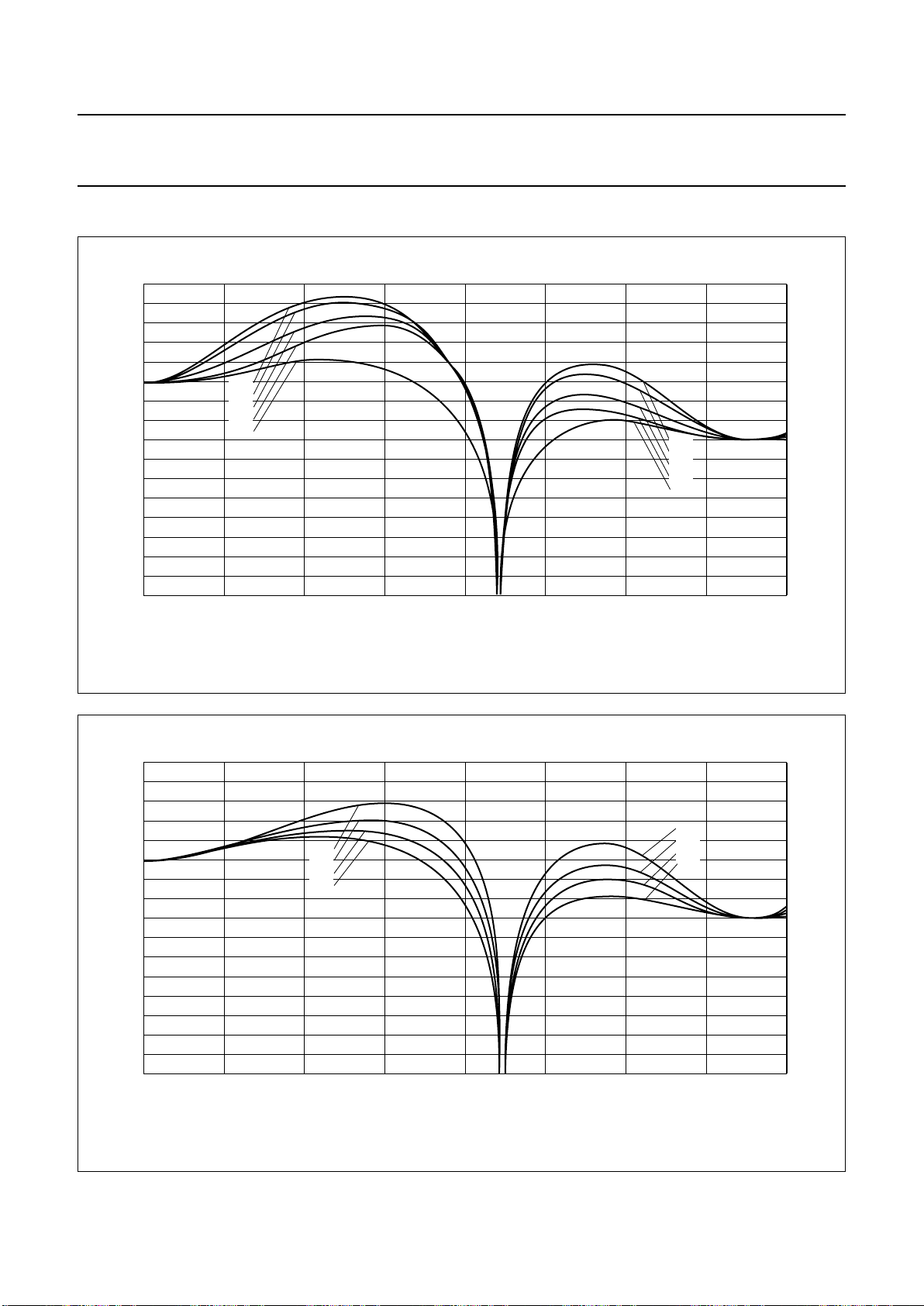

16.3.7 SUBADDRESS 06 (DATA BYTE 055 to 048)
Table 17 Luminance control

16.3.8 S

UBADDRESS 07 (DATA BYTE 063 to 056)

Table 18 Hue phase control HUEC

FUNCTION CONTROL BITS

Aperture factor (APER); data bits D1 and D0

0 0 APER1 = 0; APER0 = 0
1 0.25 APER1 = 0; APER0 = 1
2 0.5 APER1 = 1; APER0 = 0
3 1.0 APER1 = 1; APER0 = 1

Corner correction (CORI) ±LSBs in 8-bit; data bits D3 and D2

0 0 (OFF) CORI1 = 0; CORI0 = 0
1 1 CORI1 = 0; CORI0 = 1
2 2 CORI1 = 1; CORI0 = 0
3 3 CORI1 = 1; CORI0 = 1

Aperture bandpass; centre frequency (BPSS); data bits D4 and D5

4.6 MHz (50 Hz) 3.8 MHz (60 Hz) BPSS1 = 0; BPSS0 = 0

4.3 MHz (50 Hz) 3.4 MHz (60 Hz) BPSS1 = 0; BPSS0 = 1

3.0 MHz (50 Hz) 2.5 MHz (60 Hz) BPSS1 = 1; BPSS0 = 0

3.2 MHz (50 Hz) 2.7 MHz (60 Hz) BPSS1 = 1; BPSS0 = 1

Prefilter active (PREF); data bit D6

Bypassed PREF = 0

Active PREF = 1

Chrominance trap bypass (BYPS); data bit D7

Active CVBS mode BYPS = 0

Bypassed S-Video mode BYPS = 1

HUE PHASE (DEGREES)

CONTROL BITS

HUEC7 HUEC6 HUEC5 HUEC4 HUEC3 HUEC2 HUEC1 HUEC0

+178.6 0 1 1 1 1 1 1 1

↓ ↓↓↓↓↓↓↓↓

0 00000000

↓ ↓↓↓↓↓↓↓↓

−180 10000000

1995 Oct 18 38

Philips Semiconductors Product specification

One Chip Front-end 1 (OCF1) SAA7110; SAA7110A

16.3.9 SUBADDRESS 08 CONTROL NUMBER 1(DATA BYTE 071 to 064)
Table 19 Colour killer threshold QUAM (PAL/NTSC)

16.3.10 S

UBADDRESS 09 CONTROL NUMBER 2(DATA BYTE 079 to 072)

Table 20 Colour killer threshold SECAM

16.3.11 S

UBADDRESS 0A (DATA BYTE 087 to 080)

Table 21 PAL switch sensitivity

Note

1. Sensitivity HIGH means immediate sequence correction.

16.3.12 S

UBADDRESS 0B (DATA BYTE 095 to 088)

Table 22 SECAM switch sensitivity

Note

1. Sensitivity HIGH means immediate sequence correction.

THRESHOLD

(reference is nominal burst amplitude = 0 dB)

CONTROL BITS

CKTQ4 CKTQ3 CKTQ2 CKTQ1 CKTQ0

−30 dB 1 1 1 1 1
↓↓↓↓↓↓

−24 dB 1 0 0 0 0
↓↓↓↓↓↓

−18 dB 0 0 0 0 0

THRESHOLD

(reference is nominal burst amplitude = 0 dB)

CONTROL BITS

CKTS4 CKTS3 CKTS2 CKTS1 CKTS0

−30 dB 1 1 1 1 1
↓↓↓↓↓↓

−24 dB 1 0 0 0 0
↓↓↓↓↓↓

−18 dB 0 0 0 0 0

SENSITIVITY

CONTROL BITS

PLSE7 PLSE6 PLSE5 PLSE4 PLSE3 PLSE2 PLSE1 PLSE0

Low 11111111

Medium 1 0 000000

High

(1)

00000000

SENSITIVITY

CONTROL BITS

SESE7 SESE6 SESE5 SESE4 SESE3 SESE2 SESE1 SESE0

Low 11111111

Medium 1 0 000000

High

(1)

00000000

1995 Oct 18 39

Philips Semiconductors Product specification

One Chip Front-end 1 (OCF1) SAA7110; SAA7110A

16.3.13 SUBADDRESS 0C (DATA BYTE 103 to 096)
Table 23 Gain control chrominance

16.3.14 S

UBADDRESS 0D (DATA BYTE 111 to 104)

Table 24 Standard/mode control

FUNCTION CONTROL BITS

AGC loop filter (LFIS); data bits D6 and D5

Slow time constant LFIS1 = 0; LFIS0 = 0

Medium time constant LFIS1 = 0; LFIS0 = 1

Fast time constant LFIS1 = 1; LFIS0 = 0

Actual chrominance gain frozen LFIS1 = 1; LFIS0 = 1

Colour on (COLO); data bit D7

Automatic colour killer COLO = 0

Colour forced on COLO = 1

FUNCTION CONTROL BITS

SECAM mode bit (SECS); data bit D0

Other standards SECS =0

SECAM mode SECS = 1

Status byte select (SSTB); data bit D1

Status byte = 0 (see transmitter) SSTB 0
Status byte = 1 (see transmitter) SSTB = 1

HREF position select (HRMV); data bit D2

HREF position as SAA7191 (8 LLC2 later) HRMV = 0

HREF normal position HRMV = 1

Real time outputs mode select (RTSE); data bit D3

PLIN switched to output pin 39
ODD switched to output pin 40

RTSE=0

HL switched to output pin 39 VL switched to output pin 40 RTSE = 1

TV/VCR mode select (VTRC); data bit D7

TV mode VTRC = 0

VTR mode VTRC = 1

1995 Oct 18 40

Philips Semiconductors Product specification

One Chip Front-end 1 (OCF1) SAA7110; SAA7110A

16.3.15 SUBADDRESS 0E (DATA BYTE 119 to 112)
Table 25 I/O and clock control

16.3.16 S

UBADDRESS 0F (DATA BYTE 127 to 120)

Table 26 Control number 1

FUNCTION CONTROL BITS

General purpose switch (GPSW); data bit D0

Switches directly pin 64 GPSW (application dependent);

VBLKA = 0

GPSW = 0
GPSW = 1

Select chrominance input (CHRS); data bit D2

Controlled by BYPS (subaddress 06) normal position CHRS = 0

Digital chrominance input switched to

second input channel (see Fig.20)

CHRS = 1

Output enable YUV-data (OEYC); data bit D3

YUV bus high impedance/input OEYC = 0

Output YUV-bus active OEYC = 1

Output enable horizontal/vertical synchronization (OEHV); data bit D4

HS, HREF and VS high impedance/inputs OEHV = 0

Output HS, HREF and VS active OEHV = 1

Horizontal PLL clock (HPLL); data bit D7

PLL closed HPLL = 0

PLL open, horizontal frequency fixed HPLL = 1

FUNCTION CONTROL BITS

Luminance delay compensation; steps in 2/LLC (YDEL); data bits D2, D1 and D0

0 steps YDEL2 = 0; YDEL1 = 0; YDEL0 = 0
3 steps YDEL2 = 0; YDEL1 = 1; YDEL0 = 1

−4 steps YDEL2= 1; YDEL1 = 0 YDEL1 = 0

Enable or disable of sync and clamp pulses; HSY and HCL (SCEN); data bit D4

Disable sync and clamp (set to HIGH) SCEN = 0

Enable sync and clamp SCEN = 1

SECAM cross colour reduction (SXCR); data bit D5

Reduction off SXCR = 0
Reduction on SXCR = 1

Field selection (FSEL); data bit D6

50 Hz, 625 lines FSEL = 0
60 Hz, 525 lines FSEL = 1

Automatic field detection(AUFD); data bit D7

Field state directly controlled via FSEL AUFD = 0

Automatic field detection AUFD = 1

1995 Oct 18 41

Philips Semiconductors Product specification

One Chip Front-end 1 (OCF1) SAA7110; SAA7110A

16.3.17 SUBADDRESS 10 (DATA BYTE 135 to 128)
Table 27 Control number 2

16.3.18 S

UBADDRESS 11 (DATA BYTE 143 to 136)

Table 28 Chrominance gain reference value

16.3.19 S

UBADDRESS 12 (DATA BYTE 150 to 144)

Table 29 Chrominance saturation control

FUNCTION CONTROL BITS

Vertical noise reduction (VNOI); data bits D1 and D0

Normal mode VNOI1 = 0; VNOI0 = 0

Search mode VNOI1 = 0; VNOI0 = 1

Free running mode VNOI1= 1; VNOI0 = 0

Vertical noise reduction bypassed VNOI1 = 1; VNOI0 = 1

HREF select HRFS (HRFS); data bit D2

HREF matched to YUV output HRFS = 0
HREF matched to CVBS input HRFS= 1

REFERENCE VALUE

CONTROL BITS

CHCV7 CHCV6 CHCV5 CHCV4 CHCV3 CHCV2 CHCV1 CHCV0

Maximum 1 1 111111

CCIR-level for PAL 0 1 011001

CCIR-level for NTSC 0 0 101100

Minimum 0 0 000000

GAIN

CONTROL BITS

SATN7 SATN6 SATN5 SATN4 SATN3 SATN2 SATN1 SATN0

1.999 Maximum 0 1 111111
1 CCIR-level 0 1 000000

0 colour off 0 0 000000

−1 inverse chrominance 1 1 000000

−2 inverse chrominance 1 0 000000

1995 Oct 18 42

Philips Semiconductors Product specification

One Chip Front-end 1 (OCF1) SAA7110; SAA7110A

16.3.20 SUBADDRESS 13 (DATA BYTE 158 to 152)
Table 30 Luminance contrast control

16.3.21 S

UBADDRESS 14 (DATA BYTE 167 to 160)

Table 31 Horizontal synchronization begin 60 Hz (HS6B)

16.3.22 S

UBADDRESS 15 (DATA BYTE 175 to 168)

Table 32 Horizontal synchronization stop 60 Hz (HS6S)

16.3.23 S

UBADDRESS 16 (DATA BYTE 183 to 176)

Table 33 Horizontal clamping begin 60 Hz (HC6B)

GAIN

CONTROL BITS

CONT7 CONT6 CONT5 CONT4 CONT3 CONT2 CONT1 CONT0

1.999 Maximum 0 1 111111
70 CCIR-level 0 1 000110

1 01000000

0 luminance off 0 0 000000

−1 inverse luminance 1 1 000000

−2 inverse luminance 1 0 000000

DECIMAL

MULTIPLIER

DELAY TIME

(step size = 2/LLC)

CONTROL BITS

HS6B7 HS6B6 HS6B5 HS6B4 HS6B3 HS6B2 HS6B1 HS6B0

+191 −382 10111111

↓ ↓ ↓↓↓↓↓↓↓↓

−64 [phone]

DECIMAL

MULTIPLIER

DELAY TIME

(step size = 2/LLC)

CONTROL BITS

HS6S7 HS6S6 HS6S5 HS6S4 HS6S3 HS6S2 HS6S1 HS6S0

+191 −382 10111111

↓ ↓ ↓↓↓↓↓↓↓↓

−64 [phone]

DECIMAL

MULTIPLIER

DELAY TIME

(step size = 2/LLC)

CONTROL BITS

HC6B7 HC6B6 HC6B5 HC6B4 HC6B3 HC6B2 HC6B1 HC6B0

+127 −254 01111111

↓ ↓ ↓↓↓↓↓↓↓↓

−128 [phone]

1995 Oct 18 43

Philips Semiconductors Product specification

One Chip Front-end 1 (OCF1) SAA7110; SAA7110A

16.3.24 SUBADDRESS 17 (DATA BYTE 191 to 184)
Table 34 Horizontal clamping stop 60 Hz (HC6S)

16.3.25 S

UBADDRESS 18 (DATA BYTE 199 to 192)

Table 35 Horizontal synchronization start after PHI1 60 Hz (HP6I)

16.3.26 S

UBADDRESS 19 (DATA BYTE 207 to 200)

Table 36 Luminance brightness control

DECIMAL

MULTIPLIER

DELAY TIME

(step size = 2/LLC)

CONTROL BITS

HC6S7 HC6S6 HC6S5 HC6S4 HC6S3 HC6S2 HC6S1 HC6S0

+127 −254 01111111

↓ ↓ ↓↓↓↓↓↓↓↓

−128 [phone]

DECIMAL

MULTIPLIER

DELAY TIME

(step size = 8/LLC)

CONTROL BITS

HP6I7 HP6I6 HP6I5 HP6I4 HP6I3 HP6I2 HP6I1 HP6I0

+127 forbidden;

outside available central
counter range

01111111

↓ ↓↓↓↓↓↓↓↓

[phone]
+97 −32 µs

(max. negative value)

01100001

−97 +31.7 µs
(max. positive value)

10011111

−98 forbidden;
outside available central
counter range

10011110

↓ ↓↓↓↓↓↓↓↓

−128 10000000

OFFSET

CONTROL BITS

BRIG7 BRIG6 BRIG5 BRIG4 BRIG3 BRIG2 BRIG1 BRIG0

255 (bright) 1 1 1 1 1 1 1 1

139 (CCIR-level) 1 0 0 0 1 0 1 1

128 1 0 0 0 0 0 0 0

0 (dark) 0 0 0 0 0 0 0 0

1995 Oct 18 44

Philips Semiconductors Product specification

One Chip Front-end 1 (OCF1) SAA7110; SAA7110A

16.4 I2C-bus detail (continued)

DUAD slave receiver (SU 20H to 32H).

16.4.1 S

UBADDRESS 20 (DATA BYTE 007 to 000)

Table 37 Analog control #1

FUNCTION CONTROL BITS

Analog input select 2 (AINS2); data bit D0

Analog input AI22 selected AINS2 = 0
Analog input AI21 selected AINS2 = 1

Analog input select 3 (AINS3); data bit D1

Analog input AI32 selected AINS3 = 0
Analog input AI31 selected AINS3 = 1

Analog input select 4 (AINS4); data bit D2

Analog input AI42 selected AINS4 = 0
Analog input AI41 selected AIND4 = 1

Analog function select (FUSE); data bits D4 and D3

Amplifier plus anti-alias filter bypassed

FUSE1 = 0; FUSE0 = 0
FUSE1 = 0; FUSE0 = 1

Amplifier active FUSE1 = 1; FUSE0 = 0

Amplifier plus anti-alias filter active FUSE1 = 1; FUSE0 = 1

Analog input disable 2 (AIND2); data bit D5

Analog inputs 2 enabled AIND2 = 0

Analog inputs 2 disabled AIND2 = 1

Analog input disable 3 (AIND3); data bit D6

Analog inputs 3 enabled AIND3 = 0
Analog inputs 3 disabled AIND3 = 1

Analog input disable 4 (AIND4); data bit D7

Analog inputs 4 enabled AIND4 = 0
Analog inputs 4 disabled AIND4 = 1

1995 Oct 18 45

Philips Semiconductors Product specification

One Chip Front-end 1 (OCF1) SAA7110; SAA7110A

16.4.2 SUBADDRESS 21 (DATA BYTE 015 to 008)

Table 38 Analog control #2

FUNCTION CONTROL BITS

Reference select channel 2 (REFS2); data bit D0

Automatic clamping active REFS2 = 0

Reference level selected REFS2 = 1

Reference select channel 3 (REFS3); data bit D1

Automatic clamping active REFS3 = 0

Reference level selected REFS3 = 1

Reference select channel 4 (REFS4); data bit D2

Automatic clamping active REFS4 = 0

Reference level selected REFS4 = 1

MUXC select channel 24 (MS24); data bit D3

Analog MUX2 controlled by MX24 MS24 = 0

Analog MUX2 controlled by MUXC MS24 = 1

Analog MUX2 control (MX24); data bits D5 and D4

Adder mode MX241 = 0; MX240 = 0
Channel 2 on; channel 4 off MX241 = 0; MX240 = 1
Channel 2 off; channel 4 on MX241 = 1; MX240 = 0

Both channels off MX241 = 1; MX240 = 1

MUXC select channel 34 (MS34); data bit D6

Analog MUX3 controlled by MX34 MS34 = 0

Analog MUX3 controlled by MUXC MS34 = 1

Vertical blanking control off (VBCO); data bit D7

Vertical blanking on VBCO = 0
Vertical blanking off VBCO = 1

1995 Oct 18 46

Philips Semiconductors Product specification

One Chip Front-end 1 (OCF1) SAA7110; SAA7110A

16.4.3 SUBADDRESS 22 (DATA BYTE 023 to 016)
Table 39 Mixer control #1

16.4.4 S

UBADDRESS 23 (DATA BYTE 031 to 024)

Table 40 Clamping level control 21 CLL21

FUNCTION CONTROL BITS

Analog MUX3 control (MX34); data bits D1 and D0

Adder mode MX341 = 0; MX340 = 0
Channel 3 on; channel 4 off MX341 = 0; MX340 = 1
Channel 3 off; channel 4 on MX341 = 1; MX340 = 0

Both channels off MX341 = 1; MX340 = 1

Clamping function test (CLTS); data bit D2

Normal clamping mode CLTS = 0

CLAAn and CLAUn adjusted via CLL32 value for testing

(do not use)

CLTS = 1

Fast digital multiplexing channel 2/3 active (MUYC); data bit D3

Normal mode on CHR channel MUYC = 0

Multiplex mode on CHR channel for test purposes only

(do not use)

MUYC = 1

Luminance select (YSEL); data bit D4

ADC 2 to CVBS YSEL = 0
ADC 3 to CVBS YSEL = 1

Chrominance select (CSEL); data bit D5

ADC 3 to CHR (MUXC not inverse; MUYC = 1) CSEL = 0

ADC 2 to CHR (MUXC inverse; MUYC = 1) CSEL = 1

Automatic gain control (GACO); data bits D7 and D6

Automatic gain control off GACO1 = 0; GACO0 = 0
Automatic gain control channel 2 GACO1 = 0; GACO0 = 1
Automatic gain control channel 3 GACO1 = 1; GACO0 = 0
Automatic gain control channel 4 GACO1 = 1; GACO0 = 1

DECIMAL CLAMP LEVEL

CONTROL BITS

CLL217 CLL216 CLL215 CLL214 CLL213 CLL212 CLL211 CLL210

1 00000001

↓ ↓↓↓↓↓↓↓↓

64 01000000

↓ ↓↓↓↓↓↓↓↓

128 10000000

↓ ↓↓↓↓↓↓↓↓

254 11111110

1995 Oct 18 47

Philips Semiconductors Product specification

One Chip Front-end 1 (OCF1) SAA7110; SAA7110A

16.4.5 SUBADDRESS 24 (DATA BYTE 039 to 032)
Table 41 Clamping level control 22 CLL22

16.4.6 S

UBADDRESS 25 (DATA BYTE 047 to 040)

Table 42 Clamping level control 31 CLL31

16.4.7 S

UBADDRESS 26 (DATA BYTE 055 to 048)

Table 43 Clamping level control 32 CLL32

DECIMAL CLAMP LEVEL

CONTROL BITS

CLL227 CLL226 CLL225 CLL224 CLL223 CLL222 CLL221 CLL220

1 00000001

↓ ↓↓↓↓↓↓↓↓

64 01000000

↓ ↓↓↓↓↓↓↓↓

128 10000000

↓ ↓↓↓↓↓↓↓↓

254 11111110

DECIMAL CLAMP LEVEL

CONTROL BITS

CLL317 CLL316 CLL315 CLL314 CLL313 CLL312 CLL311 CLL310

1 00000001

↓ ↓↓↓↓↓↓↓↓

64 01000000

↓ ↓↓↓↓↓↓↓↓

128 10000000

↓ ↓↓↓↓↓↓↓↓

254 11111110

DECIMAL CLAMP LEVEL

CONTROL BITS

CLL327 CLL326 CLL325 CLL324 CLL323 CLL322 CLL321 CLL320

1 00000001

↓ ↓↓↓↓↓↓↓↓

64 01000000

↓ ↓↓↓↓↓↓↓↓

128 10000000

↓ ↓↓↓↓↓↓↓↓

254 11111110

1995 Oct 18 48

Philips Semiconductors Product specification

One Chip Front-end 1 (OCF1) SAA7110; SAA7110A

16.4.8 SUBADDRESS 27 (DATA BYTE 063 to 056); GAIN CONTROL ANALOG #1

Table 44 Static gain control channel 2 (GAI2); data bits D5 to D0

Table 45 Gain mode select (GASL); data bit D6

Table 46 Automatic control integration (HOLD); data bit D7

16.4.9 S

UBADDRESS 28 (DATA BYTE 071 to 064)

Table 47 White peak control WIPE

16.4.10 S

UBADDRESS 29 (DATA BYTE 079 to 072)

Table 48 Sync bottom control SBOT

DECIMAL

MULTIPLIER

GAIN

(step size = 0.19 dB)

CONTROL BITS

GAI25 GAI24 GAI23 GAI22 GAI21 GAI20

0 −2.82 dB 000000
↓ ↓ ↓↓↓↓↓↓

15 0dB 001111

↓ ↓ ↓↓↓↓↓↓

31 3dB 011111

↓ ↓ ↓↓↓↓↓↓

47 6dB 101111

↓ ↓ ↓↓↓↓↓↓

63 9dB 111111

FUNCTION CONTROL BIT GASL

Difference value integration 0

Fix value integration 1

FUNCTION CONTROL BIT HOLD

AGC active 0

AGC integration hold (freeze) 1

DECIMAL WHITE PEAK LEVEL

CONTROL BITS

WIPE7 WIPE6 WIPE5 WIPE4 WIPE3 WIPE2 WIPE1 WIPE0

128 10000000

↓ ↓↓↓↓↓↓↓↓

254 11111110

255 (white peak control off) 1 1 1 1 1 1 1 1

DECIMAL SYNC BOTTOM LEVEL

CONTROL BITS

SBOT7 SBOT6 SBOT5 SBOT4 SBOT3 SBOT2 SBOT1 SBOT0

1 00000001

↓ ↓↓↓↓↓↓↓↓

254 11111110

1995 Oct 18 49

Philips Semiconductors Product specification

One Chip Front-end 1 (OCF1) SAA7110; SAA7110A

16.4.11 SUBADDRESS 2A (DATA BYTE 087 to 080); GAIN CONTROL ANALOG #2

Table 49 Static gain control channel 3 (GAI3); data bits D5 to D0

Table 50 Integration factor white peak (IWIP); data bits D7 and D6

16.4.12 S

UBADDRESS 2B (DATA BYTE 095 to 088); GAIN CONTROL ANALOG #3

Table 51 Static gain control channel 4 (GAI4); data bits D5 to D0

Table 52 Integration factor normal gain (IGAI); data bits D7 and D6

DECIMAL MUL TIPLIER

GAIN

(step size = 0.19 dB)

CONTROL BITS

GAI35 GAI34 GAI33 GAI32 GAI31 GAI30

0 −2.82 dB 0 0 0 0 0 0
↓ ↓ ↓↓↓↓↓↓

15 0dB 001111

↓ ↓ ↓↓↓↓↓↓

31 3dB 011111

↓ ↓ ↓↓↓↓↓↓

47 6dB 101111

↓ ↓ ↓↓↓↓↓↓

63 9dB 111111

FUNCTION CONTROL BITS

Fast selection IWIP1 = 0; IWIP0 = 0

| IWIP1 = 0; IWIP0 = 1
| IWIP1 = 1; IWIP0 = 0

Slow selection IWIP1 = 1; IWIP0 = 1

DECIMAL MUL TIPLIER

GAIN

(step size = 0.19 dB)

CONTROL BITS

GAI45 GAI44 GAI43 GAI42 GAI41 GAI40

0 −2.82 dB 0 0 0 0 0 0
↓ ↓ ↓↓↓↓↓↓

15 0dB 001111

↓ ↓ ↓↓↓↓↓↓

31 3dB 011111

↓ ↓ ↓↓↓↓↓↓

47 6dB 101111

↓ ↓ ↓↓↓↓↓↓

63 9dB 111111

FUNCTION CONTROL BITS

Slow selection IGAI1 = 0; IGAI0 = 0

| IGAI1 = 0; IGAI0 = 1
| IGAI1 = 1; IGAI0 = 0

Fast selection IGAI1 = 1; IGAI0 = 1

1995 Oct 18 50

Philips Semiconductors Product specification

One Chip Front-end 1 (OCF1) SAA7110; SAA7110A

16.4.13 SUBADDRESS 2C (DATA BYTE 103 to 096)
Table 53 Mixer control #2

16.4.14 S

UBADDRESS 2D (DATA BYTE 111 to 104)

Table 54 Integration value gain (IVAL)

16.4.15 S

UBADDRESS 2E (DATA BYTE 119 to 112)

Table 55 Blanking pulse VBLK-set (VBPS)

Notes

1. Maximum for 60 Hz.

2. Maximum for 50 Hz.

FUNCTION CONTROL BITS

Two’s complement channel 2 (TWO2); data bit D0

Unipolar TWO2 = 0

Two’s complement (normal mode) TWO2 = 1

Two’s complement channel 3 (TWO3); data bit D1

Unipolar TWO3 = 0

Two’s complement (normal mode) TWO3 = 1

Clamping level select channel 2 (CLS2); data bit D4

CLL21 active CLS2 = 0
CLL22 active CLS2 = 1

Clamping level select channel 3 (CLS3); data bit D5

CLL31 active CLS3 = 0
CLL32 active CLS3 = 1

Clamping level select channel 4 (CLS4); data bit D7

CLL2n active CLS4 = 0
CLL3n active CLS4 = 1

DECIMAL INTEGRATION VALUE GAIN

CONTROL BITS

IVAL7 IVAL6 IVAL5 IVAL4 IVAL3 IVAL2 IVAL1 IVAL0

1 00000001

↓ ↓↓↓↓↓↓↓↓

255 11111111

DECIMAL

MULTIPLIER

SET LINE NUMBER

(step size = 2)

CONTROL BITS

VBPS7 VBPS6 VBPS5 VBPS4 VBPS3 VBPS2 VBPS1 VBPS0

0 0 after rising edge of VS 0 0000000

↓ ↓ ↓↓↓↓↓↓↓↓

131

(1)

262 after rising edge of VS 1 0000011

↓ ↓ ↓↓↓↓↓↓↓↓

156

(2)

312 after rising edge of VS 1 0011100

1995 Oct 18 51

Philips Semiconductors Product specification

One Chip Front-end 1 (OCF1) SAA7110; SAA7110A

16.4.16 SUBADDRESS 2F (DATA BYTE 127 to 120)

Table 56 Blanking pulse VBLK-reset (VBPR)

Notes

1. Maximum for 60 Hz.

2. Maximum for 50 Hz.

16.4.17 S

UBADDRESS 30 (DATA BYTE 135 to 128)

Table 57 ADCs gain control

DECIMAL

MULTIPLIER

RESET LINE NUMBER

(step size = 2)

CONTROL BITS

VBPR7 VBPR6 VBPR5 VBPR4 VBPR3 VBPR2 VBPR1 VBPR0

0 0 after rising edge of VS 0 0 0 0 0 0 0 0

↓ ↓ ↓↓↓↓↓↓↓↓

131

(1)

262 after rising edge of VS 1 0 0 0 0 0 1 1

↓ ↓ ↓↓↓↓↓↓↓↓

156

(2)

312 after rising edge of VS 1 0 0 1 1 1 0 0

FUNCTION CONTROL BITS

Fix gain ADC channel 2 (GAD2); data bits D1 and D0

0 dB GAD21 = 0; GAD20 = 0

0.05 dB GAD21 = 0; GAD20 = 1

0.10 dB GAD21 = 1; GAD20 = 0

0.15 dB GAD21 = 1; GAD20 = 1

Gain ADC select channel 2 (GAS2); data bit D2

Fix gain via I

2

C-bus GAD2 GAS2 = 0

Automatic gain via loop GAS2 = 1

Fix gain ADC channel 3 (GAD3); data bits D4 and D3

0 dB GAD31 = 0; GAD30 = 0

0.05 dB GAD31 = 0; GAD30 = 1

0.10 dB GAD31 = 1; GAD30 = 0

0.15 dB GAD31 = 1; GAD30 = 1

Gain ADC select channel 3 (GAS3); data bit D5

Fix gain via I

2

C-bus GAD3 GAS3 = 0

Automatic gain via loop GAS3 = 1

White peak mode select (WISL); data bit D6

Difference value integration WISL = 0

Fix value integration WISL = 1

1995 Oct 18 52

Philips Semiconductors Product specification

One Chip Front-end 1 (OCF1) SAA7110; SAA7110A

16.4.18 SUBADDRESS 31 (DATA BYTE 143 to 136)
Table 58 Mixer control #3

16.4.19 S

UBADDRESS 32 (DATA BYTE 151 to 144)

Table 59 Integration value white peak (WVAL)

FUNCTION CONTROL BITS

Pulses I/O control (PULIO); data bit D0

HCL and HSY to input pins PULIO = 0

HCL and HSY to output pins PULIO = 1

Pin function switch (VBLKA); data bit D1

GPSW active (normal) VBLKA = 0

VBLK test output active VBLKA = 1

DMSD-SQP bypassed (SQPB); data bit D3

DMSD data to YUV output SQPB = 0

A/D data to YUV output

for test purposes only (do not use)

SQPB = 1

White peak slow up integration enable (WRSE); data bit D4

Hold in white peak mode WRSE = 0

Slow up integration with 1 value in H or

V (dependent on WIRS)

WRSE = 1

White peak slow up integration select (WIRS); data bit D5

Slow up integration with 1 value per line WRIS = 0

Slow up integration with 1 value per field WRIS = 1

Analog test select (AOSL); data bits D7 and D6

AOUT connected to ground AOSL1 = 0; AOSL0 = 0
AOUT connected to input AD2 AOSL1 = 0; AOSL0 = 0
AOUT connected to input AD3 AOSL1 = 1; AOSL0 = 1
AOUT connected to channel 4 AOSL1 = 1; AOSL0 = 1

DECIMAL INTEGRATION VALUE

WHITE PEAK

CONTROL BITS

WVAL7 WVAL6 WVAL5 WVAL4 WVAL3 WVAL2 WVAL1 WVAL0

1 00000001

↓ ↓↓↓↓↓↓↓↓

127 (max.) 01111111

1995 Oct 18 53

Philips Semiconductors Product specification

One Chip Front-end 1 (OCF1) SAA7110; SAA7110A

16.4.20 SUBADDRESS 33 (DATA BYTE 159 to 152)
Table 60 Mixer control #4

16.4.21 S

UBADDRESS 34 (DATA BYTE 167 to 160)

Table 61 Gain update level (GUDL; data bits D5 to D0

Table 62 MUXC phase delay (MUD2); data bits D7 and D6

FUNCTION CONTROL BITS

Clock select AD2 (CAD2); data bit D2

LLC for test purposes only (do not use) CAD2 = 0

LLC/2 CAD2 = 1

Clock select AD3 (CAD3); data bit D3

LLC for test purposes only (do not use) CAD3 = 0

LLC/2 CAD3 = 1

Change sign bit UV data (CHSB); data bit D5

UV output unipolar CHSB = 0

UV output two’s complement CHSB = 1

Output format select (OFTS); data bit D7

4 : 1 : 1 format OFTS = 0
4 : 2 : 2 format OFTS = 1

DECIMAL

HYSTERESIS

FOR 8-BIT GAIN

UPDATE

NEW GAIN - OLD GAIN

CONTROL BITS

GUDL5 GUDL4 GUDL3 GUDL2 GUDL1 GUDL0

0 0LSB >0 000000

↓ ↓ ↓ ↓↓↓↓↓↓

7 ±7LSB >7 000111

↓ ↓ ↓ ↓↓↓↓↓↓

>31 off always 1 XXXXX

FUNCTION CONTROL BIT MUD

No phase delay MUD2 = 0; MUD1 = 0
1 LLC cycle phase delay for CLAA path MUD2 = 0; MUD1 = 1
2 LLC cycle phase delay for CLAA path MUD2 = 1; MUD1 = 0
3 LLC cycle phase delay for CLAA path MUD2 = 1; MUD1 = 1

1995 Oct 18 54

Philips Semiconductors Product specification

One Chip Front-end 1 (OCF1) SAA7110; SAA7110A

17 SOURCE SELECTION MANAGEMENT

Table 63 Source selection management examples

INPUT

EXAMPLE 1 EXAMPLE 2 EXAMPLE 3 EXAMPLE 4

SIGNAL MODE SIGNAL MODE SIGNAL MODE SIGNAL MODE

AIN21 CVBS1 0 CVBS1 0 Y1 6 Y1 6
AIN22 CVBS2 1 C2 7 C2 7 CVBS2 1
AIN31 CVBS3 2 Y2 7 Y2 7 CVBS3 2
AIN32 CVBS4 3 C3 8 C3 8 CVBS4 3
AIN41 CVBS5 4 Y3 8 Y3 8 CVBS5 4
AIN42 CVBS6 5 CVBS6 5 C1 6 C1 6

l pagewidth

GAIN4 AAF4

GAIN3 AAF3

GAIN2 AAF2

ADC3

ADC2

AINS4

CSEL

CHRS v BYPS

CLL32
CLL31

CLL22
CLL21

CHROMA

LUMA

YSEL

AINS3

CLS4

AIND4

AIND3

AIND2

AINS2

CLAMP

CON3

CLAMP

CON2

GAIN

CON

GAI4

clamp up/down

clamp up/down

GAI3

GAI2

REF128

REFS2

REFS3

REFS4

AI22

AI21

AI32

AI31

AI42

AI41

CLAMP

CLAMP

CLAMP

GACO

MX340

MX341

MX240

MX241

CLS3

CLS2

MGC839

Fig.20 Source selection overview.

All switch control bits set to LOW.

Fig.21 Mode 0; CVBS1.

handbook, full pagewidth

AI41
AI42
AI31
AI32
AI21

AI22

MGC840

CHROMA
LUMA

AD3

AD2

1995 Oct 18 55

Philips Semiconductors Product specification

One Chip Front-end 1 (OCF1) SAA7110; SAA7110A

Fig.22 Mode 1; CVBS2.

handbook, full pagewidth

AI41
AI42
AI31
AI32
AI21

AI22

MGC841

CHROMA
LUMA

AD3

AD2

Fig.23 Mode 2; CVBS3.

handbook, full pagewidth

AI41
AI42
AI31
AI32
AI21

AI22

MGC842

CHROMA
LUMA

AD3

AD2

Fig.24 Mode 3; CVBS4.

handbook, full pagewidth

AI41
AI42
AI31
AI32
AI21

AI22

MGC843

CHROMA
LUMA

AD3

AD2

Fig.25 Mode 4; CVBS5.

handbook, full pagewidth

AI41
AI42
AI31
AI32
AI21
AI22

MGC844

CHROMA
LUMA

AD3

AD2

1995 Oct 18 56

Philips Semiconductors Product specification

One Chip Front-end 1 (OCF1) SAA7110; SAA7110A

Fig.26 Mode 5; CVBS6.

handbook, full pagewidth

AI41
AI42
AI31
AI32
AI21
AI22

MGC845

CHROMA
LUMA

AD3

AD2

Fig.27 Mode 6; Y1 + C1.

handbook, full pagewidth

AI41
AI42
AI31
AI32
AI21
AI22

MGC846

CHROMA
LUMA

AD3

AD2

Fig.28 Mode 7; Y2 + C2.

handbook, full pagewidth

AI41
AI42
AI31
AI32
AI21
AI22

MGC847

CHROMA
LUMA

AD3

AD2

Fig.29 Mode 8; Y3 + C3.

handbook, full pagewidth

AI41
AI42
AI31
AI32
AI21
AI22

MGC848

CHROMA
LUMA

AD3

AD2

1995 Oct 18 57

Philips Semiconductors Product specification

One Chip Front-end 1 (OCF1) SAA7110; SAA7110A

Table 64 I2C-bus control

CONTROL

INPUT

(1)

MODE

01234567 89

Subaddress 20

AIND4 1 1 1 1 0 0 0 1 0 −
AIND3 1 1 0 0 1 1 1 0 0 −

AIND2 0 0 1 1 1 1 0 0 1 −
FUSE1 1 −−−− − −−−−
FUSE0 1 −−−− − −−−−

AINS4 X X X X 1 0 0 X 1 −
AINS3 X X 1 0 X X 0 1 0 −
AINS2 1 0 X X X X 1 0 X −

Subaddress 21

VBCO 0 −−−− − − −−−

MS34 0 −−−− − − −−−
MX241 0 0 X X X X 0 0 1 −
MX240 0 0 X X X X 0 0 1 −

MS24 0 −−−− − − −−−
REFS4 1 1 1 1 0 0 0 1 0 −
REFS3 1 1 0 0 1 1 1 0 0 −
REFS2 0 0 1 1 1 1 0 0 1 −

Subaddress 22

GACO1 0 0 1 1 1 1 0 1 1 −
GACO0 1 1 0 0 1 1 1 0 1 −

CSEL X X X X X X 0 1 0 −

YSEL 0 0 1 1 1 1 0 1 0 −

MUYC 0 −−−−−−− −0

CLTS 0 −−−− − − −−0
MX341 X X 0 0 1 1 1 0 0 −
MX340 X X 1 1 0 0 0 1 1 −

Subaddress 2C

CLS4 X X X X 1 1 1 X 0 −

GABL 0 −−−− − − −−−

CLS3 X X 0 0 0 0 1 0 1 −
CLS2 0 0 X X X X 0 1 X −
4LSB 0011 −−−− − −−−0011

BYPS 0 0 0 0 0 0 1 1 1 −

Subaddresses SU

20H D9H D8H BAH B8H 7CH 78H 59H 9AH 3CH −
21H 16H 16H 05H 05H 03H 03H 12H 14H 21H −

1995 Oct 18 58

Philips Semiconductors Product specification

One Chip Front-end 1 (OCF1) SAA7110; SAA7110A

Notes

1. CLL21 = 65d, CLL22 = 128d, CLL31 = 65d, CLL32 = 128d, GAI4 = 15d, GAI3 = 15dGAI2 = 15d; X set 0.

2. Optional: values for AD gain (+2 LSB’s gain resolution) active [not active: for all modes 40H].

18 ANTI-ALIAS FILTER GRAPHS

22H 40H 40H 91H 91H D2H D2H 42H B1H C1H −

2CH 03H 03H 03H 03H 83H 83H A3H 13H 23H −

06H 0XXXXXXX 1XXXXXXX −

30H

(2)

44H 44H 60H 60H 60H 60H 44H 60H 44H −

CONTROL

INPUT

(1)

MODE

01234567 89

Fig.30 Anti-alias filter graph for SAA7110A.

(1) 50 Hz.
(2) 60 Hz.

handbook, full pagewidth

+3

−39

0 2 4 6 8 10 12 14 16

f (MHz)

MGC849

−3

−9

−15

−21

−27

−33

(1)

(2)

A

(dB)

1995 Oct 18 59

Philips Semiconductors Product specification

One Chip Front-end 1 (OCF1) SAA7110; SAA7110A

Fig.31 Anti-alias filter graph for SAA7110.

(1) 50 HZ, AFCCS = 0, LLC = 29.50 MHz.
(2) 50 HZ, AFCCS = 1, LLC = 29.50 MHz.
(3) 60 HZ, AFCCS = 0, LLC = 24.54 MHz.
(3) 60 HZ, AFCCS = 1, LLC = 24.54 MHz.

handbook, full pagewidth

+3

−39

0 5 10 15 20 25 30

f (MHz)

MGC850

−3

−9

−15

−21

−27

−33

(4)

(1)

(3)

(2)

A

(dB)

19 CORING FUNCTION

19.1 Coring function adjustment by subaddress 06H
to affect band filter output adjustment

The thresholds are related to the 13-bit word width in the
luminance processing part and influence the 1 to 3 LSB
(Yo to Y2) with respect to the 8-bit luminance output.

Table 65 CORI control settings a, b and c of Fig.32

CONTROL BITS

CORI1 CORI0

a0 1
b1 0
c1 1

Fig.32 Coring function.

handbook, halfpage

−64 −32 0 +64

+64

+32

−32

−64

0

MGC851

+32

a

b

c

c

b

a

1995 Oct 18 60

Philips Semiconductors Product specification

One Chip Front-end 1 (OCF1) SAA7110; SAA7110A

20 LUMINANCE FILTER GRAPHS

Fig.33 Luminance control: SU06H, 50 Hz/CVBS mode, prefilter on and coring off (40 to 63H).

handbook, full pagewidth

8

f

Y (MHz)

18

−30
0246

MGC852

6

VY

(dB)

−18

−6

63H
73H
53H
43H
40H

43H
53H
73H
63H

40H

Fig.34 Luminance control: SU06H, 50 Hz/CVBS mode, prefilter on and coring off (40 to 43H).

handbook, full pagewidth

8

f

Y (MHz)

18

−30
0246

MGC853

6

VY

(dB)

−18

−6

43H
42H
41H
40H

43H
42H
41H
40H

1995 Oct 18 61

Philips Semiconductors Product specification

One Chip Front-end 1 (OCF1) SAA7110; SAA7110A

Fig.35 Luminance control: SU06H, 50 Hz/CVBS mode, prefilter off and coring off.

handbook, full pagewidth

8

f

Y (MHz)

18

−30
0246

MGC854

6

VY

(dB)

−18

−6

23H
33H
13H
03H
00H

03H
13H
33H
23H

00H

Fig.36 Luminance control: SU06H, 50 Hz/Y + C mode, prefilter off and coring off.

handbook, full pagewidth

8

18

−30
0246

MGC855

6

VY

(dB)

−18

−6

83H
82H
81H
80H

f

Y (MHz)

1995 Oct 18 62

Philips Semiconductors Product specification

One Chip Front-end 1 (OCF1) SAA7110; SAA7110A

Fig.37 Luminance control: SU06H, 50 Hz/Y + C mode, prefilter on and coring off.

handbook, full pagewidth

8

18

−30
0246

MGC856

6

VY

(dB)

−18

−6

C3H
C2H
C1H
C0H

f

Y (MHz)

Fig.38 Luminance control: SU06H, 60 Hz/CVBS mode, prefilter on and coring off.

handbook, full pagewidth

f

Y (MHz)

18

−30
0246

MGC857

6

VY

(dB)

−18

−6

63H
73H
53H
43H
40H

43H
53H
73H
63H
40H

1995 Oct 18 63

Philips Semiconductors Product specification

One Chip Front-end 1 (OCF1) SAA7110; SAA7110A

Fig.39 Luminance control: SU06H, 60 Hz/CVBS mode, prefilter on and coring off.

handbook, full pagewidth

f

Y (MHz)

18

−30
0246

MGC858

6

VY

(dB)

−18

−6

43H
42H
41H
40H

43H
42H
41H
40H

Fig.40 Luminance control: SU06H, 60 Hz/CVBS mode, prefilter off and coring off.

handbook, full pagewidth

f

Y (MHz)

18

−30
0246

MGC859

6

VY

(dB)

−18

−6

23H
33H
13H
03H
00H

03H
13H
33H
23H
00H

1995 Oct 18 64

Philips Semiconductors Product specification

One Chip Front-end 1 (OCF1) SAA7110; SAA7110A

Fig.41 Luminance control: SU06H, 60 Hz/Y + C mode, prefilter off and coring off.

handbook, full pagewidth

8

18

−30
0246

MGC860

6

VY

(dB)

−18

−6

83H
82H
81H
80H

f

Y (MHz)

Fig.42 Luminance control: SU06H, 60 Hz/Y + C mode, prefilter on and coring off.

handbook, full pagewidth

8

fY (MHz)

18

−30
0246

MGC861

6

VY

(dB)

−18

−6

C3H
C2H
C1H
C0H

1995 Oct 18 65

Philips Semiconductors Product specification

One Chip Front-end 1 (OCF1) SAA7110; SAA7110A

21 I2C-BUS START SET-UP

The values shown in Table 66 are optimized for the EBU colour bar (100% white and 75% chrominance amplitude)
signal. The decoder output signal level fulfils the CCIR 601 specification. The input of 100% colour bar level is possible,
but the signal (white) peak function reduces the digital luminance output. With a different set-up it is possible to proceed
100% colour bar signal without luminance colour bar reduction. The method is to modify the AD input range for this input
level by reducing the gain reference value (SBOT > 06h) and adjusting the digital Y output level with contrast and
brightness control.

Table 66 I

2

C-bus start set-up

SU NAME FUNCTION

BINARY HEX

76543210start

00 IDEL7 to IDEL0 increment delay 01001100 4C
01 HSYB7 to HSYB0 horizontal sync (HSY) begin 50 Hz 00111100 3C
02 HSYS7 to HSYS0 horizontal sync (HSY) stop 50 Hz 00001101 0D
03 HCLB7 to HCLB0 horizontal clamp (HCL) begin 50 Hz 11101111 EF
04 HCLS7 to HCLS0 horizontal clamp (HCL) stop 50 Hz 10111101 BD
05 HPHI7 to HPHI0 horizontal sync after PHI1 50 Hz 11110000 F0

06

BYPS, PREF,
BPSS1 to BPSS0,
CORI1 to CORI0,
APER1 to APER0

luminance control 00000000 00

07 HUEC7 to HUEC0 hue control 00000000 00
08 CKTQ4 to CKTQ0, XXX colour killer threshold PAL 11111XXX F8
09 CKTS4 to CKTS0, XXX colour killer threshold SECAM 11111XXX F8
0A PLSE7 to PLSE0 PAL switch sensitivity 01100000 60
0B SESE7 to SESE0 SECAM switch sensitivity 01100000 5B

0C

COLO, LFIS1 to LFIS0,
XXXXX

gain control chrominance

000XXXXX 00

0D

VTRC, XXX, RTSE, HRMV,
SSTB, SECS

standard/mode control 0 X X X 0110 06

0E

HPLL, XX, OEHV, OEYC,
CHRS, X, GPSW

I/O and clock control 0 X X 1 1 0 X 0 18

0F

AUFD, FSEL, SXCR, SCEN,
X, YDEL2 to YDEL0

control #1 1001X000 90

10

XXXXX, HRFS,
VNOI1 to VNOI0

control #2

XXXXX000 00

11

CHCV7 to CHCV0 PAL

chrominance gain reference

01011001 59

CHCV7 to CHCV0 NTSC 00101100 2C
12 SATN7 to SATN0 chrominance saturation 01000000 40
13 CONT7 to CONT0 luminance contrast 01000110 46
14 HS6B7 to HS6B70 horizontal sync (HSY) begin 60 Hz 01000010 42
15 HS6S7 to HS6S0 horizontal sync (HSY) stop 60 Hz 00011010 1A
16 HC6B7 to HC6B0 horizontal clamp (HCL) begin 60 Hz 11111111 FF
17 HC6S7 to HC6S0 horizontal clamp (HCL) stop 60 Hz 11011010 DA
18 HP6I7 to HP6I0 horizontal sync after PHI1 60 Hz 11110000 F0
19 BRIGI7 to BRIG0 luminance brightness 10001011 8B

1995 Oct 18 66

Philips Semiconductors Product specification

One Chip Front-end 1 (OCF1) SAA7110; SAA7110A

21.1 Remarks to Table 66
Values recommended for a CVBS (PAL or NTSC) signal, input AI21 via A/D channel 2 (MODE 0), and 4 : 2 : 2 CCIR

output signal level; all X values must be set LOW, X* value is don’t care; HPHI and HP6I are application dependent.

1A-1F reserved

20

AIND4, AIND3, AIND2,

FUSE1 to FUSE0, AINS4,

AINS3, AINS2

analog control #1 11011001 D9

21

VBCO, MS34,

MX241 to MX240, MS24,

REFS4, REFS3, REFS2

analog control #2 00010110 16

22

GACO1 to GACO0, CSEL,

YSEL, MUYC, CLTS,

MX341 to MX340

mixer control #1 01000000 40

23 CLL217 to CLL210 clamping level control channel 21 01000001 41
24 CLL227 to CLL220 clamping level control channel 22 10000000 80
25 CLL317 to CLL310 clamping level control channel 31 01000001 41
26 CLL327 to CLL320 clamping level control channel 32 10000000 80

27

HOLD, GASL,

GAI25 to GAI20

gain control analog #1

01001111 4F

28 WIPE7 to WIPE0 white peak control 11111110 FE
29 SBOT7 to SBOT0 sync bottom control 00000001 01

2A

IWIP1 to IWIP0,

GAI35 to GAI30

gain control analog #2

11001111 CF

2B

IGAI1 to IGAI0,

GAI45 to GAI40

gain control analog #3

00001111 0F

2C

CLS4, X, CLS3, CLS2,

TWO3, TWO2

mixer control #2 0 X 0 0 X X 1 1 03

2D IVAL7 to IVAL0 integration value gain 00000001 01
2E

VBPS7 to VBPS0; 50 Hz

vertical blanking pulse SET

10011010 9A

VBPS7 to VBPS0; 60 Hz 10000001 81
2F

VBPR7 to VBPR0; 50 Hz

vertical blanking pulse RESET

00000011

03

VBPR7 to VBPR0; 60 Hz 00000011

30

X, WISL, GAS3,

GAD31 to GAD30, GAS2,

GAD21 to GAD20

ADCs gain control X 1000000 44

31

AOSL1 to AOSL0, WIRS,

WRSE, SQPB, X, VBLKA,

PULIO

mixer control #3 01110X*01 71

32 WVAL7 to WVAL0 integration value white peak 00000010 02
33

OFTS, X, CHSB, X, CAD3,

CAD2, XX

mixer control #4 1 X 0 X 1 1 X X 8C

34

MUD2, MUD1,

GUDL5 to GUDL0

gain update level

00000011 03

SU NAME FUNCTION

BINARY HEX

76543210start

1995 Oct 18 67

Philips Semiconductors Product specification

One Chip Front-end 1 (OCF1) SAA7110; SAA7110A

22 APPLICATION INFORMATION

handbook, full pagewidth

Q1(26.8 MHz)

Y7 to Y0

SCL

V

DD

AI32

FEIN (MUXC)

SDA

CGCE

AOUT

RTCO

VS

LLC

ODD (VL)

PLIN (HL)

GPSW (VBLK)

LFCO

RESET

CREF

LLC2

HREF

V

SS

V

SSA

V

DDA

V

SSA

V

DD

V

SS

V

DD1

V

DD2

V

DD3

V

DD4

V

DD5

V

SS

HS

Y7
Y6
Y5
Y4
Y3
Y2
Y1
Y0

V

SS

SAA7110
SAA7110A

R4

75 Ω

C24

10 nF

C7

100 nF

100 nF

100 nF

100 nF

100 nF

100 nF

C8

C9

C11

C12

C13

C14

C15

R7

1 kΩ

C17

L1

10
µH

C16

1 nF

10 pF

10 pF

C18

R8

1 kΩ

27

3444

52

68

16 12

20

24

45
46
47
48
49
50
53
54

42

41

3

23

29

40

64
39

30
31
32
26

HSY

HCL

36
37

38

9

8

7

421

28

35

43

51

67

14 10

18

25

22

15

6
5

63

33

66

65

i.c.

i.c.

MGC862

V

SSA

i.c.

100 nF

100 nF

100 nF

C10

AI31

R3

75 Ω

C3

10 nF

17

V

SSA

AI42

R6

75 Ω

C6

10 nF

11

V

SSA

AI41

R5

75 Ω

C5

10 nF

13

V

SSA

AI22

R2

75 Ω

C2

10 nF

19

V

SSA

V

SS

AI21

R1

75 Ω

C1

10 nF

21

V

SSA

UV7 to UV0

UV7
UV6
UV5
UV4
UV3
UV2
UV1
UV0

55
56
57
58
59
60
61
62

XTALO

XTALI

SA AP SP

Fig.43 Application diagram.

Unused analog inputs should not be connected.

1995 Oct 18 68

Philips Semiconductors Product specification

One Chip Front-end 1 (OCF1) SAA7110; SAA7110A

This text is here in white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here in

_white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here inThis text is here in

white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader. white to force landscape pages to be ...

handbook, full pagewidth

1825

63

33

65

66

14 2210 67

51 43 35 28 4 2 1789

40
30
29
31
32
26

36
37

RESET
LFCO

CREF

LLC2
LLC

n.c.

i.c. i.c. i.c.

HCL
HSY

RESET
CREF

LFCO2 LFCO RESN CREF LLCA

ODD (VL)

V

SSA0

V

SSA

V

SS

V

SSA2VSSA3VSSA4

V

DDA

V

DDD

V

SS(S)

V

SS

V

SS

VSSVSSVSSV

SS

V

SSA

P

ORD

V

SSD

VSSSA AP SP

FEIN (MUXC)

1 kΩ

1 kΩ

R7

CGCE

XTALO

L1

C16 C17 C18

XTALI

(26.8 MHZ)

Q1

1 nF

10 µH

10 pF 10 pF

198,17 5 11 12 15 7

34

6, 9

13, 18

10 2014

LLC2B

C20

0.1
µF

LLC2A
LLCB

MS

1
2
16

CE

R10

C21 C22
100 nF 100 nF

SAA7197

LFCOSEL

MGC863

SAA7110

SAA7110A

Fig.44 Application diagram with external Clock Generator Circuit (CGC).

The OCF1 supports for special applications the use of an external CGC (SAA7197). For normal operation the built-in CGC fulfils all requirements.

1995 Oct 18 69

Philips Semiconductors Product specification

One Chip Front-end 1 (OCF1) SAA7110; SAA7110A

23 START-UP, SOURCE SELECT AND STANDARD DETECTION FLOW EXAMPLE

Fig.45 Software flow example.

handbook, full pagewidth

power on

mode 0 set-up

initializationstart source select

REFS active

mode select

REFS off

clamp active

PAL set-up

NTSC set-upB&W50 set-up

B&W60 set-up

stop

SECAM set-up

standard automatic

?status byte?

precharge clamping capacitor

mode 0 to 7

B&W50? yes = XX0XXX00
B&W60? yes = XX1XXX00

NTSC? yes = XX1XXXXX

SECAM? yes = XX0XXX01

B&W50?

B&W60?

NTSC?

no

no

no

SECAM?

no

yes

yes

yes

yes

without standard routine

MGC864

1995 Oct 18 70

Philips Semiconductors Product specification

One Chip Front-end 1 (OCF1) SAA7110; SAA7110A

23.1 CODE 0 STARTUP and STANDARD Procedure

SLAVE 9C !OCF1 NTSC-setup
SUB 00 WRITE
4C 3C 0D EF BD F0 00 00
F8 F8 60 60 00 06 18 90
00 2C 40 46 42 1A FF DA
F0 8B 00 00 00 00 00 00
D9 17 40 41 80 41 80 4F
FE 01 CF 0F 03 01 81 03
44 75 01 8C 03
SUB 21 WRITE 16 !REFS OFF CLAMP AKTIV
READ 1 !Status?
#STANDARD
IF 1 @XX0XXX00 !NO COLOR
THEN GOTO BW_50Hz
ENDIF
IF 1 @XX1XXX00 !NO COLOR
THEN GOTO BW_60Hz
ENDIF
SUB 06 WRITE 00
ENDIF
IF 1 @XX1XXXXX !60Hz
THEN GOTO NTSC
ENDIF
IF 1 @XX0XXXXX !50Hz
THEN GOTO PAL
ENDIF
#BW_50Hz
PRINT "BLACK&WHITE"
SUB 06 WRITE 80
SUB 2E WRITE 9A !VBPS
GOTO STOP
#BW_60Hz
PRINT "BLACK&WHITE"
SUB 06 WRITE 80
SUB 2E WRITE 81 !VBPS
GOTO STOP
#NTSC
SUB 0D WRITE 06 !SECS -> 0
SUB 11 WRITE 2C !CHCV
SUB 2E WRITE 81 !VBPS
PRINT "NTSC"
GOTO STOP
#PAL
SUB 0D WRITE 06 !SECS -> 0
SUB 11 WRITE 59 !CHCV
SUB 2E WRITE 9A !VBPS
PAUSE %150 !150ms
IF 1 @XX0XXX01
THEN GOTO SECAM
ELSE PRINT "PAL"
GOTO STOP

#SECAM
SUB 0D WRITE 07 !SECS -> 1
PRINT "SECAM"
GOTO STOP
#STOP

23.2 MODE 0 Source Select Procedure

SLAVE 9C !OCF1
SUB 06 WRITE 00 !CVBS MODE 0
SUB 20 WRITE D9 !AI21 ACTIVE
SUB 21 WRITE 17 !REFS ON
SUB 22 WRITE 40 !AD2->LUMA and CHROMA
SUB 2C WRITE 03 !CLAMP SELECT
SUB 30 WRITE 44 !Gain AD2 active
SUB 31 WRITE 75 !AOSL -> 01b
SUB 21 WRITE 16 !REFS OFF CLAMP AKTIV

23.3 MODE 1 Source Select Procedure

SLAVE 9C !OCF1
SUB 06 WRITE 00 !CVBS MODE 1
SUB 20 WRITE D8 !AI22 ACTIVE
SUB 21 WRITE 17 !REFS ON
SUB 22 WRITE 40 !AD2->LUMA and CHROMA
SUB 2C WRITE 03 !CLAMP SELECT
SUB 30 WRITE 44 !Gain AD2 active
SUB 31 WRITE 75 !AOSL -> 01b
SUB 21 WRITE 16 !REFS OFF CLAMP AKTIV

23.4 MODE 2 Source Select Procedure

SLAVE 9C !OCF1
SUB 06 WRITE 00 !CVBS MODE 2
SUB 20 WRITE BA !AI31 ACTIVE
SUB 21 WRITE 07 !REFS ON
SUB 22 WRITE 91 !AD3->LUMA and CHROMA
SUB 2C WRITE 03 !CLAMP SELECT
SUB 30 WRITE 60 !Gain AD3 active
SUB 31 WRITE B5 !AOSL -> 10b
SUB 21 WRITE 05 !REFS OFF CLAMP AKTIV

23.5 MODE 3 Source Select Procedure

SLAVE 9C !OCF1
SUB 06 WRITE 00 !CVBS MODE 3
SUB 20 WRITE B8 !AI32 ACTIVE
SUB 21 WRITE 07 !REFS ON
SUB 22 WRITE 91 !AD3->LUMA and CHROMA
SUB 2C WRITE 03 !CLAMP SELECT
SUB 30 WRITE 60 !Gain AD3 active
SUB 31 WRITE B5 !AOSL -> 10b
SUB 21 WRITE 05 !REFS OFF CLAMP AKTIV

1995 Oct 18 71

Philips Semiconductors Product specification

One Chip Front-end 1 (OCF1) SAA7110; SAA7110A

23.6 MODE 4 Source Select Procedure

SLAVE 9C !OCF1
SUB 06 WRITE 00 !CVBS MODE 4
SUB 20 WRITE 7C !AI41 ACTIVE
SUB 21 WRITE 07 !REFS ON
SUB 22 WRITE D2 !AD3->LUMA and CHROMA
SUB 2C WRITE 83 !CLAMP SELECT
SUB 30 WRITE 60 !Gain AD3 active
SUB 31 WRITE B5 !AOSL -> 10b
SUB 21 WRITE 03 !REFS OFF CLAMP AKTIV

23.7 MODE 5 Source Select Procedure

SLAVE 9C !OCF1
SUB 06 WRITE 00 !CVBS MODE 5
SUB 20 WRITE 78 !AI41 ACTIVE
SUB 21 WRITE 07 !REFS ON
SUB 22 WRITE D2 !AD3->LUMA and CHROMA
SUB 2C WRITE 83 !CLAMP SELECT
SUB 30 WRITE 60 !Gain AD3 active
SUB 31 WRITE B5 !AOSL -> 10b
SUB 21 WRITE 03 !REFS OFF CLAMP AKTIV

23.8 MODE 6 Source Select Procedure

SLAVE 9C !OCF1
SUB 06 WRITE 80 !Y+C MODE 6
SUB 20 WRITE 59 !AI21=Y, AI42=C
SUB 21 WRITE 17 !REFS ON
SUB 22 WRITE 42 !AD2->LUMA, AD3->CHR
SUB 2C WRITE A3 !CLAMP SELECT
SUB 30 WRITE 44 !Gain AD2 active
SUB 31 WRITE 75 !AOSL -> 01
SUB 21 WRITE 12 !REFS OFF CLAMP AKTIV

23.9 MODE 7 Source Select Procedure

SLAVE 9C !OCF1
SUB 06 WRITE 80 !Y+C MODE 7
SUB 20 WRITE 9A !AI31=Y, AI22=C
SUB 21 WRITE 17 !REFS ON
SUB 22 WRITE B1 !AD3->LUMA, AD2->CHR
SUB 2C WRITE 13 !CLAMP SELECT
SUB 30 WRITE 60 !Gain AD3 active
SUB 31 WRITE B5 !AOSL -> 10b
SUB 21 WRITE 14 !REFS OFF CLAMP AKTIV

23.10 MODE 8 Source Select Procedure

SLAVE 9C !OCF1
SUB 06 WRITE 80 !Y+C MODE 8
SUB 20 WRITE 3C !AI41=Y, AI32=C
SUB 21 WRITE 27 !REFS ON
SUB 22 WRITE C1 !AD2->LUMA, AD3->CHR

SUB 2C WRITE 23 !CLAMP SELECT
SUB 30 WRITE 44 !Gain AD2 active
SUB 31 WRITE 75 !AOSL -> 01
SUB 21 WRITE 21 !REFS OFF CLAMP AKTIV

1995 Oct 18 72

Philips Semiconductors Product specification

One Chip Front-end 1 (OCF1) SAA7110; SAA7110A

24 PACKAGE OUTLINE

REFERENCES

OUTLINE
VERSION

EUROPEAN

PROJECTION

ISSUE DATE

IEC JEDEC EIAJ

Note

1. Plastic or metal protrusions of 0.01 inches maximum per side are not included.

SOT188-2

4460

68

1

9

10 26

43

27

61

detail X

(A )

3

b

p

w M

A

1

A

A

4

L

p

b

1

β

k

1

k

X

y

e

E

B

D

H

E

H

v M

B

D

Z

D

A

Z

E

e

v M

A

pin 1 index

112E10 MO-047AC

0 5 10 mm

scale

92-11-17
95-03-11

PLCC68: plastic leaded chip carrier; 68 leads

SOT188-2

UNIT A

A

min. max. max. max. max.

1

A

4

b

p

E

(1)

(1) (1)

eH

E

Z

ywv β

mm

4.57

4.19

0.51

3.30

0.53

0.33

0.021

0.013

1.27

0.51

2.16
45

o

0.18 0.100.18

DIMENSIONS (millimetre dimensions are derived from the original inch dimensions)

D

(1)

24.33

24.13

H

D

25.27

25.02

E

Z

2.16

D

b

1

0.81

0.66

k

1.22

1.07

k

1

0.180

0.165

0.020

0.13

A

3

0.25

0.01

0.05

0.020

0.085

0.007 0.0040.007

L

p

1.44

1.02

0.057

0.040

0.958

0.950

24.33

24.13

0.958

0.950

0.995

0.985

25.27

25.02

0.995

0.985

e

E

e

D

23.62

22.61

0.930

0.890

23.62

22.61

0.930

0.890

0.085

0.032

0.026

0.048

0.042

E

e

inches

D

e

1995 Oct 18 73

Philips Semiconductors Product specification

One Chip Front-end 1 (OCF1) SAA7110; SAA7110A

25 SOLDERING

25.1 Introduction

There is no soldering method that is ideal for all IC
packages. Wave soldering is often preferred when
through-hole and surface mounted components are mixed
on one printed-circuit board. However, wave soldering is
not always suitable for surface mounted ICs, or for
printed-circuits with high population densities. In these
situations reflow soldering is often used.

This text gives a very brief insight to a complex technology.
A more in-depth account of soldering ICs can be found in
our

“IC Package Databook”

(order code 9398 652 90011).

25.2 Reflow soldering

Reflow soldering techniques are suitable for all PLCC
packages.

The choice of heating method may be influenced by larger
PLCC packages (44 leads, or more). If infrared or vapour
phase heating is used and the large packages are not
absolutely dry (less than 0.1% moisture content by
weight), vaporization of the small amount of moisture in
them can cause cracking of the plastic body. For more
information, refer to the Drypack chapter in our

“Quality

Reference Handbook”

(order code 9398 510 63011).

Reflow soldering requires solder paste (a suspension of
fine solder particles, flux and binding agent) to be applied
to the printed-circuit board by screen printing, stencilling or
pressure-syringe dispensing before package placement.

Several techniques exist for reflowing; for example,
thermal conduction by heated belt. Dwell times vary
between 50 and 300 seconds depending on heating
method. Typical reflow temperatures range from
215 to 250 °C.

Preheating is necessary to dry the paste and evaporate
the binding agent. Preheating duration: 45 minutes at
45 °C.

25.3 Wave soldering

Wave soldering techniques can be used for all PLCC
packages if the following conditions are observed:

• A double-wave (a turbulent wave with high upward
pressure followed by a smooth laminar wave) soldering
technique should be used.

• The longitudinal axis of the package footprint must be
parallel to the solder flow.

• The package footprint must incorporate solder thieves at
the downstream corners.

During placement and before soldering, the package must
be fixed with a droplet of adhesive. The adhesive can be
applied by screen printing, pin transfer or syringe
dispensing. The package can be soldered after the
adhesive is cured.

Maximum permissible solder temperature is 260 °C, and
maximum duration of package immersion in solder is
10 seconds, if cooled to less than 150 °C within
6 seconds. Typical dwell time is 4 seconds at 250 °C.

A mildly-activated flux will eliminate the need for removal
of corrosive residues in most applications.

25.4 Repairing soldered joints

Fix the component by first soldering two diagonally­opposite end leads. Use only a low voltage soldering iron
(less than 24 V) applied to the flat part of the lead. Contact
time must be limited to 10 seconds at up to 300 °C. When
using a dedicated tool, all other leads can be soldered in
one operation within 2 to 5 seconds between
270 and 320 °C.

1995 Oct 18 74

Philips Semiconductors Product specification

One Chip Front-end 1 (OCF1) SAA7110; SAA7110A

26 DEFINITIONS

27 LIFE SUPPORT APPLICATIONS

These products are not designed for use in life support appliances, devices, or systems where malfunction of these
products can reasonably be expected to result in personal injury. Philips customers using or selling these products for
use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such
improper use or sale.

28 PURCHASE OF PHILIPS I

2

C COMPONENTS

Data sheet status

Objective specification This data sheet contains target or goal specifications for product development.
Preliminary specification This data sheet contains preliminary data; supplementary data may be published later.
Product specification This data sheet contains final product specifications.

Limiting values

Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one or
more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation
of the device at these or at any other conditions above those given in the Characteristics sections of the specification
is not implied. Exposure to limiting values for extended periods may affect device reliability.

Application information

Where application information is given, it is advisory and does not form part of the specification.

Purchase of Philips I

2

C components conveys a license under the Philips’ I2C patent to use the
components in the I2C system provided the system conforms to the I2C specification defined by
Philips. This specification can be ordered using the code 9398 393 40011.

1995 Oct 18 75

Philips Semiconductors Product specification

One Chip Front-end 1 (OCF1) SAA7110; SAA7110A

NOTES

Philips Semiconductors – a worldwide company

Argentina: IEROD, Av. Juramento 1992 - 14.b, (1428)

BUENOS AIRES, Tel. [phone], Fax. [phone]

Australia: 34 Waterloo Road, NORTH RYDE, NSW 2113,

Tel. [phone], Fax. [phone]

Austria: Triester Str. 64, A-1101 WIEN, P.O. Box 213,

Tel. [phone], Fax. [phone]

Belgium: Postbus 90050, 5600 PB EINDHOVEN, The Netherlands,

Tel. [phone], Fax. [phone]

Brazil: Rua do Rocio 220 - 5

th

floor, Suite 51,
CEP: 04552-903-SÃO PAULO-SP, Brazil.
P.O. Box 7383 (01064-970),
Tel. [phone], Fax. [phone]

Canada: PHILIPS SEMICONDUCTORS/COMPONENTS:

Tel. [phone], Fax. [phone]

Chile: Av. Santa Maria 0760, SANTIAGO,

Tel. [phone], Fax. [phone]

China/Hong Kong: 501 Hong Kong Industrial Technology Centre,

72 Tat Chee Avenue, Kowloon Tong, HONG KONG,
Tel. [phone], Fax. [phone]

Colombia: IPRELENSO LTDA, Carrera 21 No. 56-17,

77621 BOGOTA, Tel. [phone],
Fax. [phone]

Denmark: Prags Boulevard 80, PB 1919, DK-2300

COPENHAGEN S, Tel. [phone], Fax. [phone]

Finland: Sinikalliontie 3, FIN-02630 ESPOO,

Tel. [phone], Fax. [phone]

France: 4 Rue du Port-aux-Vins, BP317,

92156 SURESNES Cedex,
Tel. [phone], Fax. [phone]

Germany: P.O. Box 10 63 23, 20043 HAMBURG,

Tel. [phone], Fax. [phone].

Greece: No. 15, 25th March Street, GR 17778 TAVROS,

Tel. [phone] 911, Fax. [phone]

India: Philips INDIA Ltd, Shivsagar Estate, A Block,

Dr. Annie Besant Rd. Worli, Bombay 400 018
Tel. [phone], Fax. [phone]

Indonesia: Philips House, Jalan H.R. Rasuna Said Kav. 3-4,

P.O. Box 4252, JAKARTA 12950,
Tel. [phone], Fax. [phone]

Ireland: Newstead, Clonskeagh, DUBLIN 14,

Tel. [phone], Fax. [phone]

Italy: PHILIPS SEMICONDUCTORS S.r.l.,

Piazza IV Novembre 3, 20124 MILANO,
Tel. [phone], Fax. [phone]

Japan: Philips Bldg13-37, Kohnan 2-chome, Minato-ku, TOKYO 108,

Tel. [phone], Fax. [phone]

Korea: Philips House, 260-199 Itaewon-dong,

Yongsan-ku, SEOUL, Tel. [phone], Fax. [phone]

Malaysia: No. 76 Jalan Universiti, 46200 PETALING JAYA,

SELANGOR, Tel. [phone], Fax. [phone]

Mexico: 5900 Gateway East, Suite 200, EL PASO, TX 79905,

Tel. [phone], Fax. [phone]

Netherlands: Postbus 90050, 5600 PB EINDHOVEN, Bldg. VB,

Tel. [phone], Fax. [phone]

New Zealand: 2 Wagener Place, C.P.O. Box 1041, AUCKLAND,

Tel. [phone], Fax. [phone]

Norway: Box 1, Manglerud 0612, OSLO,

Tel. [phone], Fax. [phone]

Pakistan: Philips Electrical Industries of Pakistan Ltd.,

Exchange Bldg. ST-2/A, Block 9, KDA Scheme 5, Clifton,
KARACHI 75600, Tel. [phone],
Fax. [phone]

Philippines: PHILIPS SEMICONDUCTORS PHILIPPINES Inc,

106 Valero St. Salcedo Village, P.O. Box 2108 MCC, MAKATI,
Metro MANILA, Tel. [phone], Fax. [phone]

Portugal: PHILIPS PORTUGUESA, S.A.,

Rua dr. António Loureiro Borges 5, Arquiparque - Miraflores,
Apartado 300, 2795 LINDA-A-VELHA,
Tel. [phone], Fax. [phone]

Singapore: Lorong 1, Toa Payoh, SINGAPORE 1231,

Tel. [phone], Fax. [phone]

South Africa: S.A. PHILIPS Pty Ltd.,

195-215 Main Road Martindale, 2092 JOHANNESBURG,
P.O. Box 7430, Johannesburg 2000,
Tel. [phone], Fax. [phone]

Spain: Balmes 22, 08007 BARCELONA,

Tel. [phone], Fax. [phone]

Sweden: Kottbygatan 7, Akalla. S-164 85 STOCKHOLM,

Tel. [phone], Fax. [phone]

Switzerland: Allmendstrasse 140, CH-8027 ZÜRICH,

Tel. [phone], Fax. [phone]

Taiwan: PHILIPS TAIWAN Ltd., 23-30F, 66, Chung Hsiao West

Road, Sec. 1. Taipeh, Taiwan ROC, P.O. Box 22978,
TAIPEI 100, Tel. [phone], Fax. [phone]

Thailand: PHILIPS ELECTRONICS (THAILAND) Ltd.,

209/2 Sanpavuth-Bangna Road Prakanong,
Bangkok 10260, THAILAND,
Tel. [phone], Fax. [phone]

Turkey:Talatpasa Cad. No. 5, 80640 GÜLTEPE/ISTANBUL,

Tel. [phone], Fax. [phone]

United Kingdom: Philips Semiconductors LTD.,

276 Bath Road, Hayes, MIDDLESEX UB3 5BX,
Tel. [phone], Fax. [phone]

United States:811 East Arques Avenue, SUNNYVALE,

CA 94088-3409, Tel. [phone], Fax. [phone]

Uruguay: Coronel Mora 433, MONTEVIDEO,

Tel. [phone], Fax. [phone]

Internet: http://www.semiconductors.philips.com/ps/
For all other countries apply to: Philips Semiconductors,

International Marketing and Sales, Building BE-p,
P.O. Box 218, 5600 MD EINDHOVEN, The Netherlands,
Telex 35000 phtcnl, Fax. [phone]

SCD44 © Philips Electronics N.V. 1995

All rights are reserved. Reproduction in whole or in part is prohibited without the
prior written consent of the copyright owner.

The information presented in this document does not form part of any quotation
or contract, is believed to be accurate and reliable and may be changed without
notice. No liability will be accepted by the publisher for any consequence of its
use. Publication thereof does not convey nor imply any license under patent- or
other industrial or intellectual property rights.

Printed in The Netherlands

483061/1500/01/pp76 Date of release: 1995 Oct 18
Document order number: 9397750 00368
