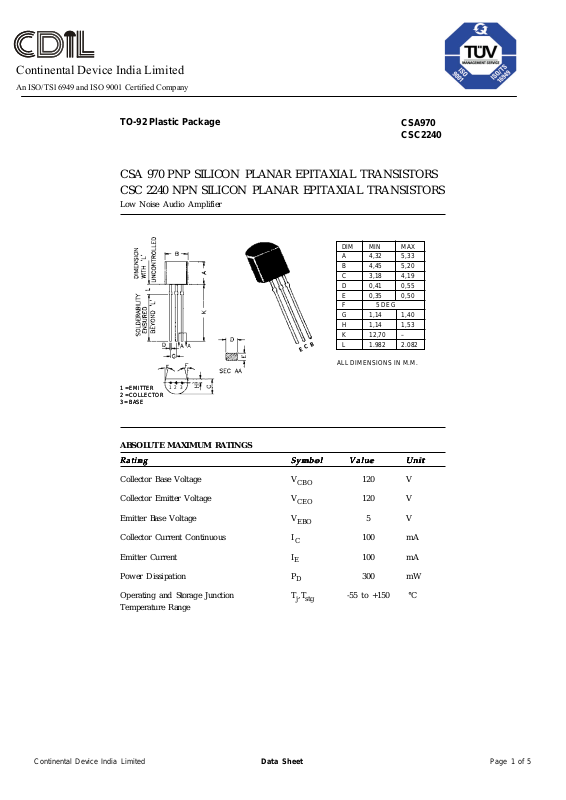

TO-92 Plastic Package
CSA970
CSC2240
CSA 970 PNP SILICON PLANAR EPITAXIAL TRANSISTORS
CSC 2240 NPN SILICON PLANAR EPITAXIAL TRANSISTORS
Low Noise Audio Amplifier
DIM MIN MAX
A 4,32 5,33
B 4,45 5,20
C 3,18 4,19
D 0,41 0,55
E 0,35 0,50
F 5 DEG
G 1,14 1,40
H 1,14 1,53
K 12,70 –
L 1.982 2.082
ALL DIMENSIONS IN M.M.
1 = EMITTER
1 = EMITTER
2 = COLLECTOR
2 = COLLECTOR
3 = BASE
3 = BASE
E C B
1 2 3
ABSOLUTE MAXIMUM RATINGS
RatingRating
Rating
RatingRating
Collector Base Voltage V
Collector Emitter Voltage V
Emitter Base Voltage V
Collector Current Continuous I
Emitter Current I
Power Dissipation P
Operating and Storage Junction T
Temperature Range
SymbolSymbol
Symbol
SymbolSymbol
CBO
CEO
EBO
C
E
D
j,Tstg
ValueValue
Value
ValueValue
UnitUnit
Unit
UnitUnit
120 V
120 V
5V
100 mA
100 mA
300 mW
-55 to +150 °C
Continental Device India Limited Data Sheet Page 1 of 5
Page 2
ELECTRICAL CHARACTERISTICS (Ta = 25 °C unless otherwise specified)
CharacteristicCharacteristic
Characteristic
CharacteristicCharacteristic
UnitUnit
Unit
UnitUnit
SymbolSymbol
Symbol
SymbolSymbol
MinMin
Min
MinMin
TypTyp
Typ
TypTyp
Collector Cutoff Current
=120V, IE=0 I
V
CB
CBO
- - 100 nA
Emitter Cutoff Current
=5V, IC=0 I
V
EB
EBO
- - 100 nA
Collector Emitter Voltage
I
=1mA, IB=0 BV
C
CEO
120 - - V
D.C. Current Gain
=6V, IC=2mA h
V
CE
FE
200 - 700
Collector Emitter Saturation Voltage
I
=10mA, IB=1mA V
C
CE(sat)
- - 0.3 V
Base Emitter On Voltage
=6V, IC=2mA V
V
CE
BE (on)
- 0.65 - V
DYNAMIC CHARACTERISTICS
Transition Frequency
V
=6V, IC=1mA f
CE
T
- 100 -
Collector Output Capacitance
=10V, IE=0, f=1MHz CSA970 C
V
CB
ob
- 4.0 - pF
CSC2240 - 3.0 - pF
Noise Figure
=5V, IC=250uA NF - - 10 dB
V
CE
Rg=1kΩ, f=10Hz to 15.7 kHz
CSA970
CSC2240
MaxMax
Max
MaxMax
MHz
=6V, IC=100uA, f=1KHz - 3 - dB
V
CE
Rg=100Ω
h
Classification GR BL
FE
200-400 350-700
Continental Device India Limited Data Sheet Page 2 of 5
Page 3
CSA970
CSC2240
5000
3000
1000
500
300
DC Current Gain
FE
h
100
50
–0.1 –0.3 –0.5 –1 –3 –5 –10 –30 –50
–0.5
–0.3
(V)
–0.1
CE(sat)
–0.05
Voltage V
–0.03
Collector Emitter Saturation
–0.01
–0.1 –0.3 –0.5 –1 –3 –50–30–10–5
hFE – I
C
Ta = 100°C
25
–25
IC Collector Current (mA)
V
– I
CE(sat)
Ta = 100°C
25
–25
IC Collector Current (mA)
C
COMMON
EMITTER
VCE = –6V
Ta = 25°C
IC/IB = 10
Ta = 25°C
CSA970
IC – V
–30
–25
(mA)
C
–20
–15
–10
Collector Current I
–5
–0
Ta = 100°C
–0.2 –0.4 –0.6 –0.8 –1.0 –1.2 –1.4
BE
COMMON EMITTER
VCE = –6V
Ta = 25°C
25
–25
Base-Emitter Voltage VBE (V)
Continental Device India Limited Data Sheet Page 3 of 5
Page 4
CSA970
CSC2240
4
3
(mA)
C
2
1
Collector Current I
0
0246810
500
)
FE
300
100
50
DC Current Gain (h
30
0.1
IC – V
(Low Current and Low Voltage Region)
COMMON EMITTER
Ta = 25°C
CE
IB = 1 µA
10
9
8
7
6
5
4
3
2
1
0
Collector-Emitter Voltage VCE (V)
hFE – I
C
Ta = 100°C
25
–25
COMMON EMITTER
VCE = 6 V
0.3 0.5 1 3 5 10 30 50 100 300
Collector Current IC (mA)
CSC2240
IC – V
200
160
(mA)
C
120
Collector Current I
80
40
0
COMMON EMITTER
IC/IB = 10
0.2 0.4 0.6 0.8 1.0
BE
25°C
Ta = 100°C
–25°C
Base-Emitter Voltage VBE (V)
Continental Device India Limited Data Sheet Page 4 of 5
Page 5
Notes
