Page 1

INTEGRATED CIRCUITS

SA9503

Dual-band, CDMA/AMPS LNA and downconverter mixers

Objective specification Supersedes data of 1999 Jul 06

 

1999 Jul 29

Page 2

Philips Semiconductors Objective specification

PARAMETER

Dual-band, CDMA/AMPS LNA and downconverter mixers

DESCRIPTION

The SA9503 is an integrated CDMA/AMPS low noise amplifier (LNA) plus a downconverter, for both the 900 MHz Cellular band and the 1.9 GHz PCS band. The LNA incorporates 5 settings of digitally selected stepped gain in the Cellular band and in the PCS band. One of the modes (high linearity mode) in each of the Cellular and PCS bands, includes a high IP3 setting in order to meet the 1-tone CDMA desensitization test. The gain, noise figure and IP3 for the remaining 4 low current modes in the Cellular band, are designed in order to have sufficient separation between the antenna power levels at which the LNA gains are changed, based on multi-tone interference levels. A 3 dB overlap is allowed in the antenna power levels for the adjacent modes. Table 1 indicates a typical scenario.

The downconverter portion is based on our SA9502 and is designed to meet all the stringent spurious rejections that are required in the Cellular and PCS bands. There are three individual mixer blocks, each optimized for high linearity with low power consumption for operation in one of the following modes: 1900 MHz PCS CDMA, 800 MHz Cellular CDMA, or 800 MHz analog FM AMPS/TACS modes.

The circuit has been designed in our advanced QUBiC3 BiCMOS process with 30 GHz f

FEATURES Versatile step gain LNA

•Can meet single tone CDMA desensitization requirements

•Can meet CDMA two tone interference requirements

•Cellular

Gain (dB) 17 15.5 9 3 –4 Noise figure (dB) 2 1.6 1.9 4.5 11 Input IP3 (dBm) 5.5 –2 –3.5 2 15 Current (mA) 13.2 4.9 4.9 4.9 3.7

MODE

CEL_L CEL_1 CEL_2 CEL_3 CEL_4

SA9503

Downconverter typical performance

PARAMETER Cellular FM Cellular CDMA PCS CDMA

Gain (dB) 7.5 11.5 12.5 Nois e Figure ( dB) 10 9 9 Input IP3 (dBm) 5 3.5 4 Current (mA)

(Tx) LO output buffer off

•Separate, selectable IF outputs to suit FM and CDMA bandwidths

•Buffered Cellular and PCS LO inputs

•Integrated frequency doubler for PCS mixer LO

•Differential (Tx) LO output buffer (can be switched on or off)

•Low voltage operation down to 2.7 volts

•Mixers current consumption with (Tx) LO buffer on:

– Cellular FM: 16.8 mA – Cellular CDMA: 23 mA – PCS: 26 mA

•Low standby current in sleep mode: <50 µA

•BCC32++ package

APPLICATIONS

•800 MHz analog FM and CDMA digital receivers

•1900 MHz PCS band CDMA digital receivers

•Supports dual-band and triple-mode operation

•Digital mobile communications equipment

•Portable, low power radio equipment

6.8 13 16

•PCS

MODE

PCS_L PCS_1 PCS_2 PCS_3 PCS_4 Gain (dB) 15.2 14.3 8 2 –4.5 Noise figure (dB) 2.5 2 2.5 3.7 11.5 Input IP3 (dBm) 4.5 1 –2 –1 16 Current (mA) 13.3 5.9 5.9 5.9 3.7

BCC32++ is a trademark of Fujitsu Microelectronics.

1999 Jul 29

Page 3

Philips Semiconductors Objective specification

PARAMETER

TEST CONDITIONS

UNIT

Dual-band, CDMA/AMPS LNA and downconverter mixers

BLOCK DIAGRAM

RF_PCS

SA9503

RF_CEL

RX BPF Fo = 1960 MHz BW = 60 MHz

PCS_INPCS_OUT

SA9503

PCS IF BPF

×2

CELLULARPCS

PCS_IF

CDMA_IF

FM_IF

BW = 1.23MHz

CDMA IF BPF BW = 1.23MHz

FM IF BPF BW = 30kHz

MODE

SELECT

LOGIC

CDMA/FM PCS/CELLULAR S0 S1 S2

CEL_OUT

CEL_IN

RX BPF Fo = 881.5MHz BW = 25 MHz

BIAS

CTRL

LO_OUT

LO_ENABLE CEL

LO_IN

PCS

LO_IN

Figure 1. SA9503 Block Diagram

ABSOLUTE MAXIMUM RATINGS

PARAMETER RATINGS UNIT

Supply voltage (VCC) –0.3 to +3.6 V Gain control voltage +3.6 V Logic input voltage –0.3 to VCC+0.3 V Maximum power input +20 dBm Power dissipation (T

= 25°C) 800 mW

amb

Storage temperature range –65 to +150 °C

RECOMMENDED OPERATING CONDITIONS

LIMITS

MIN TYP MAX

Supply voltage (VCC) 2.7 2.85 3.3 V Operating ambient temperature range (T Logic input signal levels

LOW level input voltage range (VIL) At logic 0 –0.3 0.2V HIGH level input voltage range (VIH) At logic 1 0.5V Input bias current (I

) At logic 1 or logic 0 –5 +5 µA

bias

) –40 +85 °C

amb

VCC+0.3 V

SR01935

1999 Jul 29

Page 4

Philips Semiconductors Objective specification

БББББББББББББ

Dual-band, CDMA/AMPS LNA and downconverter mixers

FUNCTIONAL DESCRIPTION Mode selection

The SA9503 has several modes of operation for which the selection logic is defined in Tables 2 and 3. Different mode selections require different portions of the circuit to be active. Modes from unlisted combinations of logic pins are not permitted. The LNA and downconverter together can be programmed to operate in the PCS or cellular bands using the PCS/CEL logic input pin, and in CDMA or FM modes using the CDMA/FM logic input pin.

The LNA can be set to four different gain values and one special high linearity setting. Thus, the LNA can be programmed into five different modes with associated gain, noise figure, and input IP3, using the S0, S1, and S2 control lines. The whole circuit (LNAs and mixers) is powered down when control lines S0 = 1, S1 = 0, and S2 = 0. It is also possible to independently switch off the LNAs and keep the mixers on, as shown in Table 3.

LNA

External components can be used to match the LNA inputs, and if required, the outputs, for the Cellular and PCS bands. The input and output return loss of better than 10 dB can be achieved in all modes. For Cellular band FM, only the CEL_1 mode is required for the LNA.

For CDMA, LNA modes CEL_1 and PCS_1 are used for normal operation, as they have the highest gains and lowest noise figures. For higher levels of multi-tone interference, other modes with lower gains are to be used. The high linearity CEL_L and PCS_L modes are used when there is a very strong adjacent channel interference, while at the same time the mobile is transmitting close to its full power. The high linearity is required in order to reduce the cross modulation of the LNA from the mobile’s transmitter, in the presence of strong adjacent channel interferer. The maximum transmitter power leakage which can be tolerated at the LNA input is approximately –30dBm to meet the single tone desensitization requirements. The cross modulation power can be derived from:

Cellular band: (2 × P PCS band: (2 × P

The LNA requires less than one hundred microseconds to settle when it changes from one mode to another. This is expected to have insignificant impact on the CDMA frame error rate.

TX TX

+ P + P

JAMMER JAMMER

– 8) dBm – 10.5) dBm

SA9503

Downconverter

The SA9503 has three mixers, one for Cellular FM, one for Cellular CDMA, and one for PCS CDMA. Each one is individually optimized for their specific requirements. The Cellular CDMA and FM mixers have a common single-ended RF input.

The PCS mixer’s RF input port is differential, and requires an external balun when used with a single-ended source. Both the PCS and the Cellular mixer RF inputs should be AC coupled.

Local oscillator drive for the mixers is provided through pins CEL LO_IN and/or PCS LO_IN. The local oscillator inputs are single-ended, AC-coupled. The CEL LO_IN signal is internally buffered to drive the following: – (Tx) LO output buf fer,

– cellular FM mixer, – cellular CDMA mixer, – PCS LO frequency doubler.

In the PCS mode, mixer LO drive can be either direct (PCS LO_IN) or through the frequency doubler after CEL LO_IN. The mixer local oscillator signal is made available externally via the (Tx) LO output buffer for potential use elsewhere in the radio. For example, this signal typically can be used with the transmitter circuitry. The (Tx) LO output buffer can be powered down independently, using the (Tx) LO_ENABLE logic input. The (Tx) LO output buffer has open collector differential outputs which are internally biased to V

2 supply rail.

The PCS and Cellular CDMA mixers have open collector differential IF outputs. The two IF outputs can either supply two separate IF filters, or they can be connected together externally for use with one common receive IF filter. The differential IF outputs must be biased at the supply voltage through external inductors that may also be part of the matching circuit to the SAW filter . The cellular band FM mixer also has a differential open collector IF output.

Table 1. Typical Cellular Mode LNA Gain Change Points for 2-tone CDMA Interference Test

GAIN, dB

16.5 9 3

–3

1999 Jul 29

MAXIMUM ANTENNA IN-BAND POWER, dBm

–95 –90.5 –86.7 > –79

MINIMUM ANTENNA IN-BAND POWER, dBm

< –104

–98.5 –93.5 –89.7

Page 5

Philips Semiconductors Objective specification

(Tx) LO

()

MODES

Dual-band, CDMA/AMPS LNA

SA9503

and downconverter mixers

MODE SELECT LOGIC AND DC CHARACTERISTICS

The SA9503 chip has several modes of operation for which the selection logic is defined in the following two tables. Different mode selections require different portions of the circuit to be active. Modes from unlisted combinations of logic pins, are not valid. Total current consumption of the device is the sum of the currents for the mixer portion (Table 2) and the LNA portion (Table 3).

Table 2. Mode logic definition for Downconverter mixers

VCC = 2.7 V to 3.3 V, 2.85 V typical; T

MODES

PCS

1 PCS1 On 2 GHz Off 1 1 0 1 26 29.9 2 PCS1 Idle Off — Off 1 1 0 0 16 18.4 3 PCS2 On 2 GHz On 1 1 1 1 30 34.5 4 PCS2 Idle Off — On 1 1 1 0 20 23

Cellular CDMA

5 CDMA On 1 GHz Off 1 0 1 1 23 26.5 6 CDMA Idle Off — Off 1 0 1 0 13 15 7 FM On 1 GHz Off 1 0 0 1 16.8 19.3 8 FM Idle Off — Off 1 0 0 0 6.8 7.8

Power Down

9 Sleep

NOTES:

x = Don’t care

1. The device will be in the Power Down mode (sleep) when control lines S0 = 1, S1 = 0, and S2 = 0.

BUFFER

x x Off 0 x x x 1 µA 50 µA

= –40 to +85 °C

amb

(Tx) LO

BUFFER

OUTPUT

DOUBLER

POWER DOWN

LOGIC INPUT PINS CURRENT (mA)

PCS/CEL

CDMA/FM

LO DOUBLER

(Tx) LO

ENABLE

TYP MAX

Table 3. Mode logic definition for LNA

VCC = 2.7 V to 3.3 V, 2.85 V typical; T

1 CEL_L (High linearity) 0 1 1 1 13.2 15.0 2 CEL_1 (High gain) 0 0 1 1 4.9 6.0 3 CEL_2 (Next lower gain) 0 0 1 0 4.9 6.0 4 CEL_3 (Next lower gain) 0 0 0 1 4.9 6.0 5 CEL_4 (Next lower gain) 0 0 0 0 3.7 4.5

6 PCS_L (High linearity) 1 1 1 1 13.3 15.0 7 PCS_1 (High gain) 1 0 1 1 5.9 7.2 8 PCS_2 (Lower gain) 1 0 1 0 5.9 7.2 9 PCS_3 (Next lower gain) 1 0 0 1 5.9 7.2

10 PCS_4 (Next lower gain) 1 0 0 0 3.7 4.5 11 Mixers ON (LNA portion OFF) x 1 1 0 1 µA 50 µA 12 Reserved (Sleep) x 1 0 1 (Note 1) (Note 1)

13 Sleep x 1 0 0 (Note 1) (Note 1)

NOTES:

x = Don’t care

1. The device will be in the Power Down mode (sleep) when control lines S0 = 1, S1 = 0, and S2 = 0.

= –40 to +85 °C

amb

LOGIC INPUTS CURRENT CONSUMPTION (mA)

PCS/CEL S0 S1 S2 TYP MAX

1999 Jul 29

Page 6

Philips Semiconductors Objective specification

Dual-band, CDMA/AMPS LNA and downconverter mixers

LNA

AC ELECTRICAL CHARACTERISTICS

VCC = 2.7 V to 3.3 V; T

PARAMETER TEST CONDITIONS

Cellular Band LNA

RF input frequency range 869 894 MHz S11 50Ω with external matching –10 dB S22 50Ω with external matching –15 dB Basic Gain Spread, ∆Gc Common to all cellular modes –1 0 1 dB

CEL_L Mode

Gain, S21 17 + ∆Gc dB Noise Figure 2.0 2.5 dB Input IP3

S12 –40 dB

CEL_1 Mode

Gain, S21 15.5 + ∆Gc dB Noise Figure 1.6 1.9 dB Input IP3

S12 –40 dB

CEL_2 Mode

Nominal Gain, S21 9 + ∆Gc dB Additional Gain spread Relative to nominal gain –2 2 Noise Figure 1.9 2.2 dB Input IP3 2 tones of –30 dBm each, ∆f=800 kHz –4.5 –3.5 dBm S12 –40 dB

CEL_3 Mode

Nominal Gain, S21 3 + ∆Gc dB Additional Gain spread Relative to nominal gain –2 2 Noise Figure 4.5 5.5 dB Input IP3 2 tones of –30 dBm each, ∆f=800 kHz 1 2 dBm S12 –40 dB

CEL_4 Mode

Nominal Gain, S21 –4 + ∆Gc dB Additional Gain spread Relative to nominal gain –2 2 Noise Figure 11 11.5 dB Input IP3 2 tones of –20 dBm each, ∆f=800 kHz 14 15 dBm S12 –33 dB

LO (input and output) to LNA input isolation

All modes

amb

= 25°C

LIMITS

MIN

2 tones of –30 dBm each, ∆f=800 kHz 4 5.5 dBm 2 tones of –30 dBm each, ∆f=60 kHz 1 2 dBm

2 tones of –30 dBm each, ∆f=800 kHz –3 –2 dBm 2 tones of –30 dBm each, ∆f=60 kHz –7 –6 dBm

LO single-ended in, differential out, with and without doubler. 0 dBm LO in, (Tx) LO buffer ON, when in active modes. External Cellular and PCS filters connected, with 30 dB LO rejection from them.

–3σ

TYP +3σ MAX

40 dB

SA9503

UNIT

Settling time Change of mode 100 µs

1999 Jul 29

Page 7

Philips Semiconductors Objective specification

Dual-band, CDMA/AMPS LNA

SA9503

and downconverter mixers

LIMITS

PARAMETER UNITMAX+3σTYP

PARAMETER UNIT

PCS Band LNA

RF input frequency range 1810 1990 MHz S11 50Ω with external matching –9 dB S22 50Ω with external matching –12 dB Basic Gain Spread, ∆Gp Common to all PCS modes –1 0 1 dB

PCS_L Mode

Gain, S21 15.2 + ∆Gp dB Noise Figure 2.5 3 dB Input IP3 2–tones of –30 dBm each. ∆f=800 kHz 3.5 4.5 dBm S12 –40 dB

PCS_1 Mode

Gain, S21 14.3+ ∆Gp dB Noise Figure 2.0 2.4 dB Input IP3 2–tones of –30 dBm each. ∆f=800 kHz 0 1 dBm S12 –40 dB

PCS_2 Mode

Nominal Gain, S21 8 + ∆Gp dB Additional Gain spread Relative to nominal gain –2 2 Noise Figure 2.5 2.9 dB Input IP3 2–tones of –30 dBm each. ∆f=800 kHz –3 –2 dBm S12 –40 dB

PCS_3 Mode

Nominal Gain, S21 2 + ∆Gp dB Additional Gain spread Relative to nominal gain –2 2 Noise Figure 3.7 4.1 dB Input IP3 2–tones of –30 dBm each. ∆f=800 kHz –2 –1 dBm S12 –40 dB

PCS_4 Mode

Gain, S21 –4.5 + ∆Gp dB Additional Gain spread Relative to nominal gain –2 2 Noise Figure 11.5 12 dB Input IP3 2–tones of –20 dBm each. ∆f=800 kHz 16 dBm

S12 –30 dB LO (input and Output) to LNA

input isolation.

All modes.

Settling time Change of mode 100 µs

LO single-ended in, differential out, with and without doubler. 0 dBm LO in, (Tx) LO buffer ON, when in active modes. External Cellular and PCS filters connected, with 30 dB LO rejection from them.

TEST CONDITIONS

MINTEST CONDITIONS

–3σ

36 dB

1999 Jul 29

Page 8

Philips Semiconductors Objective specification

SPECIFICATION

CONDITIONS

UNIT

CEL_1

Input IP3 variation

Dual-band, CDMA/AMPS LNA and downconverter mixers

TYPICAL LNA SPECIFICATIONS WITH TEMPERATURE VARIATION A T –40°C AND +85°C

VCC = 2.7 V to 3.3 V

TEMPERATURE

–40°C 0°C +85°C

Cellular band LNA

Supply current variation All modes –100 0 –100 µA

CEL_L 0.7 0 –0.7 dB CEL_1 1 0 –1 dB

Gain variation

Noise Figure variation

PCS band LNA

Supply current variation All modes –40 0 –40 µA

Gain variation

Noise Figure variation

Input IP3 variation

CEL_2 1 0 –1 dB CEL_3 0.8 0 –0.8 dB CEL_4 0.6 0 –0.5 dB

CEL_L –0.2 0 0.2 dB CEL_1 –0.3 0 0.3 dB CEL_2 –0.4 0 0.4 dB CEL_3 –0.7 0 0.7 dB CEL_4 –1 0 0.7 dB

CEL_L –1.4 0 0 dBm

∆f = 800 kHz 0.35 0 –0.25 dBm

∆f = 60 kHz –0.35 0 0.3 dBm

CEL_2 0.25 0 0 dBm CEL_3 0.75 0 –0.9 dBm CEL_4 1 0 –1.2 dBm

PCS_L 0.8 0 –0.8 dB PCS_1 0.8 0 –1 dB PCS_2 0.9 0 –0.8 dB PCS_3 0.9 0 –0.8 dB PCS_4 0.5 0 –0.5 dB

PCS_L –0.3 0 0.3 dB PCS_1 –0.4 0 0.4 dB PCS_2 –0.6 0 0.5 dB PCS_3 –1 0 0.8 dB PCS_4 –1 0 0.8 dB

PCS_L 0.4 0 –1 dBm PCS_1 0.9 0 –1 dBm PCS_2 0.3 0 –0.7 dBm PCS_3 0.7 0 –0.7 dBm PCS_4 1.3 0 –0.4 dBm

SA9503

1999 Jul 29

Page 9

Philips Semiconductors Objective specification

PARAMETER

TEST CONDITIONS

UNIT

Dual-band, CDMA/AMPS LNA

SA9503

and downconverter mixers

DOWNCONVERTER

AC ELECTRICAL CHARACTERISTICS

VCC = 2.7 V to 3.3 V; T f

= 130MHz, output differential load of 1kΩ for CDMA, and 850Ω for FM, as per application.

Cellular Band Downconverter

RF input frequency range 869 894 MHz LO input frequency range 950 1030 MHz IF output frequency range (CDMA) 50 300 MHz IF output frequency range (FM) 50 300 MHz IF Output Load Impedance

Conversion Gain

Noise Figure

Input IP3

RF Input Return Loss ZS=50Ω with external matching 11.0 dB LO Input Return Loss ZS=50Ω 10.0 dB (Tx) LO Output Return Loss ZS=100Ω differential 10 dB LO Input Power Range –9.0 –6.0 0.0 dBm (Tx) LO Output Power Range ZL=100Ω differential; (Tx) LO buffer ON. –10.0 –6.0 –3.0 dBm LO (Input and Output) to RF Leakage

LO (Input and Output) to IF Leakage

RF to LO (Input) Isolation 30 dB RF to IF Isolation

(Tx) LO Output to LO Input Isolation 30 dB Leakage conversion gain f1 = fRX ± 40 MHz at LNA input.

= 25°C, Plo= –3 dBm.

amb

LIMITS

MIN

CDMA, differential 1000 Ω FM, Single-ended, with ext. balun 850 Ω CDMA 10.5 11.5 12 dB FM 6.5 7.5 8.0 dB CDMA mode, SSB 9.0 10.0 dB FM mode, SSB 10 11 dB CDMA mode

∆f1 = 900 kHz, ∆f2 = 1700 kHz P1, P2 = –30 dBm Tone spacing = 800 kHz

FM mode. P1, P2 = –24 dBm. Tone spacing = 60 kHz, 330 kHz

CDMA –35 dBm FM –30 dBm

CDMA –30 dBm FM –20 dBm

Single-ended in, differential out

CDMA 17 dB FM 10 dB

P1 = – 70 dBm. All LNA cellular modes. Measured through conversion gain in

stop-band, without SAW filters being connected. Pins terminated with resistive equivalent load.

TYP

–3s

3.5 dBm

5.0 dBm

–40 dBc

+3s

MAX

1999 Jul 29

Page 10

Philips Semiconductors Objective specification

PARAMETER

TEST CONDITIONS

UNIT

Dual-band, CDMA/AMPS LNA

SA9503

and downconverter mixers

AC ELECTRICAL CHARACTERISTICS (continued)

VCC = 2.7 V to 3.3 V; T f

= 130MHz, output differential load of 1kΩ for PCS.

PCS Downconverter

RF input frequency range 1810 1990 MHz LO input frequency range

IF output frequency range 50 300 MHz IF Output Load Impedance Differential 1000 Ω Conversion Gain @ fIF, over RF/LO frequency ranges 11.5 12.5 13 dB Noise Figure @ fIF, over RF/LO frequency ranges, SSB 9.0 10 dB Input IP3 @ fIF, over RF/LO frequency ranges

RF Input Return Loss ZS = 50Ω, with external matching 10 dB LO Input Return Loss ZS = 50Ω 10 dB (Tx) LO Output Return Loss ZS = 100Ω differential 10 dB LO Input Power Range –9 –6 0 dBm (Tx) LO Output Power Range ZL = 100Ω differential; (Tx) LO buffer ON –10 –9 –6 dBm LO (Input and Output) to RF Leakage With and without doubler –35 dBm LO (Input and Output) to IF Leakage With and without doubler –35 dBm RF to LO (Input) Isolation With and without doubler 30 dB RF to IF Isolation Single-ended in, differential out 20 dB (Tx) LO Output to LO Input Isolation Without doubler 30 dB Leakage conversion gain f1 = fRX ± 80 MHz at LNA input.

= 25°C, Plo= –3 dBm.

amb

LIMITS

MIN

Without doubler 1720 2120 MHz With doubler 860 1050 MHz

∆f1 = 1.25 MHz, ∆f2 = 2.05 MHz P1, P2 = –30 dBm Tone spacing = 800 kHz

P1 = – 70 dBm. All LNA PCS modes. Measured through conversion gain in stop-band, without SAW filters being connected. Pins terminated with resistive equivalent load.

TYP

–3s

3 4 dBm

–40 dBc

+3s

MAX

1999 Jul 29

Page 11

Philips Semiconductors Objective specification

SPECIFICATION

UNIT

Dual-band, CDMA/AMPS LNA

SA9503

and downconverter mixers

TYPICAL DOWNCONVERTER SPECIFICA TIONS WITH TEMPERATURE V ARIATION FROM –40°C TO +85°C

VCC = 2.7 V to 3.3 V

TEMPERATURE

–40°C 25°C 85°C

Cellular Band

Conversion Gain Variation 1 0 –1 dB IP3 Variation

Noise Figure Variation

PCS Band

Conversion Gain Variation 1 0 –1 dB IP3 Variation 0.5 0 –1 dB Noise Figure Variation –1.4 0 0.8 dB

FM 0 0 –1 dB CDMA 0.5 0 –1 dB FM –1.5 0 0.8 dB CDMA –1.1 0 0.8 dB

Table 4. Typical S-Parameters

TBD

t.b.d.

Figure 2. Typical Radio Architecture using SA9503

1999 Jul 29

Page 12

Philips Semiconductors Objective specification

Dual-band, CDMA/AMPS LNA and downconverter mixers

Vcc

SA9503

Vcc

PCS/CEL PCS_IN PCS_INB

S2 S1

PCS_OUT GND7 CDMA/FM

Vcc

25 26 27 28 29 30 31 32

PCS_IF

PCS_IFB

Vcc1

GND1

CDMA_IF

CDMA_IFB

GND2

RF_PCS

FM_IF

FM_IFB

GND3

GND 4

LO_OUT

LO_OUTB

LO BUFFER

SA9503

817

GND5

RF_CEL

16 15 14

CIRCUITRY

13 12 11 10

Vcc

Vcc2

CEL LO_IN PCS LO_IN

CEL_IN

GND6

CEL_OUT

LO_ENABLE

Vcc

1999 Jul 29

SR01943

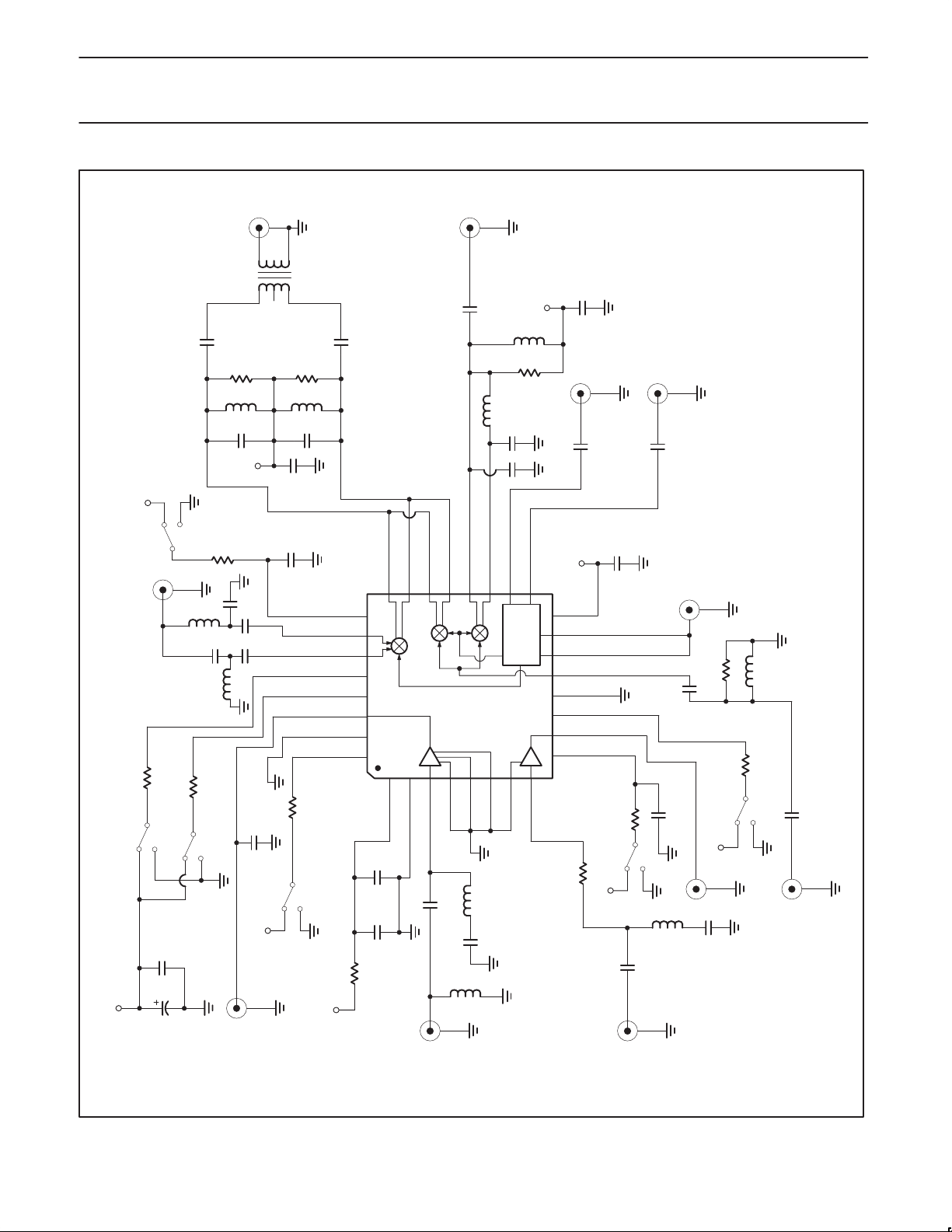

Figure 3. Preliminary Demonstration Board Diagram

Page 13

Philips Semiconductors Objective specification

Dual-band, CDMA/AMPS LNA and downconverter mixers

PINNING

PCS/CEL

PCS_IN

PCS_INB

GND7

CDMA/FM

PCS_OUT

32313029282726

VCC1

GND1

GND2 GND3 GND4 GND5

3 4 5 6 7 8

LO BUFFER CIRCUITRY

10111213141516

GND6

CEL_OUT

LO_ENABLE

CEL_IN

RF_PCS

RF_CEL

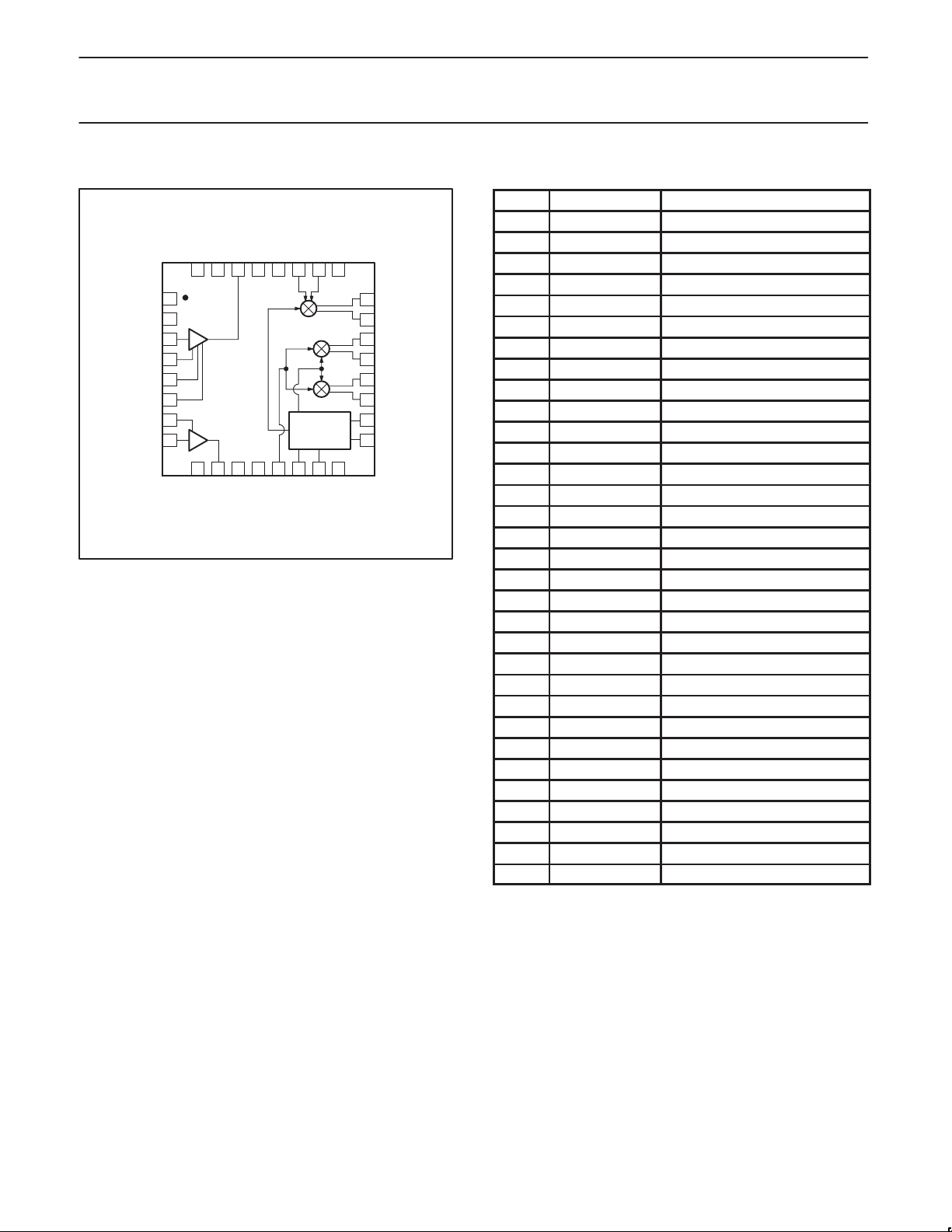

Figure 4. Pin-Out Block Diagram

NOTE:

The ground plane/heatsink area of the BCC32++ package needs to be soldered to ground for proper functioning of this device.

CEL LO_IN

PCS LO_IN

Vcc2

24 23 22 21 20 19 18 17

PCS_IFB PCS_IF CDMA_IFB CDMA_IF FM_IFB FM_IF LO_OUTB LO_OUT

SR01936

SA9503

Table 5. Pin function definition

PIN NAME DESCRIPTION

1 VCC1 Power supply 2 GND1 Ground 3 RF_PCS PCS LNA input 4 GND2 Ground 5 GND3 Ground 6 GND4 Ground 7 GND5 Ground 8 RF_CEL Cellular LNA input

9 LO_ENABLE (Tx) LO buffer enable 10 CEL_OUT Cellular LNA output 11 S0 Control signal S0 12 GND6 Ground 13 CEL_IN Cellular RF mixer input 14 PCS LO_IN PCS LO input 15 CEL LO_IN Cellular LO input 16 VCC2 (Tx) LO buffer supply 17 LO_OUT Non-inverting (Tx) LO output 18 LO_OUTB Inverting (Tx) LO output 19 FM_IF Non-inverting FM IF output 20 FM_IFB Inverting FM IF output 21 CDMA_IF Non-inverting CDMA IF output 22 CDMA_IFB Inverting CDMA IF output 23 PCS_IF Non-inverting PCS IF output 24 PCS_IFB Inverting PCS IF output 25 PCS/CEL PCS and cellular band select 26 PCS_IN Non-inverting PCS RF mixer input 27 PCS_INB Inverting PCS RF mixer input 28 S2 Control signal S2 29 S1 Control signal S1 30 PCS_OUT PCS LNA output 31 GND7 Ground 32 CDMA/FM CDMA and FM mode select

1999 Jul 29

Page 14

Philips Semiconductors Objective specification

Dual-band, CDMA/AMPS LNA and downconverter mixers

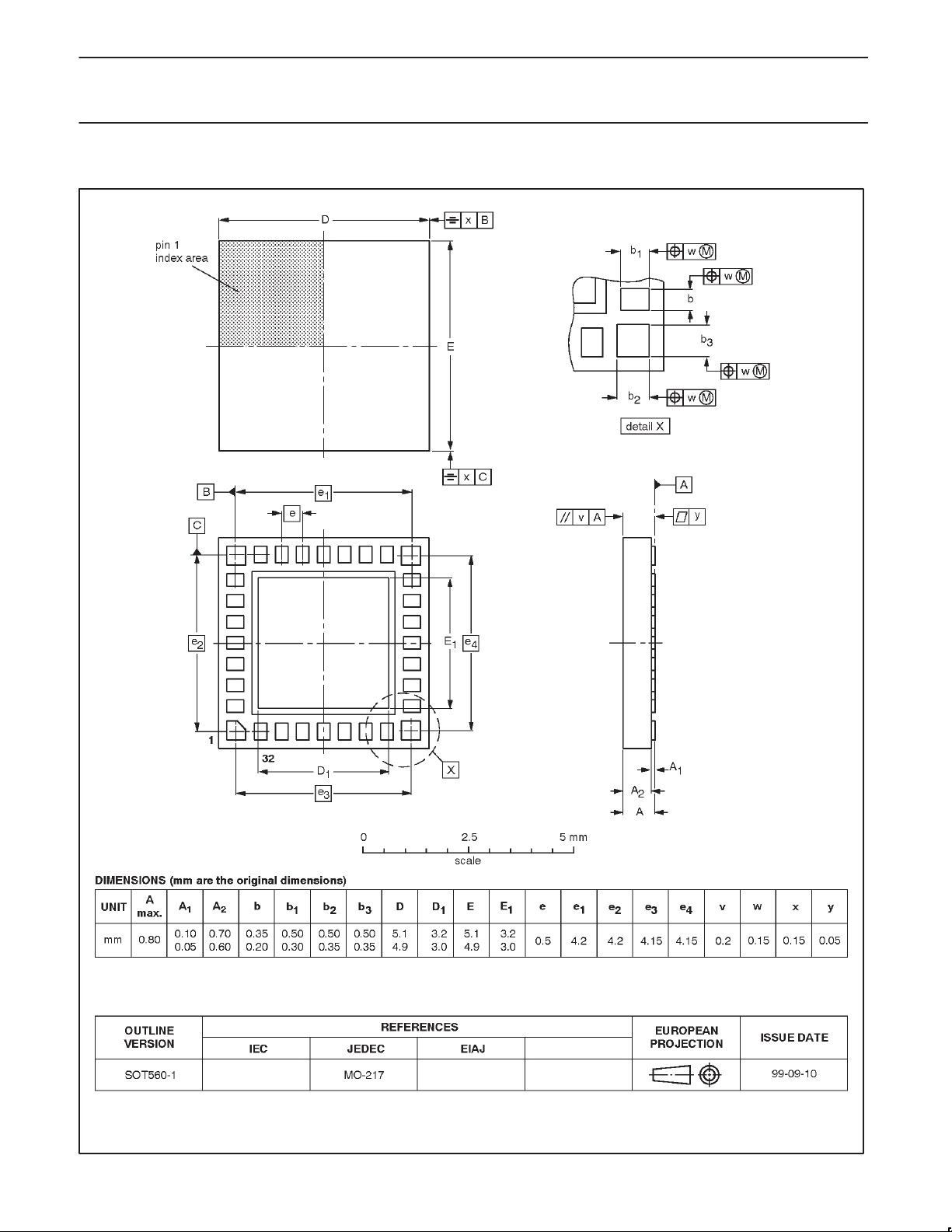

HBCC32: plastic, heatsink bottom chip carrier; 32 terminals; body 5 x 5 x 0.65 mm SOT560-1

SA9503

1999 Jul 29

Page 15

Philips Semiconductors Objective specification

Dual-band, CDMA/AMPS LNA and downconverter mixers

SA9503

NOTES

1999 Jul 29

Page 16

Philips Semiconductors Objective specification

Dual-band, CDMA/AMPS LNA and downconverter mixers

Data sheet status

Objective specification

Preliminary specification

Product specification

Product status

Development

Qualification

Production

Definition

This data sheet contains the design target or goal specifications for product development. Specification may change in any manner without notice.

This data sheet contains preliminary data, and supplementary data will be published at a later date. Philips Semiconductors reserves the right to make changes at any time without notice in order to improve design and supply the best possible product.

This data sheet contains final specifications. Philips Semiconductors reserves the right to make changes at any time without notice in order to improve design and supply the best possible product.

[1]

SA9503

[1] Please consult the most recently issued datasheet before initiating or completing a design.

Definitions

Short-form specification — The data in a short-form specification is extracted from a full data sheet with the same type number and title. For

detailed information see the relevant data sheet or data handbook. Limiting values definition — Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one

or more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation of the device at these or at any other conditions above those given in the Characteristics sections of the specification is not implied. Exposure to limiting values for extended periods may affect device reliability.

Application information — Applications that are described herein for any of these products are for illustrative purposes only. Philips Semiconductors make no representation or warranty that such applications will be suitable for the specified use without further testing or modification.

Disclaimers

Life support — These products are not designed for use in life support appliances, devices or systems where malfunction of these products can

reasonably be expected to result in personal injury . Philips Semiconductors customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Philips Semiconductors for any damages resulting from such application.

Right to make changes — Philips Semiconductors reserves the right to make changes, without notice, in the products, including circuits, standard cells, and/or software, described or contained herein in order to improve design and/or performance. Philips Semiconductors assumes no responsibility or liability for the use of any of these products, conveys no license or title under any patent, copyright, or mask work right to these products, and makes no representations or warranties that these products are free from patent, copyright, or mask work right infringement, unless otherwise specified.

Philips Semiconductors 811 East Arques Avenue P.O. Box 3409 Sunnyvale, California 94088–3409 Telephone 800-234-7381

 Copyright Philips Electronics North America Corporation 1999

Date of release: 11-99

Document order number: 9397 750 06649

 

1999 Jul 29
