Continental Device India Pvt. Limited
V
An IATF 16949, ISO9001 and ISO 14001 Certified Company

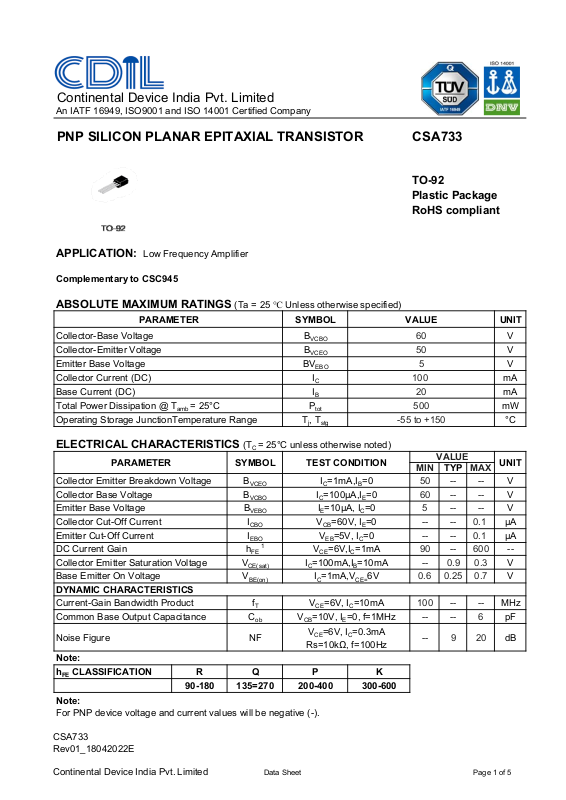

PNP SILICON PLANAR EPITAXIAL TRANSISTOR CSA733
TO-92
Plastic Package
RoHS compliant
APPLICATION: Low Frequency Amplifier
Complementary to CSC945
ABSOLUTE MAXIMUM RATINGS (Ta = 25 ℃ Unless otherwise specified)
PARAMETER SYMBOL VALUE UNIT
Collector-Base Voltage B
Collector-Emitter Voltage
B
Emitter Base Voltage BV
Collector Current (DC)
Base Current (DC)
Total Power Dissipation @ T
Operating Storage JunctionTemperature Range
= 25°C P
amb
T
VCBO
VCEO
EBO
I
C
I
B
tot
, T
j
stg
60 V
50 V
5 V
100 mA
20 mA
500 mW
-55 to +150 °C
ELECTRICAL CHARACTERISTICS
(TC = 25°C unless otherwise noted)
PARAMETER SYMBOL TEST CONDITION
Collector Emitter Breakdown Voltage
Collector Base Voltage B
Emitter Base Voltage
Collector Cut-Off Current
Emitter Cut-Off Current
DC Current Gain h
Collector Emitter Saturation Voltage
Base Emitter On Voltage
B
B
I
I
V
CE(sat)
V
VCEO
VCBO
VEBO
CBO
EBO
FE
BE(on)
1
IC=100mA,IB=10mA
DYNAMIC CHARACTERISTICS
Current-Gain Bandwidth Product
Common Base Output Capacitance
Noise Figure NF
f
T
C
ob
VCE=6V, IC=10mA
VCB=10V, IE=0, f=1MHz
V
Rs=10kΩ, f=100Hz
Note:
h
CLASSIFICATION
FE
RQ P K
90-180 135=270 200-400 300-600
Note:
For PNP device voltage and current values will be negative (-).
IC=1mA,IB=0
ALUE
MIN TYP MAX
50 -- -- V
UNIT
IC=100µA,IE=0 60 -- -- V
IE=10µA, IC=0
VCB=60V, IE=0
VEB=5V, IC=0
5----V
-- -- 0.1 µA
-- -- 0.1 µA
VCE=6V,IC=1mA 90 -- 600 --
-- 0.9 0.3 V
IC=1mA,V
CE=
6V
0.6 0.25 0.7 V
100 -- -- MHz
-- -- 6 pF
=6V, IC=0.3mA
CE
-- 9 20 dB
CSA733
Rev01_18042022E
Continental Device India Pvt. Limited
Data Sheet Page 1 of 5
Page 2
Continental Device India Pvt. Limited
An IATF 16949, ISO9001 and ISO 14001 Certified Company
TYPICAL CHARACTERISTICS CURVES
Fig 1: Base Emitter On Voltage Fig 3: DC Current Gain
Fig 2: Current Gain-Bandwidth Product
Fig 4: Base-Emitter Saturation Voltage
Collector-Emitter Saturation
CSA733
Rev01_18042022E
Continental Device India Pvt. Limited
Data Sheet Page 2 of 5
Page 3
Continental Device India Pvt. Limited
An IATF 16949, ISO9001 and ISO 14001 Certified Company
PACKAGE DETAILS
TO-92 Plastic Package
DIM MIN. MAX.
A 4.32 5.33
B 4.45 5.20
C 3.18 4.19
D 0.41 0.55
E 0.35 0.50
F 5°
G 1.14 1.40
H 1.14 1.53
K 12.70
L 1.982 2.082
All dimensions in mm.
--
PIN CONFIGURATION
1. EMITTER
2. COLLECTOR
3. BASE
CSA733
Rev01_18042022E
Continental Device India Pvt. Limited
Data Sheet Page 3 of 5
Page 4
Continental Device India Pvt. Limited
An IATF 16949, ISO9001 and ISO 14001 Certified Company
Recommended Product Storage Environment for Discrete
Semiconductor Devices
This storage environment assumes that the Diodes and transistors are packed properly inside
the original packing supplied by CDIL.
ꞏ Temperature 5 °C to 30 °C
ꞏ Humidity between 40 to 70 %RH
ꞏ Air should be clean.
ꞏ Avoid harmful gas or dust.
ꞏ Avoid outdoor exposure or storage in areas subject to rain or water spraying .
ꞏ Avoid storage in areas subject to corrosive gas or dust. Product shall not be stored in areas
exposed to direct sunlight.
ꞏ Avoid rapid change of temperature.
ꞏ Avoid condensation.
ꞏ Mechanical stress such as vibration and impact shall be avoided.
ꞏ The product shall not be placed directly on the floor.
ꞏ The product shall be stored on a plane area. They should not be turned upside down.
They should not be placed against the wall.
Shelf Life of CDIL Products
The shelf life of products is the period from product manufacture to shipment to customers. The product can be
unconditionally shipped within this period. The period is defined as 2 years.
If products are stored longer than the shelf life of 2 years the products shall be subjected to quality check as
per CDIL quality procedure.
The products are further warranted for another one year after the date of shipment subject to the above
conditions in CDIL original packing.
Floor Life of CDIL Products and MSL Level
When the products are opened from the original packing, the floor life will start.
For this, the following JEDEC table may be referred:
JEDEC MSL Level
Level Time Condition
1 Unlimited ≤30 °C / 85% RH
2 1 Year ≤30 °C / 60% RH
2a 4 Weeks ≤30 °C / 60% RH
3 168 Hours ≤30 °C / 60% RH
4 72 Hours ≤30 °C / 60% RH
5 48 Hours ≤30 °C / 60% RH
5a 24 Hours ≤30 °C / 60% RH
6 Time on Label(TOL) ≤30 °C / 60% RH
CSA733
Rev01_18042022E
Continental Device India Pvt. Limited
Data Sheet Page 4 of 5
Page 5
Continental Device India Pvt. Limited
An IATF 16949, ISO9001 and ISO 14001 Certified Company
Customer Notes
Component Disposal Instructions
1. CDIL Semiconductor Devices are RoHS compliant, customers are requested to please
dispose as per prevailing Environmental Legislation of their Country.
2. In Europe, please dispose as per EU Directive 2002/96/EC on Waste Electrical and
Electronic Equipment (WEEE).
Disclaimer
The product information and the selection guides facilitate selection of the CDIL's Semiconductor Device(s)
best suited for application in your product(s) as per your requirement. It is recommended that you completely
review our Data Sheet(s) so as to confirm that the Device(s) meet functionality parameters for your application.
The information furnished in the Data Sheet and on the CDIL Web Site/CD are believed to be accurate and
reliable. CDIL however, does not assume responsibility for inaccuracies or incomplete information.
Furthermore, CDIL does not assume liability whatsoever, arising out of the application or use of any CDIL
product; neither does it convey any license under its patent rights nor rights of others. These products are not
designed for use in life saving/support appliances or systems. CDIL customers selling these products (either as
individual Semiconductor Devices or incorporated in their end products), in any life saving/support appliances
or systems or applications do so at their own risk and CDIL will not be responsible for any damages resulting
from such sale(s).
CDIL strives for continuous improvement and reserves the right to change the specifications of its products
without prior notice.
C-120 Naraina Industrial Area, New Delhi 110 028, India.
