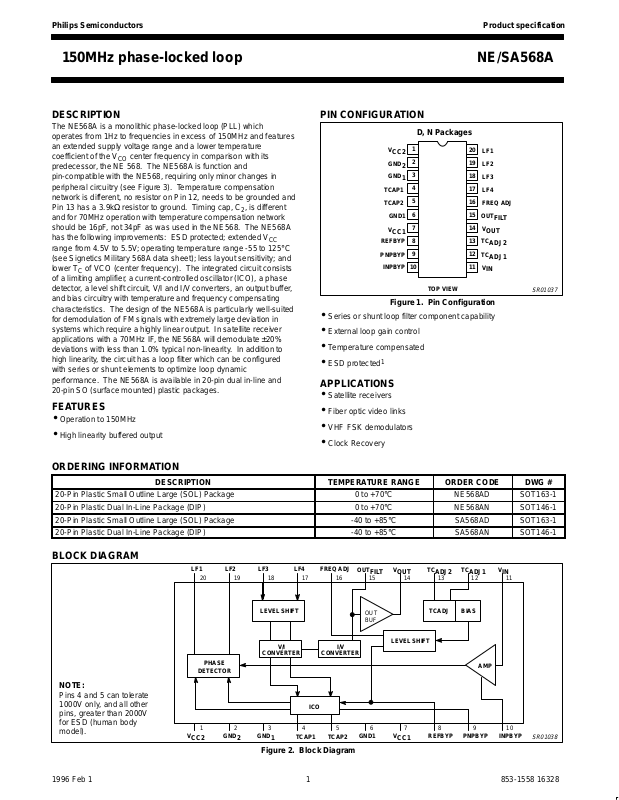

NE/SA568A150MHz phase-locked loop

1

1996 Feb 1 853-1558 16328

DESCRIPTION

The NE568A is a monolithic phase-locked loop (PLL) which
operates from 1Hz to frequencies in excess of 150MHz and features
an extended supply voltage range and a lower temperature
coefficient of the V

CO

center frequency in comparison with its
predecessor, the NE 568. The NE568A is function and
pin-compatible with the NE568, requiring only minor changes in
peripheral circuitry (see Figure 3). Temperature compensation
network is different, no resistor on Pin 12, needs to be grounded and
Pin 13 has a 3.9kΩ resistor to ground. Timing cap, C

2

, is different
and for 70MHz operation with temperature compensation network
should be 16pF, not 34pF as was used in the NE568. The NE568A
has the following improvements: ESD protected; extended V

CC

range from 4.5V to 5.5V; operating temperature range -55 to 125°C
(see Signetics Military 568A data sheet); less layout sensitivity; and
lower T

C

of VCO (center frequency). The integrated circuit consists
of a limiting amplifier, a current-controlled oscillator (ICO), a phase
detector, a level shift circuit, V/I and I/V converters, an output buf fer,
and bias circuitry with temperature and frequency compensating
characteristics. The design of the NE568A is particularly well-suited
for demodulation of FM signals with extremely large deviation in
systems which require a highly linear output. In satellite receiver
applications with a 70MHz IF, the NE568A will demodulate ±20%
deviations with less than 1.0% typical non-linearity. In addition to
high linearity, the circuit has a loop filter which can be configured
with series or shunt elements to optimize loop dynamic
performance. The NE568A is available in 20-pin dual in-line and
20-pin SO (surface mounted) plastic packages.

FEATURES

•Operation to 150MHz

•High linearity buffered output

PIN CONFIGURATION

V

CC2

GND1

D, N Packages

LF1

V

CC1

REFBYP
PNPBYP

INPBYP

LF3

LF2

LF4
FREQ ADJ

1
2
3
4
5
6
7
8
9

10

11

12

13

14

20
19
18
17
16
15

OUT

FILT

V

OUT

TC

ADJ2

V

IN

TC

ADJ1

GND

2

GND

1

TCAP1
TCAP2

TOP VIEW

SR01037

Figure 1. Pin Configuration

•Series or shunt loop filter component capability

•External loop gain control

•Temperature compensated

•ESD protected

1

APPLICATIONS

•Satellite receivers

•Fiber optic video links

•VHF FSK demodulators

•Clock Recovery

ORDERING INFORMATION

DESCRIPTION TEMPERATURE RANGE ORDER CODE DWG #

20-Pin Plastic Small Outline Large (SOL) Package 0 to +70°C NE568AD SOT163-1
20-Pin Plastic Dual In-Line Package (DIP) 0 to +70°C NE568AN SOT146-1
20-Pin Plastic Small Outline Large (SOL) Package -40 to +85°C SA568AD SOT163-1
20-Pin Plastic Dual In-Line Package (DIP) -40 to +85°C SA568AN SOT146-1

BLOCK DIAGRAM

PHASE

DETECTOR

1 2 3 4 5 6 7 8 9 10

111213141516

17181920

LEVEL SHIFT

V/I

CONVERTER

AMP

I/V

CONVERTER

OUT
BUF

LEVEL SHIFT

TCADJ BIAS

ICO

V

CC2

GND1

LF1

V

CC1

REFBYP PNPBYP INPBYP

LF3LF2 LF4 FREQ ADJ

OUT

FILTVOUT

TC

ADJ2

V

IN

TC

ADJ1

GND

2

GND

1

TCAP1 TCAP2

NOTE:

Pins 4 and 5 can tolerate
1000V only, and all other
pins, greater than 2000V
for ESD (human body
model).

SR01038

Figure 2. Block Diagram

Philips Semiconductors Product specification

NE/SA568A150MHz phase-locked loop

1996 Feb 1

2

ABSOLUTE MAXIMUM RATINGS

SYMBOL PARAMETER RATING UNITS

V

CC

Supply voltage 6 V

T

J

Junction temperature +150 °C

T

STG

Storage temperature range -65 to +150 °C

P

DMAX

Maximum power dissipation 400 mW

θ

JA

Thermal resistance 80 °C/W

ELECTRICAL CHARACTERISTICS

The elctrical characteristics listed below are actual tests (unless
otherwise stated) performed on each device with an automatic IC
tester prior to shipment. Performance of the device in automated
test set-up is not necessarily optimum. The NE568A is

layout-sensitive. Evaluation of performance for correlation to the
data sheet should be done with the circuit and layout of Figures 3, 4,
and 5 with the evaluation unit soldered in place. (Do not use a
socket!)

DC ELECTRICAL CHARACTERISTICS

VCC = 5V; TA = 25°C; fO = 70MHz, Test Circuit Figure 3, fIN = -20dBm, R4 = 3.9kΩ, unless otherwise specified.

LIMITS

SYMBOL

PARAMETER

TEST CONDITIONS

NE/SA568A

UNITS

MIN TYP MAX

V

CC

Supply voltage 4.5 5 5.5 V

I

CC

Supply current 54 70 mA

AC ELECTRICAL CHARACTERISTICS

LIMITS

SYMBOL

PARAMETER

TEST CONDITIONS

NE/SA568A

UNITS

MIN TYP MAX

f

OSC

Maximum oscillator operating frequency

3

150 MHz

Input signal level

50

–20

1

2000

+10

mV

P-P

dBm

BW Demodulated bandwidth fO/7 MHz

Non-linearity

5

Dev = ±20%, Input = -20dBm 1.0 4.0 %

Lock range

2

Input = -20dBm ±25 ±35 % of f

O

Capture range

2

Input = -20dBm ±20 ±30 % of f

O

TC of f

O

Figure 3 100 ppm/°C

R

IN

Input resistance

4

1 kΩ

Output impedance 6 Ω
Demodulated V

OUT

Dev = ±20% of fO measured at

Pin 14

0.40 0.52 V

P-P

AM rejection

VIN = -20dBm (30% AM)

referred to ±20% deviation

50 dB

f

O

Distribution

6

Centered at 70MHz, R2 =

1.2kΩ, C

2

= 16pF, R4 = 3.9kΩ

(C

2

+ C

STRAY

= 20pF)

-15 0 +15 %

f

O

Drift with supply 4.5V to 5.5V 2 %/V

NOTE:

1. Signal level to assure all published parameters. Device will continue to function at lower levels with varying performance.

2. Limits are set symmetrical to f

O

. Actual characteristics may have asymmetry beyond the specified limits.

3. Not 100% tested, but guaranteed by design.

4. Input impedance depends on package and layout capacitances. See Figures 6 and 5.

5. Linearity is tested with incremental changes in inupt frequency and measurement of the DC output voltage at Pin 14 (V

OUT

). Non-linearity is

then calculated from a straight line over the deviation range specified.

6. Free-running frequency is measured as feedthrough to Pin 14 (V

OUT

) with no input signal applied.

Philips Semiconductors Product specification

NE/SA568A150MHz phase-locked loop

1996 Feb 1

3

C1

R

FC1

C2

C8

C3

C4

C5 C6

C7

C13

C12

C11

C9

R

FC2

V

CC

V

OUT

V

IN

C10

R1

R2

R3

R4

R5

V

CC2

GND1

GND2

GND1

TCAP1

TCAP2

V

CC1

REFBYP

PNPBYP

INPBYP

LF1

OUTFILT

LF2

LF3

LF4

FREQADJ

V

OUT

TCADJ2

TCADJ1

V

IN

SR01039

1

2

3

4

5

6

7

8

9

10

20

19

18

17

16

15

14

13

12

11

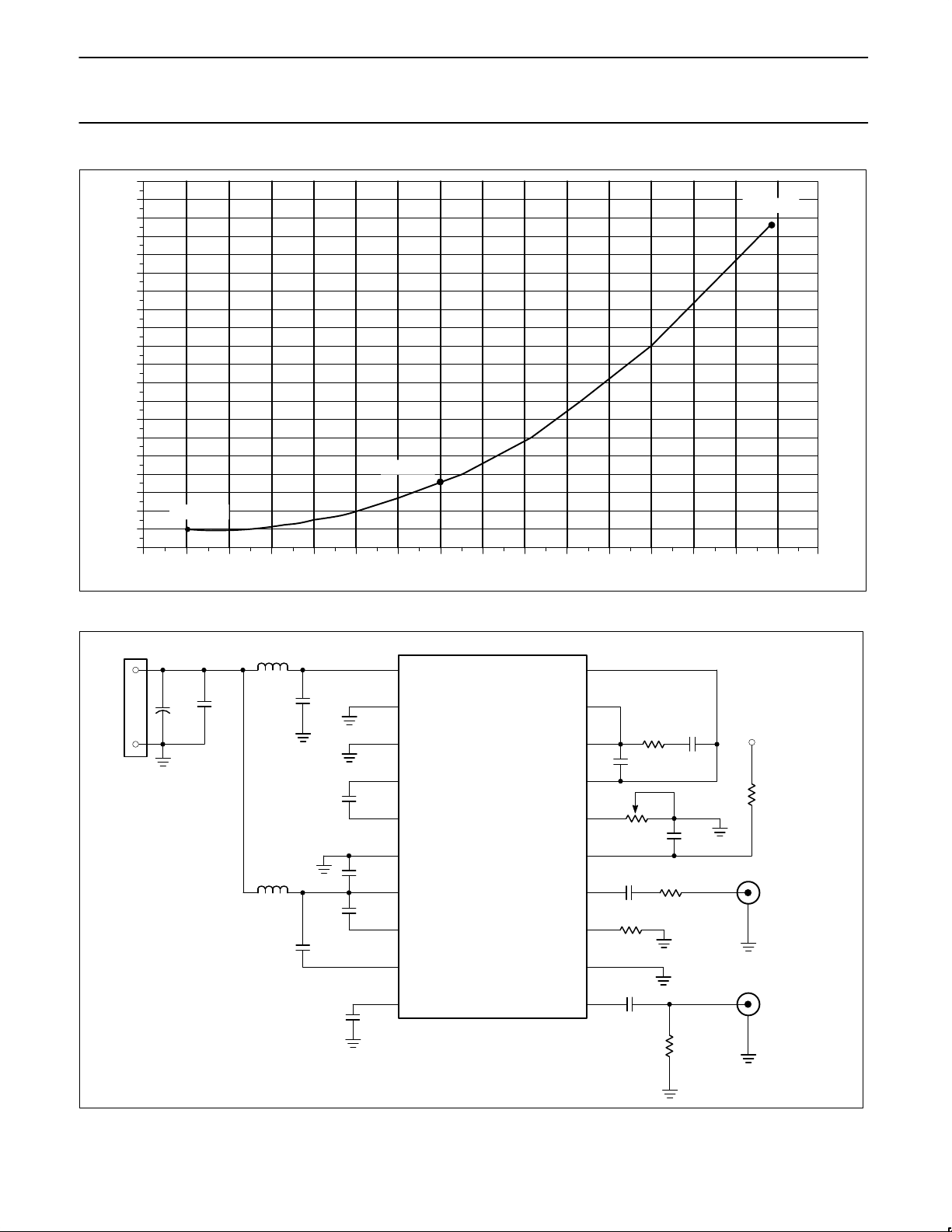

Figure 3. Test Circuit for AC Parameters

FUNCTIONAL DESCRIPTION

The NE568A is a high-performance phase-locked loop (PLL). The
circuit consists of conventional PLL elements, with special circuitry
for linearized demodulated output, and high-frequency performance.
The process used has NPN transistors with f

T

> 6GHz. The high
gain and bandwidth of these transistors make careful attention to
layout and bypass critical for optimum performance. The
performance of the PLL cannot be evaluated independent of the
layout. The use of the application layout in this data sheet and
surface-mount capacitors are highly recommended as a starting
point.

The input to the PLL is through a limiting amplifier with a gain of 200.
The input of this amplifier is differential (Pins 10 and 11). For
single-ended applications, the input must be coupled through a
DC-blocking capacitor with low impedance at the frequency of
interest. The single-ended input is normally applied to Pin 11 with
Pin 10 AC-bypassed with a low-impedance capacitor. The input
impedance is characteristically slightly above 500Ω. Impedance
match is not necessary, but loading the signal source should be
avoided. When the source is 50 or 75Ω, a DC-blocking capacitor is
usually all that is needed.

Input amplification is low enough to assure reasonable response
time in the case of large signals, but high enough for good AM
rejection. After amplification, the input signal drives one port of a
multiplier-cell phase detector. The other port is driven by the
current-controlled oscillator (ICO). The output of the phase
comparator is a voltage proportional to the phase difference of the
input and ICO signals. The error signal is filtered with a low-pass
filter to provide a DC-correction voltage, and this voltage is
converted to a current which is applied to the ICO, shifting the
frequency in the direction which causes the input and ICO to have a
90° phase relationship.

The oscillator is a current-controlled multivibrator. The current
control affects the charge/discharge rate of the timing capacitor . It is
common for this type of oscillator to be referred to as a

voltage-controlled oscillator (VCO), because the output of the phase
comparator and the loop filter is a voltage. To control the frequency
of an integrated ICO multivibrator, the control signal must be
conditioned by a voltage-to-current converter. In the NE568A,
special circuitry predistorts the control signal to make the change in
frequency a linear function over a large control-current range.

The free-running frequency of the oscillator depends on the value of
the timing capacitor connected between Pins 4 and 5. The value of
the timing capacitor depends on internal resistive components and
current sources. When R

2

= 1.2kΩ and R4 = 0Ω, a very close

approximation of the correct capacitor value is:



O

F

STRAY

(ICO Constant) at 70MHz

The loop filter determines the general characteristics of the loop.
Capacitors C

9

, C10, and resistor R1, control the transient output of

the phase detector. Capacitor C

9

suppresses 70MHz feedthrough
by interaction with 100Ω load resistors internal to the phase
detector.

0.0014

C *

f

where

C *  C

2

 C

The temperature-compensation resistor, R4, affects the actual value
of capacitance. This equation is normalized to 70MHz. See 10 for
correction factors.

The loop filter determines the dynamic characteristics of the loop. In
most PLLs, the phase detector outputs are internally connected to
the ICO inputs. The NE568A was designed with filter output to input
connections from Pins 20 (φ DET) to 17 (ICO), and Pins 19 (φ DET)
to 18 (ICO) external. This allows the use of both series and shunt
loop-filter elements. The loop constratints are:

K

 0.12VRadian (Phase Detector Constant)

O

Radians

KO 4.2  10

9

V

–sec

Philips Semiconductors Product specification

NE/SA568A150MHz phase-locked loop

1996 Feb 1

4

C

9



1

2 (50) (fO)

F

At 70MHz, the calculated value is 45pF. Empirical results with the
test and application board were improved when a 47pF capacitor
was used.

The natural frequency for the loop filter is set by C

10

and R1. If the
center frequency of the loop is 70MHz and the full demodulated
bandwidth is desired, i.e., f

BW

= fO/7 = 10MHz, and a value for R1 is

chosen, the value of C

10

can be calculated.

C

10



1

2 R1f

BW

F

Also,

C

11



1

2350f

BW(Hz)

This capacitance determines the signal bandwidth of the output
buffer amplifier. (For further inofrmation see Philips application note
AN1881 “The NE568A Phase Locked Loop as a Wideband Video
Demodulator”.

Parts List and Layout 40MHz Application NE568AD

C

1

100nF ±10% Ceramic chip 1206

C

2

1

18pF ±2% Ceramic chip 0805

C

2

2

16pF ±2% Ceramic ORChip

C

3

100nF ±10% Ceramic chip 1206

C

4

100nF ±10% Ceramic chip 1206

C

5

6.8µF ±10% Tantalum 35V

C

6

100nF ±10% Ceramic chip 1206

C

7

100nF ±10% Ceramic chip 1206

C

8

100nF ±10% Ceramic chip 1206

C

9

47pF ±2% Ceramic chip 0805 or 1206

C

10

560pF ±2% Ceramic chip 0805 or 1206

C

11

47pF ±2% Ceramic chip 0805 or 1206

C

12

100nF ±10% Ceramic chip 1206

C

13

100nF ±10% Ceramic chip 1206

R

1

27Ω ±10% Chip CR32 1/4W

R

2

1.2kΩ Trim pot

R

3

3

43Ω ±10% Chip CR32 1/4W

R

4

4

3.9kΩ ±10% Chip CR32 1/4W

R

5

3

50Ω ±10% Chip CR32 1/4W

RFC

1

5

10µH ±10% Surface mount

RFC

2

5

10µH ±10% Surface mount

NOTES:

1. 18pF with Pin 12 ground and Pin 13 no connect (open).

2. C

2

+ C

STRAY

= 16pF for temperature-compensated configuration

with R

4

= 3.9kΩ.

3. For 50Ω setup. R1 = 62Ω, R3 = 75Ω for 75Ω application.

4. For test configuration R

4

= 0Ω (GND) and C2 = 18pF.

5. 0Ω chip resistors (jumpers) may be substituted with minor degra-

dation of performance.

Parts List and Layout 70MHz Application NE568AN

C

1

100nF ±10% Ceramic chip 50V

C

2

1

18pF ±2% Ceramic chip 50V

C

2

2

16pF ±2% Ceramic chip 0805

C

3

100nF ±10% Ceramic chip 50V

C

4

100nF ±10% Ceramic chip 50V

C

5

6.8µF ±10% Tantalum 35V

C

6

100nF ±10% Ceramic chip 50V

C

7

100nF ±10% Ceramic chip 50V

C

8

100nF ±10% Ceramic chip 50V

C

9

47pF ±2% Ceramic chip 50V

C

10

560pF ±2% Ceramic chip 50V

C

11

47pF ±2% Ceramic chip 50V

C

12

100nF ±10% Ceramic chip 50V

C

13

100nF ±10% Ceramic chip 50V

R

1

27Ω ±10% Ceramic chip

CR32

1/4W

R

2

1.2kΩ Trim pot

R

3

3

43Ω ±10% Ceramic chip

CR32

1/4W

R

4

4

3.9kΩ ±10% Ceramic chip
CR32

1/4W

R

5

3

50Ω ±10% Ceramic chip

CR32

1/4W

RFC

1

10µH ±10% Surface mount

RFC

2

10µH ±10% Surface mount

NOTES:

1. 18pF with Pin 12 ground and Pin 13 no connect (open).

2. C

2

+ C

STRAY

= 16pF for temperature-compensated configuration

with R

4

= 3.9kΩ.

3. For 50Ω setup. R1 = 62Ω, R3 = 75Ω for 75Ω application.

4. For test configuration R

4

= 0Ω (GND) and C2 = 18pF.

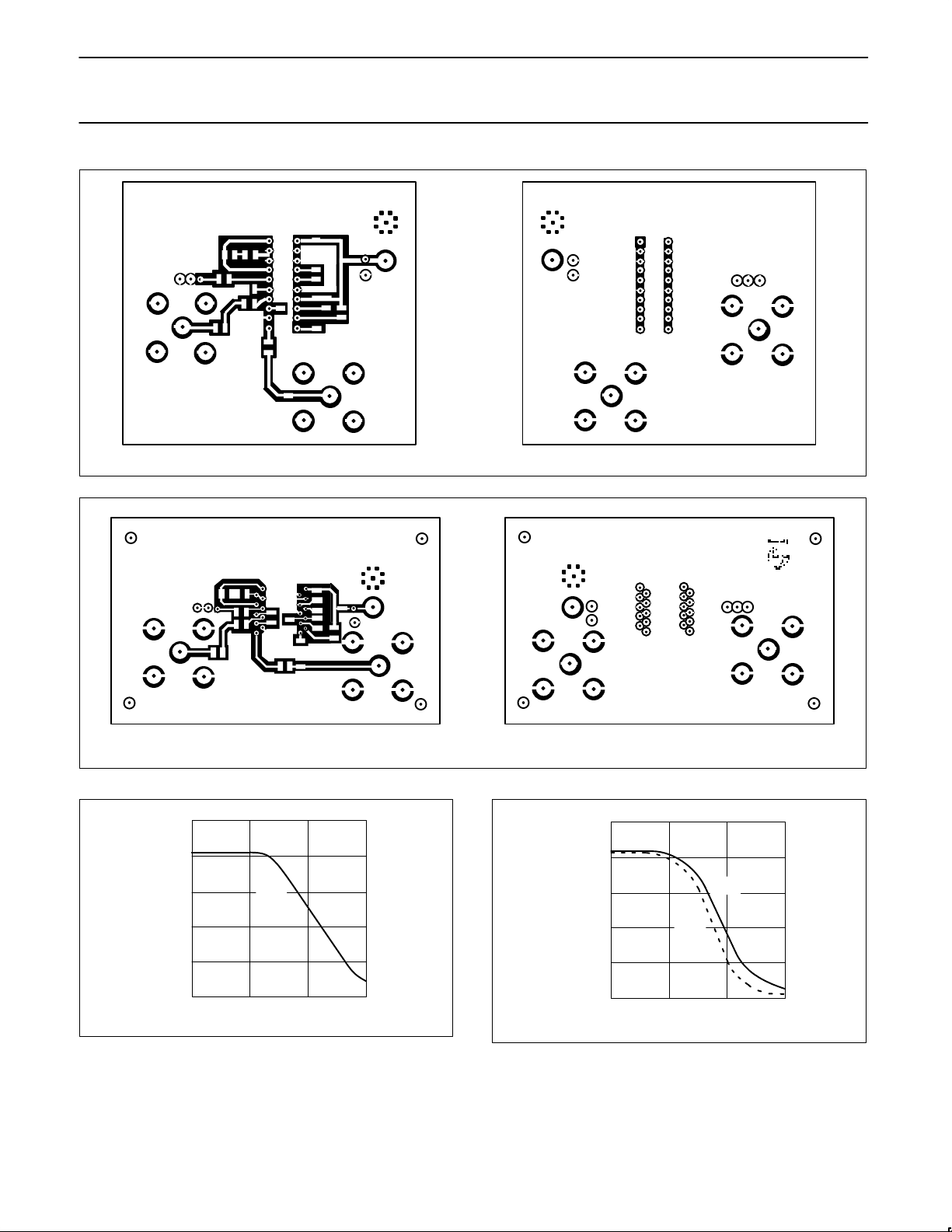

Philips Semiconductors Product specification

NE/SA568A150MHz phase-locked loop

1996 Feb 1

5

NE568A
KT10/89

GND

V

CC

V

IN

V

OUT

SR01040

Figure 4. N Package Layout (Not Actual Size)

GND

V

CC

NE568A SO

INPUT

SIGNETICS

OUTPUT

SR01041

Figure 5. D Package Layout (Not Actual Size)

1.25E3

1.0 10.0 100.0

1.0E3

750.0

500.0

250.0

0.0

Z

Z

IN

FREQUENCY (MHz)

SR01042

IN

Ω

Figure 6. NE568A Input Impedance With CP = 0.5pF 20-Pin SO

Package

1.25E3

1.0 10.0 100.0 1.0E3

1.0E3

750.0

500.0

250.0

0.0

Z

IN

FREQUENCY (MHz)

R

IN

SR01043

Z

IN

Ω

Figure 7. NE568A Input Impedance WithCP = 1.49pF 20-Pin

Dual In-Line Plastic Package

Philips Semiconductors Product specification

NE/SA568A150MHz phase-locked loop

1996 Feb 1

6

4.0

3.5

3.0

2.5
0 10 20 30 40 50 60 70 80 90 100 110120

FREQUENCY (MHz)

VOLTS

SR01044

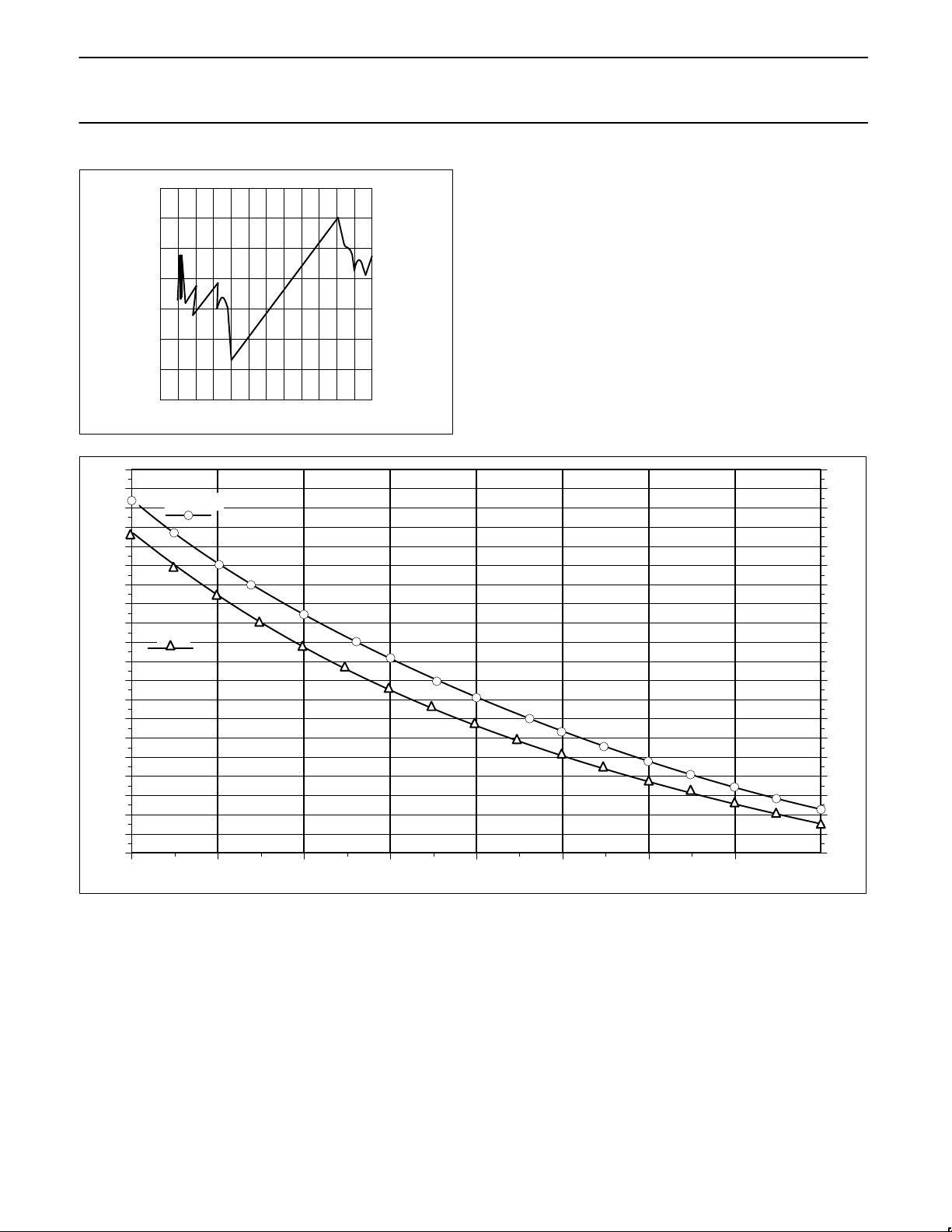

Figure 8. Typical Output Linearity

80
78
76
74
72
70
68
66
64
62
60
58
56
54
52
50
48
46
44
42
40

100

95

90

85

80

75

70

65

60

55

50

0.8 0.9 1.0 1.1 1.2 1.3 1.4 1.5 1.6

Frequency Adjust (kΩ)

I

CC

mA

F

O

MHz

FO MHz

I

CC

SR01045

Figure 9. NE568: Frequency Adjust vs FO and I

CC

Philips Semiconductors Product specification

NE/SA568A150MHz phase-locked loop

1996 Feb 1

7

12.0

11.5

11.0

10.5

10.0

9.5

9.0

8.5

8.0

7.5

7.0

6.5

6.0

5.5

5.0

4.5

4.0

3.5

3.0

2.5

2.0
0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160

C = 6.8pF

R

tc

(k )

Ω

FO MHz

C = 16pF

C = 150pF

SR01046

Figure 10. NE568A: Rtc (Pin 13) vs FO; Choosing the Optimum Temperature Compensation Resistor

+5V

V

CC

1

2

3

4

5

6

7

8

9

10

20

19

18

17

16

15

14

13

12

11

C8

0.1µF

C3

0.1µF

C2

18pF

C4

0.1µF

C1

0.1µF

C7

0.1µF

V

CC

2

GND2

GND1

TCAP1

TCAP2

V

CC

1

GND1

REFBYP

PNPBYP

INPBYP

LF1

LF2

LF3

LF4

FREQADJ

V

OUT

OUTFILT

TCADJ2

TCADJ1

V

IN

C5

0.1µF

C6

10µF

GND

J1

+

RFC1

10µH

RFC2

10µH

C13

0.1µF

C12

0.1µF

C10

560pF

C11

47pF

C9

47pF

R1

27Ω

R2

2kΩ

R6

1.5kΩ

R3

43Ω

J3

V

OUT

J2

V

IN

R5

51Ω

R4

3.9kΩ

NE/SA568A

(ZO = 50Ω)*

(Optional. Leave it

open if not used)

(Output Amp Gain

Adj -2dB)

*NOTE: For 75Ω output impedance, use R3 = 68Ω.

SR01113

Figure 11. Phase Locked Loop NE/SA568A

Philips Semiconductors Product specification

NE/SA568A150MHz phase-locked loop

1996 Feb 1

8

C6

C5

RFC2

C2

RFC1

GND

IN

C3

C8C1C4

C7

R5

C13

R4

R3

C12

R6

C11

C9

R2

C10

R1

NE568AN

70MHz

PLL10569

OUT

+5V

TOP

BOTTOM

COMPONENTS LAYOUT

SR01114

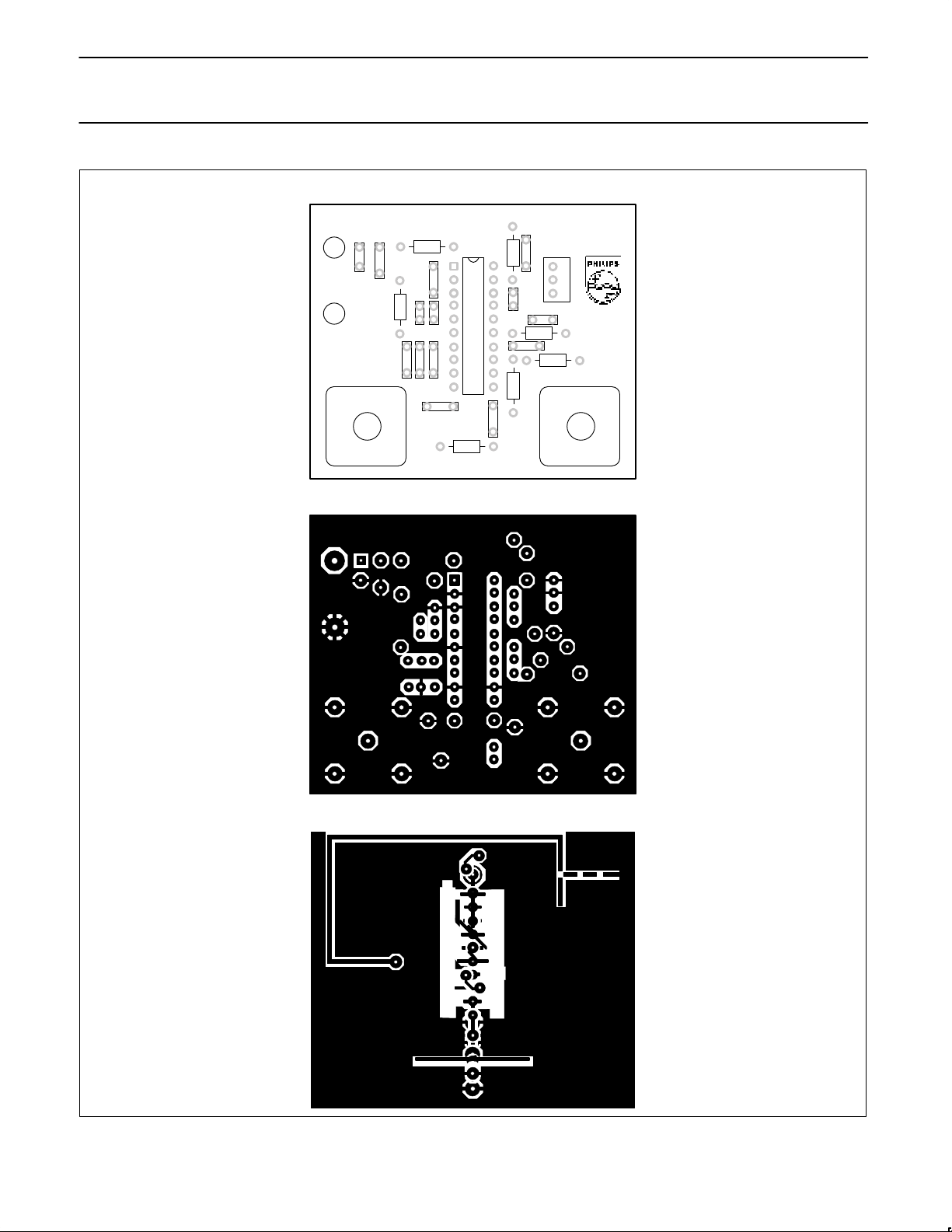

Figure 12. NE568AN Board Layout (Not Actual Size)

Philips Semiconductors Product specification

NE/SA568A150MHz phase-locked loop

1996 Feb 1

9

VIN

J2

R5

3.9k

C7

C13

NE568AD

70MHz

PLL10570

0.1µF 0.1µF
51

VOUT

J3

0.1µF

R4

C12

R3

47pF 43

C11

R6

R2

2K

C10

560pF

R1

27

47pF

NE568AD

1.5k
C9

U1

C1

0.1µF

C3C8C4

0.1 F

µ

0.1 Fµ0.1 F

µ

+5V

GND

RFC2

J1

C6

C5

RFC1

18pF

10 H

µ

10 H

µ

0.1 F

µ

10 F

µ

SR01115

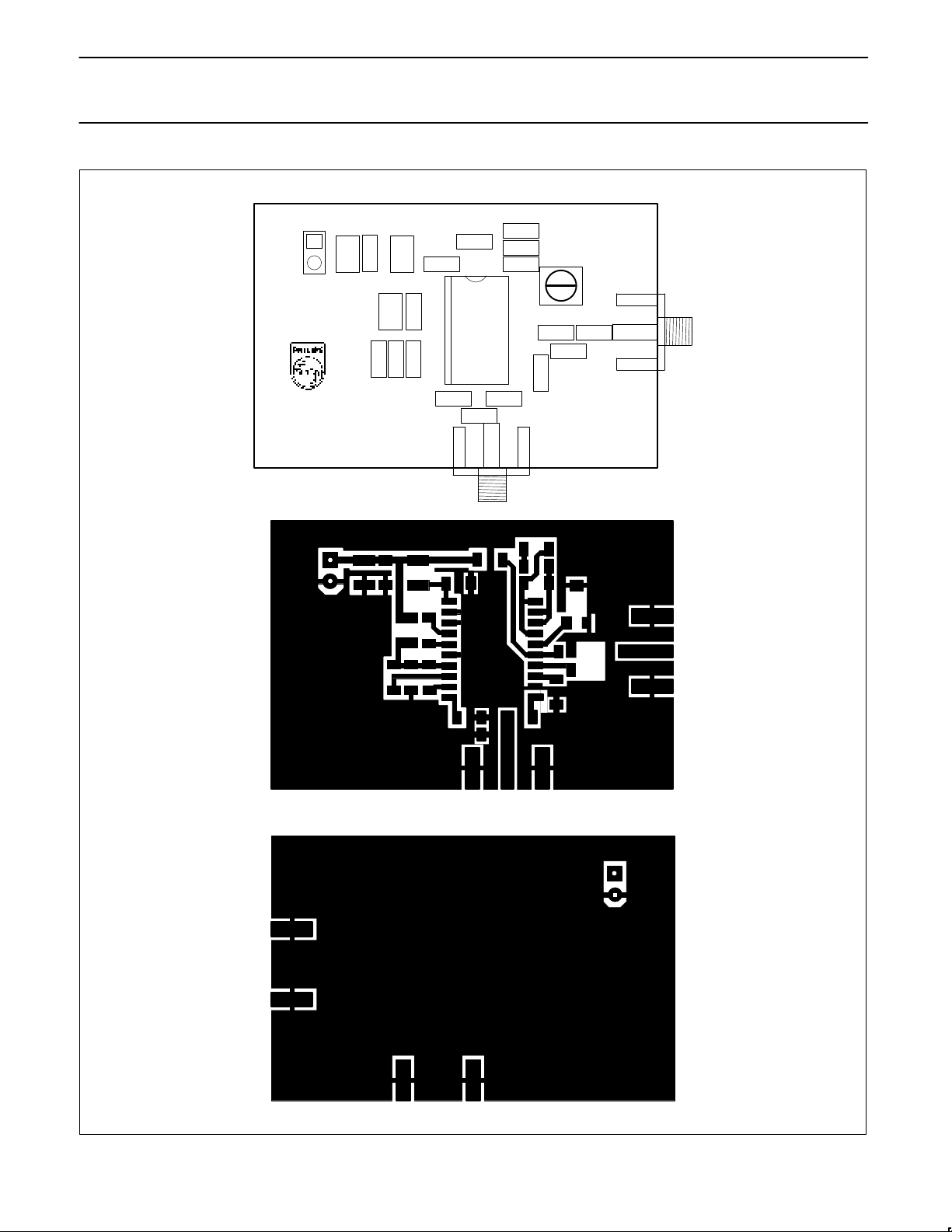

Figure 13. NE568AD Board Layout (Not Actual Size)
