Page 1
Inchange Semiconductor Product Specification
固电半导体
INCHANGE SEMICONDUCTOR

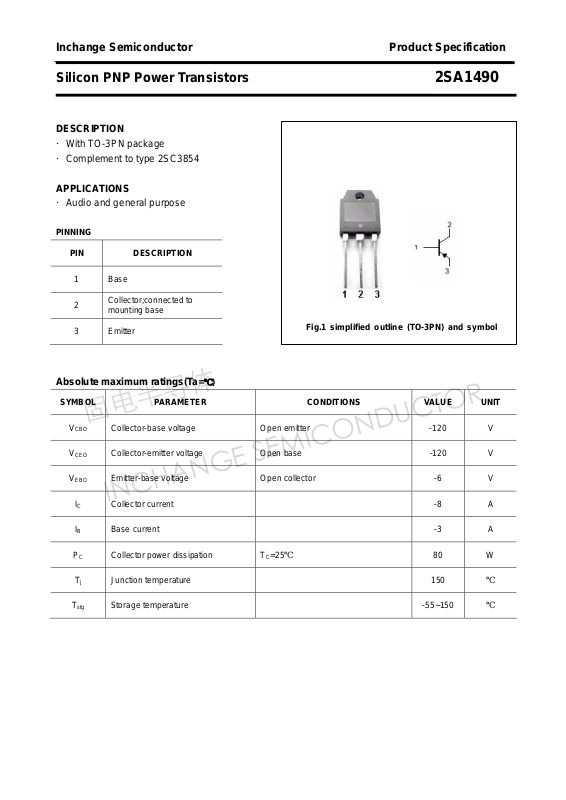

Silicon PNP Power Transistors 2SA1490
DESCRIPTION
·With TO-3PN package
·Complement to type 2SC3854
APPLICATIONS
·Audio and general purpose
PINNING
PIN DESCRIPTION
1
2
3 Emitter
Base
Collector;connected to
mounting base

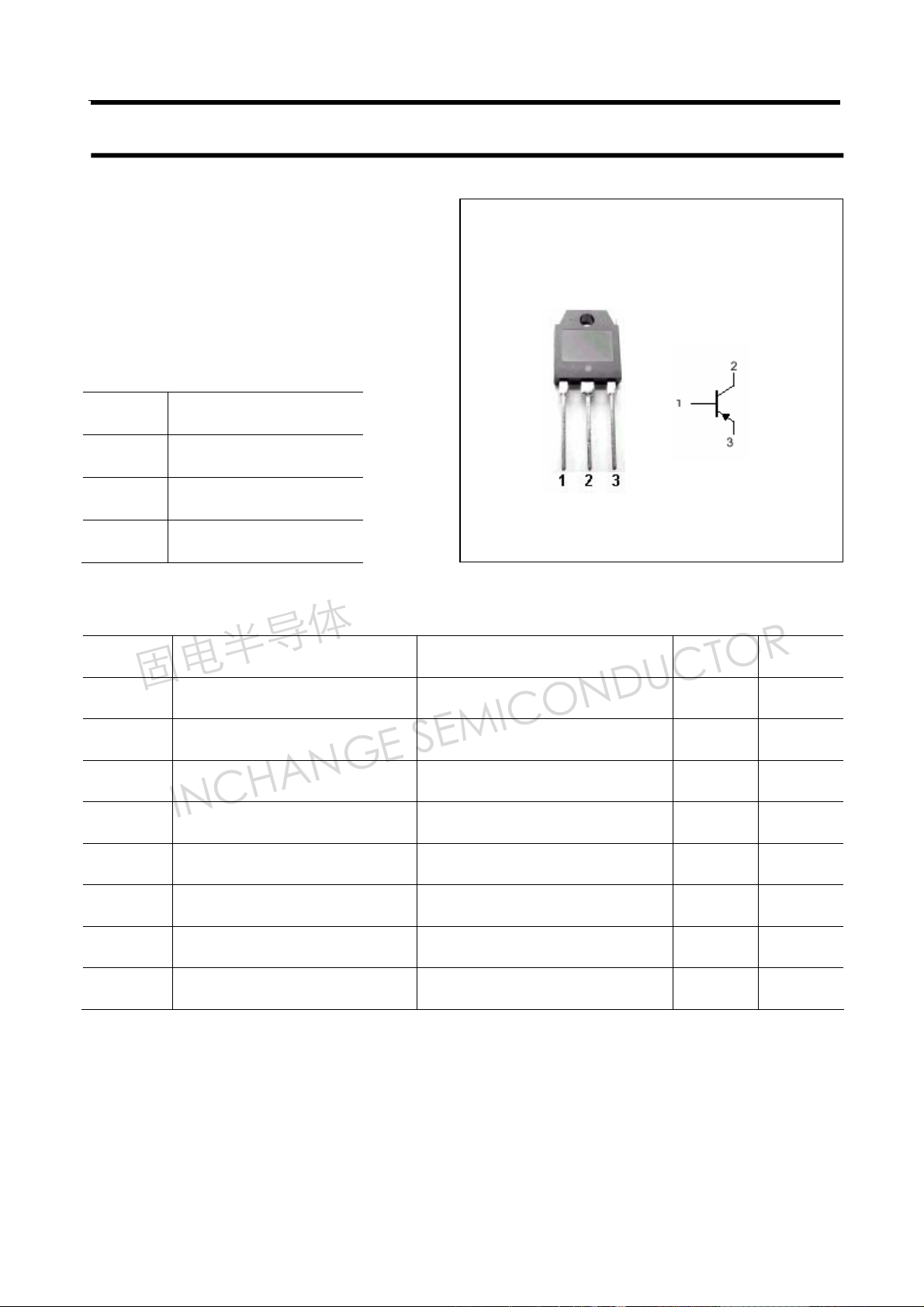

Fig.1 simplified outline (TO-3PN) and symbol
Absolute maximum ratings(Ta=℃)
SYMBOL PARAMETER CONDITIONS VALUE UNIT
V
CBO
V
CEO
V
EBO
IC Collector current -8 A
IB Base current -3 A
PC Collector power dissipation
Collector-base voltage Open emitter -120 V
Collector-emitter voltage Open base -120 V
Emitter-base voltage Open collector -6 V
T
=25℃
C
80 W
Tj Junction temperature 150
T
Storage temperature -55~150
stg
℃
℃
Page 2
Inchange Semiconductor Product Specification
固电半导体
INCHANGE SEMICONDUCTOR
Silicon PNP Power Transistors 2SA1490
CHARACTERISTICS
Tj=25℃ unless otherwise specified
SYMBOL PARAMETER CONDITIONS MIN TYP. MAX UNIT
V
(BR)CEO
V
CEsat
I
CBO
I
EBO
hFE DC current gai n IC=-3A ; VCE=-4V 50
fT Transition frequency IC=0.5A ; VCE=-12V 20 MHz
Switching times
ton Turn-on time 0.25 μs
ts Storage time 0.7 μs
tf Fall time
Collector-emitter breakdown voltage IC=-50mA ;IB=0 -120 V
Collector-emitter saturation voltage IC=-3A; IB=-0.3A -1.5 V
Collector cut-off current VCB=-120V; IE=0 -100 μA
Emitter cut-off current VEB=-6V; IC=0 -100 μA
I
=-4A;RL=10Ω
C
=-IB2=-0.4A
I
B1
=40V
V
CC
0.2 μs
2
Page 3
Inchange Semiconductor Product Specification
固电半导体
INCHANGE SEMICONDUCTOR
Silicon PNP Power Transistors 2SA1490
PACKAGE OUTLINE

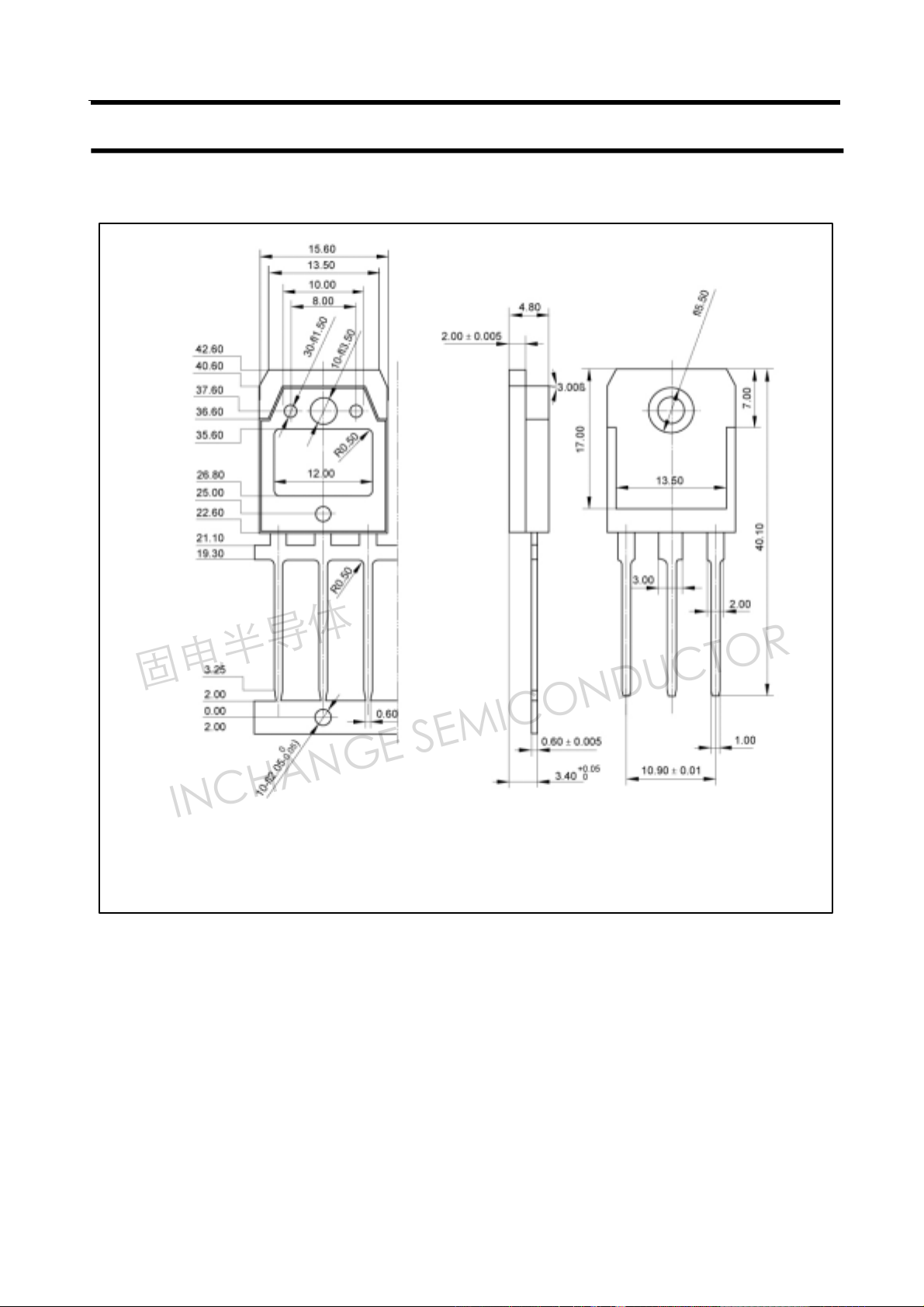

Fig.2 outline dimensions (unindicated tolerance:±0.1mm)
3
