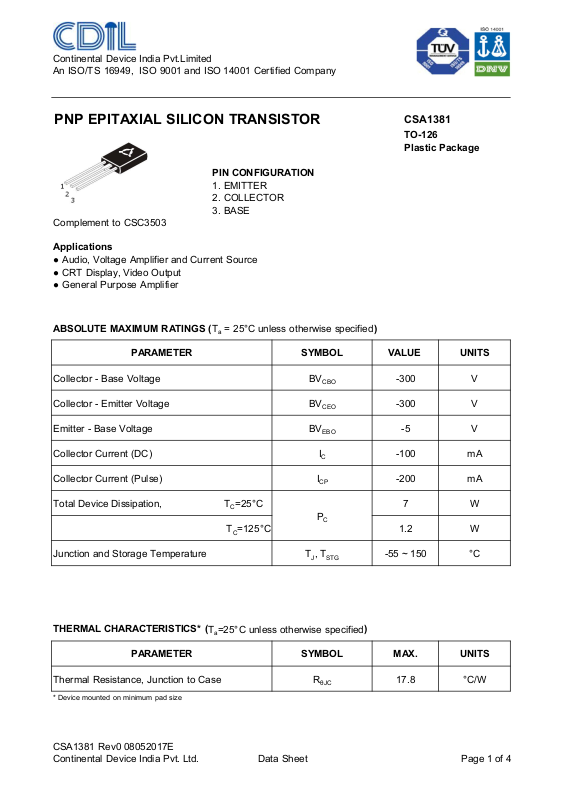

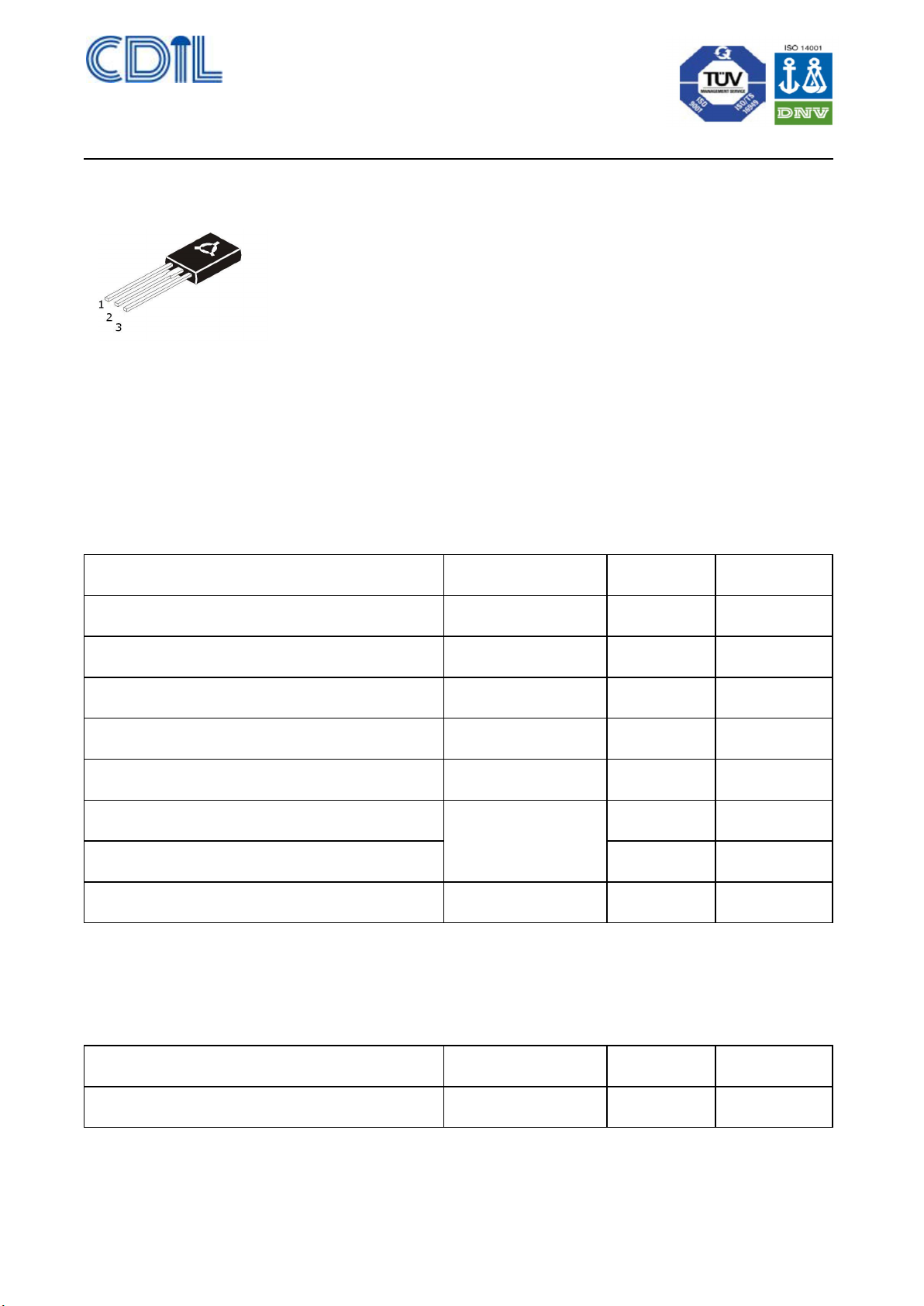

Page 1
Continental Device India Pvt.Limited
An ISO/TS 16949, ISO 9001 and ISO 14001 Certified Company
PNP EPITAXIAL SILICON TRANSISTOR
CSA1381
TO-126
Plastic Package
PIN CONFIGURATION
1. EMITTER
2. COLLECTOR
3. BASE
Complement to CSC3503
Applications
● Audio, Voltage Amplifier and Current Source
● CRT Display, Video Output
● General Purpose Amplifier
ABSOLUTE MAXIMUM RATINGS (Ta = 25°C unless otherwise specified)
PARAMETER SYMBOL VALUE UNITS
Collector - Base Voltage
BV
CBO
-300 V
Collector - Emitter Voltage
BV
CEO
-300 V
Emitter - Base Voltage
BV
EBO
-5 V
Collector Current (DC) I
C
-100 mA
Collector Current (Pulse)
I
CP
-200 mA
Total Device Dissipation, TC=25°C
P
C
7 W
TC=125°C
1.2 W
Junction and Storage Temperature
TJ, T
STG
-55 ~ 150 °C
THERMAL CHARACTERISTICS* (
Ta=25°C unless otherwise specified
)
PARAMETER SYMBOL MAX. UNITS
Thermal Resistance, Junction to Case
R
θJC
17.8 °C/W
* Device mounted on minimum pad size
CSA1381 Rev0 08052017E
Continental Device India Pvt. Ltd. Data Sheet Page 1 of 4
Page 2
Continental Device India Pvt.Limited
An ISO/TS 16949, ISO 9001 and ISO 14001 Certified Company
ELECTRICAL CHARACTERISTICS* (
Ta=25°C unless otherwise specified
)
PARAMETER SYMBOL TEST CONDITIONS MIN. TYP. MAX. UNITS
Collector-Base Breakdown Voltage
BV
CBO
IC=-10μA, IE=0
-300 V
Collector-Emitter Breakdown Voltage
BV
CEO
IC=-1mA, IB=0
-300 V
Emitter-Base Breakdown Voltage
BV
EBO
IE=-10μA, IC=0
-5 V
Collector Cut-off Current
I
CBO
VCB=-200V, IE=0
-0.1 μA
Emitter Cut-off Current
I
EBO
VEB=-4V, IC=0
-0.1 μA
DC Current Gain
hFE** VCE=-10V, IC=-10mA
40 320
Collector-Emitter Saturation Voltage
VCE(sat) IC=-20mA, IB=-2mA
-0.6 V
Base-Emitter Saturation Voltage
VBE(sat) IC=-20mA, IB=-2mA
1 V
Current Gain Bandwidth Product
f
T
VCE=-30V, IC=-10mA
150 MHz
Output Capacitance
C
ob
VCB=-30V, f=1MHz
3.1 pF
Reverse Transfer Capacitance
C
re
VCB=-30V, f=1MHz
2.3 pF
**hFE CLASSIFICATION
CLASSIFICATION C D E F
h
FE
40~80 60~120 100~200 160~320
CSA1381 Rev0 08052017E
Continental Device India Pvt. Ltd. Data Sheet Page 2 of 4
Page 3
Continental Device India Pvt.Limited
An ISO/TS 16949, ISO 9001 and ISO 14001 Certified Company

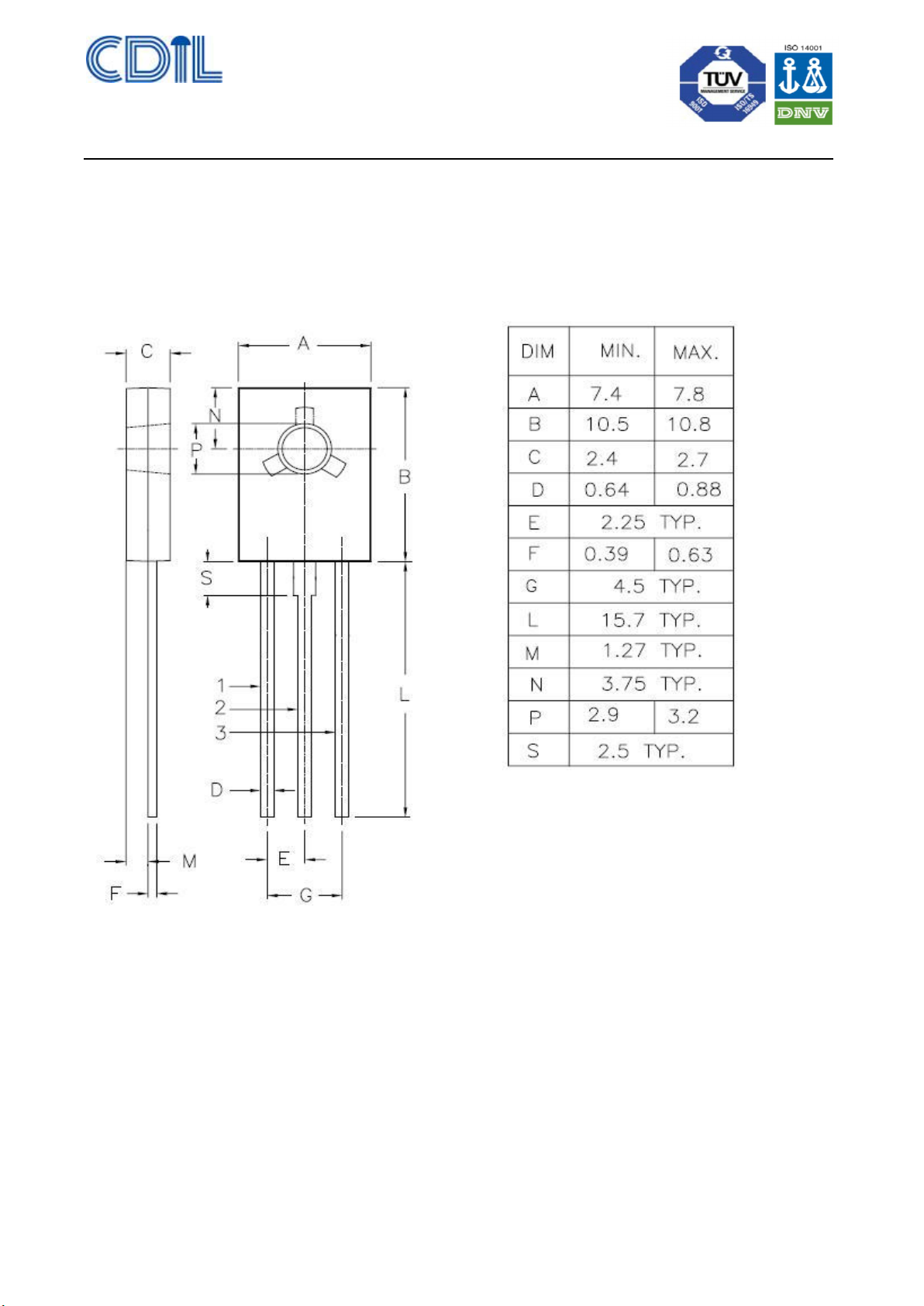

Package Outline and Dimension TO-126
CSA1381 Rev0 08052017E
Continental Device India Pvt. Ltd. Data Sheet Page 3 of 4
Page 4
Continental Device India Pvt.Limited
An ISO/TS 16949, ISO 9001 and ISO 14001 Certified Company
Customer Notes
Component Disposal Instructions
1. CDIL Semiconductor Devices are RoHS compliant, customers are requested to please
dispose as per prevailing Environmental Legislation of their Country.
2. In Europe, please dispose as per EU Directive 2002/96/EC on Waste Electrical and
Electronic Equipment (WEEE).
DISCLAIMER
CDIL is a registered Trademark of
Continental Device India Pvt. Limited
C-120 Naraina Industrial Area, New Delhi 110 028, India.
Telephone + 91-11-2579 6150, 4141 1112 Fax + 91-11-2579 5290, 4141 1119
[email protected] www.cdil.com
CIN No. U32109DL1964PTC004291
The product information and the selection guides facilitate selection of the CDIL's Semiconductor Device(s) best suited for application in your
product(s) as per your requirement. It is recommended that you completely review our Data Sheet(s) so as to confirm that the Device(s) meet
functionality parameters for your application. The information furnished in the Data Sheet and on the CDIL Web Site/CD is believed to be
accurate and reliable. CDIL however, does not assume responsibility for inaccuracies or incomplete information. Furthermore, CDIL does not
assume liability whatsoever, arising out of the application or use of any CDIL product; neither does it convey any license under its patent
rights nor rights of others. These products are not designed for use in life saving/support appliances or systems. CDIL customers selling
these products (either as individual Semiconductor Devices or incorporated in their end products), in any life saving/support appliances or
systems or applications do so at their own risk and CDIL will not be responsible for any damages resulting from such sale(s).
CDIL strives for continuous improvement and reserves the right to change the specifications of its products without prior notice.
CSA1381 Rev0 08052017E
Continental Device India Pvt. Ltd. Data Sheet Page 4 of 4
