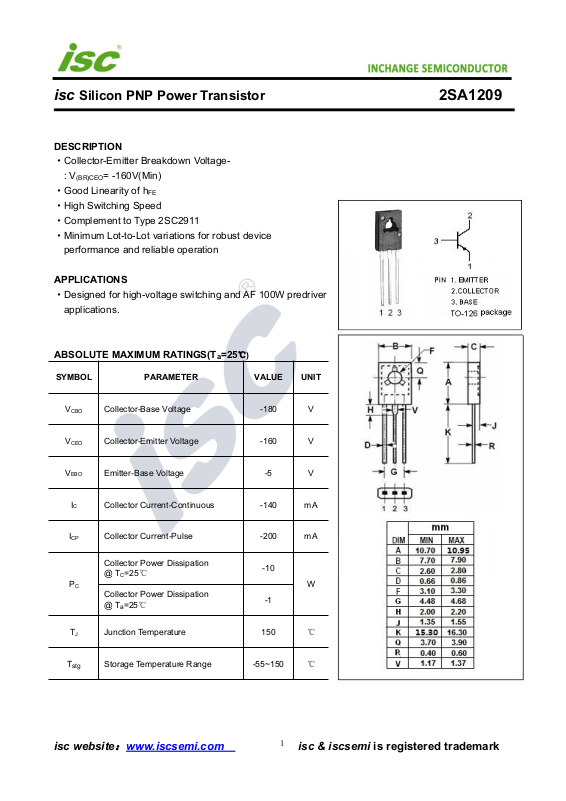

Page 1
1
isc Silicon PNP Power Transistor 2SA1209
SYMBOL
PARAMETER
VALUE
UNIT
V
CBO
Collector-Base Voltage
-180
V
V
CEO
Collector-Emitter Voltage
-160
V
V
EBO
Emitter-Base Voltage
-5
V
I
C
Collector Current-Continuous
-140
mA
ICPCollector Current-Pulse
-200
mA
P
C
Collector Power Dissipation
@ TC=25℃
-10
W
Collector Power Dissipation
@ Ta=25℃
-1
T
J
Junction Temperature
150
℃
T
stg
Storage Temperature Range
-55~150
℃
DESCRIPTION
·Collector-Emitter Breakdown Voltage-
: V
·Good Linearity of h
·High Switching Speed
·Complement to Type 2SC2911
·Minimum Lot-to-Lot variations for robust device
performance and reliable operation
APPLICATIONS
·Designed for high-voltage switching and AF 100W predriver
applications.
(BR)CEO
= -160V(Min)
FE
ABSOLUTE MAXIMUM RATINGS(Ta=25
℃)
isc website：www.iscsemi.com isc & iscsemi is registered trademark
Page 2
2
isc Silicon PNP Power Transistor 2SA1209
SYMBOL
PARAMETER
CONDITIONS
MIN
TYP.
MAX
UNIT
V
CE(
sat
)
Collector-Emitter Saturation Voltage
IC= -50mA; IB= -5mA
-0.3
V
I
CBO
Collector Cutoff Current
VCB= -80V; IE= 0
-0.1
μA
I
EBO
Emitter Cutoff Current
VEB= -4V; IC= 0
-0.1
μA
hFEDC Current Gain
IC= -10mA; VCE= -5V
100
400
f
T
Current-Gain—Bandwidth Product
IC= -10mA; VCE= -10V
150
MHz
COBCollector Output Capacitance
IE= 0; VCB= -10V; f= -1MHz
3
pF
RST
100-200
140-280
200-400
ELECTRICAL CHARACTERISTICS
TC=25℃ unless otherwise specified
hFEClassifications
NOTICE
：
ISC reserves the rights to make changes of the content herein the datasheet at any time without
notification. The information contained herein is presented only as a guide for the applications of
our products.
ISC products are intended for usage in general electronic equipment. The products are not
designed for use in equipment which require specialized quality and/or reliability, or in equipment
which could have applications in hazardous environments, aerospace industry, or medical
field. Please contact us if you intend our products to be used in these special applications.
ISC makes no warranty or guarantee regarding the suitability of its products for any particular
purpose, nor does ISC assume any liability arising from the application or use of any products, and
specifically disclaims any and all liability, including without limitation special, consequential or
incidental damages.
isc website：www.iscsemi.com isc & iscsemi is registered trademark
