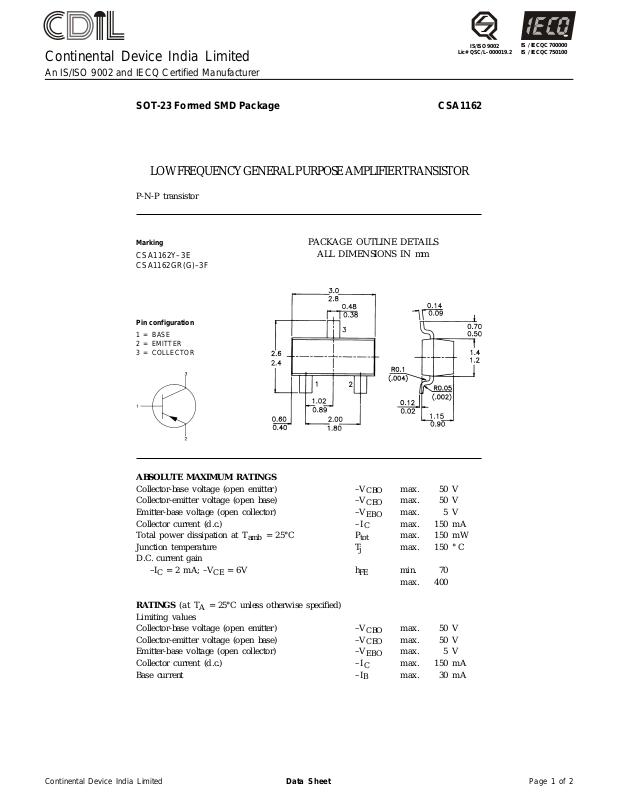

Continental Device India Limited
An IS/ISO 9002 and IECQ Certified Manufacturer
Lic#
IS/ISO 9002
SC/L- 000019 .2
IS / IECQC 700000
C 750100
IS / IEC
SOT-23 Formed SMD Package
CSA1162
LOW FREQUENCY GENERAL PURPOSE AMPLIFIER TRANSISTOR
P-N-P transistor
Marking
CSA1162Y–3E
CSA1162GR(G)–3F
Pin configuration
1 = BASE
2 = EMITTER
3 = COLLECTOR
PACKAGE OUTLINE DETAILS
ALL DIMENSIONS IN mm
ABSOLUTE MAXIMUM RATINGS
Collector-base voltage (open emitter) –V
Collector-emitter voltage (open base) –V
Emitter-base voltage (open collector) –V
Collector current (d.c.) –I
Total power dissipation at T
= 25°C P
amb
Junction temperature T
D.C. current gain
= 2 mA; –VCE = 6V h
–I
C
RATINGS (at T
= 25°C unless otherwise specified)
A
Limiting values
Collector-base voltage (open emitter) –V
Collector-emitter voltage (open base) –V
Emitter-base voltage (open collector) –V
Collector current (d.c.) –I
Base current –I
tot
j
FE
CBO
CEO
EBO
C
CBO
CEO
EBO
C
B
max. 50 V
max. 50 V
max. 5 V
max. 150 mA
max. 150 mW
max. 150 ° C
min. 70
max. 400
max. 50 V
max. 50 V
max. 5 V
max. 150 mA
max. 30 mA
Continental Device India Limited Data Sheet Page 1 of 2
Page 2
CSA1162
Total power dissipation at T
= 25°C P
amb
tot
max. 150 mW
Storage temperature Tstg –50 to +150 ° C
Junction temperature T
CHARACTERISTICS (at T
= 25°C unless otherwise specified)
A
j
max. 150 ° C
Collector-emitter breakdown voltage
= 1 mA; IB = 0 –V
–I
C
(BR)CEO
min 50 V
Collector cut-off current
= 50 V; IE = 0 –I
–V
CB
CBO
max. 100 nA
Emitter cut-off current
= 5 V; IC = 0 I
V
EB
EBO
max. 100 nA
Saturation voltage
= 100 mA; –IB = 10 mA –V
–I
C
CEsat
max. 0.3 V
D.C. current gain
= 2 mA; –VCE = 6 V h
I
C
FE
min. 70
max. 400
Y min. 120
max. 240
GR(G) min. 200
max. 400
Transition frequency
= 10 V; IC = 1 mA f
V
CE
Collector output capacitance
= 10 V; IE = 0; f = 1 MHz C
V
CB
Noise figure
= 6 V; IC = 0.1 mA
V
CE
f = 1 kHz; R
= 10 kW N
g
T
ob
F
min. 80 MHz
max. 7 pF
max. 10 dB
Continental Device India Limited Data Sheet Page 2 of 2
Page 3
Notes
Disclaimer
The product information and the selection guides facilitate selection of the CDIL's Discrete Semiconductor Device(s) best suited
for application in your product(s) as per your requirement. It is recommended that you completely review our Data Sheet(s) so as
to confirm that the Device(s) meet functionality parameters for your application. The information furnished on the CDIL Web Site/
CD is believed to be accurate and reliable. CDIL however, does not assume responsibility for inaccuracies or incomplete
information. Furthermore, CDIL does not assume liability whatsoever, arising out of the application or use of any CDIL product;
neither does it convey any license under its patent rights nor rights of others. These products are not designed for use in life
saving/support appliances or systems. CDIL customers selling these products (either as individual Discrete Semiconductor
Devices or incorporated in their end products), in any life saving/support appliances or systems or applications do so at their own
risk and CDIL will not be responsible for any damages resulting from such sale(s).
CDIL strives for continuous improvement and reserves the right to change the specifications of its products without prior notice.
CDIL is a registered Trademark of
Continental Device India Limited
C-120 Naraina Industrial Area, New Delhi 110 028, India.
Telephone + 91-11-579 6150 Fax + 91-11-579 9569, 579 5290
e-mail [email protected] www.cdil.com
