Inchange Semiconductor Product Specification
固电半导体
INCHANGE SEMICONDUCTOR

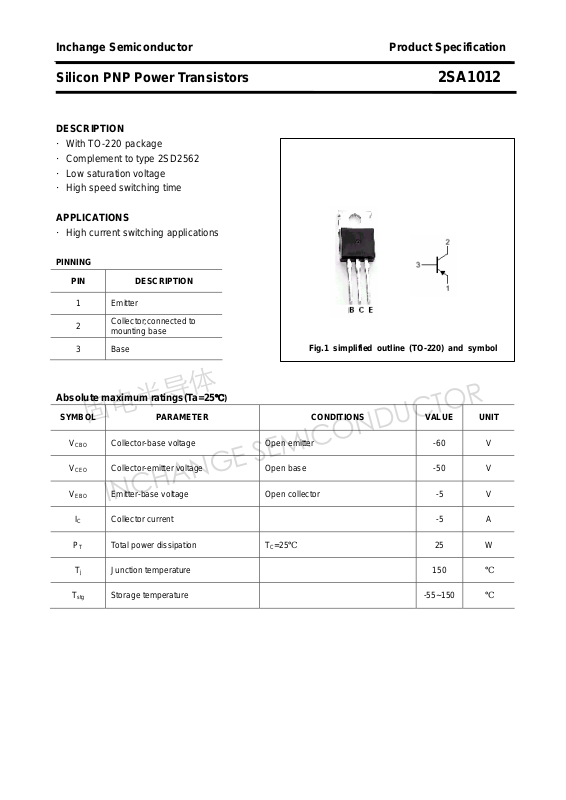

Silicon PNP Power Transistors 2SA1012
DESCRIPTION
·With TO-220 package
·Complement to type 2SD2562
·Low saturation voltage
·High speed switching time
APPLICATIONS
·High current switching applications
PINNING
PIN DESCRIPTION
1
2
3 Base
Emitter
Collector;connected to
mounting base

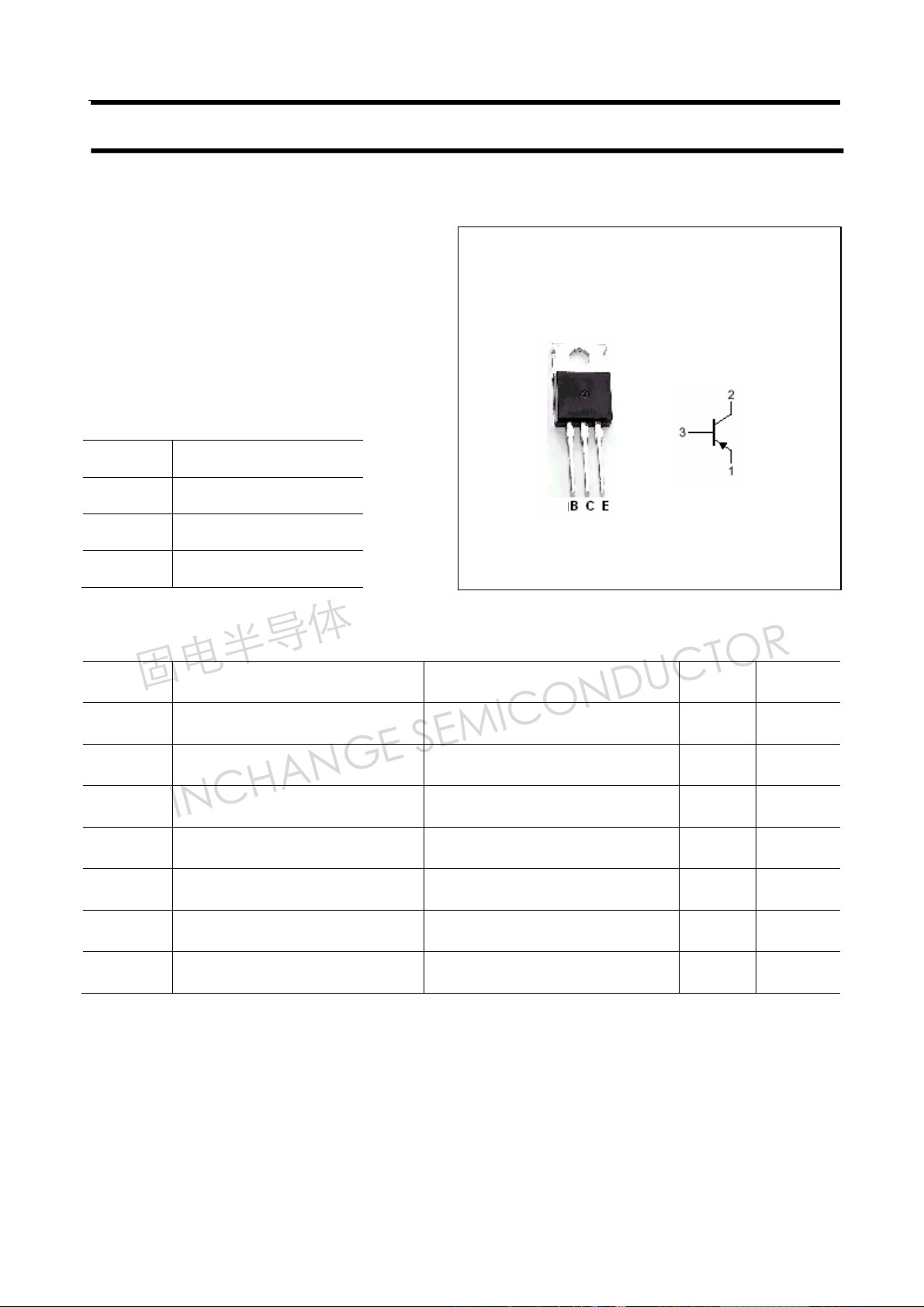

Fig.1 simplified outline (TO-220) and symbol
Absolute maximum ratings(Ta=25℃)
SYMBOL PARAMETER CONDITIONS VALUE UNIT
V
CBO
V
CEO
V
EBO
IC Collector current -5 A
PT Total power dissipation
Tj Junction temperature 150
Collector-base voltage Open emitter -60 V
Collector-emitter voltage Open base -50 V
Emitter-base voltage Open collector -5 V
T
=25℃
C
25 W
℃
T
Storage temperature -55~150
stg
℃
Page 2
Inchange Semiconductor Product Specification
固电半导体
INCHANGE SEMICONDUCTOR
Silicon PNP Power Transistors 2SA1012
CHARACTERISTICS
Tj=25℃ unless otherwise specified
SYMBOL PARAMETER CONDITIONS MIN TYP. MAX UNIT
V
Switching times
Collector-emitter breakdown voltage IC=-10mA , IB=0 -50 V
(BR)CEO
V
Collector-emitter saturation voltage IC=-3A; IB=-0.15A -0.4 V
CEsat
V
Base-emitter saturation voltage IC=-3A; IB=-0.15A -1.2 V
BEsat
I
Collector cut-off current VCB=-50V; IE=0 -1
CBO
I
Emitter cut-off current VEB=-5V; IC=0 -1
EBO
h
DC current gain IC=-1A ; VCE=-1V 70 240
FE –1
h
DC current gain IC=-3A ; VCE=-1V 30
FE -2
fT Transition frequency IC=-1A ; VCE=-4V 60 MHz
Cob Output capacitance f=1MHz ; VCB=10V 170 pF
ton Turn-on time 0.1
=-3A ;IB1=- IB2=-0.15A
I
ts Storage time 1.0
C
=10Ω,VCC=30V
R
L
μA
μA
μs
μs
tf Fall time
h
Classifications
FE-1
O Y
70-140 120-240
2
0.1
μs
