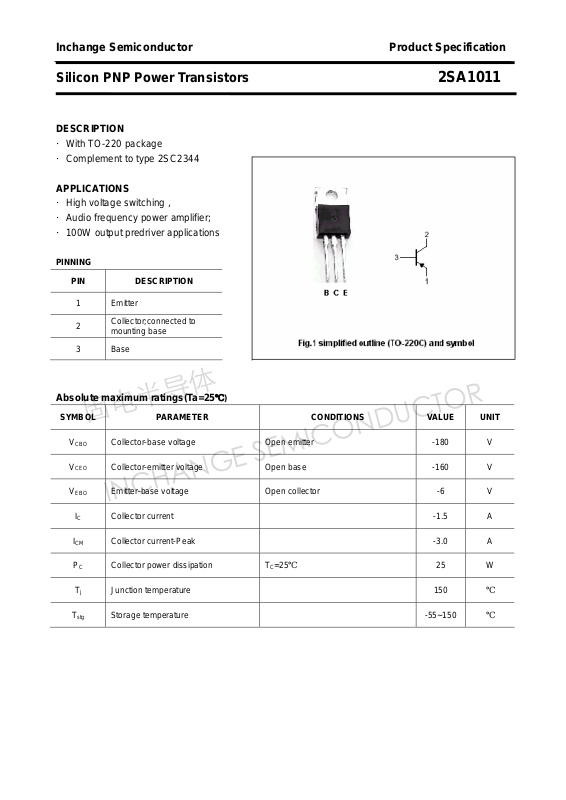

Page 1
Inchange Semiconductor Product Specification
固电半导体
INCHANGE SEMICONDUCTOR
Silicon PNP Power Transistors 2SA1011
DESCRIPTION
·With TO-220 package
·Complement to type 2SC2344
APPLICATIONS
·High voltage switching ,
·Audio frequency power amplifier;
·100W output predriver applications
PINNING
PIN DESCRIPTION
1
2
3 Base
Emitter
Collector;connected to
mounting base
Absolute maximum ratings(Ta=25
SYMBOL PARAMETER CONDITIONS VALUE UNIT
V
CBO
V
CEO
V
EBO
IC Collector current -1.5 A
ICM Collector current-Peak -3.0 A
PC Collector power dissipation TC=25℃ 25 W
Collector-base voltage Open emitter -180 V
Collector-emitter voltage Open base -160 V
Emitter-base voltage Open collector -6 V
℃)
Tj Junction temperature 150 ℃
T
Storage temperature -55~150 ℃
stg
Page 2
Inchange Semiconductor Product Specification
固电半导体
INCHANGE SEMICONDUCTOR
Silicon PNP Power Transistors 2SA1011
CHARACTERISTICS
Tj=25℃ unless otherwise specified
SYMBOL PARAMETER CONDITIONS MIN TYP. MAX UNIT
I
V
(BR)CEO
Collector-emitter breakdown voltage
=-10mA ,RBE=∞
C
-160 V
V
V
Switching times resistive load
Collector-base breakdown voltage IC=-1mA; IE=0 -180 V
(BR)CBO
Emitter-base breakdown voltage IE=-1mA; IC=0 -6 V
(BR)EBO
V
Collector-emitter saturation voltage IC=-0.5A; IB=-50mA -0.5 V
CEsat
VBE Base-emitter voltage IC=-10mA ; VCE=-5V -1.5 V
I
Collector cut-off current VCB=-120V; IE=0 -10
CBO
I
Emitter cut-off current VEB=-4V; IC=0 -10
EBO
h
DC current gain IC=-0.3A ; VCE=-5V 60 200
FE
fT Transition frequency IC=-50mA ; VCE=-10V 100 MHz
Cob Output capacitance IE=0; f=1MHz ; VCB=-10V 30 pF
ton Turn-on time 0.29
=-0.5A ;IB1=-IB2=-50mA
I
ts Storage time 0.48
C
V
=20V; RL=40Ω
CC
μA
μA
μs
μs
tf Fall time
hFE Classifications
D E
60-120 100-200
2
0.19
μs
Page 3
Inchange Semiconductor Product Specification
固电半导体
INCHANGE SEMICONDUCTOR
Silicon PNP Power Transistors 2SA1011
PACKAGE OUTLINE
Fig.2 Outline dimensions(unindicated tolerance:±0.10 mm)
3
Page 4
Inchange Semiconductor Product Specification
固电半导体
INCHANGE SEMICONDUCTOR
Silicon PNP Power Transistors 2SA1011
4
