Serial Input, Quad 8-Bit Nonvolatile DACPOT™

S9408

FEATURES

• Four 8-Bit DACS
– Differential Non-linearity - ±0.5LSB max

– Integral Non-Linearity - ±1LSB max

• Each DAC has Independent Reference Inputs
– Output Buffer Amplifiers Swing Rail-to-Rail

– Ground to VDD Reference Input Range

• Each DAC’s Digital Input Data Maintained in
Nonvolatile EEPROM

• Power-On Reset Reloads Registers with
Nonvolatile Data

• Simple Serial Interface for Reading and Writing
DAC values, SPI™ and QSPI™ compatible.

• Fully operational from 2.7V to 5.5V

• Low Power: <1mW @ 2.7V

FUNCTIONAL BLOCK DIAGRAM

Memory Control

8-Bit E2PROM

OVERVIEW

The S9408 DACPOT™ is a serial input, voltage output,
quad 8-bit digital to analog converter. The S9408 oper-

ates from a single +2.7V to +5.5V supply. Internal preci­sion buffers swing rail-to-rail and the reference input
range includes both ground and the positive supply.

The S9408 integrates four 8-bit DACs and their associ­ated circuits which include an enhanced unity-gain opera-

tional amplifier output, an 8-bit data latch, an 8-bit non­volatile register, and an industry-standard serial interface
for reading and writing data to the DACs’ data latches and
registers. The DACs are independently programmable
and each has its own electrically isolated Vreference
inputs.

DAC SECTION 0

2

V

REFH0

V

DD

RDY/BSY#

CS#

CLK

00/REG#

GND 10

Serial

3

Programming

4

6
7

DI

5

9

Memory

Controller

Control

Logic

Data In

Serial Data Out

8-Bit Data Register

8-Bit DAC

DAC SECTION 1

DAC SECTION 2

DAC SECTION 3

AMP

2015 T BD 2.0

V

18

OUT0

11

V

REFL0

1

V

REFH1

V

17

OUT1

12

V

REFL1

20

V

REFH2

V

16

OUT2

13

V

REFL2

19

V

REFH3

V

15

OUT3

14

V

REFL3

8

DO

© SUMMIT MICROELECTRONICS, Inc. 2000 • 300 Orchard City Drive, Suite 131 • Campbell, CA 95008 • Phone [phone] • Fax [phone] • www.summitmicro.com

Characteristics subject to change without notice

2015 2.2 8/2/00

1

PINOUT and SIGNAL DEFINITION

S9408

Pin Name Function

V

REFH1

V

REFH0

V

DD

RDY/BSY#

CLK

CS#

DI

DO

00/REG#

GND

20-Pin PDIP

or 20-Pin SOIC

1
2
3
4
5
6
7
8
9
10

20
19
18
17
16
15
14
13
12
11

V

REFH2

V

REFH3

V

OUT0

V

OUT1

V

OUT2

V

OUT3

V

REFL3

V

REFL2

V

REFL1

V

REFL0

2015 T PCon 2.0

1, 2 V

REFH

20, 19 V

3V

DD

Vreference High:

REFL

< V

REFH

- V

DD

Power Supply Voltage

4 RDY/BSY# Ready/Busy: open drain output

indicating status of nonvolatile
write operations

5 CLK Clock Input Pin: used for serial

data communication

6 CS# Chip Select: When high deselects

the device and places it in a low

power mode
7 DI Data Input: serial data input pin
8 DO Data Output: serial data output pin

9 00/REG# Power On Recall Option Input

10 GND Power Supply Ground

11, 12 V

REFL

13, 14 V
15, 16 V

OUT

Vreference Low:

REFH

> V

REFL

• GND

DAC Output: buffered D to A

17, 18 converter output

The analog outputs of the S9408 can be programmed to
any one of 256 individual voltage steps. Each step value
is 1/256th of the voltage differential between V
V

of the respective DAC. Once programmed these

REFL

REFH

and

settings can be retained in nonvolatile memory during all
power conditions and will be automatically recalled upon
a power-up sequence. Each DAC can be independently
read without affecting the output voltage during the read

cycle. In addition, each output can be adjusted an unlim­ited number of times without altering the value stored in

the nonvolatile memory.

DEVICE OPERATION

Analog Section

The S9804 is an 8-bit, voltage output digital-to-analog
converter (DAC). The DAC consists of a resistor network
that converts 8-bit digital inputs into equivalent analog
output voltages in proportion to the applied reference
voltage.

Reference inputs

The voltage differential between the V

REFL

and V

REFH

inputs sets the full-scale output voltage for its respective
DAC. V
(positive voltage). V
than V

must be equal to or greater than ground

REFL

must be greater (more positive)

REFH

and less than or equal to VDD.

REFL

Output Buffer Amplifiers

The voltage outputs are precision unity-gain followers that
slew up to 1V/µs. The outputs can swing from V
V

. With a 0V to 5V output transition the amplifier

REFH

REFL

to

outputs typically settle to 1LSB in 40µs.

DIGITAL INTERFACE

The S9408 employs a common 4-wire serial interface. It
is comprised of a Clock (CLK), Chip Select (CS#), Data In

(DI) and Data Out (DO). Data is clocked into the device on
the clock’s rising edge and out of the device on the clock’s
falling edge. Data is shifted in and out MSB first. DO only
becomes active after the device has been selected and
after a valid read command and address has been re­ceived.

All data transfers are initiated after CS# goes low and a
logic ‘1’ is clocked into the device. This first data transfer
is the start bit and must precede all operations. Following
the start bit are two command bits used to specify which
of four commands to execute. The next two bits are the
address bits used to select one of the four DACs. The
action of the next eight clock cycles will be dependent
upon the command issued.

2

2015 2.2 8/2/00

SUMMIT MICROELECTRONICS, Inc.

S9408

tratSC1C

0

A1A

0

dnammoC

100AA elbanEetirWVN
10 1AA nIataD—etirW
110AA tuOataD—daeR
111AA llaceR

TABLE 1. COMMAND FORMAT

Internally there are four DACs and associated with each
are two registers. There is one data register that is used
by the DAC to hold the digital value it converts. There is

also one nonvolatile register that holds the default value
that can be recalled into the data register during power­up or by executing the Recall command.

READ

Read operations are initiated by taking CS# low and
clocking in a start bit followed by the read command and
the address of the data register to be read. The next eight
clocks will output on the DO pin the contents of the

selected data register. This read will not affect the contents
of the register or the output of the DAC. Refer to Figure 1
for an illustration of the sequence of bus conditions for a
read operation.

WRITE

Write operations are initiated by taking CS# low and
clocking in a start bit followed by the write command and
the address of the data register to be written. This action
is followed by the host clocking eight bits of data into the

register, MSB first. The output of the selected DAC will
change as the last bit is clocked into the device. At this
point the clock counter will reset the command register,
requiring a full sequence to be initiated in order to write to

the DAC again.

NOTE: This write operation does not affect the
contents of the nonvolatile register. Therefore, the
nonvolatile register can contain the power-on default
settings (e.g. volume), and the write DAC command
can be used to make situational adjustments.

Refer to Figure 2 for an illustration of the sequence of bus
conditions for a write operation.

CS#

CLK

DI

S
T
A
R
T

DO

RDY/BSY#

SUMMIT MICROELECTRONICS, Inc.

CACA

1100

Hi Z

(Pulled up to VDD)

FIGURE 1. READ SEQUENCE

DD

2015 2.2 8/2/00

DDDDDD

10345672

2015 T fig01 2.0

Hi Z

3

CS#

CLK

S9408

DI

DO

RDY/BSY#

VOUT

CS#

CLK

DI

S
T
A
R
T

CC

10

CDACDA

Hi Z

Rising Edge Sets
NV Write Enable Latch

A

Address and Data
are Don’t Care

D

01

(Pulled up to VDD)

FIGURE 2. WRITE SEQUENCE

CC

10

DDDDDD

DADA

DDDDDD

103456711 200

Rising Edge Starts
NV Write

1034567120

2015 T fig02 2.0

NV Write Enable
Latch is Reset

RDY/BSY#

FIGURE 3. NONVOLATILE WRITE SEQUENCE

NONVOLATILE WRITE

A nonvolatile write is a two step operation: it is initiated by
taking CS# low and clocking in a start bit followed by the
NV Enable command. At this point the host can take CS#
back high or continue clocking in data. This data is don’t
care and will be ignored by the S9408. If any command
other than write follows NV enable the NV latch will be
cleared.

Next, the host takes CS# low again and issues a write
command and address and then clocks in the eight data

4

2015 2.2 8/2/00

2015 T fig03 2.0

bits to be programmed. The host will then bring CS# HIGH
and the data will be latched into the data register and a
nonvolatile write operation will commence.

The status of the nonvolatile write can be monitored on the
RDY/BSY# pin. A logic low indicates the write is still in

progress and the S9408 will not be accessible to the host;
a logic high indicates the write has completed and the
S9408 is ready for the next command. Refer to Figure 3

for an illustration of the sequence of bus conditions for a
nonvolatile write operation.

SUMMIT MICROELECTRONICS, Inc.

S9408

RECALL COMMAND

The recall command will retrieve data from the selected
nonvolatile register and write it into the data register of the

associated DAC. This operation is initiated by taking CS#
low and clocking in a start bit followed by the recall

command and the address of the nonvolatile register to be
recalled. The eight bits of data are don’t care, so CS# can

be taken high any time after the address bits are clocked
in. Refer to Figure 4 for an illustration of the sequence of

bus conditions for a Recall operation.

CS#

CLK

S
T
A
R
T

CACA

1100

V

DI

OUT

Power-on recall

Whenever the S9408 is powered on the DAC output
values will be returned to the selected default setting. The

default setting can be the nonvolatile register contents or
all zeroes. The state of the 00/REG# pin will determine

which operation will be performed. If it is tied to ground (or
left floating) the nonvolatile register contents will be re­called. Conversely, if it is tied to VDD the S9408 will recall

zeroes.

FIGURE 4. RECALL COMMAND SEQUENCE

2015 T fig04 2.0

SUMMIT MICROELECTRONICS, Inc.

2015 2.2 8/2/00

5

S9408

ABSOLUTE MAXIMUM RATINGS

VDD to GND .................................................................... -0.5V to +7V

Digital Inputs to GND ............................................ -0.5V to VDD+0.5V

Analog Inputs to GND........................................... -0.5V to VDD+0.5V

Digital Outputs to GND ......................................... -0.5V to VDD+0.5V

Analog Outputs to GND ........................................ -0.5V to VDD+0.5V

Temperature Under Bias ........................................... -55°C to +125°C

Storage Temperature ................................................-65°C to +150°C

Lead Soldering (10 Sec Max) .................................................... 300°C

RECOMMENDED OPERATING CONDITIONS

Condition Min Max

Temperature -40°C +85°C

V

DD

RELIABILITY CHARACTERISTICS (Over recommended operating conditions unless otherwise specified)

lobmySretemaraPniMxaMtinU

Stresses listed under Absolute Maximum Ratings may cause perma­nent damage to the device. These are stress ratings only, and functional
operation of the device at these or any other conditions outside those
listed in the operational sections of this specification is not implied.
Exposure to any absolute maximum rating for extended periods may
affect device performance and reliability.

+2.7V +5.5V

2015 PGM T2 1.2

V

PAZ

I

HTL

T

RD

N

DNE

ytilibitpecsuSDSE0002V

pu-hctaL001Am

noitneteRataD001sraeY

ecnarudnE000,000,1selcyCegarotS

DC ELECTRICAL CHARACTERISTICS (Over recommended operating conditions unless otherwise specified)

lobmySretemaraPsnoitidnoCniMpyTxaMtinU

I

DD

I

BS

I

HI

I

LI

V

HI

V

LI

V

HO

V

LO

)1eton(

erotsgnirudtnerrucylppuS

tnerrucylppusybdnatSV=SC
tnerrucegakaeltupnIV
tnerrucegakaeltupnIV

egatlovtupnilevelhgiH2V

egatlovtupnilevelwoL08.0V

egatlovtuptuolevelhgiHAµ004–=HOIV

egatlovtuptuolevelwoL

V=SC

LI

HI

V=

NI

DD

V0=1<01– Aµ

NI

3.0– V

DD

8.15.2Am

062005Aµ

1<01Aµ

,Am1=LOIVDD;V5=

,Am4.0=LOIV

V7.2=

DD

3.0

DD

V

4.0V

Note 1: IDD is the supply current drawn while the EEPROM is being updated.

6

2015 2.2 8/2/00

SUMMIT MICROELECTRONICS, Inc.

S9408

AC ELECTRICAL CHARACTERISTICS
VDD = +4.5V to +5.5V, V

Symbol Parameter Conditions Min. Typ. Max. Units

REFH

= VDD, V

= 0V, TA = -40°C to +85°C, unless otherwise specified

REFL

f

C

t

WH

t

WL

t

CS

t

CSS

t

CSH

t

SU

t

H

t

V

t

HO

t

DIS

t

BUSY

Notes: 1. All timing measurements are defined at the point of signal crossing VDD/2.

Clock Frequency DC 1 MHz
Minimum CLK High Time 500 ns
Minimum CLK Low Time 300 ns
Minimum CS High Time 150 ns
CS Setup Time 100 ns
CS Hold Time 0 ns
Data In Setup Time CL = 100pF 50 ns
Data In Hold Time See Note 1 50 ns
Output Valid Time 150 ns
Data Out Hold Time 0 ns
Output Disable Time 400 ns
Write Cycle Time 3.3 5 ms

2015 PGM T5 1.1

t

CS

CS#

CLK

DI

DO

RDY/BSY#

t

t

CSS

t

t

SU

Hi Z

H

t

WL

t

V

WH

t

CSH

t

t

HO

DIS

Hi Z

2015 T fig05 2.0

FIGURE 5. AC TIMING DIAGRAM

SUMMIT MICROELECTRONICS, Inc.

2015 2.2 8/2/00

7

DAC DC ELECTRICAL CHARACTERISTICS
VDD = 2.7V to 5.5V, V

REFH

= VDD, V

= 0V, TA = -40°C to +85°C, unless otherwise specified

REFL

ytreporPlobmySretemaraPsnoitidnoCniMpyTxaMtinU

S9408

LNIytiraenil-nonlargetnII

ycaruccA

LNDytiraenil-nonlaitnereffiDI

V

HFER

V

LFER

R

secnerefeR

NI

∆R

G

V

I

L

R

V

HFER

RCT

NI

NI

SFE

SZegatlovtesffotuptuO00=D

TUO

V

VCT

TUO

TUO

TUO

egatlovtupnIV
egatlovtupnIDNGV

Vot

LFER

ecnatsiserk04

Rfotneiciffeoc.pmeT

NI

hctamecnatsisertupnI5.0±1±%

rorreniagelacs-lluFFF=D

tneiceiffeoc.pmet

tnerrucdaoltuptuopmA002– 0001Aµ

ecnatsisertuptuopmA

DAOL

DAOL

V

DD

I

DAOL

Aµ001=5.01±BSL

)1eton(Aµ001=1.05.0±BSL

LFER

003006Cº/mpp

XEH

XEH

I,V5=

DAOL

Aµ05=

05.25 Vm

)1eton(

Aµ001=V5

V3

01

02

V

DD

hFER

1±BSL

05Cº/Vµ

V
V

Ω

Ω

Ω

golanA

tuptuO

RRSPnoitcejerylppusrewoPI

t

S

BSL1otemitgnilttesCAD

DAOL

Aµ01=1V/BSL

Fp01V5

V3Fp01

63
72

04
53

sµ
sµ

e

N

DHTnoitrotsidcinomrahlatoT

WBBd3–htdiwdnaB

Note 1: Guaranteed but not tested

esiontuptuopmAV,zHk1=f

V5=09Vn √ zH

DD

V

HFER

V

HFER

V

NI

V,V5.2=

V,zHk1=f

NI

V,V5.2=

Vm001=

SMR

,V5=

DD

V1=

SMR

,V5=

DD

80.0%

003zHk

8

2015 2.2 8/2/00

SUMMIT MICROELECTRONICS, Inc.

S9408

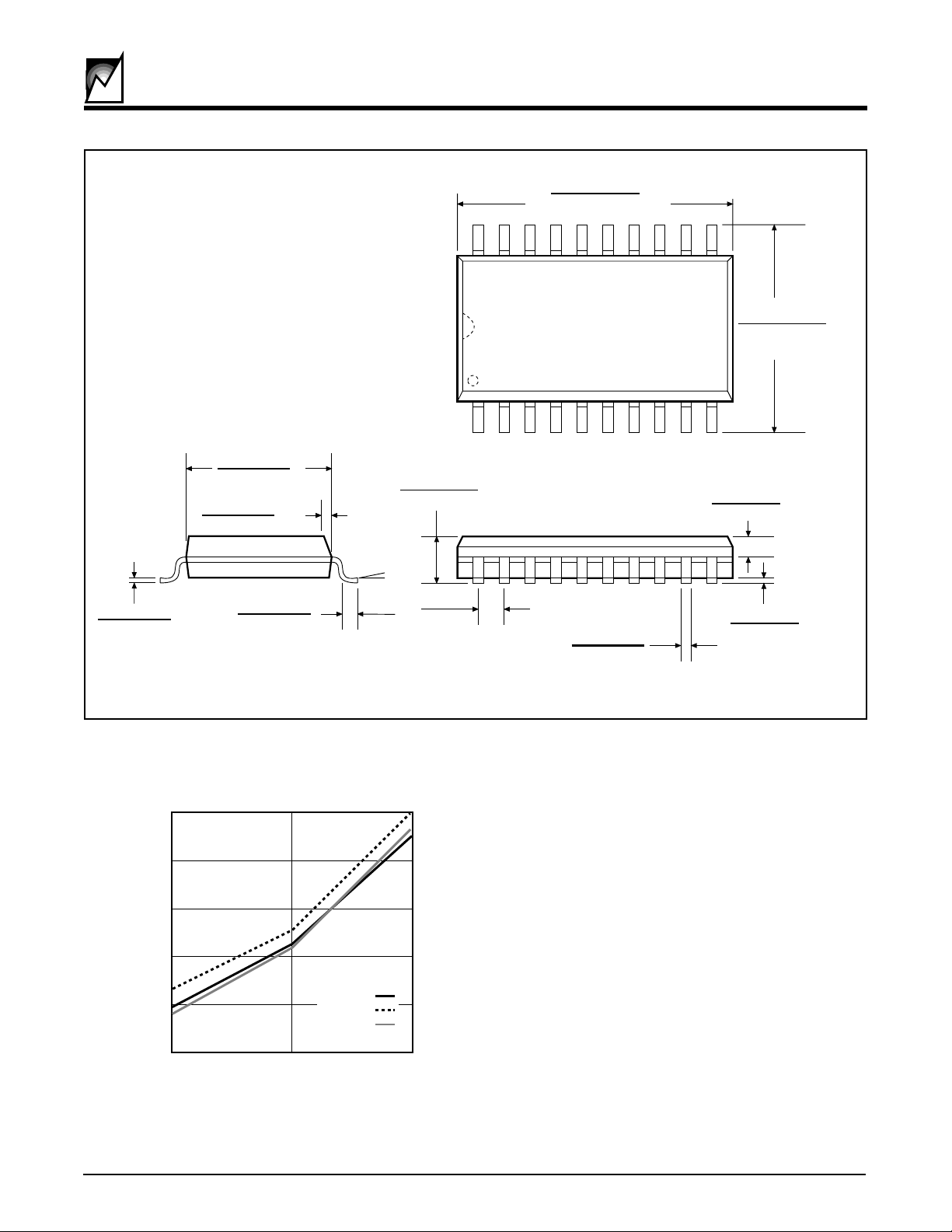

20 Pin SOIC (.300) Package

0.291 - 0.299

(7.391 - 7.595)

0.010 - 0.029

(0.254 - 0.737)

0.009 - 0.013

(0.229 - 0.330)

x45°

0.016 - 0.050

(0.406 - 1.270)

0° to 8°

typ

0.093 - 0.104

(2.362 - 2.642)

0.050

(1.270)

0.496 - 0.512

(12.598 - 13.005)

0.014 - 0.019

(0.356 - 0.482)

0.394 - 0.419

(10.007 - 10.643)

0.037 - 0.045
(0.940 - 1.143

0.004 - 0.012

(0.102 - 0.305)

41.5

41.0

40.5

40.0

RESISTANCE (kΩ)

39.5

39.0
–40 90

TEMPERATURE (ºC)

VL = GND
VH = 5.5V
VH = 4.5V
VH = 2.7V

25

FIGURE 6. VL to VH END-TO-END RESISTANCE

OVER TEMPERATURE

20pn SOIC ILL.1

2015 T fig06 2.0

SUMMIT MICROELECTRONICS, Inc.

2015 2.2 8/2/00

9

ORDERING INFORMATION

S9408

Base Part Number

S9408

Special order

*

P

Package

P = 20 Pin PDIP
S = 20 Pin SOIC

2015 T ree 2.0

*

NOTICE

SUMMIT Microelectronics, Inc. reserves the right to make changes to the products contained in this publication in order
to improve design, performance or reliability. SUMMIT Microelectronics, Inc. assumes no responsibility for the use of
any circuits described herein, conveys no license under any patent or other right, and makes no representation that
the circuits are free of patent infringement. Charts and schedules contained herein reflect representative operating
parameters, and may vary depending upon a user’s specific application. While the information in this publication has
been carefully checked, SUMMIT Microelectronics, Inc. shall not be liable for any damages arising as a result of any
error or omission.

SUMMIT Microelectronics, Inc. does not recommend the use of any of its products in life support or aviation applications
where the failure or malfunction of the product can reasonably be expected to cause any failure of either system or to
significantly affect their safety or effectiveness. Products are not authorized for use in such applications unless
SUMMIT Microelectronics, Inc. receives written assurances, to its satisfaction, that: (a) the risk of injury or damage has
been minimized; (b) the user assumes all such risks; and (c) potential liability of SUMMIT Microelectronics, Inc. is
adequately protected under the circumstances.

© Copyright 2000 SUMMIT Microelectronics, Inc.

10

2015 2.2 8/2/00

SUMMIT MICROELECTRONICS, Inc.
