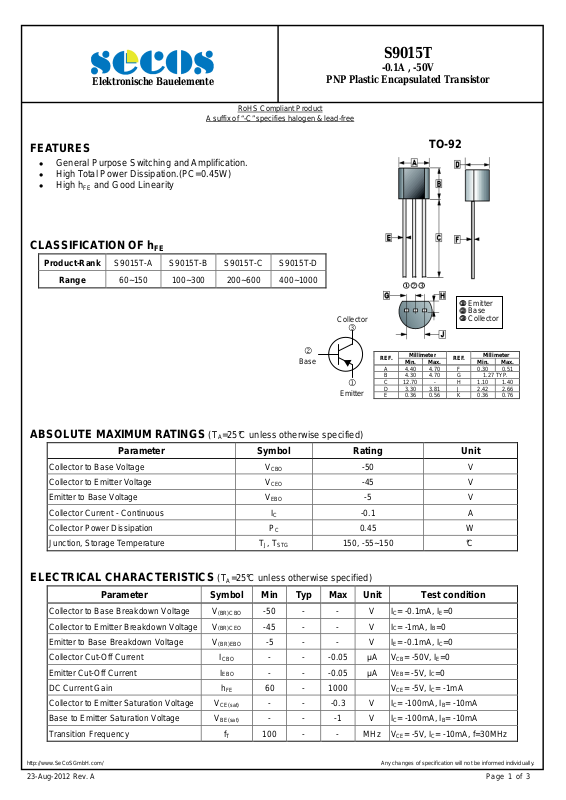

Page 1
2
Base
1
Emitter
3
TO-92
1111
Emitter
Millimeter
Millimeter
Min. Max. Min. Max.
A 4.40 4.70 F 0.30 0.51
B 4.30 4.70 G 1.27 TYP.
C 12.70 - H 1.10
1.40
D 3.30 3.81 J 2.42 2.66
E 0.36 0.56 K 0.36 0.76
FEATURES
General Purpose Switching and Amplification.
High Total Power Dissipation.(PC=0.45W)
High hFE and Good Linearity
Elektronische Bauelemente
A suffix of “-C” specifies halogen & lead-free
S9015T
-0.1A , -50V
PNP Plastic Encapsulated Transistor
RoHS Compliant Product
CLASSIFICATION OF h
FE
Product-Rank S9015T-A S9015T-B S9015T-C S9015T-D
Range 60~150 100~300 200~600 400~1000
Collector
REF.
ABSOLUTE MAXIMUM RATINGS
Parameter Symbol Rating Unit
Collector to Base Voltage V
Collector to Emitter Voltage V
Emitter to Base Voltage V
Collector Current - Continuous IC -0.1 A
Collector Power Dissipation PC 0.45 W
Junction, Storage Temperature TJ, T
(TA=25°C unless otherwise specified)
-50 V
CBO
-45 V
CEO
-5 V
EBO
150, -55~150 °C
STG
2
2 Base
22
3
3 Collector
33
REF.
ELECTRICAL CHARACTERISTICS
Parameter Symbol Min Typ Max Unit
Collector to Base Breakdown Voltage V
Collector to Emitter Breakdown Voltage V
Emitter to Base Breakdown Voltage V
Collector Cut-Off Current I
Emitter Cut-Off Current I
DC Current Gain hFE 60 - 1000
Collector to Emitter Saturation Voltage
Base to Emitter Saturation Voltage V
Transition Frequency fT 100 - - MHz VCE= -5V, IC= -10mA, f=30MHz
(TA=25°C unless otherwise specified)
Test condition
-50 - - V IC= -0.1mA, IE=0
(BR)CBO
-45 - - V IC= -1mA, IB=0
(BR)CEO
-5 - - V IE= -0.1mA, IC=0
(BR)EBO
- - -0.05
CBO
- - -0.05
EBO
V
- - -0.3 V IC= -100mA, IB= -10mA
CE(sat)
- - -1 V IC= -100mA, IB= -10mA
BE(sat)
µA VCB= -50V, IE=0
µA VEB= -5V, IC=0
VCE= -5V, IC= -1mA
http://www.SeCoSGmbH.com/ Any changes of specification will not be informed individually.
23-Aug-2012 Rev. A Page 1 of 3
Page 2
Elektronische Bauelemente

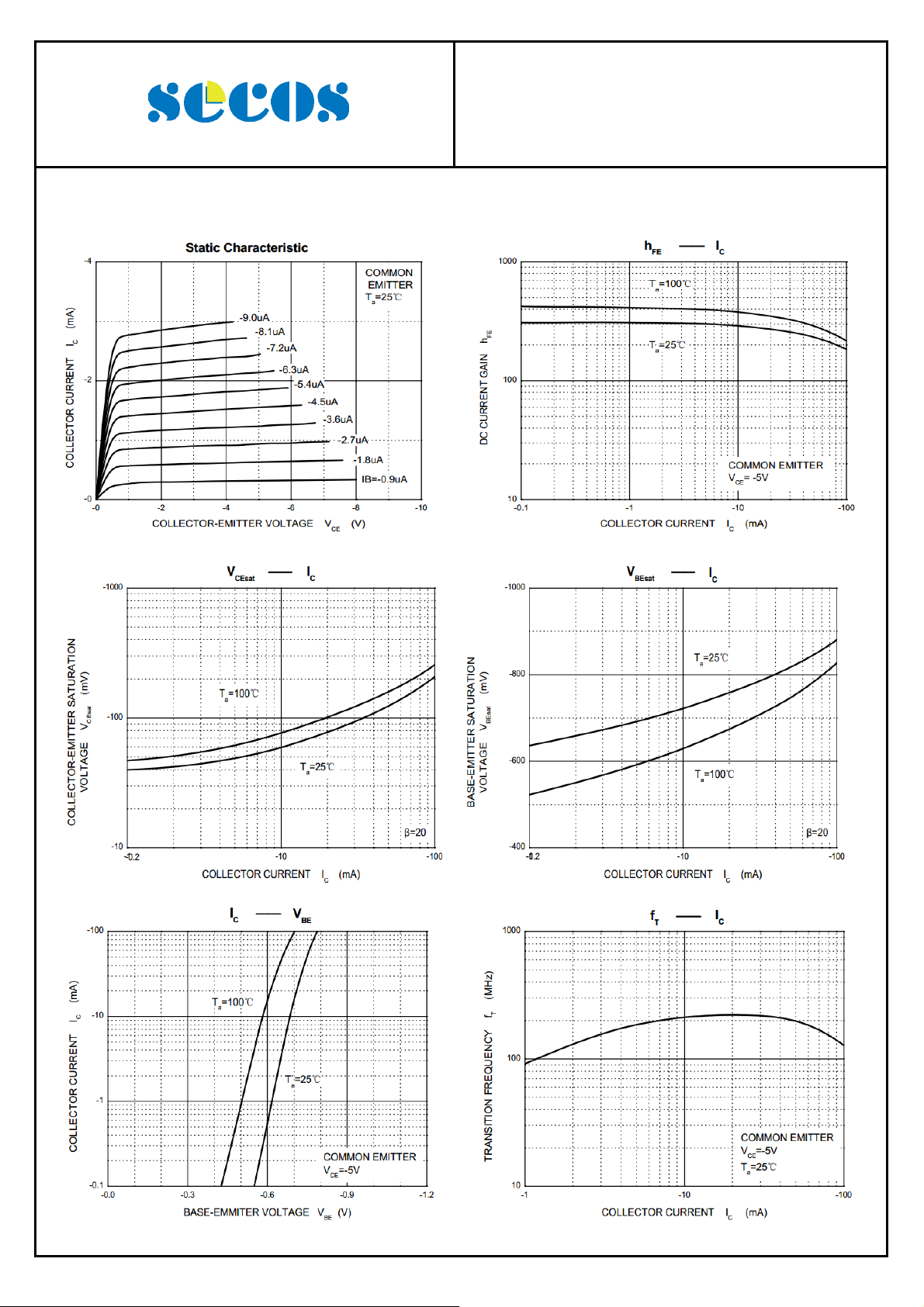

RATINGS AND CHARACTERISTIC CURVES
S9015T
-0.1A , -50V
PNP Plastic Encapsulated Transistor
http://www.SeCoSGmbH.com/ Any changes of specification will not be informed individually.
23-Aug-2012 Rev. A Page 2 of 3
Page 3
Elektronische Bauelemente

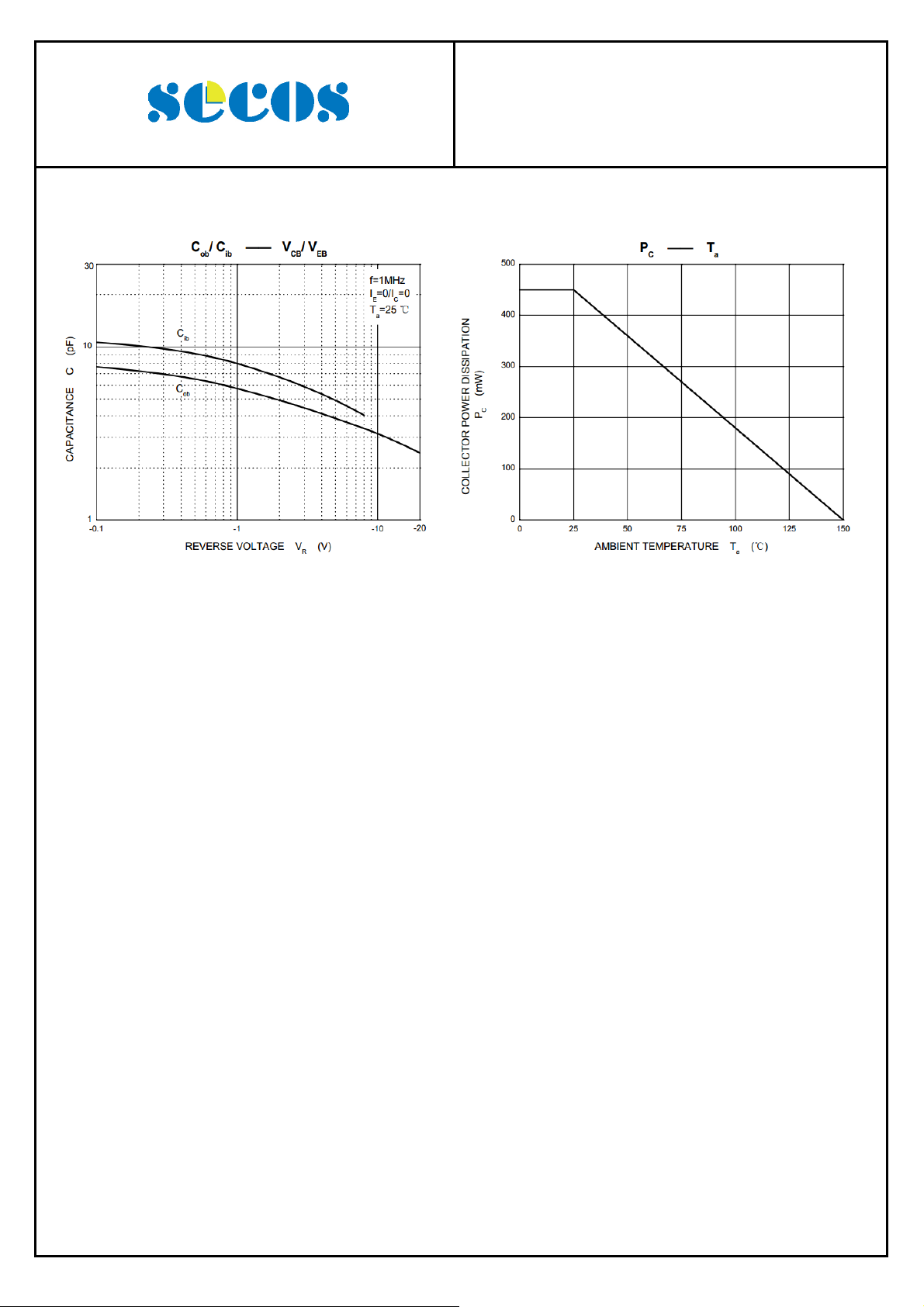

RATINGS AND CHARACTERISTIC CURVES
S9015T
-0.1A , -50V
PNP Plastic Encapsulated Transistor
http://www.SeCoSGmbH.com/ Any changes of specification will not be informed individually.
23-Aug-2012 Rev. A Page 3 of 3
