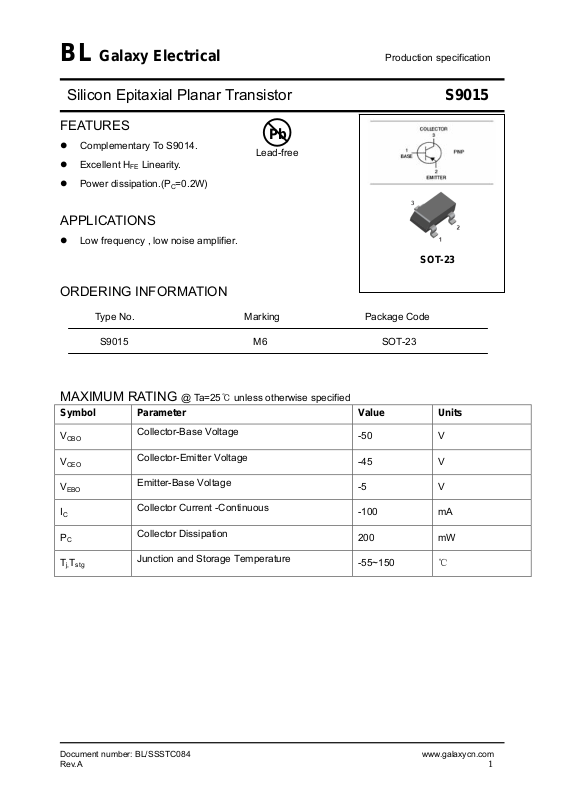

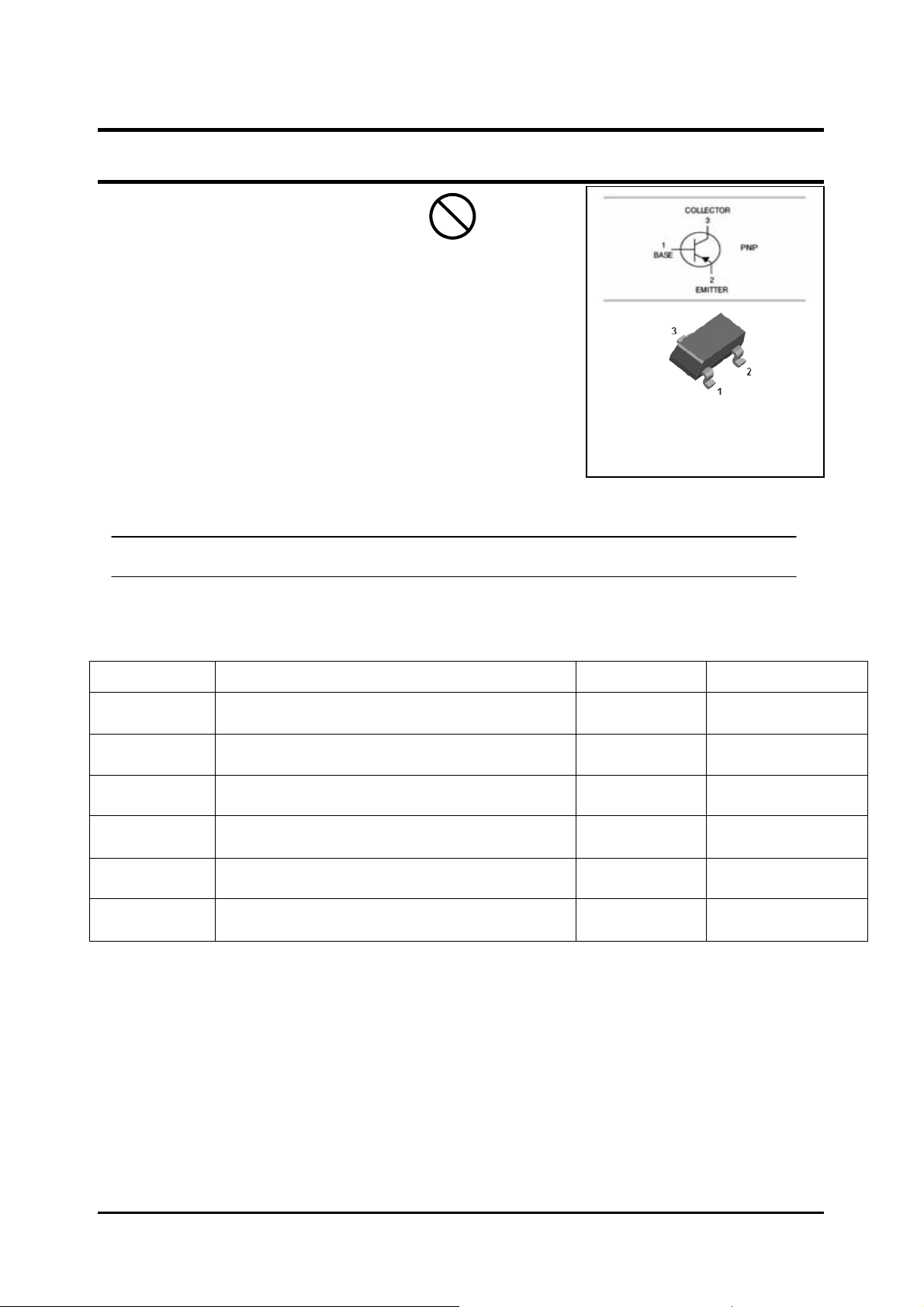

BL Galaxy Electrical Production specification
Silicon Epitaxial Planar Transistor S9015
FEATURES
Pb
z Complementary To S9014.
z Excellent H
z Power dissipation.(P
Linearity.
FE
=0.2W)
C
APPLICATIONS
z Low frequency , low noise amplifier.
SOT-23
ORDERING INFORMATION
Type No. Marking Package Code
S9015 M6 SOT-23
MAXIMUM RATING @ Ta=25℃ unless otherwise specified
Symbol Parameter Value Units
Lead-free
V
CBO
V
CEO
V
EBO
I
C
P
C
Tj,T
stg
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Collector Current -Continuous
Collector Dissipation
Junction and Storage Temperature
-50 V
-45 V
-5 V
-100 mA
200 mW
-55~150 ℃
Document number: BL/SSSTC084 www.galaxycn.com
Rev.A 1
Page 2
BL Galaxy Electrical Production specification
Silicon Epitaxial Planar Transistor S9015
ELECTRICAL CHARACTERISTICS @ Ta=25℃ unless otherwise specified
Parameter Symbol Test conditions MIN
Collector-base breakdown voltage
Collector-emitter breakdown voltage
Emitter-base breakdown voltage V
Collector cut-off current
Emitter cut-off current
DC current gain
Collector-emitter saturation voltage
Base-emitter saturation voltage
Transition frequency
V
(BR)CBO IC
V
I
CBO
I
EBO
h
FE
V
V
f
T
IC=-0.1mA,IB=0 -45 V
(BR)CEO
IE=-100μA,IC=0 -5
(BR)EBO
CE(sat)
BE(sat)
=-100μA,IE=0 -50 V
VCB=-50V,IE=0 -0.1 μA
VEB=-5V,IC=0 -0.1 μA
VCE=-5V,IC=-1mA 200 1000
IC=-100mA, IB=- 10mA
=-100mA, IB= -10mA
I
C
-0.3 V
-1 V
VCE=-5V, IC= -10mA
f=30MHz
MHz
TYP MAX UNIT
V
CLASSIFICATION OF h
FE(1)
Rank L H
Range 200-450 450-1000
Document number: BL/SSSTC084 www.galaxycn.com
Rev.A 2
Page 3
BL Galaxy Electrical Production specification
Silicon Epitaxial Planar Transistor S9015

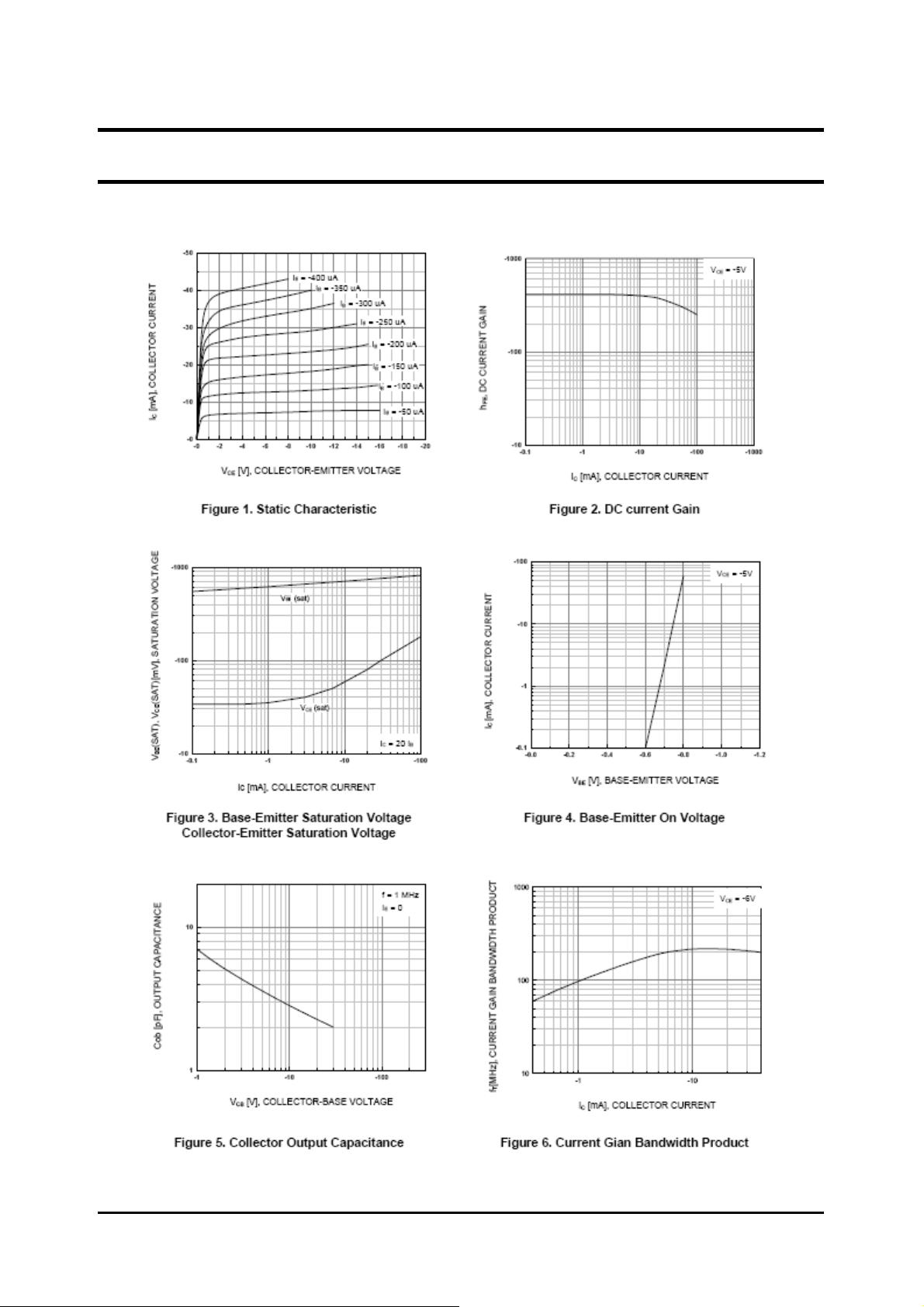

TYPICAL CHARACTERISTICS @ Ta=25℃ unless otherwise specified
Document number: BL/SSSTC084 www.galaxycn.com
Rev.A 3
Page 4
BL Galaxy Electrical Production specification
Silicon Epitaxial Planar Transistor S9015

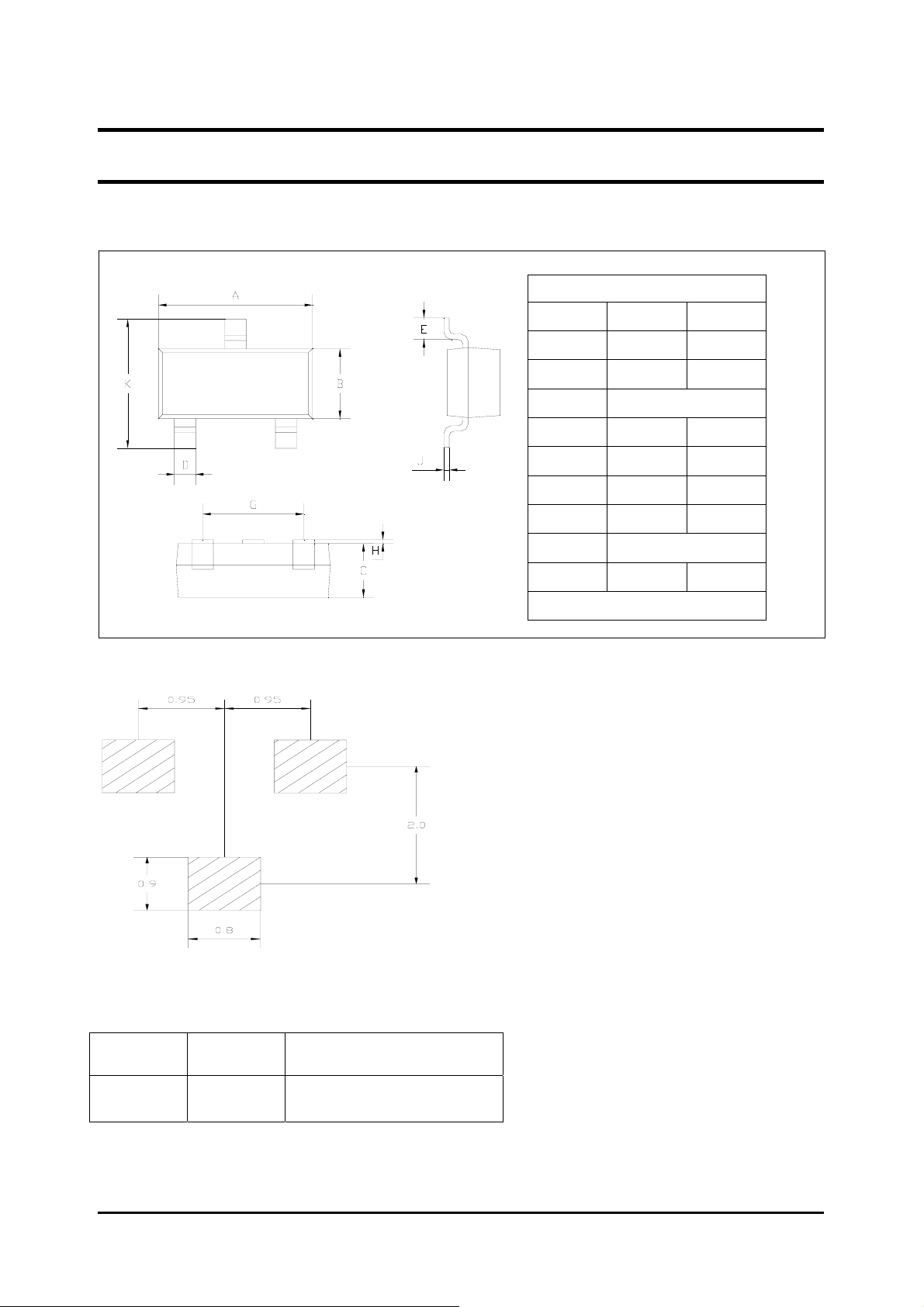

PACKAGE OUTLINE
Plastic surface mounted package SOT-23
Dim Min Max
A 2.85 2.95
B 1.25 1.35
C 1.0Typical
D 0.37 0.43
E 0.35 0.48
G 1.85 1.95
SOT-23
SOLDERING FOOTPRINT
Unit : mm
H 0.02 0.1
J 0.1Typical
K 2.35 2.45
All Dimensions in mm
PACKAGE INFORMATION
Device Package Shipping
S9015 SOT-23 3000/Tape&Reel
Document number: BL/SSSTC084 www.galaxycn.com
Rev.A 4
