S6C0670

written permission of LCD Driver IC Team.

8 BIT 384 / 402 CHANNEL TFT-LCD SOURCE DRIVER

Contents in this document are subject to change without notice. No part of this document may be reproduced
or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the express

March. 2000.

Ver. 1.0

Prepared by: Myoung-Sik, Suh

mail to: [email protected]

S6C0670 8 BIT 384 / 402 CHANNEL TFT-LCD SOURCE DRIVER

S6C0670 Specification Revision History

Version Content Date

0.0 Original Aug.1999

1.0 “Resistor strings” , “CLK1 pulse high period” Mar.2000

2

8 BIT 384 / 402 CHANNEL TFT-LCD SOURCE DRIVER S6C0670

CONTENTS

INTRODUCTION.................................................................................................................................................4

FEATURES......................................................................................................................................................... 4

BLOCK DIAGRAM..............................................................................................................................................5

PIN ASSIGNMENTS............................................................................................................................................6

PIN DESCRIPTIONS...........................................................................................................................................7

OPERATION DESCRIPTION.............................................................................................................................. 8

DISPLAY DATA TRANSFER............................................................................................................................ 8

EXTENSION OF OUTPUT...............................................................................................................................8

RELATIONSHIP BETWEEN INPUT DATA VALUE AND OUTPUT VOLTAGE.................................................8

RELATIONSHIP BETWEEN INPUT DATA AND OUTPUT VOLTAGE VALUE...............................................12

ABSOLUTE MAXIMUM RATINGS....................................................................................................................26

RECOMMENDED OPERATION CONDITIONS.................................................................................................26

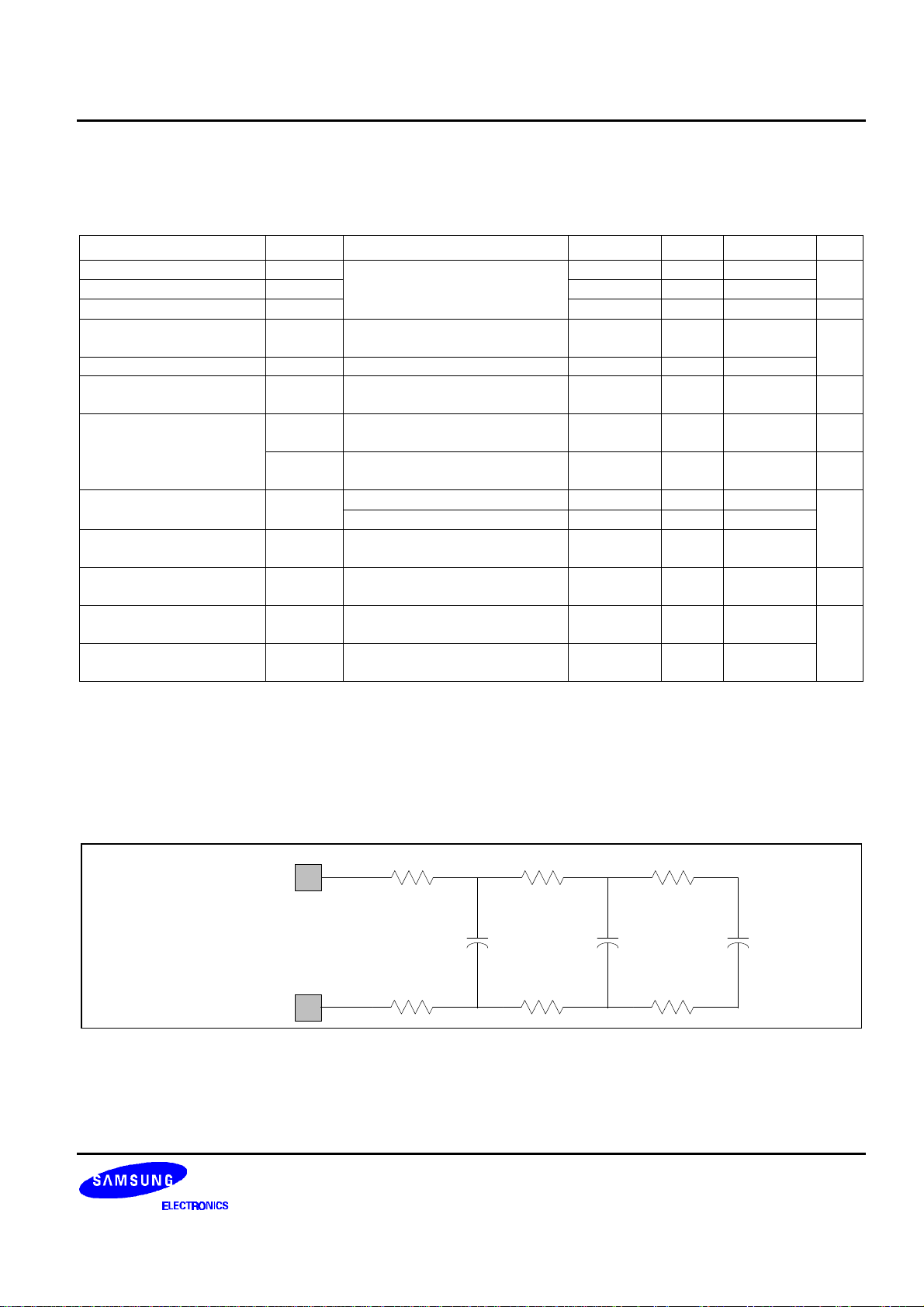

DC CHARACTERISTICS................................................................................................................................... 27

SINGLE EDGE AC CHARACTERISTICS .......................................................................................................... 28

DOUBLE EDGE AC CHARACTERISTICS........................................................................................................ 29

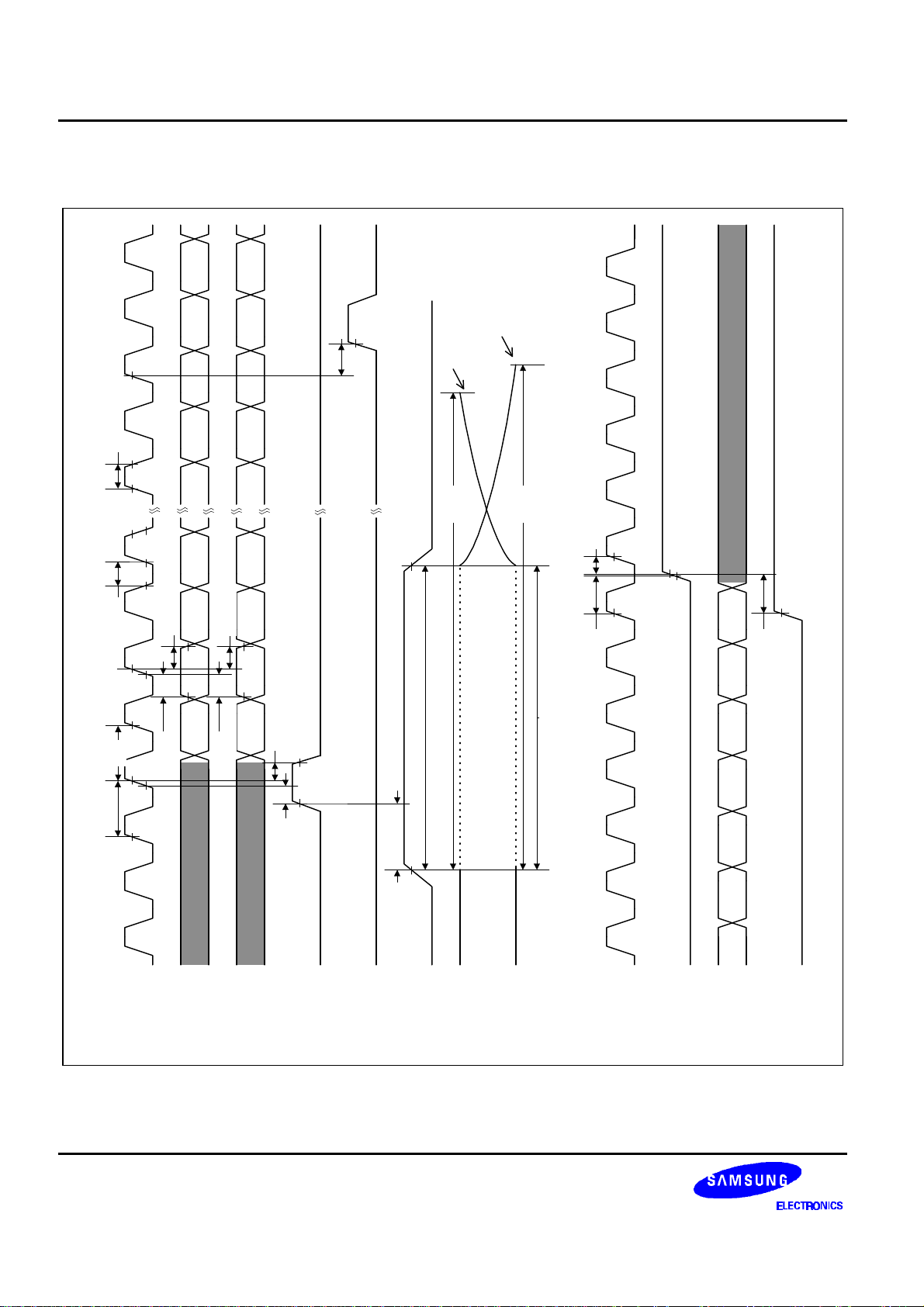

SINGLE EDGE WAVEFORMS (VIH = 0.8 VDD1, VIL = 0.2 VDD1) ...................................................................30

DOUBLE EDGE WAVEFORMS (VIH = 0.8 VDD1, VIL = 0.2 VDD1).................................................................. 31

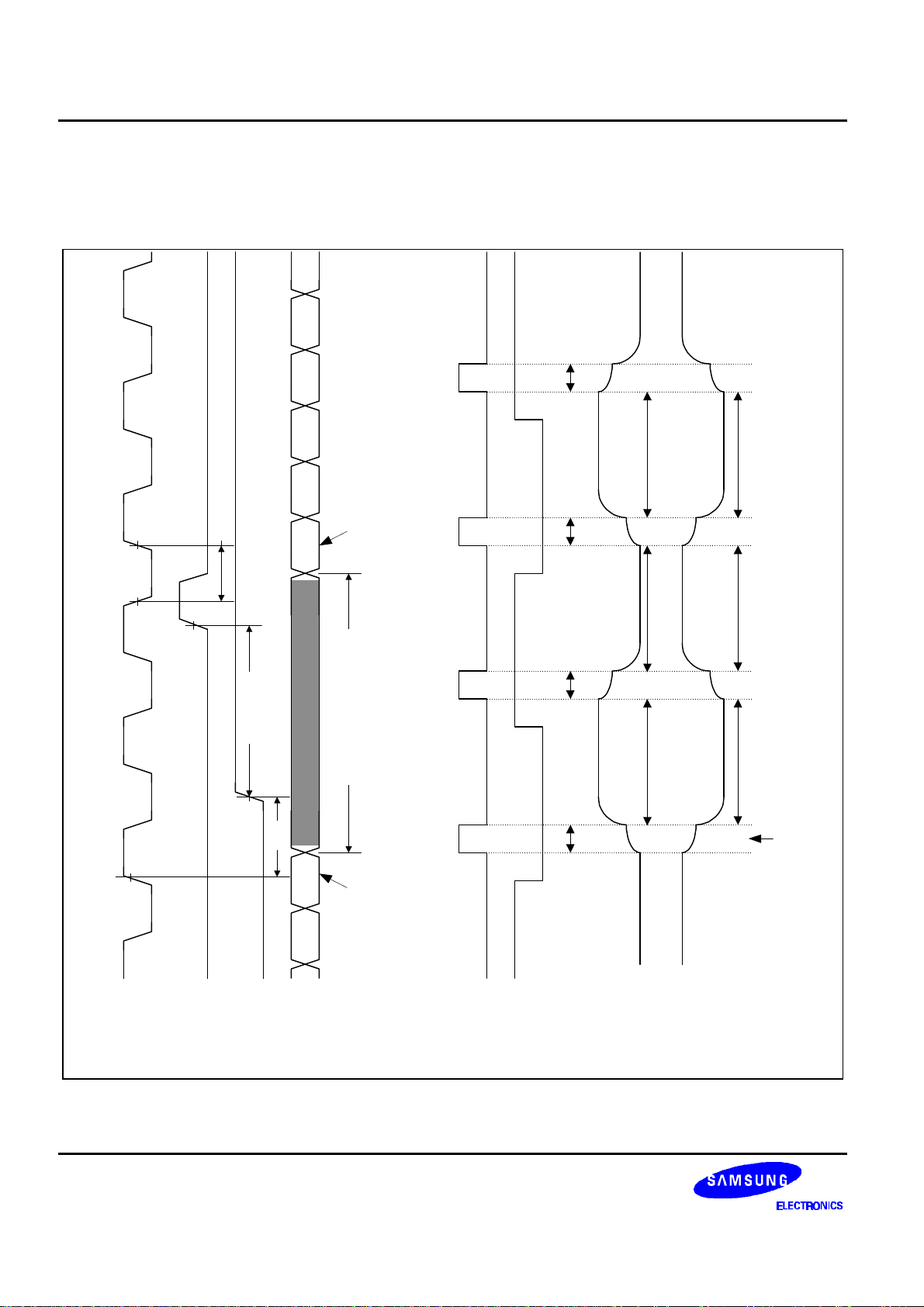

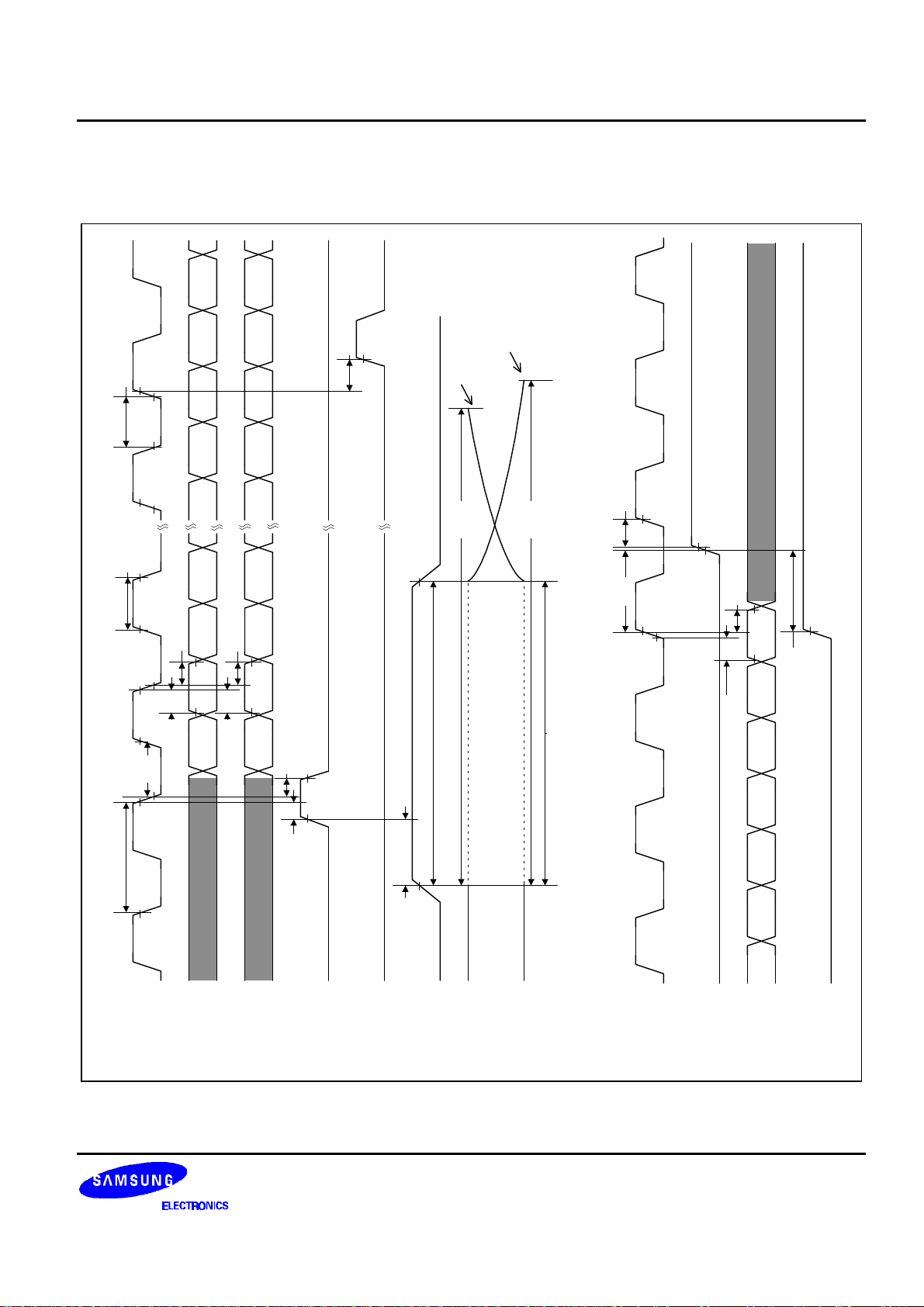

RELATIONSHIPS BETWEEN CLK1, START PULSE (DIO1, DIO2) AND BLANKING PERIOD ....................... 32

3

S6C0670 8 BIT 384 / 402 CHANNEL TFT-LCD SOURCE DRIVER

INTRODUCTION

The S6C0670 is a 384 / 402 channel output, TFT-LCD source driver for an 256 gray scale LCD panel. Data input
is based on digital input consisting of 8 bits by 6 dots, which can realize a full-color display of 16,700,000 color by
output of 256 values gamma-corrected.

This device has an internal D/A (Digital-to-Analog) converter for each output and 16 (8-by-2) reference voltages.
Because the output dynamic range is as large as 7.8 - 14.8 Vp-p, it is unnecessary to operate level inversion of
the LCD's common electrode. Besides, to be able to deal with dot-line inversion when mounted on a single-side,
output gray scale voltages with different polarity can be output to the odd number output pins
and the even output pins.

S6C0670 can be adopted to larger panel, and SHL (shift direction selection) pin makes the use of the LCD panel
connection conveniently. Maximum operation clock frequency is 75 MHz at 3.0 V logic operation, single edge
and it can be applied to the TFT-LCD panel of UXGA standard.

FEATURES

• TFT active matrix LCD source driver LSI

• 256 G/S is possible through 16 (8 by 2) reference voltages and D/A converter

• Both dot inversion display and N-line inversion display are possible

• CMOS level input

• Compatible with gamma-correction

• Input data inversion function (DATPOL1,2)

• Single edge, Double edge compatible (DEC)

• Logic supply voltage: 2.5 - 3.6 V

• LCD driver supply voltage: 8.0 - 15.0 V

• Output dynamic range: 7.8 - 14.8 Vp-p

• Maximum operating frequency: fMAX = 75 MHz

(internal data transmission rate at 3.0 V operation, single edge)

• Output: 384 / 402 outputs

• TCP available

4

8 BIT 384 / 402 CHANNEL TFT-LCD SOURCE DRIVER S6C0670

Y001

BLOCK DIAGRAM

POL
VGMA1 -

VGMA16

CLK1

16

Y402

8 8 8 8 8 8

8 8 8 8 8 8

Y401

Y400

Output Buffer

D/A Converter

Data Latch

Y003

Y002

DATPOL1
DATPOL2

D00 - D07
D10 - D17
D20 - D27
D30 - D37
D40 - D47
D50 - D57

CLK2

Data Register

8
8
8
8
8
8

24

24

Data Control

67bit Shift Register

SHL

SELTDIO2 DEC DIO1

Figure 1. S6C0670 Block Diagram

5

S6C0670 8 BIT 384 / 402 CHANNEL TFT-LCD SOURCE DRIVER

PIN ASSIGNMENTS

DIO1

D00
D01
D02
D03
D04

Y001
Y002
Y003
Y004

Y399
Y400
Y401
Y402

(Top View)

S6C0670

D05
D06
D07
D10
D11
D12
D13
D14
D15
D16
D17
D20
D21
D22
D23
D24
D25
D26
D27

TEST
DATPOL1
DATPOL2

POL
CLK1
CLK2

DEC
VSS1

VGMA1
VGMA2
VGMA3
VGMA4
VGMA5
VGMA6
VGMA7
VGMA8

VSS2
VDD2

VGMA9
VGMA10
VGMA11
VGMA12
VGMA13
VGMA14
VGMA15
VGMA16

SELT

SHL

VDD1

D30
D31
D32
D33
D34
D35
D36
D37
D40
D41
D42
D43
D44
D45
D46
D47
D50
D51
D52
D53
D54
D55
D56
D57

DIO2

Figure 2. S6C0670 Pin Assignments

6

8 BIT 384 / 402 CHANNEL TFT-LCD SOURCE DRIVER S6C0670

PIN DESCRIPTIONS

Symbol Pin Name Description

VDD1 Logic power supply 2.5 - 3.6 V
VDD2 Driver power supply 8.0 - 15.0 V
VSS1 Logic ground Ground (0 V)
VSS2 Driver ground Ground (0 V)

Y1 - Y402 Driver outputs The D/A converted 256 gray-scale analog voltage is output.

D0<0:7>

- D5<0:7>

SHL

DIO1 Start pulse input/output

DIO2 Start pulse input/output

DATPOL1
DATPOL2

POL Polarity input

CLK2 Shift clock input

CLK1 Latch input

VGMA1

–

VGMA16

SELT Output selection input

DEC

TEST Test input

Display data input

Shift direction control

input

Data inversion input

Gamma corrected power

supplies

Double edge selection

input

The display data is input with a width of 48 bits,
gray-scale data (8 bits) by 6 dots (R,G,B) DX0: LSB, DX7: MSB

This pin controls the direction of shift register in cascade connection.
The shift direction of the shift registers is as follows.
SHL = H: DIO1 input, Y1 → Y402, DIO2 output
SHL = L: DIO2 input, Y402 → Y1, DIO1 output

SHL = H: Used as the start pulse input pin.
SHL = L: Used as the start pulse output pin.

SHL = H: Used as the start pulse output pin.
SHL = L: Used as the start pulse input pin.

DATPOL1,2 = L: Display data is not inverted
DATPOL1 = H: Display data of D0<0:7> - D2<0:7> is inverted
DATPOL2 = H: Display data of D3<0:7> - D5<0:7> is inverted

POL = H: The reference voltage for odd number outputs are VGMA9 –
VGMA16 and those for even number outputs are VGMA1 – VGMA8.
POL = L: The reference voltage for odd number outputs are VGMA1 –
VGMA8 and those for even number outputs are VGMA9 – VGMA16.

Refer to the shift register's shift clock input. When DEC is Low, the
display data is loaded to the data register at the rising edge of
CLK2.When DEC is High, the display data is loaded to the data register
at the rising and falling edge of CLK2.

Latches the contents of the data register at rising edge and transfers
them to the D/A converter. Also, after CLK1 input, clears the internal
shift register contents. After 1 pulse input on start, operates normally.
CLK1 input timing refers to the "Relationships between CLK1 start pulse
(DIO1, DIO2) and blanking period" of the switching characteristic
waveform. Outputs the G/S data at falling edge.

Input the gamma corrected power supplies from external source.
VDD2 > VGMA1 > VGMA2 > …… > VGMA15 > VGMA16 > VSS2
Keep gray-scale power supply unchanged during the gray-scale
voltage output.

SELT = L: 384 Output (Y193 - Y210 are disabled), SELT = H: 402
Output

DEC = L: Single Edge, the display data is loaded to the data register at
the rising edge of CLK2. DEC = H: Double Edge, the display data is
loaded to the data register at the rising and falling edge of CLK2.

TEST = L: Normal operation mode
TEST = H: Test mode (OP AMP CUT-OFF, Rpd = 10kΩ)

7

S6C0670 8 BIT 384 / 402 CHANNEL TFT-LCD SOURCE DRIVER

OPERATION DESCRIPTION

DISPLAY DATA TRANSFER

(1) DEC = ”L”
When DIO1 (or DIO2) pulse is loaded into internal latch on the rising edge of CLK2, DIO1 (or DIO2) pulse
enables the operation of data transfer, so display data is valid on the next rising edge of CLK2. Once all the
data of 402 (or 384) channels is loaded into internal latch, it goes into stand-by state automatically, and any
new data is not accepted even though CLK2 is provided until next DIO1 (or DIO2) input. When next DIO1 (or
DIO2) is provided, new display data is valid on the 2nd rising edge of CLK2 after the rising edge of DIO1 (or
DIO2).

(2) DEC = ”H”
When DIO1 (or DIO2) pulse is loaded into internal latch on the rising (or falling) edge of CLK2, DIO1 (or DIO2)
pulse enables the operation of data transfer. display data is valid on the next falling (or rising) edge of CLK2.
Once all the data of 402 (or 384) channels is loaded into internal latch, it goes into stand-by state
automatically, and any new data is not accepted even though CLK2 is provided until next DIO1 (or DIO2)
input. When next DIO1 (or DIO2) is provided, new display data is valid on the 2nd edge of CLK2 after the
rising edge of DIO1 (or DIO2).

EXTENSION OF OUTPUT

Output pin can be adjusted to an extended screen by cascade connection.

(1) SHL = "L"
Connect DIO1 pin of previous stage to the DIO2 pin of next stage and all the input pins
except DIO1 and DIO2 are connected together in each device.

(2) SHL = "H"
Connect DIO2 pin of previous stage to the DIO1 pin of next stage and all the input pins
except DIO2 and DIO1 are connected together in each device.

RELATIONSHIP BETWEEN INPUT DATA VALUE AND OUTPUT VOLTAGE

The LCD drive output voltages are determined by the input data and 16 (8 by 2) gamma corrected power supplies
(VGMA1 - VGMA16). Besides, to be able to deal with dot line inversion when mounted on a single-side, gradation
voltages with different polarity can be output to the odd number output pins and the even number output pins.
Among 8-by-2 gamma corrected voltages, input gray-scale voltages of the same polarity with respect to the
common voltage, for the respective 8 gamma corrected voltages of VGMA1 - VGMA8 and VGMA9 - VGMA16.

8

8 BIT 384 / 402 CHANNEL TFT-LCD SOURCE DRIVER S6C0670

SHL = H

OUTPUT

DATA

SHL = L

OUTPUT

DATA

VDD2

VGMA1

VGMA2
VGMA3

VGMA4
VGMA5

VGMA6

Y1 Y2

­D00 - D07 D10 - D17

Y1 Y2 Y3 ...... Y400 Y401 Y402

-

D00 - D07 D10 - D17 D20 - D27 ...... D30 - D37 D40 - D47 D50 - D57

First Last

Last First

Y3 ......

D20 - D27 ......

Y400 Y401 Y402

D30 - D37 D40 - D47 D50 - D57

Figure 3. Relationship between Shift Direction and Output Data

32

32
64
64

48

14

VGMA7,8

VGMA9,10

VGMA11

VGMA12
VGMA13
VGMA14

VGMA15

VGMA16

VSS2

VCOM

14

48
64

64
32

32

00H 20H 40H 60H 80H A0H C0H E0H FFH

Figure 4. Gamma Correction Curve

9

S6C0670 8 BIT 384 / 402 CHANNEL TFT-LCD SOURCE DRIVER

Table 1. Resistor Strings (R0 - R254, unit: Ω)

Name Value Name Value Name Value Name Value

R0 404 R32 74 R64 50 R96 36
R1 320 R33 73 R65 49 R97 36
R2 263 R34 72 R66 48 R98 36
R3 224 R35 72 R67 47 R99 36
R4 196 R36 71 R68 46 R100 36
R5 177 R37 71 R69 45 R101 36
R6 163 R38 71 R70 44 R102 36
R7 153 R39 70 R71 43 R103 36
R8 144 R40 70 R72 42 R104 36

R9 138 R41 69 R73 41 R105 36
R10 132 R42 69 R74 40 R106 35
R11 127 R43 69 R75 40 R107 35
R12 122 R44 68 R76 39 R108 35
R13 118 R45 68 R77 38 R109 35
R14 113 R46 67 R78 38 R110 35
R15 109 R47 67 R79 37 R111 35
R16 106 R48 66 R80 37 R112 35
R17 102 R49 65 R81 37 R113 35
R18 99 R50 65 R82 36 R114 35
R19 96 R15 64 R83 36 R115 34
R20 93 R52 63 R84 36 R116 34
R21 90 R53 62 R85 36 R117 34
R22 88 R54 61 R86 36 R118 34
R23 86 R55 60 R87 36 R119 34
R24 84 R56 59 R88 36 R120 34
R25 82 R57 58 R89 36 R121 34
R26 80 R58 57 R90 36 R122 34
R27 79 R59 56 R91 36 R123 34
R28 77 R60 55 R92 36 R124 34
R29 76 R61 53 R93 36 R125 33
R30 75 R62 52 R94 36 R126 33
R31 74 R63 51 R95 36 R127 33

10

8 BIT 384 / 402 CHANNEL TFT-LCD SOURCE DRIVER S6C0670

Table 1. Resistor Strings (R0 - R254, unit: Ω) (Continued)

Name Value Name Value Name Value Name Value

R128 33 R160 33 R192 38 R224 65
R129 33 R161 33 R193 39 R225 69
R130 33 R162 33 R194 39 R226 73
R131 33 R163 33 R195 39 R227 77
R132 33 R164 33 R196 40 R228 82
R133 33 R165 33 R197 40 R229 87
R134 33 R166 33 R198 40 R230 92
R135 33 R167 33 R199 41 R231 97
R136 33 R168 33 R200 41 R232 103
R137 33 R169 33 R201 41 R233 109
R138 33 R170 33 R202 42 R234 115
R139 33 R171 33 R203 42 R235 122
R140 33 R172 33 R204 42 R236 128
R141 33 R173 33 R205 42 R237 134
R142 33 R174 33 R206 43 R238 141
R143 33 R175 33 R207 43 R239 147
R144 33 R176 33 R208 43 R240 154
R145 33 R177 33 R209 43 R241 161
R146 33 R178 34 R210 44 R242 168
R147 33 R179 34 R211 44 R243 177
R148 33 R180 34 R212 45 R244 187
R149 33 R181 34 R213 45 R245 199
R150 33 R182 35 R214 46 R246 215
R151 33 R183 35 R215 47 R247 238
R152 33 R184 35 R216 48 R248 270
R153 33 R185 36 R217 49 R249 318
R154 33 R186 36 R218 51 R250 396
R155 33 R187 36 R219 52 R251 533
R156 33 R188 37 R220 54 R252 811
R157 33 R189 37 R221 56 R253 817
R158 33 R190 38 R222 59 R254 831
R159 33 R191 38 R223 62

11

S6C0670 8 BIT 384 / 402 CHANNEL TFT-LCD SOURCE DRIVER

RELATIONSHIP BETWEEN INPUT DATA AND OUTPUT VOLTAGE VALUE

Table 2. Relationship between Input Data and Output Voltage Value (1)

Input

data

00H
01H
02H
03H
04H
05H
06H
07H

08H
09H
0AH

0BH
0CH
0DH

0EH

0FH

10H

11H

12H

13H

14H

15H

16H

17H

18H

19H

1AH

1BH
1CH
1DH

1EH

1FH

20H

21H

22H

23H

24H

25H

26H

27H

DX7 DX6 DX5 DX4 DX3 DX2 DX1 DX0 G/S Output voltage

0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 1
0 0 0 0 0 0 1 0
0 0 0 0 0 0 1 1
0 0 0 0 0 1 0 0
0 0 0 0 0 1 0 1
0 0 0 0 0 1 1 0
0 0 0 0 0 1 1 1
0 0 0 0 1 0 0 0
0 0 0 0 1 0 0 1
0 0 0 0 1 0 1 0
0 0 0 0 1 0 1 1
0 0 0 0 1 1 0 0
0 0 0 0 1 1 0 1
0 0 0 0 1 1 1 0
0 0 0 0 1 1 1 1
0 0 0 1 0 0 0 0
0 0 0 1 0 0 0 1
0 0 0 1 0 0 1 0
0 0 0 1 0 0 1 1
0 0 0 1 0 1 0 0
0 0 0 1 0 1 0 1
0 0 0 1 0 1 1 0

0 0 0 1 0 1 1 1
0 0 0 1 1 0 0 0

0 0 0 1 1 0 0 1
0 0 0 1 1 0 1 0
0 0 0 1 1 0 1 1
0 0 0 1 1 1 0 0
0 0 0 1 1 1 0 1
0 0 0 1 1 1 1 0
0 0 0 1 1 1 1 1
0 0 1 0 0 0 0 0
0 0 1 0 0 0 0 1
0 0 1 0 0 0 1 0
0 0 1 0 0 0 1 1
0 0 1 0 0 1 0 0
0 0 1 0 0 1 0 1
0 0 1 0 0 1 1 0
0 0 1 0 0 1 1 1

VH0
VH1
VH2
VH3
VH4
VH5
VH6
VH7

VH8

VH9
VH10
VH11
VH12
VH13
VH14
VH15

VH16
VH17
VH18
VH19
VH20
VH21
VH22
VH23

VH24
VH25
VH26
VH27
VH28
VH29
VH30
VH31

VH32
VH33
VH34
VH35
VH36
VH37
VH38
VH39

VGMA1 + (VGMA2 - VGMA1) × 404 / 4288
VGMA1 + (VGMA2 - VGMA1) × 724 / 4288

VGMA1 + (VGMA2 - VGMA1) × 987 / 4288
VGMA1 + (VGMA2 - VGMA1) × 1211 / 4288
VGMA1 + (VGMA2 - VGMA1) × 1408 / 4288
VGMA1 + (VGMA2 - VGMA1) × 1585 / 4288
VGMA1 + (VGMA2 - VGMA1) × 1748 / 4288

VGMA1 + (VGMA2 - VGMA1) × 1900 / 4288
VGMA1 + (VGMA2 - VGMA1) × 2044 / 4288
VGMA1 + (VGMA2 - VGMA1) × 2182 / 4288
VGMA1 + (VGMA2 - VGMA1) × 2314 / 4288
VGMA1 + (VGMA2 - VGMA1) × 2441 / 4288
VGMA1 + (VGMA2 - VGMA1) × 2562 / 4288
VGMA1 + (VGMA2 - VGMA1) × 2680 / 4288
VGMA1 + (VGMA2 - VGMA1) × 2793 / 4288

VGMA1 + (VGMA2 - VGMA1) × 2903 / 4288
VGMA1 + (VGMA2 - VGMA1) × 3008 / 4288
VGMA1 + (VGMA2 - VGMA1) × 3110 / 4288
VGMA1 + (VGMA2 - VGMA1) × 3209 / 4288
VGMA1 + (VGMA2 - VGMA1) × 3305 / 4288
VGMA1 + (VGMA2 - VGMA1) × 3398 / 4288
VGMA1 + (VGMA2 - VGMA1) × 3488 / 4288
VGMA1 + (VGMA2 - VGMA1) × 3576 / 4288

VGMA1 + (VGMA2 - VGMA1) × 3661 / 4288
VGMA1 + (VGMA2 - VGMA1) × 3745 / 4288
VGMA1 + (VGMA2 - VGMA1) × 3826 / 4288
VGMA1 + (VGMA2 - VGMA1) × 3906 / 4288
VGMA1 + (VGMA2 - VGMA1) × 3985 / 4288
VGMA1 + (VGMA2 - VGMA1) × 4062 / 4288
VGMA1 + (VGMA2 - VGMA1) × 4138 / 4288
VGMA1 + (VGMA2 - VGMA1) × 4214 / 4288

VGMA2 + (VGMA3 - VGMA2) × 74 / 2065
VGMA2 + (VGMA3 - VGMA2) × 147 / 2065
VGMA2 + (VGMA3 - VGMA2) × 219 / 2065
VGMA2 + (VGMA3 - VGMA2) × 291 / 2065
VGMA2 + (VGMA3 - VGMA2) × 362 / 2065
VGMA2 + (VGMA3 - VGMA2) × 433 / 2065
VGMA2 + (VGMA3 - VGMA2) × 504 / 2065

VGMA1

VGMA2

NOTE: VDD2>VGMA1>VGMA2>VGMA3>VGMA4>VGMA5>VGMA6>VGMA7>VGMA8

12

8 BIT 384 / 402 CHANNEL TFT-LCD SOURCE DRIVER S6C0670

Table 2. Relationship between Input Data and Output Voltage Value (2)

Input

data

28H

29H
2AH
2BH
2CH
2DH
2EH
2FH

30H

31H

32H

33H

34H

35H

36H

37H

38H

39H
3AH
3BH
3CH
3DH
3EH
3FH

40H

41H

42H

43H

44H

45H

46H

47H

48H

49H
4AH
4BH
4CH
4DH
4EH
4FH

DX7 DX6 DX5 DX4 DX3 DX2 DX1 DX0 G/S Output voltage

0 0 1
0 0 1
0 0 1
0 0 1
0 0 1
0 0 1
0 0 1
0 0 1
0 0 1 1 0 0 0 0
0 0 1 1 0 0 0 1
0 0 1 1 0 0 1 0
0 0 1 1 0 0 1 1
0 0 1 1 0 1 0 0
0 0 1 1 0 1 0 1
0 0 1 1 0 1 1 0
0 0 1 1 0 1 1 1
0 0 1 1 1 0 0 0
0 0 1 1 1 0 0 1
0 0 1 1 1 0 1 0
0 0 1 1 1 0 1 1
0 0 1 1 1 1 0 0
0 0 1 1 1 1 0 1
0 0 1 1 1 1 1 0
0 0 1 1 1 1 1 1
0 1 0 0 0 0 0 0
0 1 0 0 0 0 0 1
0 1 0 0 0 0 1 0
0 1 0 0 0 0 1 1
0 1 0 0 0 1 0 0
0 1 0 0 0 1 0 1
0 1 0 0 0 1 1 0
0 1 0 0 0 1 1 1
0 1 0 0 1 0 0 0
0 1 0 0 1 0 0 1
0 1 0 0 1 0 1 0
0 1 0 0 1 0 1 1
0 1 0 0 1 1 0 0
0 1 0 0 1 1 0 1
0 1 0 0 1 1 1 0
0 1 0 0 1 1 1 1

0

1 0 0 0

0

1 0 0 1

0

1 0 1 0

0

1 0 1 1

0

1 1 0 0

0

1 1 0 1

0

1 1 1 0

0

1 1 1 1

VH40
VH41
VH42
VH43
VH44
VH45
VH46
VH47

VH48
VH49
VH50
VH51
VH52
VH53
VH54
VH55

VH56
VH57
VH58
VH59
VH60
VH61
VH62
VH63

VH64
VH65
VH66
VH67
VH68
VH69
VH70
VH71

VH72
VH73
VH74
VH75
VH76
VH77
VH78
VH79

VGMA2 + (VGMA3 - VGMA2) × 574 / 2065
VGMA2 + (VGMA3 - VGMA2) × 644 / 2065
VGMA2 + (VGMA3 - VGMA2) × 713 / 2065
VGMA2 + (VGMA3 - VGMA2) × 782 / 2065
VGMA2 + (VGMA3 - VGMA2) × 851 / 2065
VGMA2 + (VGMA3 - VGMA2) × 919 / 2065
VGMA2 + (VGMA3 - VGMA2) × 987 / 2065

VGMA2 + (VGMA3 - VGMA2) × 1054 / 2065
VGMA2 + (VGMA3 - VGMA2) × 1120 / 2065

VGMA2 + (VGMA3 - VGMA2) × 1186 / 2065
VGMA2 + (VGMA3 - VGMA2) × 1251 / 2065
VGMA2 + (VGMA3 - VGMA2) × 1316 / 2065
VGMA2 + (VGMA3 - VGMA2) × 1380 / 2065
VGMA2 + (VGMA3 - VGMA2) × 1442 / 2065
VGMA2 + (VGMA3 - VGMA2) × 1504 / 2065
VGMA2 + (VGMA3 - VGMA2) × 1565 / 2065

VGMA2 + (VGMA3 - VGMA2) × 1625 / 2065
VGMA2 + (VGMA3 - VGMA2) × 1684 / 2065
VGMA2 + (VGMA3 - VGMA2) × 1742 / 2065
VGMA2 + (VGMA3 - VGMA2) × 1799 / 2065
VGMA2 + (VGMA3 - VGMA2) × 1854 / 2065
VGMA2 + (VGMA3 - VGMA2) × 1909 / 2065
VGMA2 + (VGMA3 - VGMA2) × 1962 / 2065
VGMA2 + (VGMA3 - VGMA2) × 2014 / 2065

VGMA3
VGMA3 + (VGMA4 - VGMA3) × 50 / 2368
VGMA3 + (VGMA4 - VGMA3) × 99 / 2368

VGMA3 + (VGMA4 - VGMA3) × 146 / 2368
VGMA3 + (VGMA4 - VGMA3) × 193 / 2368
VGMA3 + (VGMA4 - VGMA3) × 238 / 2368
VGMA3 + (VGMA4 - VGMA3) × 283 / 2368
VGMA3 + (VGMA4 - VGMA3) × 326 / 2368

VGMA3 + (VGMA4 - VGMA3) × 369 / 2368
VGMA3 + (VGMA4 - VGMA3) × 411 / 2368
VGMA3 + (VGMA4 - VGMA3) × 452 / 2368
VGMA3 + (VGMA4 - VGMA3) × 492 / 2368
VGMA3 + (VGMA4 - VGMA3) × 532 / 2368
VGMA3 + (VGMA4 - VGMA3) × 571 / 2368
VGMA3 + (VGMA4 - VGMA3) × 609 / 2368
VGMA3 + (VGMA4 - VGMA3) × 647 / 2368

13

S6C0670 8 BIT 384 / 402 CHANNEL TFT-LCD SOURCE DRIVER

Table 2. Relationship between Input Data and Output Voltage Value (3)

Input

data

50H
51H
52H
53H
54H
55H
56H
57H

58H
59H
5AH

5BH
5CH
5DH

5EH

5FH

60H

61H

62H

63H

64H

65H

66H

67H

68H

69H

6AH

6BH
6CH
6DH

6EH

6FH

70H

71H

72H

73H

74H

75H

76H

77H

DX7 DX6 DX5 DX4 DX3 DX2 DX1 DX0 G/S Output voltage

0 1 0 1 0 0 0 0
0 1 0 1 0 0 0 1
0 1 0 1 0 0 1 0
0 1 0 1 0 0 1 1
0 1 0 1 0 1 0 0
0 1 0 1 0 1 0 1
0 1 0 1 0 1 1 0
0 1 0 1 0 1 1 1
0 1 0 1 1 0 0 0
0 1 0 1 1 0 0 1
0 1 0 1 1 0 1 0
0 1 0 1 1 0 1 1
0 1 0 1 1 1 0 0
0 1 0 1 1 1 0 1
0 1 0 1 1 1 1 0
0 1 0 1 1 1 1 1
0 1 1 0 0 0 0 0
0 1 1 0 0 0 0 1
0 1 1 0 0 0 1 0
0 1 1 0 0 0 1 1
0 1 1 0 0 1 0 0
0 1 1 0 0 1 0 1
0 1 1 0 0 1 1 0
0 1 1 0 0 1 1 1
0 1 1 0 1 0 0 0
0 1 1 0 1 0 0 1
0 1 1 0 1 0 1 0
0 1 1 0 1 0 1 1
0 1 1 0 1 1 0 0
0 1 1 0 1 1 0 1
0 1 1 0 1 1 1 0
0 1 1 0 1 1 1 1
0 1 1 1 0 0 0 0
0 1 1 1 0 0 0 1
0 1 1 1 0 0 1 0
0 1 1 1 0 0 1 1
0 1 1 1 0 1 0 0
0 1 1 1 0 1 0 1
0 1 1 1 0 1 1 0
0 1 1 1 0 1 1 1

VH80
VH81
VH82
VH83
VH84
VH85
VH86
VH87

VH88
VH89
VH90
VH91
VH92
VH93
VH94
VH95

VH96
VH97
VH98

VH99
VH100
VH101
VH102
VH103

VH104
VH105
VH106
VH107
VH108
VH109
VH110
VH111

VH112
VH113
VH114
VH115
VH116
VH117
VH118
VH119

VGMA3 + (VGMA4 - VGMA3) × 684 / 2368
VGMA3 + (VGMA4 - VGMA3) × 722 / 2368
VGMA3 + (VGMA4 - VGMA3) × 758 / 2368
VGMA3 + (VGMA4 - VGMA3) × 795 / 2368
VGMA3 + (VGMA4 - VGMA3) × 831 / 2368
VGMA3 + (VGMA4 - VGMA3) × 867 / 2368
VGMA3 + (VGMA4 - VGMA3) × 903 / 2368
VGMA3 + (VGMA4 - VGMA3) × 938 / 2368

VGMA3 + (VGMA4 - VGMA3) × 974 / 2368
VGMA3 + (VGMA4 - VGMA3) × 1009 / 2368
VGMA3 + (VGMA4 - VGMA3) × 1045 / 2368
VGMA3 + (VGMA4 - VGMA3) × 1080 / 2368
VGMA3 + (VGMA4 - VGMA3) × 1116 / 2368
VGMA3 + (VGMA4 - VGMA3) × 1151 / 2368
VGMA3 + (VGMA4 - VGMA3) × 1187 / 2368
VGMA3 + (VGMA4 - VGMA3) × 1222 / 2368

VGMA3 + (VGMA4 - VGMA3) × 1258 / 2368
VGMA3 + (VGMA4 - VGMA3) × 1294 / 2368
VGMA3 + (VGMA4 - VGMA3) × 1329 / 2368
VGMA3 + (VGMA4 - VGMA3) × 1365 / 2368
VGMA3 + (VGMA4 - VGMA3) × 1401 / 2368
VGMA3 + (VGMA4 - VGMA3) × 1436 / 2368
VGMA3 + (VGMA4 - VGMA3) × 1472 / 2368
VGMA3 + (VGMA4 - VGMA3) × 1507 / 2368

VGMA3 + (VGMA4 - VGMA3) × 1543 / 2368
VGMA3 + (VGMA4 - VGMA3) × 1579 / 2368
VGMA3 + (VGMA4 - VGMA3) × 1614 / 2368
VGMA3 + (VGMA4 - VGMA3) × 1649 / 2368
VGMA3 + (VGMA4 - VGMA3) × 1685 / 2368
VGMA3 + (VGMA4 - VGMA3) × 1720 / 2368
VGMA3 + (VGMA4 - VGMA3) × 1755 / 2368
VGMA3 + (VGMA4 - VGMA3) × 1790 / 2368

VGMA3 + (VGMA4 - VGMA3) × 1825 / 2368
VGMA3 + (VGMA4 - VGMA3) × 1860 / 2368
VGMA3 + (VGMA4 - VGMA3) × 1895 / 2368
VGMA3 + (VGMA4 - VGMA3) × 1929 / 2368
VGMA3 + (VGMA4 - VGMA3) × 1964 / 2368
VGMA3 + (VGMA4 - VGMA3) × 1998 / 2368
VGMA3 + (VGMA4 - VGMA3) × 2032 / 2368
VGMA3 + (VGMA4 - VGMA3) × 2066 / 2368

14

8 BIT 384 / 402 CHANNEL TFT-LCD SOURCE DRIVER S6C0670

Table 2. Relationship between Input Data and Output Voltage Value (4)

Input

data

78H

79H
7AH
7BH
7CH
7DH
7EH
7FH

80H

81H

82H

83H

84H

85H

86H

87H

88H

89H
8AH
8BH
8CH
8DH
8EH
8FH

90H

91H

92H

93H

94H

95H

96H

97H

98H

99H
9AH
9BH
9CH
9DH
9EH
9FH

DX7 DX6 DX5 DX4 DX3 DX2 DX1 DX0 G/S Output voltage

0 1 1 1 1 0 0 0
0 1 1 1 1 0 0 1
0 1 1 1 1 0 1 0
0 1 1 1 1 0 1 1
0 1 1 1 1 1 0 0
0 1 1 1 1 1 0 1
0 1 1 1 1 1 1 0
0 1 1 1 1 1 1 1
1 0 0 0 0 0 0 0
1 0 0 0 0 0 0 1
1 0 0 0 0 0 1 0
1 0 0 0 0 0 1 1
1 0 0 0 0 1 0 0
1 0 0 0 0 1 0 1
1 0 0 0 0 1 1 0
1 0 0 0 0 1 1 1
1 0 0 0 1 0 0 0
1 0 0 0 1 0 0 1
1 0 0 0 1 0 1 0
1 0 0 0 1 0 1 1
1 0 0 0 1 1 0 0
1 0 0 0 1 1 0 1
1 0 0 0 1 1 1 0
1 0 0 0 1 1 1 1
1 0 0 1 0 0 0 0
1 0 0 1 0 0 0 1
1 0 0 1 0 0 1 0
1 0 0 1 0 0 1 1
1 0 0 1 0 1 0 0
1 0 0 1 0 1 0 1
1 0 0 1 0 1 1 0
1 0 0 1 0 1 1 1
1 0 0 1 1 0 0 0
1 0 0 1 1 0 0 1
1 0 0 1 1 0 1 0
1 0 0 1 1 0 1 1
1 0 0 1 1 1 0 0
1 0 0 1 1 1 0 1
1 0 0 1 1 1 1 0
1 0 0 1 1 1 1 1

VH120
VH121
VH122
VH123
VH124
VH125
VH126
VH127

VH128
VH129
VH130
VH131
VH132
VH133
VH134
VH135

VH136
VH137
VH138
VH139
VH140
VH141
VH142
VH143

VH144
VH145
VH146
VH147
VH148
VH149
VH150
VH151

VH152
VH153
VH154
VH155
VH156
VH157
VH158
VH159

VGMA3 + (VGMA4 - VGMA3) × 2100 / 2368
VGMA3 + (VGMA4 - VGMA3) × 2134 / 2368
VGMA3 + (VGMA4 - VGMA3) × 2168 / 2368
VGMA3 + (VGMA4 - VGMA3) × 2201 / 2368
VGMA3 + (VGMA4 - VGMA3) × 2235 / 2368
VGMA3 + (VGMA4 - VGMA3) × 2268 / 2368
VGMA3 + (VGMA4 - VGMA3) × 2302 / 2368
VGMA3 + (VGMA4 - VGMA3) × 2335 / 2368

VGMA4
VGMA4 + (VGMA5 - VGMA4) × 33 / 2149
VGMA4 + (VGMA5 - VGMA4) × 66 / 2149

VGMA4 + (VGMA5 - VGMA4) × 100 / 2149
VGMA4 + (VGMA5 - VGMA4) × 133 / 2149
VGMA4 + (VGMA5 - VGMA4) × 166 / 2149
VGMA4 + (VGMA5 - VGMA4) × 199 / 2149
VGMA4 + (VGMA5 - VGMA4) × 232 / 2149

VGMA4 + (VGMA5 - VGMA4) × 266 / 2149
VGMA4 + (VGMA5 - VGMA4) × 299 / 2149
VGMA4 + (VGMA5 - VGMA4) × 332 / 2149
VGMA4 + (VGMA5 - VGMA4) × 365 / 2149
VGMA4 + (VGMA5 - VGMA4) × 399 / 2149
VGMA4 + (VGMA5 - VGMA4) × 432 / 2149
VGMA4 + (VGMA5 - VGMA4) × 465 / 2149
VGMA4 + (VGMA5 - VGMA4) × 498 / 2149

VGMA4 + (VGMA5 - VGMA4) × 532 / 2149
VGMA4 + (VGMA5 - VGMA4) × 565 / 2149
VGMA4 + (VGMA5 - VGMA4) × 598 / 2149
VGMA4 + (VGMA5 - VGMA4) × 632 / 2149
VGMA4 + (VGMA5 - VGMA4) × 665 / 2149
VGMA4 + (VGMA5 - VGMA4) × 698 / 2149
VGMA4 + (VGMA5 - VGMA4) × 732 / 2149
VGMA4 + (VGMA5 - VGMA4) × 765 / 2149

VGMA4 + (VGMA5 - VGMA4) × 798 / 2149
VGMA4 + (VGMA5 - VGMA4) × 831 / 2149
VGMA4 + (VGMA5 - VGMA4) × 864 / 2149
VGMA4 + (VGMA5 - VGMA4) × 897 / 2149
VGMA4 + (VGMA5 - VGMA4) × 930 / 2149
VGMA4 + (VGMA5 - VGMA4) × 963 / 2149
VGMA4 + (VGMA5 - VGMA4) × 996 / 2149

VGMA4 + (VGMA5 - VGMA4) × 1029 / 2149

15

S6C0670 8 BIT 384 / 402 CHANNEL TFT-LCD SOURCE DRIVER

Table 2. Relationship between Input Data and Output Voltage Value (5)

Input

data

A0H
A1H
A2H
A3H
A4H
A5H
A6H
A7H

A8H

A9H
AAH
ABH
ACH
ADH
AEH
AFH

B0H

B1H

B2H

B3H

B4H

B5H

B6H

B7H

B8H

B9H
BAH
BBH
BCH
BDH
BEH
BFH

C0H
C1H
C2H
C3H
C4H
C5H
C6H
C7H

DX7 DX6 DX5 DX4 DX3 DX2 DX1 DX0 G/S Output voltage

1 0 1
1 0 1
1 0 1
1 0 1
1 0 1
1 0 1
1 0 1
1 0 1
1 0 1
1 0 1
1 0 1
1 0 1
1 0 1
1 0 1
1 0 1
1 0 1
1 0 1 1
1 0 1 1
1 0 1 1
1 0 1 1
1 0 1 1
1 0 1 1
1 0 1 1
1 0 1 1
1 0 1 1 1 0 0 0
1 0 1 1 1 0 0 1
1 0 1 1 1 0 1 0
1 0 1 1 1 0 1 1
1 0 1 1 1 1 0 0
1 0 1 1 1 1 0 1
1 0 1 1 1 1 1 0
1 0 1 1 1 1 1 1
1 1 0 0 0 0 0 0
1 1 0 0 0 0 0 1
1 1 0 0 0 0 1 0
1 1 0 0 0 0 1 1
1 1 0 0 0 1 0 0
1 1 0 0 0 1 0 1
1 1 0 0 0 1 1 0
1 1 0 0 0 1 1 1

0 0
0 0
0 0
0 0
0 0
0 0
0 0
0 0
0
0
0
0
0
0
0
0

0 0 0
0 0 1
0 1 0
0 1 1
1 0 0
1 0 1
1 1 0

1 1 1
1 0 0 0
1 0 0 1
1 0 1 0
1 0 1 1
1 1 0 0
1 1 0 1
1 1 1 0
1 1 1 1
0

0 0 0
0

0 0 1
0

0 1 0
0

0 1 1
0

1 0 0
0

1 0 1
0

1 1 0
0

1 1 1

VH160
VH161
VH162
VH163
VH164
VH165
VH166
VH167

VH168
VH169
VH170
VH171
VH172
VH173
VH174
VH175

VH176
VH177
VH178
VH179
VH180
VH181
VH182
VH183

VH184
VH185
VH186
VH187
VH188
VH189
VH190
VH191

VH192
VH193
VH194
VH195
VH196
VH197
VH198
VH199

VGMA4 + (VGMA5 - VGMA4) × 1062 / 2149
VGMA4 + (VGMA5 - VGMA4) × 1094 / 2149
VGMA4 + (VGMA5 - VGMA4) × 1127 / 2149
VGMA4 + (VGMA5 - VGMA4) × 1159 / 2149
VGMA4 + (VGMA5 - VGMA4) × 1192 / 2149
VGMA4 + (VGMA5 - VGMA4) × 1224 / 2149
VGMA4 + (VGMA5 - VGMA4) × 1257 / 2149
VGMA4 + (VGMA5 - VGMA4) × 1289 / 2149

VGMA4 + (VGMA5 - VGMA4) × 1322 / 2149
VGMA4 + (VGMA5 - VGMA4) × 1354 / 2149
VGMA4 + (VGMA5 - VGMA4) × 1387 / 2149
VGMA4 + (VGMA5 - VGMA4) × 1419 / 2149
VGMA4 + (VGMA5 - VGMA4) × 1452 / 2149
VGMA4 + (VGMA5 - VGMA4) × 1485 / 2149
VGMA4 + (VGMA5 - VGMA4) × 1517 / 2149
VGMA4 + (VGMA5 - VGMA4) × 1550 / 2149

VGMA4 + (VGMA5 - VGMA4) × 1583 / 2149
VGMA4 + (VGMA5 - VGMA4) × 1617 / 2149
VGMA4 + (VGMA5 - VGMA4) × 1650 / 2149
VGMA4 + (VGMA5 - VGMA4) × 1684 / 2149
VGMA4 + (VGMA5 - VGMA4) × 1717 / 2149
VGMA4 + (VGMA5 - VGMA4) × 1752 / 2149
VGMA4 + (VGMA5 - VGMA4) × 1786 / 2149
VGMA4 + (VGMA5 - VGMA4) × 1821 / 2149

VGMA4 + (VGMA5 - VGMA4) × 1856 / 2149
VGMA4 + (VGMA5 - VGMA4) × 1891 / 2149
VGMA4 + (VGMA5 - VGMA4) × 1927 / 2149
VGMA4 + (VGMA5 - VGMA4) × 1963 / 2149
VGMA4 + (VGMA5 - VGMA4) × 1999 / 2149
VGMA4 + (VGMA5 - VGMA4) × 2036 / 2149
VGMA4 + (VGMA5 - VGMA4) × 2073 / 2149
VGMA4 + (VGMA5 - VGMA4) × 2111 / 2149

VGMA5
VGMA5 + (VGMA6 - VGMA5) × 38 / 3080
VGMA5 + (VGMA6 - VGMA5) × 77 / 3080

VGMA5 + (VGMA6 - VGMA5) × 116 / 3080
VGMA5 + (VGMA6 - VGMA5) × 155 / 3080
VGMA5 + (VGMA6 - VGMA5) × 195 / 3080
VGMA5 + (VGMA6 - VGMA5) × 235 / 3080
VGMA5 + (VGMA6 - VGMA5) × 276 / 3080

16

8 BIT 384 / 402 CHANNEL TFT-LCD SOURCE DRIVER S6C0670

Table 2. Relationship between Input Data and Output Voltage Value (6)

Input

data

C8H

C9H
CAH
CBH
CCH
CDH
CEH
CFH

D0H

D1H

D2H

D3H

D4H

D5H

D6H

D7H

D8H

D9H
DAH
DBH
DCH
DDH
DEH
DFH

E0H

E1H

E2H

E3H

E4H

E5H

E6H

E7H

E8H

E9H
EAH
EBH
ECH
EDH
EEH
EFH

DX7 DX6 DX5 DX4 DX3 DX2 DX1 DX0 G/S Output voltage

1 1 0
1 1 0
1 1 0
1 1 0
1 1 0
1 1 0
1 1 0
1 1 0
1 1 0 1 0 0 0 0
1 1 0 1 0 0 0 1
1 1 0 1 0 0 1 0
1 1 0 1 0 0 1 1
1 1 0 1 0 1 0 0
1 1 0 1 0 1 0 1
1 1 0 1 0 1 1 0
1 1 0 1 0 1 1 1
1 1 0 1 1 0 0 0
1 1 0 1 1 0 0 1
1 1 0 1 1 0 1 0
1 1 0 1 1 0 1 1
1 1 0 1 1 1 0 0
1 1 0 1 1 1 0 1
1 1 0 1 1 1 1 0
1 1 0 1 1 1 1 1
1 1 1 0 0 0 0 0
1 1 1 0 0 0 0 1
1 1 1 0 0 0 1 0
1 1 1 0 0 0 1 1
1 1 1 0 0 1 0 0
1 1 1 0 0 1 0 1
1 1 1 0 0 1 1 0
1 1 1 0 0 1 1 1
1 1 1 0 1 0 0 0
1 1 1 0 1 0 0 1
1 1 1 0 1 0 1 0
1 1 1 0 1 0 1 1
1 1 1 0 1 1 0 0
1 1 1 0 1 1 0 1
1 1 1 0 1 1 1 0
1 1 1 0 1 1 1 1

0

1 0 0 0

0

1 0 0 1

0

1 0 1 0

0

1 0 1 1

0

1 1 0 0

0

1 1 0 1

0

1 1 1 0

0

1 1 1 1

VH200
VH201
VH202
VH203
VH204
VH205
VH206
VH207

VH208
VH209
VH210
VH211
VH212
VH213
VH214
VH215

VH216
VH217
VH218
VH219
VH220
VH221
VH222
VH223

VH224
VH225
VH226
VH227
VH228
VH229
VH230
VH231

VH232
VH233
VH234
VH235
VH236
VH237
VH238
VH239

VGMA5 + (VGMA6 - VGMA5) × 316 / 3080
VGMA5 + (VGMA6 - VGMA5) × 357 / 3080
VGMA5 + (VGMA6 - VGMA5) × 399 / 3080
VGMA5 + (VGMA6 - VGMA5) × 440 / 3080
VGMA5 + (VGMA6 - VGMA5) × 482 / 3080
VGMA5 + (VGMA6 - VGMA5) × 524 / 3080
VGMA5 + (VGMA6 - VGMA5) × 566 / 3080
VGMA5 + (VGMA6 - VGMA5) × 609 / 3080

VGMA5 + (VGMA6 - VGMA5) × 651 / 3080
VGMA5 + (VGMA6 - VGMA5) × 694 / 3080
VGMA5 + (VGMA6 - VGMA5) × 738 / 3080
VGMA5 + (VGMA6 - VGMA5) × 782 / 3080
VGMA5 + (VGMA6 - VGMA5) × 826 / 3080
VGMA5 + (VGMA6 - VGMA5) × 871 / 3080
VGMA5 + (VGMA6 - VGMA5) × 916 / 3080
VGMA5 + (VGMA6 - VGMA5) × 962 / 3080

VGMA5 + (VGMA6 - VGMA5) × 1009 / 3080
VGMA5 + (VGMA6 - VGMA5) × 1057 / 3080
VGMA5 + (VGMA6 - VGMA5) × 1106 / 3080
VGMA5 + (VGMA6 - VGMA5) × 1157 / 3080
VGMA5 + (VGMA6 - VGMA5) × 1209 / 3080
VGMA5 + (VGMA6 - VGMA5) × 1263 / 3080
VGMA5 + (VGMA6 - VGMA5) × 1320 / 3080
VGMA5 + (VGMA6 - VGMA5) × 1379 / 3080

VGMA5 + (VGMA6 - VGMA5) × 1441 / 3080
VGMA5 + (VGMA6 - VGMA5) × 1506 / 3080
VGMA5 + (VGMA6 - VGMA5) × 1574 / 3080
VGMA5 + (VGMA6 - VGMA5) × 1647 / 3080
VGMA5 + (VGMA6 - VGMA5) × 1724 / 3080
VGMA5 + (VGMA6 - VGMA5) × 1805 / 3080
VGMA5 + (VGMA6 - VGMA5) × 1892 / 3080
VGMA5 + (VGMA6 - VGMA5) × 1983 / 3080

VGMA5 + (VGMA6 - VGMA5) × 2081 / 3080
VGMA5 + (VGMA6 - VGMA5) × 2184 / 3080
VGMA5 + (VGMA6 - VGMA5) × 2293 / 3080
VGMA5 + (VGMA6 - VGMA5) × 2409 / 3080
VGMA5 + (VGMA6 - VGMA5) × 2530 / 3080
VGMA5 + (VGMA6 - VGMA5) × 2658 / 3080
VGMA5 + (VGMA6 - VGMA5) × 2792 / 3080
VGMA5 + (VGMA6 - VGMA5) × 2933 / 3080

17

S6C0670 8 BIT 384 / 402 CHANNEL TFT-LCD SOURCE DRIVER

Table 2. Relationship between Input Data and Output Voltage Value (7)

Input

data

F0H
F1H
F2H
F3H
F4H
F5H
F6H
F7H

F8H

F9H
FAH
FBH
FCH
FDH
FEH
FFH

DX7 DX6 DX5 DX4 DX3 DX2 DX1 DX0 G/S Output voltage

1 1 1 1 0 0 0 0
1 1 1 1 0 0 0 1
1 1 1 1 0 0 1 0
1 1 1 1 0 0 1 1
1 1 1 1 0 1 0 0
1 1 1 1 0 1 0 1
1 1 1 1 0 1 1 0
1 1 1 1 0 1 1 1
1 1 1 1 1 0 0 0
1 1 1 1 1 0 0 1
1 1 1 1 1 0 1 0
1 1 1 1 1 0 1 1
1 1 1 1 1 1 0 0
1 1 1 1 1 1 0 1
1 1 1 1 1 1 1 0
1 1 1 1 1 1 1 1

VH240
VH241
VH242
VH243
VH244
VH245
VH246
VH247

VH248
VH249
VH250
VH251
VH252
VH253
VH254
VH255

VGMA6 + (VGMA7 - VGMA6) × 154 / 4641
VGMA6 + (VGMA7 - VGMA6) × 314 / 4641
VGMA6 + (VGMA7 - VGMA6) × 482 / 4641
VGMA6 + (VGMA7 - VGMA6) × 659 / 4641

VGMA6 + (VGMA7 - VGMA6) × 846 / 4641
VGMA6 + (VGMA7 - VGMA6) × 1045 / 4641
VGMA6 + (VGMA7 - VGMA6) × 1260 / 4641

VGMA6 + (VGMA7 - VGMA6) × 1498 / 4641
VGMA6 + (VGMA7 - VGMA6) × 1768 / 4641
VGMA6 + (VGMA7 - VGMA6) × 2086 / 4641
VGMA6 + (VGMA7 - VGMA6) × 2482 / 4641
VGMA6 + (VGMA7 - VGMA6) × 3014 / 4641
VGMA6 + (VGMA7 - VGMA6) × 3825 / 4641

VGMA6

VGMA7
VGMA8

18

8 BIT 384 / 402 CHANNEL TFT-LCD SOURCE DRIVER S6C0670

Table 2. Relationship between Input Data and Output Voltage Value (8)

Input

data

00H
01H
02H
03H
04H
05H
06H
07H

08H

09H
0AH
0BH
0CH
0DH
0EH
0FH

10H

11H

12H

13H

14H

15H

16H

17H

18H

19H
1AH
1BH
1CH
1DH
1EH
1FH

20H

21H

22H

23H

24H

25H

26H

27H

DX7 DX6 DX5 DX4 DX3 DX2 DX1 DX0 G/S Output voltage

0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 1
0 0 0 0 0 0 1 0
0 0 0 0 0 0 1 1
0 0 0 0 0 1 0 0
0 0 0 0 0 1 0 1
0 0 0 0 0 1 1 0
0 0 0 0 0 1 1 1
0 0 0 0 1 0 0 0
0 0 0 0 1 0 0 1
0 0 0 0 1 0 1 0
0 0 0 0 1 0 1 1
0 0 0 0 1 1 0 0
0 0 0 0 1 1 0 1
0 0 0 0 1 1 1 0
0 0 0 0 1 1 1 1
0 0 0 1 0 0 0 0
0 0 0 1 0 0 0 1
0 0 0 1 0 0 1 0
0 0 0 1 0 0 1 1
0 0 0 1 0 1 0 0
0 0 0 1 0 1 0 1
0 0 0 1 0 1 1 0

0 0 0 1 0 1 1 1
0 0 0 1 1 0 0 0

0 0 0 1 1 0 0 1
0 0 0 1 1 0 1 0
0 0 0 1 1 0 1 1
0 0 0 1 1 1 0 0
0 0 0 1 1 1 0 1
0 0 0 1 1 1 1 0
0 0 0 1 1 1 1 1
0 0 1 0 0 0 0 0
0 0 1 0 0 0 0 1
0 0 1 0 0 0 1 0
0 0 1 0 0 0 1 1
0 0 1 0 0 1 0 0
0 0 1 0 0 1 0 1
0 0 1 0 0 1 1 0
0 0 1 0 0 1 1 1

VL0
VL1
VL2
VL3
VL4
VL5
VL6
VL7

VL8

VL9
VL10
VL11
VL12
VL13
VL14
VL15

VL16
VL17
VL18
VL19
VL20
VL21
VL22
VL23

VL24
VL25
VL26
VL27
VL28
VL29
VL30
VL31

VL32
VL33
VL34
VL35
VL36
VL37
VL38
VL39

VGMA16 + (VGMA15 - VGMA16) × 404 / 4288
VGMA16 + (VGMA15 - VGMA16) × 724 / 4288

VGMA16 + (VGMA15 - VGMA16) × 987 / 4288
VGMA16 + (VGMA15 - VGMA16) × 1211 / 4288
VGMA16 + (VGMA15 - VGMA16) × 1408 / 4288
VGMA16 + (VGMA15 - VGMA16) × 1585 / 4288
VGMA16 + (VGMA15 - VGMA16) × 1748 / 4288

VGMA16 + (VGMA15 - VGMA16) × 1900 / 4288
VGMA16 + (VGMA15 - VGMA16) × 2044 / 4288
VGMA16 + (VGMA15 - VGMA16) × 2182 / 4288
VGMA16 + (VGMA15 - VGMA16) × 2314 / 4288
VGMA16 + (VGMA15 - VGMA16) × 2441 / 4288
VGMA16 + (VGMA15 - VGMA16) × 2562 / 4288
VGMA16 + (VGMA15 - VGMA16) × 2680 / 4288
VGMA16 + (VGMA15 - VGMA16) × 2793 / 4288

VGMA16 + (VGMA15 - VGMA16) × 2903 / 4288
VGMA16 + (VGMA15 - VGMA16) × 3008 / 4288
VGMA16 + (VGMA15 - VGMA16) × 3110 / 4288
VGMA16 + (VGMA15 - VGMA16) × 3209 / 4288
VGMA16 + (VGMA15 - VGMA16) × 3305 / 4288
VGMA16 + (VGMA15 - VGMA16) × 3398 / 4288
VGMA16 + (VGMA15 - VGMA16) × 3488 / 4288
VGMA16 + (VGMA15 - VGMA16) × 3576 / 4288

VGMA16 + (VGMA15 - VGMA16) × 3661 / 4288
VGMA16 + (VGMA15 - VGMA16) × 3745 / 4288
VGMA16 + (VGMA15 - VGMA16) × 3826 / 4288
VGMA16 + (VGMA15 - VGMA16) × 3906 / 4288
VGMA16 + (VGMA15 - VGMA16) × 3985 / 4288
VGMA16 + (VGMA15 - VGMA16) × 4062 / 4288
VGMA16 + (VGMA15 - VGMA16) × 4138 / 4288
VGMA16 + (VGMA15 - VGMA16) × 4214 / 4288

VGMA15 + (VGMA14 - VGMA15) × 74 / 2065
VGMA15 + (VGMA14 - VGMA15) × 147 / 2065
VGMA15 + (VGMA14 - VGMA15) × 219 / 2065
VGMA15 + (VGMA14 - VGMA15) × 291 / 2065
VGMA15 + (VGMA14 - VGMA15) × 362 / 2065
VGMA15 + (VGMA14 - VGMA15) × 433 / 2065
VGMA15 + (VGMA14 - VGMA15) × 504 / 2065

VGMA16

VGMA15

NOTE: VSS2<VGMA16<VGMA15<VGMA14<VGMA13<VGMA12<VGMA11<VGMA10<VGMA9

19

S6C0670 8 BIT 384 / 402 CHANNEL TFT-LCD SOURCE DRIVER

Table 2. Relationship between Input Data and Output Voltage Value (9)

Input

data

28H
29H
2AH

2BH
2CH
2DH

2EH

2FH

30H

31H

32H

33H

34H

35H

36H

37H

38H

39H

3AH

3BH
3CH
3DH

3EH

3FH

40H

41H

42H

43H

44H

45H

46H

47H

48H

49H

4AH

4BH
4CH
4DH

4EH

4FH

DX7 DX6 DX5 DX4 DX3 DX2 DX1 DX0 G/S Output voltage

0 0 1
0 0 1
0 0 1
0 0 1
0 0 1
0 0 1
0 0 1
0 0 1
0 0 1 1 0 0 0 0
0 0 1 1 0 0 0 1
0 0 1 1 0 0 1 0
0 0 1 1 0 0 1 1
0 0 1 1 0 1 0 0
0 0 1 1 0 1 0 1
0 0 1 1 0 1 1 0
0 0 1 1 0 1 1 1
0 0 1 1 1 0 0 0
0 0 1 1 1 0 0 1
0 0 1 1 1 0 1 0
0 0 1 1 1 0 1 1
0 0 1 1 1 1 0 0
0 0 1 1 1 1 0 1
0 0 1 1 1 1 1 0
0 0 1 1 1 1 1 1
0 1 0 0 0 0 0 0
0 1 0 0 0 0 0 1
0 1 0 0 0 0 1 0
0 1 0 0 0 0 1 1
0 1 0 0 0 1 0 0
0 1 0 0 0 1 0 1
0 1 0 0 0 1 1 0
0 1 0 0 0 1 1 1
0 1 0 0 1 0 0 0
0 1 0 0 1 0 0 1
0 1 0 0 1 0 1 0
0 1 0 0 1 0 1 1
0 1 0 0 1 1 0 0
0 1 0 0 1 1 0 1
0 1 0 0 1 1 1 0
0 1 0 0 1 1 1 1

0

1 0 0 0

0

1 0 0 1

0

1 0 1 0

0

1 0 1 1

0

1 1 0 0

0

1 1 0 1

0

1 1 1 0

0

1 1 1 1

VL40
VL41
VL42
VL43
VL44
VL45
VL46
VL47

VL48
VL49
VL50
VL51
VL52
VL53
VL54
VL55

VL56
VL57
VL58
VL59
VL60
VL61
VL62
VL63

VL64
VL65
VL66
VL67
VL68
VL69
VL70
VL71

VL72
VL73
VL74
VL75
VL76
VL77
VL78
VL79

VGMA15 + (VGMA14 - VGMA15) × 574 / 2065
VGMA15 + (VGMA14 - VGMA15) × 644 / 2065
VGMA15 + (VGMA14 - VGMA15) × 713 / 2065
VGMA15 + (VGMA14 - VGMA15) × 782 / 2065
VGMA15 + (VGMA14 - VGMA15) × 851 / 2065
VGMA15 + (VGMA14 - VGMA15) × 919 / 2065
VGMA15 + (VGMA14 - VGMA15) × 987 / 2065

VGMA15 + (VGMA14 - VGMA15) × 1054 / 2065
VGMA15 + (VGMA14 - VGMA15) × 1120 / 2065

VGMA15 + (VGMA14 - VGMA15) × 1186 / 2065
VGMA15 + (VGMA14 - VGMA15) × 1251 / 2065
VGMA15 + (VGMA14 - VGMA15) × 1316 / 2065
VGMA15 + (VGMA14 - VGMA15) × 1380 / 2065
VGMA15 + (VGMA14 - VGMA15) × 1442 / 2065
VGMA15 + (VGMA14 - VGMA15) × 1504 / 2065
VGMA15 + (VGMA14 - VGMA15) × 1565 / 2065

VGMA15 + (VGMA14 - VGMA15) × 1625 / 2065
VGMA15 + (VGMA14 - VGMA15) × 1684 / 2065
VGMA15 + (VGMA14 - VGMA15) × 1742 / 2065
VGMA15 + (VGMA14 - VGMA15) × 1799 / 2065
VGMA15 + (VGMA14 - VGMA15) × 1854 / 2065
VGMA15 + (VGMA14 - VGMA15) × 1909 / 2065
VGMA15 + (VGMA14 - VGMA15) × 1962 / 2065
VGMA15 + (VGMA14 - VGMA15) × 2014 / 2065

VGMA14
VGMA14 + (VGMA13 - VGMA14) × 50 / 2368
VGMA14 + (VGMA13 - VGMA14) × 99 / 2368

VGMA14 + (VGMA13 - VGMA14) × 146 / 2368
VGMA14 + (VGMA13 - VGMA14) × 193 / 2368
VGMA14 + (VGMA13 - VGMA14) × 238 / 2368
VGMA14 + (VGMA13 - VGMA14) × 283 / 2368
VGMA14 + (VGMA13 - VGMA14) × 326 / 2368

VGMA14 + (VGMA13 - VGMA14) × 369 / 2368
VGMA14 + (VGMA13 - VGMA14) × 411 / 2368
VGMA14 + (VGMA13 - VGMA14) × 452 / 2368
VGMA14 + (VGMA13 - VGMA14) × 492 / 2368
VGMA14 + (VGMA13 - VGMA14) × 532 / 2368
VGMA14 + (VGMA13 - VGMA14) × 571 / 2368
VGMA14 + (VGMA13 - VGMA14) × 609 / 2368
VGMA14 + (VGMA13 - VGMA14) × 647 / 2368

20

8 BIT 384 / 402 CHANNEL TFT-LCD SOURCE DRIVER S6C0670

Table 2. Relationship between Input Data and Output Voltage Value (10)

Input

data

50H
51H
52H
53H
54H
55H
56H
57H

58H

59H
5AH
5BH
5CH
5DH
5EH
5FH

60H

61H

62H

63H

64H

65H

66H

67H

68H

69H
6AH
6BH
6CH
6DH
6EH
6FH

70H

71H

72H

73H

74H

75H

76H

77H

DX7 DX6 DX5 DX4 DX3 DX2 DX1 DX0 G/S Output voltage

0 1 0 1 0 0 0 0
0 1 0 1 0 0 0 1
0 1 0 1 0 0 1 0
0 1 0 1 0 0 1 1
0 1 0 1 0 1 0 0
0 1 0 1 0 1 0 1
0 1 0 1 0 1 1 0
0 1 0 1 0 1 1 1
0 1 0 1 1 0 0 0
0 1 0 1 1 0 0 1
0 1 0 1 1 0 1 0
0 1 0 1 1 0 1 1
0 1 0 1 1 1 0 0
0 1 0 1 1 1 0 1
0 1 0 1 1 1 1 0
0 1 0 1 1 1 1 1
0 1 1 0 0 0 0 0
0 1 1 0 0 0 0 1
0 1 1 0 0 0 1 0
0 1 1 0 0 0 1 1
0 1 1 0 0 1 0 0
0 1 1 0 0 1 0 1
0 1 1 0 0 1 1 0
0 1 1 0 0 1 1 1
0 1 1 0 1 0 0 0
0 1 1 0 1 0 0 1
0 1 1 0 1 0 1 0
0 1 1 0 1 0 1 1
0 1 1 0 1 1 0 0
0 1 1 0 1 1 0 1
0 1 1 0 1 1 1 0
0 1 1 0 1 1 1 1
0 1 1 1 0 0 0 0
0 1 1 1 0 0 0 1
0 1 1 1 0 0 1 0
0 1 1 1 0 0 1 1
0 1 1 1 0 1 0 0
0 1 1 1 0 1 0 1
0 1 1 1 0 1 1 0
0 1 1 1 0 1 1 1

VL80
VL81
VL82
VL83
VL84
VL85
VL86
VL87

VL88
VL89
VL90
VL91
VL92
VL93
VL94
VL95

VL96
VL97
VL98

VL99
VL100
VL101
VL102
VL103

VL104
VL105
VL106
VL107
VL108
VL109
VL110
VL111

VL112
VL113
VL114
VL115
VL116
VL117
VL118
VL119

VGMA14 + (VGMA13 - VGMA14) × 684 / 2368
VGMA14 + (VGMA13 - VGMA14) × 722 / 2368
VGMA14 + (VGMA13 - VGMA14) × 758 / 2368
VGMA14 + (VGMA13 - VGMA14) × 795 / 2368
VGMA14 + (VGMA13 - VGMA14) × 831 / 2368
VGMA14 + (VGMA13 - VGMA14) × 867 / 2368
VGMA14 + (VGMA13 - VGMA14) × 903 / 2368
VGMA14 + (VGMA13 - VGMA14) × 938 / 2368

VGMA14 + (VGMA13 - VGMA14) × 974 / 2368
VGMA14 + (VGMA13 - VGMA14) × 1009 / 2368
VGMA14 + (VGMA13 - VGMA14) × 1045 / 2368
VGMA14 + (VGMA13 - VGMA14) × 1080 / 2368
VGMA14 + (VGMA13 - VGMA14) × 1116 / 2368
VGMA14 + (VGMA13 - VGMA14) × 1151 / 2368
VGMA14 + (VGMA13 - VGMA14) × 1187 / 2368
VGMA14 + (VGMA13 - VGMA14) × 1222 / 2368

VGMA14 + (VGMA13 - VGMA14) × 1258 / 2368
VGMA14 + (VGMA13 - VGMA14) × 1294 / 2368
VGMA14 + (VGMA13 - VGMA14) × 1329 / 2368
VGMA14 + (VGMA13 - VGMA14) × 1365 / 2368
VGMA14 + (VGMA13 - VGMA14) × 1401 / 2368
VGMA14 + (VGMA13 - VGMA14) × 1436 / 2368
VGMA14 + (VGMA13 - VGMA14) × 1472 / 2368
VGMA14 + (VGMA13 - VGMA14) × 1507 / 2368

VGMA14 + (VGMA13 - VGMA14) × 1543 / 2368
VGMA14 + (VGMA13 - VGMA14) × 1579 / 2368
VGMA14 + (VGMA13 - VGMA14) × 1614 / 2368
VGMA14 + (VGMA13 - VGMA14) × 1649 / 2368
VGMA14 + (VGMA13 - VGMA14) × 1685 / 2368
VGMA14 + (VGMA13 - VGMA14) × 1720 / 2368
VGMA14 + (VGMA13 - VGMA14) × 1755 / 2368
VGMA14 + (VGMA13 - VGMA14) × 1790 / 2368

VGMA14 + (VGMA13 - VGMA14) × 1825 / 2368
VGMA14 + (VGMA13 - VGMA14) × 1860 / 2368
VGMA14 + (VGMA13 - VGMA14) × 1895 / 2368
VGMA14 + (VGMA13 - VGMA14) × 1929 / 2368
VGMA14 + (VGMA13 - VGMA14) × 1964 / 2368
VGMA14 + (VGMA13 - VGMA14) × 1998 / 2368
VGMA14 + (VGMA13 - VGMA14) × 2032 / 2368
VGMA14 + (VGMA13 - VGMA14) × 2066 / 2368

21

S6C0670 8 BIT 384 / 402 CHANNEL TFT-LCD SOURCE DRIVER

Table 2. Relationship between Input Data and Output Voltage Value (11)

Input

data

78H
79H
7AH

7BH
7CH
7DH

7EH

7FH

80H

81H

82H

83H

84H

85H

86H

87H

88H

89H

8AH

8BH
8CH
8DH

8EH

8FH

90H

91H

92H

93H

94H

95H

96H

97H

98H

99H

9AH

9BH
9CH
9DH

9EH

9FH

DX7 DX6 DX5 DX4 DX3 DX2 DX1 DX0 G/S Output voltage

0 1 1 1 1 0 0 0
0 1 1 1 1 0 0 1
0 1 1 1 1 0 1 0
0 1 1 1 1 0 1 1
0 1 1 1 1 1 0 0
0 1 1 1 1 1 0 1
0 1 1 1 1 1 1 0
0 1 1 1 1 1 1 1
1 0 0 0 0 0 0 0
1 0 0 0 0 0 0 1
1 0 0 0 0 0 1 0
1 0 0 0 0 0 1 1
1 0 0 0 0 1 0 0
1 0 0 0 0 1 0 1
1 0 0 0 0 1 1 0
1 0 0 0 0 1 1 1
1 0 0 0 1 0 0 0
1 0 0 0 1 0 0 1
1 0 0 0 1 0 1 0
1 0 0 0 1 0 1 1
1 0 0 0 1 1 0 0
1 0 0 0 1 1 0 1
1 0 0 0 1 1 1 0
1 0 0 0 1 1 1 1
1 0 0 1 0 0 0 0
1 0 0 1 0 0 0 1
1 0 0 1 0 0 1 0
1 0 0 1 0 0 1 1
1 0 0 1 0 1 0 0
1 0 0 1 0 1 0 1
1 0 0 1 0 1 1 0
1 0 0 1 0 1 1 1
1 0 0 1 1 0 0 0
1 0 0 1 1 0 0 1
1 0 0 1 1 0 1 0
1 0 0 1 1 0 1 1
1 0 0 1 1 1 0 0
1 0 0 1 1 1 0 1
1 0 0 1 1 1 1 0
1 0 0 1 1 1 1 1

VL120
VL121
VL122
VL123
VL124
VL125
VL126
VL127

VL128
VL129
VL130
VL131
VL132
VL133
VL134
VL135

VL136
VL137
VL138
VL139
VL140
VL141
VL142
VL143

VL144
VL145
VL146
VL147
VL148
VL149
VL150
VL151

VL152
VL153
VL154
VL155
VL156
VL157
VL158
VL159

VGMA14 + (VGMA13 - VGMA14) × 2100 / 2368
VGMA14 + (VGMA13 - VGMA14) × 2134 / 2368
VGMA14 + (VGMA13 - VGMA14) × 2168 / 2368
VGMA14 + (VGMA13 - VGMA14) × 2201 / 2368
VGMA14 + (VGMA13 - VGMA14) × 2235 / 2368
VGMA14 + (VGMA13 - VGMA14) × 2268 / 2368
VGMA14 + (VGMA13 - VGMA14) × 2302 / 2368
VGMA14 + (VGMA13 - VGMA14) × 2335 / 2368

VGMA13
VGMA13 + (VGMA12 - VGMA13) × 33 / 2149
VGMA13 + (VGMA12 - VGMA13) × 66 / 2149

VGMA13 + (VGMA12 - VGMA13) × 100 / 2149
VGMA13 + (VGMA12 - VGMA13) × 133 / 2149
VGMA13 + (VGMA12 - VGMA13) × 166 / 2149
VGMA13 + (VGMA12 - VGMA13) × 199 / 2149
VGMA13 + (VGMA12 - VGMA13) × 232 / 2149

VGMA13 + (VGMA12 - VGMA13) × 266 / 2149
VGMA13 + (VGMA12 - VGMA13) × 299 / 2149
VGMA13 + (VGMA12 - VGMA13) × 332 / 2149
VGMA13 + (VGMA12 - VGMA13) × 365 / 2149
VGMA13 + (VGMA12 - VGMA13) × 399 / 2149
VGMA13 + (VGMA12 - VGMA13) × 432 / 2149
VGMA13 + (VGMA12 - VGMA13) × 465 / 2149
VGMA13 + (VGMA12 - VGMA13) × 498 / 2149

VGMA13 + (VGMA12 - VGMA13) × 532 / 2149
VGMA13 + (VGMA12 - VGMA13) × 565 / 2149
VGMA13 + (VGMA12 - VGMA13) × 598 / 2149
VGMA13 + (VGMA12 - VGMA13) × 632 / 2149
VGMA13 + (VGMA12 - VGMA13) × 665 / 2149
VGMA13 + (VGMA12 - VGMA13) × 698 / 2149
VGMA13 + (VGMA12 - VGMA13) × 732 / 2149
VGMA13 + (VGMA12 - VGMA13) × 765 / 2149

VGMA13 + (VGMA12 - VGMA13) × 798 / 2149
VGMA13 + (VGMA12 - VGMA13) × 831 / 2149
VGMA13 + (VGMA12 - VGMA13) × 864 / 2149
VGMA13 + (VGMA12 - VGMA13) × 897 / 2149
VGMA13 + (VGMA12 - VGMA13) × 930 / 2149
VGMA13 + (VGMA12 - VGMA13) × 963 / 2149
VGMA13 + (VGMA12 - VGMA13) × 996 / 2149

VGMA13 + (VGMA12 - VGMA13) × 1029 / 2149

22

8 BIT 384 / 402 CHANNEL TFT-LCD SOURCE DRIVER S6C0670

Table 2. Relationship between Input Data and Output Voltage Value (12)

Input

data

A0H
A1H
A2H
A3H
A4H
A5H
A6H
A7H

A8H

A9H
AAH
ABH
ACH
ADH
AEH
AFH

B0H

B1H

B2H

B3H

B4H

B5H

B6H

B7H

B8H

B9H
BAH
BBH
BCH
BDH
BEH
BFH

C0H

C1H

C2H

C3H

C4H

C5H

C6H

C7H

DX7 DX6 DX5 DX4 DX3 DX2 DX1 DX0 G/S Output voltage

1 0 1
1 0 1
1 0 1
1 0 1
1 0 1
1 0 1
1 0 1
1 0 1
1 0 1
1 0 1
1 0 1
1 0 1
1 0 1
1 0 1
1 0 1
1 0 1
1 0 1 1
1 0 1 1
1 0 1 1
1 0 1 1
1 0 1 1
1 0 1 1
1 0 1 1
1 0 1 1
1 0 1 1 1 0 0 0
1 0 1 1 1 0 0 1
1 0 1 1 1 0 1 0
1 0 1 1 1 0 1 1
1 0 1 1 1 1 0 0
1 0 1 1 1 1 0 1
1 0 1 1 1 1 1 0
1 0 1 1 1 1 1 1
1 1 0 0 0 0 0 0
1 1 0 0 0 0 0 1
1 1 0 0 0 0 1 0
1 1 0 0 0 0 1 1
1 1 0 0 0 1 0 0
1 1 0 0 0 1 0 1
1 1 0 0 0 1 1 0
1 1 0 0 0 1 1 1

0 0
0 0
0 0
0 0
0 0
0 0
0 0
0 0
0
0
0
0
0
0
0
0

0 0 0
0 0 1
0 1 0
0 1 1
1 0 0
1 0 1
1 1 0

1 1 1
1 0 0 0
1 0 0 1
1 0 1 0
1 0 1 1
1 1 0 0
1 1 0 1
1 1 1 0
1 1 1 1

0

0 0 0

0

0 0 1

0

0 1 0

0

0 1 1

0

1 0 0

0

1 0 1

0

1 1 0

0

1 1 1

VL160
VL161
VL162
VL163
VL164
VL165
VL166
VL167

VL168
VL169
VL170
VL171
VL172
VL173
VL174
VL175

VL176
VL177
VL178
VL179
VL180
VL181
VL182
VL183

VL184
VL185
VL186
VL187
VL188
VL189
VL190
VL191

VL192
VL193
VL194
VL195
VL196
VL197
VL198
VL199

VGMA13 + (VGMA12 - VGMA13) × 1062 / 2149
VGMA13 + (VGMA12 - VGMA13) × 1094 / 2149
VGMA13 + (VGMA12 - VGMA13) × 1127 / 2149
VGMA13 + (VGMA12 - VGMA13) × 1159 / 2149
VGMA13 + (VGMA12 - VGMA13) × 1192 / 2149
VGMA13 + (VGMA12 - VGMA13) × 1224 / 2149
VGMA13 + (VGMA12 - VGMA13) × 1257 / 2149
VGMA13 + (VGMA12 - VGMA13) × 1289 / 2149

VGMA13 + (VGMA12 - VGMA13) × 1322 / 2149
VGMA13 + (VGMA12 - VGMA13) × 1354 / 2149
VGMA13 + (VGMA12 - VGMA13) × 1387 / 2149
VGMA13 + (VGMA12 - VGMA13) × 1419 / 2149
VGMA13 + (VGMA12 - VGMA13) × 1452 / 2149
VGMA13 + (VGMA12 - VGMA13) × 1485 / 2149
VGMA13 + (VGMA12 - VGMA13) × 1517 / 2149
VGMA13 + (VGMA12 - VGMA13) × 1550 / 2149

VGMA13 + (VGMA12 - VGMA13) × 1583 / 2149
VGMA13 + (VGMA12 - VGMA13) × 1617 / 2149
VGMA13 + (VGMA12 - VGMA13) × 1650 / 2149
VGMA13 + (VGMA12 - VGMA13) × 1684 / 2149
VGMA13 + (VGMA12 - VGMA13) × 1717 / 2149
VGMA13 + (VGMA12 - VGMA13) × 1752 / 2149
VGMA13 + (VGMA12 - VGMA13) × 1786 / 2149
VGMA13 + (VGMA12 - VGMA13) × 1821 / 2149

VGMA13 + (VGMA12 - VGMA13) × 1856 / 2149
VGMA13 + (VGMA12 - VGMA13) × 1891 / 2149
VGMA13 + (VGMA12 - VGMA13) × 1927 / 2149
VGMA13 + (VGMA12 - VGMA13) × 1963 / 2149
VGMA13 + (VGMA12 - VGMA13) × 1999 / 2149
VGMA13 + (VGMA12 - VGMA13) × 2036 / 2149
VGMA13 + (VGMA12 - VGMA13) × 2073 / 2149
VGMA13 + (VGMA12 - VGMA13) × 2111 / 2149

VGMA12
VGMA12 + (VGMA11 - VGMA12) × 38 / 3080
VGMA12 + (VGMA11 - VGMA12) × 77 / 3080

VGMA12 + (VGMA11 - VGMA12) × 116 / 3080
VGMA12 + (VGMA11 - VGMA12) × 155 / 3080
VGMA12 + (VGMA11 - VGMA12) × 195 / 3080
VGMA12 + (VGMA11 - VGMA12) × 235 / 3080
VGMA12 + (VGMA11 - VGMA12) × 276 / 3080

23

S6C0670 8 BIT 384 / 402 CHANNEL TFT-LCD SOURCE DRIVER

Table 2. Relationship between Input Data and Output Voltage Value (13)

Input

data

C8H
C9H
CAH
CBH
CCH
CDH
CEH
CFH

D0H
D1H
D2H
D3H
D4H
D5H
D6H
D7H

D8H
D9H
DAH
DBH
DCH
DDH
DEH
DFH

E0H
E1H
E2H
E3H
E4H
E5H
E6H
E7H

E8H

E9H
EAH
EBH
ECH
EDH
EEH
EFH

DX7 DX6 DX5 DX4 DX3 DX2 DX1 DX0 G/S Output voltage

1 1 0
1 1 0
1 1 0
1 1 0
1 1 0
1 1 0
1 1 0
1 1 0
1 1 0 1 0 0 0 0
1 1 0 1 0 0 0 1
1 1 0 1 0 0 1 0
1 1 0 1 0 0 1 1
1 1 0 1 0 1 0 0
1 1 0 1 0 1 0 1
1 1 0 1 0 1 1 0
1 1 0 1 0 1 1 1
1 1 0 1 1 0 0 0
1 1 0 1 1 0 0 1
1 1 0 1 1 0 1 0
1 1 0 1 1 0 1 1
1 1 0 1 1 1 0 0
1 1 0 1 1 1 0 1
1 1 0 1 1 1 1 0
1 1 0 1 1 1 1 1
1 1 1 0 0 0 0 0
1 1 1 0 0 0 0 1
1 1 1 0 0 0 1 0
1 1 1 0 0 0 1 1
1 1 1 0 0 1 0 0
1 1 1 0 0 1 0 1
1 1 1 0 0 1 1 0
1 1 1 0 0 1 1 1
1 1 1 0 1 0 0 0
1 1 1 0 1 0 0 1
1 1 1 0 1 0 1 0
1 1 1 0 1 0 1 1
1 1 1 0 1 1 0 0
1 1 1 0 1 1 0 1
1 1 1 0 1 1 1 0
1 1 1 0 1 1 1 1

0

1 0 0 0

0

1 0 0 1

0

1 0 1 0

0

1 0 1 1

0

1 1 0 0

0

1 1 0 1

0

1 1 1 0

0

1 1 1 1

VL200
VL201
VL202
VL203
VL204
VL205
VL206
VL207

VL208
VL209
VL210
VL211
VL212
VL213
VL214
VL215

VL216
VL217
VL218
VL219
VL220
VL221
VL222
VL223

VL224
VL225
VL226
VL227
VL228
VL229
VL230
VL231

VL232
VL233
VL234
VL235
VL236
VL237
VL238
VL239

VGMA12 + (VGMA11 - VGMA12) × 316 / 3080
VGMA12 + (VGMA11 - VGMA12) × 357 / 3080
VGMA12 + (VGMA11 - VGMA12) × 399 / 3080
VGMA12 + (VGMA11 - VGMA12) × 440 / 3080
VGMA12 + (VGMA11 - VGMA12) × 482 / 3080
VGMA12 + (VGMA11 - VGMA12) × 524 / 3080
VGMA12 + (VGMA11 - VGMA12) × 566 / 3080
VGMA12 + (VGMA11 - VGMA12) × 609 / 3080

VGMA12 + (VGMA11 - VGMA12) × 651 / 3080
VGMA12 + (VGMA11 - VGMA12) × 694 / 3080
VGMA12 + (VGMA11 - VGMA12) × 738 / 3080
VGMA12 + (VGMA11 - VGMA12) × 782 / 3080
VGMA12 + (VGMA11 - VGMA12) × 826 / 3080
VGMA12 + (VGMA11 - VGMA12) × 871 / 3080
VGMA12 + (VGMA11 - VGMA12) × 916 / 3080
VGMA12 + (VGMA11 - VGMA12) × 962 / 3080

VGMA12 + (VGMA11 - VGMA12) × 1009 / 3080
VGMA12 + (VGMA11 - VGMA12) × 1057 / 3080
VGMA12 + (VGMA11 - VGMA12) × 1106 / 3080
VGMA12 + (VGMA11 - VGMA12) × 1157 / 3080
VGMA12 + (VGMA11 - VGMA12) × 1209 / 3080
VGMA12 + (VGMA11 - VGMA12) × 1263 / 3080
VGMA12 + (VGMA11 - VGMA12) × 1320 / 3080
VGMA12 + (VGMA11 - VGMA12) × 1379 / 3080

VGMA12 + (VGMA11 - VGMA12) × 1441 / 3080
VGMA12 + (VGMA11 - VGMA12) × 1506 / 3080
VGMA12 + (VGMA11 - VGMA12) × 1574 / 3080
VGMA12 + (VGMA11 - VGMA12) × 1647 / 3080
VGMA12 + (VGMA11 - VGMA12) × 1724 / 3080
VGMA12 + (VGMA11 - VGMA12) × 1805 / 3080
VGMA12 + (VGMA11 - VGMA12) × 1892 / 3080
VGMA12 + (VGMA11 - VGMA12) × 1983 / 3080

VGMA12 + (VGMA11 - VGMA12) × 2081 / 3080
VGMA12 + (VGMA11 - VGMA12) × 2184 / 3080
VGMA12 + (VGMA11 - VGMA12) × 2293 / 3080
VGMA12 + (VGMA11 - VGMA12) × 2409 / 3080
VGMA12 + (VGMA11 - VGMA12) × 2530 / 3080
VGMA12 + (VGMA11 - VGMA12) × 2658 / 3080
VGMA12 + (VGMA11 - VGMA12) × 2792 / 3080
VGMA12 + (VGMA11 - VGMA12) × 2933 / 3080

24

8 BIT 384 / 402 CHANNEL TFT-LCD SOURCE DRIVER S6C0670

Table 2. Relationship between Input Data and Output Voltage Value (14)

Input

data

F0H
F1H
F2H
F3H
F4H
F5H
F6H
F7H

F8H

F9H
FAH
FBH
FCH
FDH
FEH

FFH

DX7 DX6 DX5 DX4 DX3 DX2 DX1 DX0 G/S Output voltage

1 1 1 1 0 0 0 0
1 1 1 1 0 0 0 1
1 1 1 1 0 0 1 0
1 1 1 1 0 0 1 1
1 1 1 1 0 1 0 0
1 1 1 1 0 1 0 1
1 1 1 1 0 1 1 0
1 1 1 1 0 1 1 1
1 1 1 1 1 0 0 0
1 1 1 1 1 0 0 1
1 1 1 1 1 0 1 0
1 1 1 1 1 0 1 1
1 1 1 1 1 1 0 0
1 1 1 1 1 1 0 1
1 1 1 1 1 1 1 0
1 1 1 1 1 1 1 1

VL240
VL241
VL242
VL243
VL244
VL245
VL246
VL247

VL248
VL249
VL250
VL251
VL252
VL253
VL254
VL255

VGMA11 + (VGMA10 - VGMA11) × 154 / 4641
VGMA11 + (VGMA10 - VGMA11) × 314 / 4641
VGMA11 + (VGMA10 - VGMA11) × 482 / 4641
VGMA11 + (VGMA10 - VGMA11) × 659 / 4641

VGMA11 + (VGMA10 - VGMA11) × 846 / 4641
VGMA11 + (VGMA10 - VGMA11) × 1045 / 4641
VGMA11 + (VGMA10 - VGMA11) × 1260 / 4641

VGMA11 + (VGMA10 - VGMA11) × 1498 / 4641
VGMA11 + (VGMA10 - VGMA11) × 1768 / 4641
VGMA11 + (VGMA10 - VGMA11) × 2086 / 4641
VGMA11 + (VGMA10 - VGMA11) × 2482 / 4641
VGMA11 + (VGMA10 - VGMA11) × 3014 / 4641
VGMA11 + (VGMA10 - VGMA11) × 3825 / 4641

VGMA11

VGMA10

VGMA9

25

S6C0670 8 BIT 384 / 402 CHANNEL TFT-LCD SOURCE DRIVER

ABSOLUTE MAXIMUM RATINGS

Table 3. Absolute Maximum Ratings (VSS1 = VSS2 = 0 V)

Parameter Symbol Ratings Unit

Logic supply voltage VDD1 -0.3 to 5.0 V

Driver supply voltage VDD2 -0.3 to 16 V

Input voltage

Output voltage

Operating power dissipation Pd 300

Operation temperature Top -20 to 75 °C

Storage temperature Tstg -55 to 125

If LSIs are stressed beyond those listed above “absolute maximum ratings”, they may be permanently
destroyed. These are stress ratings only, and functional operation of the device at these or any other
condition beyond those indicated under “recommended operating conditions” is not implied. Exposure to
absolute maximum rated conditions for extended periods may affect device reliability.
Turn on power order: VDD1 → control signal input → VDD2 → VGMA1 - VGMA16
Turn off power order: VGMA1 - VGMA16 → VDD2 → control signal input → VDD1

VGMA1 - 16 -0.3 to VDD2+0.3

Others -0.3 to VDD1+0.3

DIO1, 2 -0.3 to VDD1+0.3

Y1 – Y402 -0.3 to VDD2+0.3

(1)

CAUTIONS:

V

V

mW

°C

RECOMMENDED OPERATION CONDITIONS

Table 4. Recommended Operation Conditions (Ta = -20 to 75 °C, VSS1 = VSS2 = 0 V)

Parameter Symbol Min. Typ. Max. Unit

Logic supply voltage VDD1 2.5 3.3 3.6 V

Driver supply voltage VDD2

Gamma corrected voltage

VGMA1 – VGMA8 0.5 VDD2 - VDD2 - 0.1 V

VGMA9 – VGMA16 VSS2 + 0.1 - 0.5 VDD2 V

Driver part output voltage Vyo VSS2 + 0.1 - VDD2 - 0.1 V

Maximum clock frequency

(Single edge/Double edge)

Output load capacitance CL

NOTE: 1. Relationship between TFT-LCD panel and Pd (Pd ∝ CL * (VDD2)2 * fCLK1)

TFT-LCD panel standard

SXGA max. VDD2 = 15 V max. VDD2 = 13 V

UXGA & WUXGA max. VDD2 = 14 V max. VDD2 = 12 V

(1)

fmax

(1)

CL = 140pF CL = 200pF

8.0 12.0 15.0 V

VDD1 = 2.5 V 55 / 40
VDD1 = 3.0 V 75 / 55

- - 200 pF / PIN

MHz

26

8 BIT 384 / 402 CHANNEL TFT-LCD SOURCE DRIVER S6C0670

DC CHARACTERISTICS

Table 5. DC Characteristics (Ta = -20 to 75 °C, VDD1 = 2.5 to 3.6 V, VDD2 = 8 to 15 V, VSS1 = VSS2 = 0 V)

Parameter Symbol Condition Min. Typ. Max. Unit

High level input voltage VIH 0.8 VDD1 - VDD1

Low level input voltage VIL 0 - 0.2 VDD1

Input leakage current IL

High level output

voltage

VOH DIO1 (DIO2), IO = -1.0 mA VDD1 - 0.5 - -

Low level output voltage VOL DIO1 (DIO2), IO = +1.0 mA - - 0.5

Resistor

R0 -

R254
IVOH

Driver output current

IVOL

Output voltage deviation ∆VO

Output RMS voltage

deviation

dVrms

Output voltage range Vyo Input data: 00H to FFH

Logic part dynamic

current

Driver part dynamic

current

IDD1 VDD1 = 3.0 V
IDD2 VDD2 = 10 V

SHL, CLK2, D00 - D57, CLK1,

SELT, DATPOL1, DATPOL2,

DEC, POL, DIO1 (DIO2)

Refer to Table 1. Resistor

Strings

VDD2 = 10.0 V,

Vx = 3.5 V, Vyo = 9.5 V

VDD2 = 10.0 V,

Vx = 6.5 V, Vyo = 0.5 V

(1)

(1)

VSS2 + 0.1 V to VDD2 - 1.5 V -

VDD2 - 1.5 V to VDD2 - 0.1 V -

(2)

Input data: 00H to FFH - ±3 ±10

(3)

(4)

-1 - 1

µA

Rn × 0.7 Rn × 1.3 Ω

- -2.0 -1.0 mA

1.0 2.0 - mA
±7 ±15

VSS2 +

0.1

±10 ±20

-

VDD2 –

0.1

mV

- 4.0 7.0
mA

- 10.0 15.0

V

V

V

NOTES:

1. Vyo is the output voltage of analog output pins Y1 to Y402.
Vx is the voltage applied to analog output pins Y1 to Y402.

2. dVrms is a maximum deviation value from ideal difference between high output and low output at the same gray scale.

3. CLK1 period is defined to be 15.6 µs at fCLK2 = 54 MHz, DEC = L, data pattern = 10101010
(checkerboard pattern), Ta = 25 °C.
4, Yout Load Condition

2k

YOUT

VCOM = 0.5 VDD2

2k

Ω

Ω

4k

Ω

20pF 40pF 20pF

4k

Ω

4k

4k

Ω

Ω

Figure 5. Yout Load Condition

27

S6C0670 8 BIT 384 / 402 CHANNEL TFT-LCD SOURCE DRIVER

SINGLE EDGE AC CHARACTERISTICS

Table 6. AC Characteristics (Ta = -20 to 75 °C, VDD2 = 8 to 15 V, VSS1 = VSS2 = 0 V, DEC = L)

Parameter Symbol Condition

VDD1 =

2.5 to 3.0 V

VDD1 =

3.0 to 3.6 V

Min. Max. Min. Max.

Clock pulse width PWCLK - 18 - 13 -

Clock pulse low period PWCLK(L) - 3 - 2 -

Clock pulse high

period

PWCLK(H) - 3 - 2 -

Data setup time tSETUP1 - 3 - 2 -

Data hold time tHOLD1 - 0 - 0 -

Start pulse setup time tSETUP2 - 3 - 2 -

Start pulse hold time tHOLD2 - 0 - 0 -

DATPOL-CLK2 setup

time

DATPOL-CLK2 hold

time

tSETUP4 - 3 - 2 -

tHOLD4 - 0 - 0 -

Start pulse delay time tPLH1 CL = 20 pF - 15 - 11

CLK1 setup time tSETUP3 - 2 - 2 -

Driver output delay

time1

Driver output delay

time2

CLK1 pulse high

period

tPHL1 - 4 - 4

PWCLK1 = 1 µs,

Refer Figure 5. Yout

tPHL2

PWCLK1 -

Load Condition

- 8 - 8

(3CLK2)

2

(3CLK2)

Data invalid period tINV - 1 - 1 -

Last data timing tLDT - 1 - 1 -

CLK1-CLK2 time tCLK1-CLK2

POL-CLK1 time tPOL-CLK1

CLK1↑ or ↓ → CLK2↑

POL↑ or ↓ → CLK1↑

8 - 6 - ns
8 - 6 - ns

Unit

ns

CLK2

period

µs

2

CLK2

period

28

8 BIT 384 / 402 CHANNEL TFT-LCD SOURCE DRIVER S6C0670

DOUBLE EDGE AC CHARACTERISTICS

Table 7. AC Characteristics (Ta = -20 to 75 °C, VDD2 = 8 to 15 V, VSS1 = VSS2 = 0 V, DEC = H)

Parameter Symbol Condition

VDD1 =

2.5 to 3.0 V

VDD1 =

3.0 to 3.6 V

Min. Max. Min. Max.

Clock pulse width PWCLK - 25 - 18 -

Clock pulse low period PWCLK(L) - 4 - 3 -

Clock pulse high

period

PWCLK(H) - 4 - 3 -

Data setup time tSETUP1 - 4 - 3 -

Data hold time tHOLD1 - 0 - 0 -

Start pulse setup time tSETUP2 - 4 - 3 -

Start pulse hold time tHOLD2 - 0 - 0 -

DATPOL-CLK2 setup

time

DATPOL-CLK2 hold

time

tSETUP4 - 4 - 3 -

tHOLD4 - 0 - 0 -

Start pulse delay time tPLH1 CL = 20 pF - 15 - 15

CLK1 setup time tSETUP3 - 1 - 1 -

Driver output delay

time1

Driver output delay

time2

CLK1 pulse high

period

tPHL1 - 4 - 4

PWCLK1 = 1 µs ,

Figure 5. Yout Load

tPHL2

PWCLK1 -

Condition

- 8 - 8

(3CLK2)

2

(3CLK2)

Data invalid period tINV - 0.5 - 0.5 -

Last data timing tLDT 1 - 1 -

CLK1-CLK2 time tCLK1-CLK2

POL-CLK1 time tPOL-CLK1

CLK1↑ or ↓ → CLK2↑

POL↑ or ↓ → CLK1↑

8 - 6 - ns
8 - 6 - ns

Unit

ns

CLK2

period

µs

2

CLK2

period

29

S6C0670 8 BIT 384 / 402 CHANNEL TFT-LCD SOURCE DRIVER

INVALID DATA

(DIO1 output)

POL

tPOL-CLK1

SINGLE EDGE WAVEFORMS (VIH = 0.8 VDD1, VIL = 0.2 VDD1)

PWCLK(H)

VIL

VIH

PWCLK(L)

1st LAST-1 LAST

tINV

tHOLD1

1st

DATA

tSETUP1

tHOLD4

tSETUP4

tHOLD2

tPLH1

Target output voltage

Target output voltage 90%

tPHL1

PWCLK1

tPHL2

HI-Z

tCLK1-CLK2

tLDT

0.5VDD1

LAST

DATA

30

PWCLK

CLK2

INVALID DATA

DXX

DATPOL1

DATPOL2

tSETUP2

DIO1 input

(DIO2 input)

tSETUP3

CLK1

Y(1:402)

DIO2 output

Figure 6. Waveforms, DEC = L

CLK2

CLK1

DXX

8 BIT 384 / 402 CHANNEL TFT-LCD SOURCE DRIVER S6C0670

INVALID DATA

(DIO1 output)

POL

tPOL-CLK1

DOUBLE EDGE WAVEFORMS (VIH = 0.8 VDD1, VIL = 0.2 VDD1)

PWCLK(L)

VIH

VIL

PWCLK(H)

2nd LAST-2

1st LAST-1 LAST

tINV

tHOLD1

1st

DATA

tSETUP1

tHOLD4

tSETUP4

tHOLD2

tPLH1

Target output voltage

Target output voltage 90%

tPHL1

PWCLK1

tPHL2

HI-Z

tCLK1-CLK2

tLDT

tHOLD1

0.5VDD1

tSETUP1

LAST

DATA

PWCLK

CLK2

INVALID DATA

DXX

DATPOL1

DATPOL2

tSETUP2

DIO1 input

(DIO2 input)

tSETUP3

CLK1

Y(1:402)

DIO2 output

Figure 7. Waveforms, DEC = H

CLK2

CLK1

DXX

31

S6C0670 8 BIT 384 / 402 CHANNEL TFT-LCD SOURCE DRIVER

VGMA1- VGMA8

VGMA9 - VGMA16

VGMA9 - VGMA16

Charge sharing period

RELATIONSHIPS BETWEEN CLK1, START PULSE (DIO1, DIO2) AND
BLANKING PERIOD

1/2CLK2 (DEC = H )

0.5VDD1

2CLK2(Min.)

2nd

DATA

1st

DATA

INVALID DATA

tLDT

Nth

DATA

N-1th

DATA

First data in

the next line

blanking time = Min. 4CLK2

Last data

HI-Z HI-Z HI-Z

HI-Z

VGMA1 - VGMA8

VGMA9 - VGMA16VGMA1 - VGMA8

32

CLK2

DIO1 input

(DIO2 input)

CLK1

DXX

CLK1

Figure 8. Waveforms

POL

Y2N-1:odd

number output

Y2N:even

number output
