6 BIT 300 / 309 CHANNEL TFT-LCD SOURCE DRIVER

S6C0641

written permission of LCD Driver IC Team.

November. 1999.

Prepared by: Sangho Park

[email protected]

Ver. 0.1

Contents in this document are subject to change without notice. No part of this document may be reproduced
or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the express

S6C0641 6 BIT 300 / 309 CHANNEL TFT-LCD SOURCE DRIVER

S6C0641 Specification Revision History

Version Content Date

0.0 Original Aug.1999

0.1 The content of page 21 has been modified Nov.1999

2

6 BIT 300 / 309 CHANNEL TFT-LCD SOURCE DRIVER S6C0641

CONTENTS

INTRODUCTION .................................................................................................................................................4

FEATURES.........................................................................................................................................................4

BLOCK DIAGRAM..............................................................................................................................................5

PIN ASSINGMENTS............................................................................................................................................ 6

PIN DESCRIPTIONS...........................................................................................................................................7

OPERATION DESCRIPTION...............................................................................................................................8

DISPLAY DATA TRANSFER............................................................................................................................8

EXTENSION OF OUTPUT ...............................................................................................................................8

RELATIONSHIP BETWEEN INPUT DATA VALUE AND OUTPUT VOLTAGE..................................................9

ABSOLUTE MAXIMUM RATINGS ....................................................................................................................18

RECOMMENDED OPERATION CONDITIONS.................................................................................................. 18

DC CHARACTERISTICS ................................................................................................................................... 19

AC CHARACTERISTICS ................................................................................................................................... 20

WAVEFORMS...................................................................................................................................................21

RELATIONSHIPS BETWEEN CLK1, START PULSE (DIO1, DIO2) AND BLANKING PERIOD........................22

3

S6C0641 6 BIT 300 / 309 CHANNEL TFT-LCD SOURCE DRIVER

INTRODUCTION

The S6C0641 is a 300 channel or 309 channel output, TFT-LCD source driver for 64 gray scale displays. Data
input is based on digital input consisting of 6 bits by 3 dots, which can realize a full-color display of 260,000 colors
by output of 64 values gamma-corrected.

This device has an internal D/A (Digital-to-Analog) converter for each output and 9 or 11 external power supplies.
S6C0641 can be adopted to larger panel, and SHL (Shift Direction Selection) pin makes use of the LCD panel

connection conveniently. Maximum operation clock frequency is 55 MHz at a 3.3 V logic operation. It can be
applied to the TFT-LCD panel of SVGA, XGA standards.

FEATURES

• TFT active matrix LCD source driver LSI

• 64 gray scale is possible through 9 or 11 external power supply and D/A converter

• Line inversion display is possible

• CMOS level input

• Compatible with gamma-correction

• Logic supply voltage: 3.0 - 5.5 V

• LCD driver supply voltage: 3.0 - 5.5 V

• Output dynamic range: 2.6 - 5.1 Vp-p

• Maximum operating frequency: fMAX = 55 MHz (internal data transmission rate at 3.3 V operation)

• Output: 300 / 309 outputs

• TCP available

4

6 BIT 300 / 309 CHANNEL TFT-LCD SOURCE DRIVER S6C0641

BLOCK DIAGRAM

VGMA1 ­VGMA11

CLK1

11

Y309

6 6 6 6 6 6

6 6 6 6 6 6

Y308

Y307

Output Buffer

D/A Converter

Data Latch

Y003

Y002

Y001

D00 - D05
D10 - D15
D20 - D25

CLK2

Data Register

18

6
6
6

Data Control

DIO2 DIO1

100 / 103 bit Shift Register

SELT

SHL TESTB

Figure 1. S6C0641 Block Diagram

5

S6C0641 6 BIT 300 / 309 CHANNEL TFT-LCD SOURCE DRIVER

PIN ASSIGNMENTS

Y001
Y002
Y003
Y004

VSS2
VDD2

VGMA10

VGMA8
VGMA6
VGMA4
VGMA2

D05
D04
D03
D02
D01
D00
D15
D14
D13
D12
D11
D10

DIO1
VSS1
SELT
CLK2
VDD1

(Top View)

S6C0641

DIO2
CLK1

D25
D24
D23
D22
D21
D20

SHL
VGMA1
VGMA3
VGMA5
VGMA7
VGMA9

VGMA11

VDD2
VSS2

Y306
Y307
Y308
Y309

Figure 2. S6C0641 Pin Assignments

6

6 BIT 300 / 309 CHANNEL TFT-LCD SOURCE DRIVER S6C0641

PIN DESCRIPTIONS

Symbol Pin Name Description

VDD1 Logic power supply 3.0- 5.5 V
VDD2 Driver power supply 3.0 - 5.5 V
VSS1 Logic ground Ground (0 V)
VSS2 Driver ground Ground (0 V)

Y1 – Y309 Driver outputs The D/A converted 64 gray scale analog voltage is output.

D0<0:5>

- D2<0:5>

SHL Shift direction control input

DIO1 Start pulse input / output

DIO2 Start pulse input / output

CLK2 Shift clock input

CLK1 Latch input

SELT

VGMA1

–

VGMA11

TESTB Test input

Display data input

300 / 309CH output

control input

Gamma corrected power

supplies

The display data is input with a width of 18 bits,
gray-scale data (6 bits) by 3 dots (R,G,B) DX0: LSB, DX5: MSB

This pin controls the direction of shift register in cascade connection.
The shift direction of the shift registers is as follows.
SHL = H: DIO1 input, Y1 → Y309, DIO2 output
SHL = L: DIO2 input, Y309 → Y1, DIO1 output

SHL = H: Used as the start pulse input pin.
SHL = L: Used as the start pulse output pin.

SHL = H: Used as the start pulse output pin.
SHL = L: Used as the start pulse input pin.

Refer to the shift register's shift clock input. the display data is loaded
to the data register at the rising edge of CLK2.

Latches the contents of the data register at rising edge and transfers
them to the D/A converter. Also, after CLK1 input, clears the internal
shift register contents. After 1 pulse input on start, operates normally.
CLK1 input timing refers to the "Relationships between CLK1 start
pulse (DIO1, DIO2) and blanking period" of the switching
characteristic waveform.

This pin controls 300CH or 309CH output.
SELT = H: 309CH output → Y151 to Y159 are useless.
SELT = L: 300CH output.
→ Y151 to Y159 are useless.
This pin is internally pulled-up.(Rpu = 30 kΩ)

Input the gamma corrected power supplies from external source.
VDD2 ≥ VGMA1 > VGMA2 > ……… > VGMA10 > VGMA11 ≥ VSS2
Keep gray-scale power supply unchanged during the gray-scale
voltage output.

TESTB = H: Normal operation mode
TESTB = L: Test mode (OP AMP CUT-OFF)

This pin is internally pulled-up.(Rpu = 30kΩ)

7

S6C0641 6 BIT 300 / 309 CHANNEL TFT-LCD SOURCE DRIVER

OPERATION DESCRIPTION

DISPLAY DATA TRANSFER

When DIO1 (or DIO2) pulse is loaded into internal latch on the rising edge of CLK2, DIO1 (or DIO2) pulse
enables the operation of data transfer, so display data is valid on the next rising edge of CLK2. Once all the
data of 300 / 309 channels are loaded into internal latch, it goes into stand-by state automatically, and any
new data is not accepted even though CLK2 is provided until next DIO1 (or DIO2) input. When next DIO1 (or
DIO2) is provided, new display data is valid on the next rising edge of CLK2 after the falling edge of DIO1 (or
DIO2).

EXTENSION OF OUTPUT

Output pin can be adjusted to an extended screen by cascade connection.

(1) SHL = "L"

Connect DIO1 pin of previous stage to the DIO2 pin of next stage and all the input pins
except DIO1 and DIO2 are connected together in each device.

(2) SHL = "H"

Connect DIO2 pin of previous stage to the DIO1 pin of next stage and all the input pins
except DIO2 and DIO1 are connected together in each device.

8

6 BIT 300 / 309 CHANNEL TFT-LCD SOURCE DRIVER S6C0641

RELATIONSHIP BETWEEN INPUT DATA VALUE AND OUTPUT VOLTAGE

The LCD drive output voltages are determined by the input data and 11 gamma corrected power supplies
(VGMA1 - VGMA11).

SHL = H

OUTPUT

-

DATA

SHL = L

OUTPUT

-

DATA

VDD2

VGMA1
VGMA2

VGMA3

Y1 Y2

First Last

D00 - D05 D10 - D15 D20 - D25 ...... D00 - D05 D10 - D15 D20 - D25

Y1 Y2

Last First

D00 - D05 D10 - D15 D20 - D25 ...... D00 - D05 D10 - D15 D20 - D25

Y3 ......

Y3 ......

Y307 Y308 Y309

Y307 Y308 Y309

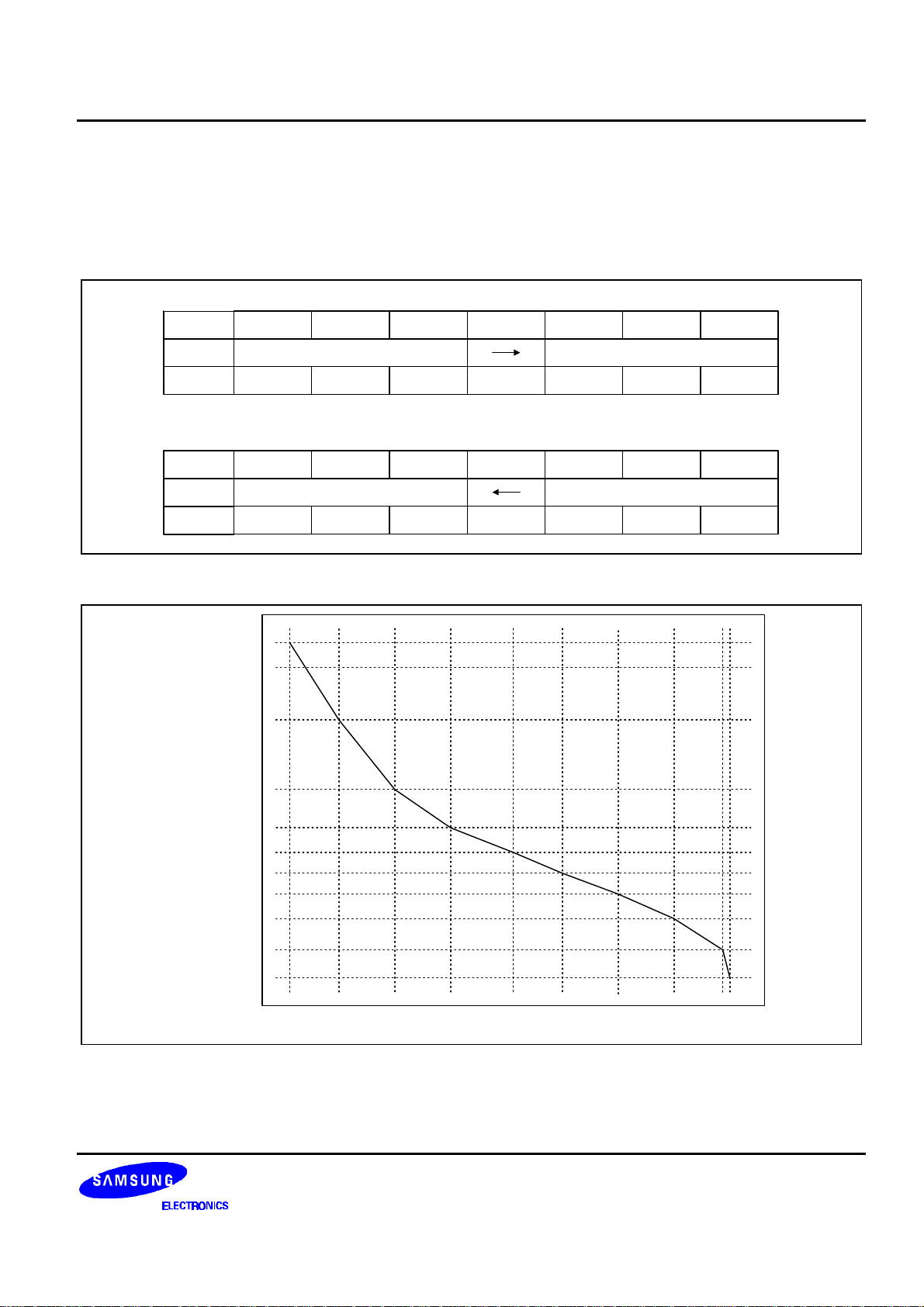

Figure 3. Relationship between Shift Direction and Output Data

VGMA4
VGMA5

VGMA6
VGMA7
VGMA8

VGMA9

VGMA10
VGMA11

VSS2

00H 07H 0FH 17H 27H 2FH 37H 3FH

1FH

Figure 4. Gamma Correction Curve

9

S6C0641 6 BIT 300 / 309 CHANNEL TFT-LCD SOURCE DRIVER

Table 2. Relationship between Input Data and Output Voltage Value:

In case of using 11 levels of Gamma-corrected power supplies (VGMA1 to VGMA11)

Input data

00H
01H
02H
03H
04H
05H
06H
07H

08H

09H
0AH
0BH
0CH
0DH
0EH
0FH

10H

11H

12H

13H

14H

15H

16H

17H

18H

19H
1AH
1BH
1CH
1DH
1EH
1FH

DX5 DX4 DX3 DX2 DX1 DX0

0 0 0 0 0 0
0 0 0 0 0 1
0 0 0 0 1 0
0 0 0 0 1 1
0 0 0 1 0 0
0 0 0 1 0 1
0 0 0 1 1 0

0 0 0 1 1 1
0 0 1 0 0 0
0 0 1 0 0 1
0 0 1 0 1 0
0 0 1 0 1 1
0 0 1 1 0 0
0 0 1 1 0 1
0 0 1 1 1 0
0 0 1 1 1 1
0 1 0 0 0 0
0 1 0 0 0 1
0 1 0 0 1 0
0 1 0 0 1 1
0 1 0 1 0 0
0 1 0 1 0 1
0 1 0 1 1 0
0 1 0 1 1 1
0 1 1 0 0 0
0 1 1 0 0 1
0 1 1 0 1 0
0 1 1 0 1 1
0 1 1 1 0 0
0 1 1 1 0 1
0 1 1 1 1 0
0 1 1 1 1 1

G/S Output voltage

VH0
VH1
VH2
VH3
VH4
VH5
VH6
VH7

VH8

VH9
VH10
VH11
VH12
VH13
VH14
VH15

VH16
VH17
VH18
VH19
VH20
VH21
VH22
VH23

VH24
VH25
VH26
VH27
VH28
VH29
VH30
VH31

VGMA3 + (VGMA2 – VGMA3) × 6/7
VGMA3 + (VGMA2 – VGMA3) × 5/7
VGMA3 + (VGMA2 – VGMA3) × 4/7
VGMA3 + (VGMA2 – VGMA3) × 3/7
VGMA3 + (VGMA2 – VGMA3) × 2/7
VGMA3 + (VGMA2 – VGMA3) × 1/7

VGMA4 + (VGMA3 – VGMA4) × 7/8
VGMA4 + (VGMA3 – VGMA4) × 6/8
VGMA4 + (VGMA3 – VGMA4) × 5/8
VGMA4 + (VGMA3 – VGMA4) × 4/8
VGMA4 + (VGMA3 – VGMA4) × 3/8
VGMA4 + (VGMA3 – VGMA4) × 2/8
VGMA4 + (VGMA3 – VGMA4) × 1/8

VGMA5 + (VGMA4 – VGMA5) × 7/8
VGMA5 + (VGMA4 – VGMA5) × 6/8
VGMA5 + (VGMA4 – VGMA5) × 5/8
VGMA5 + (VGMA4 – VGMA5) × 4/8
VGMA5 + (VGMA4 – VGMA5) × 3/8
VGMA5 + (VGMA4 – VGMA5) × 2/8
VGMA5 + (VGMA4 – VGMA5) × 1/8

VGMA6 + (VGMA5 – VGMA6) × 7/8
VGMA6 + (VGMA5 – VGMA6) × 6/8
VGMA6 + (VGMA5 – VGMA6) × 5/8
VGMA6 + (VGMA5 – VGMA6) × 4/8
VGMA6 + (VGMA5 – VGMA6) × 3/8
VGMA6 + (VGMA5 – VGMA6) × 2/8
VGMA6 + (VGMA5 – VGMA6) × 1/8

VGMA1

VGMA3

VGMA4

VGMA5

VGMA6

NOTE: VDD2≥VGMA1>VGMA2>VGMA3>VGMA4>VGMA5>VGMA6>VGMA7>VGMA8>VGMA9>VGMA10>VGMA11≥ VSS2

10

6 BIT 300 / 309 CHANNEL TFT-LCD SOURCE DRIVER S6C0641

Table 2. Relationship between Input Data and Output Voltage Value (Continued)

Input data

20H
21H
22H
23H
24H
25H
26H
27H

28H

29H
2AH
2BH
2CH
2DH
2EH
2FH

30H

31H

32H

33H

34H

35H

36H

37H

38H

39H
3AH
3BH
3CH
3DH
3EH
3FH

DX5 DX4 DX3 DX2 DX1 DX0

0 0 0 0 0

1

0 0 0 0 1

1

0 0 0 1 0

1

0 0 0 1 1

1

0 0 1 0 0

1

0 0 1 0 1

1

0 0 1 1 0

1

0 0 1 1 1

1
1 0 1 0 0 0
1 0 1 0 0 1
1 0 1 0 1 0
1 0 1 0 1 1
1 0 1 1 0 0
1 0 1 1 0 1
1 0 1 1 1 0
1 0 1 1 1 1
1 1 0 0 0 0
1 1 0 0 0 1
1 1 0 0 1 0
1 1 0 0 1 1
1 1 0 1 0 0
1 1 0 1 0 1
1 1 0 1 1 0
1 1 0 1 1 1
1 1 1 0 0 0
1 1 1 0 0 1
1 1 1 0 1 0
1 1 1 0 1 1
1 1 1 1 0 0
1 1 1 1 0 1
1 1 1 1 1 0
1 1 1 1 1 1

G/S Output voltage

VH32
VH33
VH34
VH35
VH36
VH37
VH38

VGMA7 + (VGMA6 – VGMA7) × 7/8
VGMA7 + (VGMA6 – VGMA7) × 7/8
VGMA7 + (VGMA6 – VGMA7) × 7/8
VGMA7 + (VGMA6 – VGMA7) × 7/8
VGMA7 + (VGMA6 – VGMA7) × 7/8
VGMA7 + (VGMA6 – VGMA7) × 7/8
VGMA7 + (VGMA6 – VGMA7) × 7/8

VH39
VH40

VH41
VH42
VH43
VH44
VH45
VH46

VGMA8 + (VGMA7 – VGMA8) × 7/8
VGMA8 + (VGMA7 – VGMA8) × 6/8
VGMA8 + (VGMA7 – VGMA8) × 5/8
VGMA8 + (VGMA7 – VGMA8) × 4/8
VGMA8 + (VGMA7 – VGMA8) × 3/8
VGMA8 + (VGMA7 – VGMA8) × 2/8
VGMA8 + (VGMA7 – VGMA8) × 1/8

VH47
VH48

VH49
VH50
VH51
VH52
VH53
VH54

VGMA9 + (VGMA8 – VGMA9) × 7/8
VGMA9 + (VGMA8 – VGMA9) × 6/8
VGMA9 + (VGMA8 – VGMA9) × 5/8
VGMA9 + (VGMA8 – VGMA9) × 4/8
VGMA9 + (VGMA8 – VGMA9) × 3/8
VGMA9 + (VGMA8 – VGMA9) × 2/8
VGMA9 + (VGMA8 – VGMA9) × 1/8

VH55
VH56

VH57
VH58
VH59
VH60
VH61

VGMA10 + (VGMA9 – VGMA10) × 6/7
VGMA10 + (VGMA9 – VGMA10) × 5/7
VGMA10 + (VGMA9 – VGMA10) × 4/7
VGMA10 + (VGMA9 – VGMA10) × 3/7
VGMA10 + (VGMA9 – VGMA10) × 2/7
VGMA10 + (VGMA9 – VGMA10) × 1/7

VH62
VH63

RGMA (Gamma-Corrected Resistance) Ratio. (if the RGMA1 equals 1)

VGMA7

VGMA8

VGMA9

VGMA10
VGMA11

RGMA1 1.00 RGMA6 0.84
RGMA2 2.00 RGMA7 0.66
RGMA3 2.77 RGMA8 0.84
RGMA4 1.50 RGMA9 1.42
RGMA5 0.90 RGMA10 1.05

RGMA1 = 2.31 kΩ

11

S6C0641 6 BIT 300 / 309 CHANNEL TFT-LCD SOURCE DRIVER

Table 3. Relationship between Input Data and Output Voltage Value:

In case of using 10 levels of Gamma-corrected power supplies (VGMA1 = OPEN)

Input data

00H
01H
02H
03H
04H
05H
06H
07H

08H

09H
0AH
0BH
0CH
0DH
0EH
0FH

10H

11H

12H

13H

14H

15H

16H

17H

18H

19H
1AH
1BH
1CH
1DH
1EH
1FH

DX5 DX4 DX3 DX2 DX1 DX0

0 0 0 0 0 0
0 0 0 0 0 1
0 0 0 0 1 0
0 0 0 0 1 1
0 0 0 1 0 0
0 0 0 1 0 1
0 0 0 1 1 0

0 0 0 1 1 1
0 0 1 0 0 0
0 0 1 0 0 1
0 0 1 0 1 0
0 0 1 0 1 1
0 0 1 1 0 0
0 0 1 1 0 1
0 0 1 1 1 0
0 0 1 1 1 1
0 1 0 0 0 0
0 1 0 0 0 1
0 1 0 0 1 0
0 1 0 0 1 1
0 1 0 1 0 0
0 1 0 1 0 1
0 1 0 1 1 0
0 1 0 1 1 1
0 1 1 0 0 0
0 1 1 0 0 1
0 1 1 0 1 0
0 1 1 0 1 1
0 1 1 1 0 0
0 1 1 1 0 1
0 1 1 1 1 0
0 1 1 1 1 1

G/S Output voltage

VH0
VH1
VH2
VH3
VH4
VH5
VH6
VH7

VH8

VH9
VH10
VH11
VH12
VH13
VH14
VH15

VH16
VH17
VH18
VH19
VH20
VH21
VH22
VH23

VH24
VH25
VH26
VH27
VH28
VH29
VH30
VH31

VGMA3 + (VGMA2 – VGMA3) × 6/7
VGMA3 + (VGMA2 – VGMA3) × 5/7
VGMA3 + (VGMA2 – VGMA3) × 4/7
VGMA3 + (VGMA2 – VGMA3) × 3/7
VGMA3 + (VGMA2 – VGMA3) × 2/7
VGMA3 + (VGMA2 – VGMA3) × 1/7

VGMA4 + (VGMA3 – VGMA4) × 7/8
VGMA4 + (VGMA3 – VGMA4) × 6/8
VGMA4 + (VGMA3 – VGMA4) × 5/8
VGMA4 + (VGMA3 – VGMA4) × 4/8
VGMA4 + (VGMA3 – VGMA4) × 3/8
VGMA4 + (VGMA3 – VGMA4) × 2/8
VGMA4 + (VGMA3 – VGMA4) × 1/8

VGMA5 + (VGMA4 – VGMA5) × 7/8
VGMA5 + (VGMA4 – VGMA5) × 6/8
VGMA5 + (VGMA4 – VGMA5) × 5/8
VGMA5 + (VGMA4 – VGMA5) × 4/8
VGMA5 + (VGMA4 – VGMA5) × 3/8
VGMA5 + (VGMA4 – VGMA5) × 2/8
VGMA5 + (VGMA4 – VGMA5) × 1/8

VGMA6 + (VGMA5 – VGMA6) × 7/8
VGMA6 + (VGMA5 – VGMA6) × 6/8
VGMA6 + (VGMA5 – VGMA6) × 5/8
VGMA6 + (VGMA5 – VGMA6) × 4/8
VGMA6 + (VGMA5 – VGMA6) × 3/8
VGMA6 + (VGMA5 – VGMA6) × 2/8
VGMA6 + (VGMA5 – VGMA6) × 1/8

VGMA2

VGMA3

VGMA4

VGMA5

VGMA6

NOTE: VDD2≥VGMA1>VGMA2>VGMA3>VGMA4>VGMA5>VGMA6>VGMA7>VGMA8>VGMA9>VGMA10>VGMA11≥ VSS2

12

6 BIT 300 / 309 CHANNEL TFT-LCD SOURCE DRIVER S6C0641

Table 3. Relationship between Input Data and Output Voltage Value (Continued)

Input data

20H
21H
22H
23H
24H
25H
26H
27H

28H

29H
2AH
2BH
2CH
2DH
2EH
2FH

30H

31H

32H

33H

34H

35H

36H

37H

38H

39H
3AH
3BH
3CH
3DH
3EH
3FH

DX5 DX4 DX3 DX2 DX1 DX0

0 0 0 0 0

1

0 0 0 0 1

1

0 0 0 1 0

1

0 0 0 1 1

1

0 0 1 0 0

1

0 0 1 0 1

1

0 0 1 1 0

1

0 0 1 1 1

1
1 0 1 0 0 0
1 0 1 0 0 1
1 0 1 0 1 0
1 0 1 0 1 1
1 0 1 1 0 0
1 0 1 1 0 1
1 0 1 1 1 0
1 0 1 1 1 1
1 1 0 0 0 0
1 1 0 0 0 1
1 1 0 0 1 0
1 1 0 0 1 1
1 1 0 1 0 0
1 1 0 1 0 1
1 1 0 1 1 0
1 1 0 1 1 1
1 1 1 0 0 0
1 1 1 0 0 1
1 1 1 0 1 0
1 1 1 0 1 1
1 1 1 1 0 0
1 1 1 1 0 1
1 1 1 1 1 0
1 1 1 1 1 1

G/S Output voltage

VH32
VH33
VH34
VH35
VH36
VH37
VH38

VGMA7 + (VGMA6 – VGMA7) × 7/8
VGMA7 + (VGMA6 – VGMA7) × 7/8
VGMA7 + (VGMA6 – VGMA7) × 7/8
VGMA7 + (VGMA6 – VGMA7) × 7/8
VGMA7 + (VGMA6 – VGMA7) × 7/8
VGMA7 + (VGMA6 – VGMA7) × 7/8
VGMA7 + (VGMA6 – VGMA7) × 7/8

VH39
VH40

VH41
VH42
VH43
VH44
VH45
VH46

VGMA8 + (VGMA7 – VGMA8) × 7/8
VGMA8 + (VGMA7 – VGMA8) × 6/8
VGMA8 + (VGMA7 – VGMA8) × 5/8
VGMA8 + (VGMA7 – VGMA8) × 4/8
VGMA8 + (VGMA7 – VGMA8) × 3/8
VGMA8 + (VGMA7 – VGMA8) × 2/8
VGMA8 + (VGMA7 – VGMA8) × 1/8

VH47
VH48

VH49
VH50
VH51
VH52
VH53
VH54

VGMA9 + (VGMA8 – VGMA9) × 7/8
VGMA9 + (VGMA8 – VGMA9) × 6/8
VGMA9 + (VGMA8 – VGMA9) × 5/8
VGMA9 + (VGMA8 – VGMA9) × 4/8
VGMA9 + (VGMA8 – VGMA9) × 3/8
VGMA9 + (VGMA8 – VGMA9) × 2/8
VGMA9 + (VGMA8 – VGMA9) × 1/8

VH55
VH56

VH57
VH58
VH59
VH60
VH61

VGMA10 + (VGMA9 – VGMA10) × 6/7
VGMA10 + (VGMA9 – VGMA10) × 5/7
VGMA10 + (VGMA9 – VGMA10) × 4/7
VGMA10 + (VGMA9 – VGMA10) × 3/7
VGMA10 + (VGMA9 – VGMA10) × 2/7
VGMA10 + (VGMA9 – VGMA10) × 1/7

VH62
VH63

RGMA (Gamma-Corrected Resistance) Ratio. (if the RGMA2 equals 1)

VGMA7

VGMA8

VGMA9

VGMA10
VGMA11

RGMA1 - RGMA6 0.42
RGMA2 1.00 RGMA7 0.33
RGMA3 1.39 RGMA8 0.42
RGMA4 0.75 RGMA9 0.71
RGMA5 0.45 RGMA10 0.53

RGMA1 = 4.62 kΩ

13

S6C0641 6 BIT 300 / 309 CHANNEL TFT-LCD SOURCE DRIVER

Table 4. Relationship between Input Data and Output Voltage Value:

In case of using 10 levels of Gamma-corrected power supplies (VGMA2 = OPEN)

Input data

00H
01H
02H
03H
04H
05H
06H
07H

08H

09H
0AH
0BH
0CH
0DH
0EH
0FH

10H

11H

12H

13H

14H

15H

16H

17H

18H

19H
1AH
1BH
1CH
1DH
1EH
1FH

DX5 DX4 DX3 DX2 DX1 DX0

0 0 0 0 0 0
0 0 0 0 0 1
0 0 0 0 1 0
0 0 0 0 1 1
0 0 0 1 0 0
0 0 0 1 0 1
0 0 0 1 1 0

0 0 0 1 1 1
0 0 1 0 0 0
0 0 1 0 0 1
0 0 1 0 1 0
0 0 1 0 1 1
0 0 1 1 0 0
0 0 1 1 0 1
0 0 1 1 1 0
0 0 1 1 1 1
0 1 0 0 0 0
0 1 0 0 0 1
0 1 0 0 1 0
0 1 0 0 1 1
0 1 0 1 0 0
0 1 0 1 0 1
0 1 0 1 1 0
0 1 0 1 1 1
0 1 1 0 0 0
0 1 1 0 0 1
0 1 1 0 1 0
0 1 1 0 1 1
0 1 1 1 0 0
0 1 1 1 0 1
0 1 1 1 1 0
0 1 1 1 1 1

G/S Output voltage

VH0
VH1
VH2
VH3
VH4
VH5
VH6
VH7

VH8

VH9
VH10
VH11
VH12
VH13
VH14
VH15

VH16
VH17
VH18
VH19
VH20
VH21
VH22
VH23

VH24
VH25
VH26
VH27
VH28
VH29
VH30
VH31

VGMA3 + (VGMA2 – VGMA3) × 7/8
VGMA3 + (VGMA2 – VGMA3) × 6/8
VGMA3 + (VGMA2 – VGMA3) × 5/8
VGMA3 + (VGMA2 – VGMA3) × 4/8
VGMA3 + (VGMA2 – VGMA3) × 3/8
VGMA3 + (VGMA2 – VGMA3) × 2/8
VGMA3 + (VGMA2 – VGMA3) × 1/8

VGMA3

VGMA4 + (VGMA3 – VGMA4) × 7/8
VGMA4 + (VGMA3 – VGMA4) × 6/8
VGMA4 + (VGMA3 – VGMA4) × 5/8
VGMA4 + (VGMA3 – VGMA4) × 4/8
VGMA4 + (VGMA3 – VGMA4) × 3/8
VGMA4 + (VGMA3 – VGMA4) × 2/8
VGMA4 + (VGMA3 – VGMA4) × 1/8

VGMA4

VGMA5 + (VGMA4 – VGMA5) × 7/8
VGMA5 + (VGMA4 – VGMA5) × 6/8
VGMA5 + (VGMA4 – VGMA5) × 5/8
VGMA5 + (VGMA4 – VGMA5) × 4/8
VGMA5 + (VGMA4 – VGMA5) × 3/8
VGMA5 + (VGMA4 – VGMA5) × 2/8
VGMA5 + (VGMA4 – VGMA5) × 1/8

VGMA5

VGMA6 + (VGMA5 – VGMA6) × 7/8
VGMA6 + (VGMA5 – VGMA6) × 6/8
VGMA6 + (VGMA5 – VGMA6) × 5/8
VGMA6 + (VGMA5 – VGMA6) × 4/8
VGMA6 + (VGMA5 – VGMA6) × 3/8
VGMA6 + (VGMA5 – VGMA6) × 2/8
VGMA6 + (VGMA5 – VGMA6) × 1/8

VGMA6

NOTE: VDD2≥VGMA1>VGMA2>VGMA3>VGMA4>VGMA5>VGMA6>VGMA7>VGMA8>VGMA9>VGMA10>VGMA11≥ VSS2

14

6 BIT 300 / 309 CHANNEL TFT-LCD SOURCE DRIVER S6C0641

Table 4. Relationship between Input Data and Output Voltage Value (Continued)

Input data

20H
21H
22H
23H
24H
25H
26H
27H

28H

29H
2AH
2BH
2CH
2DH
2EH
2FH

30H

31H

32H

33H

34H

35H

36H

37H

38H

39H
3AH
3BH
3CH
3DH
3EH
3FH

DX5 DX4 DX3 DX2 DX1 DX0

0 0 0 0 0

1

0 0 0 0 1

1

0 0 0 1 0

1

0 0 0 1 1

1

0 0 1 0 0

1

0 0 1 0 1

1

0 0 1 1 0

1

0 0 1 1 1

1
1 0 1 0 0 0
1 0 1 0 0 1
1 0 1 0 1 0
1 0 1 0 1 1
1 0 1 1 0 0
1 0 1 1 0 1
1 0 1 1 1 0
1 0 1 1 1 1
1 1 0 0 0 0
1 1 0 0 0 1
1 1 0 0 1 0
1 1 0 0 1 1
1 1 0 1 0 0
1 1 0 1 0 1
1 1 0 1 1 0
1 1 0 1 1 1
1 1 1 0 0 0
1 1 1 0 0 1
1 1 1 0 1 0
1 1 1 0 1 1
1 1 1 1 0 0
1 1 1 1 0 1
1 1 1 1 1 0
1 1 1 1 1 1

G/S Output voltage

VH32
VH33
VH34
VH35
VH36
VH37
VH38
VH39

VH40
VH41
VH42
VH43
VH44
VH45
VH46
VH47

VH48
VH49
VH50
VH51
VH52
VH53
VH54
VH55

VH56
VH57
VH58
VH59
VH60
VH61
VH62
VH63

VGMA7 + (VGMA6 – VGMA7) × 7/8
VGMA7 + (VGMA6 – VGMA7) × 7/8
VGMA7 + (VGMA6 – VGMA7) × 7/8
VGMA7 + (VGMA6 – VGMA7) × 7/8
VGMA7 + (VGMA6 – VGMA7) × 7/8
VGMA7 + (VGMA6 – VGMA7) × 7/8
VGMA7 + (VGMA6 – VGMA7) × 7/8

VGMA7

VGMA8 + (VGMA7 – VGMA8) × 7/8
VGMA8 + (VGMA7 – VGMA8) × 6/8
VGMA8 + (VGMA7 – VGMA8) × 5/8
VGMA8 + (VGMA7 – VGMA8) × 4/8
VGMA8 + (VGMA7 – VGMA8) × 3/8
VGMA8 + (VGMA7 – VGMA8) × 2/8
VGMA8 + (VGMA7 – VGMA8) × 1/8

VGMA8

VGMA9 + (VGMA8 – VGMA9) × 7/8
VGMA9 + (VGMA8 – VGMA9) × 6/8
VGMA9 + (VGMA8 – VGMA9) × 5/8
VGMA9 + (VGMA8 – VGMA9) × 4/8
VGMA9 + (VGMA8 – VGMA9) × 3/8
VGMA9 + (VGMA8 – VGMA9) × 2/8
VGMA9 + (VGMA8 – VGMA9) × 1/8

VGMA9

VGMA10 + (VGMA9 – VGMA10) × 6/7
VGMA10 + (VGMA9 – VGMA10) × 5/7
VGMA10 + (VGMA9 – VGMA10) × 4/7
VGMA10 + (VGMA9 – VGMA10) × 3/7
VGMA10 + (VGMA9 – VGMA10) × 2/7
VGMA10 + (VGMA9 – VGMA10) × 1/7

VGMA10
VGMA11

RGMA (Gamma-Corrected Resistance) Ratio. (if the sum of RGMA1 and RGMA2 equals 1)

RGMA1 RGMA6 0.37
RGMA2
RGMA3 1.21 RGMA8 0.37
RGMA4 0.66 RGMA9 0.62
RGMA5 0.39 RGMA10 0.46

RGMA1 + RGMA2 = 5.28 kΩ

1.00
RGMA7 0.29

15

S6C0641 6 BIT 300 / 309 CHANNEL TFT-LCD SOURCE DRIVER

Table 5. Relationship between Input Data and Output Voltage Value:

In case of using 9 levels of Gamma-corrected power supplies (VGMA2, VGMA10 = OPEN)

Input data

00H
01H
02H
03H
04H
05H
06H
07H

08H

09H
0AH
0BH
0CH
0DH
0EH
0FH

10H

11H

12H

13H

14H

15H

16H

17H

18H

19H
1AH
1BH
1CH
1DH
1EH
1FH

DX5 DX4 DX3 DX2 DX1 DX0

0 0 0 0 0 0
0 0 0 0 0 1
0 0 0 0 1 0
0 0 0 0 1 1
0 0 0 1 0 0
0 0 0 1 0 1
0 0 0 1 1 0

0 0 0 1 1 1
0 0 1 0 0 0
0 0 1 0 0 1
0 0 1 0 1 0
0 0 1 0 1 1
0 0 1 1 0 0
0 0 1 1 0 1
0 0 1 1 1 0
0 0 1 1 1 1
0 1 0 0 0 0
0 1 0 0 0 1
0 1 0 0 1 0
0 1 0 0 1 1
0 1 0 1 0 0
0 1 0 1 0 1
0 1 0 1 1 0
0 1 0 1 1 1
0 1 1 0 0 0
0 1 1 0 0 1
0 1 1 0 1 0
0 1 1 0 1 1
0 1 1 1 0 0
0 1 1 1 0 1
0 1 1 1 1 0
0 1 1 1 1 1

G/S Output voltage

VH0
VH1
VH2
VH3
VH4
VH5
VH6
VH7

VH8

VH9
VH10
VH11
VH12
VH13
VH14
VH15

VH16
VH17
VH18
VH19
VH20
VH21
VH22
VH23

VH24
VH25
VH26
VH27
VH28
VH29
VH30
VH31

VGMA3 + (VGMA2 – VGMA3) × 7/8
VGMA3 + (VGMA2 – VGMA3) × 6/8
VGMA3 + (VGMA2 – VGMA3) × 5/8
VGMA3 + (VGMA2 – VGMA3) × 4/8
VGMA3 + (VGMA2 – VGMA3) × 3/8
VGMA3 + (VGMA2 – VGMA3) × 2/8
VGMA3 + (VGMA2 – VGMA3) × 1/8

VGMA3

VGMA4 + (VGMA3 – VGMA4) × 7/8
VGMA4 + (VGMA3 – VGMA4) × 6/8
VGMA4 + (VGMA3 – VGMA4) × 5/8
VGMA4 + (VGMA3 – VGMA4) × 4/8
VGMA4 + (VGMA3 – VGMA4) × 3/8
VGMA4 + (VGMA3 – VGMA4) × 2/8
VGMA4 + (VGMA3 – VGMA4) × 1/8

VGMA4

VGMA5 + (VGMA4 – VGMA5) × 7/8
VGMA5 + (VGMA4 – VGMA5) × 6/8
VGMA5 + (VGMA4 – VGMA5) × 5/8
VGMA5 + (VGMA4 – VGMA5) × 4/8
VGMA5 + (VGMA4 – VGMA5) × 3/8
VGMA5 + (VGMA4 – VGMA5) × 2/8
VGMA5 + (VGMA4 – VGMA5) × 1/8

VGMA5

VGMA6 + (VGMA5 – VGMA6) × 7/8
VGMA6 + (VGMA5 – VGMA6) × 6/8
VGMA6 + (VGMA5 – VGMA6) × 5/8
VGMA6 + (VGMA5 – VGMA6) × 4/8
VGMA6 + (VGMA5 – VGMA6) × 3/8
VGMA6 + (VGMA5 – VGMA6) × 2/8
VGMA6 + (VGMA5 – VGMA6) × 1/8

VGMA6

NOTE: VDD2≥VGMA1>VGMA2>VGMA3>VGMA4>VGMA5>VGMA6>VGMA7>VGMA8>VGMA9>VGMA10>VGMA11≥ VSS2

16

6 BIT 300 / 309 CHANNEL TFT-LCD SOURCE DRIVER S6C0641

Table 5. Relationship between Input Data and Output Voltage Value (Continued)

Input data

20H
21H
22H
23H
24H
25H
26H
27H

28H

29H
2AH
2BH
2CH
2DH
2EH
2FH

30H

31H

32H

33H

34H

35H

36H

37H

38H

39H
3AH
3BH
3CH
3DH
3EH
3FH

DX5 DX4 DX3 DX2 DX1 DX0

0 0 0 0 0

1

0 0 0 0 1

1

0 0 0 1 0

1

0 0 0 1 1

1

0 0 1 0 0

1

0 0 1 0 1

1

0 0 1 1 0

1

0 0 1 1 1

1
1 0 1 0 0 0
1 0 1 0 0 1
1 0 1 0 1 0
1 0 1 0 1 1
1 0 1 1 0 0
1 0 1 1 0 1
1 0 1 1 1 0
1 0 1 1 1 1
1 1 0 0 0 0
1 1 0 0 0 1
1 1 0 0 1 0
1 1 0 0 1 1
1 1 0 1 0 0
1 1 0 1 0 1
1 1 0 1 1 0
1 1 0 1 1 1
1 1 1 0 0 0
1 1 1 0 0 1
1 1 1 0 1 0
1 1 1 0 1 1
1 1 1 1 0 0
1 1 1 1 0 1
1 1 1 1 1 0
1 1 1 1 1 1

G/S Output voltage

VH32
VH33
VH34
VH35
VH36
VH37
VH38
VH39

VH40
VH41
VH42
VH43
VH44
VH45
VH46
VH47

VH48
VH49
VH50
VH51
VH52
VH53
VH54
VH55

VH56
VH57
VH58
VH59
VH60
VH61
VH62
VH63

VGMA7 + (VGMA6 – VGMA7) × 7/8
VGMA7 + (VGMA6 – VGMA7) × 7/8
VGMA7 + (VGMA6 – VGMA7) × 7/8
VGMA7 + (VGMA6 – VGMA7) × 7/8
VGMA7 + (VGMA6 – VGMA7) × 7/8
VGMA7 + (VGMA6 – VGMA7) × 7/8
VGMA7 + (VGMA6 – VGMA7) × 7/8

VGMA7

VGMA8 + (VGMA7 – VGMA8) × 7/8
VGMA8 + (VGMA7 – VGMA8) × 6/8
VGMA8 + (VGMA7 – VGMA8) × 5/8
VGMA8 + (VGMA7 – VGMA8) × 4/8
VGMA8 + (VGMA7 – VGMA8) × 3/8
VGMA8 + (VGMA7 – VGMA8) × 2/8
VGMA8 + (VGMA7 – VGMA8) × 1/8

VGMA8

VGMA9 + (VGMA8 – VGMA9) × 7/8
VGMA9 + (VGMA8 – VGMA9) × 6/8
VGMA9 + (VGMA8 – VGMA9) × 5/8
VGMA9 + (VGMA8 – VGMA9) × 4/8
VGMA9 + (VGMA8 – VGMA9) × 3/8
VGMA9 + (VGMA8 – VGMA9) × 2/8
VGMA9 + (VGMA8 – VGMA9) × 1/8

VGMA9

VGMA11 + (VGMA9 – VGMA11) × 7/8
VGMA11 + (VGMA9 – VGMA11) × 6/8
VGMA11 + (VGMA9 – VGMA11) × 5/8
VGMA11 + (VGMA9 – VGMA11) × 4/8
VGMA11 + (VGMA9 – VGMA11) × 3/8
VGMA11 + (VGMA9 – VGMA11) × 2/8
VGMA11 + (VGMA9 – VGMA11) × 1/8

VGMA11

RGMA (Gamma-Corrected Resistance) Ratio. (if the sum of RGMA1 and RGMA2 equals 1)

RGMA1 RGMA6 0.37
RGMA2
RGMA3 1.21 RGMA8 0.37
RGMA4 0.66 RGMA9
RGMA5 0.39 RGMA10

RGMA1 + RGMA2 = 5.28 kΩ

1.00
RGMA7 0.29

0.71

17

S6C0641 6 BIT 300 / 309 CHANNEL TFT-LCD SOURCE DRIVER

ABSOLUTE MAXIMUM RATINGS

Table 6. Absolute Maximum Ratings (VSS1 = VSS2 = 0 V)

Parameter Symbol Ratings Unit

Logic supply voltage VDD1 -0.3 to 6.5

Driver supply voltage VDD2 -0.3 to 6.5

Input voltage

Output voltage

Operation temperature Topr -20 to 75

Storage temperature Tstg -55 to 125

If LSIs are stressed beyond those listed above “absolute maximum ratings”, they may be permanently
destroyed. These are stress ratings only, and functional operation of the device at these or any other
condition beyond those indicated under “recommended operating conditions” is not implied. Exposure to
absolute maximum rated conditions for extended periods may affect device reliability.
Turn on power order: VDD1 → control signal input → VDD2 → VGMA1 - VGMA11
Turn off power order: VGMA1 - VGMA11 → VDD2 → control signal input → VDD1

VGMA1 - 10 -0.3 to VDD2 + 0.3

V

Others -0.3 to VDD1 + 0.3

DIO1, 2 -0.3 to VDD1 + 0.3

Y1 - Y309 -0.3 to VDD2 + 0.3

°C

CAUTIONS:

RECOMMENDED OPERATION CONDITIONS

Table 7. Recommended Operation Conditions (Ta = -20 to 75 °C, VSS1 = VSS2 = 0 V)

Parameter Symbol Min. Typ. Max. Unit

Logic supply voltage VDD1 3.0 3.3 5.5 V

Driver supply voltage VDD2 3.0 5.0 5.5 V
Gamma corrected voltage VGMA1 – VGMA11 VSS2 - VDD2 V
Maximum clock frequency fmax VDD1 = 3.3 V 55 MHz

Output load capacitance CL - - 150 pF / PIN

18

6 BIT 300 / 309 CHANNEL TFT-LCD SOURCE DRIVER S6C0641

DC CHARACTERISTICS

Table 8. DC Characteristics (Ta = -20 to 75 °C, VDD1 = 3.0 to 5.5 V, VDD2 = 3.0 to 5.5 V, VSS1 = VSS2 = 0 V)

Parameter Symbol Condition Min. Typ. Max. Unit

High level input voltage VIH 0.7 VDD1 - VDD1

Low level input voltage VIL 0 - 0.3 VDD1

Input leakage current IL

High level output voltage VOH

Low level output voltage VOL

Resistor R0 - R62

IVOH

SHL, CLK2, D00 – D25,

CLK1, DIO1 (DIO2)

DIO1 (DIO2), VDD1=3.3V

IO = -1.0 mA

DIO1 (DIO2), VDD1=3.3V

IO = +1.0 mA

VDD2 = 5.0 V,

Vx = 3.5 V, Vyo = 4.5 V

-0.5 - 0.5

VDD1 - 0.5 - -

- - 0.5

Rn × 0.7 Rn × 1.3 Ω

- -1.5 -0.5 mA

Driver output current

IVOL

Output voltage deviation ∆VO

VDD2 = 5.0 V,

Vx = 1.5 V, Vyo = 0.5 V

VSS2 + 0.2 V to

VDD2 - 1.5 V

0.5 0.5 - mA

- ±10 ±20 mV

Output voltage range Vyo Input data: 00H to 3FH VSS2 + 0.2 - VDD2 - 0.2 V

Logic part dynamic

current

IDD1 VDD1 = 3.0 V

(2)

- 3.5 5.5 mA

VDD1 = 3.0 V,

Driver part dynamic

current

IDD2

VDD2 = 5.0 V,

VGMA1 = 4.5 V,

- 5.5 7.0

VGMA11 = 0.5 V

V

µA

V

NOTES:

1. Vyo is the output voltage of analog output pins Y1 to Y309. Vx is the voltage applied to analog output pins Y1 to Y309.

2. CLK1 period is defined to be 30 µs at fCLK2 = 30 MHz, data pattern = 101010 , (checkerboard pattern), Ta = 25 °C

19

S6C0641 6 BIT 300 / 309 CHANNEL TFT-LCD SOURCE DRIVER

AC CHARACTERISTICS

Table 9. AC Characteristics (Ta = -20 to 75 °C, VDD2 = 3.0 to 5.5 V, VDD1 = 3.0 to 5.5 V, VSS1 = VSS2 = 0 V)

Parameter Symbol Condition Min. Typ. Max. Unit

Clock pulse width PWCLK - 18 - -

Clock pulse low period PWCLK(L) - 4 - -

Clock pulse high period PWCLK(H) - 4 - -

Data setup time tSETUP1

Data hold time tHOLD1

Start pulse setup time tSETUP2

Start pulse hold time tHOLD2

Start pulse delay time tPLH1

CLK1 setup time tSETUP3 - 1 - -

Driver output delay time1 tPHL1
Driver output delay time2 tPHL2

CLK1 pulse high period PWCLK1 - 2 - -

Data invalid period tINV DIO1 (2) ↑ → CLK2↑ 1

Last data timing tLDT - 0 - - ns

CLK1-CLK2 time tCLK1–CLK2

CLK1↑ → CLK2↑

(1)

(1)

(1)

(1)

VDD1 = 3.3 V

CL = 35 pF

(2)

(3)

4 - ­0 - -

ns

4 - ­0 - -

- - 14
CLK2

period

- - 3

µs

- - 10
CLK2

period

CLK2

period

6 - - ns

NOTES:

1. Input condition (VIH = 0.7 VDD1, VIL = 0.3 VDD1)

2. The value is specified when the drive voltage value reaches the target output voltage level of 90%

3. The value is specified when the drive voltage value reaches the target output voltage level of 6-bit accuracy.

20

6 BIT 300 / 309 CHANNEL TFT-LCD SOURCE DRIVER S6C0641

tCLK1-CLK2

(DIO1 output)

CLK1

WAVEFORMS

PWCLK(H)

VIL

VIH

PWCLK(L)

1st LAST-1 LAST

tINV

tHOLD1

1st

DATA

tSETUP1

tHOLD2

tPLH1

Target output voltage

Target output voltage 90%

tPHL1

PWCLK1

tPHL2

tLDT

tHOLD1

tSETUP1

0.5VDD1

INVALID DATA

LAST

DATA

PWCLK

CLK2

tSETUP2

INVALID DATA

DXX

DIO1 input

(DIO2 input)

tSETUP3

DIO2 output

CLK1

Y(1:309)

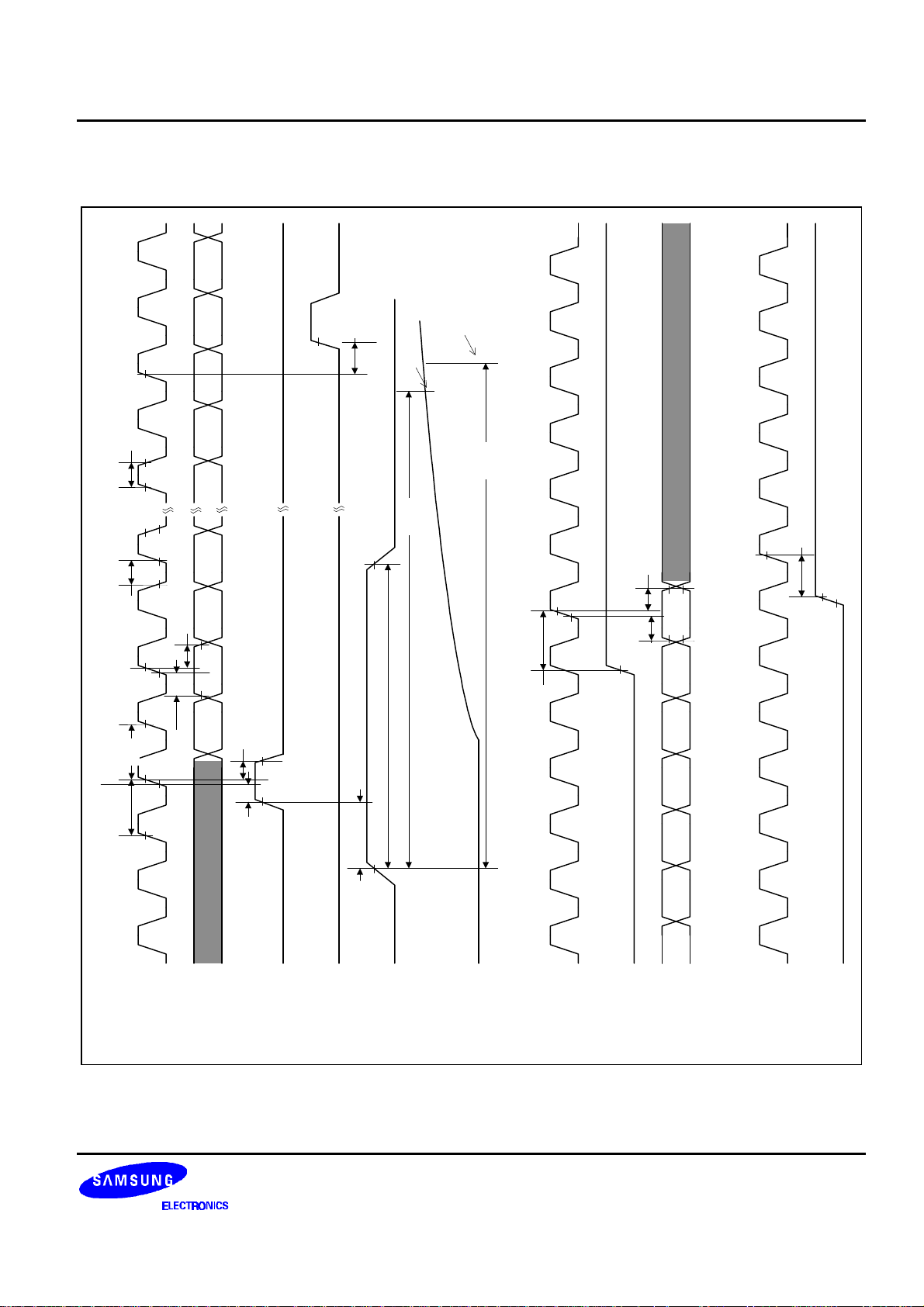

Figure 5. Waveforms

CLK2

CLK1

DXX

CLK2

21

S6C0641 6 BIT 300 / 309 CHANNEL TFT-LCD SOURCE DRIVER

Analog output

HI-Z

RELATIONSHIPS BETWEEN CLK1, START PULSE (DIO1, DIO2) AND
BLANKING PERIOD

2nd

DATA

First data in

the next line

1st

DATA

CLK2

0.5VDD1

1CLK2(Min.)

1CLK2(Max.)

DIO1 input

(DIO2 input)

CLK1

1CLK2

Nth

N-1th

INVALID DATA

blanking time = Min. 3CLK2

DATA

DATA

Last data

DXX

CLK2

Hold

CLK1

Y (1:309)

22

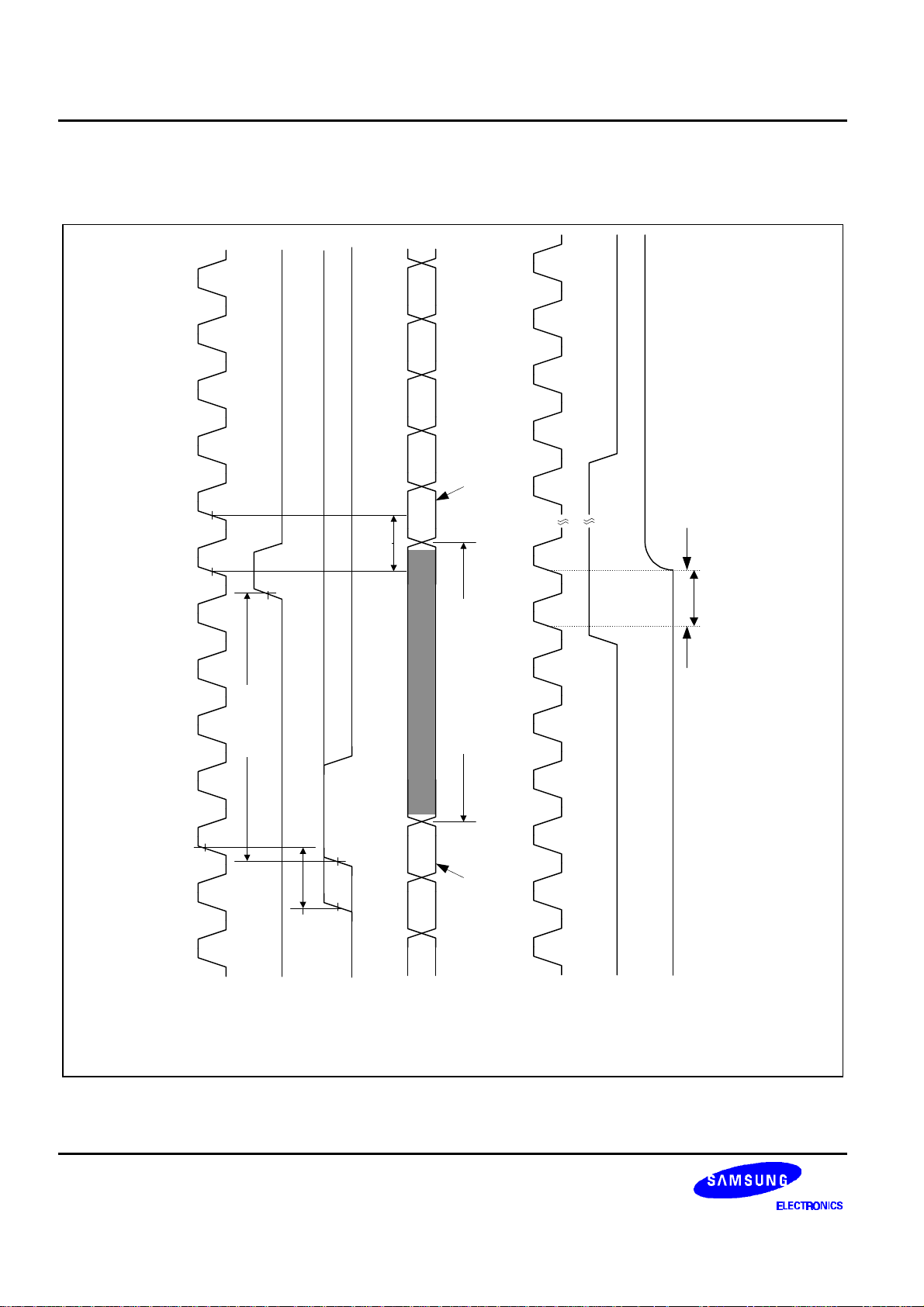

Figure 6. Waveforms
