132 SEG / 128 COM DRIVER & CONTROLLER FOR STN LCD

Contents in this document are subject to change without notice. No part of this document may be reproduced or
transmitted in any form or by any means, electronic or mechanical, for any purpose, without the express written

Jan. 2000.

Ver. 0.1

Prepared by: Goohyung, Chung

[email protected]

S6B0728 Specification Revision History

132 SEG / 128 COM DRIVER & CONTROLLER FOR STN LCD PRELIMINARY SPEC. VER. 0.1 S6B0728

Version Content Date

0.0 Original Sep.1999

0.1 Change the supply voltage(VDD) range (2.4 to 5.5 -> 2.4 to 3.6) Jan.2000

2

S6B0728 PRELIMINARY SPEC. VER. 0.1 132 SEG / 128 COM DRIVER & CONTROLLER FOR STN LCD

CO

NTENTS

INTRODUCTION ..................................................................................................................................................1

BLOCK DIAGRAM...............................................................................................................................................2

PAD CONFIGURATION .......................................................................................................................................3

PAD CENTER COORDINATES ............................................................................................................................4

PIN DESCRIPTION ..............................................................................................................................................6

FUNCTIONAL DESCRIPTION............................................................................................................................ 10

MICROPROCESSOR INTERFACE.............................................................................................................10

DISPLAY DATA RAM (DDRAM)..................................................................................................................14

LCD DISPLAY CIRCUITS............................................................................................................................17

LCD DRIVER CIRCUIT ...............................................................................................................................19

POWER SUPPLY CIRCUITS ......................................................................................................................21

REFERENCE CIRCUIT EXAMPLES ...........................................................................................................26

RESET CIRCUIT.........................................................................................................................................28

INSTRUCTION DESCRIPTION...........................................................................................................................29

SPECIFICATIONS..............................................................................................................................................48

ABSOLUTE MAXIMUM RATINGS...............................................................................................................48

DC CHARACTERISTICS .............................................................................................................................49

AC CHARACTERISTICS............................................................................................................................. 52

REFERENCE APPLICATIONS........................................................................................................................... 56

MICROPROCESSOR INTERFACE.............................................................................................................56

CONNECTIONS BETWEEN S6B0728 AND LCD PANEL............................................................................ 57

3

S6B0728 PRELIMINARY SPEC. VER. 0.1 132 SEG / 128 COM DRIVER & CONTROLLER FOR STN LCD

INTRODUCTION

The S6B0728 is a driver and controller LSI for graphic dot-matrix liquid crystal display systems. It contains 128
common and 132 segment driver circuits. It is connected directly to a microprocessor, accepts serial or 8-bit
parallel display data and stores in an on-chip display data RAM of 128 x 132 bits. It provides a highly flexible
display section due to 1-to-1 correspondence between on-chip display data RAM bits and LCD panel pixels. And it
performs display data RAM read/write operation with no external-operating clock to minimize power consumption.
In addition, because it contains power supply circuits necessary to drive liquid crystal, it is possible to make a
display system with the fewest components.

FEATURES

Driver Output Circuits

− 128 common outputs / 132 segment outputs

Applicable Duty-ratios

Programmable duty ratio Applicable LCD bias Maximum display area

1/16 to 1/128 1/5 to 1/12

− Various partial display

− Partial window moving & data scrolling

On-chip Display Data RAM

128 × 132

− Capacity: 128 x 132 = 16,896 bits

− Bit data "1": a dot of display is illuminated

− Bit data "0": a dot of display is not illuminated

Microprocessor Interface

− 8-bit parallel bi-directional interface with 6800-series or 8080-series

− Serial interface(only write operation) with 4-pin or 3-pin SPI(Serial Peripheral Interface)

On-chip Low Power Analog Circuit

− On-chip oscillator circuit

− Voltage converter (x3, x4, x5, x6 or x7)

− Voltage regulator (temperature coefficient: -0.05%/°C or external input)

− On-chip electronic contrast control function (64 steps)

− Voltage follower (LCD bias: 1/5 to 1/12)

Operating Voltage Range

− Supply voltage (VDD): 2.4 to 3.6 [V]

− LCD driving voltage (VLCD = V0 - VSS): 4.0 to 17.0 [V]

Low Power Consumption

− TBD µΑ Typ. (VDD = 3V, x6 boosting, V0 = 15V, Internal power supply ON and display OFF)

− TBD µΑ Max. (during power save [standby] mode )

Package Type

− Gold bumped chip or TCP

1

132 SEG / 128 COM DRIVER & CONTROLLER FOR STN LCD PRELIMINARY SPEC. VER. 0.1 S6B0728

DB0

DB1

COM127

COM

:

:

:

1

0

:

:

BLOCK DIAGRAM

SEG131

SEG130

VDD

V0
V1
V2
V3
V4

VSS

SEG2

SEG1

SEG0

132 SEGMENT

DRIVER CIRCUITS

SEG129

COM

COM

128 COMMON

DRIVER CIRCUITS

126

V0

VR

INTRS

VEXT

REF

VOUT

C1-

C1+

C2­C2+
C3+
C4+
C5+
C6+

VCI

V/F

CIRCUIT

V/R

RCIRCUIT

V/C

CIRCUIT

PAGE

ADDRESS

CIRCUIT

SEGMENT CONTROLLER

DISPLAY DATA RAM

128 X 132 = 16,896 Bits

COLUMN ADDRESS

CIRCUIT

INSTRUCTION DECODER & REGISTER

MPU INTERFACE (PARALLEL & SERIAL)

COMMON CONTROLLER

LINE

ADDRESS

CIRCUIT

STATUS REGISTERBUS HOLDER

TIMING

GENERATOR

CIRCUIT

OSCILLATOR

DB2

DB3

DB4

DB5

DB6(SCLK)

DB7(SID)

RW_WR

E_RD

RS

CS2

CS1B

PS

C68

RESETB

Figure 1. Block Diagram

2

S6B0728 PRELIMINARY SPEC. VER. 0.1 132 SEG / 128 COM DRIVER & CONTROLLER FOR STN LCD

161

312

160

313

127

346

126

1

ðððð

- - - -

ðððð

ðððð

- - - -

ðððð

*2

*1

*3

PAD CONFIGURATION

рр ррррррррррррррррррр

- - - - - - - - - -

Y

S6B0728

(TOP VIEW)

(0,0) X

ррррррррррррррррррр

ðð

рррррррррррррррррррррр

- - - - - - - - - -

ррррррррррррррррррррррр

Figure 2. S6B0728 Chip Configuration

Table 1. S6B0728 Pad Dimensions

Size

Item Pad No.

X Y

Chip size - 8740 2470

27 to 100 70 (Min.)

Pad pitch

1 to 26, 101 to 346 54 (Min.)

27 to 100 60 78

128 to 159, 314 to 345 78 44

Bumped
pad size

3 to 26, 101 to 124

163 to 310

1, 2, 125, 126,

160, 161, 313, 346

44 78

70 78

127, 162, 311, 312 78 70

Bumped pad

height

1 to 346 14 (Typ.)

Unit

µm

30 um

30 um 30 um

(-3810, -705)

*1 : Bump Align Key

30 um

30 um

30 um

42 um

(-3920, 825)

*2 : ILB Align Key 1

108 um

42 um

108 um

108 um

*3 : ILB Align Key 2

42 um

(3870, 783)

108 um

42 um

3

132 SEG / 128 COM DRIVER & CONTROLLER FOR STN LCD PRELIMINARY SPEC. VER. 0.1 S6B0728

PAD CENTER COORDINATES

Table 2. Pad Center Coordinates

[Unit: µm]

NO NAME X Y NO NAME X Y NO NAME X Y NO NAME X Y

1 DUMMY -4161 -1110 51 DB6 -875 -1110 101 COM63 2759 -1110 151 COM16 4245 405
2 DUMMY -4081 -1110 52 DB7 -805 -1110 102 COM62 2813 -1110 152 COM15 4245 459
3 COM104 -4001 -1110 53 VDD -735 -1110 103 COM61 2867 -1110 153 COM14 4245 513
4 COM105 -3947 -1110 54 VDD -665 -1110 104 COM60 2921 -1110 154 COM13 4245 567
5 COM106 -3893 -1110 55 VDD -595 -1110 105 COM59 2975 -1110 155 COM12 4245 621
6 COM107 -3839 -1110 56 VDD -525 -1110 106 COM58 3029 -1110 156 COM11 4245 675
7 COM108 -3785 -1110 57 VCI -455 -1110 107 COM57 3083 -1110 157 COM10 4245 729
8 COM109 -3731 -1110 58 VCI -385 -1110 108 COM56 3137 -1110 158 COM9 4245 783

9 COM110 -3677 -1110 59 VSS -315 -1110 109 COM55 3191 -1110 159 COM8 4245 837
10 COM111 -3623 -1110 60 VSS -245 -1110 110 COM54 3245 -1110 160 DUMMY 4245 917
11 COM112 -3569 -1110 61 VSS -175 -1110 111 COM53 3299 -1110 161 DUMMY 4129 1110
12 COM113 -3515 -1110 62 VSS -105 -1110 112 COM52 3353 -1110 162 DUMMY 4049 1110
13 COM114 -3461 -1110 63 VOUT -35 -1110 113 COM51 3407 -1110 163 COM7 3969 1110
14 COM115 -3407 -1110 64 VOUT 35 -1110 114 COM50 3461 -1110 164 COM6 3915 1110
15 COM116 -3353 -1110 65 C5+ 105 -1110 115 COM49 3515 -1110 165 COM5 3861 1110
16 COM117 -3299 -1110 66 C5+ 175 -1110 116 COM48 3569 -1110 166 COM4 3807 1110
17 COM118 -3245 -1110 67 C3+ 245 -1110 117 COM47 3623 -1110 167 COM3 3753 1110
18 COM119 -3191 -1110 68 C3+ 315 -1110 118 COM46 3677 -1110 168 COM2 3699 1110
19 COM120 -3137 -1110 69 C1- 385 -1110 119 COM45 3731 -1110 169 COM1 3645 1110
20 COM121 -3083 -1110 70 C1- 455 -1110 120 COM44 3785 -1110 170 COM0 3591 1110
21 COM122 -3029 -1110 71 C1+ 525 -1110 121 COM43 3839 -1110 171 SEG0 3537 1110
22 COM123 -2975 -1110 72 C1+ 595 -1110 122 COM42 3893 -1110 172 SEG1 3483 1110
23 COM124 -2921 -1110 73 C2+ 665 -1110 123 COM41 3947 -1110 173 SEG2 3429 1110
24 COM125 -2867 -1110 74 C2+ 735 -1110 124 COM40 4001 -1110 174 SEG3 3375 1110
25 COM126 -2813 -1110 75 C2- 805 -1110 125 DUMMY 4081 -1110 175 SEG4 3321 1110
26 COM127 -2759 -1110 76 C2- 875 -1110 126 DUMMY 4161 -1110 176 SEG5 3267 1110
27 TEST1 -2555 -1110 77 C4+ 945 -1110 127 DUMMY 4245 -917 177 SEG6 3213 1110
28 TEST2 -2485 -1110 78 C4+ 1015 -1110 128 COM39 4245 -837 178 SEG7 3159 1110
29 TEST3 -2415 -1110 79 C6+ 1085 -1110 129 COM38 4245 -783 179 SEG8 3105 1110
30 CL -2345 -1110 80 C6+ 1155 -1110 130 COM37 4245 -729 180 SEG9 3051 1110
31 M -2275 -1110 81 VSS 1225 -1110 131 COM36 4245 -675 181 SEG10 2997 1110
32 VDD -2205 -1110 82 VSS 1295 -1110 132 COM35 4245 -621 182 SEG11 2943 1110
33 PS -2135 -1110 83 V4 1365 -1110 133 COM34 4245 -567 183 SEG12 2889 1110
34 C68 -2065 -1110 84 V4 1435 -1110 134 COM33 4245 -513 184 SEG13 2835 1110
35 VSS -1995 -1110 85 V3 1505 -1110 135 COM32 4245 -459 185 SEG14 2781 1110
36 CS1B -1925 -1110 86 V3 1575 -1110 136 COM31 4245 -405 186 SEG15 2727 1110
37 CS2 -1855 -1110 87 V2 1645 -1110 137 COM30 4245 -351 187 SEG16 2673 1110
38 VDD -1785 -1110 88 V2 1715 -1110 138 COM29 4245 -297 188 SEG17 2619 1110
39 RESETB -1715 -1110 89 V1 1785 -1110 139 COM28 4245 -243 189 SEG18 2565 1110
40 RS -1645 -1110 90 V1 1855 -1110 140 COM27 4245 -189 190 SEG19 2511 1110
41 VSS -1575 -1110 91 V0 1925 -1110 141 COM26 4245 -135 191 SEG20 2457 1110
42 RW_WR -1505 -1110 92 V0 1995 -1110 142 COM25 4245 -81 192 SEG21 2403 1110
43 E_RD -1435 -1110 93 VR 2065 -1110 143 COM24 4245 -27 193 SEG22 2349 1110
44 VDD -1365 -1110 94 VR 2135 -1110 144 COM23 4245 27 194 SEG23 2295 1110
45 DB0 -1295 -1110 95 VSS 2205 -1110 145 COM22 4245 81 195 SEG24 2241 1110
46 DB1 -1225 -1110 96 REF 2275 -1110 146 COM21 4245 135 196 SEG25 2187 1110
47 DB2 -1155 -1110 97 VEXT 2345 -1110 147 COM20 4245 189 197 SEG26 2133 1110
48 DB3 -1085 -1110 98 VDD 2415 -1110 148 COM19 4245 243 198 SEG27 2079 1110
49 DB4 -1015 -1110 99 INTRS 2485 -1110 149 COM18 4245 297 199 SEG28 2025 1110
50 DB5 -945 -1110 100 VSS 2555 -1110 150 COM17 4245 351 200 SEG29 1971 1110

4

S6B0728 PRELIMINARY SPEC. VER. 0.1 132 SEG / 128 COM DRIVER & CONTROLLER FOR STN LCD

Table 2. Pad Center Coordinates (Continued)

[Unit: µm]

NO NAME X Y NO NAME X Y NO NAME X Y

201 SEG30 1917 1110 251 SEG80 -783 1110 301 SEG130 -3483 1110
202 SEG31 1863 1110 252 SEG81 -837 1110 302 SEG131 -3537 1110
203 SEG32 1809 1110 253 SEG82 -891 1110 303 COM64 -3591 1110
204 SEG33 1755 1110 254 SEG83 -945 1110 304 COM65 -3645 1110
205 SEG34 1701 1110 255 SEG84 -999 1110 305 COM66 -3699 1110
206 SEG35 1647 1110 256 SEG85 -1053 1110 306 COM67 -3753 1110
207 SEG36 1593 1110 257 SEG86 -1107 1110 307 COM68 -3807 1110
208 SEG37 1539 1110 258 SEG87 -1161 1110 308 COM69 -3861 1110
209 SEG38 1485 1110 259 SEG88 -1215 1110 309 COM70 -3915 1110
210 SEG39 1431 1110 260 SEG89 -1269 1110 310 COM71 -3969 1110
211 SEG40 1377 1110 261 SEG90 -1323 1110 311 DUMMY -4049 1110
212 SEG41 1323 1110 262 SEG91 -1377 1110 312 DUMMY -4129 1110
213 SEG42 1269 1110 263 SEG92 -1431 1110 313 DUMMY -4245 917
214 SEG43 1215 1110 264 SEG93 -1485 1110 314 COM72 -4245 837
215 SEG44 1161 1110 265 SEG94 -1539 1110 315 COM73 -4245 783
216 SEG45 1107 1110 266 SEG95 -1593 1110 316 COM74 -4245 729
217 SEG46 1053 1110 267 SEG96 -1647 1110 317 COM75 -4245 675
218 SEG47 999 1110 268 SEG97 -1701 1110 318 COM76 -4245 621
219 SEG48 945 1110 269 SEG98 -1755 1110 319 COM77 -4245 567
220 SEG49 891 1110 270 SEG99 -1809 1110 320 COM78 -4245 513
221 SEG50 837 1110 271 SEG100 -1863 1110 321 COM79 -4245 459
222 SEG51 783 1110 272 SEG101 -1917 1110 322 COM80 -4245 405
223 SEG52 729 1110 273 SEG102 -1971 1110 323 COM81 -4245 351
224 SEG53 675 1110 274 SEG103 -2025 1110 324 COM82 -4245 297
225 SEG54 621 1110 275 SEG104 -2079 1110 325 COM83 -4245 243
226 SEG55 567 1110 276 SEG105 -2133 1110 326 COM84 -4245 189
227 SEG56 513 1110 277 SEG106 -2187 1110 327 COM85 -4245 135
228 SEG57 459 1110 278 SEG107 -2241 1110 328 COM86 -4245 81
229 SEG58 405 1110 279 SEG108 -2295 1110 329 COM87 -4245 27
230 SEG59 351 1110 280 SEG109 -2349 1110 330 COM88 -4245 -27
231 SEG60 297 1110 281 SEG110 -2403 1110 331 COM89 -4245 -81
232 SEG61 243 1110 282 SEG111 -2457 1110 332 COM90 -4245 -135
233 SEG62 189 1110 283 SEG112 -2511 1110 333 COM91 -4245 -189
234 SEG63 135 1110 284 SEG113 -2565 1110 334 COM92 -4245 -243
235 SEG64 81 1110 285 SEG114 -2619 1110 335 COM93 -4245 -297
236 SEG65 27 1110 286 SEG115 -2673 1110 336 COM94 -4245 -351
237 SEG66 -27 1110 287 SEG116 -2727 1110 337 COM95 -4245 -405
238 SEG67 -81 1110 288 SEG117 -2781 1110 338 COM96 -4245 -459
239 SEG68 -135 1110 289 SEG118 -2835 1110 339 COM97 -4245 -513
240 SEG69 -189 1110 290 SEG119 -2889 1110 340 COM98 -4245 -567
241 SEG70 -243 1110 291 SEG120 -2943 1110 341 COM99 -4245 -621
242 SEG71 -297 1110 292 SEG121 -2997 1110 342 COM100 -4245 -675
243 SEG72 -351 1110 293 SEG122 -3051 1110 343 COM101 -4245 -729
244 SEG73 -405 1110 294 SEG123 -3105 1110 344 COM102 -4245 -783
245 SEG74 -459 1110 295 SEG124 -3159 1110 345 COM103 -4245 -837
246 SEG75 -513 1110 296 SEG125 -3213 1110 346 DUMMY -4245 -917
247 SEG76 -567 1110 297 SEG126 -3267 1110
248 SEG77 -621 1110 298 SEG127 -3321 1110
249 SEG78 -675 1110 299 SEG128 -3375 1110
250 SEG79 -729 1110 300 SEG129 -3429 1110

5

132 SEG / 128 COM DRIVER & CONTROLLER FOR STN LCD PRELIMINARY SPEC. VER. 0.1 S6B0728

PIN DESCRIPTION

Table 3. Power Supply Pins

Name I/O Description

VDD Supply Power supply

Vss Supply Ground

LCD drivers supply voltages
The voltage determined by LCD pixel is impedance-converted by an operational amplifier

V0
V1
V2
V3
V4

I/O

for application.
Voltages should have the following relationship: V0 ≥ V1 ≥ V2 ≥ V3 ≥ V4 ≥ Vss
When the internal power circuit is active, these voltages are generated as following table
according to the state of LCD bias.

LCD bias V1 V2 V3 V4

1/N bias (N-1)/N x V0 (N-2)/N x V0 2/N x V0 1/N x V0

NOTE : *N = 5 to 12

Table 4. LCD Driver Supply Pins

Name I/O Description

C1-, C2- I/O Capacitor negative connection pins used for voltage converter

C1+, C2+
C3+, C4+
C5+, C6+

VOUT I/O

VCI I Voltage converter input voltage pin for internal booster.

VR I V0 voltage adjustment pin used to adjust V0 by means of external resistors(INTRS = “ L” )

REF I

VEXT I

INTRS I

I/O Capacitor positive connection pins used for voltage converter

Voltage converter input/output pin.
VOUT = Boost level × VCI, for internal booster

Selects the external VREF voltage via VEXT pin

− REF = "L": using the external VREF

− REF = "H": using the internal VREF

Externally-input reference voltage(VREF) for the internal voltage regulator.
It is valid only when REF is “L”.

Internal resistors select pin used to select resistors for adjusting V0 voltage level.

− INTRS = "H”: use the internal resistors.

− INTRS = "L”: use the external resistors. VR pin and external resistive divider control V0

voltage.

6

S6B0728 PRELIMINARY SPEC. VER. 0.1 132 SEG / 128 COM DRIVER & CONTROLLER FOR STN LCD

Table 5. Microprocessor Interface Pins

Name I/O Description

RESETB I

PS I

C68 I

CS1B

CS2

RS I

RW_WR I

Reset input pin.
When RESETB is “L”, initialization is executed.

Parallel / Serial data input select input

PS Interface

mode

H Parallel RS DB0 to DB7

Data /

instruction

Data Read / Write Serial clock

E_RD

RW_WR

L Serial RS SID (DB7) Write only SCLK (DB6)

*NOTE: When PS is “L”, DB0 to DB5 are high impedance and E_RD and RW_WR
must be fixed to either “H” or “L”.

Microprocessor interface(PS = “H”) / Register Select(PS = “L”) input pin

PS C68 Interface mode

H 6800-series MPU mode

H

L 8080-series MPU mode

H 4-Pin SPI MPU mode

L

L 3-Pin SPI MPU mode

Chip select input pins
Data / instruction I/O is enabled only when CS1B is “L” and CS2 is “H”. When chip select is

I

non-active, DB0 to DB7 may be high impedance.
Register select input pin

− RS = "H": DB0 to DB7 are display data

− RS = "L": DB0 to DB7 are control data

Read / Write execution control pin

C68 MPU Type RW_WR Description

Read/Write control input pin

H 6800-series RW

− RW = “H”: read

− RW = “L”: write

Write enable clock input pin

L 8080-series /WR

The data on DB0 to DB7 are latched at the rising
edge of the /WR signal.

-

7

132 SEG / 128 COM DRIVER & CONTROLLER FOR STN LCD PRELIMINARY SPEC. VER. 0.1 S6B0728

Table 5. Microprocessor Interface Pins (Continued)

Name I/O Description

Read / Write execution control pin

C68 MPU type E_RD Description

Read / Write control input pin

− RW = “H”: When E is “H”, DB0 to DB7 are in an

E_RD I

H 6800-series E

output status.

− RW = “L”: The data on DB0 to DB7 are latched at
the falling edge of the E signal.

L 8080-series /RD

Read enable clock input pin
When /RD is “L”, DB0 to DB7 are in an output status.

8-bit bi-directional data bus that is connected to the standard 8-bit microprocessor data
bus.

DB0

to

DB7

I/O

When the serial interface selected (PS = "L");

− DB0 to DB5: high impedance

− DB6: serial input clock (SCLK)

− DB7: serial input data (SID).

When chip select is not active, DB0 to DB7 may be high impedance.

Table 6. Test Pins

Name I/O Description

TEST1

to

TEST3

Test pins

I

Don’ t use these pins.

8

S6B0728 PRELIMINARY SPEC. VER. 0.1 132 SEG / 128 COM DRIVER & CONTROLLER FOR STN LCD

Table 7. LCD driver output pins

Name I/O Description

LCD segment driver outputs
The display data and the M signal control the output voltage of segment driver.

SEG0

to

SEG131

COM0

to

COM127

Display data M

Segment driver output voltage

Normal display Reverse display

H H V0 V2

O

H L Vss V3

L H V2 V0
L L V3 Vss

Power save mode Vss Vss

LCD common driver outputs
The internal scanning data and M signal control the output voltage of common driver.

Scan data M Common driver output voltage

H H Vss

O

H L V0

L H V1
L L V4

Power save mode Vss

9

132 SEG / 128 COM DRIVER & CONTROLLER FOR STN LCD PRELIMINARY SPEC. VER. 0.1 S6B0728

FUNCTIONAL DESCRIPTION

MICROPROCESSOR INTERFACE

Chip Select Input

There are CS1B and CS2 pins for chip selection. The S6B0728 can interface with an MPU only when CS1B is “L”
and CS2 is “H”. When these pins are set to any other combination, RS, E_RD, and RW_WR inputs are disabled
and DB0 to DB7 are to be high impedance. And, in case of serial interface, the internal shift register and the
counter are reset.

Parallel / Serial Interface

The S6B0728 has four types of interface with an MPU, which are two serial and two parallel interfaces. This parallel
or serial interface is determined by PS pin as shown in Table 8.

Table 8. Parallel / Serial Interface Mode.

PS Type CS1B CS2 C68 Interface mode

H Parallel CS1B CS2

L Serial CS1B CS2

Parallel Interface (PS = "H")

The 8-bit bi-directional data bus is used in parallel interface and the type of MPU is selected by C68 as shown in

Table 9. The type of data transfer is determined by signals at RS, E_RD and RW_WR as shown in Table 10.

Table 9. Microprocessor Selection for Parallel Interface

C68 CS1B CS2 RS E_RD RW_WR DB0 to DB7 MPU bus

H CS1B CS2 RS E RW DB0 to DB7 6800-series

L CS1B CS2 RS /RD /WR DB0 to DB7 8080-series

Table 10. Parallel Data Transfer

Common 6800-series 8080-series

RS

E_RD

(E)

RW_WR

(RW)

E_RD

(/RD)

RW_WR

(/WR)

H 6800-series MPU mode

L 8080-series MPU mode

H 4-Pin SPI MPU mode

L 3-Pin SPI MPU mode

Description

H H H L H Read display data
H H L H L Write display data

L H H L H Read out internal status register
L H L H L Write instruction data

10

S6B0728 PRELIMINARY SPEC. VER. 0.1 132 SEG / 128 COM DRIVER & CONTROLLER FOR STN LCD

Serial Interface (PS = "L")

Communication with the microprocessor occurs via a clock-synchronized serial peripheral interface when PS is low.
When using the serial interface, read operations are not allowed. . When the chip select inputs are valid(CS1B = “L”
& CS2 = “H”), the serial data is sent most significant bit first on the rising edge of a serial clock going into DB6 and
processed as 8-bit parallel data on the eighth clock. Since the clock signal is easy to be affected by the external
noise caused by the line length, the operation check on the actual machine is recommended. And not valid, the
internal 8-bit shift register and the 3-bit counter are reset.
The serial interface type is selected by setting C68 as shown in Table 11.

Table 11. Microprocessor Selection for Serial Interface

C68 Serial interface mode Chip Select Register Select Serial Data / Clock input

H 4-Pin SPI CS1B, CS2 by RS pin DB7 / DB6

L 3-Pin SPI CS1B, CS2 by software DB7 / DB6

4-Pin SPI Interface (PS = "L", C68 = "H")

In 4-pin SPI interface mode, RS pin is used for indicating whether serial data input is display or instruction data.
Data is display data when RS is high and instruction data when RS is low.

CS1B

CS2

SID

SCLK

RS

DB6DB7DB0DB1DB2DB3DB4DB5DB6DB7

Figure 3. 4-Pin SPI Timing (RS is used)

11

132 SEG / 128 COM DRIVER & CONTROLLER FOR STN LCD PRELIMINARY SPEC. VER. 0.1 S6B0728

3-Pin SPI Interface (PS = "L" , C68 = "L")

In 3-Pin SPI Interface mode, the pre-defined instruction called Display Data Length, is used to indicate whether
serial data input is display or instruction data instead of RS pin. The data is handled as instruction data until the
Display Data Length instruction is issued. This Display Data Length instruction consists two bytes instruction. The
first byte instruction enables the next instruction to be valid, and the data of the second byte indicates that a
specified number of display data bytes(1 to 256) are to be transmitted. The next byte after the display data string is
handled as instruction data. For details, refers the Figure 4.

Chip Select

24 12321 16

CS1B = L, CS2 = H

2 15 1 2 8079

Serial clock

3 bytes 10 bytes2 bytes

Serial data

10110001 00010000 00001000 11111100 00001001

Page = 1 Column address = 16 DDL DDL = 9 User's display data

10 bytes display data

Internal RS

Figure 4. 3 Pin SPI Timing (RS is not used)

*NOTES:

- In spite of transmission of data, if CS1B will be disable, state terminates abnormally. Next state is initialized.

- The number of writing display data = DDL register value + 1

Busy Flag

The Busy Flag indicates whether the S6B0728 is operating or not. When DB7 is “H” in read status operation, this
device is in busy status and will accept only read status instruction. If the cycle time is correct, the microprocessor
needs not to check this flag before each instruction, which improves the MPU performance.

12

S6B0728 PRELIMINARY SPEC. VER. 0.1 132 SEG / 128 COM DRIVER & CONTROLLER FOR STN LCD

RS

DB0 to DB7

BUS HOLDER

N

D(N)

D(N+1)

D(N+2)

N

N+1

N+2

N+3

Data Transfer

The S6B0728 uses bus holder and internal data bus for data transfer with the MPU. When writing data from the
MPU to on-chip RAM, data is automatically transferred from the bus holder to the RAM as shown in figure 4. And
when reading data from on-chip RAM to the MPU, the data for the initial read cycle is stored in the bus holder
(dummy read) and the MPU reads this stored data from bus holder for the next data read cycle as shown in figure 5.
This means that a dummy read cycle must be inserted between each pair of address sets when a sequence of
address sets is executed. Therefore, the data of the specified address cannot be output with the read display data
instruction right after the address sets, but can be output at the second read of data.

MPU signals

RS

/WR

DB0 to DB7

Internal signals

/WR

BUS HOLDER

COLUMN ADDRESS

MPU signals

/WR

/RD

Internal signals

/WR

N D(N) D(N+1) D(N+2) D(N+3)

N D(N) D(N+1) D(N+2) D(N+3)

N N+1 N+2 N+3

Figure 5. Write Timing

N

Dummy D(N) D(N+1)

/RD

COLUMN ADDRESS

Figure 6. Read Timing

13

132 SEG / 128 COM DRIVER & CONTROLLER FOR STN LCD PRELIMINARY SPEC. VER. 0.1 S6B0728

- -

- -

- -

- -

001

- -

0

011

- -

0

101

- -

0

000

- -

1

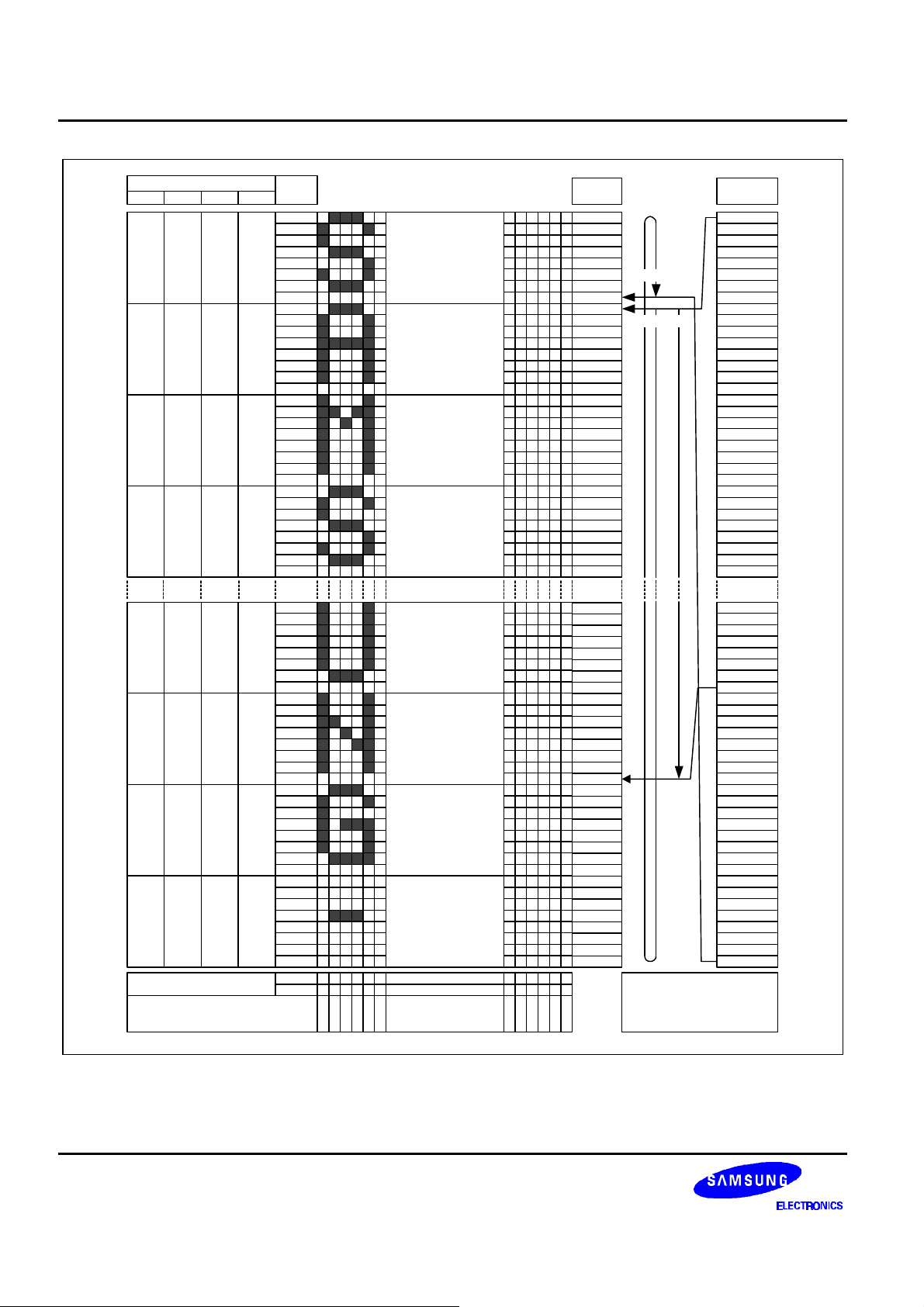

DISPLAY DATA RAM (DDRAM)

The Display Data RAM stores pixel data for the LCD. It is 128-row by 132-column addressable array. Each pixel
can be selected when the page and column addresses are specified. The 128 rows are divided into 16 pages of 8
lines. Data is read from or written to the 8 lines of each page directly through DB0 to DB7. The display data of DB0
to DB7 from the microprocessor correspond to the LCD common lines as shown in figure 6. The microprocessor
can read from and write to RAM through the I/O buffer. Since the LCD controller operates independently, data can
be written into RAM at the same time as data is being displayed without causing the LCD flicker.

DB0
DB1
DB2
DB3
DB4

1 0 0 - - 1

COM0

COM1
COM2
COM3
COM4

- -

Display Data RAM LCD Display

Figure 7. RAM-to-LCD Data Transfer

Page Address Circuit

This circuit is for providing a page address to Display Data RAM shown in figure 8. It incorporates 4-bit page
address register changed by only the “Set Page” instruction.

Line Address Circuit

This circuit assigns DDRAM a line address corresponding to the first line (COM0) of the display. Therefore, by
setting line address repeatedly, it is possible to realize the screen scrolling and page switching without changing
the contents of on-chip RAM as shown in figure 7. It incorporates 7-bit line address register changed by only the
initial display line instruction and 7-bit counter circuit. At the beginning of each LCD frame, the contents of register
are copied to the line counter which is increased by internal latch signal and generates the Line Address for
transferring the 132-bit RAM data to the display data latch circuit. However, display data of icons are not scrolled
because the MPU can not access Line Address of icons.

14

S6B0728 PRELIMINARY SPEC. VER. 0.1 132 SEG / 128 COM DRIVER & CONTROLLER FOR STN LCD

Column Address Circuit

Column Address circuit has an 8-bit preset counter that provides Column Address to the Display Data RAM as
shown in figure 8. When set Column Address MSB / LSB instruction is issued, 8-bit [Y7:Y0] is updated. And, since
this address is increased by 1 each a read or write data instruction, microprocessor can access the display data
continuously. However, the counter is not incremented and locked if a non-existing address above 83H. It is
unlocked if a column address is set again by set Column Address MSB / LSB instruction. And the Column Address
counter is independent of page address register.

ADC select instruction makes it possible to invert the relationship between the Column Address and the segment
outputs. It is necessary to rewrite the display data on built-in RAM after issuing ADC select instruction. Refer to the
following figure 7.

SEG Output

SEG

0

SEG

1

SEG

2

SEG

3

... ...

SEG

128

SEG

129

SEG

130

SEG

131

Column address [Y7:Y0] 00H 01H 02H 03H ... ... 80H 81H 82H 83H

Display data 1 0 1 0 1 1 0 0

LCD panel display

... ...

( ADC = 0 )

LCD panel display

( ADC = 1 )

... ...

Figure 8. The Relationship between the Column Address and The Segment Outputs

Segment Control Circuit

This circuit controls the display data by the display ON / OFF, reverse display ON / OFF and entire display ON /
OFF instructions without changing the data in the display data RAM.

15

132 SEG / 128 COM DRIVER & CONTROLLER FOR STN LCD PRELIMINARY SPEC. VER. 0.1 S6B0728

Page Address

DB3 DB0DB1DB2

0 000

0 100

0 010

0 110

1 001

1 101

1 011

1 111

Column Address

LCD Segment Output

Data

DB0
DB1
DB2
DB3
DB4
DB5
DB6
DB7
DB0
DB1
DB2
DB3
DB4
DB5
DB6
DB7
DB0
DB1
DB2
DB3
DB4
DB5
DB6
DB7
DB0
DB1
DB2
DB3
DB4
DB5
DB6
DB7

DB0
DB1
DB2
DB3
DB4
DB5
DB6
DB7
DB0
DB1
DB2
DB3
DB4
DB5
DB6
DB7
DB0
DB1
DB2
DB3
DB4
DB5
DB6
DB7
DB0
DB1
DB2
DB3
DB4
DB5
DB6
DB7

ADC=0
ADC=1

00

SEG0

02 0301 04 05

8081 7E7F8283

SEG1

SEG2

SEG3

SEG4

SEG5

Page 0

Page 1

Page 2

Page 3

Page 12

Page 13

Page 14

Page 15

- - - - - - - -

- - - - - - - -

- - - - - - - -

80 817E7F 82 83

SEG126

SEG127

0203 00010405

SEG128

SEG129

SEG130

SEG131

Line

Address

00H
01H
02H
03H
04H
05H
06H
07H
08H
09H
0AH

0BH
0CH
0DH
0EH
0FH

10H

11H

12H

13H

14H

15H

16H

17H

18H

19H
1AH
1BH
1CH
1DH
1EH
1FH

60H

61H

62H

63H

64H

65H

66H

67H

68H

69H
6AH
6BH
6CH
6DH
6EH
6FH

70H

71H

72H

73H

74H

75H

76H

77H

78H

79H
7AH
7BH
7CH
7DH
7EH
7FH

End = 07H

Start = 08H

1/128 Duty

1/104 Duty

Initial start line
address = 08H

COM

Output
COM0

COM1
COM2
COM3
COM4
COM5
COM6
COM7
COM8

COM9
COM10
COM11
COM12
COM13
COM14
COM15
COM16
COM17
COM18
COM19
COM20
COM21
COM22
COM23
COM24
COM25
COM26
COM27
COM28
COM29
COM30
COM31

COM96
COM97
COM98
COM99

COM100
COM101
COM102
COM103
COM104
COM105
COM106
COM107
COM108
COM109
COM110
COM111
COM112
COM113
COM114
COM115
COM116
COM117
COM118
COM119
COM120
COM121
COM122
COM123
COM124
COM125
COM126
COM127

16

Figure 9. Display Data RAM Map

S6B0728 PRELIMINARY SPEC. VER. 0.1 132 SEG / 128 COM DRIVER & CONTROLLER FOR STN LCD

LCD DISPLAY CIRCUITS

Oscillator

This is completely on-chip Oscillator and its frequency is nearly independent of VDD. This oscillator signal is used in
the voltage converter and display timing generation circuit.

Display Timing Generator Circuit

This circuit generates some signals to be used for displaying LCD. The internal display clock, CL, generated by
oscillation clock, generates the clock for the line counter and the signal for the display data latch. The line address
of on-chip RAM is generated in synchronization with the display clock (CL) and the display data latch circuit in
synchronization latches the 132-bit display data with the display clock. The display data, which is read to the LCD
driver, is completely independent of the access to the display data RAM from the microprocessor. The display clock
generates an LCD AC signal (M) which enables the LCD driver to make a AC drive waveform, and also generates
an internal common timing signal and start signal to the common driver. The frame or the line changes the phase of
M by setting internal instruction. Driving waveform and internal timing signal are shown in figure 10.

17

132 SEG / 128 COM DRIVER & CONTROLLER FOR STN LCD PRELIMINARY SPEC. VER. 0.1 S6B0728

8485123456789101112787980818283848512345

6

8485123456789101112787980818283848512345

6

CL

FR

M

V0
V1

COM0

COM1

SEGn

V2
V3
V4
VSS

V0
V1
V2
V3
V4
VSS

V0
V1
V2
V3
V4
VSS

Figure 10. 2-frame AC Driving Waveform (Duty Ratio = 1/85)

CL

FR

COM0

COM1

SEGn

M

V0
V1
V2
V3
V4
VSS

V0
V1
V2
V3
V4
VSS

V0
V1
V2
V3
V4
VSS

Figure 11. N-line Inversion Driving Waveform (N = 5, Duty Ratio = 1/85)

18

S6B0728 PRELIMINARY SPEC. VER. 0.1 132 SEG / 128 COM DRIVER & CONTROLLER FOR STN LCD

SEG2

SEG0

COM2

COM0

VSS

VSS

VSS

VSS

VSS

VSS

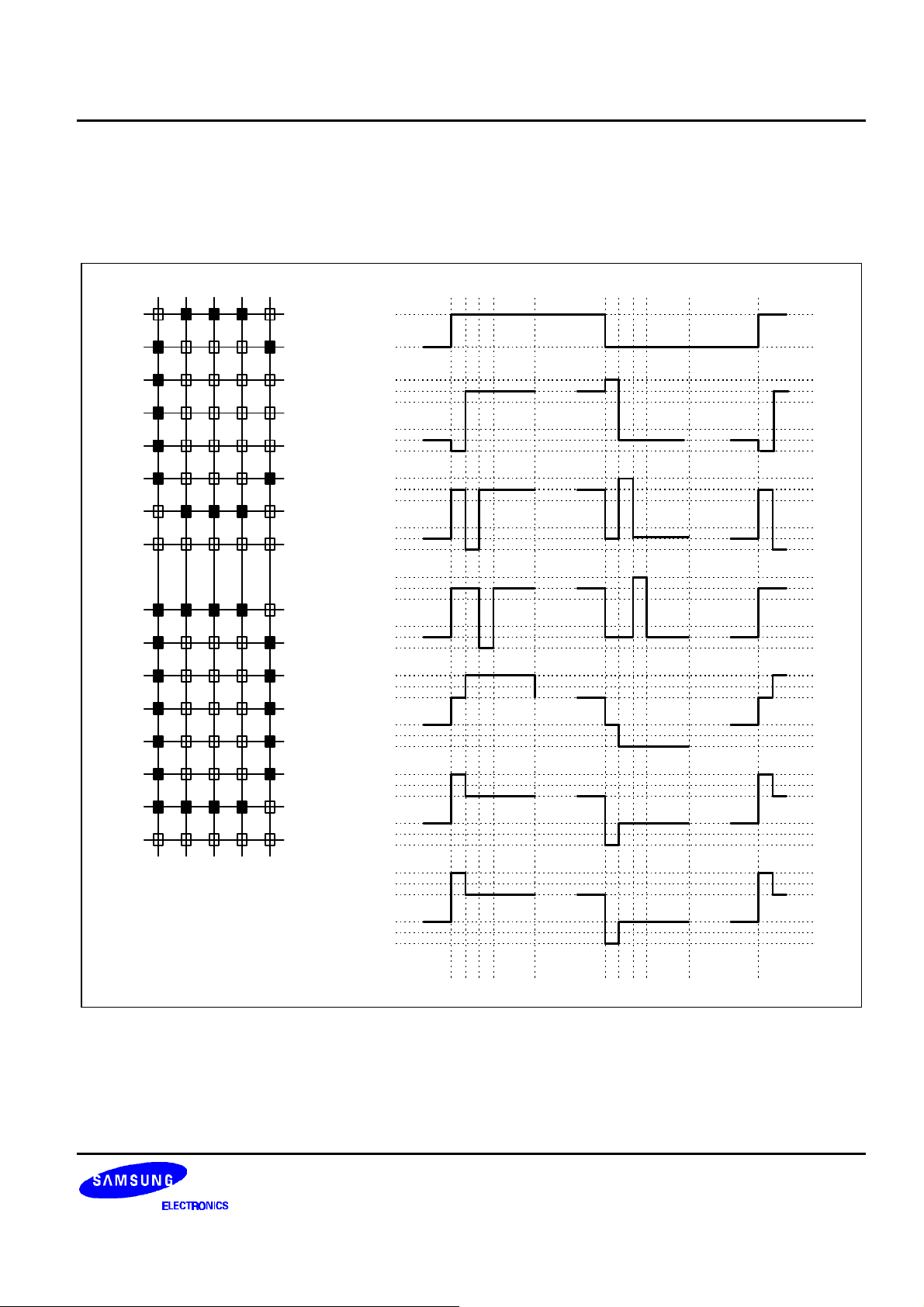

LCD DRIVER CIRCUIT

128-channel common driver and 132-channel segment driver configure this driver circuit. This LCD panel driver
voltage depends on the combination of display data and M signal.

COM0
COM1

COM2
COM3

COM4
COM5

COM6
COM7

COM8

COM9
COM10
COM11
COM12

M

COM1

VDD

VSS

V0
V1
V2

V3
V4

V0
V1
V2

V3
V4

V0
V1
V2

V3
V4

V0
V1
V2

V3
V4

COM13
COM14
COM15

V0
V1
V2

SEG1

S

S

S

S

S

E

E

E

E

E

G

G

G

G

G

4

3

2

1

0

V3
V4

V0
V1
V2

V3
V4

Figure 12. Segment and Common Timing

19

132 SEG / 128 COM DRIVER & CONTROLLER FOR STN LCD PRELIMINARY SPEC. VER. 0.1 S6B0728

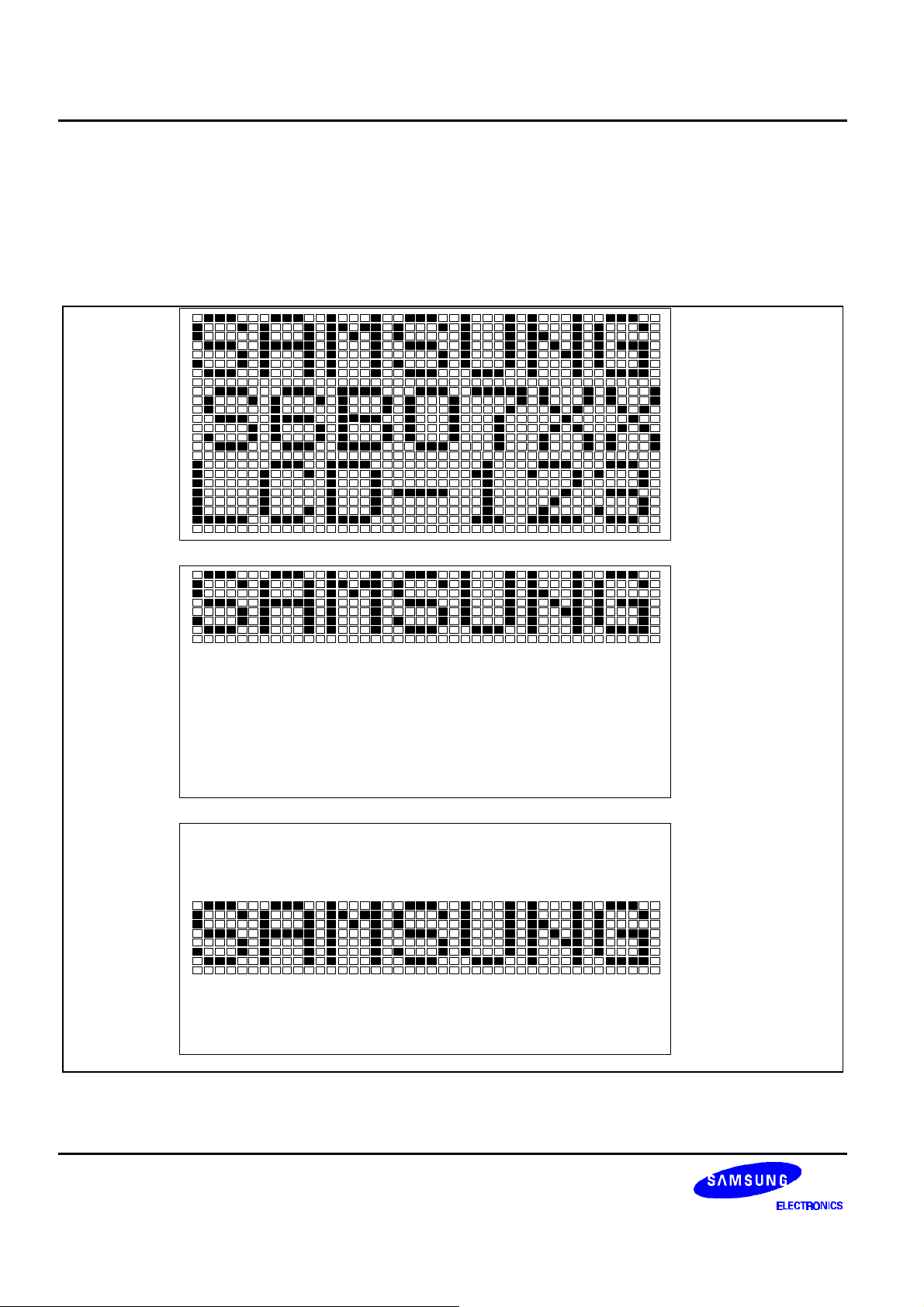

Partial Display on LCD

The S6B0728 realizes the partial display function on LCD with low-duty driving for saving power consumption and
showing the various display duties. To show the various display duties on LCD, LCD driving duty and bias are
programmable via the instruction. And, built-in power supply circuits are controlled by the instruction for adjusting
the LCD driving voltages

-- COM0

-- COM1

-- COM2

-- COM3

-- COM4

-- COM5

-- COM6

-- COM7

-- COM8

-- COM9

-- COM10

-- COM11

-- COM12

-- COM13

-- COM14

-- COM15

-- COM16

-- COM17

-- COM18

-- COM19

-- COM20

-- COM21

-- COM22

-- COM23

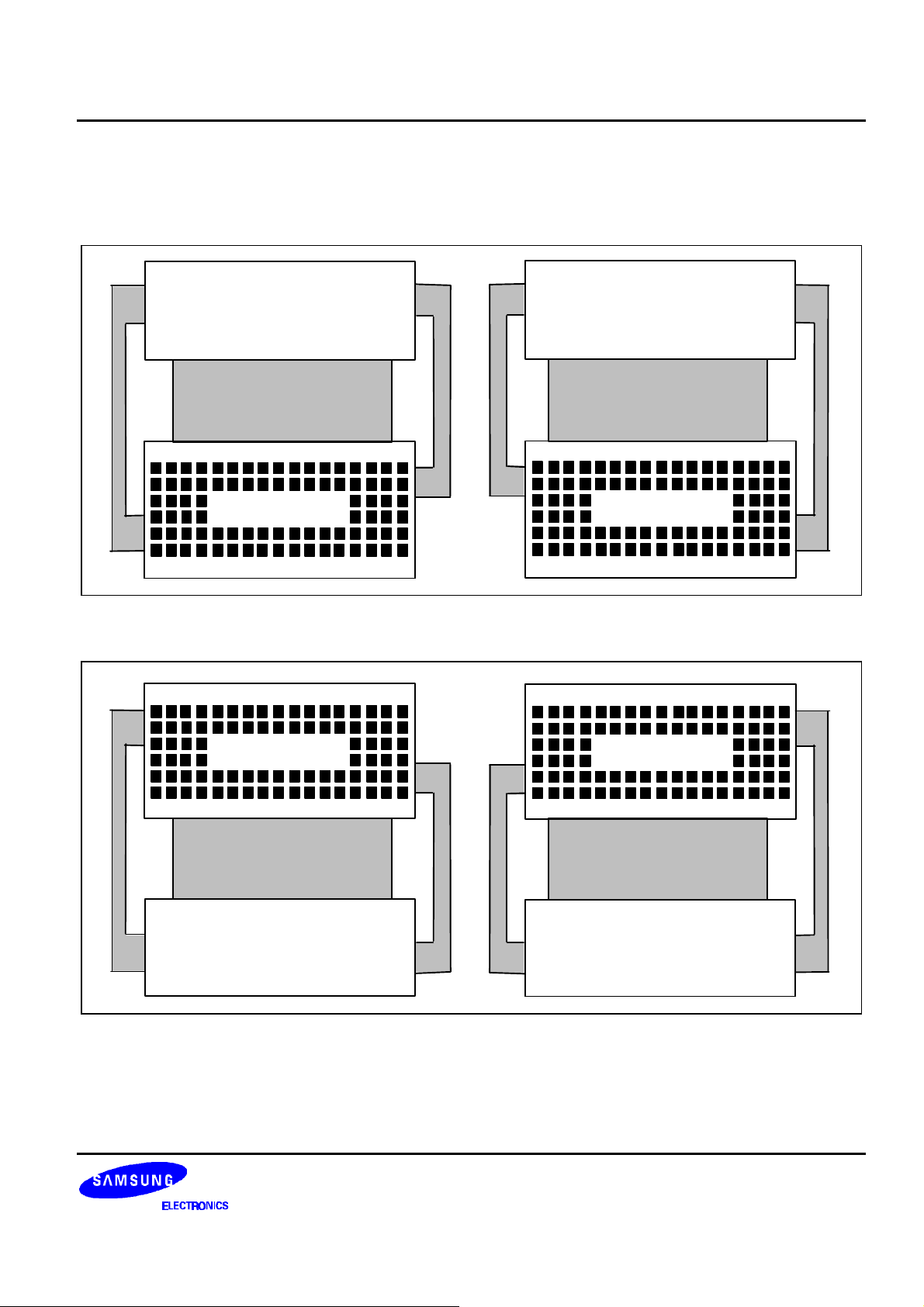

Reference example for partial display ( Display duty = 24 )

-- COM0

-- COM1

-- COM2

-- COM3

-- COM4

-- COM5

-- COM6

-- COM7

-- COM8

-- COM9

-- COM10

-- COM11

-- COM12

-- COM13

-- COM14

-- COM15

-- COM16

-- COM17

-- COM18

-- COM19

-- COM20

-- COM21

-- COM22

-- COM23

Partial display ( Partial display duty = 8, Initial COM0 = 0 )

-- COM0

-- COM1

-- COM2

-- COM3

-- COM4

-- COM5

-- COM6

-- COM7

-- COM8

-- COM9

-- COM10

-- COM11

-- COM12

-- COM13

-- COM14

-- COM15

-- COM16

-- COM17

-- COM18

-- COM19

-- COM20

-- COM21

-- COM22

-- COM23

Moving display ( Partial display duty = 8, Initial COM0 = 8 )

20

Figure 13. Reference Example for Partial Display

S6B0728 PRELIMINARY SPEC. VER. 0.1 132 SEG / 128 COM DRIVER & CONTROLLER FOR STN LCD

POWER SUPPLY CIRCUITS

The Power Supply circuits generate the voltage levels necessary to drive liquid crystal driver circuits with low­power consumption and the fewest components. There are voltage converter circuits, voltage regulator circuits,
and voltage follower circuits. They are valid only in master operation and controlled by power control instruction.
For details, refers to "Instruction Description". Table 12 shows the referenced combinations in using Power Supply
circuits.

Table 12. Recommended Power Supply Combinations

User setup

Only the internal power
supply circuits are used

Only the voltage

regulator circuits and

voltage follower circuits

are used

Only the voltage follower

circuits are used

Only the external power

supply circuits are used

Power

control

(VC VR VF)

1 1 1 ON ON ON Open Open Open

0 1 1 OFF ON ON

0 0 1 OFF OFF ON

0 0 0 OFF OFF OFF Open

V/C

circuits

V/R

circuits

V/F

circuits

VOUT V0 V1 to V4

External

input

External

input

Open Open

Open Open

External

input

External

input

21

132 SEG / 128 COM DRIVER & CONTROLLER FOR STN LCD PRELIMINARY SPEC. VER. 0.1 S6B0728

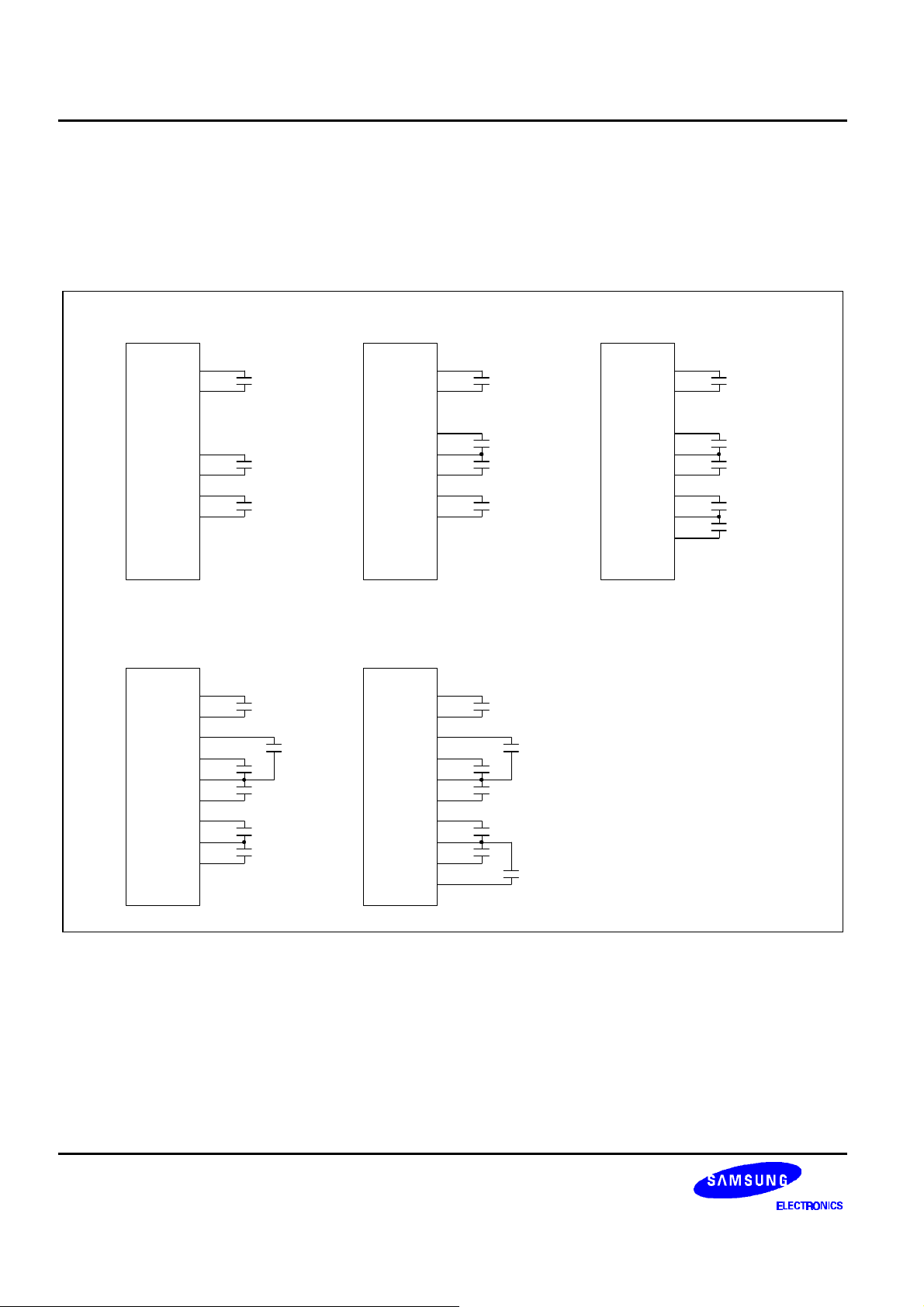

Voltage Converter Circuits

These circuits boost up the electric potential between VCI and Vss to 3, 4, 5, 6 or 7 times toward positive side and
boosted voltage is outputted from VOUT pin. It is possible to select the lower boosting level in any boosting circuit
by “Set DC-DC Step-up” instruction. When the higher level is selected by instruction, VOUT voltage is not valid.

[C1 = 1.0 to 4.7 µF]

X3

X6

VSS

VOUT

C5+
C3+

C1-

C1+
C2+

C2-

C4+
C6+

VSS

VOUT

C5+
C3+

C1-

C1+
C2+

C2-

C4+
C6+

X4

-

+

-

+
+

-

VSS

VOUT

C5+
C3+

C1-

C1+
C2+

C2-

C4+
C6+

-

+

+

-

-

+
+

-

X5

VSS

VOUT

C5+
C3+

C1-

C1+
C2+

C2-

C4+
C6+

-

+

+

-

-

+
+

-

-

+

X7

-

+

+

-

+

-

-

+
+

-

-

+

VSS

VOUT

C5+
C3+

C1-

C1+
C2+

C2-

C4+
C6+

-

+

+

-

+

-

-

+
+

-

-

+

-

+

VOUT = Boost level x VCI

22

Figure 14. Boosting Circuits

S6B0728 PRELIMINARY SPEC. VER. 0.1 132 SEG / 128 COM DRIVER & CONTROLLER FOR STN LCD

GND

RaRbVSS

VRV0VOUT

Voltage Regulator Circuits

The function of the internal voltage regulator circuits is to determine liquid crystal operating voltage, V0, by
adjusting resistors, Ra and Rb, within the range of |V0| < |VOUT|. Because VOUT is the operating voltage of
operational-amplifier circuits shown in figure 19, it is necessary to be applied internally or externally.

For the Eq. 6-1, we determine V0 by Ra, Rb and VEV. The Ra and Rb are connected internally or externally by
INTRS pin. And VEV called the voltage of electronic volume is determined by Eq. 6-2, where the parameter α is the
value selected by instruction, "Set Reference Voltage Register", within the range 0 to 63. VREF voltage at Ta =
25°C is shown in Table 13.

V0 = (1 + ( Rb / Ra ) ) x VEV [V] ------ (Eq. 6-1)
VEV = (1 – ( (63 - α) / 200 ) ) x VREF [V] ------ (Eq. 6-2)

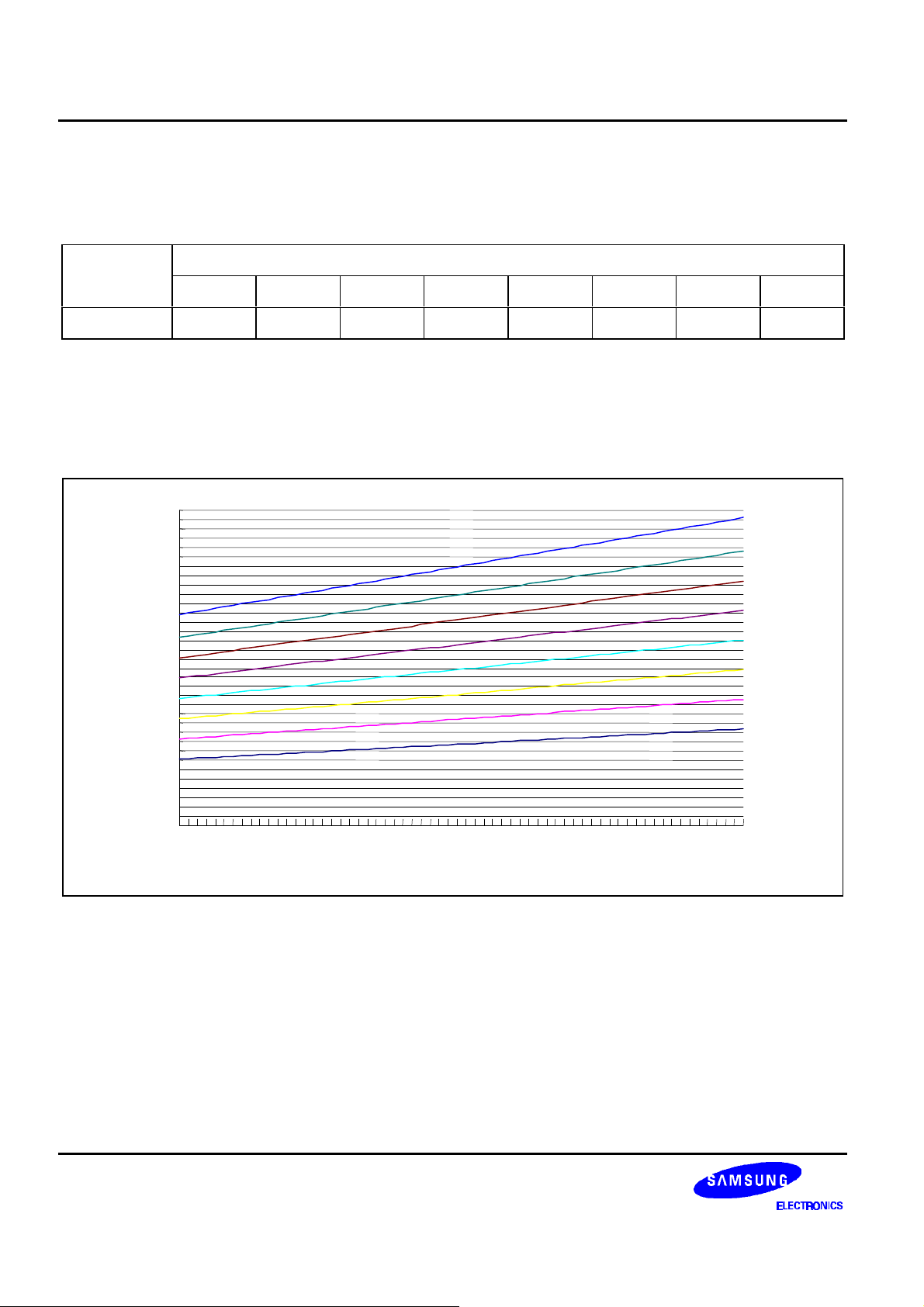

Table 13. VREF Voltage at Ta = 25°C

REF Temp. coefficient VREF [V]

1

-0.05% / °C

0 External input VEXT

+

V

EV

-

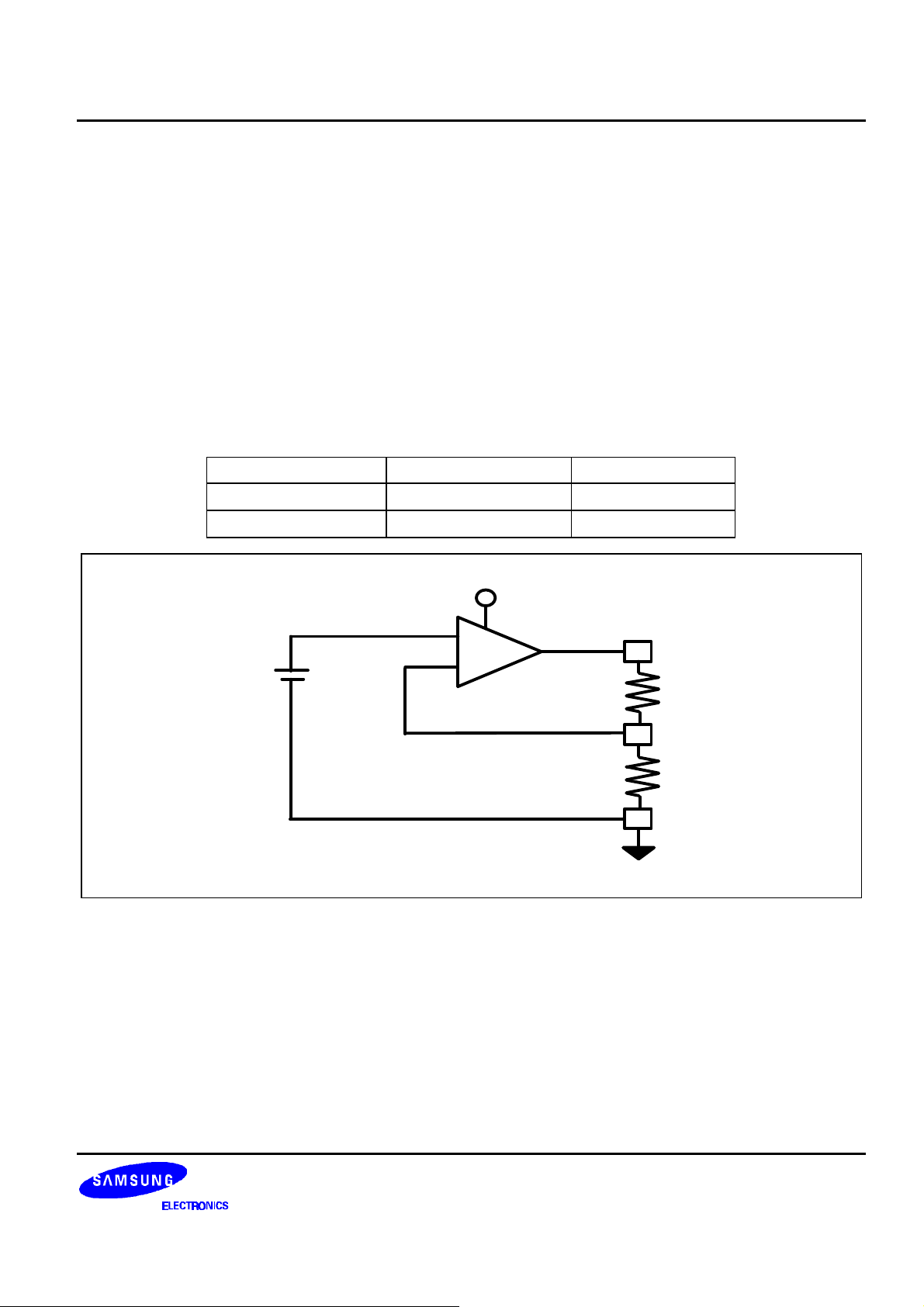

Figure 15. Internal Voltage Regulator Circuit

2.0

23

132 SEG / 128 COM DRIVER & CONTROLLER FOR STN LCD PRELIMINARY SPEC. VER. 0.1 S6B0728

0.00

2.00

4.00

6.00

8.00

10.00

12.00

14.00

16.00

08162432404856(1, 1, 1)

(1, 1, 0)

(1, 0, 1)

(1, 0, 0)

(0, 1, 1)

(0, 1, 0)

(0, 0, 1)

(0, 0, 0)

Electronic volume register (0 to 63)

63

In Case of Using Internal Resistors, Ra and Rb (INTRS = "H”)

When INTRS pin is “H”, resistor Ra is connected internally between VR pin and VSS, and Rb is connected between
V0 and VR. We determine V0 by two instructions, "Regulator Resistor Select" and "Set Reference Voltage".

3-bit data settings (R2 R1 R0)

0 0 0 0 0 1 0 1 0 0 1 1 1 0 0 1 0 1 1 1 0 1 1 1

1 + (Rb / Ra) 2.6 3.4 4.2 5.0 5.8 6.6 7.4 8.3

Table 14. Internal Rb / Ra ratio Depending on 3-bit Data (R2 R1 R0)

Figure 16 shows V0 voltage measured by adjusting internal regulator register ratio (Rb / Ra) and 6-bit electronic
volume registers for each temperature coefficient at Ta = 25 °C.

V0 Voltage [V]

Figure 16. V0 Voltage by 1 + (Rb / Ra) and Electronic Volume Levels

24

S6B0728 PRELIMINARY SPEC. VER. 0.1 132 SEG / 128 COM DRIVER & CONTROLLER FOR STN LCD

In Case of Using External Resistors, Ra and Rb (INTRS = "L")

When INTRS pin is “L”, it is necessary to connect external regulator resistor Ra between VR and VSS, and Rb
between V0 and VR.

Example: For the following requirements

1. LCD driver voltage, V0 = 10V

2. 6-bit reference voltage register = (1, 0, 0, 0, 0, 0)

3. Maximum current flowing Ra, Rb = 1 uA

From Eq. 6.1

10 = (1 + ( Rb / Ra ) ) x VEV [V] ------ (Eq. 6.3)

From Eq. 6.2

VEV = (1 – ( (63 - 32) / 200 ) ) x 2.0 = 1.69 [V] ------ (Eq. 6.4)

From requirement 3.

10 / ( Ra + Rb ) = 1 [uA] ------ (Eq. 6.5)

From equations Eq. 6.3, 6.4 and 6.5

Ra = 1.69 [MΩ], Rb = 8.31 [MΩ]

Table 15 shows the range of V0 depending on the above requirements.

Table 15. The Range of V0

Electronic volume level

0 ....... 32 ....... 63

V0 8.10 ....... 10.00 ....... 11.83

Voltage Follower Circuits

VLCD voltage (V0) is resistively divided into four voltage levels (V1, V2, V3 and V4), and these output impedance
are converted by the Voltage Follower for increasing drive capability. Table 16 shows the relationship between V1
to V4 level and each duty ratio.

Table 16. V1 to V4 Level

LCD bias V1 V2 V3 V4 Remarks

1/N (N-1)/N x V0 (N-1)/N x V0 2/N x V0 1/N x V0 N = 5 to 12

25

132 SEG / 128 COM DRIVER & CONTROLLER FOR STN LCD PRELIMINARY SPEC. VER. 0.1 S6B0728

REFERENCE CIRCUIT EXAMPLES

[C1 = 1.0 to 4.7 [µF], C2 = 0.1 to 0.47 [µF]]

When using internal regulator resistors

(INTRS = "VDD")

VOUT

C5+
C3+
C1 ­C1+
C2+
C2 ­C4+

C1

C1

C1

C1
C1

C1
C1

C6+
VR

C2
C2
C2
C2
C2

+
+
+
+
+

V0
V1
V2
V3
V4

VSS

When not using internal regulator resistors

(INTRS = "VSS")

VOUT

C5+
C3+
C1 ­C1+
C2+
C2 ­C4+

C1

C1

C1

C1
C1

C1
C1

C6+

C2
C2
C2
C2
C2

Ra

+
+
+
+
+

VR

Rb

V0
V1
V2
V3
V4

VSS

Figure 17. When Using all LCD Power Circuits (7-times V/C: ON, V/R: ON, V/F: ON)

When using internal regulator resistors

(INTRS = "VDD")

External

VOUT

VOUT

C5+
C3+
C1 ­C1+
C2+
C2 ­C4+
C6+

VR

C2
C2
C2
C2
C2

SS

V

+
+
+
+
+

V0
V1
V2
V3
V4

When not using internal regulator resistors

(INTRS = "VSS")

External

VOUT

VOUT

C5+
C3+
C1 ­C1+
C2+
C2 ­C4+
C6+

Ra

C2
C2
C2
C2
C2

SS

V

+
+
+
+
+

VR

Rb

V0
V1
V2
V3
V4

Figure 18. When Using some LCD Power Circuits (V/C: OFF, V/R: ON, V/F: ON)

26

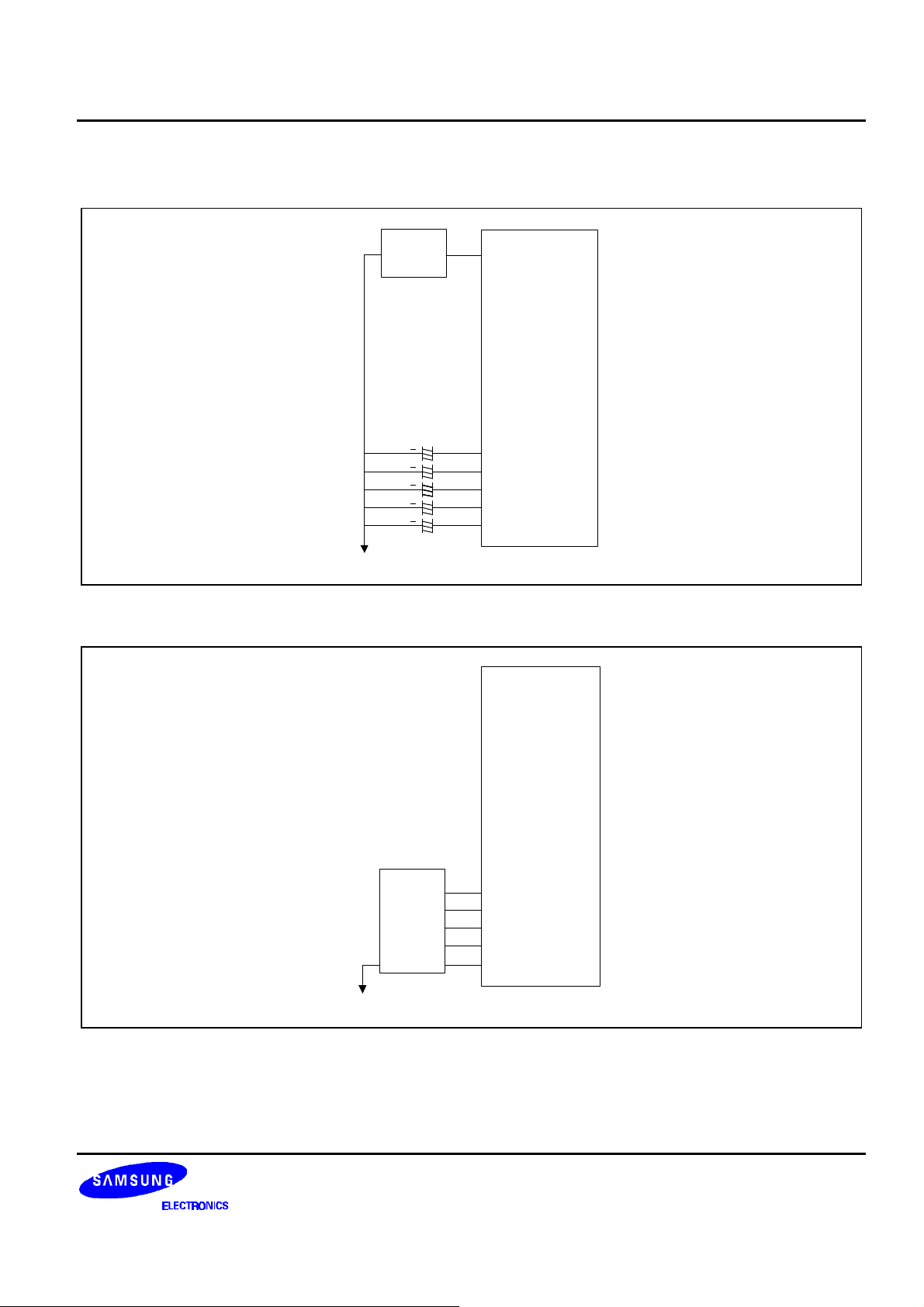

S6B0728 PRELIMINARY SPEC. VER. 0.1 132 SEG / 128 COM DRIVER & CONTROLLER FOR STN LCD

External

VOUT

VOUT

C5+
C3+
C1 ­C1+
C2+
C2 ­C4+
C6+

VR

C2
C2
C2
C2
C2

+

V0

+

V1

+

V2

+

V3

+

V4

VSS

Figure 19. When Using only Voltage Follower Circuit (V/C: OFF, V/R: OFF, V/F: ON)

VOUT

C5+
C3+
C1 ­C1+
C2+
C2 ­C4+
C6+

External

V0
V1
V2
V3
V4

VR
V0

V1
V2
V3
V4

VSS

Figure 20. When Not Using all LCD Power Circuits (V/C: OFF, V/R: OFF, V/F: OFF)

27

132 SEG / 128 COM DRIVER & CONTROLLER FOR STN LCD PRELIMINARY SPEC. VER. 0.1 S6B0728

RESET CIRCUIT

Setting RESETB to “L” or Reset instruction can initialize internal function.
When RESETB becomes “L”, following procedure is occurred.

Page address: 0
Column address: 0
Modify-read: Off
Display On / Off: Off
Initial display line: 0 (first)
Initial COM0 register: 0 (COM0)
Partial display duty ratio: 1/128
Reverse display On / Off: Off (normal)
n-line inversion register: 0 (disable)
Entire display On / Off: Off (normal)
Power control register (VC, VR, VF) = (0, 0, 0)
DC-DC step up: 3 times converter circuit = (0, 0, 0)
Regulator resistor select register: (R2, R1, R0) = (0, 0, 0)
Reference voltage control register: (EV5, EV4, EV3, EV2, EV1, EV0) = (1, 0, 0, 0, 0, 0)
LCD bias ratio: 1/12
SHL select: Off (normal)
ADC select: Off (normal)
Oscillator status: Off
Power save mode: release

When RESET instruction is issued, following procedure is occurred.

Page address: 0
Column address: 0
Modify-read: Off
Initial display line: 0 (first)
Regulator resistor select register: (R2, R1, R0) = (0, 0, 0)
Reference voltage control register (EV5, EV4, EV3, EV2, EV1, EV0) = (1, 0, 0, 0, 0, 0)

While RESETB is “L” or reset instruction is executed, no instruction except read status could be accepted. Reset
status appears at DB4. After DB4 becomes ”L”, any instruction can be accepted. RESETB must be connected to
the reset pin of the MPU, and initialize the MPU and this LSI at the same time. The initialization by RESETB is
essential before used.

28

S6B0728 PRELIMINARY SPEC. VER. 0.1 132 SEG / 128 COM DRIVER & CONTROLLER FOR STN LCD

INSTRUCTION DESCRIPTION

Table 17. Instruction Table

× : Don’ t care

Instruction

Read display data 1 1 Read data Read data from DDRAM

Write display data 1 0 Write data Write data into DDRAM

Read status 0 1

Set page address 0 0 1 0 1 1 P3 P2 P1 P0 Set page address

Set column address MSB 0 0 0 0 0 1 Y7 Y6 Y5 Y4 Set column address MSB

Set column address LSB 0 0 0 0 0 0 Y3 Y2 Y1 Y0 Set column address LSB

Set modify-read 0 0 1 1 1 0 0 0 0 0 Set modify-read mode

Reset modify-read 0 0 1 1 1 0 1 1 1 0 release modify-read mode

Display ON / OFF 0 0 1 0 1 0 1 1 1 D

Set initial display line

register

Set initial COM0 register

Set partial display

duty ratio

Set N-line inversion

Release N-line inversion 0 0 1 1 1 0 0 1 0 0 Release N-line Inversion mode

Reverse display ON / OFF 0 0 1 0 1 0 0 1 1 REV

Entire display ON / OFF 0 0 1 0 1 0 0 1 0 EON

Power control 0 0 0 0 1 0 1 VC VR VF Control power circuit operation

Select DC-DC step-up 0 0 0 1 1 0 0 DC2 DC1 DC0

Select regulator resistor 0 0 0 0 1 0 0 R2 R1 R0

Set electronic volume

register

Select LCD bias 0 0 0 1 0 1 0 B2 B1 B0 Select LCD bias

SHL select 0 0 1 1 0 0 SHL

ADC select 0 0 1 0 1 0 0 0 0 ADC

Oscillator ON start 0 0 1 0 1 0 1 0 1 1 Start the built-in oscillator

Set power save mode 0 0 1 0 1 0 1 0 0 1 Power save mode

Release power save mode 0 0 1 1 1 0 0 0 0 1 Release power save mode

Set DDL register 0 0 0 1 1 1 0 0 0 0

Reset 0 0 1 1 1 0 0 0 1 0 Initialize the internal functions

NOP 0 0 1 1 1 0 0 0 1 1 No operation

Test instruction 0 0 1 1 1 1

RS RW DB7 DB6 DB5 DB4 DB3 DB2 DB1 DB0

BUSY

ADC

0 0 0 1 0 0 0 0
0 0
0 0 0 1 0 0 0 1
0 0
0 0 0 1 0 0 1 0

0 0 D7 D6 D5 D4 D3 D2 D1 D0
0 0 0 1 0 0 1 1
0 0

0 0 1 0 0 0 0 0 0 1
0 0

×

×

× × ×

× ×

ON RES

S6 S5 S4 S3 S2 S1 S0

C6 C5 C4 C3 C2 C1 C0

N4 N3 N2 N1 N0

EV5 EV4 EV3 EV2 EV1 EV0

0 0 0 0 Read the internal status

× ×

× ×

× ×

× ×

× × ×

× × × ×

D = 0: display OFF
D = 1: display ON
2-byte instruction to specify the
initial display line to realize
vertical scrolling
2-byte instruction to specify the
initial COM0 to realize window
scrolling

2-byte instruction to set partial
display duty ratio

2-byte instruction to set n-line
inversion register

REV = 0: normal display
REV = 1: reverse display
EON = 0: normal display
EON = 1: entire display ON

Select the step-up of the internal
voltage converter
Select internal resistance ratio of
the regulator resistor

2-byte instruction to specify the
electronic volume register

COM bi-directional selection
SHL = 0: normal direction
SHL = 1: reverse direction
SEG bi-directional selection
ADC = 0: normal direction
ADC = 1: reverse direction

Set DDL register in 3-pin serial
mode

Don't use this instruction.

Description

29

132 SEG / 128 COM DRIVER & CONTROLLER FOR STN LCD PRELIMINARY SPEC. VER. 0.1 S6B0728

Read Display Data

8-bit data from Display Data RAM specified by the column address and page address can be read by this
instruction. As the column address is incremented by 1 automatically after each this instruction, the
microprocessor can continuously read data from the addressed page. A dummy read is required after loading
an address into the column address register. Display data cannot be read through the serial interface.

RS RW DB7 DB6 DB5 DB4 DB3 DB2 DB1 DB0

1 1 Read data

Write Display Data

8-bit data of display data from the microprocessor can be written to the RAM location specified by the column
address and page address. The column address is incremented by 1 automatically so that the microprocessor
can continuously write data to the addressed page.

RS RW DB7 DB6 DB5 DB4 DB3 DB2 DB1 DB0

1 0 Write data

Set Page Address

Set Column Address

Data Write

Column = Column +1

Data Write Continue ?

No

Yes

Set Page Address

Set Column Address

Dummy Data Read

Column = Column +1

Data Read

Column = Column +1

Optional Status

Data Read Continue ?

Yes

No

Optional Status

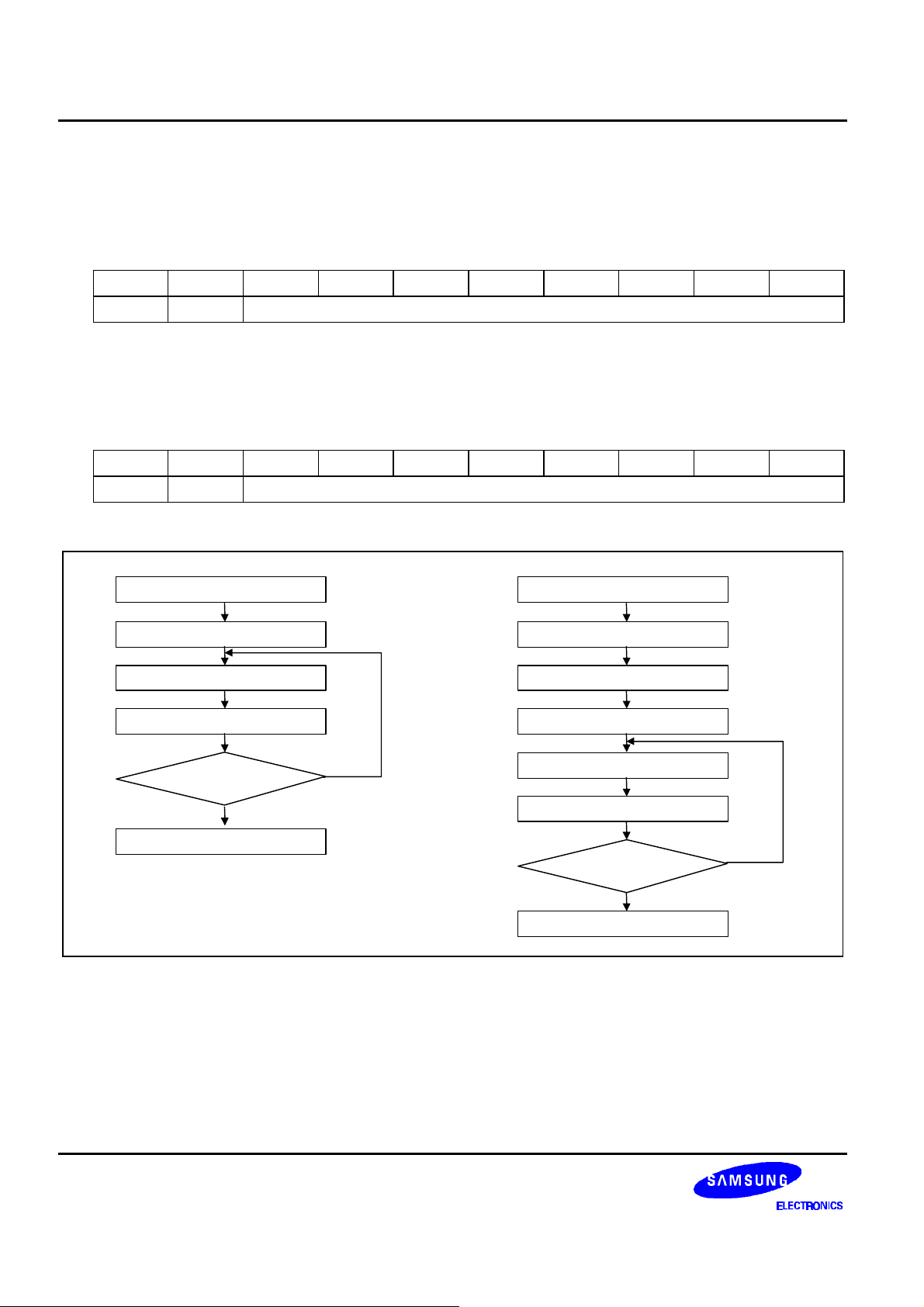

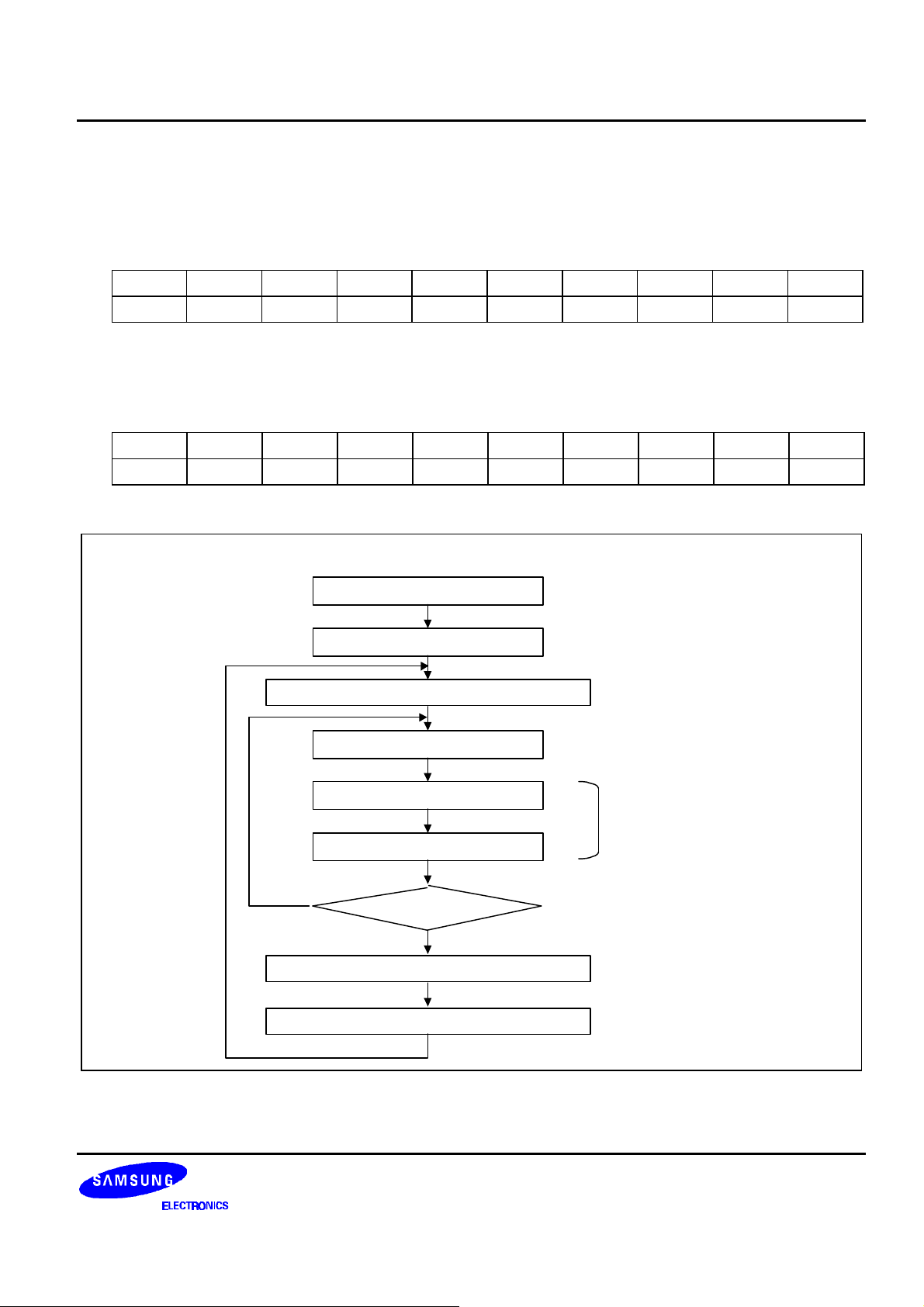

Figure 21. Sequence for Writing Display Data Figure 22. Sequence for Reading Display Data

30

S6B0728 PRELIMINARY SPEC. VER. 0.1 132 SEG / 128 COM DRIVER & CONTROLLER FOR STN LCD

Read Status

Indicates the internal status of the S6B0728

RS RW DB7 DB6 DB5 DB4 DB3 DB2 DB1 DB0

0 1 BUSY ADC ON RES 0 0 0 0

Flag Description

The device is busy when internal operation or reset

BUSY

Any instruction is rejected until BUSY goes Low.
0: chip is active, 1: chip is being busy.

ADC

Indicates the relationship between RAM column address and segment driver.
0: reverse direction (SEG131 → SEG0), 1: normal direction (SEG0 → SEG131)

ON

RES

Indicates display ON / OFF status
0: display ON, 1: display OFF
Indicates the initialization is in progress by RESETB signal
0: chip is active, 1: chip is being reset.

Set Page Address

Sets the Page Address of display data RAM from the microprocessor into the Page Address register. Any
RAM data bit can be accessed when its Page Address and column address are specified. Along with the
column address, the Page Address defines the address of the display RAM to write or read display data.
Changing the Page Address doesn't effect to the display status.

RS RW DB7 DB6 DB5 DB4 DB3 DB2 DB1 DB0

0 0 1 0 1 1 P3 P2 P1 P0

P3 P2 P1 P0 Specified page address

0 0 0 0 0
0 0 0 1 1
0 0 1 0 2

:
:

:
:

:
:

:
:

:

:
1 1 0 1 13
1 1 1 0 14
1 1 1 1 15

31

132 SEG / 128 COM DRIVER & CONTROLLER FOR STN LCD PRELIMINARY SPEC. VER. 0.1 S6B0728

Set Column Address

Sets the Column Address of display RAM from the microprocessor into the Column Address register. Along
with the Column Address, the Column Address defines the address of the display RAM to write or read display
data. When the microprocessor reads or writes display data to or from display RAM, Column Addresses are
automatically incremented.

Set Column Address MSB

RS RW DB7 DB6 DB5 DB4 DB3 DB2 DB1 DB0

0 0 0 0 0 1 Y7 Y6 Y5 Y4

Set Column Address LSB

RS RW DB7 DB6 DB5 DB4 DB3 DB2 DB1 DB0

0 0 0 0 0 0 Y3 Y2 Y1 Y0

Y7 Y6 Y5 Y4 Y3 Y2 Y1 Y0

Selected column

address

0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 1 1
0 0 0 0 0 0 1 0 2

:
:
:

:
:
:

:
:
:

:
:
:

:
:
:

:
:
:

:
:
:

:
:

:
1 0 0 0 0 0 0 1 129
1 0 0 0 0 0 1 0 130
1 0 0 0 0 0 1 1 131
1 0 0 0 0 1 0 0
1 0 0 0 0 1 0 1

:
:
:

:
:
:

:
:
:

:
:
:

:
:
:

:
:
:

:
:
:

:

:

:

Not accessible

column

1 1 1 1 1 1 1 0
1 1 1 1 1 1 1 1

:
:
:

32

S6B0728 PRELIMINARY SPEC. VER. 0.1 132 SEG / 128 COM DRIVER & CONTROLLER FOR STN LCD

Set Modify-Read

This instruction stops the automatic increment of the column address by the read display data instruction, but
the column address is still increased by the write display data instruction. And it reduces the load of
microprocessor when the data of a specific area is repeatedly changed during cursor blinking or others. This
mode is canceled by the reset Modify-read instruction.

RS RW DB7 DB6 DB5 DB4 DB3 DB2 DB1 DB0

0 0 1 1 1 0 0 0 0 0

Reset Modify-Read

This instruction cancels the Modify-read mode, and makes the column address return to its initial value just
before the set Modify-read instruction is started.

RS RW DB7 DB6 DB5 DB4 DB3 DB2 DB1 DB0

0 0 1 1 1 0 1 1 1 0

No

Set Page Address

Set Column Address (N)

Set Modify-Read

Dummy Read

Data Read

Data Process

Data Write

Change Complete ?

Yes

Reset Modify-Read

Return Column Address (N)

Figure 23. Sequence for Cursor Display

33

132 SEG / 128 COM DRIVER & CONTROLLER FOR STN LCD PRELIMINARY SPEC. VER. 0.1 S6B0728

Display ON / OFF

Turns the Display ON or OFF

RS RW DB7 DB6 DB5 DB4 DB3 DB2 DB1 DB0

0 0 1 0 1 0 1 1 1 D

D = 1: display ON
D = 0: display OFF

Set Initial Display Line Register

Sets the line address of display RAM to determine the initial display line using 2-byte instruction. The RAM
display data is displayed at the top row (COM0) of LCD panel.

The 1st Instruction

RS RW DB7 DB6 DB5 DB4 DB3 DB2 DB1 DB0

0 0 0 1 0 0 0 0

× ×

The 2nd Instruction

RS RW DB7 DB6 DB5 DB4 DB3 DB2 DB1 DB0

0 0

×

S6 S5 S4 S3 S2 S1 S0

S6 S5 S4 S3 S2 S1 S0 Selected line address

0 0 0 0 0 0 0 0
0 0 0 0 0 0 1 1

:
:
:

:
:
:

:
:
:

:
:
:

:
:
:

:
:
:

:
:
:

:
:

:
1 1 1 1 1 1 0 126
1 1 1 1 1 1 1 127

Setting Initial Display Line Start

1st Instruction (2-Byte Instruction for Mode Setting)

34

2nd Instruction (2-Byte Instruction for Register Setting)

Setting Initial Display Line End

Figure 24. The Sequence for Setting the Initial Display Line

S6B0728 PRELIMINARY SPEC. VER. 0.1 132 SEG / 128 COM DRIVER & CONTROLLER FOR STN LCD

Set Initial COM0 Register

Sets the initial row (COM) of the LCD panel using the 2-byte instruction. By using this instruction, it is possible
to realize the window moving without the change of display data.

The 1st Instruction

RS RW DB7 DB6 DB5 DB4 DB3 DB2 DB1 DB0

0 0 0 1 0 0 0 1

× ×

The 2nd Instruction

RS RW DB7 DB6 DB5 DB4 DB3 DB2 DB1 DB0

0 0

×

C6 C5 C4 C3 C2 C1 C0

C6 C5 C4 C3 C2 C1 C0 Initial COM0

0 0 0 0 0 0 0 COM0
0 0 0 0 0 0 1 COM1
0 0 0 0 0 1 0 COM2

:
:
:

:
:
:

:
:
:

:
:
:

:
:
:

:
:
:

:
:

:

:
1 1 1 1 1 0 1 COM125
1 1 1 1 1 1 0 COM126
1 1 1 1 1 1 1 COM127

Setting Initial COM0 Start

1st Instruction (Mode Setting)

2nd Instruction (Initial COM0 Setting)

Setting Initial COM0 End

Figure 25. Sequence for Setting the Initial COM0

35

132 SEG / 128 COM DRIVER & CONTROLLER FOR STN LCD PRELIMINARY SPEC. VER. 0.1 S6B0728

Set Partial Display Duty Ratio

Sets the duty ratio within range of 16 to 128 to realize Partial Display by using the 2-byte instruction.

The 1st Instruction

RS RW DB7 DB6 DB5 DB4 DB3 DB2 DB1 DB0

0 0 0 1 0 0 1 0

× ×

The 2nd Instruction

RS RW DB7 DB6 DB5 DB4 DB3 DB2 DB1 DB0

0 0 D7 D6 D5 D4 D3 D2 D1 D0

D7 D6 D5 D4 D3 D2 D1 D0 partial duty ratio

0 0 0 1 0 0 0 0 1/16
0 0 0 1 0 0 0 1 1/17

:
:

:
:

:
:

:
:

:
:

:
:

:
:

:

:
0 1 1 1 1 1 1 1 1/127
1 0 0 0 0 0 0 0 1/128

Other combinations No operation

Setting Partial Display Start

1st Instruction (Mode Setting)

:
:

36

2nd Instruction (Partial Display Duty Setting)

Setting Partial Display End

Figure 26. Sequence for Setting Partial Display

S6B0728 PRELIMINARY SPEC. VER. 0.1 132 SEG / 128 COM DRIVER & CONTROLLER FOR STN LCD

Set N-line Inversion Register

Sets the inverted line number within range of 2 to 32 to improve the display quality by controlling the phase of
the internal LCD AC signal (M) by using the 2-byte instruction.

The 1st Instruction

RS RW DB7 DB6 DB5 DB4 DB3 DB2 DB1 DB0

0 0 0 1 0 0 1 1

× ×

The 2nd Instruction

RS RW DB7 DB6 DB5 DB4 DB3 DB2 DB1 DB0

0 0

× × ×

N4 N3 N2 N1 N0

N4 N3 N2 N1 N0 Selected n-line inversion

0 0 0 0 0 0-line inversion (frame inversion)
0 0 0 0 1 2-line inversion
0 0 0 1 0 3-line inversion
0 0 0 1 1 4-line inversion

: : : : : :
1 1 1 0 1 30-line inversion
1 1 1 1 0 31-line inversion
1 1 1 1 1 32-line inversion

Setting N-Line Inversion Start

1st Instruction (Mode Setting)

2nd Instruction (N-Line Inversion Setting)

Setting N-Line Inversion End

Figure 27. Sequence for Setting Partial Display

Release N-line Inversion

Returns to the frame inversion condition from the n-line inversion condition.

RS RW DB7 DB6 DB5 DB4 DB3 DB2 DB1 DB0

0 0 1 1 1 0 0 1 0 0

37

132 SEG / 128 COM DRIVER & CONTROLLER FOR STN LCD PRELIMINARY SPEC. VER. 0.1 S6B0728

Reverse Display ON / OFF

Reverses the display status on LCD panel without rewriting the contents of the display data RAM.

RS RW DB7 DB6 DB5 DB4 DB3 DB2 DB1 DB0

0 0 1 0 1 0 0 1 1 REV

REV RAM bit data = “1” RAM bit data = “0”

0 (normal) LCD pixel is illuminated LCD pixel is not illuminated

1 (reverse) LCD pixel is not illuminated LCD pixel is illuminated

Entire Display ON / OFF

Forces the whole LCD points to be turned on regardless of the contents of the display data RAM. At this time,
the contents of the display data RAM are held. This instruction has priority over the reverse Display ON / OFF
instruction.

RS RW DB7 DB6 DB5 DB4 DB3 DB2 DB1 DB0

0 0 1 0 1 0 0 1 0 EON

EON RAM bit data = “1” RAM bit data = “0”

0 (Normal) LCD pixel is illuminated LCD pixel is not illuminated

1 (Entire) LCD pixel is illuminated LCD pixel is illuminated

Power Control

Selects one of eight power circuit functions by using 3-bit register. An external power supply and part of
internal power supply functions can be used simultaneously.

RS RW DB7 DB6 DB5 DB4 DB3 DB2 DB1 DB0

0 0 0 0 1 0 1 VC VR VF

VC VR VF Status of internal power supply circuits

0
1

0
1

0
1

Internal voltage converter circuit is OFF
Internal voltage converter circuit is ON
Internal voltage regulator circuit is OFF
Internal voltage regulator circuit is ON
Internal voltage follower circuit is OFF
Internal voltage follower circuit is ON

38

S6B0728 PRELIMINARY SPEC. VER. 0.1 132 SEG / 128 COM DRIVER & CONTROLLER FOR STN LCD

Select DC/DC Step-up

Selects one of 5 DC/DC step-up to reduce the power consumption by this instruction. It is very useful to realize
the partial display function.

RS RW DB7 DB6 DB5 DB4 DB3 DB2 DB1 DB0

0 0 0 1 1 0 0 DC2 DC1 DC0

DC1 DC0

0 0
0 0
0 1
0 1
1 0

DC0 Selected DC-DC converter circuit

0 3 times boosting circuit
1 4 times boosting circuit
0 5 times boosting circuit
1 6 times boosting circuit
0 7 times boosting circuit

Regulator Resistor Select

Selects resistance ratio of the internal resistor used in the internal voltage regulator. See voltage regulator
section in power supply circuit. Refer to the table 15.

RS RW DB7 DB6 DB5 DB4 DB3 DB2 DB1 DB0

0 0 0 0 1 0 0 R2 R1 R0

R2 R1 R0 [Rb / Ra] ratio

0 0 0 Small
0 0 1 :

: : : :
1 1 0 :
1 1 1 Large

39

132 SEG / 128 COM DRIVER & CONTROLLER FOR STN LCD PRELIMINARY SPEC. VER. 0.1 S6B0728

Set Electronic Volume Register

Consists of 2-byte instruction. The 1st instruction sets Electronic Volume mode, the 2nd one updates the
contents of Electronic Volume register. After second instruction, Electronic Volume mode is released.

The 1st Instruction

RS RW DB7 DB6 DB5 DB4 DB3 DB2 DB1 DB0

0 0 1 0 0 0 0 0 0 1

The 2nd Instruction

RS RW DB7 DB6 DB5 DB4 DB3 DB2 DB1 DB0

0 0

× ×

EV5 EV4 EV3 EV2 EV1 EV0

EV5 EV4 EV3 EV2 EV1 EV0

Reference voltage (α)

0 0 0 0 0 0 0
0 0 0 0 0 1 1

:
:

:
:

:
:

:
:

:
:

:

:
1 1 1 1 1 0 62
1 1 1 1 1 1 63

Setting Electronic Volume Start

1st Instruction for Mode Setting

2nd Instruction for Register Setting

Setting Electronic Volume End

Figure 28. Sequence for Setting the Electronic Volume

:
:

40

S6B0728 PRELIMINARY SPEC. VER. 0.1 132 SEG / 128 COM DRIVER & CONTROLLER FOR STN LCD

Select LCD Bias

Selects LCD Bias ratio of the voltage required for driving the LCD.

RS RW DB7 DB6 DB5 DB4 DB3 DB2 DB1 DB0

0 0 0 1 0 1 0 B2 B1 B0

B2 B1 B0 Selected LCD bias

0 0 0 1/5
0 0 1 1/6
0 1 0 1/7
0 1 1 1/8
1 0 0 1/9
1 0 1 1/10
1 1 0 1/11
1 1 1 1/12

SHL Select

COM output scanning direction is selected by this instruction which determines the LCD driver output status.

RS RW DB7 DB6 DB5 DB4 DB3 DB2 DB1 DB0

0 0 1 1 0 0 SHL

× × ×

SHL = 0: normal direction (COM0 → COM127)
SHL = 1: reverse direction (COM127 → COM0)

ADC Select

Changes the relationship between RAM column address and segment driver. The direction of segment driver
output pins can be reversed by software. This makes IC layout flexible in LCD module assembly.

RS RW DB7 DB6 DB5 DB4 DB3 DB2 DB1 DB0

0 0 1 0 1 0 0 0 0 ADC

ADC = 0: normal direction (SEG0 → SEG131)
ADC = 1: reverse direction (SEG131 → SEG0)

41

132 SEG / 128 COM DRIVER & CONTROLLER FOR STN LCD PRELIMINARY SPEC. VER. 0.1 S6B0728

Oscillator ON Start

This instruction enables the built-in oscillator circuit.

RS RW DB7 DB6 DB5 DB4 DB3 DB2 DB1 DB0

0 0 1 0 1 0 1 0 1 1

Reset

This instruction resets initial display line, column address, page address, and common output status select to
their initial status, but dose not affect the contents of display data RAM. This instruction cannot initialize the
LCD power supply that is initialized by the RESETB pin.

RS RW DB7 DB6 DB5 DB4 DB3 DB2 DB1 DB0

0 0 1 1 1 0 0 0 1 0

42

S6B0728 PRELIMINARY SPEC. VER. 0.1 132 SEG / 128 COM DRIVER & CONTROLLER FOR STN LCD

Power Save

The S6B0728 enters the Power Save status to reduce the power consumption to the static power consumption
value and returns to the normal operation status by the following instructions.

Set Power Save Mode

RS RW DB7 DB6 DB5 DB4 DB3 DB2 DB1 DB0

0 0 1 0 1 0 1 0 0 1

Release Power Save Mode

RS RW DB7 DB6 DB5 DB4 DB3 DB2 DB1 DB0

0 0 1 1 1 0 0 0 0 1

The internal status during power save mode are as follows :

- Oscillator circuit : off

- LCD power supply circuit : off

- All COM / SEG output level : VSS

- Consumption Current < 2µA

NOP

Non-operation

RS RW DB7 DB6 DB5 DB4 DB3 DB2 DB1 DB0

0 0 1 1 1 0 0 0 1 1

Test Instruction

This instruction is for testing IC. Please do not use it.

RS RW DB7 DB6 DB5 DB4 DB3 DB2 DB1 DB0

0 0 1 1 1 1

× × × ×

43

132 SEG / 128 COM DRIVER & CONTROLLER FOR STN LCD PRELIMINARY SPEC. VER. 0.1 S6B0728

[Display Duty Select]

[ADC Select]

[SHL Select]

[Oscillator On]

[Regulator Resistor Select]

[Electronic Volume Register Select]

[Power Control]

Referential Instruction Setup Flow: Initializing with the Built-in Power Supply Circuits

User System Setup by External Pins

Start of Initialization

Power ON (VDD-VSS) Keeping the RESETB Pin = "L"

Waiting for Stabilizing the Power

RESETB pin = "H"

User Application Setup by Internal Instructions

[COM0 Register Select]

User LCD Power Setup by Internal Instructions

[DC-DC Step-up Register Select]

[LCD Bias Register Select]

Waiting for Stabilizing the LCD Power Levels

End of Initialization

Figure 29. Initializing with the Built-in Power Supply Circuits

44

S6B0728 PRELIMINARY SPEC. VER. 0.1 132 SEG / 128 COM DRIVER & CONTROLLER FOR STN LCD

Referential Instruction Setup Flow: Initializing without the Built-in Power Supply Circuits

User System Setup by External Pins

Start of Initialization

Power ON (VDD-VSS) Keeping the RESETB Pin = "L"

Waiting for Stabilizing the Power

RESETB Pin = "H"

Set Power Save

User Application Setup by Internal Instructions

[Display Duty Select]

[ADC Select]

[SHL Select]

[COM0 Register Select]

User LCD Power setup by internal instructions

[Oscillator ON]

Regulator or Follower Register Select

[Power Control]

Release Power Save

Waiting for Stabilizing the LCD Power Levels

End of Initialization

Figure 30. Initializing without the Built-in Power Supply Circuits

45

132 SEG / 128 COM DRIVER & CONTROLLER FOR STN LCD PRELIMINARY SPEC. VER. 0.1 S6B0728

End of Initialization

Write Display Data by Instruction

[Display Data write]

Turn Display On/Off Instruction

[Display ON/Off]

End of Data Display

Display Data RAM Addressing by Instruction

[Initial Display Line]

[Set Page Address]

[Set Column Address]

Power Off (VDD-VSS)

Set Power Save by Instruction

Referential Instruction Setup Flow: Data Displaying

Figure 31. Data Displaying

Referential Instruction Setup Flow: Power OFF

Optional Status

End of Power Off

Figure 32. Power OFF

46

S6B0728 PRELIMINARY SPEC. VER. 0.1 132 SEG / 128 COM DRIVER & CONTROLLER FOR STN LCD

Referential Instruction Setup Flow: Partial Duty Changing

Start of Partial changing

Set Display OFF by Internal Instruction

[Display ON / OFF]

Set Standby Mode by Internal Instruction

[Power Save Mode]

Set Partial Duty by Internal Instructions

[Partial Display Duty Ratio Select]

[Initial Display Line Register]

[COM0 Register Select]

User LCD Power Setup by Internal Instructions

[DC-DC Step-up Register Select]

[Regulator Resistor Select]

[Electronic Volume Register Select]

[LCD Bias Register Select]

[Power Control]

Waiting for Discharging the LCD Power Levels

Release Power Save

Waiting for Stabilizing the LCD Power Levels

Write Display Data & Display ON by Internal Instruction

[Display Data Write]

[Display ON / OFF]

End of Partial Changing

Figure 33. Partial Duty Changing

47

132 SEG / 128 COM DRIVER & CONTROLLER FOR STN LCD PRELIMINARY SPEC. VER. 0.1 S6B0728

SPECIFICATIONS

ABSOLUTE MAXIMUM RATINGS

Table 18. Absolute Maximum Ratings

(Vss = 0V)

Parameter Symbol Rating Unit

VDD - 0.3 ~ + 7.0 V

V0, VOUT + 0.3 ~ + 20.0 VSupply voltage range

V1, V2, V3, V4 + 0.3 ~ V0 V

External reference voltage VEXT +0.3 ~ VDD

Input voltage range VIN - 0.3 ~ VDD + 0.3 V

Operating temperature range TOPR - 40 ~ + 85

Storage temperature range TSTR - 55 ~ + 125

NOTES :

1. VDD, V0, VOUT, V1 to V4, VEXT and VCI are based on Vss = 0V.

2. Voltage VOUT ≥ V0 ≥ V1 ≥ V2 ≥ V3 ≥ V4 ≥ VSS must always be satisfied.

3. If supply voltage exceeds its absolute maximum range, this LSI may be damaged permanently.
It is desirable to use this LSI under electrical characteristic conditions during general operation.
Otherwise, this LSI may malfunction or reduced LSI reliability may result.

°C
°C

48

S6B0728 PRELIMINARY SPEC. VER. 0.1 132 SEG / 128 COM DRIVER & CONTROLLER FOR STN LCD

DC CHARACTERISTICS

Table 19. DC Characteristics

(VSS = 0V, VDD = 2.4 to 3.6V, Ta = -40~85°C)

Item Symbol Condition Min. Typ. Max. Unit Pin used

Operating voltage (1) VDD 2.4 - 3.6 V VDD *1
Operating voltage (2) V0 4.0 - 17.0 V V0, *2

Input voltage

Output

voltage

Input leakage current IIL VIN = VDD or VSS - 1.0 - + 1.0

Output leakage current IOZ VIN = VDD or VSS - 3.0 - + 3.0

LCD driver ON

resistance

Frame frequency fFR Ta = 25°C 70 85 100 Hz

Item Symbol Condition Min. Typ. Max. Unit Pin used

Voltage converter

circuit output voltage

Voltage regulator

circuit operating

voltage

Voltage follower circuit

operating voltage

High VIH 0.8VDD - VDD

Low VIL VSS - 0.2VDD

High VOH IOH = -0.5mA 0.8VDD - VDD

Low VOL IOL = 0.5mA VSS - 0.2VDD

RON Ta = 25°C, V0 = 8V - 2.0 3.0 kΩ

Table 20. DC Characteristics

×3/ ×4/ ×5/ ×6/ ×7/

VOUT

VOUT 6.0 - 19.0 V VOUT

V0 4.0 - 17.0 V V0 *8

voltage conversion

(no-load )

95 99 - % VOUT

V *3

V *4

µA
µA

SEGn

COMn *6

*3
*5

*7

FR

Reference voltage VREF

Ta = 25°C

1.940 2.000 2.060 V *9

49

132 SEG / 128 COM DRIVER & CONTROLLER FOR STN LCD PRELIMINARY SPEC. VER. 0.1 S6B0728

Dynamic Current Consumption (1) when an External Power Supply is used.

Table 21. Display OFF

(VDD = 3.0V, Ta = 25°C)

Item Symbol Condition Min. Typ. Max. Unit Pin used

Dynamic current
consumption (1)

IDD1

V0 - Vss = 10.0V, duty = 1/64 TBD
V0 - Vss = 15.0V, duty = 1/128 TBD

Table 22. Checker Pattern

Item Symbol Condition Min. Typ. Max. Unit Pin used

Dynamic current
consumption (1)

IDD1

V0 - Vss = 10.0V, duty = 1/64 TBD
V0 - Vss = 15.0V, duty = 1/128 TBD

Dynamic Current Consumption (2) when the Internal Power Supply is ON

Table 23. Display OFF

Item Symbol Condition Min. Typ. Max. Unit Pin used

Dynamic current
consumption (2)

V0 - Vss = 10.0V, X4 boosting,
duty = 1/64, bias = 1/9

IDD2

V0 - Vss = 15.0V, X6 boosting,
duty = 1/128, bias = 1/12

- - TBD µΑ *10

- - TBD µΑ *10

µΑ

*10

(VDD = 3.0V, Ta = 25°C)

µΑ

*10

(VDD = 3.0V, Ta = 25°C)

Table 24. Check Pattern

Item Symbol Condition Min. Typ. Max. Unit Pin used

V0 - Vss = 10.0V, X4 boosting,

Dynamic current
consumption (2)

IDD2

duty = 1/64, bias = 1/9
V0 - Vss = 15.0V, X6 boosting,

duty = 1/128, bias = 1/12

Dynamic Current Consumption during Power Save Mode

Table 25. Power Save Mode

Item Symbol Condition Min. Typ. Max. Unit Pin used

Power save

mode current

IDDS During power save - - 2 µΑ

(VDD = 3.0V, Ta = 25°C)

- - TBD
µΑ *10

- - TBD

(VDD = 3.0V, Ta = 25°C)

50

S6B0728 PRELIMINARY SPEC. VER. 0.1 132 SEG / 128 COM DRIVER & CONTROLLER FOR STN LCD

Table 26. The Relationship between Oscillation Frequency and Frame Frequency

Duty ratio Item fCL fosc

1/N

On-chip oscillator circuit is

used

fFR x N fFR x 2 x N

(fOSC: oscillation frequency, fCL: display clock frequency, fFR: frame frequency, N = 16 to 128)

[* Remark Solves]
*1. Though the wide range of operating voltages is guaranteed, a spike voltage change may affect the voltage
assurance during access from the MPU.
*2. In case of external power supply is applied.
*3. CS1B, CS2, RS, DB0 to DB7, E_RD, RW_WR, RESETB, C68, PS, INTRS, REF, CL, M
*4. DB0 to DB7, CL, M
*5. Applies when the DB0 to DB7 pins are in high impedance.
*6. Resistance value when -0.1[mA] is applied during the On status of the output pin SEGn or COMn.
RON [kΩ] = ∆V[V] / 0.1[mA] (∆V : voltage change when -0.1[mA] is applied in the ON status.)
*7. See Table 26 for the relationship between oscillation frequency and frame frequency.
*8. The voltage regulator circuit adjusts V0 within the voltage follower operating voltage range.
*9. On-chip reference voltage source of the voltage regulator circuit to adjust V0.
*10. Applies to the case where the on-chip oscillation circuit is used and no access is made from the MPU.
The current consumption, when the built-in power supply circuit is on or OFF.
The current flowing through voltage regulation resistors (Rb and Ra) is not included.
It does not include the current of the LCD panel capacity, wiring capacity, etc.

51

132 SEG / 128 COM DRIVER & CONTROLLER FOR STN LCD PRELIMINARY SPEC. VER. 0.1 S6B0728

t

t

RS

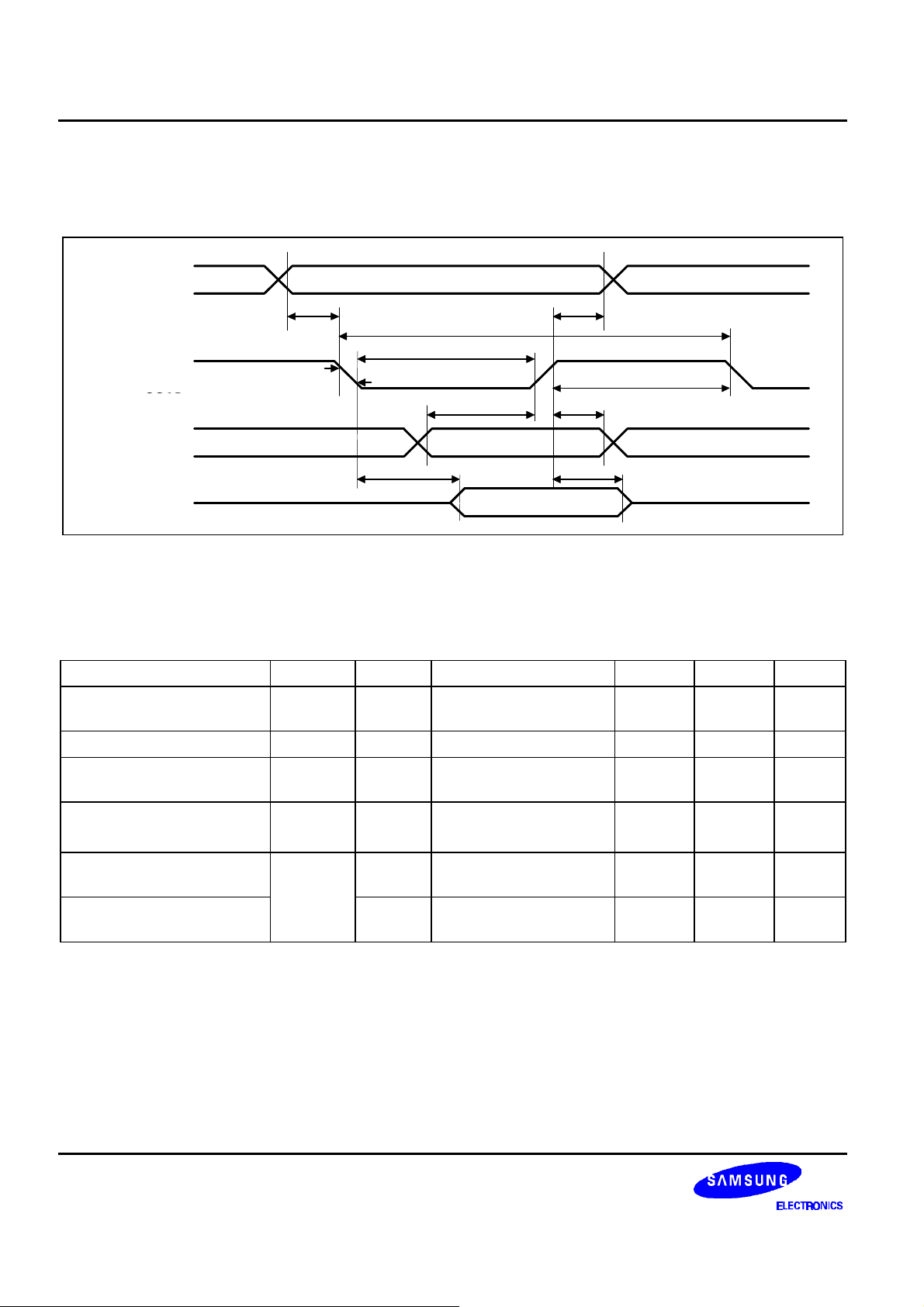

AC CHARACTERISTICS

Read / Write Characteristics (8080-series MPU)

AS80

/RD, /WR

0.9VDD

DB0 to DB7

DB0 to DB7

Figure 34. Parallel Interface (8080-series MPU) Timing Diagram

Table 27. AC Characteristics (8080-series Parallel Mode)

Item Signal Symbol Condition Min. Max. Unit

Address setup time

Address hold time

RS

System cycle time t

Pulse width low for write

Pulse width High for write

Pulse width low for read

Pulse width high for read

RW_WR

(/WR)
E_RD

(/RD)

Data setup time

Data hold time

DB0

to

Read access time

DB7

Output disable time

tPWLW, tPWLR

0.1VDD

ACC80

t

t

AS80

t

AH80

CY80

t

PWLW

t

PWHW

t

PWLR

t

PWHR

t

DS80

t

DH80

t

ACC80

t

OD80

tCY80

tDS80

CL = 100 pF

AH80

tPWHW, tPWHR

tDH80

OD80

t

(VDD = 2.4 ~ 3.6V, Ta = -40 ~ +85°C)

TBD
TBD

-

­TBD - ns
TBD

TBD
TBD

TBD
TBD

TBD
TBD

TBD

-

-

-

-

-

-

TBD
TBD

ns

ns

ns

ns

ns

NOTE: *1. The input signal rise time and fall time (tr, tf) is specified at 15 ns or less.
(tr + tf) < (tCY80 - tPWLW - tPWHW ) for write, (tr + tf) < (tCY80 - tPWLR - tPWHR ) for read

52

S6B0728 PRELIMINARY SPEC. VER. 0.1 132 SEG / 128 COM DRIVER & CONTROLLER FOR STN LCD

( Write )

( Read )

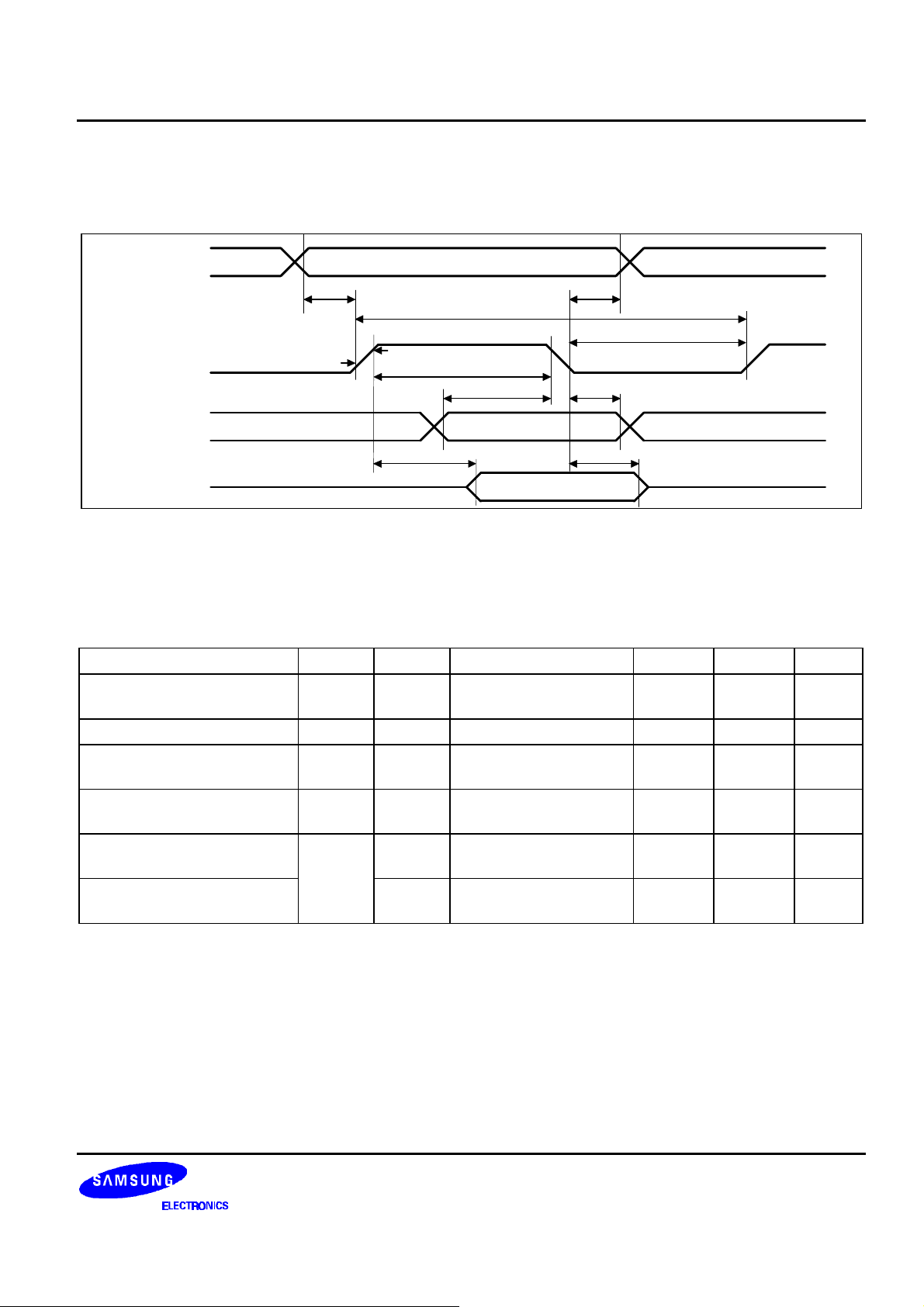

Read / Write Characteristics (6800-series Microprocessor)

RS, R/W

tAS68

tAH68

tCY68

tEWLW, tEWLR

CS1B

E

0.1VDD

0.9VDD
tEWHW, tEWHR

tDS68

tDH68

DB0 to DB7

tACC68

tOD68

DB0 to DB7

Figure 35. Parallel Interface (6800-series MPU) Timing Diagram

Table 28. AC Characteristics (6800-series Parallel Mode)

(VDD = 2.4 ~ 3.6V, Ta = -40 ~ +85°C)

Item Signal Symbol Condition Min. Max. Unit

Address setup time

Address hold time

RS

RW

tAS68
tAH68

TBD
TBD

-

-

System cycle time tCY68 TBD - ns

Enable width high for write

Enable width low for write

Enable width high for read

Enable width low for read

Data setup time

Data hold time

E_RD

(E)

E_RD

(E)

DB0

tEWHW

tEWLW
tEWHR

tEWLR

tDS68

tDH68

TBD
TBD

TBD
TBD

TBD
TBD

-

-

-

-

-

-

to

Read access time

Output disable time

DB7

tACC68

tOD68

CL = 100 pF

-

TBD

TBD
TBD

ns

ns

ns

ns

ns

NOTE: *1. The input signal rise time and fall time (tr, tf) is specified at 15 ns or less.
(tr + tf) < (tCY68 - tEWHW - tEWLW ) for write, (tr + tf) < (tCY68 - tEWHR - tEWLR ) for read

53

132 SEG / 128 COM DRIVER & CONTROLLER FOR STN LCD PRELIMINARY SPEC. VER. 0.1 S6B0728

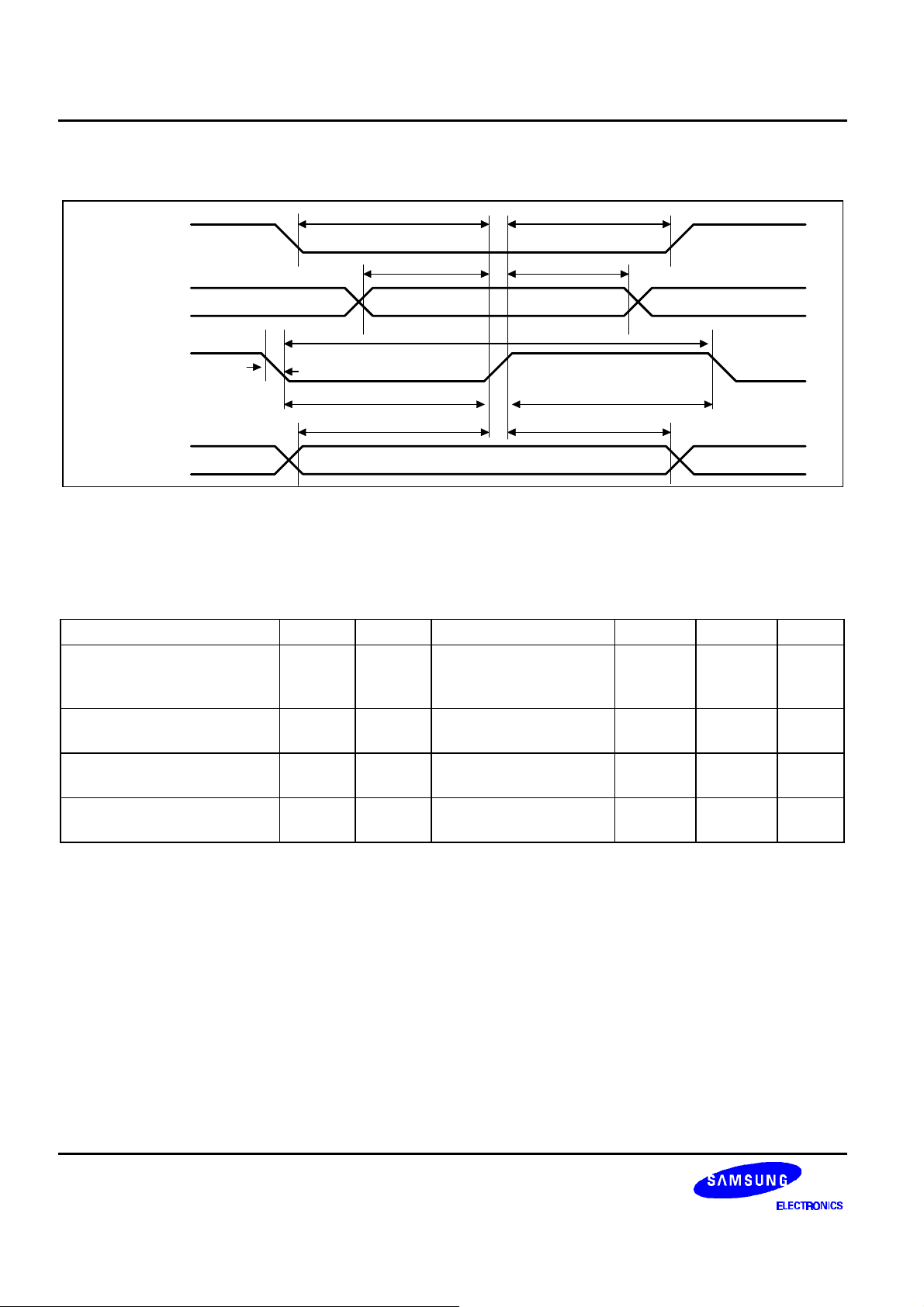

Serial Interface Characteristics

tCHStCSS

CS1B

(CS2 = 1 )

tAHStASS

RS

tCYS

DB6

( SCLK )

0.9VDD

0.1VDD
tWLS

tWHS

tDHStDSS

DB7

( SID )

Figure 36. Serial Interface Timing Diagram

Table 29. AC Characteristics (Serial Mode)

Item Signal Symbol Condition Min. Max. Unit

Serial clock cycle

SCLK high pulse width

SCLK low pulse width

Address setup time

Address hold time

Data setup time

Data hold time

CS1B setup time

CS1B hold time

NOTE: *1. The input signal rise time and fall time (tr, tf) is specified at 15 ns or less.

DB6

(SCLK)

RS

DB7

(SID)

CS1B

tsCY

tsHW

tsLW

tASS

tAHS
tDSS

tDHS
tCSS

tCHS

(VDD = 2.4 ~ 3.6V, Ta = -40 ~ +85°C)

TBD
TBD
TBD

TBD
TBD

TBD
TBD

TBD
TBD

-

-

ns

-

-

-

-

-

-

-

ns

ns

ns

54

S6B0728 PRELIMINARY SPEC. VER. 0.1 132 SEG / 128 COM DRIVER & CONTROLLER FOR STN LCD

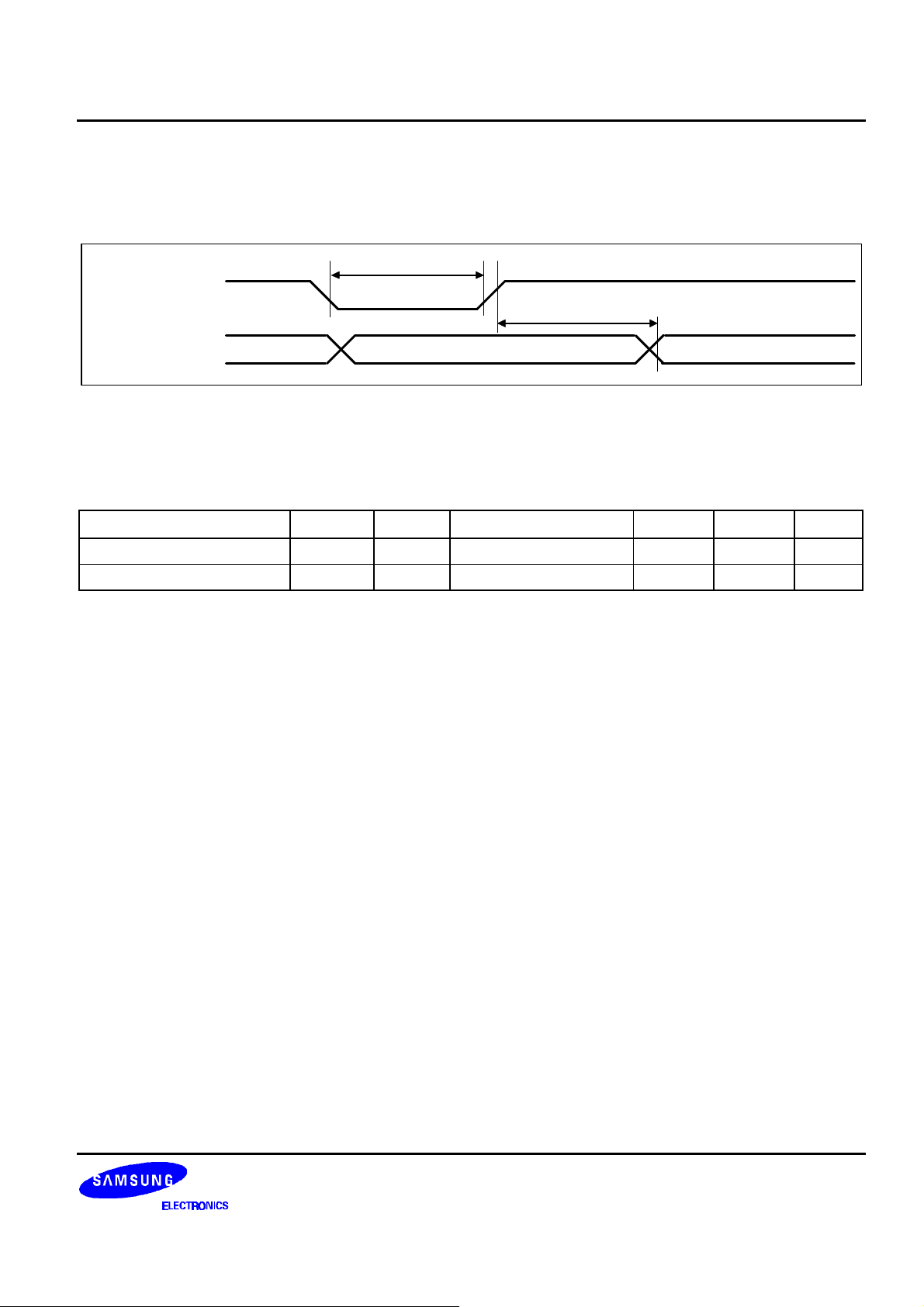

Reset Input Timing

tRW

RESETB

tR

Internal status

Reset completeDuring reset

Figure 37. Reset Input Timing Diagram

Table 30. AC Characteristics (Reset mode)

(VDD = 2.4 ~ 3.6V, Ta = -40 ~ +85°C)

Item Signal Symbol Condition Min. Max. Unit

Reset low pulse width RESETB tRW 1000 - ns

Reset time - tR - 1000 ns

55

132 SEG / 128 COM DRIVER & CONTROLLER FOR STN LCD PRELIMINARY SPEC. VER. 0.1 S6B0728

DB0 to DB7

RESETB

VDDVDDRWERS

CS2

CS1B

RESETB

VDDVSS/WR

/RD

RS

CS2

CS1B

OPEN

RESETB

VSS

VDD

SCLK

SID

RS

CS2

CS1B

OPEN

RESETB

VSS

VSS

SCLK

SID

RS

CS2

CS1B

REFERENCE APPLICATIONS

MICROPROCESSOR INTERFACE

CS1B
CS2

6800-series

MPU

RS
E_RD
RW_WR
DB0 to DB7
RESETB
C68
PS

Figure 38. In Case of Interfacing with 6800-series (PS = “H”, C68 = “H”)

CS1B
CS2

8080-series

MPU

RS
E_RD
RW_WR
DB0 to DB7
RESETB
C68
PS

S6B0728

S6B0728

Figure 39. In Case of Interfacing with 8080-series (PS = “H”, C68 = “L”)

CS1B
CS2

MPU

RS
DB7(SID)
DB6(SCLK)
RESETB
DB0 to DB5
C68
PS

S6B0728

Figure 40. In Case of 4-Pin SPI Interface (PS = “L”, C68 = “H”)

CS1B
CS2

MPU

RS
DB7(SID)
DB6(SCLK)
RESETB
DB0 to DB5
C68
PS

S6B0728

Figure 41. In Case of 3-Pin SPI Interface (PS = “L”, C68 = “L”)

56

S6B0728 PRELIMINARY SPEC. VER. 0.1 132 SEG / 128 COM DRIVER & CONTROLLER FOR STN LCD

SEG131 SEG130 ← SEG1 SEG0

SEG0 SEG1 → SEG130 SEG131

SEG131 SEG130 ← SEG1 SEG0

SEG0 SEG1 → SEG130 SEG131

CONNECTIONS BETWEEN S6B0728 AND LCD PANEL

(1/128 Duty configurations)

COM127

↑

COM64

S6B0728

(Bottom View)

128 × 132 pixels

COM63

↑

COM0

COM63

↑

COM0

S6B0728

(Top View)

128 × 132 pixels

Figure 42. SHL = 0, ADC = 0 Figure 43. SHL = 0, ADC = 1

COM127

↑

COM64

COM127

↑

COM64

128 × 132 pixels

S6B0728

(Bottom View)

COM63

↑

COM0

COM63

↑

COM0

128 × 132 pixels

S6B728

(Top View)

Figure 44. SHL = 1, ADC = 0 Figure 45. SHL = 1, ADC = 1

COM127

↑

COM64

57
