S3C80F7/C80F9/C80G7/C80G9 (KS88C01524/C01532/C01624/C01632) PRODUCT OVERVIEW
1 PRODUCT OVERVIEW
S3C8-SERIES MICROCONTROLLERS
Samsung's S3C8 series of 8-bit single-chip CMOS microcontrollers offers a fast and efficient CPU, a wide range
of integrated peripherals, and various mask-programmable ROM sizes. Important CPU features include:
— Efficient register-oriented architecture
— Selectable CPU clock sources
— Idle and Stop power-down mode release by interrupt
— Built-in basic timer with watchdog function
A sophisticated interrupt structure recognizes up to eight interrupt levels. Each level can have one or more
interrupt sources and vectors. Fast interrupt processing (within a minimum six CPU clocks) can be assigned to
specific interrupt levels.
S3C80F7/C80F9/C80G7/C80G9 Microcontroller
The S3C80F7/C80F9/C80G7/C80G9 single-chip CMOS microcontroller is fabricated using a highly advanced
CMOS process and is based on Samsung's newest CPU architecture.
The S3C80F9/C80G9 is the microcontroller which has 32-Kbyte mask-programmable ROM and S3C80F7/C80G7
is the microcontroller which has 24-Kbyte mask-programmable ROM.
The S3P80F9/P80G9 is the microcontroller which has 32-Kbyte one-time-programmable EPROM and
S3P80F7/P80G7 is the microcontroller which has 24-Kbyte one-time-programmable EPROM.
Using a proven modular design approach, Samsung engineers developed S3C80F7/C80F9/C80G7/C80G9 by
integrating the following peripheral modules with the powerful SAM87 RC core:
— Internal LVD circuit and 16 bit-programmable pins for external interrupts.
— One 8-bit basic timer for oscillation stabilization and watchdog function (system reset).
— One 8-bit timer/counter and one 16-bit timer/counter with selectable operating modes.
— One 8-bit counter with auto-reload function and one-shot or repeat control.
The S3C80F7/C80F9/C80G7/C80G9 is a versatile general-purpose microcontroller which is especially suitable
for use as remote transmitter controller. It is currently available in a 32-pin SOP, 42-pin SDIP and 44-pin QFP
package.
1-1
Page 2
PRODUCT OVERVIEW S3C80F7/C80F9/C80G7/C80G9 (KS88C01524/C01532/C01624/C01632)
FEATURES
CPU
• SAM87RC CPU core
Memory
• 32-Kbyte internal ROM (S3C80F9/C80G9)
: 0000H–7FFFH
• 24-Kbyte internal ROM (S3C80F7/C80G7)
: 0000H–5FFFH
• Data memory: 272-byte RAM (318 register)
Instruction Set
• 78 instructions
• IDLE and STOP instructions added for power-
down modes
Instruction Execution Time
• 500 ns at 8-MHz f
(minimum)
OSC
Interrupts
• 22 interrupt sources with 16 vector and 7 level.
I/O Ports
• Three 8-bit I/O ports (P0–P2), one 8-bit output
port(P4) and 6-bit port (P3) for a total of 38 bitprogrammable pins.(44-QFP)
• Three 8-bit I/O ports (P0–P2), one 8-bit output
port(P4) and 4-bit port (P3) for a total of 36 bitprogrammable pins.(42-SDIP)
• Three 8-bit I/O ports (P0–P2) and one 2-bit I/O
port (P3) for a total of 26-bit programmable pins.
(32-SOP)
Carrier Frequency Generator
• One 8-bit counter with auto-reload function and
one-shot or repeat control (Counter A)
Back-up mode
• When V
is lower than V
DD
, the chip enters
LVD
Back-up mode to block oscillation and reduce
the current consumption.
In S3C80G7/C80G9, this function is disabled
when operating state is “STOP mode”.
• When RESET pin is lower than Input Low
Voltage (VIL), the chip enters Back-up mode to
block oscillation and reduce the current
consumption.
Low Voltage Detect Circuit
• Low voltage detect to get into Back-up mode.
• Low level detect voltage
− S3C80F7/C80F9: 2.20 V (Typ) ± 200mV
− S3C80G7/C80G9: 1.90 V (Typ) ± 200mV
Operating Temperature Range
• –40
°
C to + 85 °C
Operating Voltage Range
• 1.7V to 5.0V at 4 MHz f
• 2.0V to 5.0V at 8 MHz f
(S3C80G7/C80G9)
OSC
(S3C80F7/C80F9)
OSC
Package Type
• 44-pin QFP-1010B
• 42-pin SDIP
Timers and Timer/Counters
• One programmable 8-bit basic timer (BT) for
oscillation stabilization control or watchdog timer
(software reset) function
• One 8-bit timer/counter (Timer 0) with three
operating modes; Interval mode, Capture and
PWM mode.
• One 16-bit timer/counter (Timer1) with two
operating modes; Interval mode and Capture.
1-2
• 32-pin SOP
Page 3
S3C80F7/C80F9/C80G7/C80G9 (KS88C01524/C01532/C01624/C01632) PRODUCT OVERVIEW
BLOCK DIAGRAM
XIN
XOUT
VDD
MAIN
OSC
8-Bit
Basic
Timer
8-Bit
Timer/
Counter
16-Bit
Timer/
Counter
P0.0-0.3 (INT0-INT3)
P0.4-P0.7 (INT4)
LVD
I/O Port and Interrupt
32K-Bytes
ROM
Port 0
Control
SAM87RC
CPU
P1.0-P1.7
Port 1
317-Bytes
Register
File
TEST
RESET
Port 2
Port 3
Port 4
P2.0-2.3 (INT5-INT8)
P2.4-2.7 (INT9)
P3.0-T0PWM/
T0CAP/(T1CAP)
P3.1-REM/(T0CK)
P3.2/(T0CK)
P3.3/(T1CAP)
P3.4-3.5
P4.0-4.7
Figure 1-1. Block Diagram
Carrier
Registor
(Counter A)
1-3
Page 4
PRODUCT OVERVIEW S3C80F7/C80F9/C80G7/C80G9 (KS88C01524/C01532/C01624/C01632)
PIN ASSIGNMENTS
P4.2
P4.1
P4.0
P2.0/INT5
P2.1/INT6
P2.2/INT7
P2.3/INT8
P2.4/INT9
P3.0/T0PWM/T0CAP/SDAT
R3.1/REM/SCLK
VDD
VSS
XOUT
XIN
TEST
P2.5/INT9
P2.6/INT9
RESET
P2.7/INT9
P1.0
P3.2/T0CK
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
S3C80F7/C80F9
/C80G7/C80G9
(Top View)
42-SDIP
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
P4.3
P0.7/INT4
P0.6/INT4
P0.5/INT4
P0.4/INT4
P0.3/INT3
P0.2/INT2
P0.1/INT1
P0.0/INT0
P4.4
P4.5
P4.6
P1.7
P1.6
P1.5
P1.4
P1.3
P1.2
P1.1
P4.7
P3.3/T1CAP
1-4
Figure 1-2. Pin Assignment Diagram (42-Pin SDIP Package)
Page 5
S3C80F7/C80F9/C80G7/C80G9 (KS88C01524/C01532/C01624/C01632) PRODUCT OVERVIEW
P3.0/T0PWM/T0CAP/
P0.3/INT3
P0.2/INT2
P0.1/INT1
P0.0/INT0
P4.4
P4.5
P4.6
P1.7
P1.6
P1.5
P1.4
3332313029282726252423
P0.4/INT4
P0.5/INT4
P0.6/INT4
P0.7/INT4
P4.3
P4.2
P4.1
P4.0
P2.0/INT5
P2.1/INT6
P2.2/INT7
34
35
S3C80F7/C80F9
36
37
38
39
40
41
42
43
44
/C80G7/C80G9
(Top View)
(44-QFP)
1234567891011
22
21
20
19
18
17
16
15
14
13
12
P1.3
P1.2
P1.1
P4.7
P3.3/T1CAP
P3.2/T0CK
P1.0
P2.7/INT9
P3.5
P3.4
RESET
XIN
VSS
VDD
XOUT
SDAT
P2.3/INT8
P2.4/INT9
P3.1/REM/SCLK
TEST
P2.5/INT9
P2.6/INT9
Figure 1-3. Pin Assignment Diagram (44-Pin QFP Package)
1-5
Page 6
PRODUCT OVERVIEW S3C80F7/C80F9/C80G7/C80G9 (KS88C01524/C01532/C01624/C01632)
VSS
XIN
XOUT
TEST
P2.5/INT9
P2.6/INT9
RESET
P2.7/INT9
P1.0
P1.1
P1.2
P1.3
P1.4
P1.5
P1.6
P1.7
1
2
3
4
5
S3C80F7/C80F9
6
7
/C80G7/C80G9
8
9
10
11
12
13
14
15
16
(Top View)
32-SOP
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
VDD
P3.1/REM/T0CK/SCLK
P3.0/T0PWM/T0CAP/T1CAP/SDAT
P2.4/INT9
P2.3/INT8
P2.2/INT7
P2.1/INT6
P2.0/INT5
P0.7/INT4
P0.6/INT4
P0.5/INT4
P0.4/INT4
P0.3/INT3
P0.2/INT2
P0.1/INT1
P0.0/INT0
Figure 1-4. Pin Assignment Diagram (32-Pin SOP Package)
1-6
Page 7
S3C80F7/C80F9/C80G7/C80G9 (KS88C01524/C01532/C01624/C01632) PRODUCT OVERVIEW
Table 1-1. Pin Descriptions of 44-QFP and 42-SDIP
Pin
Names
P0.0–P0.7 I/O I/O port with bit-programmable pins.
Pin
Type
Pin Description Circuit
Type
1 34–41 30–37 Ext. INT
42 Pin
No.
Configurable to input or push-pull output
mode. Pull-up resistors can be assigned
by software. Pins can be assigned
individually as external interrupt inputs
with noise filters, interrupt enable/
disable, and interrupt pending control.
SED & R circuit built in P0 for STOP
releasing.
P1.0–P1.7 I/O I/O port with bit-programmable pins.
Configurable to input mode or output
2 20
24–301620–26
mode. Pin circuits are either push-pull or
n-channel open-drain type.
P2.0–P2.3
P2.4–P2.7
I/O I/O port with bit-programmable pins.
Configurable to input or push-pull output
mode. Pull-up resistors can be assigned
1 4–8,
16, 17
19
by software. Pins can be assigned
individually as external interrupt inputs
with noise filters, interrupt enable/
disable, and interrupt pending control.
SED & R circuit built in P2 for STOP
releasing.
P3.0
P3.1
I/O 2-bit I/O port with bit-programmable pins.
Configurable to input mode, push-pull
3
9–10 3–4 T0PWM/ T0CAP
4
output mode, or n-channel open-drain
output mode. Input mode with pull-up
resistors can be assigned by software.
The two port 3 pins have high current
drive capability
P3.2–P3.3 I C-MOS Input port with pull-up resistors 5 21
22
P3.4–P3.5 O Open drain output port for high current
6 None 13–14 –
drive
P4.0–P4.7 O 8- bit-programmable output pins.
Configurable to open drain output port or
push-pull output port.
XIN, X
RESET
OUT
– System clock input and output pins – 13,14 7,8 –
I System reset signal input pin and back-
7 1–3
42,23
31-33
8 18 12 –
up mode input.
TEST I Test signal input pin (for factory use only;
– 15 9 –
must be connected to VSS.)
44 Pin
No.
42–44
1,2,
10,11,
15
17
18
41–38
27–29
19
Shared
Functions
(INT0 - 4)
–
Ext. INT
(INT5–9)
REM
(T0CK)
(T1CAP)
–
V
DD
V
SS
– Power supply input pin – 11 5 –
– Ground pin – 12 6 –
1-7
Page 8
PRODUCT OVERVIEW S3C80F7/C80F9/C80G7/C80G9 (KS88C01524/C01532/C01624/C01632)
Table 1-2. Pin Descriptions of 32-SOP
Pin
Names
Pin
Type
Pin Description Circuit
P0.0–P0.7 I/O I/O port with bit-programmable pins.
Configurable to input or push-pull output
mode. Pull-up resistors are assignable by
software. Pins can be assigned individually as
external interrupt inputs with noise filters,
interrupt enable/ disable, and interrupt pending
control. SED & R circuit built in P0 for STOP
releasing.
P1.0–P1.7 I/O I/O port with bit-programmable pins.
Configurable to input mode or output mode.
Pin circuits are either push-pull or n-channel
open-drain type.
P2.0–P2.3
P2.4–P2.7
I/O I/O port with bit-programmable pins.
Configurable to input or push-pull output
mode. Pull-up resistors can be assigned by
software. Pins can be assigned individually as
external interrupt inputs with noise filters,
interrupt enable/disable, and interrupt pending
control. SED & R circuit built in P2 for STOP
releasing.
P3.0
P3.1
I/O 2-bit I/O port with bit-programmable pins.
Configurable to input mode, push-pull output
mode, or n-channel open-drain output mode.
Input mode with pull-up resistors can be
assigned by software. The two port 3 pins
have high current drive capability.
XIN, X
RESET
OUT
– System clock input and output pins – 2,3 –
I System reset signal input pin and back-up
mode input.
TEST I Test signal input pin (for factory use only;
must be connected to VSS).
Type
32 Pin
No.
Shared
Functions
1 17–24 Ext. INT
2 9–16 –
1 25–28
Ext. INT
29,5, 6,8
3
4
30,31 T0PWM/
T0CAP/T1CAP
REM/T0CK
8 7 –
– 4 –
V
V
1-8
DD
SS
– Power supply input pin – 32 –
– Ground pin – 1 –
Page 9
S3C80F7/C80F9/C80G7/C80G9 (KS88C01524/C01532/C01624/C01632) PRODUCT OVERVIEW
PIN CIRCUITS
VDD
Pull-up
Resistor
Pull-up
Enable
VDD
Data
Input/
Output
Output
Disable
VSS
External
Interrupt
Stop
Noise
Filter
Stop release
Figure 1-5. Pin Circuit Type 1 (Port 0 and Port2)
1-9
Page 10
PRODUCT OVERVIEW S3C80F7/C80F9/C80G7/C80G9 (KS88C01524/C01532/C01624/C01632)
PIN CIRCUITS (Continued)
VDD
Pull-up
Resistor
Pull-up
Enable
VDD
Data
Input/
Output
Open-Drain
Output Disable
VSS
Normal
Input
Noise
Filter
Figure 1-6. Pin Circuit Type 2 (Port 1)
1-10
Page 11
S3C80F7/C80F9/C80G7/C80G9 (KS88C01524/C01532/C01624/C01632) PRODUCT OVERVIEW
PIN CIRCUITS (Continued)
VDD
Pull-up
Resistor
Pull-up
Enable
P3CON.2
VDD
Port 3.0 Data
T0_PWM
Open-Drain
Output Disable
P3.0 Input
T0CAP/(T1CAP)
M
U
X
P3CON.2,6,7
M
U
X
Data
VSS
Noise filter
Figure 1-7. Pin Circuit Type 3 (P3.0)
P3.0/T0PWM
T0CAP/(T1CAP)
1-11
Page 12
PRODUCT OVERVIEW S3C80F7/C80F9/C80G7/C80G9 (KS88C01524/C01532/C01624/C01632)
PIN CIRCUITS (Continued)
VDD
Pull-up
Resistor
Pull-up
Enable
P3CON.5
VDD
Port 3.1 Data
CAOF(CACON.0)
Carrier On/Off (P3.7)
Open-Drain
Output
Disable
P3.1 Input
T0CK
M
U
X
P3CON.5,6,7
M
U
X
Data
VSS
Noise filter
Figure 1-8. Pin Circuit Type 4 (P3.1) Circuit
P3.1/REM/(T0CK)
VDD
Pull-up
Resistor
1-12
Input
T0CK : P3.2
T1CAP: P3.3
M
U
X

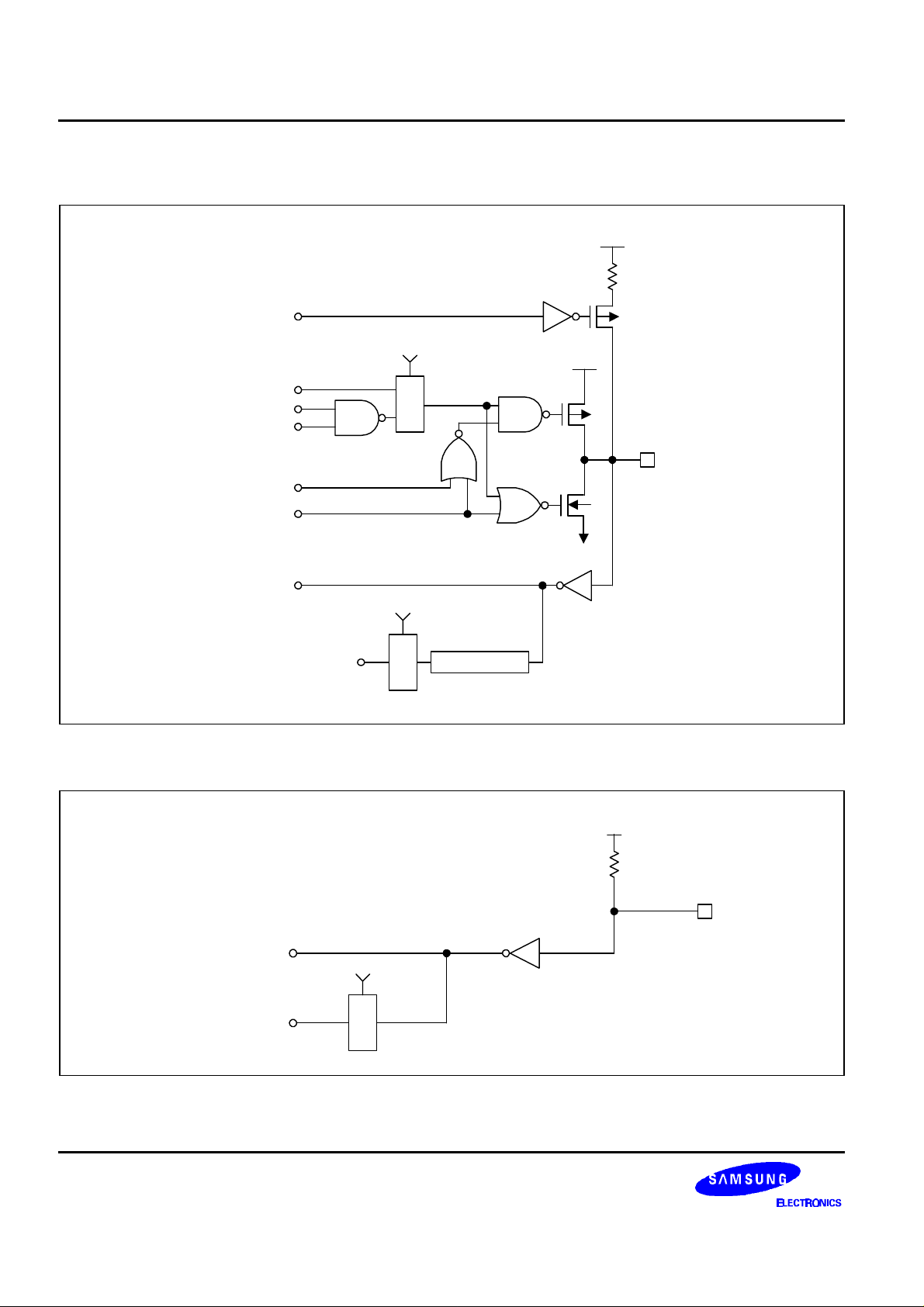

Figure 1-9. Pin Circuit Type 5 (P3.2, P3.3)
Page 13
S3C80F7/C80F9/C80G7/C80G9 (KS88C01524/C01532/C01624/C01632) PRODUCT OVERVIEW
PIN CIRCUITS (Continued)
Output
Data
VSS

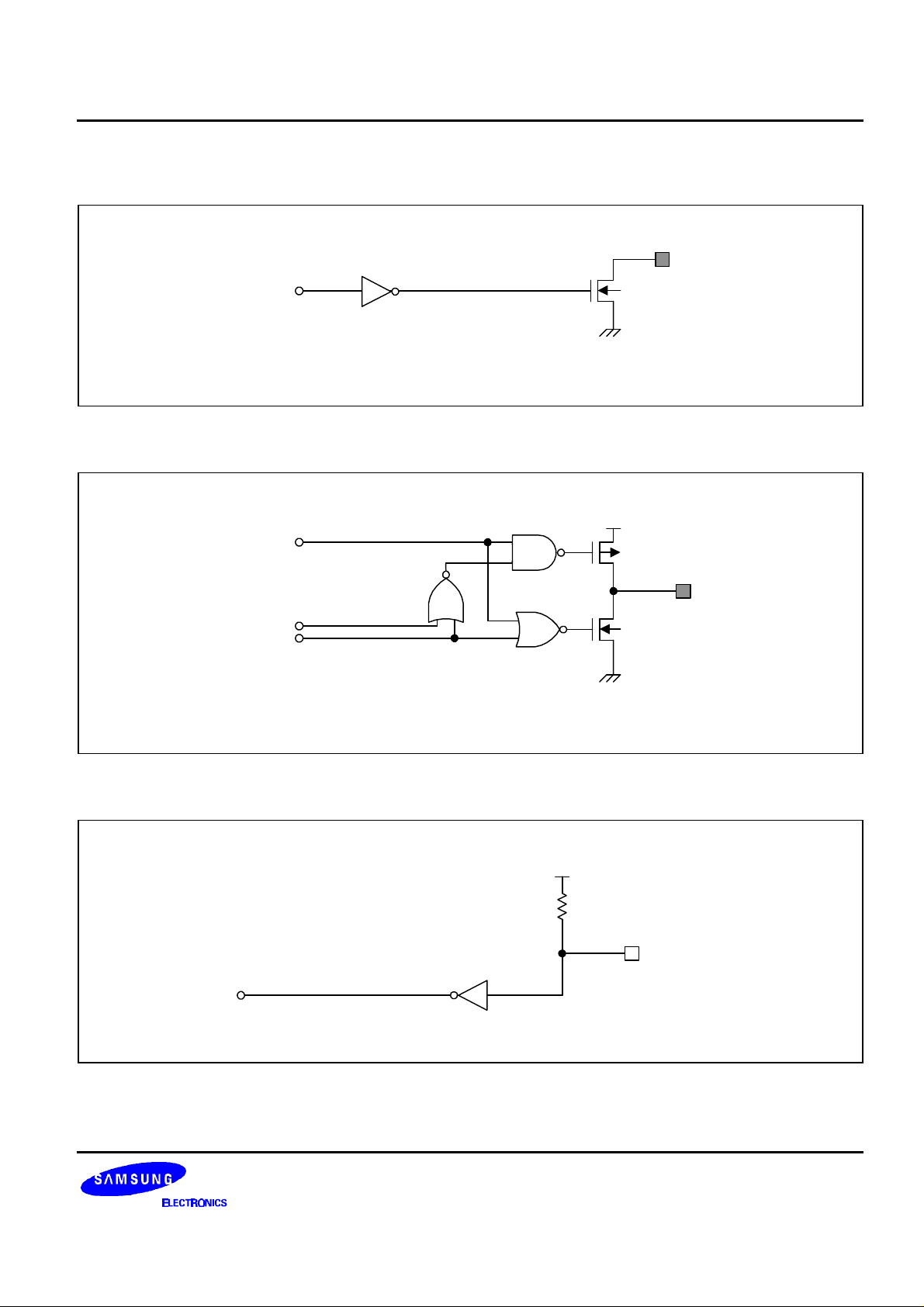

Figure 1-10. Pin Circuit type 6 (P3.4, P3.5)
VDD
Data
Open-Drain
Output Disable
Output
VSS
Figure 1-11. Pin Circuit type 7 (Port 4)
VDD
Pull-up
Resistor
RESET
Figure 1-12. Pin Circuit type 8 (RESET)
1-13
Page 14
S3C80F7/C80F9/C80G7/C80G9 (KS88C01524/C01532/C01624/C01632) ELECTRICAL DATA
14 ELECTRICAL DATA 1 (S3C80F7/C80F9)
OVERVIEW
In this section, S3C80F7/C80F9 electrical characteristics are presented in tables and graphs. The information is
arranged in the following order:
— Absolute maximum ratings
— D.C. electrical characteristics
— Data retention supply voltage in Stop mode
— Stop mode release timing when initiated by an external interrupt
— Stop mode release timing when initiated by a Reset
— I/O capacitance
— A.C. electrical characteristics
— Input timing for external interrupts
— Input timing for RESET
— Oscillation characteristics
— Oscillation stabilization time
14-1
Page 15
ELECTRICAL DATA S3C80F7/C80F9/C80G7/C80G9 (KS88C01524/C01532/C01624/C01632)
Table 14-1. Absolute Maximum Ratings
(TA = 25 °C)
Parameter Symbol Conditions Rating Unit
Supply voltage
Input voltage
Output voltage
Output current High
V
DD
V
IN
I
V
O
OH
All output pins
One I/O pin active – 18 mA
– – 0.3 to + 6.5 V
–
– 0.3 to VDD + 0.3
– 0.3 to VDD + 0.3
V
V
All I/O pins active – 60
Output current Low
I
OL
One I/O pin active + 30 mA
Total pin current for ports 0, 1, and 2 + 100
Total pin current for port 3 + 40
Operating
T
A
– – 40 to + 85
°C
temperature
Storage temperature
T
STG
– – 65 to + 150
°C
Table 14-2. D.C. Electrical Characteristics
(T
= – 40 °C to + 85 °C, VDD = 2.0 V to 5.0 V)
A
Parameter Symbol Conditions Min Typ Max Unit
Operating Voltage
V
DD
F
OSC
= 8 MHz
2.0 – 5.0 V
(Instruction clock = 2 MHz)
Input High
voltage
Input Low voltage
Output High
voltage
V
V
V
V
V
V
V
V
OH1
OH2
IH1
IH2
IH3
IL1
IL2
IL3
All input pins except V
and V
IH3
RESET
XIN
All input pins except V
and V
IL3
RESET
IH2
IL2
0.8 V
DD
0.85 V
DD
V
– 0.3 V
DD
–
0 –
V
DD
V
DD
DD
0.2 V
0.2 V
XIN 0.3
V
= 2.4 V IOH = – 6 mA
DD
V
– 0.7
DD
Port 3.1 only, TA = 25°C
VDD = 2.4 V, IOH = – 2.2mA
V
0.7
–
DD
DD
DD
P3.0, P2.0–2.3
TA = 25°C
V
V
V
14-2
Page 16
S3C80F7/C80F9/C80G7/C80G9 (KS88C01524/C01532/C01624/C01632) ELECTRICAL DATA
Table 14-2. D.C. Electrical Characteristics (Continued)
(T
= – 40 °C to + 85 °C, VDD = 2.0 V to 5.0 V)
A
Parameter Symbol Conditions Min Typ Max Unit
Output High
voltage
Output Low
voltage
V
V
V
OH3
OL1
OL2
VDD = 2.4 V,IOH = – 1 mA
Port0, Port1, P2.4-2.7 and Port4
T
= 25°C
A
V
= 2.4 V, IOL = 12 mA, port
DD
3.1 only, T
= 25°C
A
VDD = 2.4 V, IOL = 5 mA
V
DD
–
1.0
– – V
– 0.4 0.5 V
0.4 0.5
P3.0, P3.4-3.5, P2.0-2.3
T
= 25°C
A
V
OL3
IOL = 2mA
0.4 1
Port 0, Port1, P2.4-2.7 and Port4
T
= 25°C
A
Input High
leakage current
Input Low
leakage current
I
LIH1
I
LIH2
I
LIL1
VIN = V
All input pins except X
X
VIN = VDD, X
V
OUT
= 0 V
IN
DD
IN
and X
IN
OUT
and
All input pins except XIN, X
OUT
– – 1 µA
20
– – – 1 µA
,
and RESET
Output High
leakage current
Output Low
leakage current
Pull-up resistors
I
LIL2
I
LOH
I
LOL
R
L1
V
= 0 V
IN
X
and X
V
IN
OUT
= V
OUT
DD
All output pins
V
= 0 V
OUT
All output pins
V
= 0 V, V
IN
T
= 25°C, Ports 0–2, P3.2–3.3
A
DD
= 2.4 V
– 20
– – 1 µA
– – – 1 µA
44 55 95
kΩ
14-3
Page 17
ELECTRICAL DATA S3C80F7/C80F9/C80G7/C80G9 (KS88C01524/C01532/C01624/C01632)
Table 14-2. D.C. Electrical Characteristics (Continued)
(T
= – 40 °C to + 85 °C, VDD = 2.0 V to 5.0 V)
A
Parameter Symbol Conditions Min Typ Max Unit
Supply current
(note)
I
DD1
Operating mode
V
= 5.0 V
DD
– 6 11 mA
8 MHz crystal
4 MHz crystal 4.5 9
I
DD2
Idle mode
1.8 3.5
VDD = 5.0 V
8 MHz crystal
4 MHz crystal 1.6 3.0
I
DD3
NOTE: Supply current does not include current drawn through internal pull-up resistors or external output current loads.
Stop mode; V
V
= 3.6 V
DD
V
= 2.4 V
DD
V
= 0.7 V
DD
DD
= 5.0 V
– 18 25 uA
12 15
4.5 8
1 1.5
Table 14-3. Characteristics of Low Voltage Detect circuit
(TA = – 40 °C to + 85 °C)
Parameter Symbol Conditions Min Typ Max Unit
Hysteresys Voltage of
∆V
– – 100 300 mV
LVD (Slew Rate of LVD)
Low level detect voltage
V
LVD
– 2.00 2.20 2.40 V
Table 14-4. Data Retention Supply Voltage in Stop Mode
(TA = – 40 °C to + 85 °C)
Parameter Symbol Conditions Min Typ Max Unit
Data retention supply
voltage
Data retention supply
current
14-4
V
DDDR
I
DDDR
V
= 1.0 V
DDDR
Stop mode
– 1.0 – 5.0 V
– – 1 µA
Page 18
S3C80F7/C80F9/C80G7/C80G9 (KS88C01524/C01532/C01624/C01632) ELECTRICAL DATA
Idle Mode
~
~
Stop Mode
(Basic Timer Active)
VDD
EXT INT
VDD
RESET
~
~
Execution of
STOP Instrction
Data Retention Mode
VDDDR
0.2VDD
Normal
Operating
Mode
0.8VDD
tWAIT

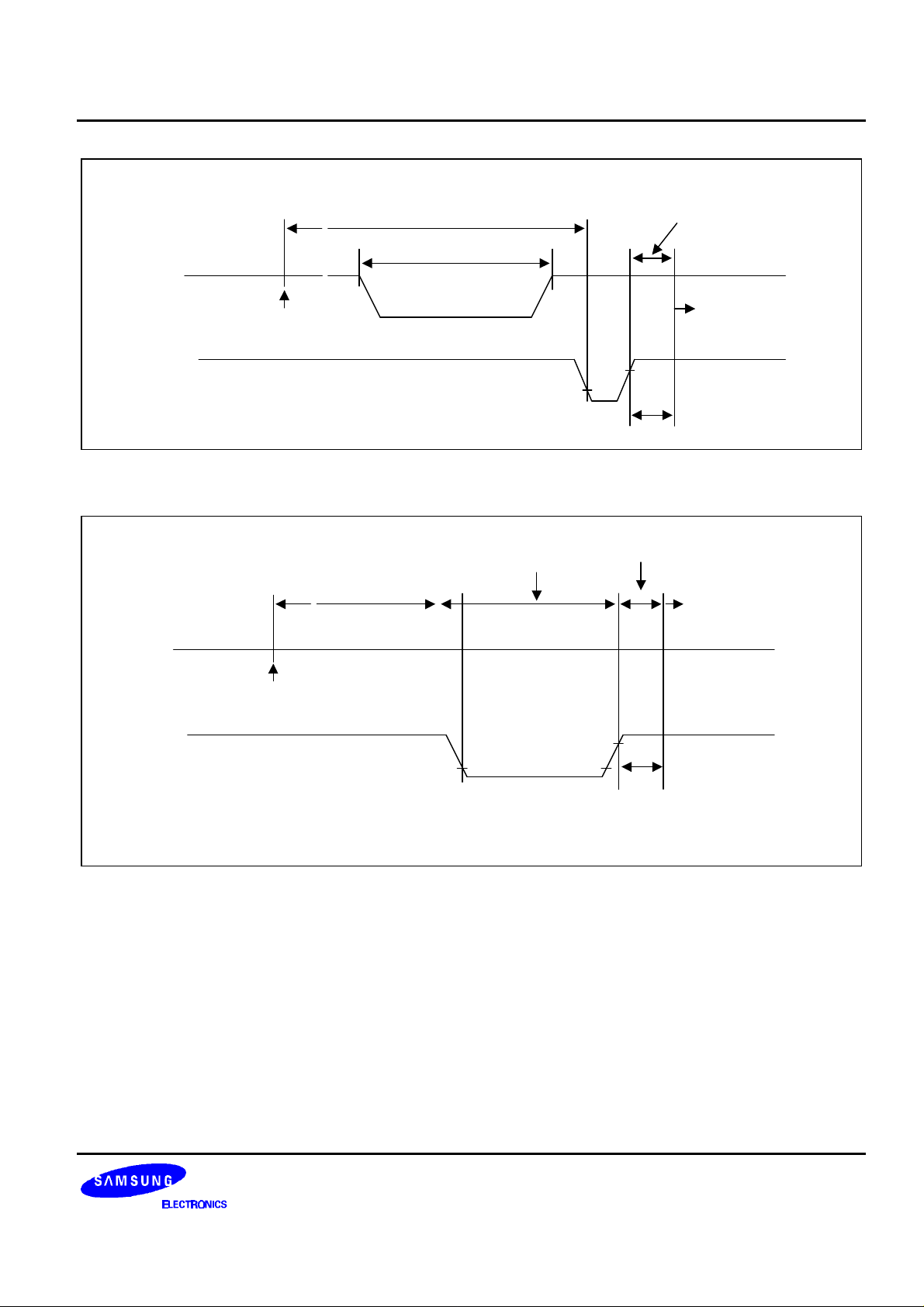

Figure 14-1. Stop Mode Release Timing When Initiated by an External Interrupt
~
~
~
~
Execution of
STOP Instrction
Reset
Occur
Stop Mode
Oscillation Stabilization Time
Normal
Operating
Mode
NOTE:tWAIT is the same as 4096 x 16 x 1/fOSC.
Figure 14-2. Stop Mode Release Timing When Initiated by a RESET
tWAIT
14-5
Page 19
ELECTRICAL DATA S3C80F7/C80F9/C80G7/C80G9 (KS88C01524/C01532/C01624/C01632)
Stop Mode
~
VDD
VLVD
Execution of
STOP Instrction
NOTE:tWAIT is the same as 4096 x 16 x 1/fOSC.
~
~
~
Figure 14-3. Stop Mode Release Timing When Initiated by a LVD
Reset
Occur
Back-up Mode
VDDDR
Data Retention Time
Oscillation Stabilization Time
Normal
Operating
Mode
tWAIT
Table 14-5. Input/Output Capacitance
(T
= – 40 °C to + 85 °C , V
A
DD
= 0 V)
Parameter Symbol Conditions Min Typ Max Unit
C
C
OUT
IN
f = 1 MHz; unmeasured pins
are connected to V
SS
– – 10 pF
Input
capacitance
Output
capacitance
I/O capacitance
C
IO
Table 14-6. A.C. Electrical Characteristics
(T
= – 40 °C to + 85 °C)
A
Parameter Symbol Conditions Min Typ Max Unit
Interrupt input,
High, Low width
RESET input Low
width
t
INTH
t
INTL
t
RSL
P0.0–P0.7, P2.3–P2.0
,
V
= 5.0 V
DD
Input
V
= 5.0 V
DD
200 300 – ns
1000 – –
14-6
Page 20
S3C80F7/C80F9/C80G7/C80G9 (KS88C01524/C01532/C01624/C01632) ELECTRICAL DATA
tINTHtINTL
0.8 VDD
DD
0.2 V
NOTE:The unit tCPU means one CPU clock period.

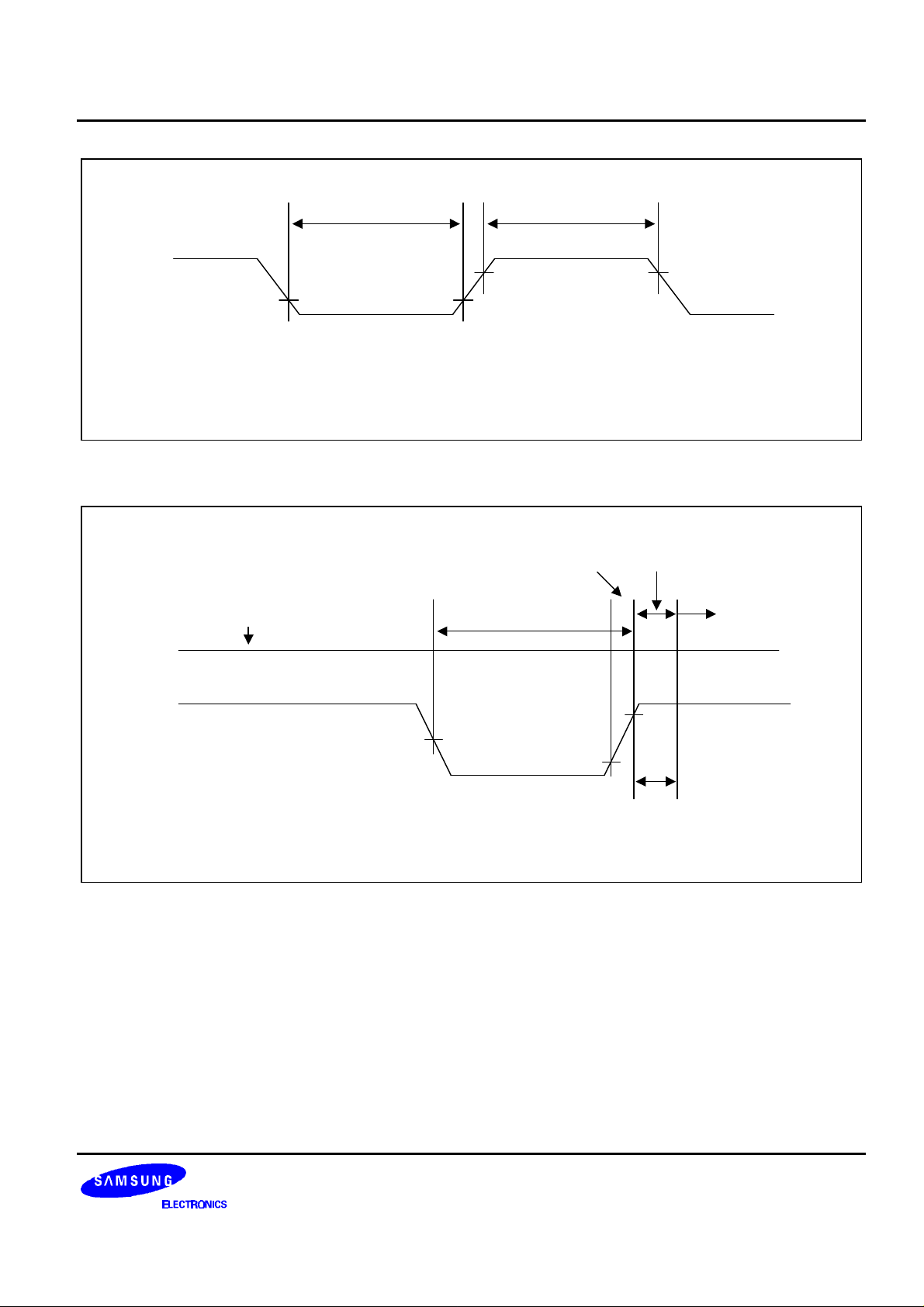

Figure 14-4. Input Timing for External Interrupts (Port 0, P2.3–P2.0)
VDD
RESET
Normal Operating Mode
NOTE:tWAIT is the same as 4096 x 16 x 1/fOSC.
Figure 14-5. Input Timing for RESET
Back-up Mode
(Stop Mode)
Reset
Occur
Oscillation Stabilization Time
Normal
Operating
Mode
tWAIT
14-7
Page 21
ELECTRICAL DATA S3C80F7/C80F9/C80G7/C80G9 (KS88C01524/C01532/C01624/C01632)
S3C80F9

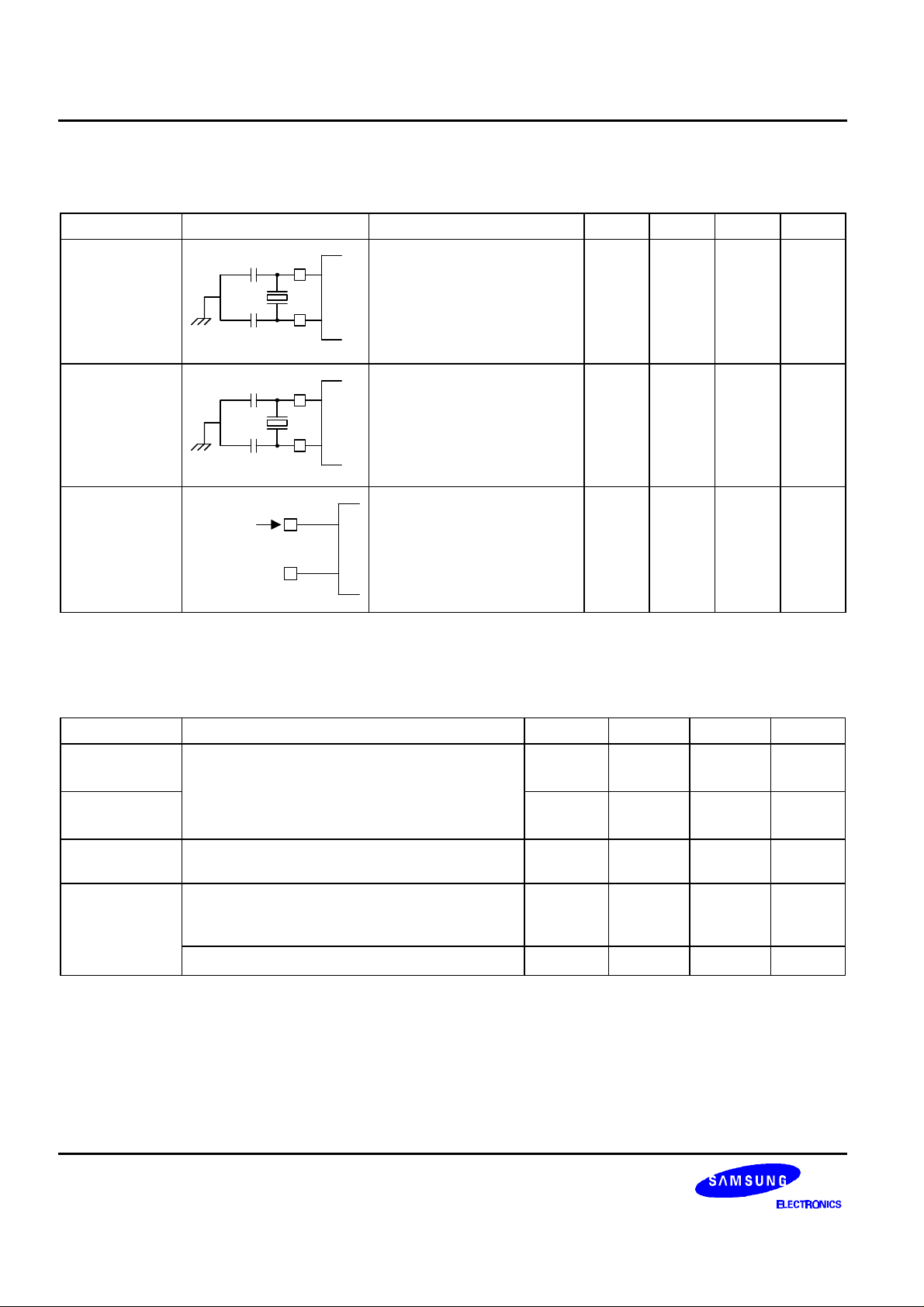

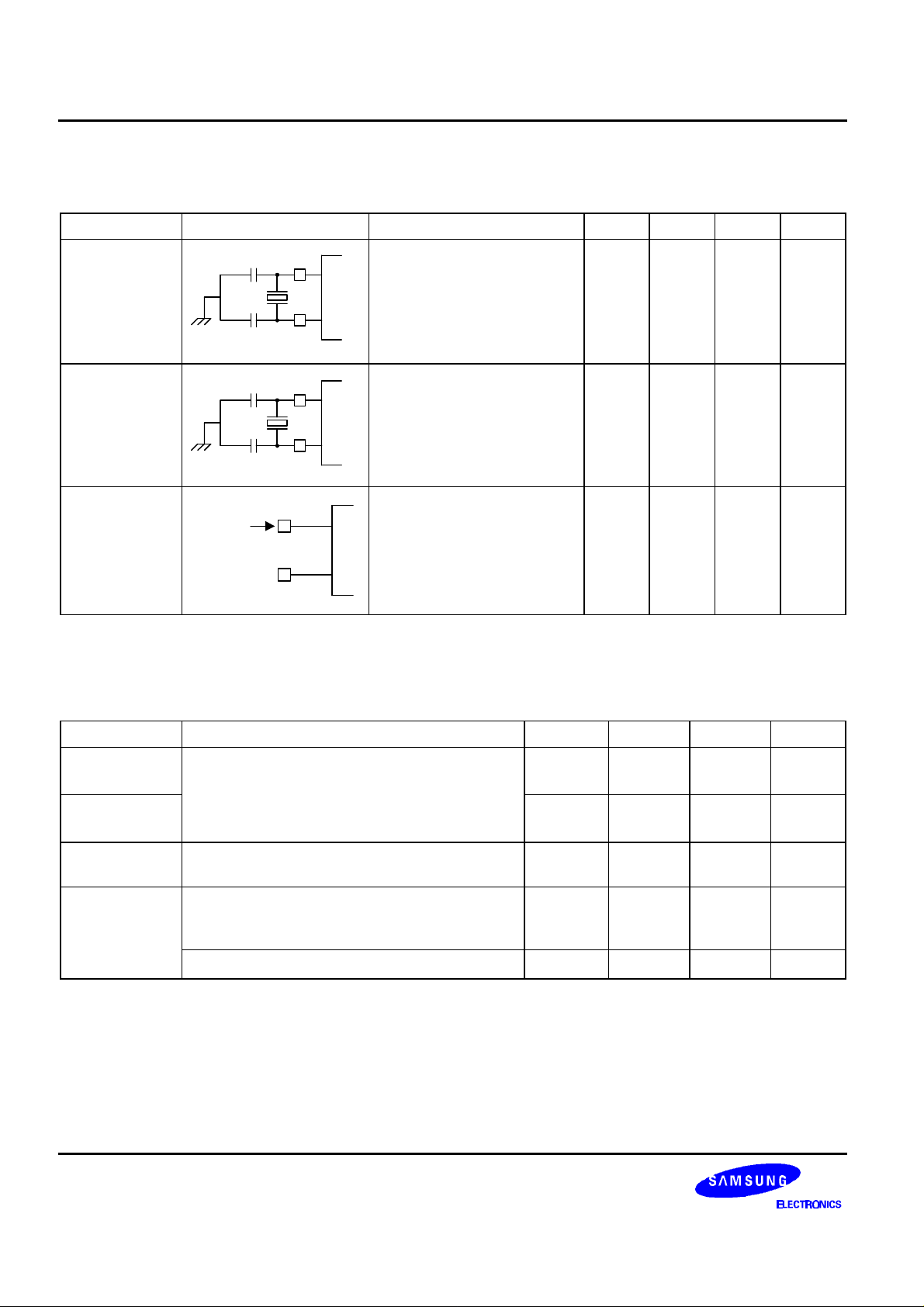

Table 14-7. Oscillation Characteristics
(TA = – 40 °C + 85 °C)
Oscillator Clock Circuit Conditions Min Typ Max Unit
Crystal
Ceramic
External clock
External
Clock
Open Pin
C1
C2
C1
C2
CPU clock oscillation
IN
OUT
frequency
X
X
CPU clock oscillation
IN
OUT
frequency
X
input frequency
IN
X
X
XIN
XOUT
Table 14-8. Oscillation Stabilization Time
1 – 8 MHz
1 – 8 MHz
1 – 8 MHz
(TA = – 40 °C + 85 °C, VDD = 4.5 V to 5.0 V)
Oscillator Test Condition Min Typ Max Unit
f
Main crystal
Main ceramic
> 400 kHz
OSC
Oscillation stabilization occurs when VDD is
– – 20 ms
– – 10 ms
equal to the minimum oscillator voltage range.
External clock
XIN input High and Low width (tXH, tXL)
25 – 500 ns
(main system)
Oscillator
stabilization
t
when released by a reset
WAIT
(1)
–
216/f
OSC
– ms
wait time
t
when released by an interrupt
WAIT
NOTES:
1. f
2. The duration of the oscillation stabilization time (t
is the oscillator frequency.
OSC
in the basic timer control register, BTCON.
(2)
) when it is released by an interrupt is determined by the setting
WAIT
– – – ms
14-8
Page 22
S3C80F7/C80F9/C80G7/C80G9 (KS88C01524/C01532/C01624/C01632) ELECTRICAL DATA
Instruction
Clock
2 MHz
1.25 MHz
1.0 MHz
500 kHz
250 kHz
100 kHz
Instruction Clock = 1/6n x oscillator frequency (n = 1, 2, 8, or 16)
A: 2.0 V, 8 MHz
A
1 2 3 4 5
Supply Voltage (V)
6 7

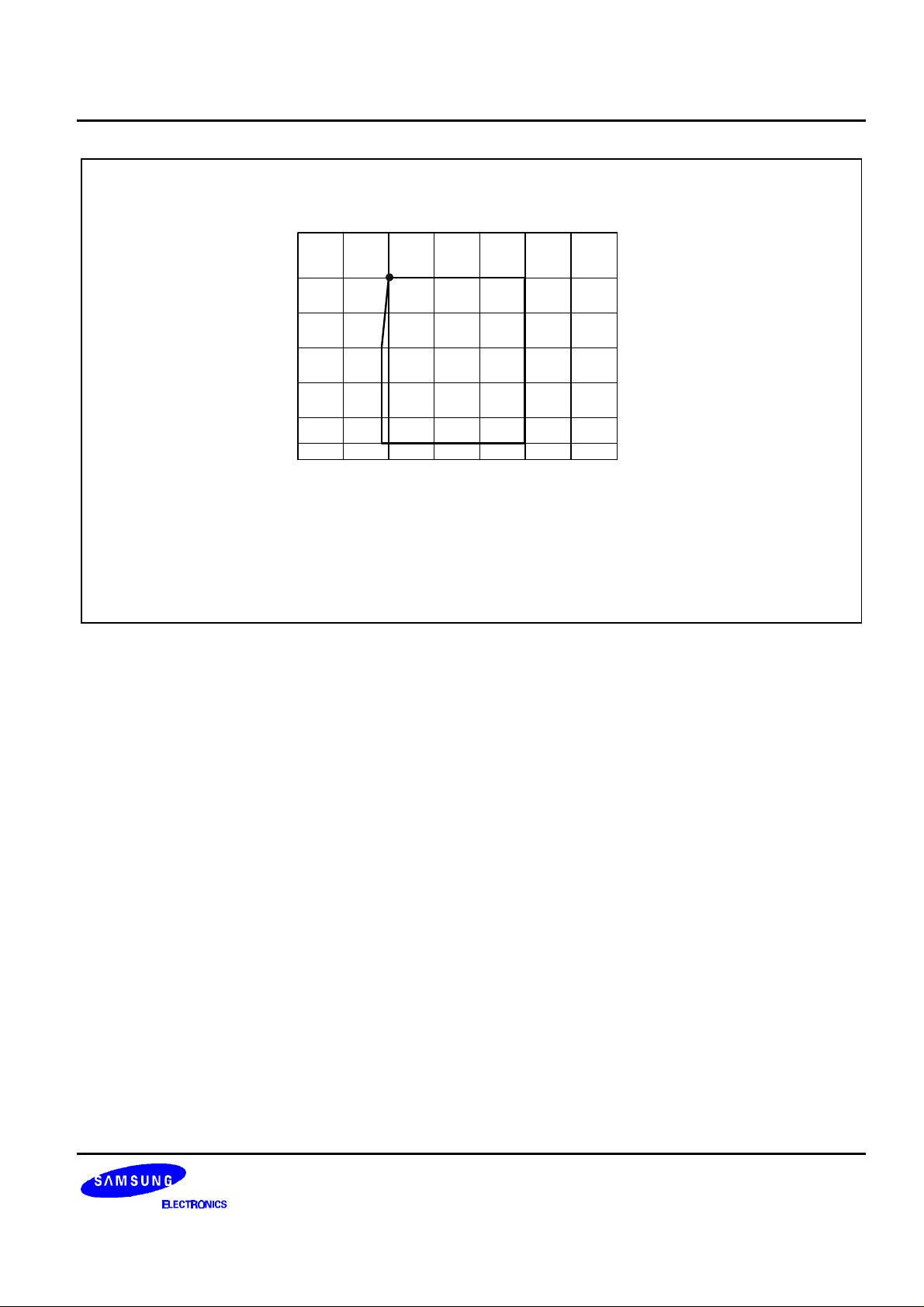

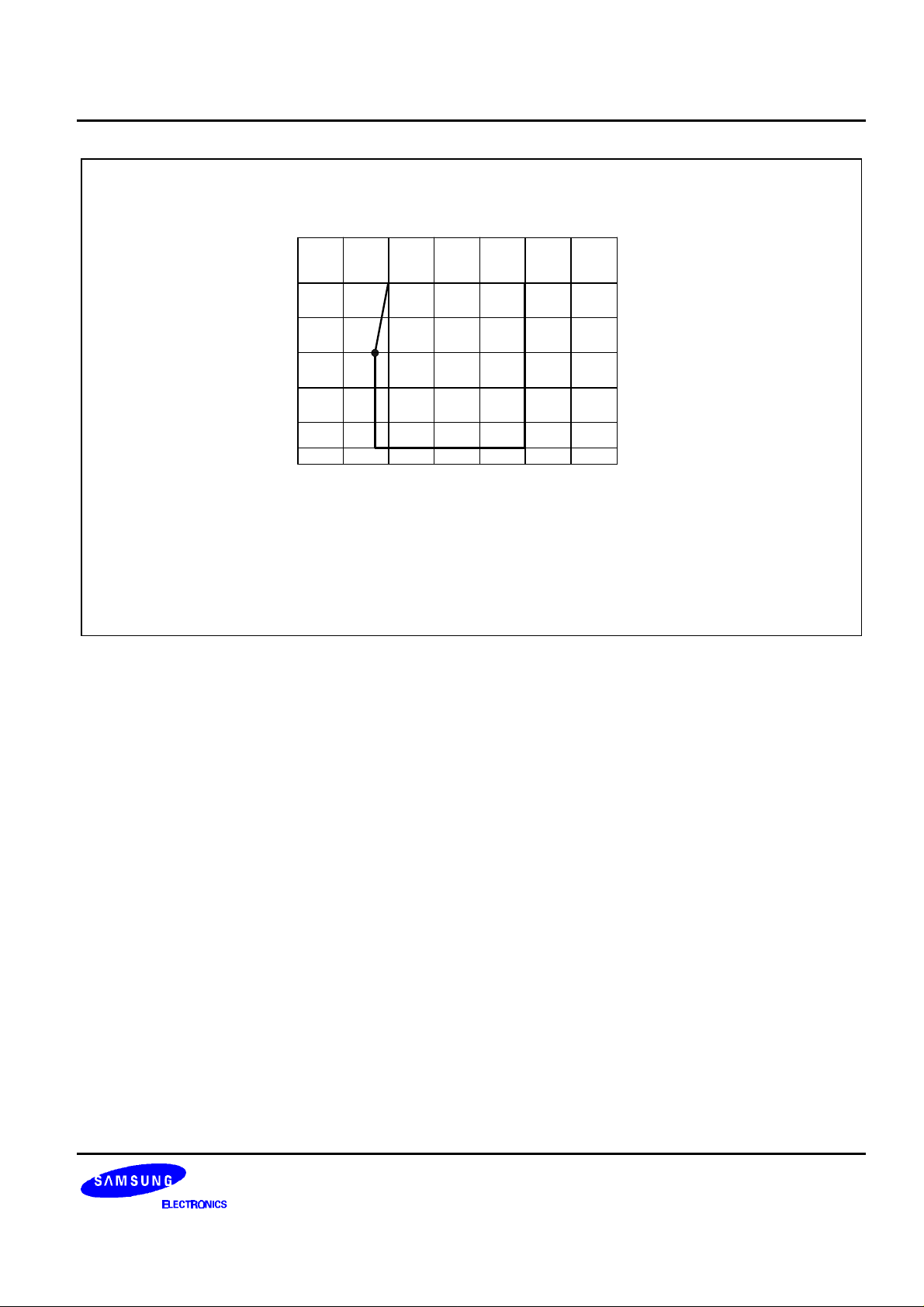

Figure 14-6. Operating Voltage Range of S3C80F9
fOSC
(Main Oscillator
Frequency)
8 MHz
6 MHz
4 MHz
400 kHz
14-9
Page 23
S3C80F7/C80F9/C80G7/C80G9 (KS88C01524/C01532/C01624/C01632) ELECTRICAL DATA
15 ELECTRICAL DATA 2 (S3C80G7/C80G9)
OVERVIEW
In this section, S3C80G7/C80G9 electrical characteristics are presented in tables and graphs. The information is
arranged in the following order:
— Absolute maximum ratings
— D.C. electrical characteristics
— Data retention supply voltage in Stop mode
— Stop mode release timing when initiated by an external interrupt
— Stop mode release timing when initiated by a Reset
— I/O capacitance
— A.C. electrical characteristics
— Input timing for external interrupts
— Input timing for RESET
— Oscillation characteristics
— Oscillation stabilization time
15-1
Page 24
ELECTRICAL DATA S3C80F7/C80F9/C80G7/C80G9 (KS88C01524/C01532/C01624/C01632)
Table 15-1. Absolute Maximum Ratings
(TA = 25 °C)
Parameter Symbol Conditions Rating Unit
Supply voltage
Input voltage
Output voltage
Output current High
V
DD
V
IN
I
V
O
OH
All output pins
One I/O pin active – 18 mA
– – 0.3 to + 6.5 V
–
– 0.3 to VDD + 0.3
– 0.3 to VDD + 0.3
V
V
All I/O pins active – 60
Output current Low
I
OL
One I/O pin active + 30 mA
Total pin current for ports 0, 1, and 2 + 100
Total pin current for port 3 + 40
Operating
T
A
– – 40 to + 85
°C
temperature
Storage temperature
T
STG
– – 65 to + 150
°C
Table 15-2. D.C. Electrical Characteristics
(T
= – 40 °C to + 85 °C, VDD = 2.0 V to 5.0 V)
A
Parameter Symbol Conditions Min Typ Max Unit
Operating Voltage
V
DD
F
OSC
= 4 MHz
1.7 – 5.0 V
(Instruction clock = 1 MHz)
Input High
voltage
Input Low voltage
Output High
voltage
V
V
V
V
V
V
V
V
OH1
OH2
IH1
IH2
IH3
IL1
IL2
IL3
All input pins except V
and V
IH3
RESET
XIN
All input pins except V
and V
IL3
RESET
IH2
IL2
0.8 V
DD
0.85 V
DD
V
– 0.3 V
DD
–
0 –
V
DD
V
DD
DD
0.2 V
0.2 V
XIN 0.3
V
= 2.4 V IOH = – 6 mA
DD
V
– 0.7
DD
Port 3.1 only, TA = 25°C
VDD = 2.4 V, IOH = – 2.2mA
VDD– 0.7
DD
DD
P3.0, P2.0–2.3
TA = 25°C
V
V
V
15-2
Page 25
S3C80F7/C80F9/C80G7/C80G9 (KS88C01524/C01532/C01624/C01632) ELECTRICAL DATA
Table 15-2. D.C. Electrical Characteristics (Continued)
(T
= – 40 °C to + 85 °C, VDD = 2.0 V to 5.0 V)
A
Parameter Symbol Conditions Min Typ Max Unit
Output High
voltage
Output Low
voltage
V
V
V
OH3
OL1
OL2
VDD = 2.4 V,IOH = – 1 mA
Port0, Port1, P2.4–2.7 and Port4
T
= 25°C
A
V
= 2.4 V, IOL = 12 mA, port
DD
3.1 only, T
= 25°C
A
VDD = 2.4 V, IOL = 5 mA
V
DD
–
1.0
– – V
– 0.4 0.5 V
0.4 0.5
P3.0, P3.4–3.5, P2.0–2.3
T
= 25°C
A
V
OL3
IOL = 2mA
0.4 1
Port 0, Port1, P2.4–2.7 and Port4
T
= 25°C
A
Input High
leakage current
Input Low
leakage current
I
LIH1
I
LIH2
I
LIL1
VIN = V
All input pins except X
X
VIN = VDD, X
V
OUT
= 0 V
IN
DD
IN
and X
IN
OUT
and
All input pins except XIN, X
OUT
– – 1 µA
20
– – – 1 µA
,
and RESET
Output High
leakage current
Output Low
leakage current
Pull-up resistors
I
LIL2
I
LOH
I
LOL
R
L1
V
= 0 V
IN
X
and X
V
IN
OUT
= V
OUT
DD
All output pins
V
= 0 V
OUT
All output pins
V
= 0 V, V
IN
T
= 25°C, Ports 0–2, P3.2–3.3
A
DD
= 2.4 V
– 20
– – 1 µA
– – – 1 µA
44 55 95
kΩ
15-3
Page 26
ELECTRICAL DATA S3C80F7/C80F9/C80G7/C80G9 (KS88C01524/C01532/C01624/C01632)
Table 15-2. D.C. Electrical Characteristics (Continued)
(T
= – 40 °C to + 85 °C, VDD = 2.0 V to 5.0 V)
A
Parameter Symbol Conditions Min Typ Max Unit
Supply current
(note)
I
DD1
Operating mode
V
= 5.0 V
DD
– 4.5 9 mA
4 MHz crystal
I
DD2
Idle mode
1.6 3.0
VDD = 5.0 V
4 MHz crystal
I
DD3
NOTE: Supply current does not include current drawn through internal pull-up resistors or external output current loads.
Stop mode;
V
= 5.0 V
DD
– 1 6 uA
Table 15-3. Characteristics of Low Voltage Detect circuit
(TA = – 40 °C to + 85 °C)
Parameter Symbol Conditions Min Typ Max Unit
Hysteresys Voltage of
LVD (Slew Rate of LVD)
Low level detect voltage
Table 15-4. Data Retention Supply Voltage in Stop Mode
(TA = – 40 °C to + 85 °C)
Parameter Symbol Conditions Min Typ Max Unit
Data retention supply
voltage
Data retention supply
current
∆V
V
V
DDDR
I
DDDR
LVD
V
DDDR
= 1.0 V
Stop mode
– – 100 300 mV
– 1.70 1.90 2.10 V
– 1.0 – 5.0 V
– – 1 µA
15-4
Page 27
S3C80F7/C80F9/C80G7/C80G9 (KS88C01524/C01532/C01624/C01632) ELECTRICAL DATA
Idle Mode
~
~
Stop Mode
(Basic Timer Active)
VDD
EXT INT
VDD
RESET
~
~
Execution of
STOP Instrction
Data Retention Mode
VDDDR
0.2VDD
Normal
Operating
Mode
0.8VDD
tWAIT
Figure 15-1. Stop Mode Release Timing When Initiated by an External Interrupt
~
~
~
~
Execution of
STOP Instrction
Reset
Occur
Stop Mode
Oscillation Stabilization Time
Normal
Operating
Mode
NOTE:tWAIT is the same as 4096 x 16 x 1/fOSC.
Figure 15-2. Stop Mode Release Timing When Initiated by a RESET
tWAIT
15-5
Page 28
ELECTRICAL DATA S3C80F7/C80F9/C80G7/C80G9 (KS88C01524/C01532/C01624/C01632)
Table 15-5. Input/Output Capacitance
(T
= – 40 °C to + 85 °C , V
A
DD
= 0 V)
Parameter Symbol Conditions Min Typ Max Unit
C
C
OUT
IN
f = 1 MHz; unmeasured pins
are connected to V
SS
– – 10 pF
Input
capacitance
Output
capacitance
I/O capacitance
C
IO
Table 15-6. A.C. Electrical Characteristics
(T
= – 40 °C to + 85 °C)
A
Parameter Symbol Conditions Min Typ Max Unit
Interrupt input,
High, Low width
RESET input Low
width
t
INTH
t
INTL
t
RSL
P0.0–P0.7, P2.3–P2.0
,
V
= 5.0 V
DD
Input
V
= 5.0 V
DD
200 300 – ns
1000 – –
15-6
Page 29
S3C80F7/C80F9/C80G7/C80G9 (KS88C01524/C01532/C01624/C01632) ELECTRICAL DATA
tINTHtINTL
0.8 VDD
DD
0.2 V
NOTE:The unit tCPU means one CPU clock period.
Figure 15-3. Input Timing for External Interrupts (Port 0, P2.3–P2.0)
VDD
RESET
Normal Operating Mode
NOTE:tWAIT is the same as 4096 x 16 x 1/fOSC.
Figure 15-4. Input Timing for RESET
Back-up Mode
(Stop Mode)
Reset
Occur
Oscillation Stabilization Time
Normal
Operating
Mode
tWAIT
15-7
Page 30
ELECTRICAL DATA S3C80F7/C80F9/C80G7/C80G9 (KS88C01524/C01532/C01624/C01632)
S3C80G9
Table 15-7. Oscillation Characteristics
(TA = – 40 °C + 85 °C)
Oscillator Clock Circuit Conditions Min Typ Max Unit
Crystal
Ceramic
External clock
External
Clock
Open Pin
C1
X
X
C2
X
C1
X
C2
XIN
XOUT
CPU clock oscillation
frequency
IN
OUT
CPU clock oscillation
frequency
IN
OUT
X
Table 15-8. Oscillation Stabilization Time
(TA = – 40 °C + 85 °C, VDD = 4.5 V to 5.0 V)
input frequency
IN
1 – 4 MHz
1 – 4 MHz
1 – 4 MHz
Oscillator Test Condition Min Typ Max Unit
f
Main crystal
Main ceramic
> 400 kHz
OSC
Oscillation stabilization occurs when VDD is
– – 20 ms
– – 10 ms
equal to the minimum oscillator voltage range.
External clock
XIN input High and Low width (tXH, tXL)
25 – 500 ns
(main system)
Oscillator
stabilization
t
when released by a reset
WAIT
(1)
–
216/f
OSC
– ms
wait time
t
when released by an interrupt
WAIT
NOTES:
1. f
2. The duration of the oscillation stabilization time (t
is the oscillator frequency.
OSC
in the basic timer control register, BTCON.
(2)
) when it is released by an interrupt is determined by the setting
WAIT
– – – ms
15-8
Page 31
S3C80F7/C80F9/C80G7/C80G9 (KS88C01524/C01532/C01624/C01632) ELECTRICAL DATA
Instruction
Clock
2 MHz
1.25 MHz
1.0 MHz
500 kHz
250 kHz
100 kHz
Instruction Clock = 1/6n x oscillator frequency (n = 1, 2, 8, or 16)
A: 1.7 V, 4 MHz
A
1 2 3 4 5
Supply Voltage (V)
6 7
Figure 15-6. Operating Voltage Range of S3C80G9
fOSC
(Main Oscillator
Frequency)
8 MHz
6 MHz
4 MHz
400 kHz
15-9
Page 32
S3C80F7/C80F9/C80G7/C80G9 (KS88C01524/C01532/C01624/C01632) MECHANICAL DATA
16 MECHANICAL DATA
OVERVIEW
The S3C80F7/C80F9/C80G7/C80G9 microcontroller is currently available in a 32-pin SOP, 42-pin SDIP and 44pin QFP package.
0-8
#32
#17
12.00 ± 0.30
(0.43)
32-SOP-450A
#1
20.30 MAX
19.90 ± 0.20
0.40 ± 0.10
NOTE: Dimensions are in millimeters.
#16
1.27
8.34 ± 0.20
+ 0.10
0.25
2.00 ± 0.10
0.05 MIN
11.43
- 0.05
0.90 ± 0.20
2.20 MAX
0.10 MAX

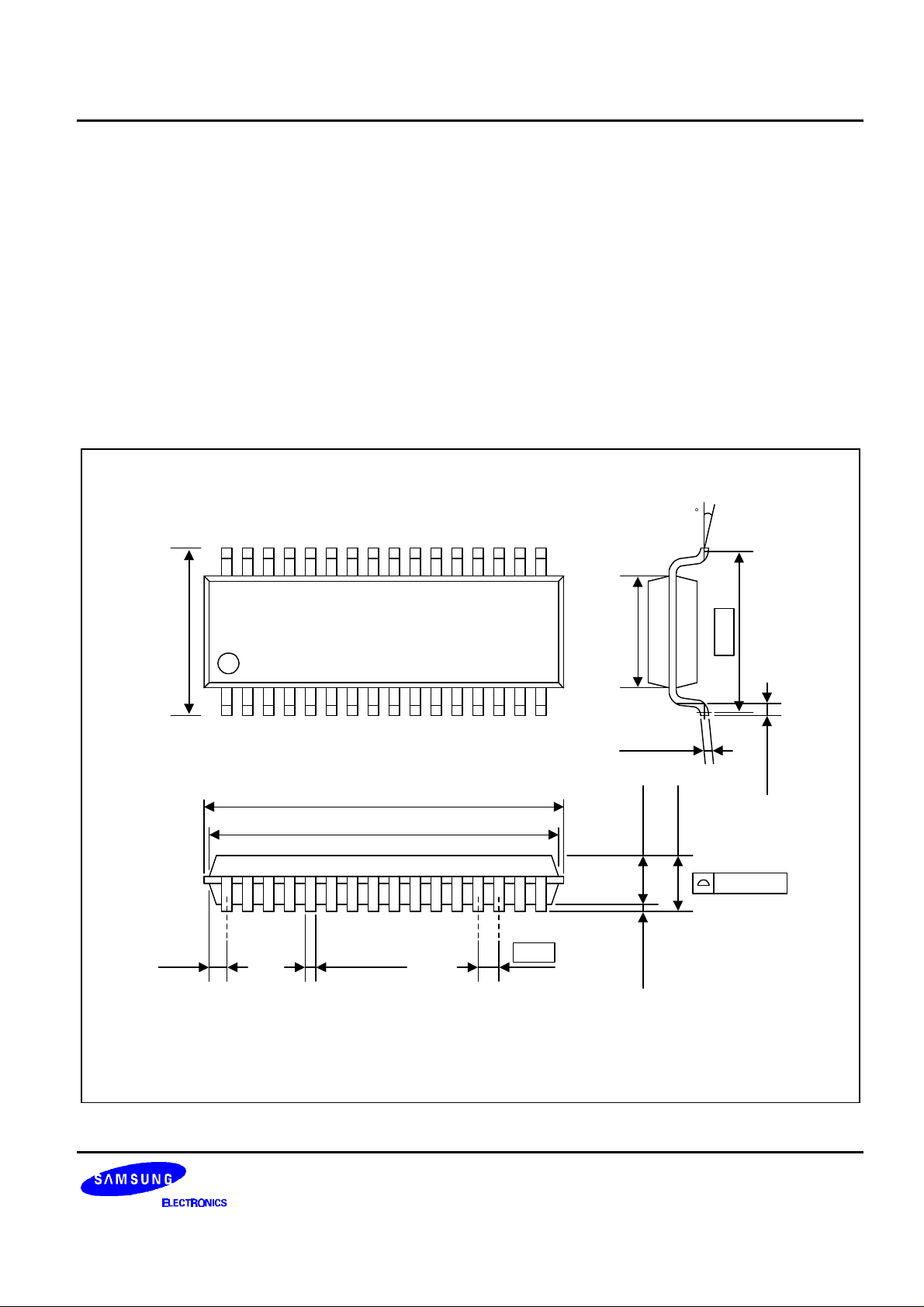

Figure 16-1. 32-Pin SOP Package Dimension
16-1
Page 33
MECHANICAL DATA S3C80F7/C80F9/C80G7/C80G9 (KS88C01524/C01532/C01624/C01632)
(1.77)
#42 #22
42-SDIP-600
14.00 ± 0.20
39.50 MAX
39.10 ± 0.20
0.50 ± 0.10
1.00 ± 0.10
1.78
0-15
15.24
+ 0.10
- 0.05
0.25
#21#1
3.50 ± 0.20
5.08 MAX
0.51 MIN
3.30 ± 0.30
16-2
NOTE: Dimensions are in millimeters.

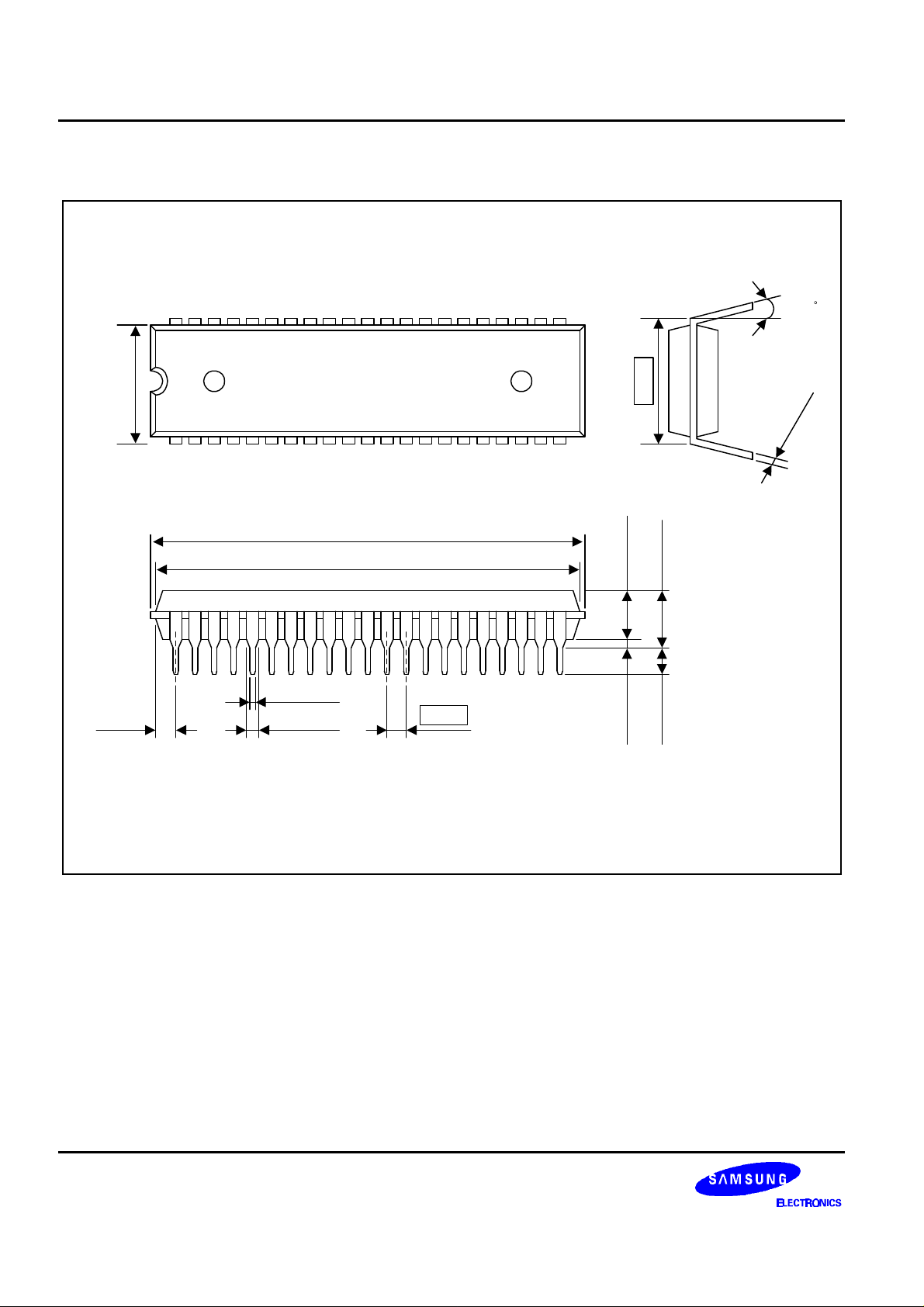

Figure 16-2. 42-Pin SDIP Package Dimension
Page 34
S3C80F7/C80F9/C80G7/C80G9 (KS88C01524/C01532/C01624/C01632) MECHANICAL DATA
13.20 ± 0.30
0-8
10.00 ± 0.20
0.15
+ 0.10
- 0.05
13.20 ± 0.30
44-QFP-1010B
10.00 ± 0.20
#44
#1
0.80
NOTE: Dimensions are in millimeters.
Figure 16-3. 44-Pin SQFP Package Dimension
0.15 MAX
0.35
+ 0.10
- 0.05
0.10 MAX
0.80 ± 0.20
0.05 MIN
(1.00)
2.05 ± 0.10
2.30 MAX
16-3
Loading...
