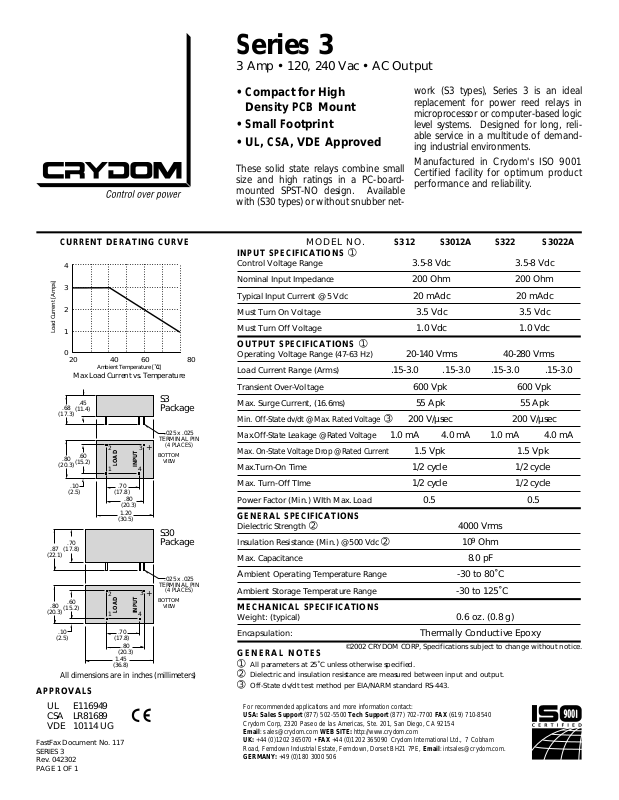

Page 1
S
erie
s
3
3 Amp • 120, 240 Vac • AC Output
CURRENT DERATING CURVE
4
3
2
Load Current [Amps]
1
0
20 40 8060
Ambient Temperature [˚ûC]
Max Load Current vs. Temperature
.45
.68
(11.4)
(17.3)
+
OAD
L
.70
(17.8)
1.20
(30.5)
OAD
L
.70
(17.8)
(20.3)
1.45
(36.8)
.80
(20.3)
.80
3
T
U
P
IN
4
3
+
T
U
P
IN
4
2
.60
.80
(15.2)
(20.3)
.10
(2.5)
.70
.87
(17.8)
(22.1)
.60
.80
(15.2)
(20.3)
.10
(2.5)
All dimensions are in inches (millimeters)
APPR
OVALS
1
2
1
UL E116949
CSA LR81689
VDE 10114 UG
FastFax Document No. 117
SERIES 3
Rev. 042302
PAGE 1 OF 1
S3
Package
.025 x .025
TERMINAL PIN
(4 PLACES)
BOTTOM
VIEW
S30
Package
.025 x .025
TERMINAL PIN
(4 PLACES)
BOTTOM
VIEW
•
C
ompact for High
D
ensity
•
S
mall
• UL, CS
PCB
F
ootprint
A, VDE A
M
ount
pproved
These solid state relays combine small
size and high ratings in a PC-boardmounted SPST-NO design. Available
work (S3 types), Series 3 is an ideal
replacement for power reed relays in
microprocessor or computer-based logic
level systems. Designed for long, reliable service in a multitude of demanding industrial environments.
Manufactured in Crydom's ISO 9001
Certified facility for optimum product
performance and reliability.
with (S30 types) or without snubber net-
MODEL NO.
IN
PUT SPECIFICATIONS
Control Voltage Range 3.5-8 Vdc 3.5-8 Vdc
Nominal Input Impedance 200 Ohm 200 Ohm
Typical Input Current @ 5 Vdc 20 mAdc 20 mAdc
Must Turn On Voltage 3.5 Vdc 3.5 Vdc
Must Turn Off Voltage 1.0 Vdc 1.0 Vdc
OUTPUT SPECIFICATION
Operating Voltage Range (47-63 Hz) 20-140 Vrms 40-280 Vrms
Load Current Range (Arms) .15-3.0 .15-3.0 .15-3.0 .15-3.0
Transient Over-Voltage 600 Vpk 600 Vpk
Max. Surge Current, (16.6ms) 55 Apk 55 Apk
Min. Off-State dv/dt @ Max. Rated Voltage
Max.Off-State Leakage @ Rated Voltage
Max. On-State Voltage Drop @ Rated Current
Max.Turn-On Time 1/2 cycle 1/2 cycle
Max. Turn-Off TIme 1/2 cycle 1/2 cycle
Power Factor (Min.) WIth Max. Load 0.5 0.5
GENERAL SPECIFICATION
Dielectric Strength ➁ 4000 Vrms
Insulation Resistance (Min.) @ 500 Vdc ➁ 10
Max. Capacitance 8.0 pF
mbient Operating Temperature Range -30 to 80˚C
A
Ambient Storage Temperature Range -30 to 125˚C
MEC
HANICAL
Weight: (typical) 0.6 oz. (0.8 g)
Encapsulation: Thermally Conductive Epoxy
GENERAL
SPECIFICATION
NOTES
➀
➀
S
S
©2002 CRYDOM CORP, Specifications subject to change without notice.
S
312
S
3012A
S
322
➂ 200 V/µsec 200 V/µsec
1.0 mA 4.0 mA 1.0 mA 4.0 mA
1.5 Vpk 1.5 Vpk
9
Ohm
S
S
3022A
➀ All parameters at 25˚C unless otherwise specified.
➁ Dielectric and insulation resistance are measured between input and output.
➂ Off-State dv/dt test method per EIA/NARM standard RS-443.
For recommended applications and more information contact:
USA: Sales Support (877) 502-5500 Tech Support (877) 702-7700 FAX (619) 710-8540
Crydom Corp, 2320 Paseo de las Americas, Ste. 201, San Diego, CA 92154
Email: sales@crydom.com
UK: +44 (0)1202 365070 • FAX +44 (0)1202 365090 Crydom International Ltd., 7 Cobham
Road, Ferndown Industrial Estate, Ferndown, Dorset BH21 7PE, Email: intsales@crydom.com.
GERMANY: +49 (0)180 3000 506
WEB SITE: http://www.crydom.com
