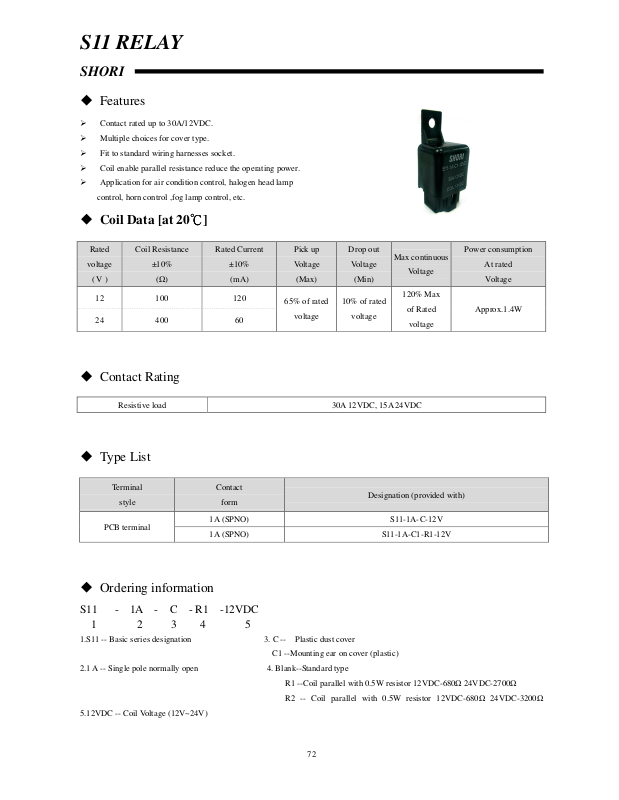

Page 1
72
S11 RELAY
SHORI
Features
Contact rated up to 30A/12VDC.
Multiple choices for cover type.
Fit to standard wiring harnesses socket.
Coil enable parallel resistance reduce the operating power.
Application for air condition control, halogen head lamp
control, horn control ,fog lamp control, etc.
Coil Data [at 20 ]℃℃℃℃
Rated
voltage
( V )
12 100 120
24 400 60
Coil Resistance
±10%
(Ω)
Contact Rating
Resistive load 30A 12VDC, 15A 24VDC
Type List
Terminal
style
PCB terminal
Rated Current
±10%
(mA)
Contact
form
1A (SPNO) S11-1A-C-12V
1A (SPNO) S11-1A-C1-R1-12V
Pick up
Voltage
(Max)
65% of rated
voltage
Drop out
Voltage
(Min)
10% of rated
voltage
Max continuous
120% Max
Designation (provided with)
Voltage
of Rated
voltage
Power consumption
At rated
Voltage
Approx.1.4W
Ordering information
S11 - 1A - C - R1 -12VDC
1 2 3 4 5
1.S11 -- Basic series designation 3. C -- Plastic dust cover
C1 --Mounting ear on cover (plastic)
2.1 A -- Single pole normally open 4. Blank--Standard type
R1 --Coil parallel with 0.5W resistor 12VDC-680Ω 24VDC-2700Ω
R2 -- Coil parallel with 0.5W resistor 12VDC-680Ω 24VDC-3200Ω
5.12VDC -- Coil Voltage (12V~24V)
Page 2
73
Specification
Contact material Ag Alloy
Contact resistance 100 mΩ Max
Operate time 10 ms Max
Release time 10 ms Max
Insulation resistance 50 MΩ Min. (DC 500V)
Dielectric strength
Vibration resistance
Shock resistance
Life expectancy
Operating ambient temperature -30~+85 (no freezing)℃
Weight Approx.35g
Between open contact : AC 500V ,50/60Hz 1 min.
Between contact and coil : AC 500V, 50/60Hz 1 min.
Operating extremes 10~50Hz, amplitude 2 mm
Damage limits 10~50Hz, amplitude 2 mm
Operating extremes 10G
Damage limits 100G
Mechanical
Electrical
5,000,000 operations
(frequency 18,000 operations/hr)
100,000 operations
(frequency 1,200 operations/hr)
S11 RELAY
SHORI
Outline dimensions
C Type
C1 Type
27.7
15.0
27.7
21.6
23.0
29.3
12.0
19.4
6.5
23.0
29.312.0
20.0
12.0
21.6
19.4
Page 3
74
S11 RELAY
SHORI
Wiring Diagram
BOTTOM VIEW
S11-1A-C, S11-1A-1C S11-1A-C-R1, S11-1A-C1-R2
PC BOARD LAYOUT
BOTTOM VIEW
C Type C1 Type
2.2
5.5
23.0
22.0
5.5
23.0
9.0
22.0
9.0
