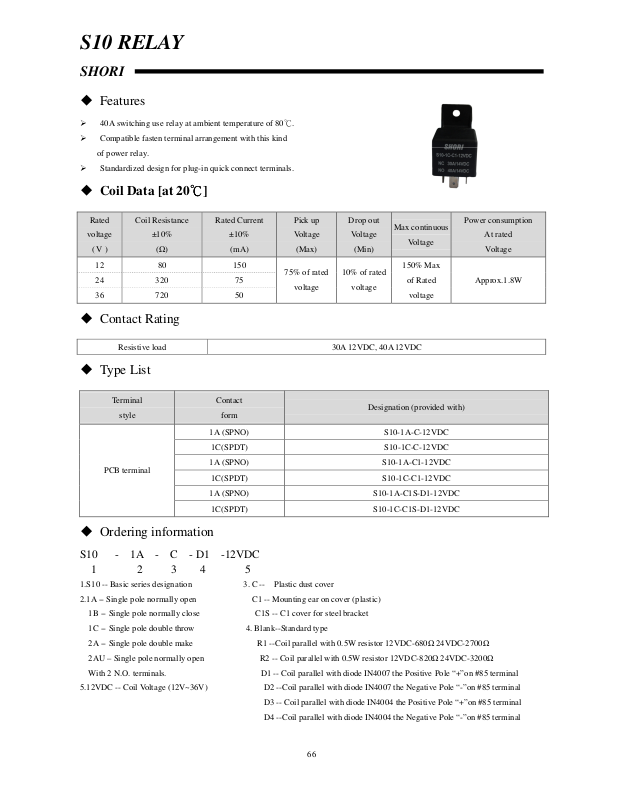

S10 RELAY
SHORI
Features
40A switching use relay at ambient temperature of 80 .℃
Compatible fasten terminal arrangement with this kind
of power relay.
Standardized design for plug-in quick connect terminals.
Coil Data [at 20 ]℃℃℃℃
Rated
voltage
( V )
12 80 150
24 320 75
36 720 50
Coil Resistance
±10%
(Ω)
Contact Rating
Resistive load 30A 12VDC, 40A 12VDC
Type List
Terminal
style
PCB terminal
Rated Current
±10%
(mA)
Contact
form
1A (SPNO) S10-1A-C-12VDC
1C(SPDT) S10-1C-C-12VDC
1A (SPNO) S10-1A-C1-12VDC
1C(SPDT) S10-1C-C1-12VDC
1A (SPNO) S10-1A-C1S-D1-12VDC
1C(SPDT) S10-1C-C1S-D1-12VDC
Pick up
Voltage
(Max)
75% of rated
voltage
Drop out
Voltage
(Min)
10% of rated
voltage
Max continuous
150% Max
Designation (provided with)
Voltage
of Rated
voltage
Power consumption
At rated
Voltage
Approx.1.8W
Ordering information
S10 - 1A - C - D1 -12VDC
1 2 3 4 5
1.S10 -- Basic series designation 3. C -- Plastic dust cover
2.1A -- Single pole normally open C1 -- Mounting ear on cover (plastic)
1B -- Single pole normally close C1S -- C1 cover for steel bracket
1C -- Single pole double throw 4. Blank--Standard type
2A -- Single pole double make R1 --Coil parallel with 0.5W resistor 12VDC-680Ω 24VDC-2700Ω
2AU – Single pole normally open R2 -- Coil parallel with 0.5W resistor 12VDC-820Ω 24VDC-3200Ω
With 2 N.O. terminals. D1 -- Coil parallel with diode IN4007 the Positive Pole “+”on #85 terminal
5.12VDC -- Coil Voltage (12V~36V) D2 --Coil parallel with diode IN4007 the Negative Pole “-”on #85 terminal
D3 -- Coil parallel with diode IN4004 the Positive Pole “+”on #85 terminal
D4 --Coil parallel with diode IN4004 the Negative Pole “-”on #85 terminal
Page 2
67
Specification
Contact material Ag Alloy
Contact resistance 100 mΩ Max
Operate time 10 ms Max
Release time 10 ms Max
Insulation resistance 50 MΩ Min. (DC 500V)
Dielectric strength
Vibration resistance
Shock resistance
Life expectancy
Operating ambient temperature -30~+85 (no freezing)℃
Weight Approx.40g
Between open contact : AC 500V ,50/60Hz 1 min.
Between contact and coil : AC 500V, 50/60Hz 1 min.
Operating extremes 10~50Hz, amplitude 2 mm
Damage limits 10~50Hz, amplitude 2 mm
Operating extremes 5G
Damage limits 100G
Mechanical
Electrical
10,000,000 operations
(frequency 18,000 operations/hr)
100,000 operations
(frequency 1,200 operations/hr)
S10 RELAY
SHORI

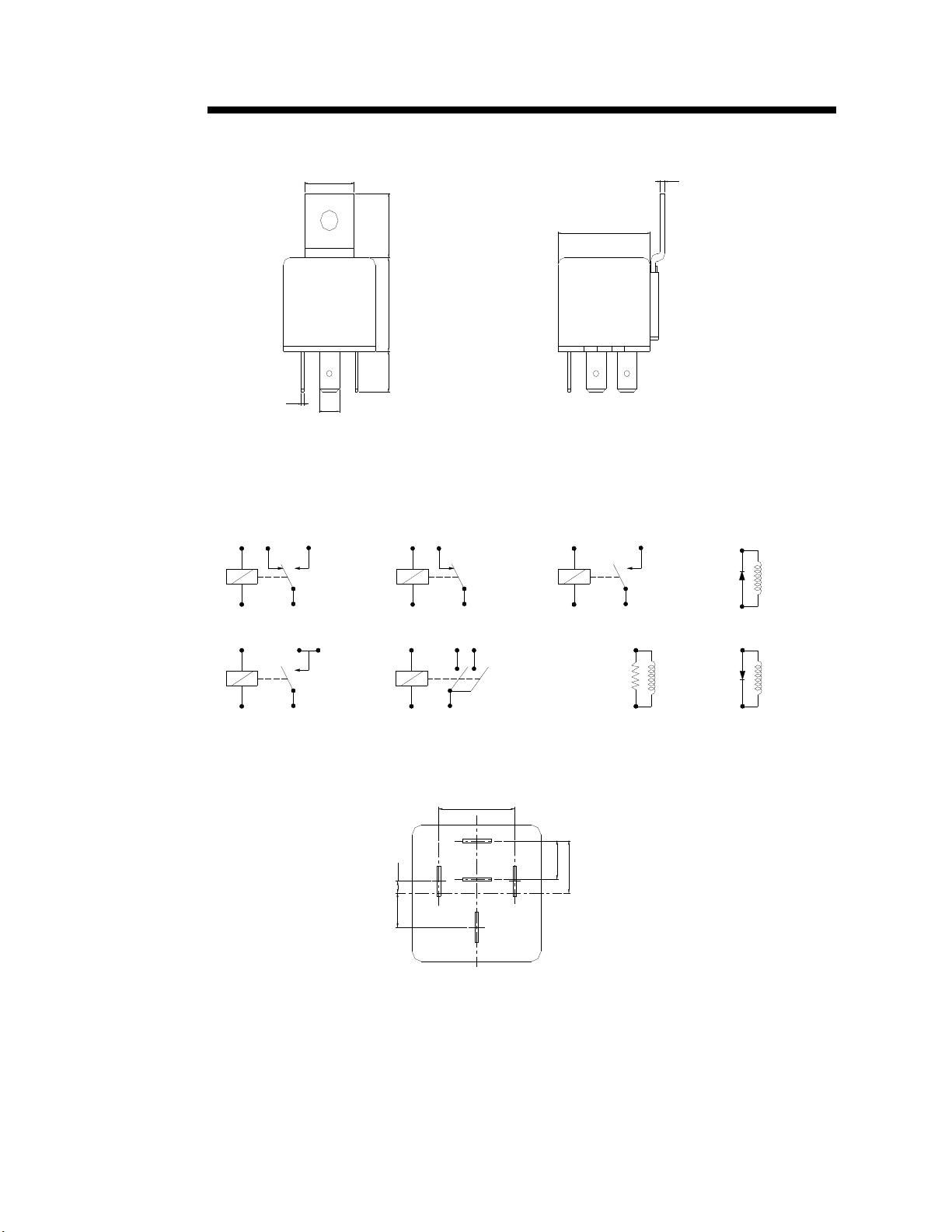

Outline dimensions
C Type
0.8
C1 Type
28.6
25.3
11.0
6.3
28.6
22.0
16.3
25.3
28.6
2.0
11.0
0.8
6.3
Page 3
68
S10 RELAY
SHORI
C1S type
Wiring Diagram
BOTTOM VIEW
1C
8 7 a858 7 87 a
86
15.3
17.3
25.3
11.0
0.8
6.3
28.6
1.5
85
1B
30
8 6
3 0
85
1A D2.D4
86
8 7
30
8 5
8 6
2AU 2A R1.R2 D1.D3
8 5
8 6
8 7 a
30
8 7
PC BOARD LAYOUT
BOTTOM VIEW
87 a
85
8 6
2.5
7.1
8 7
30
16.8
8.0
10.9
85
8 6
85
86
