Aluminum Electrolytic Capacitors
RZW

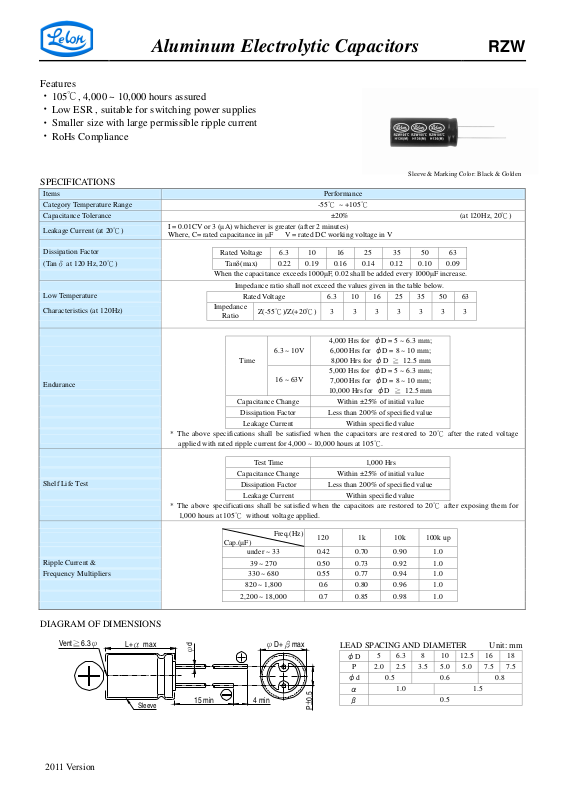

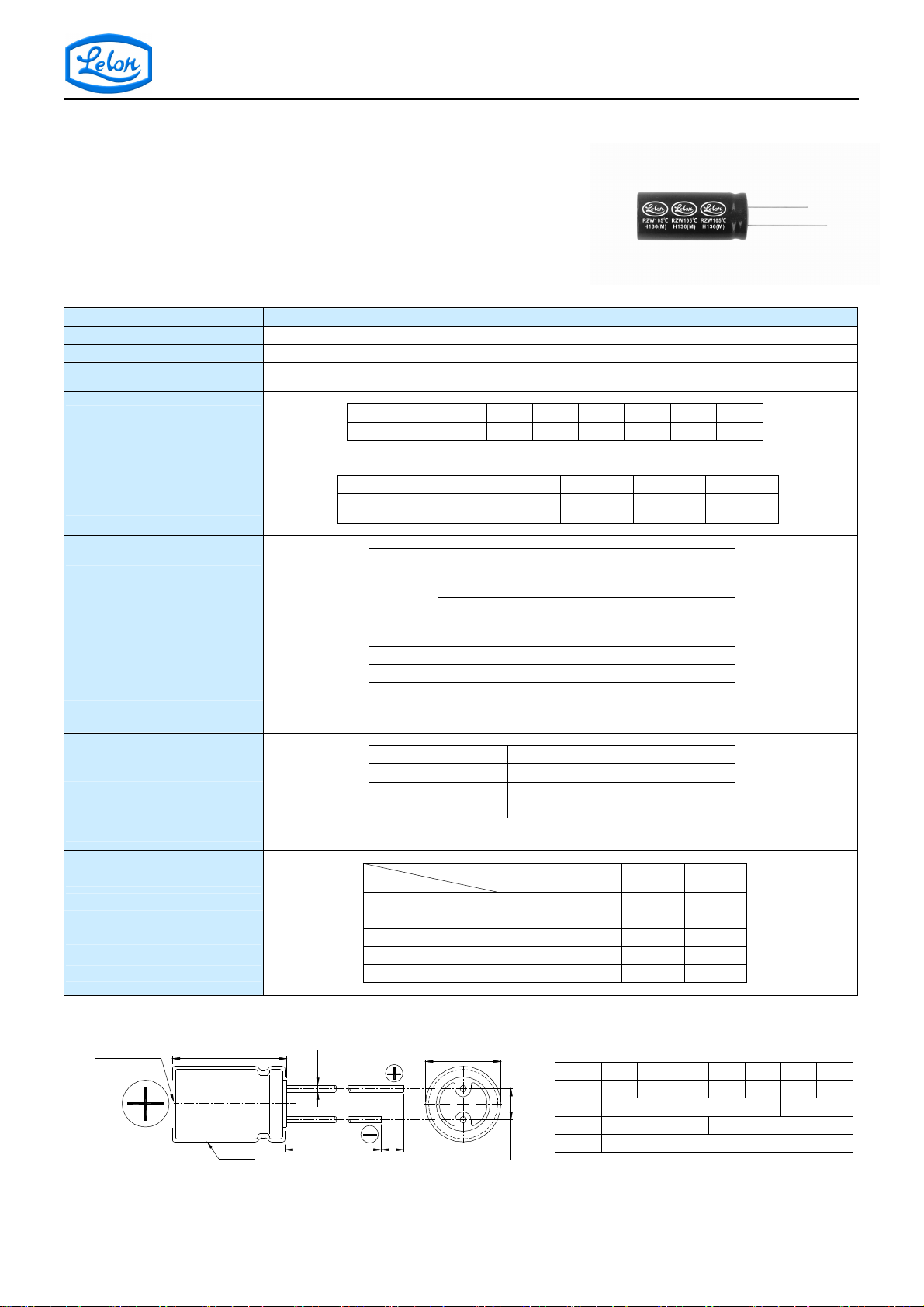

Features
‧
105℃, 4,000 ~ 10,000 hours assured
‧
Low ESR , suitable for switching power supplies
‧
Smaller size with large permissible ripple current
‧
RoHs Compliance
SPECIFICATIONS
Items Performance
Category Temperature Range
Capacitance Tolerance
Leakage Current (at 20℃)
Dissipation Factor
(Tanδ at 120 Hz, 20℃)
When the capacitance exceeds 1000µF, 0.02 shall be added every 1000µF increase.
Low Temperature
Characteristics (at 120Hz)
Endurance
Shelf Life Test
Ripple Current &
Frequency Multipliers
DIAGRAM OF DIMENSIONS
Vent≧6.3
LEAD SPACING AND DIAMETER Unit: mm
φ
L+α max
Sleeve
I = 0.01CV or 3 (µA) whichever is greater (after 2 minutes)
Where, C= rated capacitance in µF V = rated DC working voltage in V
16 ~ 63V
* The above specifications shall be satisfied when the capacitors are restored to 20℃ after the rated voltage
applied with rated ripple current for 4,000 ~ 10,000 hours at 105℃.
* The above specifications shall be satisfied when the capacitors are restored to 20℃ after exposing them for
1,000 hours at 105℃ without voltage applied.
Rated Voltage 6.3 10 16 25 35 50 63
Tanδ(max) 0.22 0.19 0.16 0.14 0.12 0.10 0.09
Impedance
Ratio
Cap.(µF)
d
φ
15 min
Sleeve & Marking Color: Black & Golden
-55℃ ~ +105℃
±20% (at 120Hz, 20℃)
Impedance ratio shall not exceed the values given in the table below.
Rated Voltage 6.3 10 16 25 35 50 63
Z(-55℃)/Z(+20℃)
6.3 ~ 10V
Time
Capacitance Change Within ±25% of initial value
Dissipation Factor Less than 200% of specified value
Leakage Current Within specified value
Test Time 1,000 Hrs
Capacitance Change Within ±25% of initial value
Dissipation Factor Less than 200% of specified value
Leakage Current Within specified value
Freq.(Hz)
under ~ 33 0.42 0.70 0.90 1.0
39 ~ 270 0.50 0.73 0.92 1.0
330 ~ 680 0.55 0.77 0.94 1.0
820 ~ 1,800 0.6 0.80 0.96 1.0
2,200 ~ 18,000 0.7 0.85 0.98 1.0
φD+β
max
4 min
3 3 3 3 3 3 3
4,000 Hrs for φD = 5 ~ 6.3 mm;
6,000 Hrs for φD = 8 ~ 10 mm;
8,000 Hrs for φD ≧ 12.5 mm
5,000 Hrs for φD = 5 ~ 6.3 mm;
7,000 Hrs for φD = 8 ~ 10 mm;
10,000 Hrs for φD ≧ 12.5 mm
120 1k 10k 100k up
φD
φd
0.5
±
P
5 6.3 8 10 12.5 16 18
P 2.0 2.5 3.5 5.0 5.0 7.5 7.5
0.5 0.6 0.8
α
β
1.0 1.5
0.5
2011 Version
Page 2
Aluminum Electrolytic Capacitors
RZW
Dimension: φD × L(mm)
DIMENSION & PERMISSIBLE RIPPLE CURRENT Ripple Current: mA/rms at 100k Hz, 105°C
V. DC
Contents
φD×L
µF
47 5×11 0.58 2.3 210
56 5×11 0.58 0.23 210
100 5×11 0.58 2.3 210 6.3×11 0.22 0.87 340
120 6.3×11 0.22 0.87 340
150 5×11 0.58 2.3 210
220 6.3×11 0.22 0.87 340 8×11.5 0.11 0.52 640
330 6.3×11 0.22 0.87 340 8×11.5 0.11 0.52 640
470 8×11.5 0.11 0.52 640
680 8×11.5 0.13 0.52 640
820 10×12.5 0.080 0.32 865 10×25 0.042 0.17 1,650
1,000 8×15 0.087 0.35 840
1,200
1500 10×20 0.046 0.18 1,400
1,800 12.5×16 0.049 0.16 1,450
2,200 10×25 0.042 0.17 1,650
2,700
3,300 12.5×20 0.035 0.12 1,900 12.5×25 0.027 0.089 2,230 12.5×35 0.020 0.065 2,880
3,900
4,700 12.5×30 0.024 0.078 2,650 12.5×35 0.020 0.065 2,880
5,600
6,800
8,200 16×31.5 0.017 0.050 3,450
10,000
12,000
15,000 18×35.5 0.014 0.038 4,220
18,000 18×40 0.012 0.032 4,280
Remark: The case size 12.5×16, 16×16, 16×20, 18×16, 18×20 and 18×25 are used flat type rubber bung.
8×20
10×16
10×30
16×16
12.5×25
18×16
12.5×35
16×20
12.5×40
16×25
18×20
16×35.5
18×25
16×40
18×31.5
6.3V (0J) 10V (1A) 16V (1C) 25V (1E)
Impedance
(Ω, Max/100KHz)
20
℃
-10
0.069
0.27
0.060
0.24
0.031
0.12
0.042
0.12
0.027
0.089
0.043
0.110
0.020
0.065
0.027
0.078
0.017
0.056
0.021
0.060
0.026
0.067
0.015
0.044
0.019
0.049
0.013
0.038
0.015
0.040
℃
Ripple
Current
(mA/rms, 105℃)
100k Hz
1,050
1,210
1,910
1,940
2,230
2,210
2,880
2,530
3,350
2,930
2,860
3,610
3,140
4,080
4,170
Impedance
8×15
8×20
(Ω, Max/100KHz)
20
℃
-10
0.083
0.080
0.064
0.060
0.042
0.049
0.031
0.035
0.042
0.024
0.078
0.027
0.078
0.017
0.056
0.021
0.060
0.026
0.067
0.017
0.050
0.019
0.049
0.015
0.044
0.015
0.040
0.013
0.038
0.014
0.038
φD×L
10×12.5
10×16
10×20 0.046 0.18 1,400 10×25 0.042 0.17 1,650 18×16 0.043 0.11 2,210
10×25
12.5×16
10×30
12.5×20
16×16
18×16 0.043 0.11 2,210
12.5×30
16×20
12.5×40
16×25
18×20
16×31.5
18×25
16×35.5
18×31.5
16×40
18×35.5
18×40 0.012 0.032 4,280
0.35
0.32
0.27
0.24
0.17
0.16
0.12
0.12
0.12
℃
Ripple
Current
(mA/rms, 105℃)
100k Hz
840
865
1,050
1,210
1,650
1,450
1,910
1,900
1,940
2,650
2,530
3,350
2,930
2,860
3,450
3,140
3,610
4,170
4,080
4,220
-10
0.35
0.32
0.27
0.24
0.18
0.16
0.12
0.12
0.12
0.089
0.11
0.078
0.078
0.056
0.060
0.067
0.050
0.049
0.044
0.040
℃
Ripple
Current
(mA/rms, 105℃)
100k Hz
840
865
1,050
1,210
1,400
1,450
1,910
1,900
1,940
2,230
2,210
2,650
2,530
3,350
2,930
2,860
3,450
3,140
3,610
4,170
φD×L
8×15
10×12.5
8×20
10×16
10×20
12.5×16
10×30
12.5×20
16×16
12.5×25 0.027 0.089 2,230
12.5×30
16×20
12.5×35
18×20
12.5×40
16×25
16×31.5
18×25
16×35.5
18×31.5
16×40
18×35.5
18×40 0.012 0.032 4,280
Impedance
8×15
8×20
(Ω, Max/100KHz)
20
℃
0.083
0.080
0.064
0.060
0.046
0.049
0.031
0.035
0.042
0.027
0.043
0.024
0.027
0.017
0.021
0.026
0.017
0.019
0.015
0.015
φD×L
10×12.5
10×16
10×20
12.5×16
10×30
12.5×20
16×16
12.5×25
18×16
12.5×30
16×20
12.5×40
16×25
18×20
16×31.5
18×25
16×35.5
18×31.5
16×40 0.013 0.038 4,080
18×35.5 0.014 0.038 4,220
18×40 0.012 0.032 4,280
Impedance
(Ω, Max/100KHz)
20
℃
-10
0.083
0.35
0.080
0.32
0.064
0.27
0.060
0.24
0.046
0.18
0.049
0.16
0.031
0.12
0.035
0.12
0.042
0.12
0.024
0.078
0.027
0.078
0.020
0.065
0.026
0.067
0.017
0.056
0.021
0.060
0.017
0.050
0.019
0.049
0.015
0.044
0.015
0.040
0.013
0.038
0.014
0.038
℃
Ripple
Current
(mA/rms, 105℃)
100k Hz
840
865
1,050
1,210
1,400
1,450
1,910
1,900
1,940
2,650
2,530
2,880
2,860
3,350
2,930
3,450
3,140
3,610
4,170
4,080
4,220
