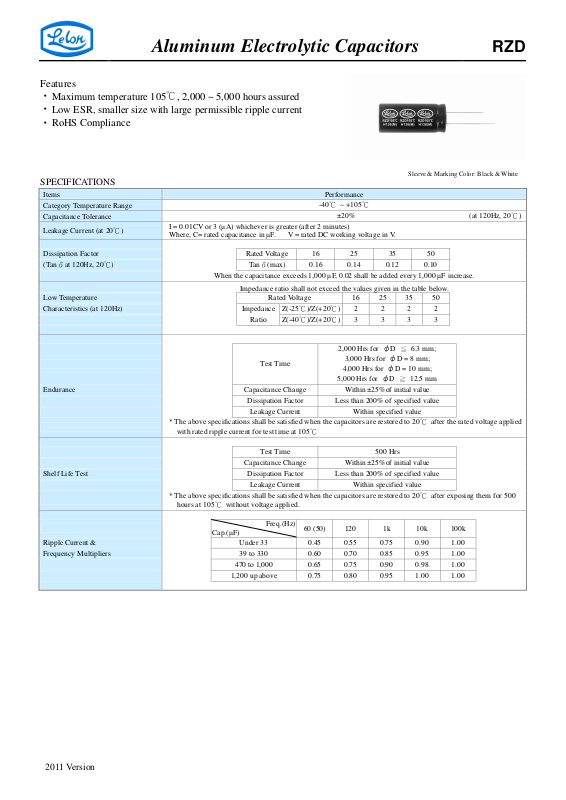

Page 1
Aluminum Electrolytic Capacitors
Features
‧
Maximum temperature 105℃, 2,000 ~ 5,000 hours assured
‧
Low ESR, smaller size with large permissible ripple current
‧
RoHS Compliance
SPECIFICATIONS
Items Performance
Category Temperature Range
Capacitance Tolerance
Leakage Current (at 20℃)
Dissipation Factor
(Tanδat 120Hz, 20℃)
Low Temperature Rated Voltage 16 25 35 50
Characteristics (at 120Hz) Impedance
Ratio
Test Time
Endurance Capacitance Change Within ±25%of initial value
Test Time 500 Hrs
Capacitance Change Within ±25%of initial value
Shelf Life Test Dissipation Factor Less than 200% of specified value
Leakage Current Within specified value
Ripple Current & Under 33 0.45 0.55 0.75 0.90 1.00
Frequency Multipliers 39 to 330 0.60 0.70 0.85 0.95 1.00
470 to 1,000 0.65 0.75 0.90 0.98 1.00
1,200 up above 0.75 0.80 0.95 1.00 1.00
I = 0.01CV or 3 (µA) whichever is greater (after 2 minutes)
Where, C= rated capacitance in µF. V = rated DC working voltage in V.
When the capacitance exceeds 1,000 µF, 0.02 shall be added every 1,000 µF increase.
* The above specifications shall be satisfied when the capacitors are restored to 20℃ after the rated voltage applied
with rated ripple current for test time at 105℃
* The above specifications shall be satisfied when the capacitors are restored to 20℃ after exposing them for 500
hours at 105℃ without voltage applied.
Cap.(µF)
Rated Voltage 16 25 35 50
Tanδ(max)
Impedance ratio shall not exceed the values given in the table below.
Dissipation Factor Less than 200% of specified value
Leakage Current Within specified value
Freq.(Hz)
Sleeve & Marking Color: Black & White
-40℃ ~ +105℃
±20% (at 120Hz, 20℃)
0.16 0.14 0.12 0.10
Z(-25℃)/Z(+20℃)
Z(-40℃)/Z(+20℃)
60 (50) 120 1k 10k 100k
2 2 2 2
3 3 3 3
2,000 Hrs for φD ≦ 6.3 mm;
3,000 Hrs for φD = 8 mm;
4,000 Hrs for φD = 10 mm;
5,000 Hrs for φD ≧ 12.5 mm
RZD
2011 Version
Page 2
Aluminum Electrolytic Capacitors
RZD
DIAGRAM OF DIMENSIONS
Vent≧6.3
LEAD SPACING AND DIAMETER Unit: mm
φ
L+α max
Sleeve
Dimension: φD × L(mm)
DIMENSION & PERMISSIBLE RIPPLE CURRENT
µF
µF
V. DC
Contents
33
47
56
100
120
150
220
270
330
470
560
680
820
1,000
1,200
1,500
1,800
2,200
2,700
3,300
3,900
Contents
22
56
100
120
180
150
220
270
330
470
560
680
820
1,000
φD×L
5×11
6.3×11
8×11.5
8×15
10×12.5
8×20
10×16
10×20
10×25
12.5×20
12.5×25
12.5×30
12.5×35
16×25
V. DC
φD×L
5×11
6.3×11
8×11.5
8×15
8×20
10×12.5
10×16
10×20
10×25
12.5×20
12.5×25
12.5×30
12.5×35
16×25
16V (1C) 25V (1E) 35V (1V)
Impedance
(Ω, Max/100K Hz)
20℃ -10℃ 120 Hz 100k Hz
0.3 1.0 175 250
0.13 0.41 284 405
0.07 0.22 570 760
0.056 0.17 746 995
0.053 0.16 773 1,030
0.041 0.13 1,000 1,250
0.038 0.12 1,144 1,430
0.023 0.069 1,456 1,820
0.022 0.066 1,720 2,150
0.021 0.053 1,888 2,360
0.018 0.045 2,216 2,770
0.016 0.041 2,632 3,290
0.015 0.039 2,720 3,400
0.016 0.043 2,768 3,460
50V (1H)
Impedance
(Ω, Max/100K Hz)
20℃ -10℃ 120 Hz 100k Hz
0.34 1.18 131 238
0.14 0.50 270 385
0.074 0.22 507 724
0.061 0.18 665 950
0.046 0.14 833 1,190
0.061 0.18 685 979
0.042 0.12 959 1370
0.030 0.090 1,106 1,580
0.028 0.085 1,309 1,870
0.027 0.068 1,538 2,050
0.023 0.059 1,808 2,410
0.021 0.052 2,155 2,860
0.019 0.051 2,220 2,960
0.021 0.056 2,258 3,010
d
φ
15 min
Ripple Current
(mA/rms, 105 )℃
Ripple Current
(mA/rms, 105 )℃
φD+β
max
φD
5 6.3 8 10 12.5 16
P 2.0 2.5 3.5 5.0 7.5
0.5 0.6 0.8
1.0 1.5
0.5
4 min
φd
α
0.5
±
P
β
Ripple Current: mA/rms at 100k Hz, 105°C
Impedance
φD×L
6.3×11
8×11.5
10×12.5
12.5×20
12.5×25
12.5×30
12.5×35
(Ω, Max/100K Hz)
20℃ -10
5×11
8×15
8×20
10×16
10×20
10×25
16×25
0.30 1.0 175 250
0.13 0.41 284 405
0.07 0.22 570 760
0.056 0.17 746 995
0.053 0.16 773 1,030
0.041 0.13 1,000 1,250
0.038 0.12 1,144 1,430
0.023 0.069 1,456 1,820
0.022 0.066 1,720 2,150
0.021 0.053 1,888 2,360
0.018 0.045 2,216 2,770
0.016 0.041 2,632 3,290
0.016 0.043 2,768 3,460
0.015 0.039 2,720 3,400
Ripple Current
(mA/rms, 105℃)
℃
120 Hz 100k Hz
Impedance
φD×L
6.3×11
8×11.5
10×12.5
12.5×20
12.5×25
12.5×30
12.5×35
(Ω, Max/100K Hz)
20℃ -10
5×11
8×15
8×20
10×16
10×20
10×25
16×25
0.3 1.0 175 250
0.13 0.41 284 405
0.07 0.22 570 760
0.056 0.17 746 995
0.053 0.16 773 1,030
0.041 0.13 1,000 1,250
0.038 0.12 1,144 1,430
0.023 0.069 1,456 1,820
0.022 0.066 1,720 2,150
0.021 0.053 1,888 2,360
0.018 0.045 2,216 2,770
0.016 0.041 2,632 3,290
0.015 0.039 2,720 3,400
0.016 0.043 2,768 3,460
Ripple Current
(mA/rms, 105℃)
℃
120 Hz 100k Hz
2011 Verison
