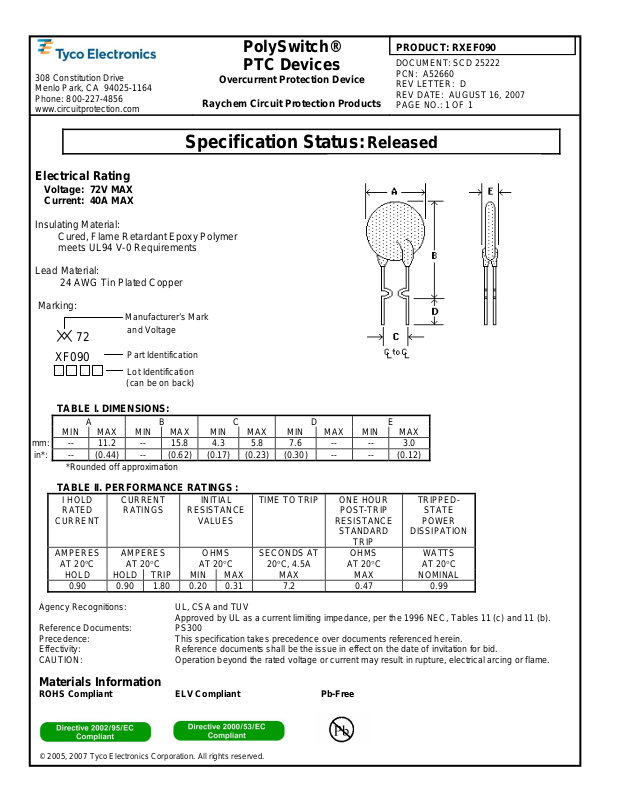

Page 1
308 Constitution Drive
Menlo Park, CA 94025-1164
Phone: 800-227-4856
www.circuitprotection.com
Raychem Circuit Protection Products
Specification Status: Released
Electrical Rating
Voltage: 72V MAX
Current: 40A MAX
Insulating Material:
Cured, Flame Retardant Epoxy Polymer
meets UL94 V-0 Requirements
Lead Material:
24 AWG Tin Plated Copper
Marking:
72
Manufacturer’s Mark
and Voltage
PolySwitch®
PTC Devices
Overcurrent Protection Device
PRODUCT: RXEF090
DOCUMENT: SCD 25222
PCN: A52660
REV LETTER: D
REV DATE: AUGUST 16, 2007
PAGE NO.: 1 OF 1
XF090
Part Identification
Lot Identification
(can be on back)
TABLE I. DIMENSIONS:
A B C D E
MIN MAX MIN MAX MIN MAX MIN MAX MIN MAX
mm: -- 11.2 -- 15.8 4.3 5.8 7.6 -- -- 3.0
in*: -- (0.44) -- (0.62) (0.17) (0.23) (0.30) -- -- (0.12)
*Rounded off approximation
TABLE II. PERFORMANCE RATINGS :
I HOLD
RATED
CURRENT
AMPERES
AT 20°C
HOLD HOLD TRIP MIN MAX MAX MAX NOMINAL
0.90 0.90 1.80 0.20 0.31 7.2 0.47 0.99
Agency Recognitions: UL, CSA and TUV
Approved by UL as a current limiting impedance, per the 1996 NEC, Tables 11 (c) and 11 (b).
Reference Documents: PS300
Precedence: This specification takes precedence over documents referenced herein.
Effectivity: Reference documents shall be the issue in effect on the date of invitation for bid.
CAUTION: Operation beyond the rated voltage or current may result in rupture, electrical arcing or flame.
CURRENT
RATINGS
AMPERES
AT 20°C
INITIAL
RESISTANCE
VALUES
OHMS
AT 20°C
TIME TO TRIP ONE HOUR
POST-TRIP
RESISTANCE
STANDARD
TRIP
SECONDS AT
20°C, 4.5A
OHMS
AT 20°C
TRIPPED-
STATE
POWER
DISSIPATION
WATTS
AT 20°C
Materials Information
ROHS Compliant ELV Compliant Pb-Free
© 2005, 2007 Tyco Electronics Corporation. All rights reserved.
