Page 1

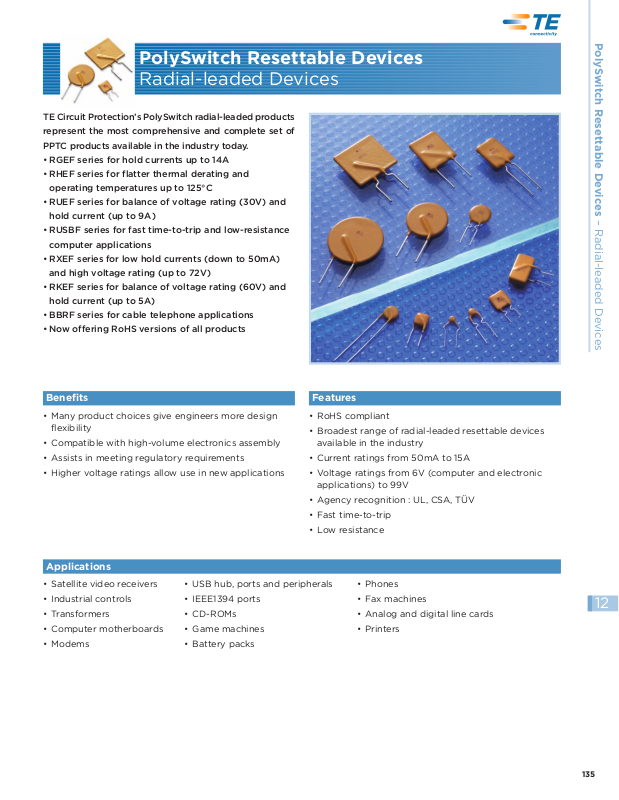

PolySwitch Resettable Devices
Radial-leaded Devices
TE Circuit Protection’s PolySwitch radial-leaded products
represent the most comprehensive and complete set of
PPTC products available in the industry today.
• RGEF series for hold currents up to 14A
• RHEF series for flatter thermal derating and
• RUEF series for balance of voltage rating (30V) and
hold current (up to 9A)
• RUSBF series for fast time-to-trip and low-resistance
computer applications
• RXEF series for low hold currents (down to 50mA)
and high voltage rating (up to 72V)
• RKEF series for balance of voltage rating (60V) and
hold current (up to 5A)
• BBRF series for cable telephone applications
• Now offering RoHS versions of all products
PolySwitch Resettable Devices – Radial-leaded Devices
Benefits Features
• Many product choices give engineers more design flexibility
• Compatible with high-volume electronics assembly
• Assists in meeting regulatory requirements
• Higher voltage ratings allow use in new applications
• RoHS compliant
• Broadest range of radial-leaded resettable devices available in the industry
• Current ratings from 50mA to 15A
• Voltage ratings from 6V (computer and electronic applications) to 99V
• Agency recognition : UL, CSA, TÜV
• Fast time-to-trip
• Low resistance
Applications
• Satellite video receivers
• Industrial controls
• Transformers
• Computer motherboards
• Modems
• USB hub, ports and peripherals
• IEEE1394 ports
• CD-ROMs
• Game machines
• Battery packs
• Phones
• Fax machines
• Analog and digital line cards
• Printers
12
135
Page 2
Application Selection Guide for Radial-leaded Devices
The guide below lists PolySwitch radial-leaded devices that are typically used in these applications. Specifications for the suggested device part numbers can be found in this section. Once a part number has been selected, the user should evaluate and test each product for its intended application.
PolySwitch Resettable Devices — Key Selection Criteria
Protection Application
Electromagnetic loads RGEF (<16V), RUEF (<30V) RHEF (<16V) RXEF (<72V), RKEF(<60V)
Halogen lighting RGEF (<16V), RUEF (<30V) RHEF (<16V) RXEF (<72V), RKEF(<60V)
Lighting ballast RXEF (<72V), BBRF (<99V)
Loudspeakers RXEF (<72V) RXEF (<72V), RKEF(<60V)
Medical equipment RGEF (<16V), RUEF (<30V) RHEF (<16V) RXEF (<72V), RKEF(<60V)
MOSFET devices RGEF (<16V), RUEF (<30V) RHEF (<16V) RXEF (<72V), RKEF(<60V)
Motors, fans and blowers RXEF (<72V), RGEF (<16V) RHEF (<16V)
POS equipment RXEF (<72V), RUEF (<30V)
Process and industrial controls RXEF (<72V), RUEF (<30V)
Satellite video receivers RGEF (<16V), RUEF (<30V) RHEF (<16V) RXEF (<72V), RKEF(<60V)
Security and fire alarm systems RGEF (<16V), RUEF (<30V) RHEF (<16V) RXEF (<72V), RKEF(<60V)
Test and measurement equipment RGEF (<16V), RUEF (<30V) RHEF (<16V) RXEF (<72V), RKEF(<60V)
Transformers RGEF (<16V), RUEF (<30V) RHEF (<16V) RXEF (<72V), RKEF(<60V)
DDC computer and consumer electronics RUEF (<30V)
Mouse and keyboard RUEF (<30V)
SCSI RUEF (<30V)
USB RUSBF (<16V)
Traces and printed circuit board protection RGEF (<16V), RUEF (<30V) RHEF (<16V) RXEF (<72V), RKEF(<60V)
Note : This list is not exhaustive. TE Circuit Protection welcomes customer's input for additional application ideas for PolySwitch resettable devices.
Small Size Derating Higher Voltage
Flatter Lower Current
12
Table R1
Voltage Rating
Hold Current (A)
0.050 ———9.20Ω — —— ———
0.100 ———3.50Ω — —— ———
0.170 ———4.30Ω — —— ———
0.200 — 2.290Ω —— — —— — ——
0.250 — 1.600Ω —— — —— — ——
0.300 — 1.110Ω —— — —— — ——
0.400 — 0.710Ω —— — —— — ——
0.500 — 0.640Ω 0.425Ω ————0.68Ω ——
0.550 1.05Ω — —— — —— — ——
0.650 — 0.400Ω 0.350Ω —— —— — ——
0.700 ———————0.42Ω ——
0.750 — 0.325Ω 0.295Ω ——————0.140Ω
0.900 — 0.255Ω 0.255Ω — 0.095Ω —— —0.100Ω —
1.000 ———————0.24Ω ——
1.100 — 0.200Ω 0.225Ω — 0.075Ω —— —0.075Ω —
1.200 —————————0.080Ω
1.350 — 0.155Ω 0.165Ω — 0.060Ω —— —0.060Ω —
1.550 —————————0.058Ω
1.600 — 0.115Ω 0.150Ω — 0.050Ω —— —0.050Ω —
1.850 — 0.100Ω 0.106Ω — 0.045Ω —— —0.045Ω —
1.900 — — —— — —— — ——
Product Series - Current Rating, Voltage Rating / Typical Resistance for Radial-leaded Devices
BBRF
99V
RXEF
72V
RKEF
60V
RXEF
60V
RUEF
30V
RGEF
16V
RHEF
16V
RHEF
30V
RUSBF
16V
RUSBF
6V
136
RoHS Compliant, ELV Compliant
Page 3
Table R1
Product Series - Current Rating, Voltage Rating / Typical Resistance for Radial-leaded Devices
PolySwitch Resettable Devices – Radial-leaded Devices
Cont’d
Voltage Rating
Hold Current (A)
2.000 ——————0.0610Ω ———
2.500 — 0.065Ω 0.063Ω — 0.030Ω 0.0380Ω ——0.030Ω —
3.000 — 0.050Ω 0.040Ω — 0.035Ω 0.0514Ω 0.0430Ω ———
3.750 — 0.040Ω 0.029Ω ————— ——
4.000 ——0.026Ω — 0.020Ω 0.0300Ω 0.0320Ω ———
4.500 ——————0.0290Ω ———
5.000 ——0.021Ω — 0.020Ω 0.0192Ω —— ——
5.500 ——————0.0200Ω ———
6.000 ————0.013Ω 0.0145Ω 0.0175Ω ———
6.500 ——————0.0144Ω ———
7.000 ————0.013Ω 0.0105Ω 0.0132Ω ———
7.500 ——————0.0120Ω ———
8.000 ————0.013Ω 0.0086Ω 0.0110Ω ———
9.000 ————0.008Ω 0.0070Ω 0.0100Ω ———
10.00 —————0.0056Ω 0.0083Ω ———
11.00 —————0.0050Ω 0.0073Ω ———
12.00 —————0.0046Ω —— ——
13.00 ——————0.0055Ω ———
14.00 —————0.0040Ω 0.0050Ω ———
15.00 ——————0.0050Ω ———
BBRF
99V
RXEF
72V
RKEF
60V
RXEF
60V
RUEF
30V
RGEF
16V
RHEF
16V
RHEF
30V
RUSBF
16V
RUSBF
6V
Table R2
Part Number -40°C -20°C 0°C 20°C 25°C 40°C 50°C 60°C 70°C 85°C 125°C
BBRF 99V
BBRF550 0.85 0.75 0.65 0.55 — 0.45 0.40 0.35 0.30 0.22 —
RXEF 60V
RXEF005 0.078 0.068 0.06 0.05 0.048 0.04 0.035 0.032 0.027 0.02 — RXEF010 0.160 0.140 0.11 0.10 0.096 0.08 0.072 0.067 0.050 0.04 — RXEF017 0.260 0.230 0.21 0.17 0.160 0.14 0.120 0.110 0.090 0.07 —
RXEF 72V
RXEF020 0.31 0.27 0.24 0.20 0.19 0.16 0.14 0.13 0.11 0.08 — RXEF025 0.39 0.34 0.30 0.25 0.24 0.20 0.18 0.16 0.14 0.10 — RXEF030 0.47 0.41 0.36 0.30 0.29 0.24 0.22 0.20 0.16 0.12 — RXEF040 0.62 0.54 0.48 0.40 0.38 0.32 0.29 0.25 0.22 0.16 — RXEF050 0.78 0.68 0.60 0.50 0.48 0.41 0.36 0.32 0.27 0.20 — RXEF065 1.01 0.88 0.77 0.65 0.62 0.53 0.47 0.41 0.35 0.26 — RXEF075 1.16 1.02 0.89 0.75 0.72 0.61 0.54 0.47 0.41 0.30 — RXEF090 1.40 1.22 1.07 0.90 0.86 0.73 0.65 0.57 0.49 0.36 — RXEF110 1.71 1.50 1.31 1.10 1.06 0.89 0.79 0.69 0.59 0.44 — RXEF135 2.09 1.84 1.61 1.35 1.30 1.09 0.97 0.85 0.73 0.54 — RXEF160 2.48 2.18 1.90 1.60 1.54 1.30 1.15 1.01 0.86 0.64 — RXEF185 2.87 2.52 2.20 1.85 1.78 1.50 1.33 1.17 1.00 0.74 — RXEF250 3.88 3.40 2.98 2.50 2.40 2.03 1.80 1.58 1.35 1.00 — RXEF300 4.65 4.08 3.57 3.00 2.88 2.43 2.16 1.89 1.62 1.20 — RXEF375 5.81 5.10 4.46 3.75 3.60 3.04 2.70 2.36 2.03 1.50 —
Thermal Derating for Radial-leaded Devices [Hold Current (A) at Ambient Temperature (°C)]
Maximum AmbientTemperature
12
RoHS Compliant, ELV Compliant
137
Page 4
12
Table R2
Part Number -40°C -20°C 0°C 20°C 25°C 40°C 50°C 60°C 70°C 85°C 125°C
RKEF 60V
RKEF050 0.73 0.65 0.58 0.50 0.48 0.42 0.38 0.34 0.31 0.26 — RKEF065 0.94 0.85 0.75 0.65 0.63 0.54 0.50 0.44 0.40 0.34 — RKEF075 1.09 0.98 0.86 0.75 0.73 0.62 0.58 0.51 0.46 0.39 — RKEF090 1.30 1.17 1.04 0.90 0.87 0.75 0.69 0.61 0.55 0.47 — RKEF110 1.60 1.43 1.27 1.10 1.06 0.92 0.85 0.75 0.67 0.57 — RKEF135 1.96 1.76 1.55 1.35 1.31 1.12 1.04 0.92 0.83 0.71 — RKEF160 2.32 2.08 1.84 1.60 1.55 1.33 1.23 1.08 0.98 0.83 — RKEF185 2.68 2.41 2.13 1.85 1.79 1.54 1.43 1.26 1.13 0.96 — RKEF250 3.63 3.25 2.88 2.50 2.43 2.08 1.93 1.70 1.52 1.31 — RKEF300 4.35 3.90 3.45 3.00 2.91 2.50 2.30 2.04 1.84 1.55 — RKEF375 5.44 4.88 4.31 3.75 3.64 3.11 2.90 2.54 2.29 1.94 — RKEF400 5.80 5.20 4.60 4.00 3.88 3.32 3.08 2.73 2.45 2.08 — RKEF500 7.25 6.50 5.75 5.00 4.85 4.15 3.85 3.41 3.06 2.59 —
RUEF 30V
RUEF090 1.31 1.17 1.04 0.90 0.87 0.75 0.69 0.61 0.55 0.47 — RUEF110 1.60 1.43 1.27 1.10 1.07 0.91 0.85 0.75 0.67 0.57 — RUEF135 1.96 1.76 1.55 1.35 1.31 1.12 1.04 0.92 0.82 0.70 — RUEF160 2.32 2.08 1.84 1.60 1.55 1.33 1.23 1.09 0.98 0.83 — RUEF185 2.68 2.41 2.13 1.85 1.79 1.54 1.42 1.26 1.13 0.96 — RUEF250 3.63 3.25 2.88 2.50 2.43 2.08 1.93 1.70 1.53 1.30 — RUEF300 4.35 3.90 3.45 3.00 2.91 2.49 2.31 2.04 1.83 1.56 — RUEF400 5.80 5.20 4.60 4.00 3.88 3.32 3.08 2.72 2.44 2.08 — RUEF500 7.25 6.50 5.75 5.00 4.85 4.15 3.85 3.40 3.05 2.60 — RUEF600 8.70 7.80 6.90 6.00 5.82 4.98 4.62 4.08 3.66 3.12 — RUEF700 10.15 9.10 8.05 7.00 6.79 5.81 5.39 4.76 4.27 3.64 — RUEF800 11.60 10.40 9.20 8.00 7.76 6.64 6.16 5.44 4.88 4.16 — RUEF900 13.05 11.70 10.35 9.00 8.73 7.47 6.93 6.12 5.49 4.68 —
RHEF 30V - High Temperature
RHEF050 0.68 0.62 0.56 0.51 0.50 0.44 0.40 0.36 0.34 0.28 0.12 RHEF070 0.95 0.87 0.79 0.72 0.70 0.62 0.56 0.51 0.47 0.39 0.17 RHEF100 1.36 1.24 1.13 1.03 1.00 0.89 0.80 0.73 0.67 0.56 0.24
RUSBF 16V
RUSBF090 1.31 1.17 1.04 0.90 0.87 0.75 0.69 0.61 0.55 0.47 — RUSBF110 1.60 1.43 1.27 1.10 1.07 1.00 0.92 0.75 0.67 0.57 — RUSBF135 1.96 1.76 1.55 1.35 1.31 1.12 1.04 0.92 0.82 0.70 — RUSBF160 2.32 2.08 1.84 1.60 1.55 1.33 1.23 1.09 0.98 0.83 — RUSBF185 2.68 2.41 2.13 1.85 1.79 1.54 1.42 1.26 1.13 0.96 — RUSBF250 3.63 3.25 2.88 2.50 2.43 2.08 1.93 1.70 1.53 1.30 —
RGEF 16V
RGEF250 3.7 3.3 3.0 2.6 2.50 2.2 2.0 1.8 1.6 1.2 — RGEF300 4.4 4.0 3.6 3.1 3.00 2.6 2.4 2.1 1.9 1.4 — RGEF400 5.9 5.3 4.8 4.1 4.00 3.5 3.2 2.8 2.5 1.9 — RGEF500 7.3 6.6 6.0 5.2 5.00 4.4 4.0 3.6 3.1 2.4 — RGEF600 8.8 8.0 7.2 6.2 6.00 5.2 4.8 4.2 3.8 2.8 — RGEF700 10.3 9.3 8.4 7.3 7.00 6.2 5.6 5.0 4.4 3.3 — RGEF800 11.7 10.7 9.6 8.3 8.00 6.9 6.4 5.6 5.1 3.7 — RGEF900 13.2 11.9 10.7 9.4 9.00 7.9 7.2 6.4 5.6 4.2 — RGEF1000 14.7 13.3 12.0 10.3 10.00 8.7 8.0 7.0 6.3 4.7 — RGEF1100 16.1 14.6 13.1 11.5 11.00 9.7 8.8 7.8 6.9 5.2 — RGEF1200 17.6 16.0 14.4 12.4 12.00 10.4 9.6 8.4 7.6 5.6 — RGEF1400 20.5 18.7 16.8 14.5 14.00 12.1 11.2 9.8 8.9 6.5 —
Thermal Derating for Radial-leaded Devices [Hold Current (A) at Ambient Temperature (°C)]
Maximum AmbientTemperature
Cont’d
138
RoHS Compliant, ELV Compliant
Page 5
% of rated hold and trip current
Ambient Temperature (˚C)
200
150
100
50
0
-40 -20 0 20 40 60 80
Table R2
Part Number -40°C -20°C 0°C 20°C 25°C 40°C 50°C 60°C 70°C 85°C 125°C
RHEF 16V - High Temperature
RHEF200 2.71 2.49 2.26 2.06 2.00 1.77 1.60 1.46 1.34 1.11 0.49 RHEF300 4.07 3.74 3.41 3.09 3.00 2.65 2.40 2.21 2.00 1.66 0.74 RHEF400 5.57 5.11 4.65 4.22 4.00 3.62 3.29 3.01 2.73 2.27 1.01 RHEF450 6.10 5.60 5.10 4.60 4.50 4.00 3.60 3.30 3.00 2.50 1.10 RHEF550 7.47 6.86 6.24 5.66 5.50 4.85 4.41 4.04 3.66 3.05 1.36 RHEF600 8.20 7.50 6.80 6.20 6.00 5.30 4.90 4.40 4.00 3.30 1.50 RHEF650 8.80 8.10 7.40 6.70 6.50 5.70 5.30 4.80 4.30 3.60 1.60 RHEF700 9.51 8.73 7.95 7.20 7.00 6.17 5.61 5.15 4.66 3.88 1.73 RHEF750 10.20 9.40 8.60 7.70 7.50 6.60 6.10 5.60 5.00 4.10 1.90 RHEF800 10.87 9.98 9.08 8.23 8.00 7.06 6.41 5.88 5.33 4.43 1.97 RHEF900 12.21 11.19 10.16 9.26 9.00 7.97 7.20 6.56 6.04 5.01 2.19 RHEF1000 13.60 12.50 11.40 10.30 10.00 8.80 8.10 7.40 6.60 5.50 2.50 RHEF1100 14.94 13.72 12.49 11.31 11.00 9.70 8.82 8.09 7.32 6.09 2.71 RHEF1300 17.70 16.30 14.80 13.40 13.00 11.40 10.50 9.60 8.60 7.20 3.30 RHEF1400 19.01 17.46 15.89 14.40 14.00 12.35 11.22 10.29 9.32 7.76 3.45 RHEF1500 20.40 18.80 17.10 15.50 15.00 13.20 12.10 11.10 9.90 8.30 3.80
RUSBF 6V
RUSBF075 1.05 0.95 0.85 0.75 0.73 0.65 0.60 0.55 0.50 0.43 — RUSBF120 1.69 1.52 1.36 1.20 1.16 1.04 0.96 0.88 0.80 0.68 — RUSBF155 2.17 1.96 1.75 1.55 1.50 1.34 1.24 1.14 1.03 0.88 —
Thermal Derating for Radial-leaded Devices [Hold Current (A) at Ambient Temperature (°C)]
Maximum AmbientTemperature
PolySwitch Resettable Devices – Radial-leaded Devices
Cont’d
Figure R1-R5 Thermal Derating Curve for Radial-leaded Devices
RXEF and BBRF
RoHS Compliant, ELV Compliant
Figure R1
12
139
Page 6
% of rated hold and trip current
Ambient Temperature (˚C)
200
150
100
50
0
-40 -20 0 20 40 60 80
-40 -20 0 60402080100120
% of Rated Hold andTr i p Current
Ambient Temperature (˚C)
200
150
100
50
0
% of Rated Hold andTr i p Current
Ambient Temperature (˚C)
200
150
100
50
0
-40 -20 0 20 40 60 80
A
A
B
B
Figure R1-R5 Thermal Derating Curve for Radial-leaded Devices
Cont’d
RKEF
A= RUSBF075,
RUSBF120,
RUSBF155
B= RUEF,
and all other RUSBF
Figure R2
Figure R3
RHEF
12
140
RoHS Compliant, ELV Compliant
Figure R4
Page 7
-40 -20 0 20 40 60 80
% of Rated Hold andTr i p Current
Ambient Temperature (˚C)
200
150
100
50
0
Figure R1-R5 Thermal Derating Curve for Radial-leaded Devices
PolySwitch Resettable Devices – Radial-leaded Devices
Cont’d
RGEF
Table R3 Electrical Characteristics for Radial-leaded Devices
Figure R5
Part Number
(A)
(A)
V
T
MAX
(V)
I
H
I
MAX
(A)
P
D Typ
(W)
Max.Time-to-trip
(A) (s)
R
(Ω)
MIN
R
MAX
(Ω)
R
1MAX
(Ω)
Lead Size
[mm2(AWG)]
I
BBRF 99V
BBRF550 0.55 1.10 99 20 1.5 1.60 60 0.8 1.30 1.95 [0.520mm2(20)]
RXEF 60V
RXEF005 0.05 0.10 60 40 0.22 0.25 5.0 7.3 11.10 20.00 [0.128mm2(26)] RXEF010 0.10 0.20 60 40 0.38 0.50 4.0 2.5 4.50 7.50 [0.205mm2(24)] RXEF017 0.17 0.34 60 40 0.48 0.85 3.0 3.3 5.21 8.00 [0.205mm2(24)]
RXEF 72V
RXEF020 0.20 0.40 72 40 0.41 1.00 2.2 1.83 2.75 4.40 [0.205mm2(24)] RXEF025 0.25 0.50 72 40 0.45 1.25 2.5 1.25 1.95 3.00 [0.205mm2(24)] RXEF030 0.30 0.60 72 40 0.49 1.50 3.0 0.88 1.33 2.10 [0.205mm2(24)] RXEF040 0.40 0.80 72 40 0.56 2.00 3.8 0.55 0.86 1.29 [0.205mm2(24)] RXEF050 0.50 1.00 72 40 0.77 2.50 4.0 0.50 0.77 1.17 [0.205mm2(24)] RXEF065 0.65 1.30 72 40 0.88 3.25 5.3 0.31 0.48 0.72 [0.205mm2(24)] RXEF075 0.75 1.50 72 40 0.92 3.75 6.3 0.25 0.40 0.60 [0.205mm2(24)] RXEF090 0.90 1.80 72 40 0.99 4.50 7.2 0.20 0.31 0.47 [0.205mm2(24)] RXEF110 1.10 2.20 72 40 1.50 5.50 8.2 0.15 0.25 0.38 [0.520mm2(20)] RXEF135 1.35 2.70 72 40 1.70 6.75 9.6 0.12 0.19 0.30 [0.520mm2(20)] RXEF160 1.60 3.20 72 40 1.90 8.00 11.4 0.09 0.14 0.22 [0.520mm2(20)] RXEF185 1.85 3.70 72 40 2.10 9.25 12.6 0.08 0.12 0.19 [0.520mm2(20)] RXEF250 2.50 5.00 72 40 2.50 12.50 15.6 0.05 0.08 0.13 [0.520mm2(20)] RXEF300 3.00 6.00 72 40 2.80 15.00 19.8 0.04 0.06 0.10 [0.520mm2(20)] RXEF375 3.75 7.50 72 40 3.20 18.75 24.0 0.03 0.05 0.08 [0.520mm2(20)]
12
RoHS Compliant, ELV Compliant
141
Page 8
12
Table R3 Electrical Characteristics for Radial-leaded Devices
I
Part Number
(A)
I
H
(A)
V
T
MAX
(V)
RKEF 60V
RKEF050 0.50 1.00 60 40 1.00 8.00 0.8 0.320 0.529 0.900 [0.205mm2(24)] RKEF065 0.65 1.30 60 40 1.25 8.00 1.0 0.250 0.450 0.720 [0.205mm2(24)] RKEF075 0.75 1.50 60 40 1.40 8.00 1.5 0.200 0.390 0.640 [0.205mm2(24)] RKEF090 0.90 1.80 60 40 1.50 8.00 2.0 0.190 0.320 0.520 [0.205mm2(24)] RKEF110 1.10 2.20 60 40 2.20 8.00 3.0 0.170 0.280 0.470 [0.520mm2(20)] RKEF135 1.35 2.70 60 40 2.30 8.00 4.5 0.110 0.220 0.370 [0.520mm2(20)] RKEF160 1.60 3.20 60 40 2.40 8.20 9.0 0.100 0.200 0.320 [0.520mm2(20)] RKEF185 1.85 3.70 60 40 2.60 9.25 12.6 0.060 0.152 0.250 [0.520mm2(20)] RKEF250 2.50 5.00 60 40 2.80 12.50 15.6 0.040 0.085 0.140 [0.520mm2(20)] RKEF300 3.00 6.00 60 40 3.20 15.00 19.8 0.030 0.050 0.080 [0.520mm2(20)] RKEF375 3.75 7.50 60 40 3.40 18.75 22.0 0.017 0.040 0.060 [0.520mm2(20)] RKEF400 4.00 8.00 60 40 3.70 20.00 24.0 0.014 0.038 0.060 [0.520mm2(20)] RKEF500 5.00 10.00 60 40 5.00 25.00 28.0 0.012 0.030 0.050 [0.520mm2(20)]
RUEF 30V
RUEF090 0.90 1.80 30 100 0.60 4.50 5.9 0.070 0.120 0.22 [0.205mm2(24)] RUEF110 1.10 2.20 30 100 0.70 5.50 6.6 0.070 0.100 0.17 [0.205mm2(24)] RUEF135 1.35 2.70 30 100 0.80 6.75 7.3 0.040 0.080 0.13 [0.205mm2(24)] RUEF160 1.60 3.20 30 100 0.90 8.00 8.0 0.030 0.070 0.11 [0.205mm2(24)] RUEF185 1.85 3.70 30 100 1.00 9.25 8.7 0.030 0.060 0.09 [0.205mm2(24)] RUEF250 2.50 5.00 30 100 1.20 12.50 10.3 0.020 0.040 0.07 [0.205mm2(24)] RUEF300 3.00 6.00 30 100 2.00 15.00 10.8 0.020 0.050 0.08 [0.520mm2(20)] RUEF400 4.00 8.00 30 100 2.50 20.00 12.7 0.010 0.030 0.05 [0.520mm2(20)] RUEF500 5.00 10.00 30 100 3.00 25.00 14.5 0.010 0.030 0.05 [0.520mm2(20)] RUEF600 6.00 12.00 30 100 3.50 30.00 16.0 0.005 0.020 0.04 [0.520mm2(20)] RUEF700 7.00 14.00 30 100 3.80 35.00 17.5 0.005 0.020 0.03 [0.520mm2(20)] RUEF800 8.00 16.00 30 100 4.00 40.00 18.8 0.005 0.013 0.02 [0.520mm2(20)] RUEF900 9.00 18.00 30 100 4.20 45.00 20.0 0.005 0.010 0.02 [0.520mm2(20)]
RHEF* 30V - High Temperature
RHEF050 0.5 0.9 30 40 0.9 2.5 2.5 0.480 0.780 1.10 [0.205mm2(24)] RHEF070 0.7 1.4 30 40 1.4 3.5 3.2 0.300 0.540 0.80 [0.205mm2(24)] RHEF100 1.0 1.8 30 40 1.4 5.0 5.2 0.180 0.300 0.43 [0.205mm2(24)]
RUSBF 16V
RUSBF090 0.90 1.8 16 40 0.6 8.0 1.2 0.070 0.120 0.180 [0.205mm2(24)] RUSBF110 1.10 2.2 16 40 0.7 8.0 2.3 0.050 0.095 0.140 [0.205mm2(24)] RUSBF135 1.35 2.7 16 40 0.8 8.0 4.5 0.040 0.074 0.112 [0.205mm2(24)] RUSBF160 1.60 3.2 16 40 0.9 8.0 9.0 0.030 0.061 0.110 [0.205mm2(24)] RUSBF185 1.85 3.7 16 40 1.0 8.0 10.0 0.030 0.051 0.090 [0.205mm2(24)] RUSBF250 2.50 5.0 16 40 1.2 8.0 40.0 0.020 0.036 0.060 [0.205mm2(24)]
RGEF* 16V
RGEF250 2.5 4.7 16 100 1.0 12.5 5.0 0.0220 0.0350 0.0530 [0.205mm2(24)] RGEF300 3.0 5.1 16 100 2.3 15.0 1.0 0.0380 0.0645 0.0975 [0.520mm2(20)] RGEF400 4.0 6.8 16 100 2.4 20.0 1.7 0.0210 0.0390 0.0600 [0.520mm2(20)] RGEF500 5.0 8.5 16 100 2.6 25.0 2.0 0.0150 0.0240 0.0340 [0.520mm2(20)] RGEF600 6.0 10.2 16 100 2.8 30.0 3.3 0.0100 0.0190 0.0280 [0.520mm2(20)] RGEF700 7.0 11.9 16 100 3.0 35.0 3.5 0.0077 0.0131 0.0200 [0.520mm2(20)] RGEF800 8.0 13.6 16 100 3.0 40.0 5.0 0.0056 0.0110 0.0175 [0.520mm2(20)] RGEF900 9.0 15.3 16 100 3.3 45.0 5.5 0.0047 0.0091 0.0135 [0.520mm2(20)] RGEF1000 10.0 17.0 16 100 3.6 50.0 6.0 0.0040 0.0070 0.0102 [0.520mm2(20)] RGEF1100 11.0 18.7 16 100 3.7 55.0 7.0 0.0037 0.0060 0.0089 [0.520mm2(20)] RGEF1200 12.0 20.4 16 100 4.2 60.0 7.5 0.0033 0.0057 0.0086 [0.823mm2(18)] RGEF1400 14.0 23.8 16 100 4.6 70.0 9.0 0.0026 0.0043 0.0064 [0.823mm2(18)]
I
MAX
(A)
P
D Typ
(W)
Max.Time-to-trip
(A) (s)
R
(Ω)
MIN
R
MAX
(Ω)
R
1MAX
(Ω)
Lead Size
[mm2(AWG)]
Cont’d
142
RoHS Compliant, ELV Compliant
Page 9
A
B
D
C
C
to
LCL
CLC
L
E
F
A
B
D
C
C
to
LCL
CLC
L
E
F
A
B
D
CF
C
to
LCL
CLC
L
E
A
B
D
C
C
to
LCL
CLC
L
F
E
A
B
D
C
C
to
LCL
CLC
L
E
F
B
D
CF
C
to
LCL
CLC
L
A
E
Table R3 Electrical Characteristics for Radial-leaded Devices
I
Part Number
(A)
I
H
(A)
V
T
MAX
(V)
RHEF* 16V - High Temperature
RHEF200 2.0 3.8 16 100 1.4 10.0 4.3 0.0450 0.07400 0.1100 [0.205mm2(24)] RHEF300 3.0 6.0 16 100 3.0 15.0 5.0 0.0330 0.05300 0.0790 [0.520mm2(20)] RHEF400 4.0 7.5 16 100 3.3 20.0 5.0 0.0240 0.04000 0.0600 [0.520mm2(20)] RHEF450 4.5 7.8 16 100 3.6 22.5 3.0 0.0220 0.03600 0.0540 [0.520mm2(20)] RHEF550 5.5 10.0 16 100 3.5 27.5 6.0 0.0150 0.02500 0.0370 [0.520mm2(20)] RHEF600 6.0 10.8 16 100 4.1 30.0 5.0 0.0130 0.02150 0.0320 [0.520mm2(20)] RHEF650 6.5 12.0 16 100 4.1 32.5 5.5 0.0110 0.01750 0.0260 [0.520mm2(20)] RHEF700 7.0 13.0 16 100 4.0 35.0 7.0 0.0100 0.01640 0.0250 [0.520mm2(20)] RHEF750 7.5 13.1 16 100 4.5 37.5 7.0 0.0094 0.01530 0.0220 [0.520mm2(20)] RHEF800 8.0 15.0 16 100 4.2 40.0 8.0 0.0080 0.01350 0.0200 [0.520mm2(20)] RHEF900 9.0 16.5 16 100 5.0 45.0 10.0 0.0074 0.01200 0.0170 [0.520mm2(20)] RHEF1000 10.0 18.5 16 100 5.3 50.0 9.0 0.0062 0.01050 0.0150 [0.520mm2(20)] RHEF1100 11.0 20.0 16 100 5.5 55.0 11.0 0.0055 0.00900 0.0130 [0.520mm2(20)] RHEF1300 13.0 24.0 16 100 6.9 65.0 13.0 0.0041 0.00690 0.0100 [0.823mm2(18)] RHEF1400 14.0 27.0 16 100 6.9 70.0 13.0 0.0030 0.00600 0.0090 [0.823mm2(18)] RHEF1500 15.0 28.0 16 100 7.0 75.0 20.0 0.0032 0.00613 0.0092 [0.823mm2(18)]
RUSBF 6V
RUSBF075 0.75 1.30 6 40 0.3 8.0 0.4 0.110 0.1750 0.23 [0.205mm2(24)] RUSBF120 1.20 2.00 6 40 0.6 8.0 0.5 0.070 0.0975 0.14 [0.205mm2(24)] RUSBF155 1.55 2.65 6 40 0.6 7.8 2.2 0.040 0.0705 0.10 [0.205mm2(24)]
Notes:
IH: Hold current: maximum current device will pass without interruption in 20°C still air. IT: Trip current: minimum current that will switch the device from low resistance to high resistance in 20°C still air. V
: Maximum continuous voltage device can withstand without damage at rated current.
MAX
I
: Maximum fault current device can withstand without damage at rated voltage.
MAX
PD: Power dissipated from device when in the tripped state in 20°C still air. R
: Minimum resistance of device as supplied at 20°C unless otherwise specified.
MIN
R
: Maximum resistance of device as supplied at 20°C unless otherwise specified.
MAX
R
:
Maximum resistance of device when measured one hour post reflow (surface-mount device) or one hour post trip (radial-leaded device) at 20°C unless otherwise specified.
1MAX
* Electrical characteristics determined at 25°C.
I
MAX
(A)
P
D Typ
(W)
Max.Time-to-trip
(A) (s)
R
(Ω)
MIN
R
MAX
(Ω)
R
1MAX
(Ω)
Lead Size
[mm2(AWG)]
PolySwitch Resettable Devices – Radial-leaded Devices
Cont’d
Figure R6-R14 Dimension Figures for Radial-leaded Devices
Figure R6
Figure R9
RoHS Compliant, ELV Compliant
Figure R7
Figure R10
Figure R8
12
Figure R11
143
Page 10
F
B
D
C
C
to
LCL
CLC
L
A
E
J
J
A
E
C
H
Figure R6-R14 Dimension Figures for Radial-leaded Devices
Cont’d
12
Figure R12
Figure R13
Figure R14
Table R4 Dimensions & Weights for Radial-leaded Devices
Dimensions in Millimeters (Inches)
Part Number
BBRF 99V
BBRF550 — 10.9 — 14.0 4.3 5.8 7.6 — — 3.6 — 1.37 1.2 R6, R13, 0.534
RXEF 60V
RXEF005 — 8.0 — 8.3 4.3 5.8 7.6 ——3.0 — 1.07 1.0 R7, R13, 0.069
RXEF010 — 7.4 — 11.6 4.3 5.8 7.6 — — 3.0 — 1.07 1.0 R7, R13, 0.128
RXEF017 — 7.4 — 12.7 4.3 5.8 7.6 — — 3.0 — 1.68 1.7 R7, R13, 0.174
RXEF 72V
RXEF020 — 7.4 — 11.7 4.3 5.8 7.6 — — 3.0 — 1.17 1.0 R8, R13, 0.119
RXEF025 — 7.4 — 12.7 4.3 5.8 7.6 — — 3.0 — 1.17 1.0 R8, R13, 0.130
RXEF030 — 7.4 — 12.7 4.3 5.8 7.6 — — 3.0 — 1.17 1.0 R8, R13, 0.143
RXEF040 — 7.6 — 13.5 4.3 5.8 7.6 — — 3.0 — 1.17 1.2 R8, R13, 0.202
RXEF050 — 7.9 — 13.7 4.3 5.8 7.6 — — 3.0 — 1.17 1.2 R8, R13, 0.210
RXEF065 — 9.4 — 14.5 4.3 5.8 7.6 — — 3.0 — 1.17 1.5 R8, R13, 0.277
RXEF075 — 10.2 — 15.2 4.3 5.8 7.6 — — 3.0 — 1.17 1.5 R8, R13, 0.310
RXEF090 — 11.2 — 15.8 4.3 5.8 7.6 — — 3.0 — 1.17 1.5 R8, R13, 0.365
RXEF110 — 12.8 — 17.5 4.3 5.8 7.6 — — 3.0 — 1.37 1.2 R9, R13, 0.546
RXEF135 — 14.5 — 19.1 4.3 5.8 7.6 — — 3.0 — 1.37 1.2 R9, R13, 0.653
RXEF160 — 16.3 — 20.8 4.3 5.8 7.6 — — 3.0 — 1.37 1.5 R9, R13, 0.684
RXEF185 — 17.5 — 22.4 4.3 5.8 7.6 — — 3.0 — 1.37 1.5 R9, R13, 0.808
RXEF250 — 20.8 — 25.4 9.4 10.9 7.6 — — 3.0 — 1.37 1.7 R9, R13, 1.139
RXEF300 — 23.9 — 28.6 9.4 10.9 7.6 — — 3.0 — 1.37 1.7 R9, R13, 1.379
RXEF375 — 27.2 — 31.8 9.4 10.9 7.6 — — 3.0 — 1.37 1.7 R9, R13, 1.708
A
Min. Max.
(0.43) (0.55) (0.17) (0.23) (0.3) (0.14) (0.054) (0.05) R14
(0.32) (0.33) (0.17) (0.23) (0.30) (0.12) (0.042) (0.04) R14
(0.29) (0.46) (0.17) (0.23) (0.30) (0.12) (0.042) (0.04) R14
(0.29) (0.50) (0.17) (0.23) (0.30) (0.12) (0.066) (0.07) R14
(0.29) (0.46) (0.17) (0.23) (0.30) (0.12) (0.046) (0.04) R14
(0.29) (0.50) (0.17) (0.23) (0.30) (0.12) (0.046) (0.04) R14
(0.29) (0.50) (0.17) (0.23) (0.30) (0.12) (0.046) (0.04) R14
(0.30) (0.53) (0.17) (0.23) (0.30) (0.12) (0.046) (0.05) R14
(0.31) (0.54) (0.17) (0.23) (0.30) (0.12) (0.046) (0.05) R14
(0.37) (0.57) (0.17) (0.23) (0.30) (0.12) (0.046) (0.06) R14
(0.40) (0.60) (0.17) (0.23) (0.30) (0.12) (0.046) (0.06) R14
(0.44) (0.62) (0.17) (0.23) (0.30) (0.12) (0.046) (0.06) R14
(0.50) (0.69) (0.17) (0.23) (0.30) (0.12) (0.054) (0.05) R14
(0.57) (0.75) (0.17) (0.23) (0.30) (0.12) (0.054) (0.05) R14
(0.64) (0.82) (0.17) (0.23) (0.30) (0.12) (0.054) (0.06) R14
(0.69) (0.88) (0.17) (0.23) (0.30) (0.12) (0.054) (0.06) R14
(0.82) (1.00) (0.37) (0.43) (0.30) (0.12) (0.054) (0.07) R14
(0.94) (1.13) (0.37) (0.43) (0.30) (0.12) (0.054) (0.07) R14
(1.07) (1.25) (0.37) (0.43) (0.30) (0.12) (0.054) (0.07) R14
B
Min. Max.CMin. Max.DMin. Max.EMin. Max.FTyp.HTyp.
J
Typ. Figure
Device Mass (g)
(Only for reference)
144
RoHS Compliant, ELV Compliant
Page 11
Table R4 Dimensions & Weights for Radial-leaded Devices
Dimensions in Millimeters (Inches)
Part Number
RKEF 60V
RKEF050 — 7.10 — 11.43 4.32 5.84 7.60 — — 3.56 — — — R10, R13, 0.166
RKEF065 — 7.11 — 12.20 4.32 5.84 7.60 — — 3.56 — — — R10, R13, 0.182
RKEF075 — 7.87 — 12.20 4.32 5.84 7.60 — — 3.56 — — — R10, R13, 0.201
RKEF090 — 7.87 — 13.97 4.32 5.84 7.60 — — 3.56 — — — R10, R13, 0.235
RKEF110 — 7.60 — 15.00 4.32 5.84 7.60 — — 4.10 — — — R10, R13, 0.353
RKEF135 — 10.20 — 17.00 4.32 5.84 7.60 — — 3.81 — — — R11, R13, 0.438
RKEF160 — 12.20 — 18.30 4.32 5.84 7.60 — — 3.81 — — — R11, R13, 0.546
RKEF185 — 13.00 — 18.80 4.32 5.84 7.60 — — 3.81 — — — R11, R13, 0.538
RKEF250 — 14.00 — 20.60 4.32 5.84 7.60 — — 3.00 — — — R11, R13, 0.775
RKEF300 — 16.50 — 21.20 4.32 5.84 7.60 — — 3.00 — — — R11, R13, 0.971
RKEF375 — 16.50 — 25.20 9.40 10.90 7.60 — — 3.00 — — — R11, R13, 1.142
RKEF400 — 21.00 — 24.90 9.40 10.90 7.60 — — 3.00 — — — R11, R13, 1.391
RKEF500 — 24.10 — 29.00 9.40 10.90 7.60 — — 3.00 — — — R11, R13, 1.783
RUEF 30V
RUEF090 — 7.4 — 12.2 4.3 5.8 7.6 — — 3.0 — 0.89 0.8 R10, R13, 0.183
RUEF110 — 7.4 — 14.2 4.3 5.8 7.6 — — 3.0 — 0.89 0.8 R10, R13, 0.204
RUEF135 — 8.9 — 13.5 4.3 5.8 7.6 — — 3.0 — 0.89 1.0 R10, R13, 0.255
RUEF160 — 8.9 — 15.2 4.3 5.8 7.6 — — 3.0 — 0.89 1.0 R10, R13, 0.289
RUEF185 — 10.2 — 15.7 4.3 5.8 7.6 — — 3.0 — 0.89 1.0 R10, R13, 0.379
RUEF250 — 11.4 — 18.3 4.3 5.8 7.6 — — 3.0 — 0.89 1.2 R10, R13, 0.493
RUEF300 — 11.4 — 16.5 4.3 5.8 7.6 — — 3.0 — 1.19 1.5 R11, R13, 0.516
RUEF400 — 14.0 — 19.3 4.3 5.8 7.6 — — 3.0 — 1.19 1.7 R11, R13, 0.670
RUEF500 — 14.0 — 24.1 9.4 10.9 7.6 — — 3.0 — 1.19 1.0 R11, R13, 0.926
RUEF600 — 16.5 — 24.1 9.4 10.9 7.6 — — 3.0 — 1.19 1.0 R11, R13, 1.352
RUEF700 — 19.1 — 25.9 9.4 10.9 7.6 — — 3.0 — 1.19 1.2 R11, R13, 1.543
RUEF800 — 21.6 — 28.4 9.4 10.9 7.6 — — 3.0 — 1.19 1.5 R11, R13, 1.852
RUEF900 — 24.1 — 29.0 9.4 10.9 7.6 — — 3.0 — 1.19 1.5 R11, R13, 2.104
RHEF 30V - High Temperature
RHEF050 — 7.4 — 12.7 4.3 5.8 7.6 ——3.0 1.2 ——R8, R13, 0.177
RHEF070 — 6.9 — 10.8 4.3 5.8 7.6 ——3.0 1.2 1.24 1.2 R10, R13, 0.259
RHEF100 — 9.7 — 13.6 4.3 5.8 7.6 ——3.0 ———R8, R13, 0.312
A
Min. Max.
(0.28) (0.45) (0.17) (0.23) (0.30) (0.14) R14
(0.28) (0.48) (0.17) (0.23) (0.30) (0.14) R14
(0.31) (0.48) (0.17) (0.23) (0.30) (0.14) R14
(0.31) (0.55) (0.17) (0.23) (0.30) (0.14) R14
(0.30) (0.59) (0.17) (0.23) (0.30) (0.16) R14
(0.40) (0.67) (0.17) (0.23) (0.30) (0.15) R14
(0.48) (0.72) (0.17) (0.23) (0.30) (0.15) R14
(0.51) (0.74) (0.17) (0.23) (0.30) (0.15) R14
(0.55) (0.81) (0.17) (0.23) (0.30) (0.12) R14
(0.65) (0.83) (0.17) (0.23) (0.30) (0.12) R14
(0.65) (0.99) (0.37) (0.43) (0.30) (0.12) R14
(0.83) (0.98) (0.37) (0.43) (0.30) (0.12) R14
(0.95) (1.14) (0.37) (0.43) (0.30) (0.12) R14
(0.29) (0.48) (0.17) (0.23) (0.30) (0.12) (0.035) (0.03) R14
(0.29) (0.56) (0.17) (0.23) (0.30) (0.12) (0.035) (0.03) R14
(0.35) (0.53) (0.17) (0.23) (0.30) (0.12) (0.035) (0.04) R14
(0.35) (0.60) (0.17) (0.23) (0.30) (0.12) (0.035) (0.04) R14
(0.40) (0.62) (0.17) (0.23) (0.30) (0.12) (0.035) (0.04) R14
(0.45) (0.72) (0.17) (0.23) (0.30) (0.12) (0.035) (0.05) R14
(0.45) (0.65) (0.17) (0.23) (0.30) (0.12) (0.047) (0.06) R14
(0.55) (0.76) (0.17) (0.23) (0.30) (0.12) (0.047) (0.07) R14
(0.55) (0.95) (0.37) (0.43) (0.30) (0.12) (0.047) (0.04) R14
(0.65) (0.95) (0.37) (0.43) (0.30) (0.12) (0.047) (0.04) R14
(0.75) (1.02) (0.37) (0.43) (0.30) (0.12) (0.047) (0.05) R14
(0.85) (1.12) (0.37) (0.43) (0.30) (0.12) (0.047) (0.06) R14
(0.95) (1.14) (0.37) (0.43) (0.30) (0.12) (0.047) (0.06) R14
(0.29) (0.50) (0.17) (0.23) (0.30) (0.12) (0.05) R14
(0.27) (0.43) (0.17) (0.23) (0.30) (0.12) (0.05) (0.049) (0.05) R14
(0.38) (0.54) (0.17) (0.23) (0.30) (0.12) R14
B
Min. Max.CMin. Max.DMin. Max.EMin. Max.FTyp.HTyp.
J
Typ. Figure
Device Mass (g)
(Only for reference)
PolySwitch Resettable Devices – Radial-leaded Devices
Cont’d
12
RoHS Compliant, ELV Compliant
145
Page 12
12
Table R4 Dimensions & Weights for Radial-leaded Devices
Dimensions in Millimeters (Inches)
A Part Number RUSBF 16V
RUSBF090 — 7.4 — 12.2 4.3 5.8 7.6 ——3.1 — 0.89 0.8 R10, R13, 0.183
RUSBF110 — 7.4 — 14.2 4.3 5.8 7.6 ——3.0 — 0.89 0.8 R10, R13, 0.204
RUSBF135 — 8.9 — 13.5 4.3 5.8 7.6 ——3.0 — 0.89 1.0 R10, R13, 0.240
RUSBF160 — 8.9 — 15.2 4.3 5.8 7.6 ——3.0 — 0.89 1.0 R10, R13, 0.300
RUSBF185 — 10.2 — 15.7 4.3 5.8 7.6 ——3.0 — 0.89 1.0 R10, R13, 0.368
RUSBF250 — 11.4 — 18.3 4.3 5.8 7.6 ——3.0 — 0.89 1.2 R10, R13, 0.467
RGEF 16V
RGEF250 — 8.9 — 12.8 4.3 5.8 3.18 6.18 — 3.0 1.2 1.24 1.2 R10, R13, 0.277
RGEF300 6.1 7.1 6.1 11.0 4.3 5.8 7.6 — 2.0 3.0 1.2 1.24 1.2 R11, R13, 0.323
RGEF400 7.9 8.9 7.9 12.8 4.3 5.8 7.6 — 2.0 3.0 1.2 1.24 1.4 R11, R13, 0.417
RGEF500 9.4 10.4 9.4 14.3 4.3 5.8 7.6 — 2.0 3.0 1.2 1.24 1.6 R11, R13, 0.540
RGEF600 9.7 10.7 12.2 17.1 4.3 5.8 7.6 — 2.0 3.0 1.2 1.24 1.6 R11, R13, 0.604
RGEF700 10.2 11.2 14.7 19.7 4.3 5.8 7.6 — 2.0 3.0 1.2 1.24 1.7 R11, R13, 0.701
RGEF800 11.7 12.7 16.0 20.9 4.3 5.8 7.6 — 2.0 3.0 1.2 1.24 1.8 R11, R13, 0.829
RGEF900 13.0 14.0 16.8 21.7 4.3 5.8 7.6 — 2.0 3.0 1.2 1.24 2.0 R11, R13, 0.887
RGEF1000 15.5 16.5 21.1 25.2 4.3 5.8 7.6 — 2.0 3.0 1.2 1.24 2.0 R11, R13, 1.219
RGEF1100 16.5 17.5 21.1 26.0 4.3 5.8 7.6 — 2.0 3.0 1.2 1.24 2.4 R11, R13, 1.408
RGEF1200 16.4 17.5 22.6 28.0 9.4 10.9 7.6 — 2.3 3.5 1.4 1.45 1.5 R11, R13, 1.650
RGEF1400 22.4 23.5 22.6 27.9 9.4 10.9 7.6 — 2.3 3.5 1.4 1.45 1.9 R11, R13, 2.146
RHEF 16V - High Temperature
RHEF200 — 9.4 — 14.4 4.3 5.8 7.6 ——3.1 ———R8, R13, 0.278
RHEF300 — 8.8 — 13.8 4.3 5.8 7.6 ——3.0 1.2 ——R12, R13, 0.433
RHEF400 — 10.0 — 15.0 4.3 5.8 7.6 ——3.0 1.2 1.24 1.6 R12, R13, 0.509
RHEF450 — 10.4 — 15.6 4.3 5.8 7.6 ——3.0 1.2 1.24 1.6 R12, R13, 0.605
RHEF550 — 11.2 — 18.9 4.3 5.8 7.6 ——3.0 1.2 ——R12, R13, 0.704
RHEF600 — 11.2 — 21.0 4.3 5.8 7.6 ——3.0 1.2 1.24 1.7 R12, R13, 0.792
RHEF650 — 12.7 — 22.2 4.3 5.8 7.6 ——3.0 1.2 1.24 1.8 R12, R13, 0.952
RHEF700 — 14.0 — 21.9 4.3 5.8 7.6 ——3.0 1.2 ——R12, R13, 0.850
RHEF750 — 14.0 — 23.5 4.3 5.8 7.6 ——3.0 1.2 1.24 2.0 R12, R13, 1.054
RHEF800 — 16.5 — 22.5 4.3 5.8 7.6 ——3.0 1.2 ——R12, R13, 1.073
RHEF900 — 16.5 — 25.7 4.3 5.8 7.6 ——3.0 1.2 ——R12, R13, 1.516
Min. Max.
(0.29) (0.48) (0.17) (0.23) (0.30) (0.12) (0.035) (0.03) R14
(0.29) (0.56) (0.17) (0.23) (0.30) (0.12) (0.035) (0.03) R14
(0.35) (0.53) (0.17) (0.23) (0.30) (0.12) (0.035) (0.04) R14
(0.35) (0.60) (0.17) (0.23) (0.30) (0.12) (0.035) (0.04) R14
(0.40) (0.62) (0.17) (0.23) (0.30) (0.12) (0.035) (0.04) R14
(0.45) (0.72) (0.17) (0.23) (0.30) (0.12) (0.035) (0.05) R14
(0.35) (0.50) (0.17) (0.23) (0.13) (0.24) (0.12) (0.05) (0.049) (0.05) R14
(0.24) (0.28) (0.24) (0.43) (0.17) (0.23) (0.30) (0.08) (0.12) (0.05) (0.049) (0.05) R14
(0.31) (0.35) (0.31) (0.50) (0.17) (0.23) (0.30) (0.08) (0.12) (0.05) (0.049) (0.06) R14
(0.37) (0.41) (0.37) (0.56) (0.17) (0.23) (0.30) (0.08) (0.12) (0.05) (0.049) (0.06) R14
(0.38) (0.42) (0.48) (0.67) (0.17) (0.23) (0.30) (0.08) (0.12) (0.05) (0.049) (0.06) R14
(0.40) (0.44) (0.58) (0.78) (0.17) (0.23) (0.30) (0.08) (0.12) (0.05) (0.049) (0.07) R14
(0.46) (0.50) (0.63) (0.82) (0.17) (0.23) (0.30) (0.08) (0.12) (0.05) (0.049) (0.07) R14
(0.51) (0.55) (0.66) (0.85) (0.17) (0.23) (0.30) (0.08) (0.12) (0.05) (0.049) (0.08) R14
(0.61) (0.65) (0.83) (0.99) (0.17) (0.23) (0.30) (0.08) (0.12) (0.05) (0.049) (0.08) R14
(0.65) (0.69) (0.83) (1.02) (0.17) (0.23) (0.30) (0.08) (0.12) (0.05) (0.049) (0.09) R14
(0.65) (0.69) (0.89) (1.10) (0.37) (0.43) (0.30) (0.09) (0.14) (0.06) (0.057) (0.06) R14
(0.88) (0.925) (0.89) (1.10) (0.37) (0.43) (0.30) (0.09) (0.14) (0.06) (0.057) (0.08) R14
(0.37) (0.57) (0.17) (0.23) (0.30) (0.12) R14
(0.35) (0.55) (0.17) (0.23) (0.30) (0.12) (0.05) R14
(0.39) (0.59) (0.17) (0.23) (0.30) (0.12) (0.05) (0.049) (0.06) R14
(0.41) (0.61) (0.17) (0.23) (0.30) (0.12) (0.05) (0.049) (0.06) R14
(0.44) (0.74) (0.17) (0.23) (0.30) (0.12) (0.05) R14
(0.44) (0.83) (0.17) (0.23) (0.30) (0.12) (0.05) (0.049) (0.067) R14
(0.50) (0.88) (0.17) (0.23) (0.30) (0.12) (0.05) (0.049) (0.07) R14
(0.55) (0.86) (0.17) (0.23) (0.30) (0.12) (0.05) R14
(0.55) (0.93) (0.17) (0.23) (0.30) (0.12) (0.05) (0.049) (0.08) R14
(0.65) (0.88) (0.17) (0.23) (0.30) (0.12) (0.05) R14
(0.65) (1.01) (0.17) (0.23) (0.30) (0.12) (0.05) R14
B
Min. Max.CMin. Max.DMin. Max.EMin. Max.FTyp.HTyp.
J
Typ. Figure
Device Mass (g)
(Only for reference)
Cont’d
146
RoHS Compliant, ELV Compliant
Page 13
Time-to-trip (s)
Fault Current (A)
1000
100
10
1
0.1
0.01
0.1 1 10 100
A
A
Table R4 Dimensions & Weights for Radial-leaded Devices
Dimensions in Millimeters (Inches)
A
Part Number
RHEF 16V - High Temperature
RHEF1000 — 17.5 — 26.5 9.4 10.9 7.6 ——3.0 1.2 1.24 1.5 R12, R13, 1.791
RHEF1100 — 21.0 — 26.1 9.4 10.9 7.6 ——3.0 1.2 ——R12, R13, 1.570
RHEF1300 — 23.5 — 28.7 9.4 10.9 7.6 ——3.6 1.4 1.45 1.9 R12, R13, 2.257
RHEF1400 — 23.5 — 28.6 9.4 10.9 7.6 ——3.6 1.4 ——R12, R13, 2.051
RHEF1500 — 23.5 — 28.7 9.4 10.9 7.6 ——3.6 1.4 1.45 1.9 R12, R13, 2.257
RUSBF 6V
RUSBF075 — 6.9 — 11.4 4.3 5.9 7.6 ——3.1 — 0.91 1.0 R8, R13, 0.123
RUSBF120 — 6.9 — 11.7 4.3 5.9 7.6 ——3.1 — 0.91 1.0 R8, R13, 0.111
RUSBF155 — 6.9 — 11.7 4.3 5.9 7.6 ——3.1 — 0.91 1.0 R8, R13, 0.135
Min. Max.
(0.69) (1.04) (0.37) (0.43) (0.30) (0.12) (0.05) (0.049) (0.06) R14
(0.83) (1.03) (0.37) (0.43) (0.30) (0.12) (0.05) R14
(0.925) (1.13) (0.37) (0.43) (0.30) (0.14) (0.06) (0.057) (0.084) R14
(0.925) (1.13) (0.37) (0.43) (0.30) (0.14) (0.06) R14
(0.925) (1.13) (0.37) (0.43) (0.30) (0.14) (0.06) (0.057) (0.084) R14
(0.27) (0.45) (0.17) (0.23) (0.30) (0.12) (0.036) (0.04) R14
(0.27) (0.46) (0.17) (0.23) (0.30) (0.12) (0.036) (0.04) R14
(0.27) (0.46) (0.17) (0.23) (0.30) (0.12) (0.036) (0.04) R14
B
Min. Max.CMin. Max.DMin. Max.EMin. Max.FTyp.HTyp.
J
Typ. Figure
Device Mass (g)
(Only for reference)
PolySwitch Resettable Devices – Radial-leaded Devices
Cont’d
Figure R15-R21 Typical Time-to-trip Curves at 20°C for Radial-leaded Devices
BBRF
A= BBRF550
Figure R15
12
RoHS Compliant, ELV Compliant
147
Page 14
Time-to-trip (s)
Fault Current (A)
1000
100
10
1
0.1
0.01
0.001
0.1 101 100
A
A
BCDEFG
BCDEFGH
H
I
J
K
L
M
N
O
P
Q
R
IJKLMNO PQR
Time-to-trip (s)
Fault Current (A)
100
10
1
0.1
0.01 1 10 100
A
A
B
C
D
E
F
G
H
I
J
K
L
M
B
C
DE
F
G
H
I
J
K
L
M
Time-to-trip (s)
Fault Current (A)
100
10
1
0.1
0.01
101 100
C
CBB
A
A
D
D
E
E
F
F
G
G
H
H
I
I
J
J
K
K
L
L
M
M
Figure R15-R21 Typical Time-to-trip Curves at 20°C for Radial-leaded Devices
Cont’d
RXEF
A= RXEF005 B= RXEF010 C= RXEF017 D= RXEF020 E= RXEF025 F= RXEF030 G= RXEF040 H= RXEF050 I=RXEF065
RKEF
A= RKEF050 B= RKEF065 C= RKEF075 D= RKEF090 E= RKEF110 F= RKEF135 G= RKEF160 H= RKEF185 I=RKEF250
Figure R16
J= RXEF075 K= RXEF090 L= RXEF110 M= RXEF135 N= RXEF160 O= RXEF185 P= RXEF250 Q= RXEF300 R= RXEF375
Figure R17
J= RKEF300 K= RKEF375 L= RKEF400 M= RKEF500
Figure R18
RUEF
A= RUEF090 B= RUEF110 C= RUEF135
12
148
D= RUEF160 E= RUEF185 F= RUEF250 G= RUEF300
RoHS Compliant, ELV Compliant
H= RUEF400 I=RUEF500 J= RUEF600 K= RUEF700 L= RUEF800 M= RUEF900
Page 15
Time-to-trip (s)
Fault Current (A)
1000
100
10
1
0.1
0.01
0.001 1 10 100
AAB
B
C
D
E
F
G
H
I
J
K
L
CD E FGHI JK L
Time-to-trip (s)
Fault Current (A)
100
10
1
0.1
0.01
0.001
101 100
A
A
B
C
D
E
F
G
H
I
B
CDE FGH I
Time-to-trip (s)
Fault Current (A)
1000
100
10
1
0.1
0.01 1 10 100
ABC DE
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
B
CDEFGHIJKLMNOPQRS
Figure R15-R21 Typical Time-to-trip Curves at 20°C for Radial-leaded Devices
PolySwitch Resettable Devices – Radial-leaded Devices
Cont’d
RGEF (data at 25°C)
A= RGEF250 B= RGEF300 C= RGEF400 D= RGEF500 E= RGEF600 F= RGEF700 G= RGEF800 H= RGEF900 I=RGEF1000 J= RGEF1100 K= RGEF1200 L= RGEF1400
RHEF (data at 25°C)
A= RHEF050 B= RHEF070 C= RHEF100 D= RHEF200 E= RHEF300 F= RHEF400 G= RHEF450 H= RHEF550 I=RHEF600 J= RHEF650
Figure R19
Figure R20
K= RHEF700 L= RHEF750 M= RHEF800 N= RHEF900 O= RHEF1000 P= RHEF1100 Q= RHEF1300 R= RHEF1400 S= RHEF1500
RUSBF
Figure R21
A= RUSBF075 B= RUSBF090 C= RUSBF110 D= RUSBF120
F= RUSBF155 G= RUSBF160 H= RUSBF185 I=RUSBF250
RoHS Compliant, ELV Compliant
E= RUSBF135
12
149
Page 16
Table R5
Physical Characteristics and Environmental Specifications for Radial-leaded Devices
BBRF
Physical Characteristics
Lead material Tin-plated copper, 0.52mm2(20AWG), ø0.81mm (0.032in.) Soldering characteristics Solderability per ANSI/J-STD-002 Category 3 Solder heat withstand per IEC-STD 68-2-20,Test Tb, Method 1A, Condition B, can withstand 10 seconds at 260°C ±5°C Insulating material Cured, flame-retardant epoxy polymer; meets UL 94V-0 Operation temperature -40°C~85°C
Note: Devices are not designed to be placed through a reflow process.
Environmental Specifications
Test Conditions Resistance Change
Passive aging 70°C, 1000 hours ±5%
85°C, 1000 hours ±5% Humidity aging 85°C, 85%RH, 1000 hours ±5% Thermal shock 85°C, -40°C (10 times) ±5% Solvent resistance MIL-STD-202, Method 215F No change
RXEF
Physical Characteristics
Lead material RXEF005 : Tin-plated nickel-copper alloy, 0.128mm2(26AWG), ø0.40mm (0.016in.)
RXEF010 : Tin-plated nickel-copper alloy, 0.205mm2(24AWG), ø0.51mm (0.020in.)
RXEF017 to 040 :Tin-plated copper-clad steel, 0.205mm2(24AWG), ø0.51mm (0.020in.)
RXEF050 to 090 :Tin-plated copper, 0.205mm2(24AWG), ø0.51mm (0.020in.)
RXEF110 to 375 :Tin-plated copper, 0.52mm2(20AWG), ø0.81mm (0.032in.) Soldering characteristics Solderability per ANSI/J-STD-002 Category 3
RXEF005, RXEF010 meet ANSI/J-STD-002 Category 1 Solder heat withstand RXEF005- RXEF025: per IEC-STD 68-2-20,Test Tb, Method 1a, condition a;
can withstand 5 seconds at 260°C ±5°C
All other sizes: per IEC-STD 68-2-20,Test Tb, Method 1a, condition b;
can withstand 10 seconds at 260°C ±5°C Insulating material Cured, flame-retardant epoxy polymer; meets UL 94V-0 Operation temperature -40°C~85°C
Note: Devices are not designed to be placed through a reflow process.
12
150
Environmental Specifications
Test Conditions Resistance Change
Passive aging -40°C, 1000 hours ±5%
85°C, 1000 hours ±5% Humidity aging 85°C, 85%RH, 1000 hours ±10% Thermal shock 85°C, -40°C (10 times) ±10% Solvent resistance MIL-STD-202, Method 215F No change
RKEF
Physical Characteristics
Lead material RKEF050 to 090 :Tin-plated copper, 0.205mm2(24AWG), ø0.51mm (0.020in.)
RKEF110 to 500 :Tin-plated copper, 0.52mm2(20AWG), ø0.81mm (0.032in.) Soldering characteristics Solderability per ANSI/J-STD-002 Category 3 Solder heat withstand RKEF050-RKEF185 : per IEC-STD 68-2-20,Test Tb, Method 1a, condition a;
can withstand 5 seconds at 260°C ±5°C
All other sizes: per IEC-STD 68-2-20,Test Tb, Method 1a, condition b;
RKEF can withstand 10 seconds at 260°C ±5°C Insulating material Cured, flame-retardant epoxy polymer; meets UL 94V-0 Operation temperature -40°C~85°C
Note: Devices are not designed to be placed through a reflow process.
RoHS Compliant, ELV Compliant
Page 17
Table R5
Physical Characteristics and Environmental Specifications for Radial-leaded Devices Cont’d
RKEF
Environmental Specifications
Test Conditions Resistance Change
Passive aging -40°C, 1000 hours ±5%
85°C, 1000 hours ±5% Humidity aging 85°C, 85%RH, 1000 hours ±10% Thermal shock 85°C, -40°C (10 times) ±10% Solvent resistance MIL-STD-202, Method 215F No change
RUEF
Physical Characteristics
Lead material RUEF090 to RUEF250:Tin-plated copper-clad steel, 0.205mm2(24AWG)
RUEF300 to RUEF900: Tin-plated copper, 0.52mm2(20AWG), ø0.81mm (0.032in.) Soldering characteristics Solderability per ANSI/J-STD-002 Category 3 Solder heat withstand per IEC-STD 68-2-20,Test Tb, Method1A, Condition B, can withstand 10 seconds at 260°C ±5°C Insulating material Cured, flame-retardant epoxy polymer; meets UL 94V-0 Operation temperature -40°C~85°C
Note: Devices are not designed to be placed through a reflow process.
PolySwitch Resettable Devices – Radial-leaded Devices
Environmental Specifications
Test Conditions Resistance Change
Passive aging 70°C, 1000 hours ±5%
85°C, 1000 hours ±5% Humidity aging 85°C, 85%RH, 1000 hours ±5% Thermal shock 85°C, -40°C (10 times) ±5% Solvent resistance MIL-STD-202, Method 215F No change
RUSBF
Physical Characteristics
Lead material RUSBF075: Tin-plated nickel-copper alloy, 0.205mm2(24AWG), ø0.51mm/0.020in.
RUSBF090 to RUSBF250:Tin-plated copper clad-steel, 0.205mm2(24AWG), ø0.51mm/0.020in. Soldering characteristics Solderability per ANSI/J-STD-002 Category 3 except
RUSBF075 meet ANSI/J-STD-002 Category 1 Solder heat withstand RUSBF120: per IEC-STD 68-2-20,Test Tb, Method 1A, Condition A; can withstand 5 seconds at 260°C ±5°C
All others: per IEC-STD 68-2-20,Test Tb, Method 1A, Condition B; can withstand 10 seconds at 260°C ±5°C Insulating material Cured, flame-retardant epoxy polymer; meets UL 94V-0 Operation temperature -40°C~85°C
Note: Devices are not designed to be placed through a reflow process.
Environmental Specifications
Test Conditions Resistance Change
Passive aging 70°C, 1000 hours ±5%
85°C, 1000 hours ±5% Humidity aging 85°C, 85%RH, 1000 hours ±5% Thermal shock 85°C, -40°C (10 times) ±5% Solvent resistance MIL-STD-202, Method 215F No change
12
RoHS Compliant, ELV Compliant
151
Page 18
Table R5
Physical Characteristics and Environmental Specifications for Radial-leaded Devices Cont’d
RGEF
Physical Characteristics
Lead material RGEF250: Tin-plated copper-clad steel, 0.205mm2(24AWG), ø0.51mm/0.020in.
RGEF300 to RGEF1100 :Tin-plated copper, 0.52mm2(20AWG), ø0.81mm/0.032in.
RGEF1200 to RGEF1400: Tin-plated copper, 0.82mm2(18AWG), ø1.0mm/0.04in. Soldering characteristics Solderability per ANSI/J-STD-002 Category 3 Solder heat withstand RGEF250 and RGEF400: per IEC 68-2-20,Test Tb, Method 1a, condition a;
can withstand 5 seconds at 260°C ±5°C
RGEF500 to RGEF1400: per IEC 68-2-20,Test Tb, Method 1a, condition b;
can withstand 10 seconds at 260°C ±5°C Insulating material Cured, flame-retardant epoxy polymer; meets UL 94V-0 Operation temperature -40°C~85°C
Note: Devices are not designed to be placed through a reflow process.
Environmental Specifications
Test Conditions Resistance Change
Passive aging -40°C, 1000 hours ±5%
85°C, 1000 hours ±5% Humidity aging 85°C, 85%RH, 1000 hours ±5% Thermal shock 85°C, -40°C (10 times) ±5% Solvent resistance MIL-STD-202, Method 215F No change
12
RHEF
Physical Characteristics
Lead material RHEF050 to RHEF200 :Tin-plated copper clad steel, 0.205mm2(24AWG), ø0.51mm/0.020in.
RHEF300 to RHEF1100 : Tin-plated copper, 0.52mm2(20AWG), ø0.81mm/0.032in.
RHEF1300 to RHEF1500 :Tin-plated copper, 0.82mm2(18AWG), ø1.0mm/0.04in. Soldering characteristics Solderability per ANSI/J-STD-002 Category 3 Solder heat withstand per IEC 68-2-20, Test Tb, Method 1A, Condition B; can withstand 10 seconds at 260°C ±5°C Insulating material Cured, flame-retardant epoxy polymer; meets UL 94V-0 Operation temperature -40°C~125°C
Note: Devices are not designed to be placed through a reflow process.
Environmental Specifications
Test Conditions Resistance Change
Passive aging 70°C, 1000 hours ±5%
85°C, 1000 hours ±5% Humidity aging 85°C, 85%RH, 1000 hours ±5% Thermal shock 125°C, -40°C (10 times) ±5% Solvent resistance MIL-STD-202, Method 215F No change
Storage Conditions for Radial-leaded Devices
152
Storage conditions 40°C max., 70% RH max.; devices should remain in original sealed bags prior to use.
Devices may not meet specificed values if these storage conditions are exceeded.
Note: For theTR devices series, see the telecommunications and networking devices section.
RoHS Compliant, ELV Compliant
Page 19
Table R6 Packaging and Marking Information for Radial-leaded Devices
PolySwitch Resettable Devices – Radial-leaded Devices
Part Number
BBRF 99V
BBRF550 500 — — 10,000 BF550 UL, CSA BBRF550-2 — 1,500 — 7,500 BF550 UL, CSA
RXEF 60V
RXEF005 500 ——10,000 — UL, CSA, TÜV RXEF005-2 — 3,000 — 15,000 — UL, CSA,TÜV RXEF005-AP ——2,000 10,000 — UL, CSA,TÜV RXEF010 500 ——10,000 XF010 UL, CSA,TÜV RXEF010-2 — 3,000 — 15,000 XF010 UL, CSA,TÜV RXEF010-AP ——2,000 10,000 XF010 UL, CSA, TÜV RXEF017 500 ——10,000 XF017 UL, CSA,TÜV RXEF017-2 — 2,500 — 12,500 XF017 UL, CSA,TÜV RXEF017-AP ——2,000 10,000 XF017 UL, CSA, TÜV
RXEF 72V
RXEF020 500 ——10,000 XF020 UL, CSA,TÜV RXEF020-2 — 3,000 — 15,000 XF020 UL, CSA,TÜV RXEF020-AP ——2,000 10,000 XF020 UL, CSA, TÜV RXEF025 500 ——10,000 XF025 UL, CSA,TÜV RXEF025-2 — 3,000 — 15,000 XF025 UL, CSA,TÜV RXEF025-AP ——2,000 10,000 XF025 UL, CSA, TÜV RXEF030 500 ——10,000 XF030 UL, CSA,TÜV RXEF030-2 — 3,000 — 15,000 XF030 UL, CSA,TÜV RXEF030-AP ——2,000 10,000 XF030 UL, CSA, TÜV RXEF040 500 ——10,000 XF040 UL, CSA,TÜV RXEF040-2 — 3,000 — 15,000 XF040 UL, CSA,TÜV RXEF040-AP ——2,000 10,000 XF040 UL, CSA, TÜV RXEF050 500 ——10,000 XF050 UL, CSA,TÜV RXEF050-2 — 3,000 — 15,000 XF050 UL, CSA,TÜV RXEF050-AP ——2,000 10,000 XF050 UL, CSA, TÜV RXEF065 500 ——10,000 XF065 UL, CSA,TÜV RXEF065-2 — 3,000 — 15,000 XF065 UL, CSA,TÜV RXEF065-AP ——2,000 10,000 XF065 UL, CSA, TÜV RXEF075 500 ——10,000 XF075 UL, CSA,TÜV RXEF075-2 — 3,000 — 15,000 XF075 UL, CSA,TÜV RXEF075-AP ——2,000 10,000 XF075 UL, CSA, TÜV RXEF090 500 ——10,000 XF090 UL, CSA,TÜV RXEF090-2 — 3,000 — 15,000 XF090 UL, CSA,TÜV RXEF090-AP ——2,000 10,000 XF090 UL, CSA, TÜV RXEF110 500 ——10,000 XF110 UL, CSA,TÜV RXEF110-2 — 1,500 — 7,500 XF110 UL, CSA, TÜV RXEF110-AP ——1,000 5,000 XF110 UL, CSA,TÜV RXEF135 500 ——10,000 XF135 UL, CSA,TÜV RXEF135-2 — 1,500 — 7,500 XF135 UL, CSA, TÜV RXEF135-AP ——1,000 5,000 XF135 UL, CSA,TÜV RXEF160 500 ——10,000 XF160 UL, CSA,TÜV RXEF160-2 — 1,500 — 7,500 XF160 UL, CSA, TÜV RXEF160-AP ——1,000 5,000 XF160 UL, CSA,TÜV RXEF185 500 ——10,000 XF185 UL, CSA,TÜV RXEF185-2 — 1,500 — 7,500 XF185 UL, CSA, TÜV RXEF185-AP ——1,000 5,000 XF185 UL, CSA,TÜV
Bag
Quantity
Tape & Reel
Quantity
Ammo Pack
Quantity
Standard Package
Quantity Part Marking Agency Recognition
12
RoHS Compliant, ELV Compliant
153
Page 20
Table R6 Packaging and Marking Information for Radial-leaded Devices
Cont’d
12
Part Number
RXEF 72V
RXEF250 250 ——5,000 XF250 UL, CSA,TÜV RXEF250-2 — 1,000 — 5,000 XF250 UL, CSA, TÜV RXEF250-AP ——1,000 5,000 XF250 UL, CSA, TÜV RXEF300 250 ——5,000 XF300 UL, CSA,TÜV RXEF300-2 — 1,000 — 5,000 XF300 UL, CSA, TÜV RXEF300-AP ——1,000 5,000 XF300 UL, CSA, TÜV RXEF375 250 ——5,000 XF375 UL, CSA,TÜV
RKEF 60V
RKEF050 500 ——10,000 KF050 UL, CSA, TÜV RKEF065 500 ——10,000 KF065 UL, CSA, TÜV RKEF075 500 ——10,000 KF075 UL, CSA, TÜV RKEF090 500 ——10,000 KF090 UL, CSA, TÜV RKEF110 500 ——10,000 KF110 UL, CSA, TÜV RKEF135 500 ——10,000 KF135 UL, CSA, TÜV RKEF160 500 ——10,000 KF160 UL, CSA, TÜV RKEF185 500 ——10,000 KF185 UL, CSA, TÜV RKEF250 500 ——10,000 KF250 UL, CSA, TÜV RKEF300 250 ——5,000 KF300 UL, CSA,TÜV RKEF375 250 ——5,000 KF375 UL, CSA,TÜV RKEF400 250 ——5,000 KF400 UL, CSA,TÜV RKEF500 250 ——5,000 KF500 UL, CSA,TÜV
RUEF 30V
RUEF090 500 ——10,000 UF090 UL, CSA, TÜV, CQC RUEF090-2 — 3,000 — 15,000 UF090 UL, CSA,TÜV, CQC RUEF090-AP ——2,000 10,000 UF090 UL, CSA, TÜV, CQC RUEF110 500 ——10,000 UF110 UL, CSA, TÜV, CQC RUEF110-2 — 3,000 — 15,000 UF110 UL, CSA,TÜV, CQC RUEF110-AP ——2,000 10,000 UF110 UL, CSA, TÜV, CQC RUEF135 500 ——10,000 UF135 UL, CSA, TÜV, CQC RUEF135-2 — 3,000 — 15,000 UF135 UL, CSA,TÜV, CQC RUEF135-AP ——2,000 10,000 UF135 UL, CSA, TÜV, CQC RUEF160 500 ——10,000 UF160 UL, CSA, TÜV, CQC RUEF160-2 — 3,000 — 15,000 UF160 UL, CSA,TÜV, CQC RUEF160-AP ——2,000 10,000 UF160 UL, CSA, TÜV, CQC RUEF185 500 ——10,000 UF185 UL, CSA, TÜV, CQC RUEF185-2 — 3,000 — 15,000 UF185 UL, CSA,TÜV, CQC RUEF185-AP ——2,000 10,000 UF185 UL, CSA, TÜV, CQC RUEF250 500 ——10,000 UF250 UL, CSA, TÜV, CQC RUEF250-2 — 3,000 — 15,000 UF250 UL, CSA,TÜV, CQC RUEF250-AP ——2,000 10,000 UF250 UL, CSA, TÜV, CQC RUEF300 500 ——10,000 UF300 UL, CSA, TÜV, CQC RUEF300-2 — 2,500 — 12,500 UF300 UL, CSA,TÜV, CQC RUEF300-AP ——1,000 5,000 UF300 UL, CSA, TÜV, CQC RUEF400 500 ——10,000 UF400 UL, CSA, TÜV, CQC RUEF400-2 — 1,500 — 7,500 UF400 UL, CSA,TÜV, CQC RUEF400-AP ——1,000 5,000 UF400 UL, CSA, TÜV, CQC RUEF500 250 ——5,000 UF500 UL, CSA,TÜV, CQC RUEF500-2 — 1,500 — 7,500 UF500 UL, CSA,TÜV, CQC RUEF500-AP ——1,000 5,000 UF500 UL, CSA, TÜV, CQC RUEF600 250 ——5,000 UF600 UL, CSA,TÜV, CQC RUEF600-2 — 1,000 — 5,000 UF600 UL, CSA,TÜV, CQC RUEF600-AP ——1,000 5,000 UF600 UL, CSA, TÜV, CQC
Bag
Quantity
Tape & Reel
Quantity
Ammo Pack
Quantity
Standard Package
Quantity Part Marking Agency Recognition
154
RoHS Compliant, ELV Compliant
Page 21
Table R6 Packaging and Marking Information for Radial-leaded Devices
PolySwitch Resettable Devices – Radial-leaded Devices
Cont’d
Part Number
RUEF 30V
RUEF700 250 ——5,000 UF700 UL, CSA,TÜV, CQC RUEF700-2 — 1,000 — 5,000 UF700 UL, CSA, TÜV, CQC RUEF700-AP ——1,000 5,000 UF700 UL, CSA,TÜV, CQC RUEF800 250 ——5,000 UF800 UL, CSA,TÜV, CQC RUEF800-2 — 1,000 — 5,000 UF800 UL, CSA, TÜV, CQC RUEF800-AP ——1,000 5,000 UF800 UL, CSA,TÜV, CQC RUEF900 250 ——5,000 UF900 UL, CSA,TÜV, CQC RUEF900-2 — 1,000 — 4,000 UF900 UL, CSA, TÜV, CQC RUEF900-AP ——1,000 4,000 UF900 UL, CSA,TÜV, CQC
RHEF 30V - High Temperature
RHEF050 500 ——10,000 HF0.5 UL, CSA, TÜV RHEF050-2 — 2,500 — 12,500 HF0.7 UL, CSA, TÜV RHEF070 500 ——10,000 HF0.7 UL, CSA, TÜV RHEF070-2 — 2,500 — 12,500 HF0.7 UL, CSA, TÜV RHEF100 500 ——10,000 HF1.0 UL, CSA, TÜV RHEF100-2 — 2,500 — 12,500 HF1.0 UL, CSA, TÜV
RUSBF 16V
RUSBF090 500 ——10,000 RF090 UL, CSA, TÜV RUSBF090-2 — 3,000 — 15,000 RF090 UL, CSA, TÜV RUSBF090-AP ——2,000 10,000 RF090 UL, CSA, TÜV RUSBF110 500 ——10,000 RF110 UL, CSA, TÜV RUSBF110-2 — 3,000 — 15,000 RF110 UL, CSA, TÜV RUSBF110-AP ——2,000 10,000 RF110 UL, CSA, TÜV RUSBF135 500 ——10,000 RF135 UL, CSA, TÜV RUSBF135-2 — 3,000 — 15,000 RF135 UL, CSA, TÜV RUSBF135-AP ——2,000 10,000 RF135 UL, CSA, TÜV RUSBF160 500 ——10,000 RF160 UL, CSA, TÜV RUSBF160-2 — 3,000 — 15,000 RF160 UL, CSA, TÜV RUSBF160-AP ——2,000 10,000 RF160 UL, CSA, TÜV RUSBF185 500 ——10,000 RF185 UL, CSA, TÜV RUSBF185-2 — 3,000 — 15,000 RF185 UL, CSA, TÜV RUSBF185-AP ——2,000 10,000 RF185 UL, CSA, TÜV RUSBF250 500 ——10,000 RF250 UL, CSA, TÜV RUSBF250-2 — 3,000 — 15,000 RF250 UL, CSA, TÜV RUSBF250-AP ——2,000 10,000 RF250 UL, CSA, TÜV
RGEF 16V
RGEF250 500 ——10,000 GF250 UL, CSA,TÜV RGEF250-2 — 3,000 — 15,000 GF250 UL, CSA,TÜV RGEF250-AP ——2,000 10,000 GF250 UL, CSA, TÜV RGEF300 500 ——10,000 GF300 UL, CSA,TÜV RGEF300-2 — 2,500 — 12,500 GF300 UL, CSA, TÜV RGEF300-AP ——2,000 10,000 GF300 UL, CSA, TÜV RGEF400 500 ——10,000 GF400 UL, CSA,TÜV RGEF400-2 — 2,500 — 12,500 GF400 UL, CSA, TÜV RGEF400-AP ——2,000 10,000 GF400 UL, CSA, TÜV RGEF500 500 ——10,000 GF500 UL, CSA,TÜV RGEF500-2 — 2,000 — 10,000 GF500 UL, CSA,TÜV RGEF500-AP ——2,000 10,000 GF500 UL, CSA, TÜV RGEF600 500 ——10,000 GF600 UL, CSA,TÜV RGEF600-2 — 2,000 — 10,000 GF600 UL, CSA,TÜV RGEF600-AP ——2,000 10,000 GF600 UL, CSA, TÜV
Bag
Quantity
Tape & Reel
Quantity
Ammo Pack
Quantity
Standard Package
Quantity Part Marking Agency Recognition
12
RoHS Compliant, ELV Compliant
155
Page 22
Table R6 Packaging and Marking Information for Radial-leaded Devices
Cont’d
12
Part Number
RGEF 16V
RGEF700 500 ——10,000 GF700 UL, CSA,TÜV RGEF700-2 — 1,500 — 7,500 GF700 UL, CSA, TÜV RGEF700-AP ——1,500 7,500 GF700 UL, CSA, TÜV RGEF800 500 ——10,000 GF800 UL, CSA,TÜV RGEF800-2 — 1,000 — 5,000 GF800 UL, CSA,TÜV RGEF800-AP ——1,000 5,000 GF800 UL, CSA, TÜV RGEF900 500 ——10,000 GF900 UL, CSA,TÜV RGEF900-2 — 1,000 — 5,000 GF900 UL, CSA,TÜV RGEF900-AP ——1,000 5,000 GF900 UL, CSA, TÜV RGEF1000 250 —— 5,000 GF1000 UL, CSA,TÜV RGEF1000-2 — 1,000 — 5,000 GF1000 UL, CSA, TÜV RGEF1000-AP ——1,000 5,000 GF1000 UL, CSA,TÜV RGEF1100 250 —— 5,000 GF1100 UL, CSA,TÜV RGEF1100-2 — 1,000 — 5,000 GF1100 UL, CSA, TÜV RGEF1100-AP ——1,000 5,000 GF1100 UL, CSA, TÜV RGEF1200 250 —— 5,000 GF1200 UL, CSA,TÜV RGEF1200-2 — 1,000 — 5,000 GF1200 UL, CSA, TÜV RGEF1200-AP ——1,000 5,000 GF1200 UL, CSA, TÜV RGEF1400 250 —— 5,000 GF1400 UL, CSA,TÜV RGEF1400-2 — 1,000 — 5,000 GF1400 UL, CSA, TÜV RGEF1400-AP ——1,000 5,000 GF1400 UL, CSA, TÜV
RHEF 16V - High Temperature
RHEF200 500 ——10,000 HF2.0 UL, CSA,TÜV RHEF200-2 — 2,500 — 12,500 HF2.0 UL, CSA, TÜV RHEF200-AP ——2,500 12,500 HF2.0 UL, CSA,TÜV RHEF300 500 ——10,000 HF3 UL, CSA, TÜV RHEF300-2 — 2,000 — 10,000 HF3 UL, CSA, TÜV RHEF300-AP ——2,000 10,000 HF3 UL, CSA, TÜV RHEF400 500 ——10,000 HF4 UL, CSA, TÜV RHEF400-2 — 1,500 — 7,500 HF4 UL, CSA, TÜV RHEF400-AP ——1,500 7,500 HF4 UL, CSA, TÜV RHEF450 500 ——10,000 HF4.5 UL, CSA,TÜV RHEF450-2 — 1,500 — 7,500 HF4.5 UL, CSA, TÜV RHEF450-AP ——1,500 7,500 HF4.5 UL, CSA, TÜV RHEF550 500 ——10,000 HF5.5 UL, CSA,TÜV RHEF550-2 — 2,000 — 10,000 HF5.5 UL, CSA,TÜV RHEF550-AP ——2,000 10,000 HF5.5 UL, CSA, TÜV RHEF600 500 ——10,000 HF6 UL, CSA, TÜV RHEF600-2 — 1,500 — 7,500 HF6 UL, CSA, TÜV RHEF600-AP ——1,500 7,500 HF6 UL, CSA, TÜV RHEF650 500 ——10,000 HF6.5 UL, CSA,TÜV RHEF650-2 — 1,500 — 7,500 HF6.5 UL, CSA, TÜV RHEF650-AP ——1,500 7,500 HF6.5 UL, CSA, TÜV RHEF700 500 ——10,000 HF7 UL, CSA, TÜV RHEF700-2 — 1,500 — 7,500 HF7 UL, CSA, TÜV RHEF700-AP ——1,500 7,500 HF7 UL, CSA, TÜV RHEF750 500 ——10,000 HF7.5 UL, CSA,TÜV RHEF750-2 — 1,000 — 5,000 HF7.5 UL, CSA,TÜV RHEF750-AP ——1,000 5,000 HF7.5 UL, CSA, TÜV RHEF800 500 ——10,000 HF8 UL, CSA, TÜV RHEF800-2 — 1,000 — 5,000 HF8 UL, CSA, TÜV RHEF800-AP ——1,000 5,000 HF8 UL, CSA,TÜV
Bag
Quantity
Tape & Reel
Quantity
Ammo Pack
Quantity
Standard Package
Quantity Part Marking Agency Recognition
156
RoHS Compliant, ELV Compliant
Page 23
Table R6 Packaging and Marking Information for Radial-leaded Devices
PolySwitch Resettable Devices – Radial-leaded Devices
Cont’d
Part Number
RHEF 16V - High Temperature
RHEF900 250 —— 5,000 HF9 UL, CSA,TÜV RHEF900-2 — 1,000 — 5,000 HF9 UL, CSA, TÜV RHEF900-AP ——1,000 5,000 HF9 UL, CSA,TÜV RHEF1000 250 —— 5,000 HF10 UL, CSA,TÜV RHEF1000-2 — 1,000 — 5,000 HF10 UL, CSA, TÜV RHEF1000-AP ——1,000 5,000 HF10 UL, CSA,TÜV RHEF1100 250 —— 5,000 HF11 UL, CSA,TÜV RHEF1100-2 — 1,000 — 5,000 HF11 UL, CSA, TÜV RHEF1100-AP ——1,000 5,000 HF11 UL, CSA,TÜV RHEF1300 250 —— 5,000 HF13 UL, CSA,TÜV RHEF1300-2 — 1,000 — 5,000 HF13 UL, CSA, TÜV RHEF1300-AP ——1,000 5,000 HF13 UL, CSA,TÜV RHEF1400 250 —— 5,000 HF14 UL, CSA,TÜV RHEF1400-2 — 1,000 — 5,000 HF14 UL, CSA, TÜV RHEF1400-AP ——1,000 5,000 HF14 UL, CSA,TÜV RHEF1500 250 —— 5,000 HF15 UL, CSA,TÜV RHEF1500-2 — 1,000 — 5,000 HF15 UL, CSA, TÜV RHEF1500-AP ——1,000 5,000 HF15 UL, CSA,TÜV
RUSBF 6V
RUSBF075 500 ——10,000 RF075 UL, CSA,TÜV RUSBF075-2 — 3,000 — 15,000 RF075 UL, CSA, TÜV RUSBF075-AP ——2,000 10,000 RF075 UL, CSA,TÜV RUSBF120 500 ——10,000 RF120 UL, CSA,TÜV RUSBF120-2 — 3,000 — 15,000 RF120 UL, CSA, TÜV RUSBF120-AP ——2,000 10,000 RF120 UL, CSA,TÜV RUSBF155 500 ——10,000 RF155 UL, CSA,TÜV RUSBF155-2 — 3,000 — 15,000 RF155 UL, CSA, TÜV RUSBF155-AP ——2,000 10,000 RF155 UL, CSA,TÜV
Bag
Quantity
Tape & Reel
Quantity
Ammo Pack
Quantity
Standard Package
Quantity Part Marking Agency Recognition
Agency Recognitions for Radial-leaded Devices
UL File # E74889 CSA File # CA78165 TÜV Certificate number available on request (per IEC 60730-1).
RoHS Compliant, ELV Compliant
12
157
Page 24
12
Table R7 Tape and Reel Specifications for Radial-leaded Devices
RXEF, BBRF and RKEF devices are available in tape and reel packaging per EIA468-B/IEC60286-2 standards. See Figures R22 and R23 for details.
Description EIA Mark Dimension (mm) Tolerance
Carrier tape width W 18 -0.5/+1.0
Hold-down tape width W
Top distance between tape edges W
Sprocket hole position W
Sprocket hole diameter D
4
6
5
0
Abscissa to plane (straight lead) (RXEF110 to RXEF300, RKEF135 to RKEF500) H 18.5 ± 2.5
Abscissa to plane (kinked lead) (RXEF010 to RXEF090, BBRF550, RKEF050 to RKEF110) H
Abscissa to top (RXEF010 to RXEF090, BBRF550, RKEF050 to RKEF185) H
Abscissa to top* (RXEF110 to RXEF300, RKEF250 to RKEF500) H
Overall width with lead protrusion (RXEF010 to RXEF090, BBRF550, RKEF050 to RKEF185) C
Overall width with lead protrusion* (RXEF110 to RXEF300, RKEF250 to RKEF500) C
Overall width without lead protrusion (RXEF010 to RXEF090, BBRF550, RKEF050 to RKEF185) C
Overall width without lead protrusion* (RXEF110 to RXEF300, RKEF250 to RKEF500) C
Lead protrusion L
0
1
1
1
1
2
2
1
Protrusion of cut-out L 11.0 Maximum
Protrusion beyond hold-down tape I
Sprocket hole pitch P
2
0
Device pitch (RXEF010 to RXEF090, BBRF550, RKEF050 to RKEF185) — 12.7 ± 0.3
Device pitch (RXEF110 to RXEF300, RKEF250 to RKEF500) — 25.4 ± 0.61
Pitch tolerance — 20 consecutive ± 1
Tape thickness t 0.9 Maximum
Overall tape and lead thickness (RXEF010 to RXEF090, RKEF050 to RKEF185) t
Overall tape and lead thickness (RXEF110 to RXEF300, BBRF550, RKEF250 to RKEF500) t
1
1
Splice sprocket hole alignment —0± 0.3
Body lateral deviation ⌬h0± 1.0
Body tape plane deviation ⌬p0± 1.3
Ordinate to adjacent component lead (RXEF010 to RXEF185, BBRF550, RKEF050 to RKEF300) P
Ordinate to adjacent component lead (RXEF250 to RXEF300, RKEF375 to RKEF500) P
1
1
Lead spacing* (RXEF010 to RXEF185, BBRF550, RKEF050 to RKEF300) F 5.05 ± 0.75
Lead spacing* (RXEF250 to RXEF300, RKEF375 to RKEF500) F 10.15 ± 0.75
Reel width (RXEF010 to RXEF090, RKEF050 to RKEF185) w
Reel width* (RXEF110 to RXEF300, RKEF250 to RKEF500) w
2
2
Reel diameter a 370.0 Maximum
Space between flanges* (RXEF010 to RXEF090, RKEF050 to RKEF185) w
Space between flanges* (RXEF110 to RXEF300, RKEF250 to RKEF500) w
1
1
Arbor hold diameter c 26.0 ± 12.0
Core diameter* n 91.0 Maximum
Box — 64/372/362 Maximum
Consecutive missing places — None —
Empty places per reel — 0.1% Maximum
*Differs from EIA specification.
11 Minimum
3 Maximum
9 -0.5/+0.75
4 ± 0.2
16.0 ± 0.5
32.2 Maximum
47.5 Maximum
43.2 Maximum
58 Maximum
42.5 Maximum
57 Maximum
1.0 Maximum
Not specified —
12.7 ± 0.3
1.5 Maximum
2.3 Maximum
3.81 ± 0.7
7.62 ± 0.7
56.0 Maximum
63.5 Maximum
48.00 Maximum
55.00 Maximum
158
RoHS Compliant, ELV Compliant
Page 25
Table R7 Tape and Reel Specifications for Radial-leaded Devices
RUEF and RUSBF devices are available in tape and reel packaging per EIA468–B/IEC60286–2 standards. See Figures R22 and R23 for details.
Description EIA Mark Dimension (mm) Tolerance
Carrier tape width W 18 -0.5/+1.0
Hold-down tape width W
Top distance between tape edges W
Sprocket hole position W
Sprocket hole diameter D
4
6
5
0
Abscissa to plane (straight lead)* (RUEF300 to RUEF900) H 18.5 ± 2.5
Abscissa to plane (kinked lead) (RUSBF075 to RUSBF250, RUEF090 to RUEF250) H
Abscissa to top (RUSBF075 to RUSBF250, RUEF090 to RUEF300) H
Abscissa to top* (RUEF400 to RUEF900) H
Overall width with lead protrusion (RUSBF075 to RUSBF250, RUEF090 to RUEF300) C
Overall width with lead protrusion (RUEF400 to RUEF900) C
Overall width without lead protrusion (RUSBF075 to RUSBF250, RUEF090 to RUEF300) C
Overall width without lead protrusion (RUEF400 to RUEF900) C
Lead protrusion L
0
1
1
1
1
2
2
1
Protrusion of cut-out L 11 Maximum
Protrusion beyond hold-down tape I
Sprocket hole pitch P
2
0
Device pitch (RUSBF075 to RUSBF250, RUEF090 to RUEF300) — 12.7 ± 0.3
Device pitch (RUEF400 to RUEF900) — 25.4 ± 0.6
Pitch tolerance — 20 consecutive ± 1
Tape thickness t 0.9 Maximum
Overall tape and lead thickness (RUSBF075 to RUSBF250, RUEF090 to RUEF250) t
Overall tape and lead thickness* (RUEF300 to RUEF900) t
1
1
Splice sprocket hole alignment —0± 0.3
Body lateral deviation ⌬h0± 1.0
Body tape plane deviation ⌬p0± 1.3
Ordinate to adjacent component lead (RUSBF075 to RUSBF250, RUEF090 to RUEF300) P
Ordinate to adjacent component lead (RUEF400 to RUEF900) P
1
1
Lead spacing* (RUSBF075 to RUSBF250, RUEF090 to RUEF400) F 5.05 ± 0.75
Lead spacing* (RUEF500 to RUEF900) F 10.15 ± 0.75
Reel width (RUEF090 to RUEF400, RUSBF075 to RUSBF250) w
Reel width (RUEF500* to RUEF900) w
2
2
Reel diameter a 370.0 Maximum
Space between flanges* (RUEF090 to RUEF400, RUSBF075 to RUSBF250) w
Space between flanges* (RUEF500 to RUEF900) w
1
1
Arbor hold diameter c 26.0 ± 12.0
Core diameter* n 91.0 Maximum
Box — 64/372/362 Maximum
Consecutive missing places — None —
Empty places per reel — 0.1% Maximum
*Differs from EIA specification.
11 Minimum
3 Maximum
9 -0.5/+0.75
4 ± 0.2
16.0 ± 0.5
32.2 Maximum
45.0 Maximum
43.2 Maximum
56 Maximum
42.5 Maximum
56 Maximum
1.0 Maximum
Not specified —
12.7 ± 0.3
1.5 Maximum
2.3 Maximum
3.81 ± 0.7
7.62 ± 0.7
56.0 Maximum
63.5 Maximum
48.0 Maximum
55.0 Maximum
PolySwitch Resettable Devices – Radial-leaded Devices
Cont’d
12
RoHS Compliant, ELV Compliant
159
Page 26
12
Table R7 Tape and Reel Specifications for Radial-leaded Devices
RGEF and RHEF devices are available in tape and reel packaging per EIA468–B/IEC60286–2 standards. See Figures R22 and R23 for details.
Description EIA Mark Dimension (mm) Tolerance
Carrier tape width W 18 -0.5/+1.0
Hold-down tape width W
Top distance between tape edges W
Sprocket hole position W
Sprocket hole diameter D
4
6
5
0
Abscissa to plane (straight lead) (RGEF250 to RGEF1400) H 18.5 ± 2.5
Abscissa to plane (kinked lead) (RHEF050 to RHEF1500) H
Abscissa to top (RGEF250 to RGEF500, RHEF050 to RHEF450) H
Abscissa to top* (RGEF600 to RGEF1400, RHEF550 to RHEF1500) H
Overall width with lead protrusion (RGEF250 to RGEF600, RHEF050 to RHEF450) C
Overall width with lead protrusion (RGEF700 to RGEF1400, RHEF550 to RHEF1500) C
Overall width without lead protrusion (RGEF250 to RGEF600, RHEF050 to RHEF450) C
Overall width without lead protrusion (RGEF700 to RGEF1400, RHEF550 to RHEF1500) C
Lead protrusion L
0
1
1
1
1
2
2
1
Protrusion of cut-out L 11 Maximum
Protrusion beyond hold-down tape I
Sprocket hole pitch P
2
0
Device pitch (RGEF250 to RGEF700, RHEF050 to RHEF600) — 25.4 ± 0.61
Device pitch (RGEF800 to RGEF1400, RHEF650 to RHEF1500) — 25.4 ± 0.6
Pitch tolerance — 20 consecutive ± 1
Tape thickness t 0.9 Maximum
Overall tape and lead thickness* (RGEF250 to RGEF1100, RHEF050 to RHEF1100) t
Overall tape and lead thickness* (RGEF1200 to RGEF1400, RHEF1300 to RHEF1500) t
1
1
Splice sprocket hole alignment —0± 0.3
Body lateral deviation ⌬h0± 1.0
Body tape plane deviation ⌬p0± 1.3
Ordinate to adjacent component lead (RGEF250 to RGEF1100, RHEF050 to RHEF900) P
Ordinate to adjacent component lead (RGEF1200 to RGEF1400, RHEF1000 to RHEF1500) P
1
1
Lead spacing* (RGEF250 to RGEF1100, RHEF050 to RHEF900) F 5.05 ± 0.75
Lead spacing* (RGEF1200 to RGEF1400, RHEF1000 to RHEF1500) F 10.15 ± 0.75
Reel width (RGEF250 to RGEF600, RHEF050 to RHEF450) w
Reel width* (RGEF700 to RGEF1400 & RHEF550 to RHEF1500) w
2
2
Reel diameter a 370.0 Maximum
Space between flanges* (RGEF250 to RGEF600, RHEF050 to RHEF450) w
Space between flanges* (RGEF700 to RGEF1400, RHEF550 to RHEF1500) w
1
1
Arbor hold diameter c 26.0 ± 12.0
Core diameter* n 91.0 Maximum
Box — 64/372/362 Maximum
Consecutive missing places — None —
Empty places per reel — 0.1% Maximum
*Differs from EIA specification.
11 Minimum
3 Maximum
9 -0.5/+0.75
4 ± 0.2
16.0 ± 0.5
32.2 Maximum
45.0 Maximum
43.2 Maximum
55 Maximum
42.5 Maximum
54 Maximum
1.0 Maximum
Not specified —
12.7 ± 0.3
2.0 Maximum
2.3 Maximum
3.81 ± 0.7
7.62 ± 0.7
56.0 Maximum
63.5 Maximum
48.0 Maximum
55.0 Maximum
Cont’d
160
RoHS Compliant, ELV Compliant
Page 27
w
1
n
a
c
w
2
Cross section
Direction of
unreeling
Reel
Type
Upper side
Lower side
Optional shape: Circular or polygonal
Dh
H
1
P
1
D
4
H
0
H
1
C
1
C
2
F
A B
Reference plane
Direction of unreeling
Cross section A-B
W
5
H
W
t
P
0
D
0
I
2
L
L
1
Dh
Dp Dp
RUEF 250 U 2
Packaging
Blank = Packaged in bags
-1 = 25.4mm (1.0 inch) minimum lead length
-2 = Tape and reel
-AP = Ammo pack
-X.X = Special lead cut length (inch)
Modifier
K = Standard kinked lead B = Special kinked lead S = Straight lead U = Uncoated device
Hold Current Indicator
Product Series
An “F” at the end of product series indicates Pb-free version of product.
Figure R22 EIA Referenced Taped Component Dimensions for Radial-leaded Devices
Figure R23 EIA Referenced Reel Dimensions for Radial-leaded Devices
PolySwitch Resettable Devices – Radial-leaded Devices
Part Numbering System for Radial-leaded Devices
Note: Kinked part is recommended to well control the height of part on the PCB in non-auto PCB application.
RoHS Compliant, ELV Compliant
12
161
Page 28
12
Warning :
• Users should independently evaluate the suitability of and test each product selected for their own application.
• Operation beyond the maximum ratings or improper use may result in device damage and possible electrical arcing and flame.
• These devices are intended for protection against damage caused by occasional overcurrent or overtemperature fault conditions and should not be used when repeated fault conditions or prolonged trip events are anticipated.
•
Contamination of the PPTC material with certain silicone-based oils or some aggressive solvents can adversely impact the performance of the devices.
• Device performance can be impacted negatively if devices are handled in a manner inconsistent with recommended electronic, thermal, and mechanical procedures for electronic components.
• PPTC devices are not recommended for installation in applications where the device is constrained such that its PTC properties are inhibited, for example in rigid potting materials or in rigid housings, which lack adequate clearance to accommodate device expansion.
• Operation in circuits with a large inductance can generate a circuit voltage (Ldi/dt) above the rated voltage of the device.
162
RoHS Compliant, ELV Compliant
Loading...
