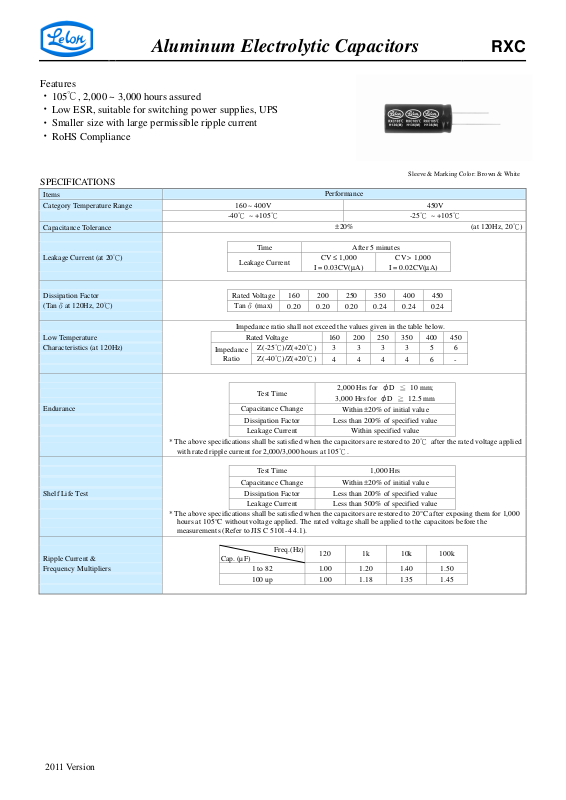

Aluminum Electrolytic Capacitors
Features
‧
105℃, 2,000 ~ 3,000 hours assured
‧
Low ESR, suitable for switching power supplies, UPS
‧
Smaller size with large permissible ripple current
‧
RoHS Compliance
SPECIFICATIONS
Items
Category Temperature Range 160 ~ 400V 450V
Capacitance Tolerance
Leakage Current (at 20°C)
Dissipation Factor
(Tanδat 120Hz, 20°C)
Low Temperature
Characteristics (at 120Hz)
Endurance
Shelf Life Test
Ripple Current &
Frequency Multipliers
* The above specifications shall be satisfied when the capacitors are restored to 20℃ after the rated voltage applied
with rated ripple current for 2,000/3,000 hours at 105℃.
* The above specifications shall be satisfied when the capacitors are restored to 20°C after exposing them for 1,000
hours at 105°C without voltage applied. The rated voltage shall be applied to the capacitors before the
measurements (Refer to JIS C 5101-4 4.1).
-40℃ ~ +105℃ -25℃ ~ +105℃
Leakage Current
Rated Voltage 160 200 250 350 400 450
Tanδ (max)
Impedance ratio shall not exceed the values given in the table below.
Rated Voltage 160 200 250 350 400 450
Impedance
Ratio
Capacitance Change
Dissipation Factor Less than 200% of specified value
Leakage Current Within specified value
Capacitance Change
Dissipation Factor Less than 200% of specified value
Leakage Current Less than 500% of specified value
Cap. (µF)
Sleeve & Marking Color: Brown & White
Performance
20% (at 120Hz, 20℃)
±
Time After 5 minutes
CV ≤ 1,000
I = 0.03CV(µA)
0.20 0.20 0.20 0.24 0.24 0.24
Z(-25℃)/Z(+20℃)
Z(-40℃)/Z(+20℃)
Test Time
Test Time 1,000 Hrs
Freq.(Hz)
1 to 82 1.00 1.20 1.40 1.50
100 up 1.00 1.18 1.35 1.45
3 3 3 3 5 6
4 4 4 4 6 -
2,000 Hrs for φD ≦ 10 mm;
3,000 Hrs for φD ≧ 12.5 mm
Within ±20% of initial value
Within ±20% of initial value
120 1k 10k 100k
CV > 1,000
I = 0.02CV(µA)
RXC
2011 Version
Page 2
Vent≧8
Aluminum Electrolytic Capacitors
RXC

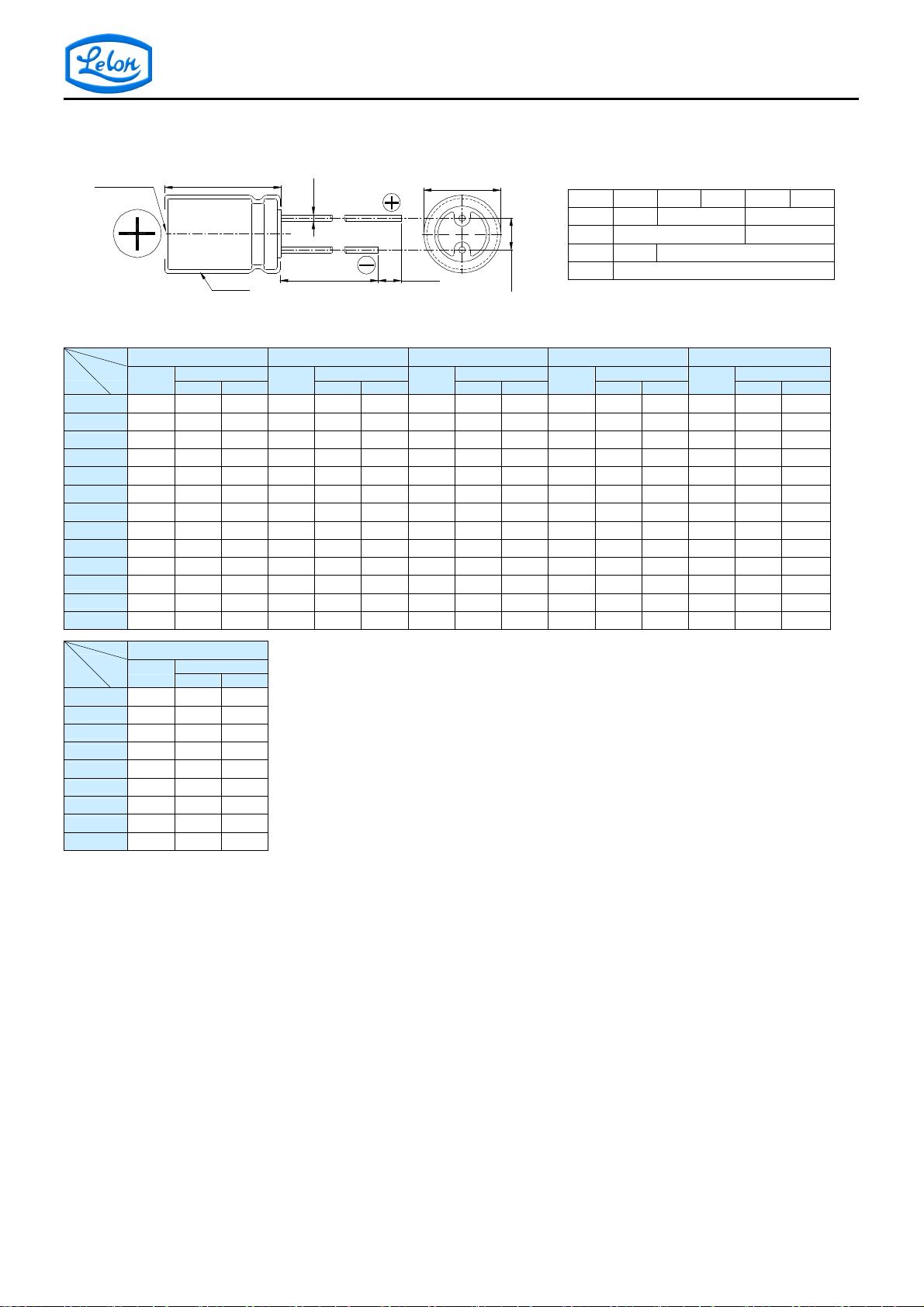

DIAGRAM OF DIMENSIONS
Unit: mm
LEAD SPACING AND DIAMETER
Dimension: φD × L(mm)
DIMENSION & PERMISSIBLE RIPPLE CURRENT
Contents
µF
1.5 10×12.5 48 72
2.2 8×11.5 47 71 10×12.5 55 83 10×16 66 99
3.3 8×11.5 48 72 8×11.5 52 78 10×12.5 80 120 10×16 75 113 10×20 85 128
4.7 8×11.5 58 87 10×12.5 88 132 10×16 105 158 10×20 120 180 10×20 100 150
10 10×16 100 150 10×16 125 188 10×20 165 248 10×20 150 225 10×20 145 218
22 10×16 155 233 10×20 170 255 12.5×20 240 360 12.5×20 240 360 12.5×25 260 390
33 10×20 220 330 12.5×20 275 415 12.5×25 365 550 12.5×25 300 450 12.5×25 285 430
47 12.5×25 340 510 12.5×20 295 445 12.5×25 390 585 16×25 410 615 16×31.5 445 665
68 12.5×25 385 580 12.5×25 395 595 16×25 485 730 16×31.5 485 730 16×31.5 490 735
100 12.5×25 450 655 16×25 550 800 16×31.5 630 915 16×31.5 520 755 18×31.5 610 885
150 16×25 610 885 16×31.5 720 1,045 18×31.5 780 1,130
220 16×31.5 755 1,095 18×35.5 900 1,305 18×40 970 1,405
330 18×35.5 940 1,360
Contents
µF
1.5 10×12.5 50 75
2.2 10×16 68 102
3.3 10×20 88 132
4.7 12.5×20 140 210
10 12.5×25 200 300
22 16×25 305 460
33 16×31.5 410 615
47 18×31.5 495 745
68 18×35.5 540 810
V.DC
V. DC
φ
L+α max
Sleeve
d
φ
15 min 4 min
φD+β
max
φD
φd
α
0.5
±
P
β
8 10 12.5 16 18
P 3.5 5.0 7.5
0.6 0.8
1.0 1.5
Ripple Current: mA/rms, 105°C
160V (2C) 200V (2D) 250V (2E) 350V (2V) 400V (2G)
φD×L
φD×L
Ripple Current
120 Hz 100k Hz 120 Hz 100k Hz 120 Hz 100k Hz 120 Hz 100k Hz
450V (2W)
Ripple Current
120 Hz 100k Hz
φD×L
Ripple Current
φD×L
Ripple Current
φD×L
Ripple Current
φD×L
0.5
120 Hz 100k Hz
Ripple Current
