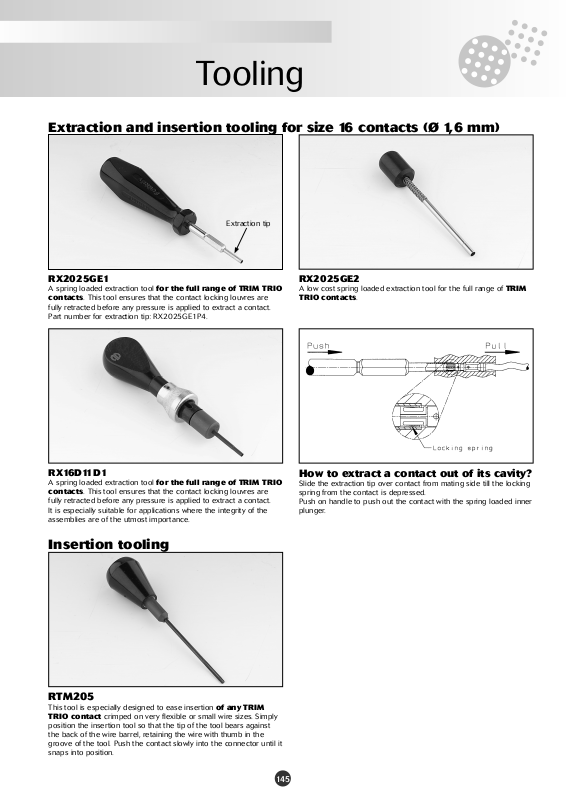

Tooling
Extraction and insertion tooling for size 16 contacts (Ø 1,6 mm)
Extraction tip
RX2025GE1
A spring loaded extraction tool for the full range of TRIM TRIO
contacts. This tool ensures that the contact locking louvres are
fully retracted before any pressure is applied to extract a contact.
Part number for extraction tip: RX2025GE1P4.
RX16D11D1
A spring loaded extraction tool for the full range of TRIM TRIO
contacts. This tool ensures that the contact locking louvres are
fully retracted before any pressure is applied to extract a contact.
It is especially suitable for applications where the integrity of the
assemblies are of the utmost importance.
Insertion tooling
RX2025GE2
A low cost spring loaded extraction tool for the full range of TRIM
TRIO contacts.
How to extract a contact out of its cavity?
Slide the extraction tip over contact from mating side till the locking
spring from the contact is depressed.
Push on handle to push out the contact with the spring loaded inner
plunger.
RTM205
This tool is especially designed to ease insertion of any TRIM
TRIO contact crimped on very flexible or small wire sizes. Simply
position the insertion tool so that the tip of the tool bears against
the back of the wire barrel, retaining the wire with thumb in the
groove of the tool. Push the contact slowly into the connector until it
snaps into position.
145
