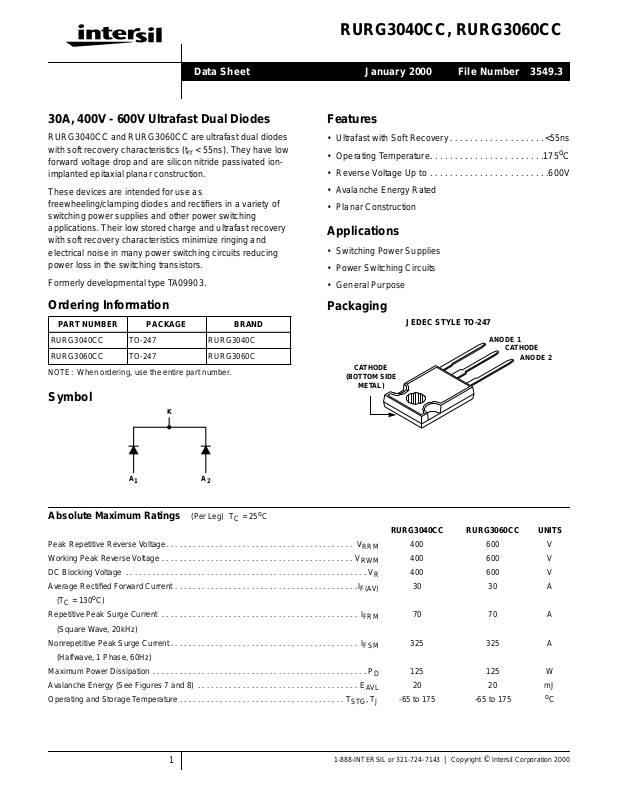

Page 1
RURG3040CC, RURG3060CC
Data Sheet January 2000
30A, 400V - 600V Ultrafast Dual Diodes
RURG3040CC and RURG3060CC are ultrafast dual diodes
with soft recovery characteristics (t
< 55ns). They havelow
rr
forward voltage drop and are silicon nitride passivated ionimplanted epitaxial planar construction.
These devices are intended for use as
freewheeling/clamping diodes and rectifiers in a variety of
switching power supplies and other power switching
applications. Their low stored charge and ultrafast recovery
with soft recovery characteristics minimize ringing and
electrical noise in many power switching circuits reducing
power loss in the switching transistors.
Formerly developmental type TA09903.
Ordering Information
PART NUMBER PACKAGE BRAND
RURG3040CC TO-247 RURG3040C
RURG3060CC TO-247 RURG3060C
NOTE: When ordering, use the entire part number.
Symbol
K
File Number 3549.3
Features
• Ultrafast with Soft Recovery . . . . . . . . . . . . . . . . . . .<55ns
• Operating Temperature. . . . . . . . . . . . . . . . . . . . . . .175
o
• Reverse Voltage Up to . . . . . . . . . . . . . . . . . . . . . . . .600V
• Avalanche Energy Rated
• Planar Construction
Applications
• Switching Power Supplies
• Power Switching Circuits
• General Purpose
Packaging
JEDEC STYLE TO-247
ANODE 1
CATHODE
CATHODE
(BOTTOM SIDE
METAL)
ANODE 2
C
A
1
Absolute Maximum Ratings (Per Leg) T
Peak Repetitive Reverse Voltage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V
Working Peak Reverse Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V
DC Blocking Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V
Average Rectified Forward Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .I
(TC = 130oC)
Repetitive Peak Surge Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . I
(Square Wave, 20kHz)
Nonrepetitive Peak Surge Current. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . I
(Halfwave, 1 Phase, 60Hz)
Maximum Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P
Avalanche Energy (See Figures 7 and 8) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E
Operating and Storage Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . T
1
A
2
= 25oC
C
RRM
RWM
F(AV)
FRM
FSM
STG
1-888-INTERSIL or 321-724-7143 | Copyright © Intersil Corporation 2000
RURG3040CC RURG3060CC UNITS
400 600 V
400 600 V
400 600 V
30 30 A
70 70 A
325 325 A
125 125 W
20 20 mJ
-65 to 175 -65 to 175
AVL
, T
R
D
J
o
C
Page 2
RURG3040CC, RURG3060CC
Electrical Specifications (Per Leg) T
= 25oC, Unless Otherwise Specified
C
SYMBOL TEST CONDITION MIN TYP MAX MIN TYP MAX UNITS
V
F
IF = 30A - - 1.5 - - 1.5 V
IF = 30A, TC = 150oC - - 1.3 - - 1.3 V
I
R
VR = 400V - - 250 - - - µA
VR = 600V - - - - - 250 µA
VR = 400V, TC = 150oC - - 1.0 - - - mA
VR = 600V, TC = 150oC - - - - - 1.0 mA
t
rr
t
rr
t
a
t
b
R
θJC
IF = 1A, dIF/dt = 100A/µs--55--55ns
IF = 30A, dIF/dt = 100A/µs--60--60ns
IF = 30A, dIF/dt = 100A/µs - 30 - - 30 - ns
IF = 30A, dIF/dt = 100A/µs - 20 - - 20 - ns
- - 1.2 - - 1.2
DEFINITIONS
VF = Instantaneous forward voltage (pw = 300µs, D = 2%).
IR = Instantaneous reverse current.
trr = Reverse recovery time (See Figure 6), summation of ta + tb.
ta = Time to reach peak reverse current (See Figure 6).
tb = Time from peak IRM to projected zero crossing of IRM based on a straight line from peak IRM through 25% of IRM (See Figure 6).
R
= Thermal resistance junction to case.
θJC
pw = Pulse width.
D = Duty cycle.
o
C/W
Typical Performance Curves
200
100
175oC
10
100oC
, FORWARD CURRENT (A)
F
I
1
0 0.5 1 1.5 2.52
VF, FORWARD VOLTAGE (V)
25oC
FIGURE 1. FORWARD CURRENT vs FORWARD VOLTAGE FIGURE 2. REVERSE CURRENT vs REVERSE VOLTAGE
1000
100
10
1
, REVERSE CURRENT (µA)
0.1
R
I
0.01
0 100 200 300 500 600400
VR, REVERSE VOLTAGE (V)
25
175oC
100
o
C
o
C
2
Page 3
RURG3040CC, RURG3060CC
Typical Performance Curves (Continued)
60
50
40
30
20
t, RECOVERY TIMES (ns)
10
0
1
10 30
IF, FORWARD CURRENT (A)
t
rr
t
a
t
b
30
25
20
15
10
5
, AVERAGE FORWARD CURRENT (A)
F(AV)
I
0
100 120 140 160 180
SQ. WAVE
TC, CASE TEMPERATURE (oC)
DC
FIGURE 3. trr, ta AND tb CURVES vs FORWARD CURRENT FIGURE 4. CURRENT DERATING CURVE
Test Circuits and Waveforms
VGE AMPLITUDE AND
RG CONTROL dIF/dt
t
V
GE
1 ANDt2
CONTROL I
t
1
F
R
G
t
2
L
IGBT
DUT
CURRENT
SENSE
dI
F
I
F
+
V
DD
-
0
dt
t
rr
t
a
t
b
0.25 I
I
RM
RM
FIGURE 5. trr TEST CIRCUIT FIGURE 6. trr WAVEFORMS AND DEFINITIONS
I = 1A
L = 40mH
R < 0.1Ω
= 1/2LI2 [V
E
AVL
= IGBT (BV
Q
1
R(AVL)
CES
/(V
> DUT V
Q
R(AVL)
R(AVL)
1
- VDD)]
)
CURRENT
DUT
SENSE
LR
+
V
V
-
DD
DD
IV
V
AVL
I
L
t
0
I
L
t
1
t
2
t
FIGURE 7. AVALANCHE ENERGY TEST CIRCUIT FIGURE8. AVALANCHE CURRENT AND VOLTAGE
WAVEFORMS
All Intersil semiconductor products are manufactured, assembled and tested under ISO9000 quality systems certification.
Intersil semiconductor products are sold by description only. Intersil Corporation reserves the right to make changes in circuit design and/or specifications at any time without notice. Accordingly , the reader is cautioned to verify that data sheets are current before placing orders. Information furnished by Intersil is believed to be accurate and
reliable. However, no responsibility is assumed by Intersil or its subsidiaries for its use; nor for any infringements of patents or other rights of third parties which may result
from its use. No license is granted by implication or otherwise under any patent or patent rights of Intersil or its subsidiaries.
For information regarding Intersil Corporation and its products, see web site www.intersil.com
