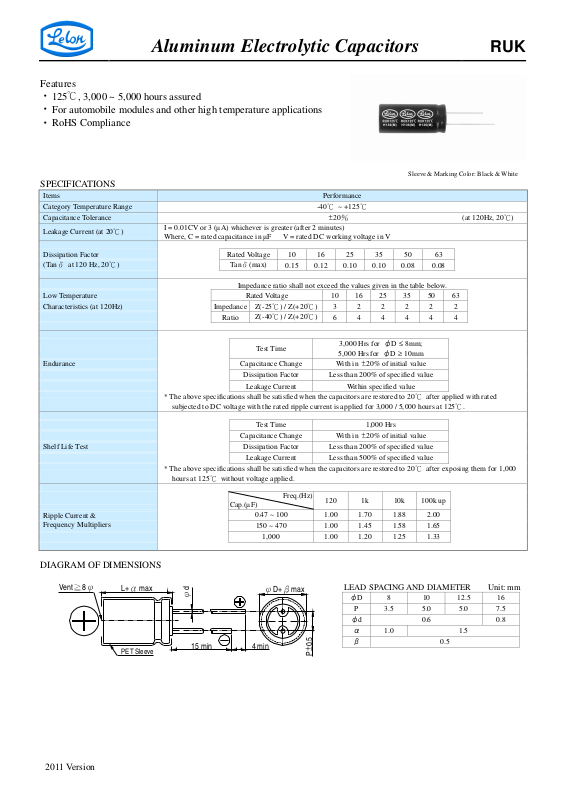

Vent≧8
Aluminum Electrolytic Capacitors
RUK
Features
‧
125℃, 3,000 ~ 5,000 hours assured
‧
For automobile modules and other high temperature applications
‧
RoHS Compliance
Sleeve & Marking Color: Black & White
SPECIFICATIONS
Items Performance
Category Temperature Range
Capacitance Tolerance
Leakage Current (at 20℃)
Dissipation Factor Rated Voltage 10 16 25 35 50 63
(Tanδ at 120 Hz, 20℃)
Low Temperature Rated Voltage 10 16 25 35 50 63
Characteristics (at 120Hz) Impedance
Ratio
Test Time
Endurance Capacitance Change
Dissipation Factor Less than 200% of specified value
Leakage Current Within specified value
Test Time 1,000 Hrs
Capacitance Change
Shelf Life Test Dissipation Factor Less than 200% of specified value
Leakage Current Less than 500% of specified value
Ripple Current &
Frequency Multipliers
1,000 1.00 1.20 1.25 1.33
I = 0.01CV or 3 (µA) whichever is greater (after 2 minutes)
Where, C = rated capacitance in µF V = rated DC working voltage in V
* The above specifications shall be satisfied when the capacitors are restored to 20℃ after applied with rated
subjected to DC voltage with the rated ripple current is applied for 3,000 / 5,000 hours at 125℃.
* The above specifications shall be satisfied when the capacitors are restored to 20℃ after exposing them for 1,000
hours at 125℃ without voltage applied.
0.47 ~ 100 1.00 1.70 1.88 2.00
150 ~ 470 1.00 1.45 1.58 1.65
Tanδ(max)
Impedance ratio shall not exceed the values given in the table below.
Z(-25℃) / Z(+20℃)
Z(-40℃) / Z(+20℃)
Cap.(µF)
0.15 0.12 0.10 0.10 0.08 0.08
Freq.(Hz)
-40℃ ~ +125℃
±20％
(at 120Hz, 20℃)
3 2 2 2 2 2
6 4 4 4 4 4
3,000 Hrs for φD ≤ 8mm;
5,000 Hrs for φD ≥ 10mm
With in ±20% of initial value
With in ±20% of initial value
120 1k 10k 100k up
DIAGRAM OF DIMENSIONS
LEAD SPACING AND DIAMETER Unit: mm
φ
L+α max
PET Sleeve
d
φ
15 min 4 min
φD+β
max
φD
P 3.5 5.0 5.0 7.5
φd
α
0.5
±
P
β
8 10 12.5 16
0.6 0.8
1.0 1.5
0.5
2011 Version

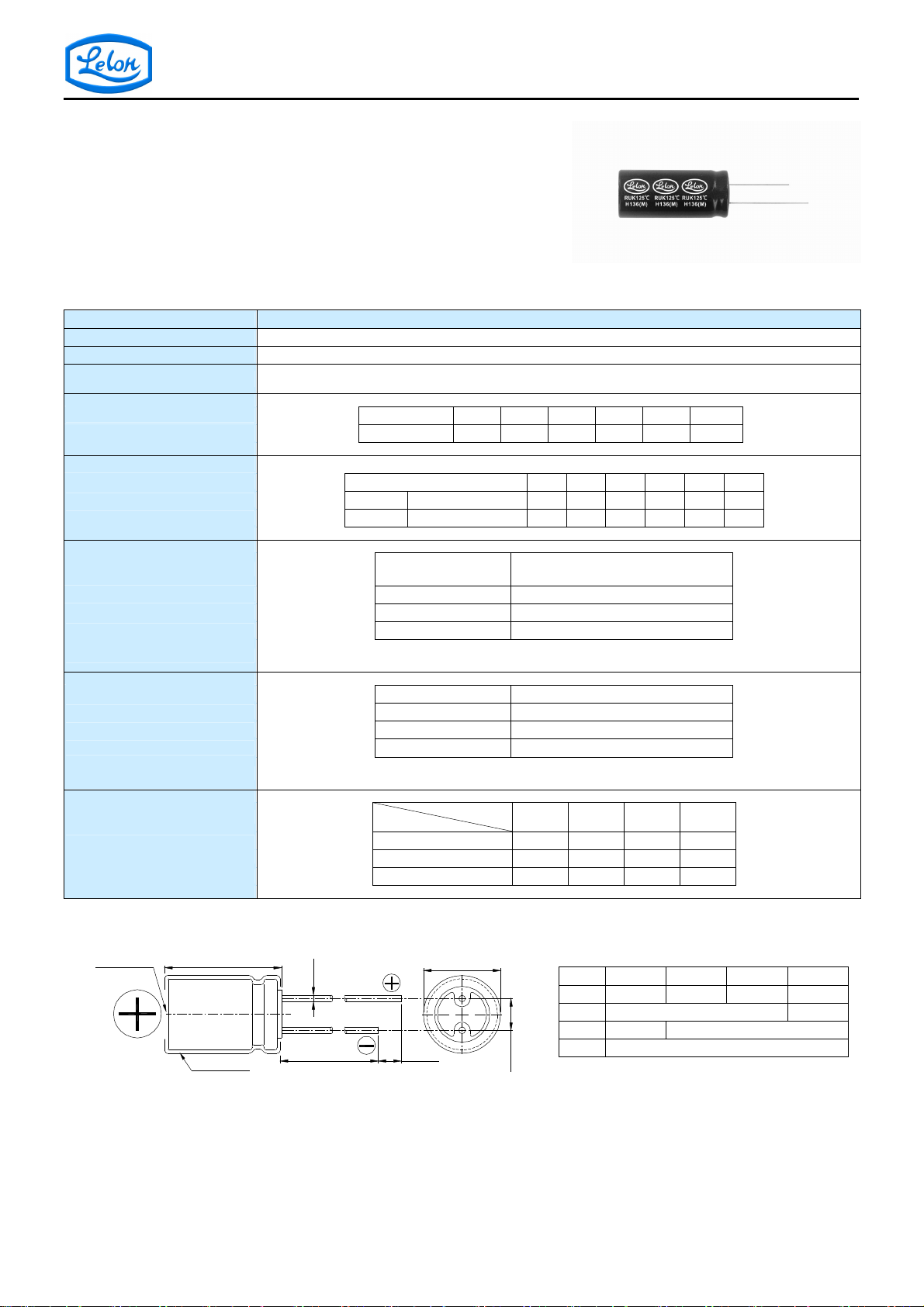

Page 2
Contents
Aluminum Electrolytic Capacitors
Dimension: φD × L(mm)
DIMENSION & PERMISSIBLE RIPPLE CURRENT
µF
0.47 R47 8×11.5 12 8×11.5 12
1,000 102 16×20 715
V. DC
1 010 8×11.5 17 8×11.5 17
2.2. 2R2 8×11.5 26 8×11.5 26
3.3 3R3 8×11.5 32 8×11.5 32
4.7 4R7 8×11.5 38 8×11.5 38
10 100 8×11.5 56 8×11.5 56
22 220
33 330
47 470
100 101
220 221
330 331
470 471
10V (1A) 16V (1C) 25V (1E) 35V (1V) 50V (1H) 63V (1J)
φD×L
10×12.5 154 10×16 190 10×16 208 10×20 225
10×16 252 10×20 305 12.5×20 371 12.5×25 403
10×16 308 12.5×20 414 12.5×25 493 16×20 503
10×20 399 12.5×25 537 16×20 601
mA
φD×L
8×11.5 75
8×11.5 92 10×12.5 108
8×11.5 100 10×12.5 129 10×16 142
mA
φD×L
Ripple Current: mA/rms at 120 Hz, 125°C
mA
φD×L
mA
φD×L
10×12.5 99 10×12.5 99
10×16 133 10×16 133
10×16 159 10×20 173
12.5×20 279 12.5×20 279
16×20 459
mA
φD×L
mA
RUK
2011 Verison
