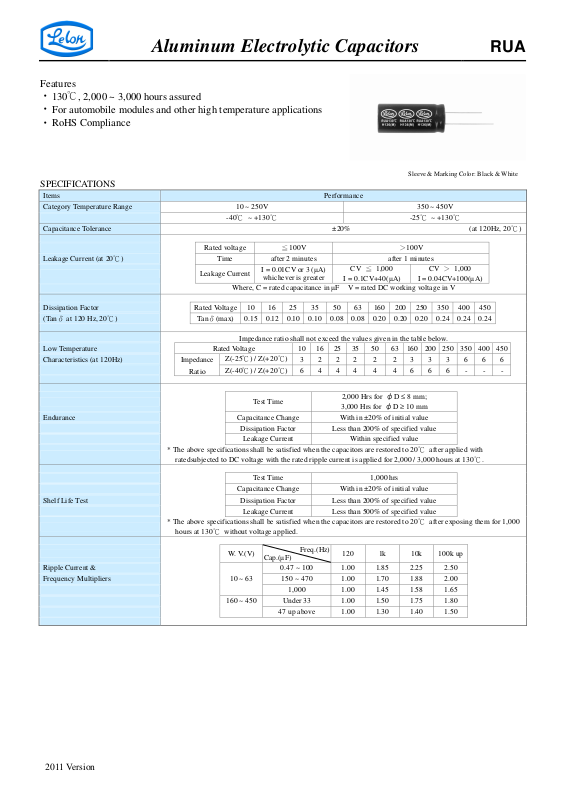

Aluminum Electrolytic Capacitors
Features
‧
130℃, 2,000 ~ 3,000 hours assured
‧
For automobile modules and other high temperature applications
‧
RoHS Compliance
SPECIFICATIONS
Items Performance
Category Temperature Range 10 ~ 250V 350 ~ 450V
Capacitance Tolerance
Leakage Current (at 20℃)
Dissipation Factor
(Tanδ at 120 Hz, 20℃)
Low Temperature
Characteristics (at 120Hz)
Endurance
Test Time 1,000 hrs
Capacitance Change With in ±20% of initial value
Shelf Life Test Dissipation Factor Less than 200% of specified value
Leakage Current Less than 500% of specified value
Ripple Current &
Frequency Multipliers
Rated Voltage 10 16 25 35 50 63 160 200 250 350 400 450
Tanδ(max)
Impedance
Ratio
* The above specifications shall be satisfied when the capacitors are restored to 20℃ after applied with
ratedsubjected to DC voltage with the rated ripple current is applied for 2,000 / 3,000 hours at 130℃.
* The above specifications shall be satisfied when the capacitors are restored to 20℃ after exposing them for 1,000
hours at 130℃ without voltage applied.
-40℃ ~ +130℃ -25℃ ~ +130℃
±20% (at 120Hz, 20℃)
≦
Rated voltage
Time after 2 minutes after 1 minutes
Leakage Current
Where, C = rated capacitance in µF V = rated DC working voltage in V
0.15 0.12 0.10 0.10 0.08 0.08 0.20 0.20 0.20 0.24 0.24 0.24
Impedance ratio shall not exceed the values given in the table below.
Rated Voltage 10 16 25 35 50 63 160 200 250 350 400 450
Z(-25℃) / Z(+20℃)
Z(-40℃) / Z(+20℃)
Test Time
Capacitance Change With in ±20% of initial value
Dissipation Factor Less than 200% of specified value
Leakage Current Within specified value
W. V.(V)
0.47 ~ 100 1.00 1.85 2.25 2.50
10 ~ 63 150 ~ 470 1.00 1.70 1.88 2.00
1,000 1.00 1.45 1.58 1.65
160 ~ 450
47 up above 1.00 1.30 1.40 1.50
100V
I = 0.01CV or 3 (µA)
whichever is greater
Freq.(Hz)
Cap.(µF)
Under 33 1.00 1.50 1.75 1.80
CV ≦ 1,000
I = 0.1CV+40(µA)
2 2 3 3 3 6 6 6
4 4 6 6 6 - - -
2,000 Hrs for φD ≤ 8 mm;
3,000 Hrs for φD ≥ 10 mm
120 1k 10k 100k up
Sleeve & Marking Color: Black & White
＞
100V
CV ＞ 1,000
I = 0.04CV+100(µA)
RUA
2011 Version
Page 2
Contents
Contents
Vent≧8
Aluminum Electrolytic Capacitors
RUA
DIAGRAM OF DIMENSIONS
LEAD SPACING AND DIAMETER Unit: mm
Dimension: φD × L(mm)
DIMENSION & PERMISSIBLE RIPPLE CURRENT
µF
0.47 R47 8×11.5 18 8×11.5 18
1 010 8×11.5 26 8×11.5 26
2.2 2R2 8×11.5 39 8×11.5 39
3.3 3R3 8×11.5 48 8×11.5 48
4.7 4R7 8×11.5 57 8×11.5 57
10 100 8×11.5 84 8×11.5 84
22 220 8×11.5 113 10×12.5 149 10×12.5 149
33 330 8×11.5 138 10×12.5 162 10×16 200 10×16 200
47 470 8×11.5 150 10×12.5 194 10×16 213 10×16 239 10×20 260
100 101 10×12.5 231 10×16 285 10×16 312 10×20 338
220 221 10×16 378 10×20 458 12.5×20 557 12.5×25 605 12.5×20 419 12.5×20 419
330 331 10×16 462 12.5×20 621 12.5×25 740 16×20 755
470 471 10×20 599 12.5×25 806 16×20 902 16×20 689
1,000 102 16×20 1073
µF
4.7 4R7 10×20 53 10×20 53 10×25 58
10 100 10×20 78 10×20 78 10×25 85 10×25 86 12.5×20 86
22 220 10×20 115 10×25 126 12.5×20 128 12.5×25 139 12.5×25 142 16×25 154
33 330 10×25 154 12.5×20 157 12.5×25 171 16×25 189 16×25 189 16×31.5 203
47 470 12.5×20 187 12.5×25 204 16×25 225 16×31.5 243 16×31.5 243
68 680 12.5×25 245 16×20 250 16×31.5 292
100 101 16×25 329 16×25 329
150 151 16×31.5 434
Remark: The Case size 16×20 is used flat type rubber bung.
φ
L+α max
PET Sleeve
d
φ
15 min 4 min
φD+β
max
0.5
±
P
Ripple Current: mA/rms at 120 Hz, 130°C
V. DC
V. DC
10V (1A) 16V (1C) 25V (1E) 35V (1V) 50V (1H) 63V (1J)
φD×L
φD×L
mA
φD×L
160V (2C) 200V (2D) 250V (2E) 350V (2V) 400V (2G) 450V (2W)
mA
φD×L
mA
φD×L
mA
φD×L
mA
mA
φD×L
φD×L
mA
mA
φD×L
φD×L
mA
mA
φD
P 3.5 5.0 5.0 7.5
φd
α
β
8 10 12.5 16
0.6 0.8
1.0 1.5
0.5
φD×L
φD×L
mA
mA
2011 Verison
