Page 1
IS
ON
PRELIMINARY RT3TTM
DESCRIPTION
RT3TTTM is a composite transistor built with
RT1N250 chip and RT1P250 chip in SC-88 package.
FEATURE
Silicon epitaxial type
Each transistor elements are independent.
Mini package for easy mounting
APPLICATION
Inverted circuit, switching circuit,
interface circuit, driver circuit
※PNP built in transistor of ”－”sign is abbreviation.
Composite Transistor With Resistor
For Switching Application
Silicon Epitaxial Type

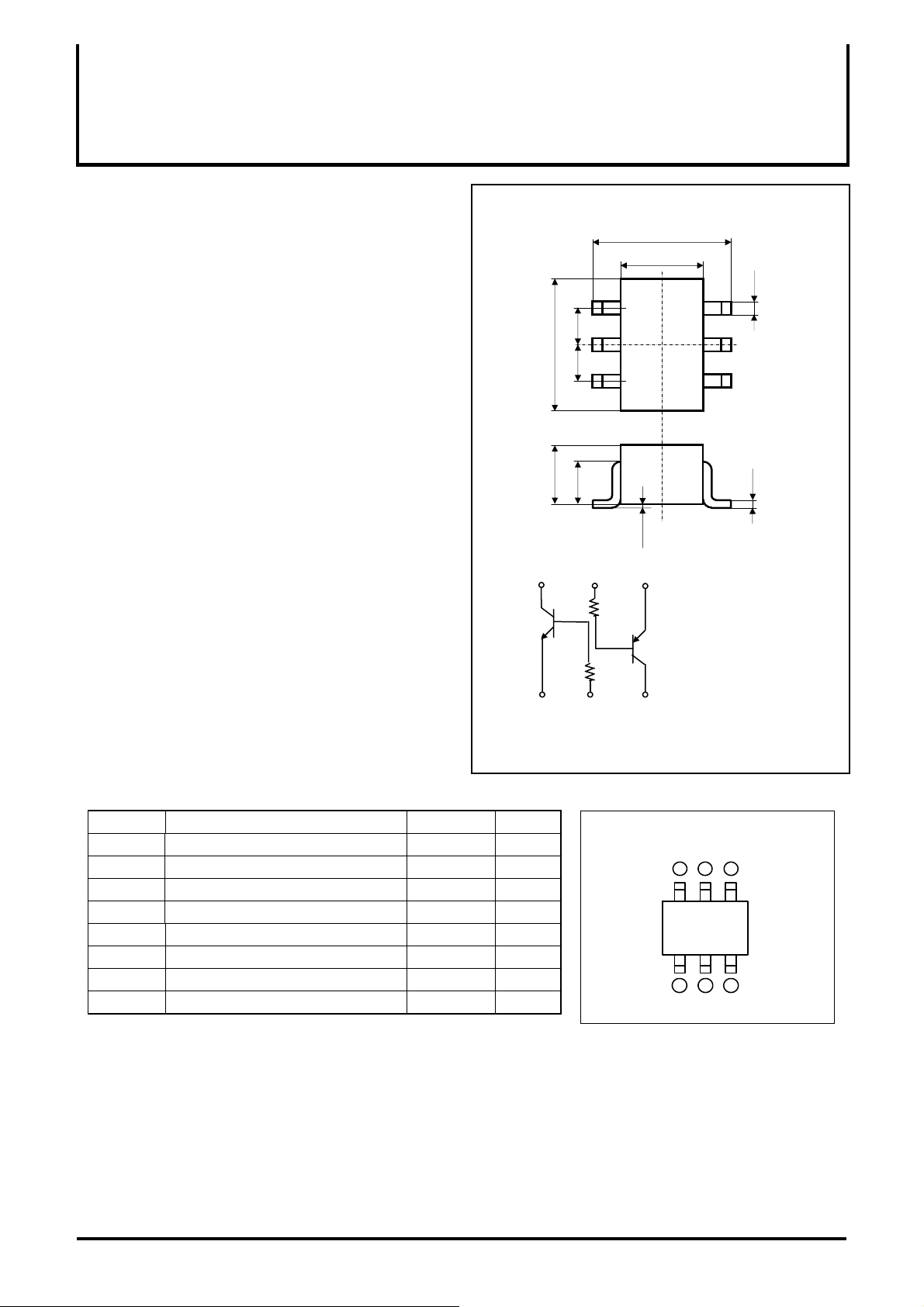

OUTLINE DRAWING Unit：mm
①
2.1
1.25
⑥
0.2
2.0
0.9
⑥
RTr1
①
0.65 0.65
0.65
R1
②
②
③
0～0.1
⑤
④
RTr2
R1
③
⑤
④
0.13
TERMINAL
CONNECTOR
①：EMITTER1
②：BASE1
③：COLLECTOR2
④：EMITTER2
⑤：BASE2
⑥:COLLECTOR1
JEITA：SC-88
MAXIMUM RATING (Ta=25℃)
SYMBOL PARAMETER RATING UNIT
V
CBO
V
EBO
V
CEO
IC
ICM
PC
Tj
T
stg
Collector to Base voltage 50 V
Emitter to Base voltage 6 V
Collector to Emitter voltage 50 V
Collector current 100 mA
Peak Collector current 200 mA
Collector dissipation（Total, Ta = 25℃）
Junction temperature
Storage temperature
150 mW
＋150 ℃
-55～＋150 ℃
MARKING
6 5 4
T T T
.
１ 2 3
AHAYA ELECTRONICS CORPORA TI
Page 2
IS
ON
PRELIMINARY RT3TTTM
Composite Transistor With Resistor
ELECTRICAL CHARACTERISTICS (Ta=25℃)
Symbol Parameter Test conditions
V
(BR)CEO
I
CBO
hFE
V
CE(sat)
R1
fT
Collector to Emitter break down voltage
Collector cut off current
DC forward current gain
Collector to Emitter saturation voltage
Input resistor - 140 200 260
Gain band width product
I
=100μA,RBE=∞
C
V
=50V,IE=0
CB
VCE=5V,IC=1mA
IC=0.5mA,IB=0.05mA
VCE=6V,IE=10mA
Tr1 - 200 Tr2 - 150 -
For Switching Application
Silicon Epitaxial Type
Limits
Min Typ Max
50 - - V
- - 0.1
100 - - -
- 0.1 0.3 V
Unit
μA
kΩ
MH
Z
AHAYA ELECTRONICS CORPORA TI
Page 3
Keep safety first in your circuit designs!
ion or
the
,
without notice
due to product improvements or other reasons. It is therefore recommended that customers contact ISAHAYA Electronics
before purchasing product listed
ISAHAYA Electronics Corporation products are not designed or manufactured for use in a device or system that is used
e is potentially at stake. Please contact ISAHAYA electronics corporation or an
,
The prior written approval of ISAHAYA Electronics Corporation is necessary to reprint or reproduce in whole or in part these
gies are subject to the Japanese export control restrictions, they must be exported under a
distributor for further details on these
Marketing division, Marketing planning department
6-41 Tsukuba, Isahaya, Nagasaki, 854-0065 Japan
·ISAHAYA Electronics Corporation puts the maximum effort into making semiconductor products better and more reliable, but
there is always the possibility that trouble may occur with them. Trouble with semiconductors may lead to personal injury, fire or
property damage. Remember to give due consideration to safety when making your circuit designs, with appropriate measures
such as (1) placement of substitutive, auxiliary, (2) use of non-farmable material or (3) prevention against any malfunct
mishap.
Notes regarding these materials
·These materials are intended as a reference to our customers in the selection of the ISAHAYA products best suited to
customer’s application; they don't convey any license under any intellectual prop erty rights, or any other rights, belonging
ISAHAYA or third party.
·ISAHAYA Electronics Corporation assumes no responsibility for any damage, or infringement of any third party's rights
originating in the use of any product data, diagrams, charts or circuit application examples contained in these materials.
·All information contained in these materials, including product data, diagrams and charts, represent information on products
at the time of publication of these materials, and are subject to change by ISAHAYA Electronics Corporation
Corporation or an authorized ISAHAYA products distr ibutor for the latest product information
herein.
·
under circumstances in which human lif
authorized ISAHAYA products distributor when considering the use of a product contained herein for any specific purposes
such as apparatus or systems for transportation, vehicular, medical, aerospace, nuclear, or undersea repeater use.
·
materials.
·If these products or technolo
license from the Japanese government and cannot be imported into a country other than the approved destination. Any
diversion or re-export contrary to the export control laws and regulations of Japan and/or the country of destination is
prohibited.
·Please contact ISAHAYA Electronics Corporation or authorized ISAHAYA products
materials or the products contained therein.
Jan.2003
